USER MANUAL YT-84872 Yato

HR ELEKTRIČNA MOTORNA PILA

AR منشار کهرباني

YT-84868

YT-84871

YT-84872

CE

HR ELEKTRIČNA MOTORNA PILA AR منشار کهرباني YATO

Mechanical assembly diagram showing chain linkages and components (no readable text or symbols)

Close-up of a hand pressing a white gear on a mechanical component (no visible text or symbols)

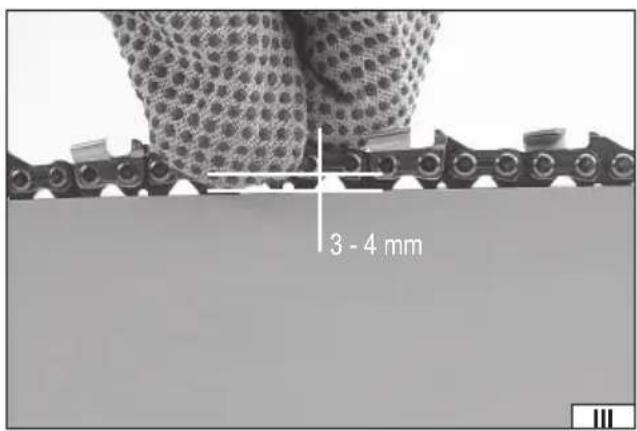

3 - 4 mm

Close-up of a mechanical robotic device with visible joints and a metallic handle (no text or symbols)

Diagram illustrating a circular layout with human silhouettes and directional arrows, possibly representing a safety or movement concept.

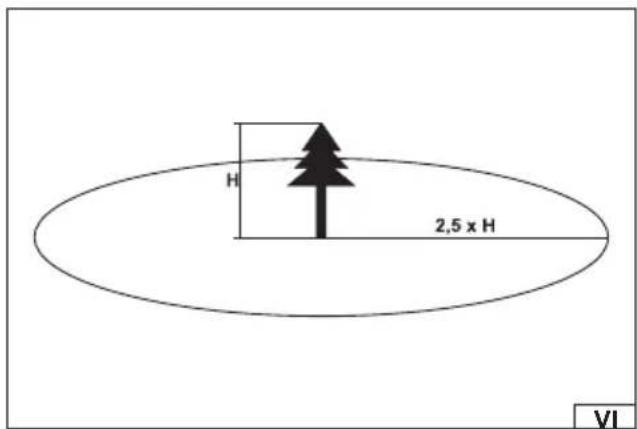

H 2,5 x H VI

Close-up of an electric vehicle charging plug with attached cable (no visible text or symbols)

Two-panel image showing hands using a tool to adjust or install a mechanical component, labeled 'VIII' in corner (no text or symbols on the main objects)

Diagram illustrating the process of chainmail cutting, showing blade and gear assembly with labeled parts 6 and IX.

Diagram of a chain saw with gear and blade, showing mechanical components and a magnified inset (no text or symbols)

Illustration of two figures climbing a ladder, each holding a large black X-shaped object (no text or symbols)

Diagram illustrating a woodworking process with labeled arrows and checkmark indicators, marked as section XII.

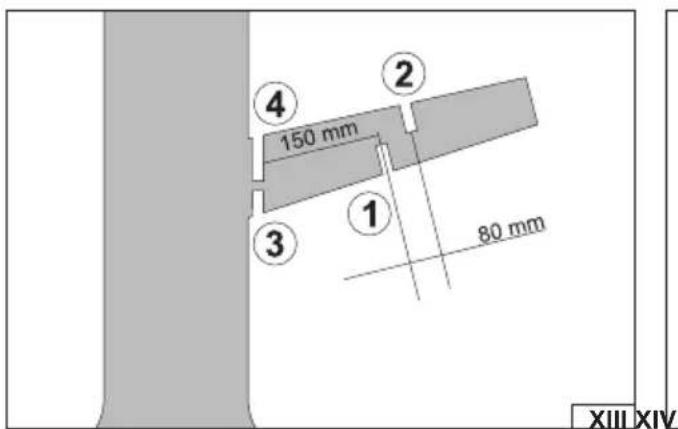

① ② ③ ④ 150 mm 80 mm XIII XIV

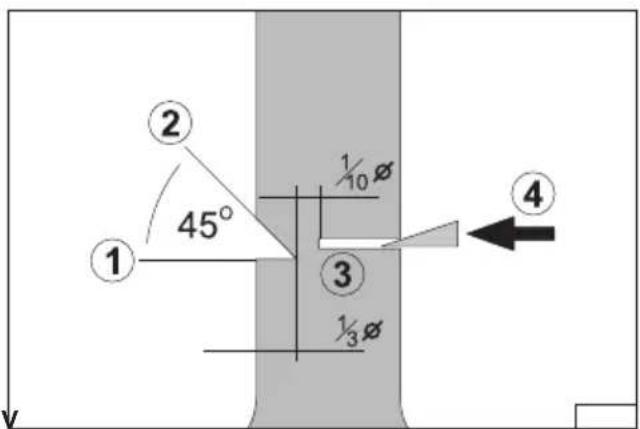

① ② 45° ③ ½₀ Ø ½₃ Ø ④

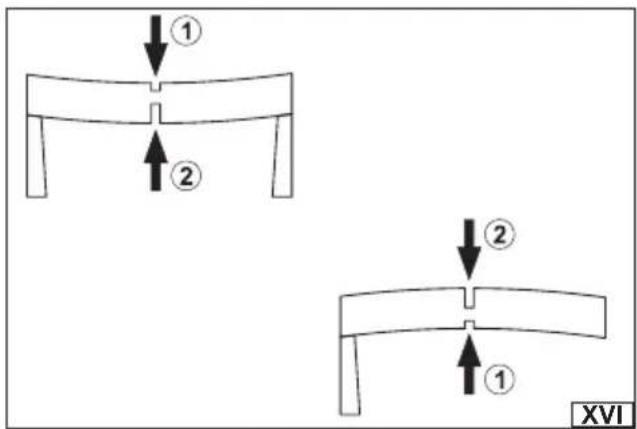

① ② ② ① XVI

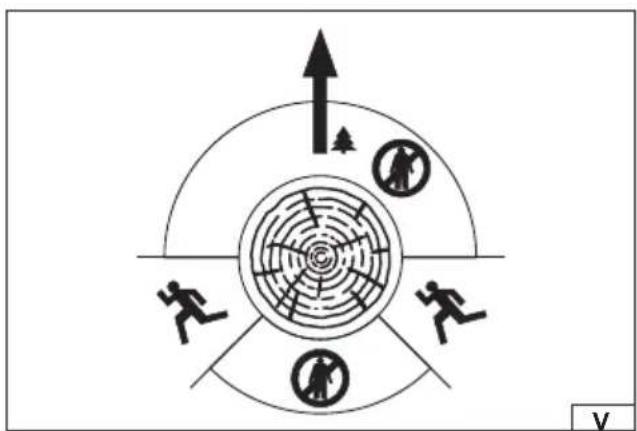

Strefa zagrożenia

Danger zone

Gefahrenzone

Опасная зона

Небезпечна зона

Grèsmès zona

Bīstamības zona

Oblast ohrožení

Oblast' ohrozenia

Veszélyes zóna

Zona periculoasa

Zona de alto riesgo

Zone de danger

Zona pericolosa

Gevarenzone

Ζώνη κινδύνου

Опасна зона

Zona de perigo

Zona opasnosti

منطقة الخطر

Droga ucieczki

Escape way

Fluchtweg

Путь эвакуации

Шлях евакуації

Evakuavimo (pobégio) kelias

Evakuācijas celš

Únikové cesty

Unikové cesty

Menekülési útvonal

Drumul de refugiu

Ruta de evacuación

Voie d'évasion

Via di fuga

Vluchtweg

Διαδρομή διαφυγής

Евакуационен път

Rota de fuga

Evakuacijski put

طريق الهروب

1. motor housing
2. side panel
3. locking knob
4. electric power switch
5. electric power switch lock
6. kickback brake
7. back handle
8. front handle
9. guide bar
10. chain
11. chain drive wheel
12. oil tank lid
13. oil level indicator

DE

Read the operating instruction

Wear protective goggles

Wear hearing protectors

Always hold the chain saw with both hands

Do not expose to precipitation

Beware of the power saw kickback towards the operator and avoid contact with the tip of the guide bar

Before adjusting or cleaning, in case of cable braiding or damage, switch off the device and pull the plug out of the socket.

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

The chainsaw is only intended for cutting wood. The chainsaw electric drive allows it to be used under a canopy or near buildings. It can be used for cutting trees, but due to the hazard, it is required that an experienced user performs the cutting operation. Proper, reliable and safe operation of the tool depends on appropriate use, that is why you should

Read the entire instructions manual before the first use of the tool and keep it for future reference.

The supplier shall not be held liable for any damage or injury resulting from improper use of the tool, failure to observe the safety regulations and recommendations of this manual. Using the tool for purposes other than those for which it was intended shall cause the loss of the user's rights to a warranty and statutory warranty.

PRODUCT EQUIPMENT

The power saw is supplied complete but requires assembly before first use.

The following elements are supplied with the power saw: a chain guide bar, a cutting chain and a guard for the guide bar.

TECHNICAL DATA

Parameter Unit Value
Part No. YT-84868 YT-84871 YT-84872
Rated voltage [V~] 230-240 230-240 230-240
Rated frequency [Hz] 50 50 50
Rated power [W] 1600	2000	2400
Chain speed	[m/s]	12 15 15
Guide bar length	[mm / "']	355 / 14	405/16	405/16
Chain pitch	[mm]	9.52	9.52	9.52
Chain spacing	[mm]	19 19 19
Guide bar type		AP14-52-507P	AP16-56-507P	AP16-56-507P
Chain type		3/8.050X52DL	3/8.050X56DL	3/8.050X56DL
Guide link width	[mm / "']	1.3 / 0.05	1.3/0.05	1.3/0.05
Electrical protection class		II	II	II
Oil tank capacity	[ml]	170	200	200
Weight (without the guide bar and chain)	[kg]	4.19	5.45	5.45
Noise level
- LpA ± K (pressure)	[dB] (A)	96.0 ± 3.0	96.9 ± 3.0	96.5 ± 3.0
- LwA ± K (power)	[dB] (A)	104.3 ± 2.64	104.9 ± 2.36	104.5 ± 2.36
Vibration (main handle/additional handle)	[m/s2]	5.15 ± 1.5 / 5.08 ± 1.5	6.36 ± 1.5 / 5.65 ± 1.5	6.55 ± 1.5 / 6.02 ± 1.5
Protection rating		IPX0	IPX0	IPX0

The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.

The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.

Note! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.

Note! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.

Keep all warnings and instructions for future reference.

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

EN

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

SAFETY INSTRUCTIONS FOR CHAINSAWS

While working with the chainsaw, keep all parts of the body away from the chain. Make sure that the chain is not in contact with anything before starting the chainsaw. A moment's distraction while working with a chainsaw can lead to cloth or body part entangling in the chainsaw chain.

Always hold the chainsaw with your right hand by the back handle and with your left hand by the front handle. Holding the chainsaw in the opposite way should never happen, as it increases the risk of injury.

Hold the power saw by the insulated grips only, as the chain may come into contact with a concealed wire or the chainsaw's power cord. The chain contacting a "live" wire may make metal parts become "live" and could give the operator an electric shock.

Wear eye protection. It is also recommended to use protective equipment for hearing, head, hands, legs and feet. Adequate protective equipment will reduce personal injury by contact with waste or accidental contact with the chain.

Do not operate the power saw on a tree, ladder, from the roof or on any unstable support. Working with the power saw while on the tree may result in injuries.

Always maintain a proper posture and work with the chainsaw standing on a still, safe, and level surface. A slippery or unstable surface, e.g., a ladder, may result in a loss of balance or control of the chainsaw.

Exercise caution in terms of a kickback when cutting a tensioned branch. If the tension accumulated in the wood fibres is released, the branch may strike the operator or make him/her lose control of the chainsaw.

Take special care when cutting shrubs and saplings. Slim material can nip the chain and push the chainsaw towards the operator or unbalance him/her.

Handle the chainsaw by the front handle, turned off and away from the body. Always put on the chain guide bar guard when transporting or storing the chainsaw. Correct holding of the chainsaw reduces the likelihood of accidental contact with moving parts of the chainsaw.

Observe the instructions for lubricating, tensioning the chain, and changing accessories. An improperly tensioned or lubricated chain can break and increase the chance of kickback towards the operator.

Cut wood only. The use of the chainsaw for other purposes than that intended is not allowed. For example: do not cut plastic, concrete, or non-wooden construction materials. Using the chainsaw for works other than that intended may result in dangerous situations.

Do not attempt to cut down trees until you understand the risk and how to avoid it. During the cutting of the tree, the operator and bystanders are exposed to serious injuries.

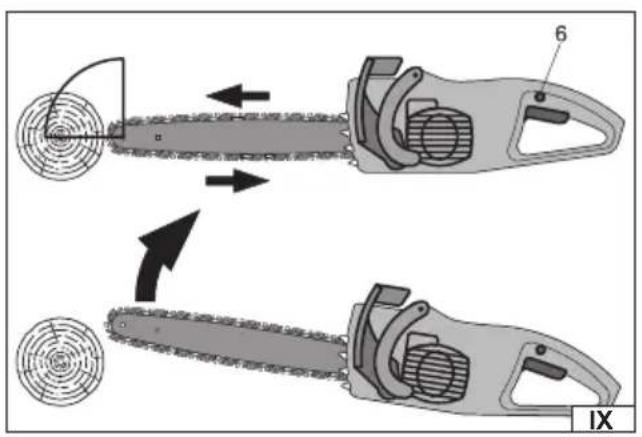

Causes and prevention of kickback towards the operator.

A kickback towards the operator may occur when the guide bar's end is in contact with an object or the cut wood jams the chain-saw in the kerf. In some cases, contact between the end of a guide bar and an object can cause a violent reaction driving the guide bar up and towards the operator. Jam in the guide bar upper edge kerf can suddenly point the guide bar towards the operator.

These reactions can result in a loss of control of the chainsaw, leading to serious injuries. Do not rely only on safety elements built in the chainsaw. The chainsaw operator should take some steps to prevent accidents and injuries during work.

A kickback towards the operator is the result of improper use or incorrect operating procedures or conditions. This can be avoided by taking the appropriate precautions listed below:

Keep a firm grip of both hands with thumbs and fingers closing around the chainsaw handles. The position of the body and shoulders should allow withstanding forces arising during the kickback. If appropriate precautions are taken, the kickback forces can be controlled by the operator. Do not allow the chainsaw to move freely.

Do not reach too far and cut above shoulder height. This will help prevent unintentional contact with the end of the guide bar and allow better control of the chainsaw in unexpected situations.

Use guide bar and chain replacements only as specified by the manufacturer. Incorrect replacement of the guide bar and chain may cause chain breakage or kickback.

Observe the instructions given by the manufacturer regarding the chain sharpening and maintenance. Reducing the depth of the chain guide bar groove can lead to an increased probability of kickback.

Other safety instructions

It is forbidden to expose the power saw to precipitation and use it in an atmosphere of increased humidity. It is also forbidden to use the chainsaw in an atmosphere with an increased risk of fire or explosion.

Avoid contact with grounded, conductive, and non-insulated objects such as pipes,

radiators or refrigerators. When not in use, store the chainsaw in a dry and closed room inaccessible to unauthorised persons.

Use the cutting chain adapted to the given load. Do not use cutting chains designed for light or heavy-duty work.

Always wear protective gloves when replacing, repairing, and adjusting the cutting chain.

Make sure that the chainsaw has been disconnected from the power supply during transport. Disconnect the mains-powered chainsaws from the socket. In the case of the battery-powered chainsaws, disconnect their battery. A guard must be fitted on the cutting chain guide bar. Handle the chainsaw with the guide bar pointing back.

Do not handle the mains-powered chainsaw by its power cord. Do not disconnect the plug from the socket by pulling the power cord.

EN

Avoid accidental starting of the chainsaw. When handling the chainsaw connected to the mains or with the battery connected, keep your fingers away from the power switch.

Always wear suitable protective clothing adhering to the body.

Operate the chainsaw holding it with both hands. When working, secure loose pieces of wood so that they cannot move, for example, by placing them in a saw-horse. Avoid cutting wood that lays on the ground. Avoid processing wood that is not protected against movement during cutting.

Do not hold the chainsaw above your arms during operation. Do not operate the chainsaw while standing on the ladder. During work, adopt such a posture to eliminate the need to extend the hands to the full length.

Keep the chain clean. The chain must be sharpened and lubricated. This will ensure more efficient and safer work. The chain can be sharpened in a specialised service centre. Check the condition of the chain before each use. In the event of cracks, broken teeth, or any other damage, replace the chain with a new one before starting work.

In case of finding any damaged or broken chainsaw parts, stop working or do not start working. It is essential to replace damaged parts before starting work.

Use the chainsaw as intended. The chainsaw is designed only for cutting wood. When working, watch out for metal elements or stones that may be in the processed wood.

Use original spare parts only. Failure to use original spare parts may increase the risk of failure and lead to injuries.

The chainsaw should be repaired only in service centres authorised by the manufacturer using original spare parts. This will minimise the risk of accidents and damage to the equipment.

PRODUCT OPERATION

Preparing the chainsaw for operation

Caution! Unplug the chainsaw from the power supply before performing any assembly and adjustment work. Disconnect the mains-powered chainsaws from the socket. In the case of the battery-powered chainsaws, disconnect their battery.

Mount the guide bar and cutting chain before first use.

Due to the sharp edges of the chain, perform the assembly wearing protective gloves.

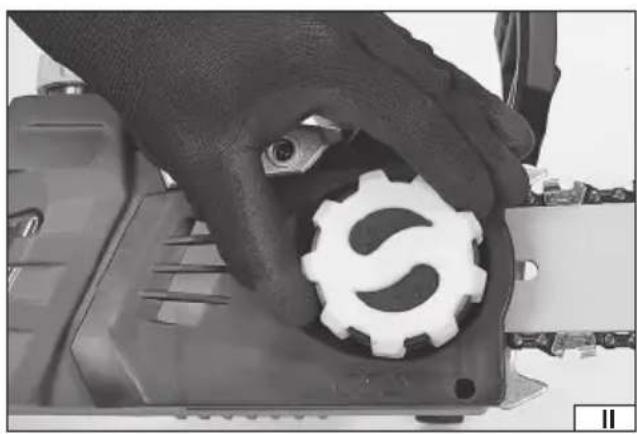

Turn the locking knob in the direction indicated by the arrow marked with the open padlock symbol and remove the side panel. Mount the guide bar and chain as shown in picture (II). Make sure that the chain and guide bar are fitted in the correct direction.

The shape and direction of the links visible on the chainsaw housing should correspond to the chain's shape and direction. If there is a visible movement direction indication on the chain links, it should have the same direction as the indication on the housing and guide bar.

Ensure that the chain hits the guide slot and the teeth on the sprocket. Install the side panel and turn the locking knob in the direction indicated by the arrow marked with the closed padlock symbol (II). This will fix the side panel and tension the chain. Check the chain tension. To do this, set the chainsaw down and lift it by holding the middle part of the chain (III). During this test, the chain should lift above the guide bar by 3 to 4 mm in the spot where it is held. If the chain is too tight or too weak, turn the locking knob in the direction indicated by the arrow marked with a closed padlock symbol. The chain tension should also be checked every 10 minutes of operation. Check the technical condition of the power saw before connecting it to the power supply. If any damage is detected, it is forbidden to connect it to the power supply before rectifying the damage.

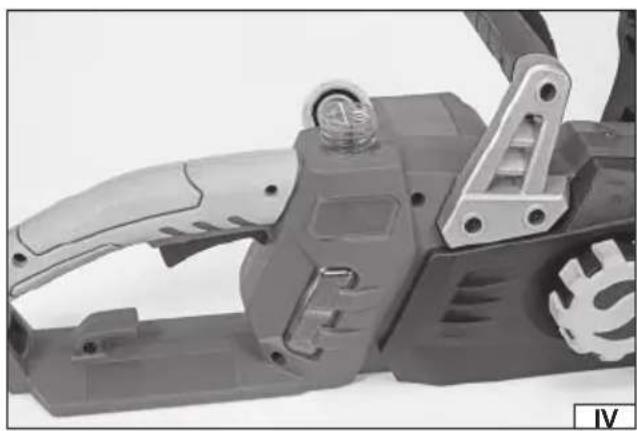

Oil topping-up (IV)

Caution! Unplug the chainsaw from the power supply before performing any assembly and adjustment work. Disconnect the mains-powered chainsaws from the socket. In the case of the battery-powered chainsaws, disconnect their battery.

For lubricating the chain and chainsaw mechanisms, use only oil intended for such purposes. It is forbidden to use worn-out motor oil. It does not fulfil its purpose, which can lead to damage to the chainsaw mechanism.

Make sure that there is lubricating oil in the tank. Place the chainsaw on the horizontal surface and check the oil indicator. The oil level cannot be lower than the minimum indication. If there is no such indicator, the lower edge of the oil level indicator should be taken as the reference level.

It is forbidden to use the chainsaw with the empty oil tank. This can damage the chain, guide bar, and mechanisms of the chainsaw. It is recommended to start and operate the chainsaw at least 3 meters from the place where the oil topping-up procedure was performed. Perform oil topping-up away from fi re and heat sources.

To top up the oil, unscrew the oil tank cap, pour the oil inside the tank so the oil level levels out with a mark indicating the maximum oil level or upper edge of the oil level indicator, then screw the tank cap firmly and securely. In case of spilling the oil, thoroughly wash off any debris before connecting the chainsaw to the power supply.

Connecting the chainsaw to the power supply

The machine is supplied only with a short power cord. Use an extension cord for proper power supply. The extension cord should have rubber insulation of at least the H05RNF type or polyvinyl (PVC) insulation of at least the H05VVF type.

Always use cords intended for outdoor use due to the nature of the machine work. The power cord should have a single socket matching the machine's plug. It is forbidden to modify the plug or socket to make them fit. The electrical parameters of the power supply cord should correspond to the electrical parameters of the tool, listed on the rating plate. It should be noted that the power

EN

cord's cross-section depends on the length of the cord. Follow the instructions below regarding the power cord cross-section:

• 1.0 mm ^2 – cord length not greater than 40 m;
• 1.5 mm ^2 – cord length not greater than 60 m;
• 2.5 mm ^2 – cord length not greater than 100 m.

When preparing for operation and during operation, pay attention to the power cord. Protect the power cord from water, moisture, oils, heat sources and sharp objects. Lay the cord so that it does not come within the reach of the cutting element. Cutting the cord may result in electric shock and serious injury or death. Make sure that you do not become entangled in the cord. This can lead to a fall and serious injury.

Do not overload the power cord, and do not cause any of the cord's section to become tensioned. Do not pull the cord when moving the tool. Always disconnect the power cord plug from the socket by pulling by the plug and socket housing, never pull by the cord.

There is an opening in the housing to route the extension cord loop through, and then attach the loop to the hook. Only then, connect the plug to the socket of the extension cord (VII). This will minimise the risk of pulling the power cord from the machine housing, e.g. in the event of a sudden jerk.

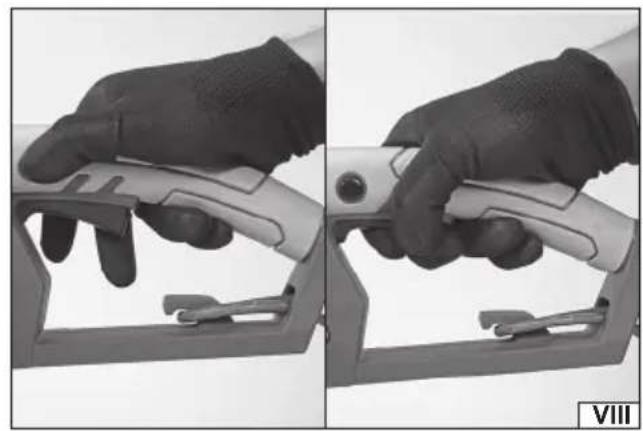

Starting the chainsaw (VIII)

Make sure that the kickback brake is in the rear position.

Remove the guard from the guide bar and chain.

Grasp the front handle with your left hand and the back handle with your right hand.

Make sure that the guide bar and chain do not come into contact with any object or surface.

Press the power switch lock button on the handle with your thumb.

Press and hold the power switch in this position. The lock button can be released.

Before cutting, wait until the motor is at full speed and make sure that the chain runs smoothly along the guide bar. If you hear any suspicious sounds or vibration, turn the chainsaw off immediately by releasing the power switch.

The chainsaw is turned off by releasing the power switch.

It is forbidden to turn the chainsaw off by applying the kickback brake.

Unplug the chainsaw from the mains and proceed with maintenance once the chain has stopped.

Working with the chainsaw

Persons who intend to work with a chainsaw for the first time should seek advice on work and safety from a qualified chainsaw operator before starting work. The first works with the chainsaw should consist of cutting the prepared logs placed on the saw-horse. During work, observe the basic occupational safety principles. Consider also the possibility of kickback in the operator's direction. The chainsaw may kickback in the operator's direction when the cutting chain encounters resistance.

To reduce this risk:

Pay attention to the placement of the guide bar top when cutting. It is forbidden to cut with the upper quarter of the guide bar top (IX). Cut only with the chain which moves along the bottom part of the guide bar. When cutting wood, the lower bumper tooth can be used as a hook for the chainsaw's axis of rotation (X).

Only apply the started chainsaw to the wood to be cut. Do not start the chainsaw after having applied it to the wood being processed.

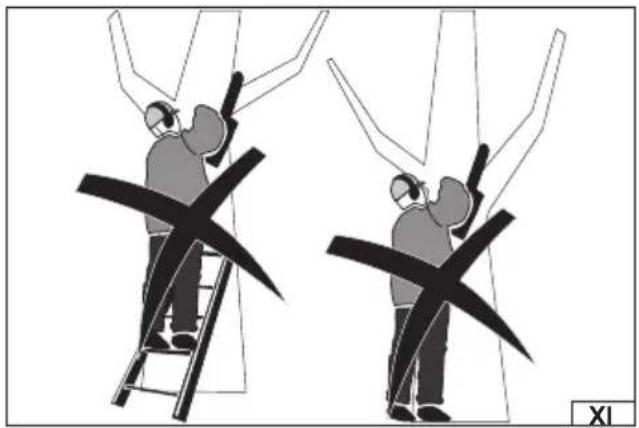

When working, do not lift the chainsaw to arm height or higher (XI).

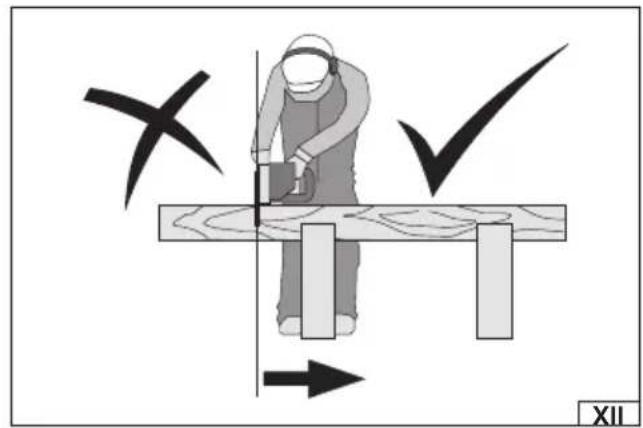

Do not stand in the cutting plane. This will reduce the risk of injury in case of kickback (XII).

During work, always hold the power saw with both hands.

Make sure that the chain is always sharp and appropriately tensioned.

TIPS FOR WORKING WITH THE CHAINSAW

Take a comfortable position and ensure full freedom of movement when cutting.

When cutting branches and boughs, do not cut them at the trunk, but at a distance of about 15 cm from the trunk. Make two cuts to a depth of 1/3 of the branch diameter, approximately 8 cm apart – One cut from below, one from above. Then cut the branch just at the trunk to a depth equal to 1/3 of the branch diameter. Finish the process by cutting the branch at the trunk from above. Do not cut the branches by cutting from the bottom (XIII).

When cutting a tree, prepare the felling site in advance as described above. Additionally, prepare a safe substrate for tree felling. When a tree falls, stand at a safe distance to the plane of the tree fall, on the side. When choosing the path of wood fall, take into account factors such as terrain topography, tree centre of gravity, tree crown pattern, and wind direction. To properly prepare the tree for felling, make a cut in the trunk to a depth of 1/3 of the trunk diameter on the side to which the tree is to fall, and then cut another at an angle of 45 degrees to the first so as to cut a "wedge" in the trunk. On the other side of the trunk, start cutting perpendicular to the trunk axis, slightly higher (approx. 4 cm) than the cut "wedge" base. Do not cut the trunk. Leave a section of approximately 1/10 of the trunk diameter. Then insert the wedge for splitting the tree into the cut on the opposite side to the planned side of the tree fall (XIV).

If the tree already falls during cutting, pull the chainsaw out of the trunk and move away along the prepared escape route to a safe distance.

EN

If the chainsaw gets stuck while cutting the trunk, never leave it in this position with the motor running. Turn off the chainsaw motor, unplug the chainsaw from the power supply, and use wedges to extract the chainsaw from the trunk.

When cutting a tree that has already been felled into pieces, follow the rules indicated below. Place the wood on the saw-horse or a stand so the cut piece can freely fall off to the ground without causing the chainsaw to jam. If the chainsaw is jammed, proceed as described above. Do not touch the ground with the chainsaw or allow it to be contaminated with soil.

It is forbidden to use a chainsaw to form hedges or shear bushes.

When working on a slope, stay above the cut wood.

Exercise particular caution when cutting a tensioned tree and entrust this activity to a qualified lumberjack, if possible. When cutting tensioned wood and supported on both ends, cut it from above to a depth of 1/3 of the diameter, and then finish the cut from the bottom.

If the wood is supported at only one end, cut the wood from the bottom to a depth of 1/3 of the

diameter and then complete the cut by cutting from above (XV).

This will reduce the risk of the chainsaw jamming during cutting.

PRODUCT MAINTENANCE AND STORAGE

Caution! Before starting any activities described below, disconnect the power saw from the power supply. Disconnect the mains-powered chainsaws from the socket. In the case of the battery-powered chainsaws, disconnect their battery.

After each use, inspect the condition of the power saw with particular attention to the patency of ventilation openings.

Check the placement of all of the power saw's components. Tighten all loose screw connections, if any. Check the tension and condition of the chain. If any damage is observed, replace the chain with a new one. It is forbidden to use the power saw with a damaged chain!

If the chain is too loose, it may fall from the guide bar, which may cause injury to the person operating the power saw. The chain must also be properly sharpened, because it requires appropriate experience and tools. It is recommended to carry out sharpening at specialised service centres. To up any oil shortages in the tank. Clean the power saw's housing with a soft, dry cloth. Clean the housing from residues of wood, oil, grease, and other contaminants. The power saw should be stored in a dry, closed room, disconnected from the mains.

Caution! During storage of the tool, a small amount of oil may escape from the chain lubrication system, this is a normal symptom and does not affect the oil level in the tank and is not a sign of damage.

Store the power saw in shaded and dry places with appropriate ventilation preventing steam condensation. Such a place should not be accessible to unauthorised persons, especially children. During storage, the guide bar and chain must always be secured with a guard.

PRODUKTBESCHREIBUNG

CARACTÉRISTIQUES DU PRODUIT

DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE

1124/YT-84868/EC/2024

We declare and guarantee with full responsibility that the following products:

meet requirements of the following European Standards / Technical Specifications:

and fulfil requirements of the following European Directives:

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE

1124/YT-84868/EC/2024

We declare and guarantee with full responsibility that the following products:

meet requirements of the following European Directive: 2000/14/EC

Conformity assessment procedure:

Manufacturer quality-control system, examination of the manufacturer's technical file and periodical inspection by notified body

Measured sound power level on an equipment representative for this type:

Guaranteed sound power level for this equipment:

conformity and references of the other Community Directives applied:

DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE

1124/YT-84871/EC/2024

We declare and guarantee with full responsibility that the following products:

meet requirements of the following European Standards / Technical Specifications:

and fulfil requirements of the following European Directives:

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE

1124/YT-84871/EC/2024

We declare and guarantee with full responsibility that the following products:

meet requirements of the following European Directive: 2000/14/EC

Conformity assessment procedure:

Manufacturer quality-control system, examination of the manufacturer's technical file and periodical inspection by notified body

Measured sound power level on an equipment representative for this type:

Guaranteed sound power level for this equipment:

conformity and references of the other Community Directives applied:
