USER MANUAL YT-82823 Yato

NL ACCU-DECOUPEERZAAG

GR ΣΕΓΑ ΜΠΑΤΑΡΙΑΣ

YT-82822

YT-82823

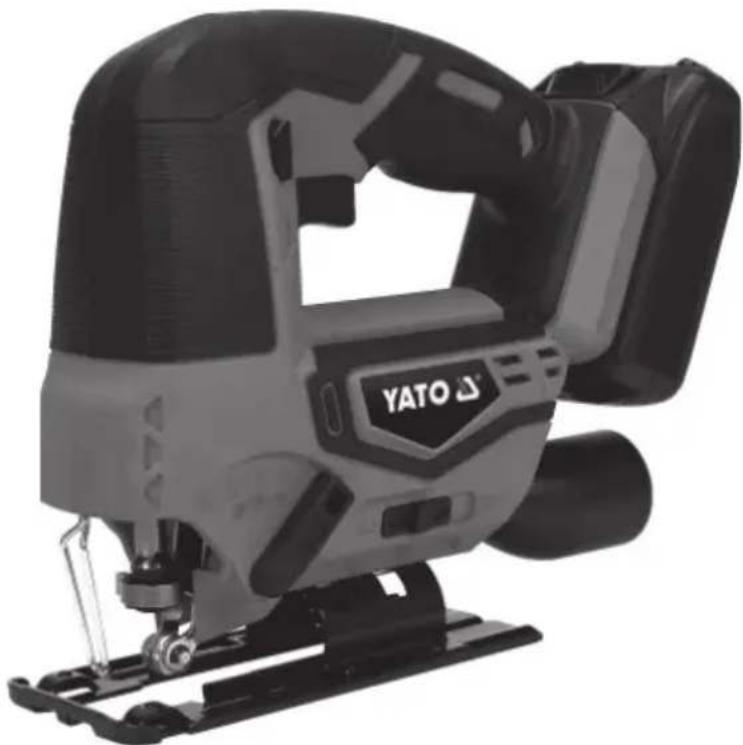

Black and white photo of a YATO Jigsaw kit with visible branding and mounting base (no text or symbols on device body)

CE

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR

Labeled diagram of a power switch with numbered components for identification

Three-panel photo showing hands installing a battery pack and charging case, with no visible text or symbols.

Close-up of a hand pressing a component on a device (no visible text or symbols)

Close-up of hands using a tool to adjust a mechanical component, with no visible text or symbols.

Close-up of a white electric drill bit with metal screw and adjustment knobs, mounted on a base (no visible text or symbols)

Close-up of a hand using a crimping tool to adjust or install a mechanical component (no visible text or symbols)

Max. cutting thickness - wood

Max. Schneiddicke - Holz

Max. cutting thickness - soft metal

Max. Schneiddicke - Weiche Metalle

Cutting angle regulation

Electronic adjustment of the rotation

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

Wear hearing protectors

Gehörschutz tragen

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

The jigsaw is an electric tool designed for cutting of wooden surfaces and surfaces made of wood and those made of wood derivatives, polyethylene and soft metals, using adequate blades. The tool permits easy cutting of the processed surfaces, with a possibility of adjusting the angle. A correct, reliable and safe operation of the tool depends on its correct use, so:

Read the operating manual thoroughly before work and keep it for future reference.

The supplier shall not be held responsible for any damage occurred as a result of failure to observe safety regulations and indications contained in this manual. Using the tool for purposes it has not been designed for will make the guarantee void.

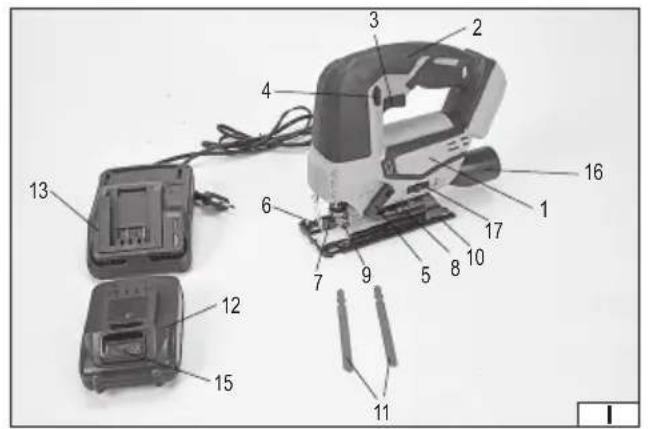

EQUIPMENT

The product is supplied in a complete state and requires no assembly. except for the installation of the blade, which is described further in this manual. The product is supplied with the battery charger and charging station (charger).

Attention! The product of the catalog number: YT-82823 has not been equipped with a rechargeable battery and charging station.

TECHNICAL PARAMETERS

Parameter Unit Value
Catalog number YT-82822, YT-82823
Rated voltage [V] 18 DC
Rotations [min]	^-1 0 – 2500
Insulation class III
Cutting thickness max.
- wood [mm] 50
- polyethylene / polypropylene [mm] 10
- soft metals [mm] 5
Weight [kg]	1.5
Noise level:
- acoustic pressure L_pA ± K_pA	[dB(A)]	76.0 ± 3.0
- acoustic power L_wA ± K_wA	[dB(A)]	87.0 ± 3.0
Vibration level a_h ± K (cutting of wood / metal)	[m/s2]	6,28 ± 1,5 / 5,78 ± 1,5
Degree of protection		IPX0
Type of the battery		Li-Ion
Capacity of the battery*	[Ah]	2
Charger*
Input voltage	[V]	220 - 240
Mains frequency	[Hz] 50 / 60
Output voltage	[V] 21 DC
Input current	[mA]	2.4
Rated power	[W]	60
Time of charging**	[h]	1

* only for models equipped with battery and charger

** charging time applies only to the battery with a capacity listed in table

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.

Keep all warnings and instructions for future reference.

The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

EN

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

SAFETY WARNINGS FOR RECIPROCATING SAWS

Hold the power tool by its insulated grip surfaces while performing operations where the cutting part may come into contact with concealed wiring or its own cable. If the cutting part comes into contact with live cable, it may cause the exposed

EN

metal parts of the power tool to become live and electrocute the operator.

Use clamps or other practical means to securely fasten and support the workpiece on a stable platform. Holding the workpiece with your hand or pressed against your body makes it unstable and can lead to loss of control.

PREPARING FOR OPERATION

Attention! All activities associated with the installation and replacement of saw blades, their adjustment and the maintenance of a power tool should be carried out when the operating voltage of the tool is switched off, therefore, before the further proceedings, you should carry out the following steps: Remove the battery pack from the power tool socket!

Safety recommendations for battery loading

Attention! Before loading may start make sure the body of the charger, the cable and the plug are not broken or damaged. It is prohibited to use a damaged loading dock and charger! For the purpose of loading batteries only the charging dock and the charger provided may be used. Using another charger may be a cause of fire or damage the tool. Batteries may be charged only in a dry room, protected from unauthorised persons, particularly children. Do not use the charging dock and the charger without permanent supervision of an adult! If it is necessary to leave the room where loading is taking place, it is required to disconnect the charger from the mains, removing the charger from the mains socket. In case when smoke comes out of the charger, or a strange smell is emitted, etc., it is required to immediately remove the plug of the charger from the mains socket!

The drill and automatic return screwdriver is provided with an unloaded battery, so before work may commence, it is required to charge it following the procedure below, using the charger and charging dock provided. Li-ION batteries do not show the so called “memory effect”, so it is allowed to charge them at any moment. However, it is recommended to discharge them during normal work, and then load them to their full capacity. If due to the nature of the task it is not possible to do so each time, then it is required to do it at least from time to time. Under no circumstances is it allowed to discharge the batteries short-circuiting the electrodes, since this would cause irreversible damage! It is also prohibited to check the load of the batteries, short-circuiting the electrodes for sparking.

Storage of the battery

In order to prolong the life of the battery, it is required to provide adequate storage conditions. The batteries can go through approximately 500 „loading - discharging” cycles. The battery must be stored between 0 and 30°C, at the relative humidity of 50%. In order to store the battery for a prolonged period, it is required to charge it to approximately 70% of its capacity. In case of prolonged storage, it is required to recharge the battery once a year. Do not permit excessive discharging of the battery, since this would reduce its life and may cause irreversible damage.

During storage, the battery will be gradually unloading due to leakage conductance. The process of automatic unloading depends on the temperature of storage, since the higher the temperature, the fastest the process. In case of incorrect storage of batteries, there is a danger of electrolyte leakage. In case of leakage, it is required to protect the leakage with neutralizing agent. In case of contact of electrolyte with the eyes, it is required to rinse the eyes abundantly, and then immediately seek medical assistance. It is prohibited to use a tool with a damaged battery.

In case the battery is completely worn out, it is required to deposit it at a special point dedicated to disposal of such waste.

Transport of the batteries

Lithium-ion batteries are in accordance with legal regulations treated as dangerous waste. The user of the tool may transport the tool with the battery or only batteries by land. Then no additional conditions must be complied with. In transport is realised by third parties (for example dispatch through courier service), then it is required to proceed in accordance with regulations for transport of dangerous materials. Before shipment, contact an authorised person.

It is prohibited to transport damaged batteries. During transport the battery must be removed from the tool, and the exposed contacts protected, e.g. with insulating tape. Protect the batteries so that they do not move inside the package during transport. It is also required comply with the national regulations for transport of dangerous materials.

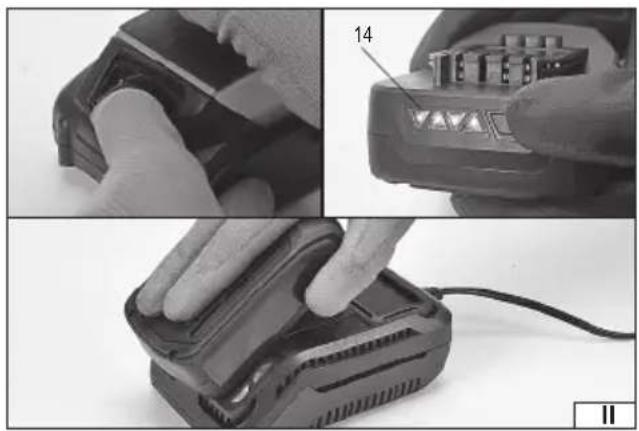

Charging the battery

Attention! Before charging you should disconnect the charger from the mains by unplugging the power supply plug from the mains. In addition, you should clean the battery and its terminals of dirt and dust with a soft, dry cloth.

The battery has a built-in charge indicator. When you press the button, LEDs will light up (II), the more LEDs will light up, the more fully the battery pack is charged. If the button is pressed and the LEDs are off it means that the battery is discharged.

Disconnect the battery from the tool.

Push the battery in the charger socket (II).

Plug the charger into a mains socket.

When the red LED lights up, it means the loading process.

When charging is complete, the red LED goes off, and green LED lights up, indicating a full charge of the battery.

Unplug the charger from the mains outlet.

Remove the battery from the charging station, by pressing the battery latch button.

EN

Attention! If, when the charger is connected to the power supply, the green LED is on, this indicates a fully charged battery. In this case, the charger does not start charging.

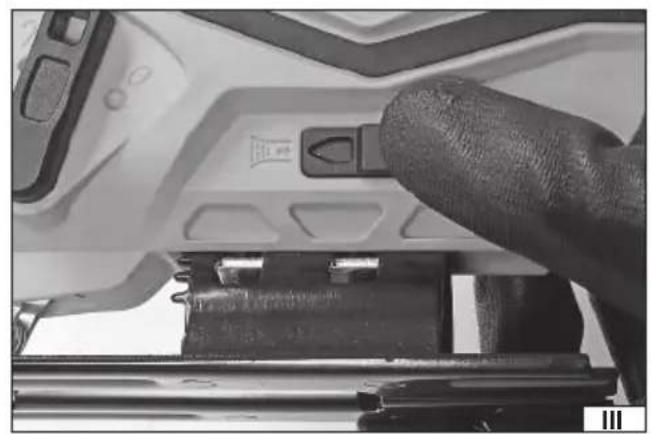

Adjustment of the dust extraction

The fan, which is mounted in the engine, produces air stream, which can be used for suction or blowing out the dust produced during operation. The switch on the enclosure side allows to set the direction of the air flow (III). The air blowing out from the tool front allows to blow out the dust from under the blade, which facilitates cutting. Air blowing out from the tool rear allows to suck the dust by an external dust extraction installation, that should be connected to the connecting port on the back of the tool. In the case of using an external dust extraction installation, refer to the information that came with this installation.

Attention! If you use an external dust extraction installation, you should not set the switch in position, that will result in the air blowing out at the front of the tool.

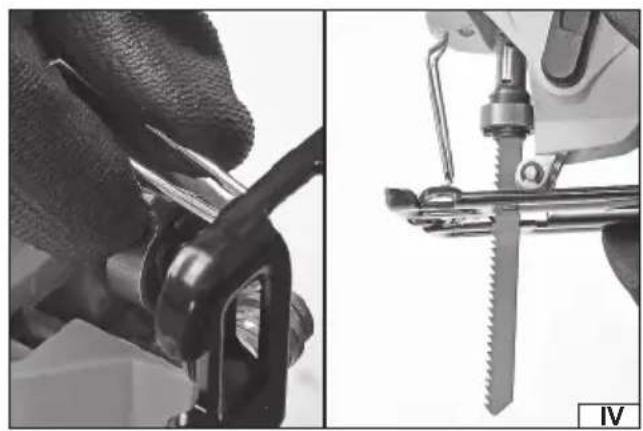

Mounting and replacing the saw blade

You should check whether the blade is not damaged, cracked, whether the cutting teeth are not broken, etc. In the case of damage, replace the saw blade for a new one.

Saw blades differ depending on their assignation. Saw blades for wood and wood-based materials have widely spaced teeth and saw blades for metal and plastic have finer teeth. You should select a saw blade suitable for the planned work. Mount the saw blade with its teeth facing forward.

The blade should be put in the spindle gap, so it will rest by its back on the notch in the roll.

Attention! Mounting the saw blade should be carried out in the protective gloves. This will reduce the risk of injury.

Turn the clamping sleeve of the spindle and hold it, and to the spindle gap insert the blade holder (IV). Allow the sleeve to go back to its starting position and make sure that the blade has been properly fixed: i.e. the clamp sleeve is in its original position, and the saw blade can not be removed from the spindle.

The saw blade removal should be carried out in reverse order.

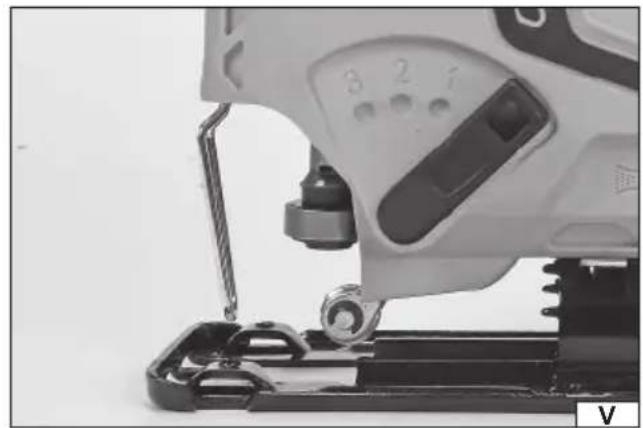

Setting the saw blade oscillation (V)

Electric jig saw is equipped with an adjustable gradual oscillation adjustment. Adjusting is possible by using the lever. The lower the number of setting, the smaller the oscillations of the saw blade. With the setting labeled by "0" the saw blade oscillations are disabled.

Saw blade oscillations allow for easy cutting, and their grade should be selected by an experiment, for example, by cutting the waste material. However, you should follow the instructions, which are presented below:

- in order to obtain the most smooth edge of the cut you should set the lowest possible grade of oscillations or even turn them off,

- when cutting thin materials (e.g., sheet of metal), you should switch of the oscillations,

- when cutting hard materials (e.g. steel), set the low rate of oscillation,

- when cutting soft materials, you should set the maximum degree of oscillation.

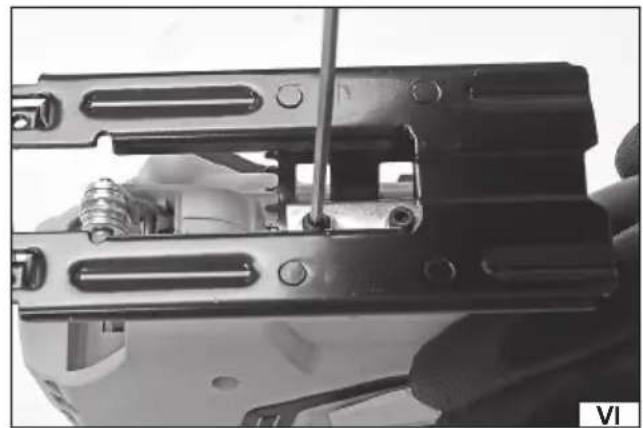

Setting the cutting angle (VI)

The jig saw allows for adjustment of the angle of traverse cutting in the range from 0 to 45 degrees, tilting is possible in to the left and right as well. If it is necessary, before adjusting, you should remove the dust extraction connection. You should loosen the screws that secure the basis of the jigsaw, but do not unscrew them completely. Then move the basis back or forward and tilt it by setting the desired cutting angle. The base can have hooks or a scale to facilitate setting the most common cutting angles. After adjustment you should tighten the base screws and make sure that the base itself does not change the set angle.

Before every operation, you should ensure that the saw blade is installed correctly, and the saw blade guard is in its place, Wear eye protection, hearing protectors and working gloves. Mount the workpiece to the workstation, for example by using carpentry clamps, vice, etc. Never hold the cut material only by hands or other parts of the body. In the case of cutting you must support the material at its ends and near the cut line. Supports must be placed on both sides of the cut line so during cutting, the blade would not jammed in the cut kerf. During cutting the foot must be supported by its whole surface on the cut material. To the outlet of the dust extraction connection your should connect the dust extraction installation.

Switching on and off the jig saw

You should make sure that at the work place the surface is even, stable and free of pollution.

Adopt a stable stand.

Grab the tool by the handle. You should not rest any parts of the working tools on any subject or object.

Push and hold the blocking of the switch, and then press it by your finger and hold it. After you press the switch it is not necessary to hold the lock. Check whether the saw blade is moving freely, and the tool does not suspiciously or excessively vibrate, it is not

EN

emitting smoke or a strange smell. If you notice any deviations from the correct operation, you should turn off the tool, disconnect the battery and pass the electric tool to the authorized repair service.

The tool is stopped after releasing the pressure on the switch. After switching of, the saw blade can move for some time.

The speed of the saw blade can be adjusted by the degree of the switch pressure, the greater the pressure on the on/off switch, the greater the speed of the saw blade.

The tool is equipped with the lamp, which is illuminating the workplace. The light turns on automatically when the power tool is started and turns off automatically when the power tool is turned off.

Cutting in a straight line.

Before you start cutting it is recommended that you mark the cut line, for example by using a pencil. You should also make sure that the cut material does not contain items of different hardness. For example, cut the wood should not contain nails, staples and other metal items. You should also avoid the electrical wires, that may be hidden in the cut material.

Rest the tool base front on the cut material so the saw blade is not touching it.

Turn on the tool and let the saw blade achieve full adjusted speed.

Start cutting by leading the jigsaw with your both hands. During cutting you should press the saw to the surface and, at the same time, by a smooth motion lead it along the cutting line. Use the minimum pressure which allows for the correct operation. Avoid tilting the jigsaw, hitting by the blade in the crossing material and changes in direction of the cut. Failure to follow these instructions may lead to jamming of the saw blade in the cut material, damage or destruction (cracks) blade or cut material, as well as to damage of the jigsaw itself.

During cutting a hard metal, for example a steel, your should use frequent breaks to cool the saw blade.

Cutting the curved line

You should comply with all the recommendations as in the case of cutting in a straight line, but you should use the saw blades which are designed to cut arcs. They have a narrower blade than the saw blades designed for straight cutting and they make it easier to cut arcs.

In the case of cutting holes, you should mark the shape of the cut hole, and then, at its edge, drill a hole with a diameter larger than the width of the cutting blade. Drilled hole wall should be touching the line of the marked hole, which will be cut. In the hole you should insert the saw blade of the jig saw and start cutting.

Additional notes

Do not allow to overload the tool, its external surfaces temperature should never exceed 60^ C.

At the end of work you should turn off the tool, disconnect the battery, then make maintenance and inspection.

The declared, total declared value of vibration was measured by the standard test method, and it can be applied to compare one tool to another. The declared total value of vibration can was used in a preliminary assessment of exposure.

Attention! The vibration emissions when working with the tool can differ from the declared value, depending on how you use the tool.

Attention! You should specify the security measures to protect the operator, which are based on an assessment of exposure in the actual conditions of operation (including in it all parts of the work cycle, such as, for example, the time when the tool is turned off or it is idling, and its activation time).

MAINTENANCE AND OVERHAUL

ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.

CHARAKTERISTIK DES WERKZEUGES

DECLARATION OF CONFORMITY

0125/YT-82822/EC/2025

We declare and guarantee with full responsibility that the following products:

Cordless jig saw 18 V d.c.; 0 - 2500 min ^1 ; item no. YT-82822, YT-82823

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + A11:2022

EN 62841-2-11:2016 + A1:2020

EN ISO 12100:2010

EN IEC 55014-1:2021

EN IEC 55014-2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
