USER MANUAL WS9011ICR Atag

Instructions for use

Cooker hood

ATAG

WS60__ICR

WS90__ICR

NL Handleiding NL 3 - NL 10

Illustration of a microwave oven with a door and lid, showing a hand inserting a clip into the pan (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, likely indicating a waste sorting or disposal restriction.

Illustration of a microwave oven with a door and lid, showing internal components (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, likely indicating a waste sorting or anti-poverty scenario.

Illustration of a microwave oven with a door and lid, showing a hand inserting a clip into the pan (no text or symbols)

Beleuchtung

Prohibition sign with crossed-out trash bin and no text or symbols

	Operation		5
	Cleaning	filters

Maintenance

	Cleaning		8
	Grease	filters
	Lighting		9

Environmental aspects

Disposal of appliance and packaging

10

Introduction

On reading these user manuals you will soon become familiar with the features of this appliance. Please read the appliance's safety and maintenance instructions.

Please retain the operating and installation instructions as these may be useful for future reference.

Read the separate safety instructions before using the device!

You can find the most recent version of the instructions for use on our website.

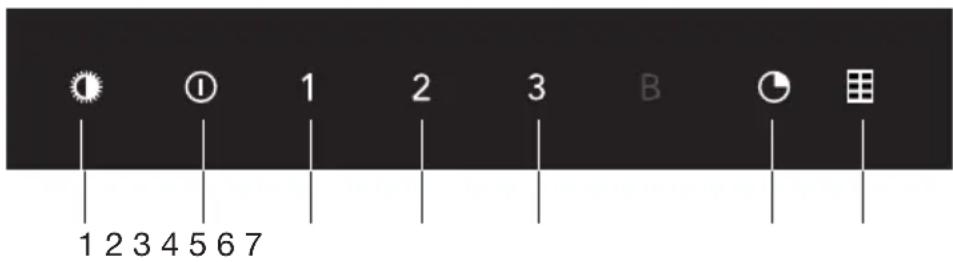

Description

1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 B C D

1. Switching on/off and dimming the lighting
2. Switching fan on/off
3. Speed setting 1
4. Speed setting 2
5. Speed setting 3
6. Timer function/Clean Air function
7. Filter indicator

(Key B is not active for this model)

Operation

Switching the lighting on and off

1. Quickly press and release the lighting button. The light switches on at maximum strength.
2. Press and hold the lighting button for approximately 3 seconds to dim the lighting strength.
3. To set the lighting back to maximum strength, quickly press and release the lighting button.
4. To turn off the lighting when the light is dimmed, press and hold the lighting button for approximately 3 seconds.
5. To turn off the lighting when the light is at maximum strength, quickly press and release the lighting button.

Switching extraction on and off

1. Quickly press and release the on/off button.
2. Select the desired extraction setting 1, 2 or 3 by pressing the corresponding speed setting buttons.

Switching on the timer

1. Quickly press and release the timer button.
   The timer button will light up.
   The cooker hood will switch off automatically after 15 minutes. If the lighting is lit, it switches off automatically once the timer is finished.
2. Switch off the timer function in the meantime by pressing the timer button again.

Clean Air function:

The Clean Air function allows you to freshen the air in your kitchen for a maximum of 24 hours.

1. Switch off the cooker hood by pressing the on/off button.
2. Press and hold the Clean Air button for approximately 3 seconds. The cooker hood switches on automatically for 10 minutes every hour at the lowest speed setting. During this period, the on/off button will be lit continuously while the speed setting 1 button and the Clean Air button will flash.
3. Switch off the Clean Air function in the meantime by pressing and holding the Clean Air button for approximately 3 seconds, or by switching off the cooker hood by pressing the on/off button.

Note!

The Clean Air function cannot be activated when the timer function is switched on.

Button lock function

The button lock function allows you to lock the buttons for cleaning purposes or for child safety.

1. Switch off the cooker hood by pressing the on/off button.
2. Press and hold the on/off button for approximately 5 seconds until all buttons will flash from left to right.
   All buttons are locked.
3. To unlock the buttons, press and hold the on/off button again for approximately 5 seconds.

Cleaning filters

Saturation of the filters

The filters should be replaced or cleaned when the filter indicator is lit or flashing.

Grease filters

The filter indicator will light up after 100 operating hours.

- The grease filters should then be cleaned.

Reset the filter indicator

1. Switch off the cooker hood by pressing the on/off button.
2. Switch off the lighting by pressing the lighting button.
   Reset the memory by quickly pressing the filter indicator button. All indicators will flash three times.

Cleaning

Important!

For all maintenance first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least in the same frequency as the grease filter cleaning). Do not use abrasive cleaning products. Do not use alcohol!

Important!

If the instructions regarding cleaning the appliance or replacing the filters are not followed, this can cause a fire. These instructions should be followed! The manufacturer is not liable for damage to the hood or fire damage resulting from incompetent maintenance or from non-adherence to the above safety instructions.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wash off with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Stainless steel cooker hoods

Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with a non-abrasive, non-polishing agent and buff the stainless steel in the direction of the grain.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

Illustration of a microwave oven with a door and lid, showing internal components (no text or symbols)

Removing the grease filters

1. Switch off the motor and lighting.
2. Remove the grease filters from the hood by pulling the special handle.

Lighting

This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

Disposal of appliance, carbon filter and packaging

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The local authorities can provide you with the relevant information.

The packaging of this appliance is recyclable. It could have been made from:

• cardboard;
• polythene foil (PE);
• CFK-free polystyrene (PS-hard foam).

You need to dispose of these materials responsibly in accordance with official regulations.

Prohibition sign with crossed-out trash bin and no text, likely indicating no waste or discharge

To draw attention to the fact that the segregated processing of electric household appliances is compulsory, this appliance carries the symbol of a crossed-out dustbin. This means that at the end of its working life, you may not dispose of the appliance as household refuse. Instead, you should hand it in at a special refuse collection centre run by the local authority or at a dealer's providing this service.

Segregated processing of household appliances avoids any negative effects on the environment and public health that might otherwise occur. It enables the recovery of the materials used in the production of this appliance, thus realising considerable savings in terms of raw materials and energy.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.
