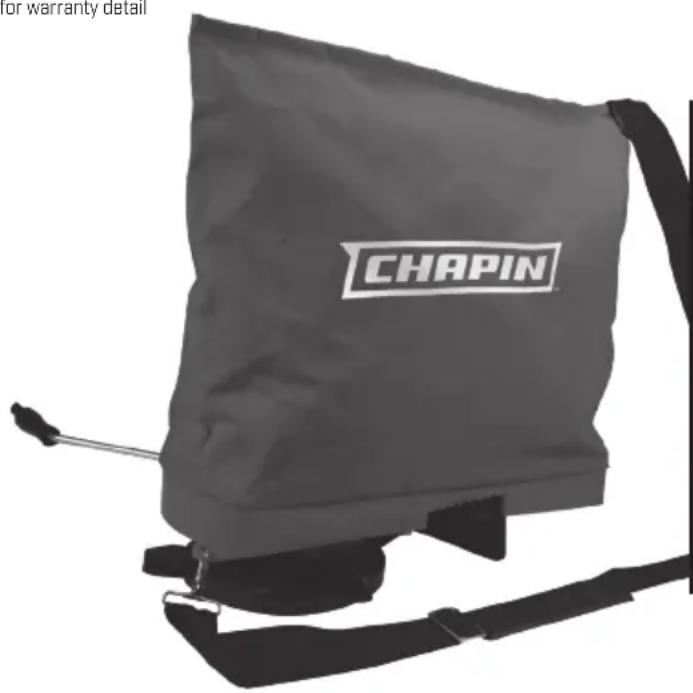

USER MANUAL 84700G Chapin

Failure to do so may result in damage to property and/or person.

See website for warranty detail

CHAPIN of warranty detail

Scan QR Code for easy video instructions.

QR code image containing encoded data, no visible human-readable text

CONGRATULATIONS!

YOU HAVE JUST PURCHASED A QUALITY CHAPIN PRODUCT.

REGISTER YOUR SPREADER ONLINE @ WWW.CHAPINMFG.COM

VISIT US ON THE INTERNET: WWW.CHAPINMFG.COM

BEFORE RETURNING THIS PRODUCT FOR ANY REASON, PLEASE CALL:

1-800-950-4458

When calling, please have the following information available: Sales receipt & model number. This number connects you directly with the manufacturer of this product. Our Technical Support Team will be happy to help you with any assembly, troubleshooting and replacement information you may need.

WARNING

WARNING: IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN PRODUCT FAILURE OR INJURIES. FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.

ASSEMBLY INSTRUCTIONS

The Chapin 84700 Professional Bag Seeder is preassembled at our factory, leaving only the crank handle and baffle for you to attach. To attach, turn crank handle onto crank shaft in a clockwise motion. There is no need to tighten the handle, just use your Bag Seeder and it will tighten automatically.

Step 1:

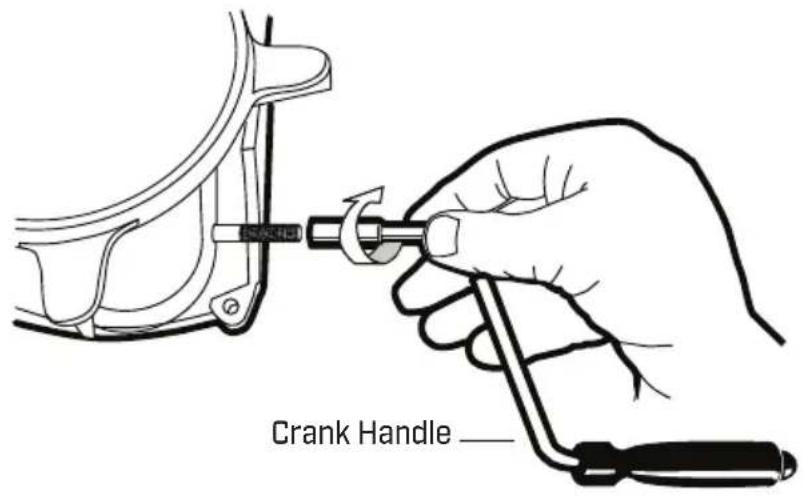

Assemble Crank Handle

Crank Handle ——

Step 2:

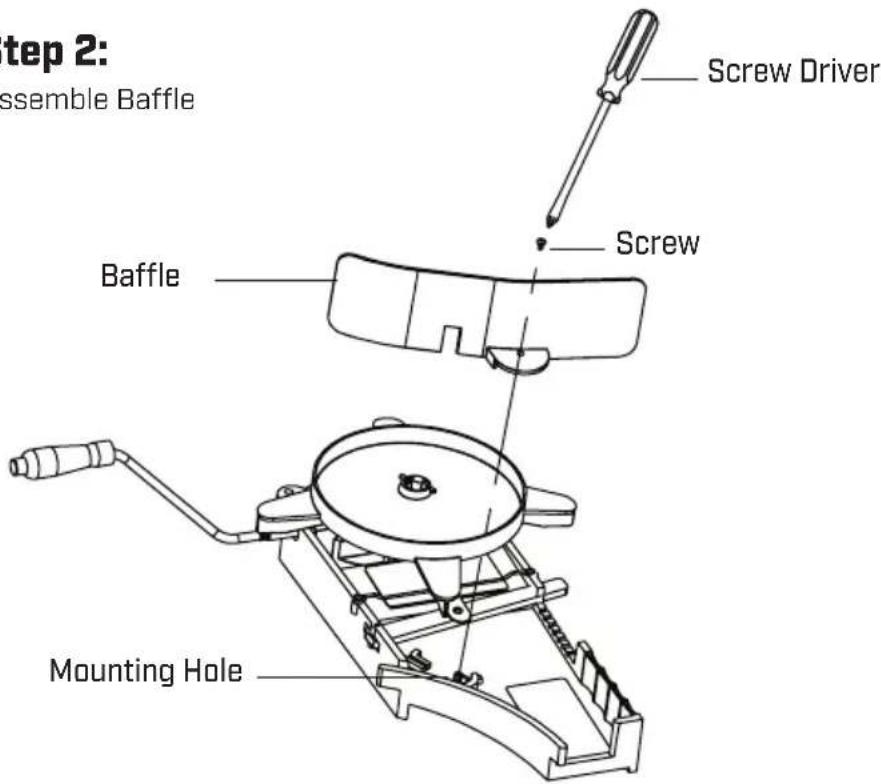

Assemble Baffle

Step 2: Assemble Baffle Screw Driver Baffle Screw Mounting Hole

OPERATING INSTRUCTIONS

1) Identify the appropriate setting for the type of seed you will be spreading using the chart on the following page [this convenient chart is also located on the underside of your Bag Seeder]. Line up the Setting Indicator to the setting required.
2) Make sure the slide Gate is closed before filling seed bag.
3) Fill Bag Seeder with seed or fertilizer to 1/2 to 3/4 full.
4) Place shoulder strap over shoulder. Place the Bag Seeder against hip.
5] Crank the handle maintaining a steady clockwise motion and walk at a consistent pace to spread the seed evenly. Depress slide gate control lever and move to desired setting. [see step 3 below].

Step 3:

Adjust the Control Lever to the setting required.

Open Close

6) To close the Slide Gate, simply press down on the Control Lever and return to position zero to close. (see step 3 above).

SPREADER SETTINGS:

Material Type	Broadcast Width [ft.]	Seeder Setting
Grass Seed	7'-9'	2
	10'-12'	4
	12'-14'	6
Fertilizer	12'-14'	2
	14'-16'	4
	16'-18'	6

*Due to the variables involved, these settings are intended for reference only.

Congratulations!

You have just purchased a quality Chapin product.

Register Your Spreader Online@ www.chapinmfg.com/warranty.asp
