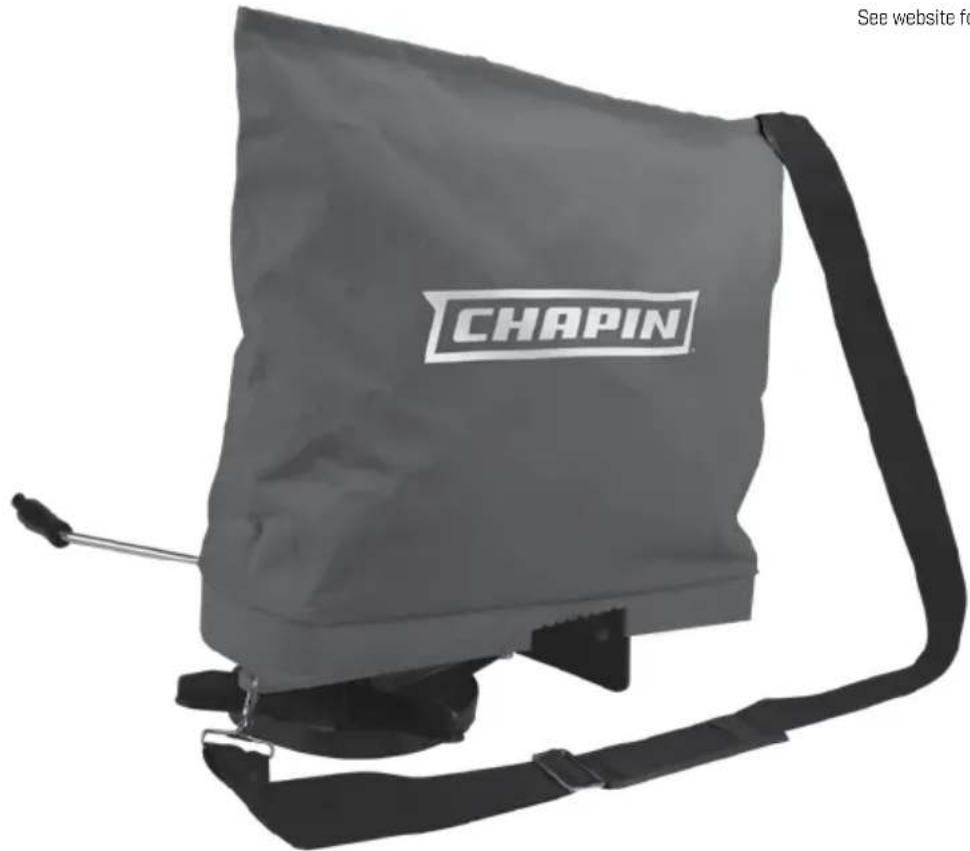

Model 84700A
WARNING
WARNING: IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN PRODUCT FAILURE OR INJURIES. FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.
ASSEMBLY INSTRUCTIONS
The Chapin 84700 Professional Bag Seeder is preassembled at our factory, leaving only the crank handle and baffle for you to attach. To attach, turn crank handle onto crank shaft in a clockwise motion. There is no need to tighten the handle, just use your Bag Seeder and it will tighten automatically.
Step 1:

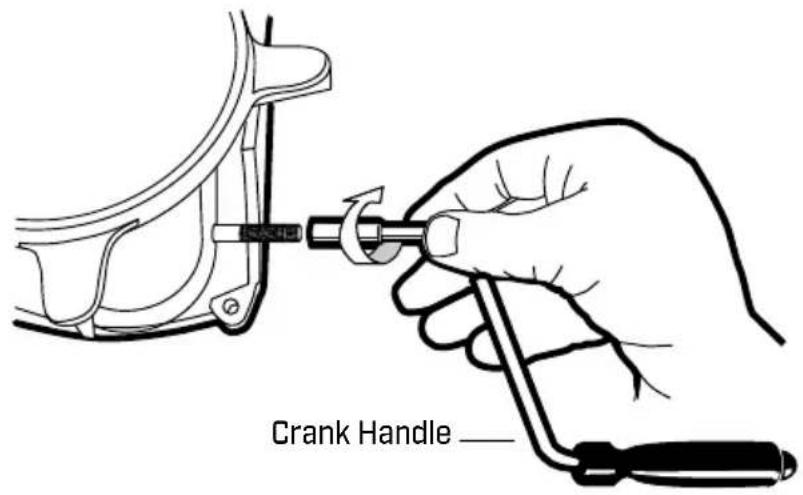

Assemble Crank Handle
Assemble Baffle


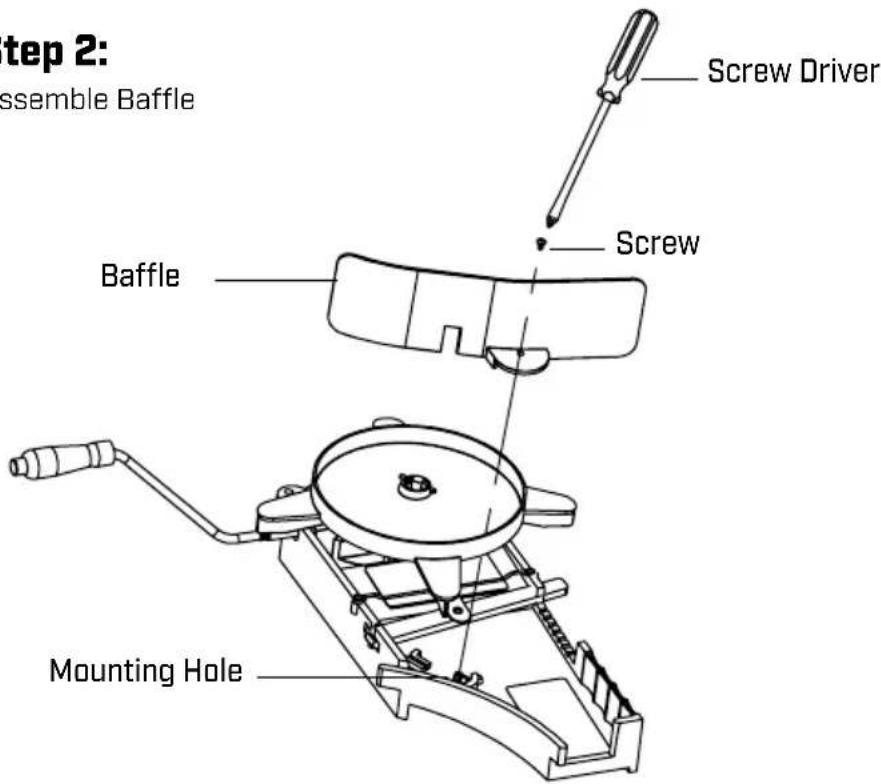

Step 2: Assemble Baffle Screw Driver Baffle Screw Mounting HoleOPERATING INSTRUCTIONS
1) Identify the appropriate setting for the type of seed you will be spreading using the chart on the following page (this convenient chart is also located on the underside of your Bag Seeder). Line up the Setting Indicator to the setting required.
2) Make sure the slide Gate is closed before filling seed bag.
3) Fill Bag Seeder with seed or fertilizer to 1/2 to 3/4 full.
4) Place shoulder strap over shoulder. Place the Bag Seeder against hip.
5] Crank the handle maintaining a steady clockwise motion and walk at a consistent pace to spread the seed evenly. Depress slide gate control lever and move to desired setting. [see step 3 below].
Step 3:
Adjust the Control Lever to the setting required.
SPREADER SETTINGS:
| Material Type | Broadcast Width [ft.] | Seeder Setting |
| Grass Seed | 7'-9' | 2 |
| 10'-12' | 4 | |
| 12'-14' | 6 | |
| Fertilizer | 12'-14' | 2 |
| 14'-16' | 4 | |
| 16'-18' | 6 |
*Due to the variables involved, these settings are intended for reference only.
Congratulations!
You have just purchased a quality Chapin product.
Register Your Spreader Online@ www.chapinmfg.com/warranty.asp
