CONGRATULATIONS!

YOU HAVE JUST PURCHASED A QUALITY CHAPIN PRODUCT.

REGISTER YOUR SPREADER ONLINE @ WWW.CHAPINMFG.COM

VISIT US ON THE INTERNET: WWW.CHAPINMFG.COM

BEFORE RETURNING THIS PRODUCT FOR ANY REASON, PLEASE CALL:

1-800-950-4458

When calling, please have the following information available: Sales receipt & model number. This number connects you directly with the manufacturer of this product. Our Technical Support Team will be happy to help you with any assembly, troubleshooting and replacement information you may need.

WARNING

IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN RESULT IN PRODUCT FAILURE OR INJURIES. FOR SAFE USE OF THIS PRODUCT YOU MUST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING.

Assembly Instructions

Suggested Tools:

Wrench and/or Ratchet Set

Pliers

1

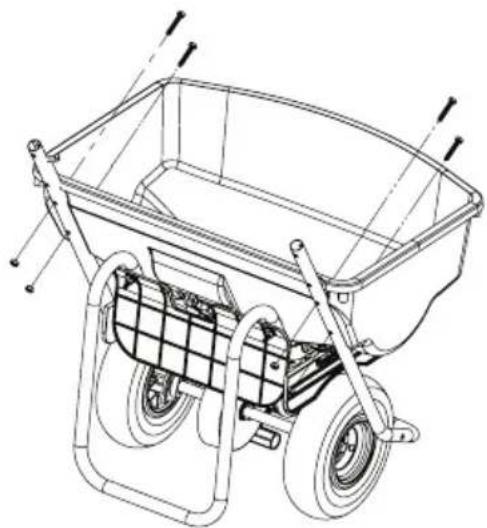

Remove the handle from the hopper [4 nuts and bolts].

Note: the gate linkage is nested between the hopper and the frame for shipment.

Technical line drawing of a two-wheeled pushrower with wheels and handlebars (no text or symbols)

2

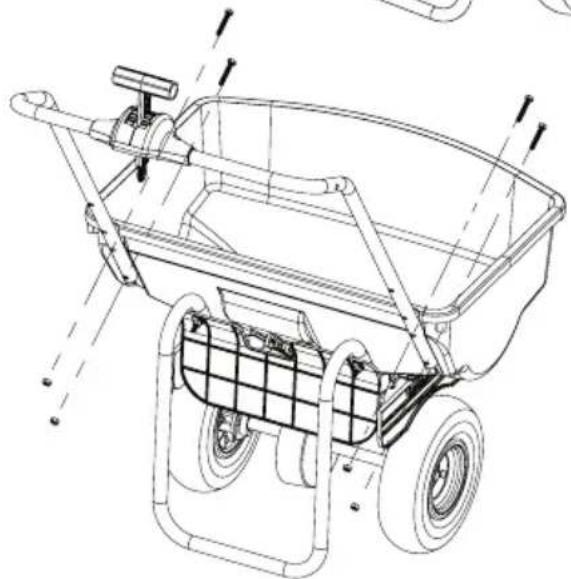

Flip handle upright and reattach handle through bottom 2 holes to hopper using the 4 nuts and bolts from step 1.

Technical line drawing of a two-wheeled manual push cart with no visible text or symbols

3

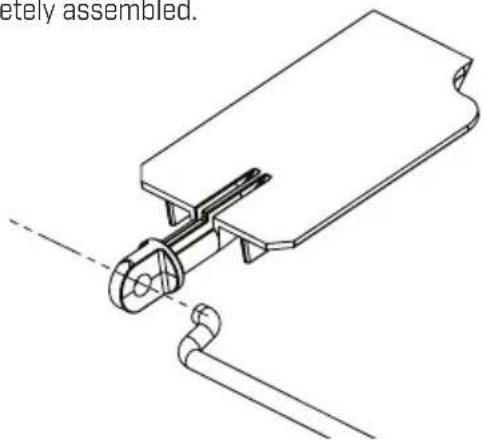

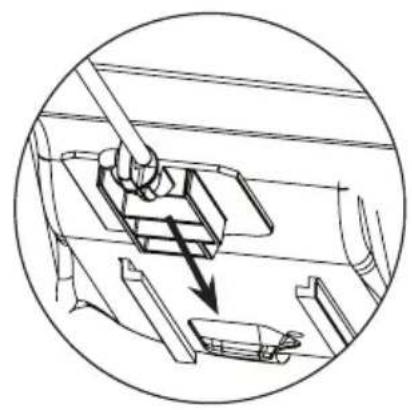

Remove gate from hopper.

Assemble the gate linkage to the gate by inserting the

"S-shaped" end into the gate.

Note: Let the linkage hang freely - Gate will not stay attached until completely assembled.

etely assembled.

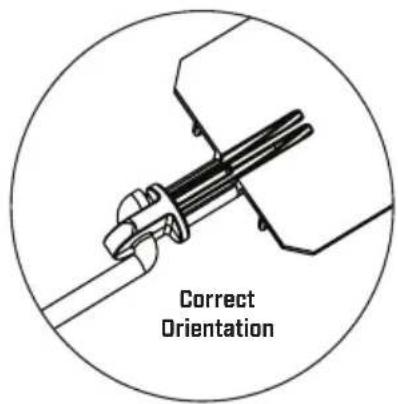

Correct Orientation

4

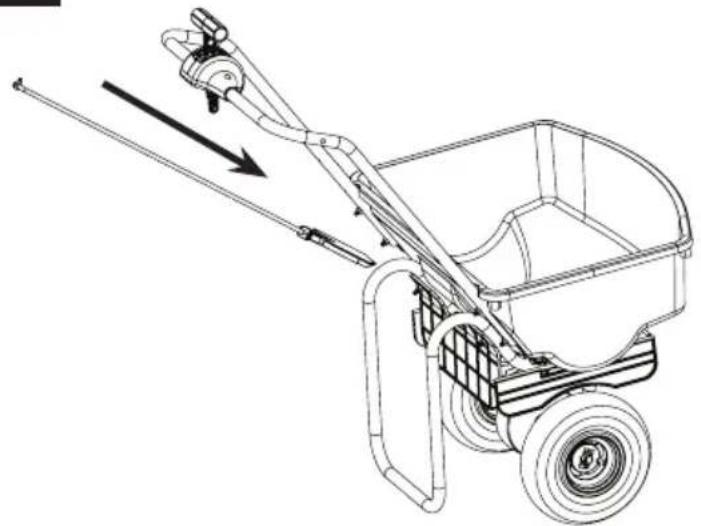

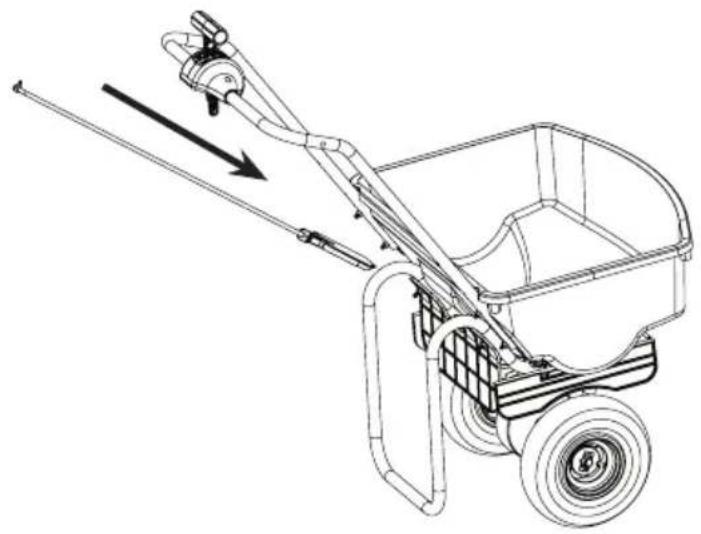

Slide the gate and linkage into the L ribs on hopper keeping linkage attached to the gate.

Line drawing of a manual pushrower with a lever and wheels, showing motion direction (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

5

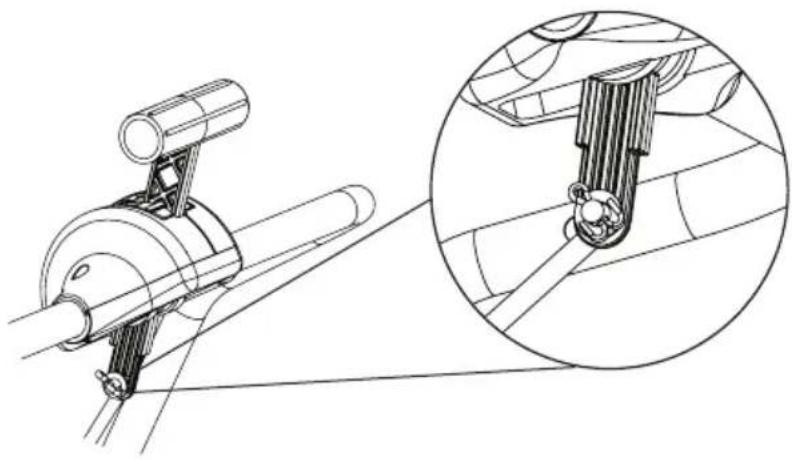

Insert the "L-shaped" end of the linkage into the gate control on the handle and secure with washer followed by the cotter pin provided. Using pliers bend cotter pin to secure linkage to the gate control.

Technical line drawing of a mechanical device with an inset close-up showing its internal components (no text or symbols)

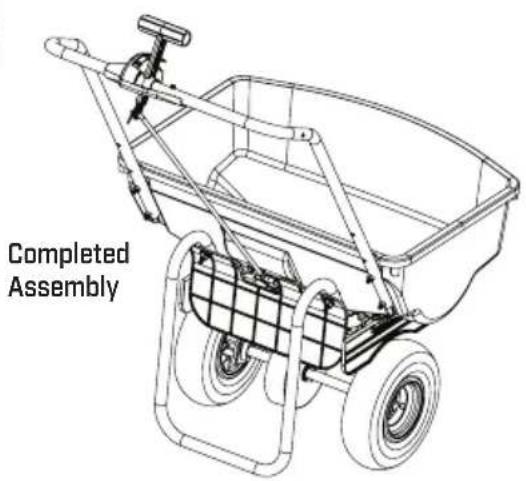

Completed Assembly

Simple right triangle ruler drawing with tick marks (no text or labels)

012345 67 8

SPREADER SETTING CONVERSION CHART

SCOTTS	1-4	4.5 - 7.5	8 - 11	11.5 - 14	15+
CHAPIN	0-1	2-3	3-4	4-5	6-8

General Operating Instructions

• Be sure gate control is in the closed position before filling hopper
• Determine appropriate setting for material being used by reading the suggested setting on the material's bag AND/OR by referencing the application chart on your spreader's control panel (Charts provided are only guidelines. Be sure to read the instructions on the bag/box of the material you're spreading to identify accurate setting needed)
• Remove wing nut and slide indicator to desired setting. Tighten wing nut completely.
• To begin spreading, start walking (about 3mph pace) release the control lever by pushing it forward. It will spring forward to the slide stop.
• To stop spreading simply pull the gate control back into the closed position.

Storage and Maintenance

• When finished spreading empty hopper of any remaining material
• Thoroughly wash spreader and allow to dry before storing

Replacement Parts

Ref.#	Qty	Part No.	Description
1 1	6-9067 Auger
2 1	6-8280 Baffle Kit

Diagram showing two mechanical components with no visible text or symbols

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

© 2025 Chapin International, Inc.

TurfPRO

ESPARCIDOR PROFESIONAL MANUAL

Failure to do so may result in damage to property and/or person.

AÑOS

LIMITADA DE GARANTÍA

QR code image containing encoded data, no visible human-readable text

¡FELICITACIONES!

ACABA DE COMPRAR UN PRODUCTO DE CALIDAD CHAPIN.

REGISTRE SU ESPARCIDOR EN LÍNEA EN WWW.CHAPINMFG.COM/WARRANTY.ASP

VISIT US ON THE INTERNET: WWW.CHAPINMFG.COM

Technical line drawing of a two-wheeled pushrower with wheels and handlebars (no text or symbols)

2

Technical line drawing of a two-wheeled cart with handlebars and wheels (no text or symbols)

3

Line drawing of a manual pushrower with a wheel, showing mechanical components and motion direction (no text or symbols)

Technical diagram of a mechanical assembly with a lever and component, showing no text or symbols

5

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Ensamblaje Completo

0 1 2 3 4 5 6 7 8

Two mechanical component diagrams labeled 1 and 2, showing different assembly states (no text or symbols present)

P.O. Box 549 700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458 www.chapinmfg.com

TurfPRO

Failure to do so may result in damage to property and/or person.

QR code image containing encoded data, no visible human-readable text

Félicitations!

VOUS VENEZ D'ACHETER UN PRODUIT DE QUALITÉ CHAPIN.

ENREGISTREZ VOTRE ÉPANDEUR EN LIGNE @ WWW.CHAPINMFG.COM/WARRANTY.ASP

VISIT US ON THE INTERNET: WWW.CHAPINMFG.COM

AVANT DE RETOURNER CE PRODUIT POUR QUELQUE RAISON QUE CE SOIT, VEUILLEZ APPELER :

1-800-950-4458

Technical line drawing of a two-wheeled pushrower with wheels and handlebars (no text or symbols)

2

Technical line drawing of a two-wheeled cart with wheels and control lever (no text or symbols)

3

Technical line drawing of a mechanical component with no visible text or symbols

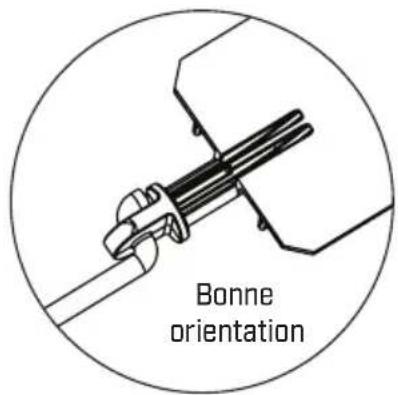

Bonne orientation

4

Slide the gate and linkage into the L ribs on hopper keeping linkage attached to the gate.

Line drawing of a manual pushrower with a wheel, showing mechanical components and motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and guide mechanism (no text or symbols)

5

Technical line drawing of a mechanical device with an inset close-up showing its internal components (no text or symbols)

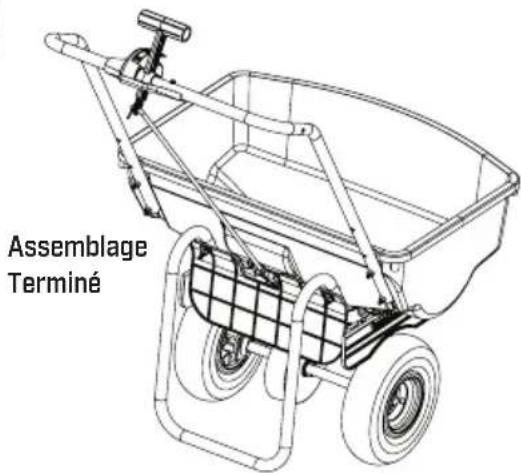

Assemblage Terminé
