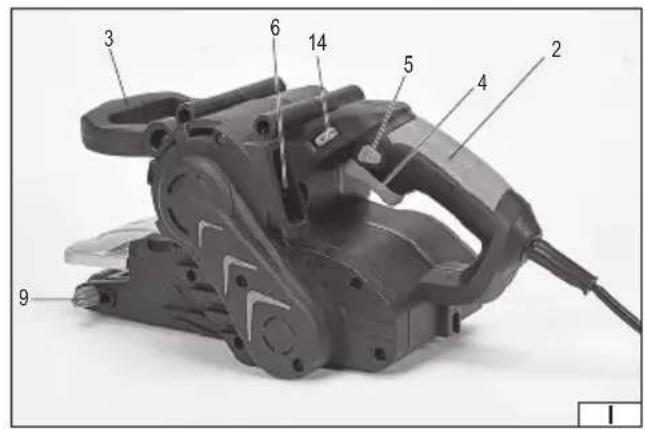

housing
-
grip handle
-
additional handle
-
switch
-
switch lock
-
dust extraction hole
-
dust extraction connector
-
belt tension lever
-
roller position knob
-
abrasive belt
-
roller
-
power cord with plug
-
dust bag
-
revs control knob
DE
Read the operating instruction
Wear protective goggles
Schutzbrille tragen
Second class of insulation
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
PRODUCT CHARACTERISTICS
Belt grinder is a power tool designed for surface grinding, roughing and smoothing by means of abrasive belt. Thanks to possibility of using tapes of various grades of abrasive materials, both the initial and final processing is possible. Product has been designed to be used only in households and may not be used as a professional tool, i.e. in industrial plants and for economic activity. Correct, reliable and safe operation of the product depends on proper operation, therefore:
Before starting the work with this appliance, please read this manual and keep it properly.
The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.
EQUIPMENT

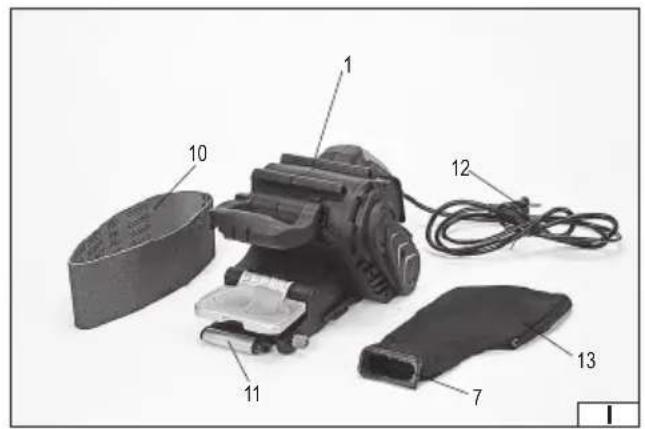

The product is delivered complete and does not require assembly. Product is supplied together with: one abrasive belt, bag for collection of dust produced during the work and bag connector.
TECHNICAL PARAMETERS
| Parameter Measuring unit Value | ||
| Catalogue number YT-82240 | ||
| Mains voltage [V~] 230-240 | ||
| Mains frequency [Hz] 50 | ||
| Rated power [W] 1010 | ||
| Belt travel speed [m/min] 120 - 380 | ||
| Electrical protection class II | ||
| Protection class (IPXX) IP20 | ||
| Weight | [kg] | 3,5 |
| Size of abrasive belt | [mm] | 533 x 75 |
| Noise level | ||
| - L_pA (pressure) | [dB(A)] | 90 ± 3 |
| - L_wA (power) | [dB(A)) | 101 ± 3 |
| Oscillations | [m/s2] | 5,1 ± 1,5 |
GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS
Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.
Keep all warnings and instructions for future reference.
The term “power tool” used in warnings applies to all tools driven by power both wired and wireless.
Workplace safety
Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.
Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.
Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.
Electrical safety
The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.
Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.
Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.
Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.
Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.
In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.
When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.
EN
Personal safety
Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.
Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.
Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.
Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.
Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.
Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.
If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.
Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules. Carefree action can cause serious injuries in a fraction of a second.
Use and care of the power tool
Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.
Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.
Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.
Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.
Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.
Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.
Repairs
Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.
ADDITIONAL SAFETY INSTRUCTIONS
Hold the power tool by its insulated grip surfaces while performing operations where the sanding part may come into contact with concealed wiring or its own cable. If the sanding part comes into contact with live cable, it may cause the exposed metal parts of the power tool to become live and electrocute the operator.
Toxic dust may be produced when grinding some surfaces. For example surfaces coated with varnish with addition of lead. Inhaling of toxic dust may pose a threat to grinder's operator or third parties. In such case it is required to use proper personal safety equipment such as anti-dust masks, work in well ventilated rooms and to use external dust extraction systems.
Tool must not be exposed to atmospheric precipitations.
Prior to the use of the tool make sure that the abrasive belt is not damaged. If any cracks, fraying or other damages are found, the belt must be replaced. It is forbidden to use the grinder with the damaged abrasive belt!
It is forbidden to use belts of other sizes than those specified in this manual.
It is forbidden to repair or re-work the damaged abrasive belts. The damaged abrasive belt must be replaced with new belt, free from defects.
It is mandatory to use protective glasses and it is recommended to wear gloves and protective clothes.
PRODUCT OPERATION
Caution! Disconnect the product from the power source before performing any installation, replacement or adjustment activities by unplugging the power cord from the socket.
Mounting the abrasive belt
Prepare the abrasive belt with the dimensions given in the table.

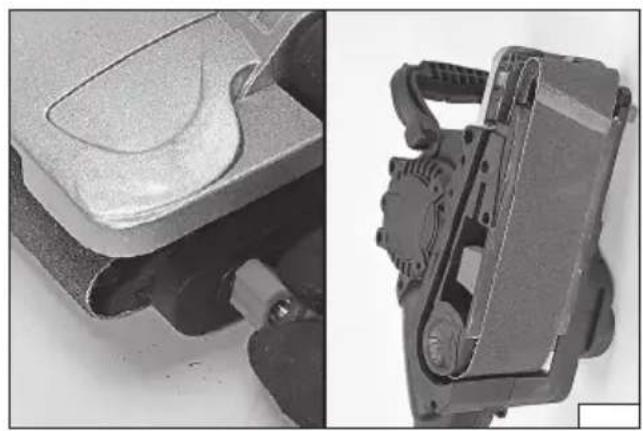

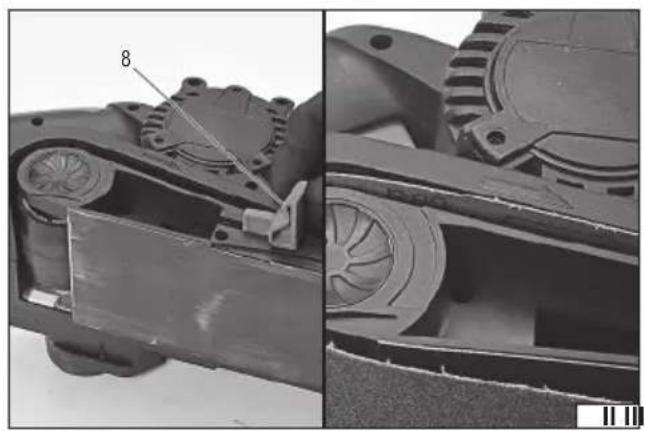

Raise the tension lever (II) to reduce the distance between the belt tension rollers. Apply the abrasive belt so that the arrow points showing the direction of the belt movement, seen on the grinder housing and on the belt, are consistent (II).
Lower the tension lever and align it with the grinder housing (III).
Perform a test run on the grinder. Make sure that the grinder switch is not in the "on" position. Press it and release.
Plug the power cord plug into the socket. While holding the grinder with both hands so that the belt does not come into contact with any surface or object (VI), press and hold the on/off switch.
If the tape starts to move along the rollers, this means that the rollers are not parallel. If this happens, release the pressure on the switch, wait for the belt to stop, unplug the power cord from the socket, and adjust the position of the rollers using the knob (III).
Restart the grinder according to the procedure described above.
The adjustment should be made until the rollers are parallel and the belt does not move along the rollers when the grinder is running.
Connecting the dust extraction (IV)

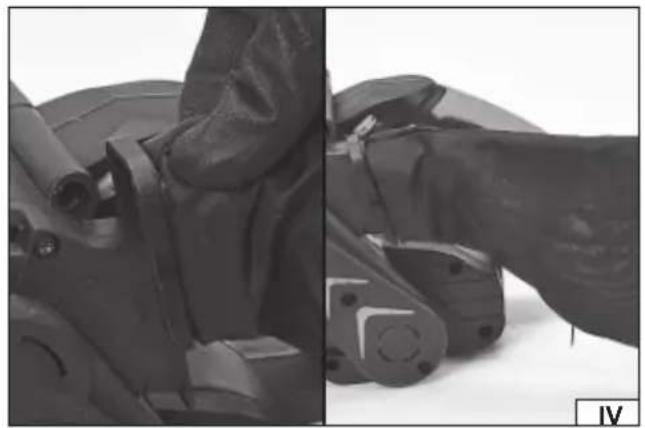

The grinder is equipped with an extraction system to collect dust generated during operation. Place the bag supplied with the grinder in the dust extraction opening. An external dust extraction system, e.g. based on an industrial vacuum cleaner, can also be connected to the connector.
Caution! It is not recommended to connect to the regular household vacuum cleaner connectors. Such vacuum cleaners are not equipped with filters capable of handling industrial dust. Using a household vacuum cleaner to extract dust can damage the device. The adapter for connecting an external dust extraction system to the tool is not included with the product.
Starting and stopping the grinder
Make sure that the grinder switch is not in the "on" position. Press it and release.
Plug the power cord plug into the socket. While holding the grinder with both hands so that the belt does not come into contact with any surface or object (VI), press and hold the on/off switch. Run the grinder for approx. 30 seconds. During this time, check whether no suspicious sounds are coming from the grinder, that the grinder does not vibrate excessively and that the belt does not slip off the rollers. If no irregularities are found, the work can be commenced.
Caution! The grinder on/off switch is equipped with a lock which can be used to block the pressed on/off switch for long periods of operation. The lock button must be pressed while the on/off switch is pressed, then the pressure on the on/off switch and the lock button can be released. Release the lock by pressing the on/off switch again.
The grinder stops when the pressure on the unlocked switch is released. The belt may still rotate for some time after the switch is released.
Belt speed control (V)

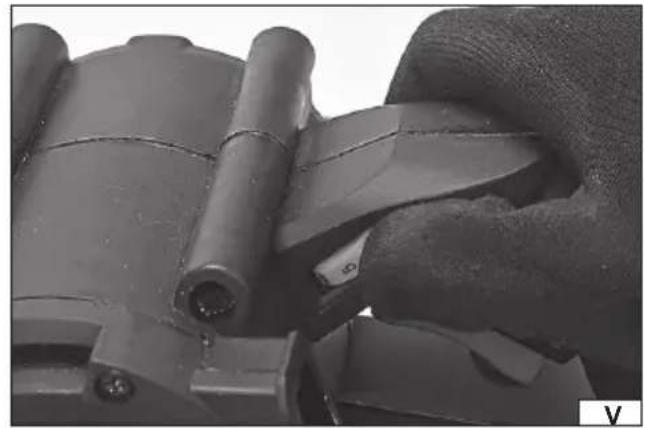

The grinder allows for an infinite belt speed adjustment by means of a knob. The higher the number visible on the knob, the higher the belt speed. Limit speeds have been provided in the table below.

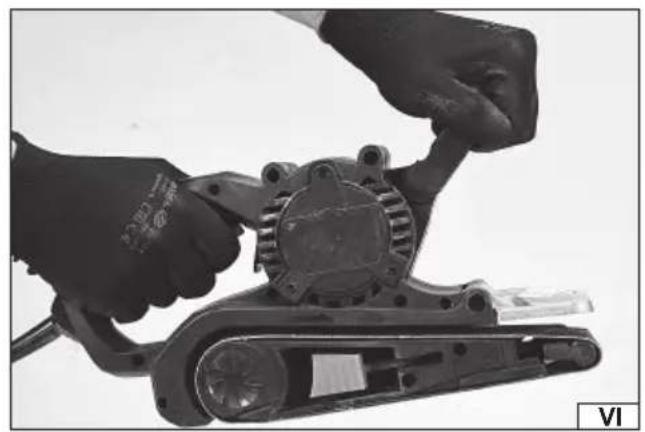

Adjusting the position of the additional handle (VII)

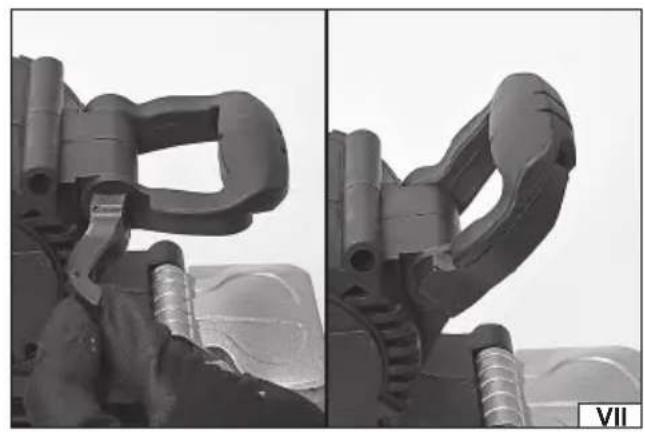

The grinder handle can be set in one of three positions. This allows to adjust the grip of the grinder to the physical conditions of the operator and/or the type of work. Pull the lever which locks the position of the accessory bracket back and then change the position of the handle. It is possible to set the handle in one of the three positions indicated by the sound of the ratchet mechanism. Closing the locking lever locks the handle in the set position.
Warning! It is forbidden to use the grinder without the additional handle locked.
Lifting the housing front (VIII)
The grinder allows the front of the housing to be raised, which in combination with the small diameter of the front roller tensioning the belt enables sanding places inaccessible with a traditional belt grinder, such as inside corners.
Set the additional handle in the top or middle position and then lift the front of the housing completely. The ratchet mechanism will hold it up. The front part is lowered by pushing it forward.
Warning! It is forbidden to operate with the front part of the housing raised where not necessary.
Additional handles (IX)

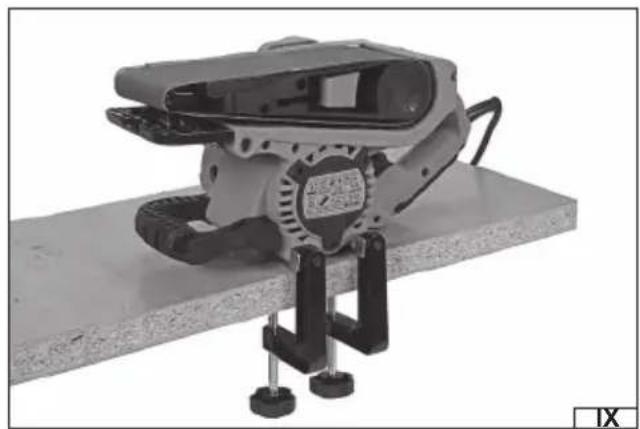

Additional holders allow you to attach the grinder to the worktop so that the belt is directed upwards. The cylindrical part of the handles should be inserted into the holes in the upper part of the grinder housing. Then attach the grinder to the table top. Before starting, check that the grinder does not move. During operation, periodically check that the mounting bolts have not loosened due to vibrations. Place the processed material in the middle of the belt only. When working in such an arrangement, extreme care
EN
must be taken so that nothing is caught by the rotating belt.
Working with grinder
Before the start of work fix the workpiece so that it cannot displace unexpectedly in the course of work. You may use for this purpose hand screws, vices, chucks etc. Apply the grinder at full speed to the surface of surface processed. Belt should travel at full speed.
Grinder to be handled with both hands when being moved on the surface of processed material. Grinder's movements should not be fast. When processing wooden surfaces the grinder should be moved along the grains.
Do not exert excessive pressure on the grinder; the weight of the grinder is sufficient for the processing of workpiece. Excessive pressure leads to premature wear of the abrasive belt and may lead to damaging of the processed surface, does not affect the speed of the grinder.
Speed of belt's travel should match the type of the processed surface and the type of abrasive belt. Higher belt's travel speed results in faster and more precise processing. The higher (finer) grit of abrasive belt, the lower but more precise processing. The condition of belt should be checked in the course of work, worn or damaged belt should be replaced with new one before restart of work.
Never use the previously used belt for the processing of other type of surface. For example the tape used previously for the processing of metal surface should not be used for the processing of wood.
It is forbidden to use the grinder in other way than the tool operated using hands of the operator. Do not use the grinder as stationary tool affixed to e.g. table by means of clamps. Grinder has not been designed for such a use and using it as the stationary tool poses a serious threat of injuries to operator.
If the grinder is used for removal of varnish coating, it should be fitted with dust extraction system and lowest pressure should be applied during the work. Excessive pressure may lead to heat generation and consequently to dissolution of varnish coating. This will lead to contamination and premature wear of abrasive belt as well as it may contaminate the material being processed.
Additional notes
Declared total value of vibration was measured by means of standardized test method and can be used to compare one tool with the other. Declared total value of vibration can be used in the initial exposure assessment.
Warning! Emission of vibration when working with the tool may vary from the declared value, depending on how the tool is used.
Warning! It is required to determine safety measures to protect the operator, which are based on the exposure assessment in real conditions of use (including all elements of work cycle, such as for example time when tool is switched off or idling and time of activation).
MAINTENANCE AND OVERHAUL
ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.
