USER MANUAL YT-82772 Yato
- main grip handle
- auxiliary grip handle
- SDS+ drill chuck
- switch
- rotation direction switch
- operation mode switch
- battery charge indicator
DE
Read the operating instruction
Wear protective goggles
Schutzbrille tragen
Wear hearing protectors
Gehörschutz tragen
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
PRODUCT CHARACTERISTICS
A drill driver is a universal portable device that does not need any external source of power supply, intended for handymen for making holes in various materials (e.g. wood and wood-related materials, metals), for screwing and unscrewing various screws and bolts, and also for impact drilling in hard ceramic materials (e.g. concrete). Its particular advantages will be appreciated by handymen performing various assembly and finishing works. This product is not designed for commercial applications. Correct, reliable and safe operation of this power tool depends on proper operation, therefore:
Before starting the work with this tool, please read this manual and keep it properly.
The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.
EQUIPMENT
The device is delivered complete and does not require assembly.
Attention! The product has not been equipped with a rechargeable battery and charging station.
TECHNICAL PARAMETERS
| Parameter Measuring unit Value | ||
| Catalogue number YT-82772 | ||
| Operating voltage [V] 18 DC | ||
| Rotation (idle running) [min | -] 0 - 1000 | |
| Impact frequency [min | -] 0 - 5000 | |
| Max. torque [Nm] 2,4 | ||
| Noise level | ||
| - acoustic pressure L_pA ± K_pA T/T | [dB] 92,0 ± 3,0 / 92,0 ± 3,0 | |
| - acoustic power L_wA ± K_wA T/T | [dB] 100,0 ± 3,0 / 100,0 ± 3,0 | |
| Protection class IPX0 | ||
| Insulation class | III | |
| Oscillation level a_h ± K T/T | [m/s2] | 13,3 ± 1,5 / 11,6 ± 1,5 |
| Weight | [kg] | 2,3 |
| Tool chuck | SDS+ | |
| Maximum drilling diameter | ||
| - in wood | [mm] | 30 |
| - in concrete | [mm] | 24 |
| - in steel | [mm] | 13 |
| Battery type | YATO 18 V Li-Ion |
GENERAL SAFETY CONDITIONS
NOTE! Get acquainted with all the instructions below. Failure to observe them may lead to an electric shock, fire or injuries. The notion of electric tool used in the instructions applies to all the tools which are powered with electric current, both wire tools and wireless ones.
OBSERVE THE FOLLOWING INSTRUCTIONS
Place of work
The place of work must be properly illuminated and clean. Disorder and poor illumination may be a cause of accidents.
Do not work with electric tools in explosive environments, or those which contain inflammable liquids, gases or vapours.
Electric tools generate sparks, which may cause a fire in case of contact with inflammable gases or vapours.
Do not allow children and outsiders to the place of work. A lack of concentration may result in a loss of control over the tool.
Electric safety
The plug of the power supply cable must fit the mains socket. Do not modify the plug. Do not use any adapters whatsoever in order to adapt the plug to the socket. Unmodified plug which fits the socket reduces the risk of an electric shock.
Avoid contact with grounded surfaces, such as pipes, heaters and refrigerators. Grounding of the body increases the risk of an electric shock.
Do not expose electric tools to precipitation or humidity. Water and humidity which gets into the electric tool increases the risk of an electric shock.
Do not overload the power supply cable. Do not use the power supply cable in order to carry the tool or to connect and
EN
disconnect the plug from the mains socket. Avoid contact of the power supply cable with heat, oils, sharp tools and moving elements. Damage to the power supply cable increases the risk of an electric shock.
In case work is realised outside closed areas, it is necessary to use extension cords designed for applications outside closed areas. Using a correct extension cord permits to reduce the risk of an electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RDC) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Commence work in good physical and psychological conditions. Pay attention to what you do. Do not work if you are tired or under effects of medicines or alcohol. Even a moment's inattention during work may lead to serious injuries.
Always use individual means of protection. Always wear goggles. Using individual means of protection, such as dust-masks, protective shoes, helmets and hearing protections permits to reduce the risk of serious injuries.
Avoid accidental activation of the tool. Make sure the switch is in the OFF position, before you connect the tool to the mains. Holding the tool with a finger on the switch or connecting an electric tool when the switch is in the ON position may lead to serious injuries.
Before you turn an electric tool on remove all the spanners and other tools, which have been used for adjustments. A spanner left on rotating elements of the tool may lead to serious injuries.
Keep your balance. Maintain an appropriate position. It will permit to control the electric tool in case of unpredicted situations during its operation.
Use protective clothes. Do not wear loose clothes or jewellery. Keep your hair, clothes and gloves away from moving elements of the electric tool. Loose clothes, jewellery or long hair may get caught on moving elements of the tool.
Use dust extractors or dust containers, if the tool is equipped with any. Make sure they are properly connected. Using of dust extractors permits to reduce the risk of serious injuries.
Operation of the electric tool
Do not overload the electric tool. Use a proper tool for the given purpose. A correct selection of the tool for the given work will result in a more efficient and safer work.
Do not use the electric tool if the switch is not functioning properly. A tool which may not be controlled by means of a switch is dangerous and must be repaired.
Disconnect the plug from the mains socket before any adjustment, replacement of accessories or storage of the tool. It will permit to avoid accidental activation of the electric tool.
Store the tool away from children. Do not allow untrained persons to operate the tool. An electric tool may be dangerous in hands of an untrained person.
Make sure the tool is properly maintained. Check the tool in order to detects any unfitting or loose moving elements. Check whether the elements of the tool are not damaged. In case any damaged elements of the tool are detected, they must be repaired before the electric tool is operated. Many accidents are caused by improper maintenance of tools.
Cutting tools must be sharp and clean. Properly maintained cutting tools are easier to control during work.
Use electric tools and accessories in accordance with the aforementioned instructions. Use the tool in accordance with its purpose, taking into account the kind and conditions of work. Should the tool be used for other applications than the ones it has been designed for, the risk of a dangerous situation increases.
Repairs
The tool may be repaired only by authorised service centres, which must use solely original spare parts. It will guarantee a proper level of safety of operation of the electric tool.
ADDITIONAL SAFETY INSTRUCTIONS
Wear hearing protectors when working with hammer drill. Exposure to noise can cause a loss of hearing.
Use this tool with auxiliary handle grips supplied with the tool. Losing control may cause personal injury to the operator.
Loss of control may cause personal injuries of the operator. Use of anti-dust mask reduces the risk of serious body injuries.
While working, whenever the inserted tool may come into contact with hidden live wire, hold the power tool using insulated handles. Inserted accessory when coming into contact with a live wire may cause metal components of the tool to become energized, which could result in electric shock to the operator of a tool.
PRODUCT HANDLING
Product preparation to work
Note! All actions mentioned in this chapter should be carried out with supply voltage off - the battery must be disconnected from the tool!
EN

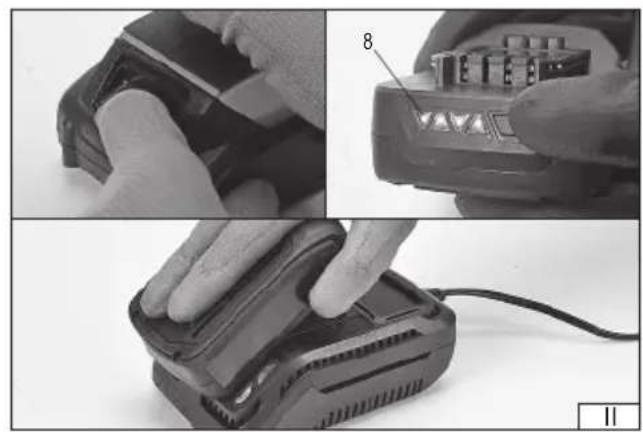

Only the following 18V Li-Ion YATO batteries can be used to power the tool: YT-82842, YT-82843, YT-82844 and YT-82845, which can only be charged with YATO YT-82848 or YT-82849 chargers. It is forbidden to use other batteries with a different rated voltage and not matching the tool battery socket. It is forbidden to modify the socket and/or battery to match them.
Slide the charged battery into the guides of the battery socket so that the battery latch holds it in place (II). Check whether the battery does not slide out of the tool socket by itself.
After installing the battery, the tool is ready to work.

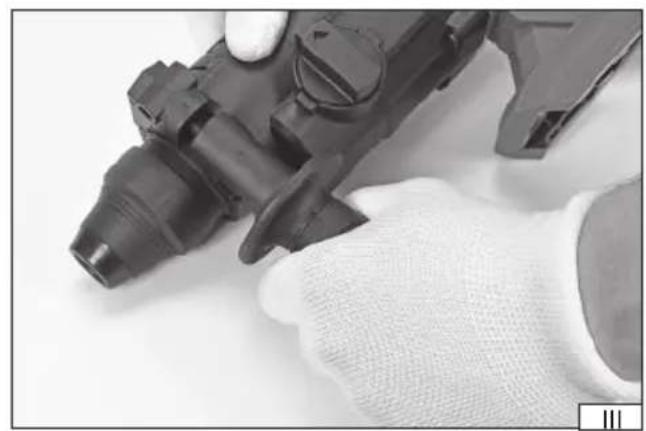

Installation of the additional handle (III)
Install the additional handle in the desired position and tighten it, turning the grip of the handle.
Assembly and disassembly of a tool inserted in drill chuck (IV)
The product has been fitted with SDS+ drill chuck which cannot be dismantled.
The assembly of a tool inserted fitted with SDS+ chuck should be carried out as follows.
SDS+ chuck of the inserted tool should be thoroughly cleaned and then lubricated with a thin layer of solid oil of general use.
The rear part of the tool should be pulled in direction of product's grip handle and held in this position. Slide the tool inserted into the chuck. Check whether the tool inserted slides out by itself during the work. The tool should be able to move forward and backward to a slight extent, however it should not slide out completely from the chuck.
Otherwise, it should be assembled again.
Disassembly of the tool inserted from the drill chuck should be carried out in reverse order.

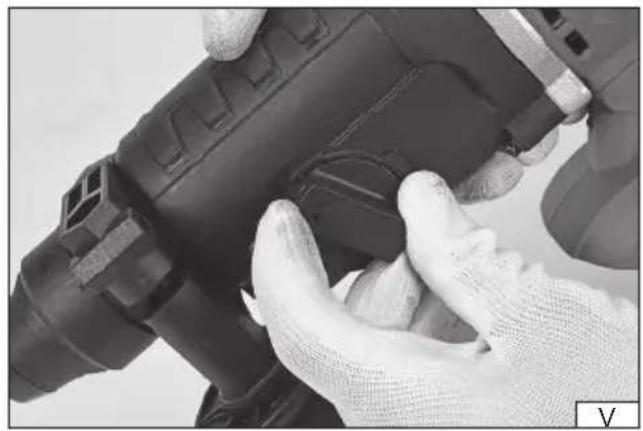

Setting the operation mode (V)
The hammer action operation facilitates drilling in concrete, walls and hard ceramic materials (hard bricks, stones, marble). The hammer action selector must be set to hammer action indicated with a symbol of a drill and a hammer.
It is also possible to set the hammering function. In this mode rotation is stopped, but the hammer action is still on.
In order to do so, set the operating mode selector to the hammer symbol.

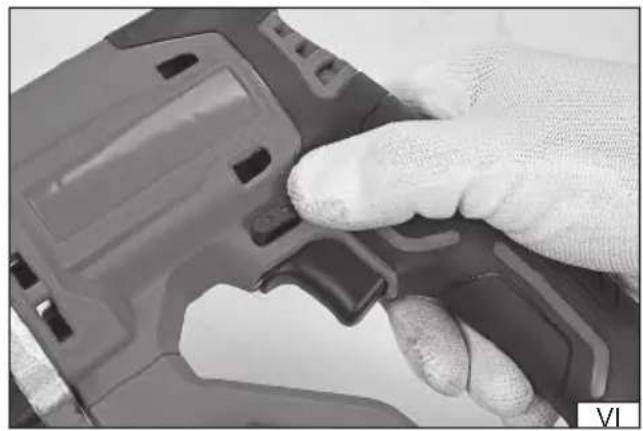

Setting direction of rotation (VI)
Set the switch of rotation direction to a position marked with direction symbol or letters. The symbol directed towards the drill chuck or R letter indicates rotation to right - drilling with right-handed drill bit, screwing right-handed screws, unscrewing left-handed screws. The symbol directed opposite to the drill chuck or L letter indicates rotation to left - drilling with left-handed drill bit, screwing right-handed screws, unscrewing left-handed screws. Note! Reversing the direction of rotation can only be done when the spindle rotation is stopped.
Next to the battery charge indicator also was placed a rotation direction indicator, which indicates the setting by means of highlighting the direction of rotation as soon as the product has been started.
Setting the speed and torque
The ;product does not have separate regulators that allow setting the speed and torque. Increasing pressure on the switch will result in increase of rotational speed and torque until maximum rotational speed and maximum torque. For impact drilling, an increase of pressure on the switch also results in increase of impact frequency.
Preparatory activities
Before starting the work:
Affi x the workpiece to the vice or using carpenter's clamps.
Use work tools appropriate for the specific job. Make sure the work tools are sharpened and in good condition.
Wear working clothes as well as eye and ear protection.
Mount the battery in the product.

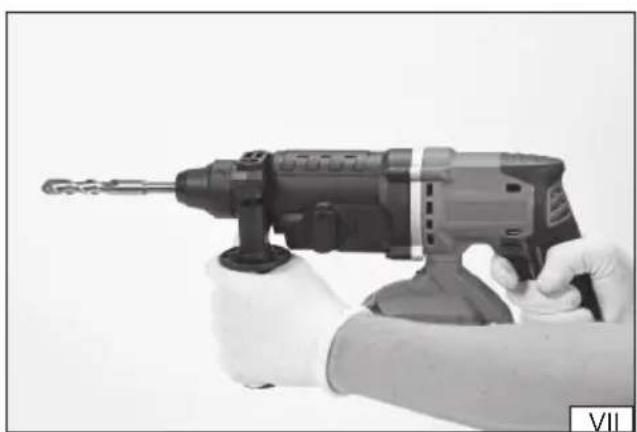

Using both hands grab the drill driver using a grip handle and auxiliary handle (VII).
Adopt a firm and stable posture.
Turn on the drill driver by pressing on the electric switch with a finger.
Note! Should any suspicious noise, cracks, suspicious odour, etc. were observed, immediately switch off the drill driver and detach the battery from the tool.
Switching off the drill driver is done by releasing the pressure on the switch. The tool inserted may rotate for some time after switching off the product. You may put the product aside or attend to other activities connected with the product only after the tool inserted stops completely.
EN
PRODUCT USE
Using right or left rotation direction
Right rotation to be applied when drilling with commonly used right-hand drill bits.
Left rotation to be applied in case the right-hand drill bit is cogged in the material and when unscrewing screws.
When unscrewing the screws, use minimum rotation.
Drilling in wood
Before drilling a bore it is recommended to fix the workpiece with a carpenter's clamp or in the vice, and then mark the place of drilling using a punch or nail. Attach the drill bit to the drill chuck, fix the speed, connect the drill to the mains and start drilling. In case of drilling through bores, it is recommended to place a wooden pad under the material, to prevent the bore edge at the outlet from being jagged.
When making large diameter bores, it is recommended to drill a smaller guiding bore earlier.
Drilling in metals
It is required to secure the work piece firmly.
In case of thin sheet metal, it is advisable to place a piece of wood beneath to avoid unwanted bends etc. Then mark the place of bores to be drilled with the punch and start drilling. Use drill bits for steel. When drilling in white cast iron, it is recommended to use drill bits with self-bonded carbide tips. When drilling larger bores, it is recommended to make a smaller guiding bore earlier. When drilling in steel use machine oil for cooling the drill bit. For aluminium, use turpentine or paraffin as a coolant.
Never use coolants when boring in brass, copper or cast iron. In order to cool it down, often remove the drill bit from the material to let it cool.
Drilling in ceramic materials
Drilling in hard, compact materials (concrete, hard brick, stone, marble, etc.)
Prior to drilling the right bore, drill a smaller bore without hammer function. Make the right bore with the hammer function on. Use hammer self-bonded carbide tips in good condition.
Drilling in glaze, soft brick, plaster, etc.
Drill as specified above but with hammer function off.
Occasionally remove the drill bit from the drilled bore in order to get rid of dust and waste. When drilling, press the tool strongly with constant force.
In case of drilling, where the drill chuck is directed upwards it is recommended to use a cover of a drill chuck (offered separately), which protects the dust from penetration into a tool chuck. A cover is made of flexible plastic and has a slot through which a drill bit mounted in a drill chuck should be inserted.
Adjustments of the angle of the chisel
Certain hammering tools require adjustments to a certain angle, in order to guarantee a safe and ergonomic operation, for example chisels and cutters. It is possible to use for this purpose an adequate operating mode selector. Install the tool in the chuck in accordance with the recommendations indicated in the manual. Set the selector to the hammer symbol with an arrow, and then press the switch. The tool will start to rotate in accordance with the selected direction of rotation. Release the switch, once the tool has reached the required position. Set the operating mode selector to the hammering position – hammer symbol, and then start work
Cutting out holes
Drill can be used for drilling larger bores in wood using a special fixed-diameter drill bits or replaceable tips from a set of jigsaws for holes.
To prevent burrs, jagged edges of the bore at the bore outlet, place a piece of waste wood beneath the material.
Using attachments
Drills with variable rotation direction should not be used to drive attachments.
Additional notes
Do not exert too much pressure on the processed material during operation and do not make any sudden movements to prevent damage to the tool inserted and the product.
Make regular breaks during the work.
Do not overload the tool - temperature of outside surfaces can never exceed 60 °C.
After the work is complete switch off the product, dismount the battery and perform maintenance and inspection operations.
Declared total value of vibration was measured by means of standardized test method and can be used to compare one tool with the other. Declared total value of vibration can be used in the initial exposure assessment.
Note! Emission of vibration when working with the tool may vary from the declared value, depending on how the tool is used.
EN
Note! It is required to determine safety measures to protect the operator, which are based on the exposure assessment in real conditions of use (including all elements of work cycle, such as for example time when tool is switched off or idling and time of activation).
MAINTENANCE AND OVERHAUL
ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.
DE
PRODUKTBESCHREIBUNG
PRODUKTA RAKSTUROJUMS
PRODUKTA APKALPOŠANA
CARACTERISTIQUES DU PRODUIT
EN IEC 62841-2-6:2020 + A11:2020
EN IEC 55014-1:2021
EN IEC 55014-2:2021
DECLARATION OF CONFORMITY
0225/YT-82772/EC/2025
We declare and guarantee with full responsibility that the following products:
Cordless rotary hammer 18 V d.c.; 0 - 1000 min ^-1 ; SDS+; item no. YT-82772
meet requirements of the following European Standards / Technical Specifications:
EN 62841-1:2015 + A11:2022
EN IEC 62841-2-6:2020 + A11:2020
EN IEC 55014-1:2021
EN IEC 55014-2:2021
and fulfill requirements of the following European Directives:
2006/42/EC Machinery and safety elements
2014/30/EU Electromagnetic compatibility (EMC) Directive
2011/65/EU Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
Agnieszka Rędziak
(Place and date of issue)
V-CE PREZES ZARZADU
JAN SZMIDT
(Name and signature of authorized person)
