USER MANUAL YT-82395 Yato
PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG PT HR AR


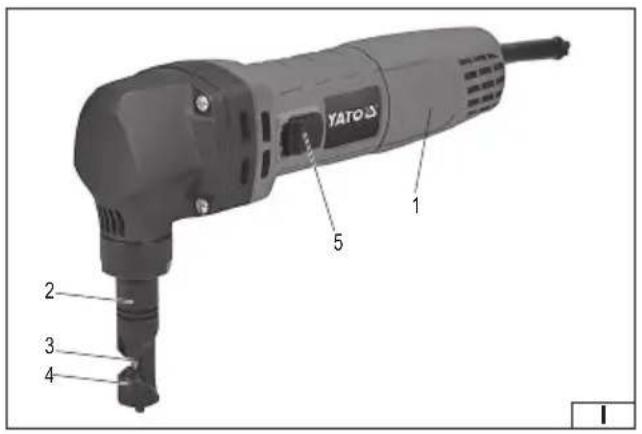

- head
- movable blade
- non-moving blade
- power switch
DE
Read the operating instruction
Wear protective goggles
Wear hearing protectors
Second class of insulation
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU
Electric sheet metal shear is used for fast cutting of steel and aluminium sheets. Cutting is done with two blades, one moving in a reciprocating motion inside the head and the other fixed in the head. Both straight and curved cutting is possible. Proper, reliable and safe operation of the power tool depends on appropriate use, that is why you should:
Read the entire instructions manual before the first use of the tool and keep it for future reference.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.
PRODUCT ACCESSORIES
The tool comes complete but requires some assembly work. Two movable blades are supplied with the tool.
TECHNICAL DATA
| Parameter Unit Value | ||
| Part no. YT-82395 | ||
| Mains voltage [V~] 230 – 240 | ||
| Mains frequency [Hz] 50 | ||
| Rated power [W] 600 | ||
| Cutting frequency [min] | ^-1 2000 | |
| Maximum cutting thickness [mm] | 215 | |
| carbon steel | [mm] | 1.8 |
| Stainless steel | [mm] | 1.2 |
| aluminium [mm] | 2.5 | |
| Weight | [kg] | 2.0 |
| Noise level | ||
| - sound pressure L_pA ± K_pA | [dB (A)] | 88,0 ± 3.0 |
| - power L_wA ± K_wA | [dB (A)] | 99,0 ± 3.0 |
| Vibration level _a1,AG ± K | [m/s ^2 ] | 11,57 ± 1.5 |
| Insulation class | II | |
| Protection rating | IPX0 |
The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.
The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.
Note! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used. Note! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.
GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS
Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fire or serious injury.
Keep all warnings and instructions for future reference.
The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.
Workplace safety
Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.
Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.
Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.
Electrical safety
The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.
Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.
EN
Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.
Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.
Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.
In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.
When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.
Personal safety
Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.
Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.
Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.
Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.
Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.
Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.
If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.
Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.
Carefree action can cause serious injuries in a fraction of a second.
Use and care of the power tool
Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.
Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.
Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.
Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool.
Many accidents are caused by incorrectly maintained tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.
Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.
Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.
Repairs
Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool
ADDITIONAL SAFETY INSTRUCTIONS
Personal protective equipment such as eye protection, protective gloves, footwear and protective clothing should be worn during work. The cutting edges can be very sharp; touching them can cause injury.
Use clamps or other practical means to securely fasten and support the workpiece on a stable platform. Holding the workpiece with your hand or pressed against your body makes it unstable and can lead to loss of control.
When cutting, hold the tool by the insulated surfaces.
Hold the power tool by its insulated grip surfaces while performing operations where the cutting part may come into contact with concealed wiring or its own cable. If the cutting part comes into contact with live cable, it may cause the exposed
EN
metal parts of the power tool to become live and electrocute the operator.
PREPARING FOR WORK
Warning! When assembling the components, pull out the power plug to disconnect the tool from the power supply.
Changing the blade head setting
The head can be adjusted in any position so that the grip on the tool during cutting be as comfortable as possible. The head can also be adjusted in four positions in 90° increments for easier straight and sideways cutting.

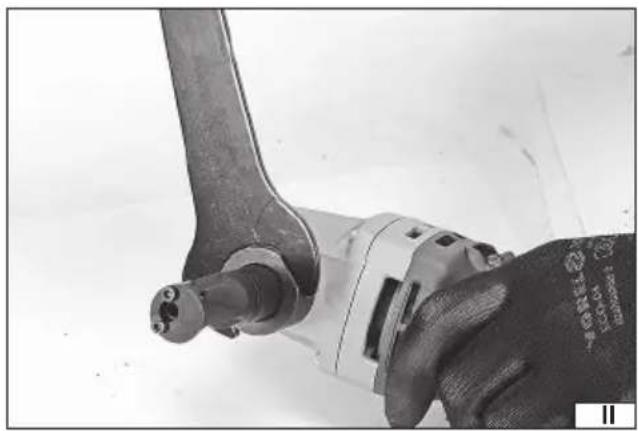

To reposition the head, loosen its retaining nut (II). Pull the tool head down and rotate to the desired position. If you need to use one of the four settings in 90° increments, press the head down and then try turning it slightly. If rotation is not possible, it means that the head has been locked in one of the selected positions. If the head is set at an angle other than every 90°, it is not possible to lock the head rotation.
Once the head is positioned, fi x it by tightening the nut.
Replacing the blades
Always replace blades in pairs.

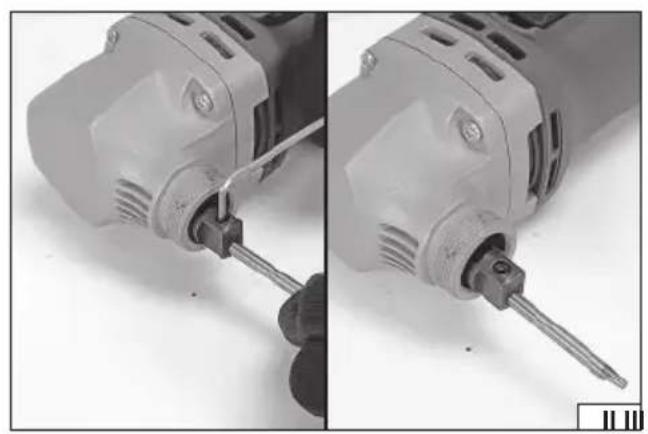

The blade heads must be removed to do this by unscrewing the retaining nut (II) completely and then sliding the head out of the tool housing. Loosen the screw holding the movable blade (III) and slide it out of the holder. Install a new moving blade in the same place and fix by tightening the screw.

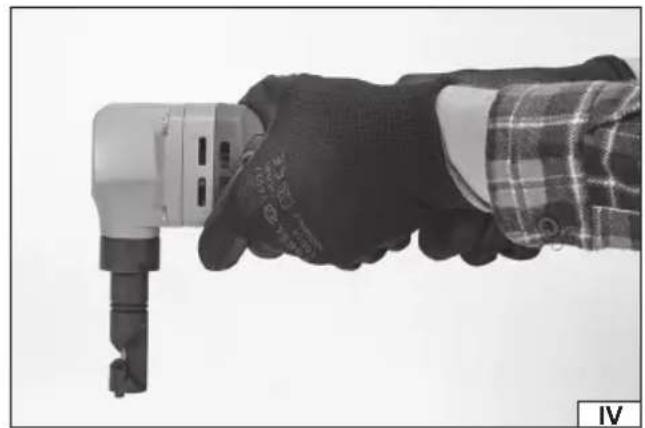

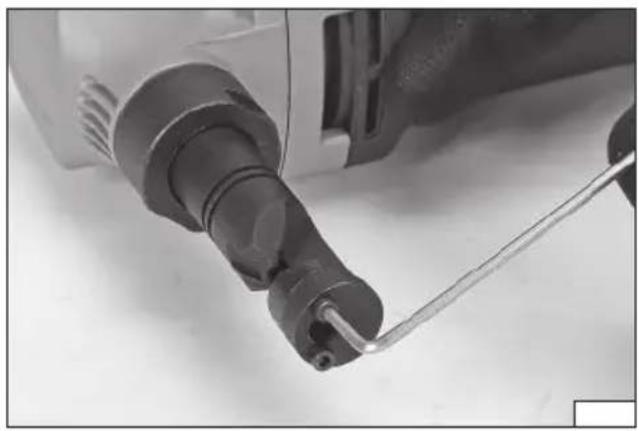

Unscrew both screws holding the stationary blade (IV) and remove the stationary blade. Fit a new fixed blade in its place and fix it by tightening the screws.
Slide the head onto the moving blade so that it passes completely through the hole in the head, and then fix by tightening the nut.
Note! After replacing the blades, lubricate them with light machine oil and then run the tool for about 30 seconds.
Blades should be replaced when deteriorated cutting performance is observed. Blades should also be replaced whenever damage is found on them, such as cracks, chipping or deformation.
TOOL OPERATION
Starting and running the tool

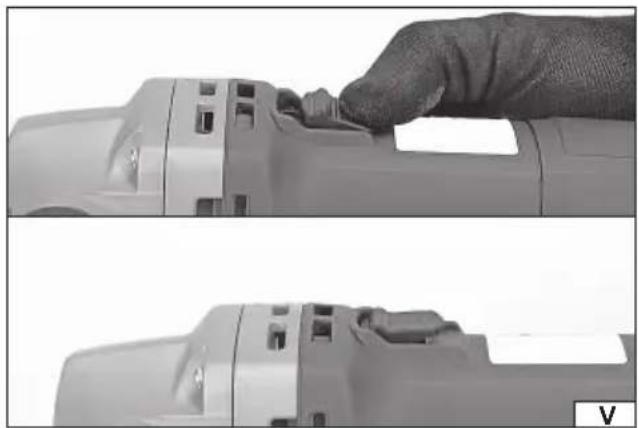

The tool should be held with both hands (V). Hold it in such a way that the blades do not come into contact with any object.

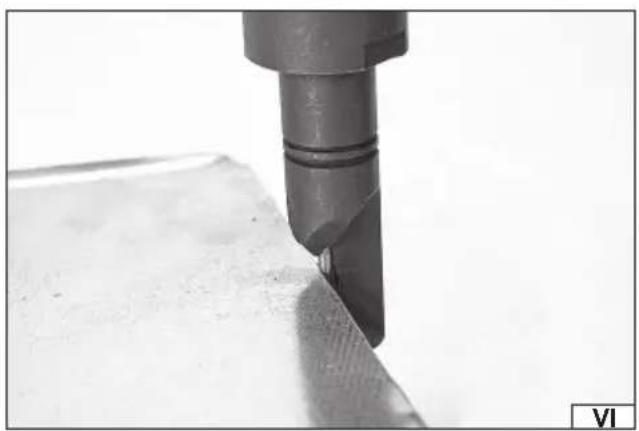

Start the tool by pressing and holding the back of the on/off button and then sliding it forward (VI). The switch can be locked in the front position which can be helpful during prolonged cutting.
When the tool is started up, hold it in this position for about 30 seconds, watching for any suspicious noises, excessive noise or excessive vibration.
If no signs of malfunction are found, the tool should be switched off by releasing pressure on the switch or, if it was locked, by pressing the back of the switch button. The button retracts automatically, the blade can still move for some time after the switch is released.
The tool can be put away only after the blade has come to a complete standstill.
Cutting
Note! Cutting can only be done in such a way that the head be always perpendicular to the material to be cut.
Prepare the material to be cut. Ensure that its thickness is no greater than the maximum cutting thickness of the tool. Mark the cutting line on the material. Consider that the cutting width will correspond to the diameter of the moving blade.
Secure the cut material with clamps or vices, for example. When cutting large materials, ensure that the material is supported close to the cutting line so that the parts to be cut do not collapse towards each other, which can cause the tool to jam during cutting.
Brush the cutting line with light machine oil. This will make it easier to guide the shear and reduce blade wear.
Start the tool, allow it to reach its nominal speed and then apply it to the edge of the sheet at the point of the cutting line (VII). Move the tool along the cut line by applying light pressure. Do not apply excessive pressure, only the pressure needed to make the cut.
The tool can be guided in a straight line or in a curve. The radius of the curve must be chosen so that the tool can still be guided smoothly.
If holes are cut, a hole must first be drilled near the edge of the hole with a diameter such that the head can be passed through. Then start cutting by guiding the tool along the edge of the hole to be cut.
EN
Note! When cutting corrugated or trapezoidal sheet metal, ensure that the head is always perpendicular to the surface to be cut.
MAINTENANCE AND OVERHAUL
ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.
CARACTÉRISTIQUES DU PRODUIT
DODATNE SIGURNOSNE UPUTE
DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE
1124/YT-82395/EC/2024
We declare and guarantee with full responsibility that the following products:
meet requirements of the following European Standards / Technical Specifications:
and fulfill requirements of the following European Directives:
2006/42/WE Machinery and safety elements
2014/30/UE Electromagnetic compatibility (EMC) Directive
Directiva privind compatibilitatea electromagnetică (EMC) (H.G. nr. 487/2016)
2011/65/UE Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
