USER MANUAL LTX6G7210AM AEG

Simple line drawing of a kitchen appliance (no text or symbols)

CONTENTS

1. SAFETY INFORMATION......2

2. SAFETY INSTRUCTIONS......4

3. PRODUCT DESCRIPTION....6

4. CONTROL PANEL....6

5. PROGRAMME CHART....8

6. CONSUMPTION VALUES....12

7. OPTIONS....13

8. SETTINGS....15

9. BEFORE FIRST USE.... 16

10. DAILY USE....16

11. HINTS AND TIPS....20

12. CARE AND CLEANING.... 21

13. TROUBLESHOOTING....24

14. TECHNICAL DATA....27

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/webselfservice

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
  • Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
  • Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- Do not change the specification of this appliance.

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -by clients in hotels, motels, bed & breakfast and other residential type environments;
• areas for communal use in blocks of flats or in launderettes.

- Do not exceed the maximum load of 7 kg (refer to the "Programme chart" chapter).

- The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 8 bar (0.8 MPa).

- The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.

- The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.

- Old hose sets must not be reused.

- If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

- Do not use high pressure water sprays and/or steam to clean the appliance.

- Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

The installation must comply with relevant national regulations.

- Remove all the packaging and the transit bolts including rubber bush with plastic spacer.

- Keep the transit bolts in a safe place. If the appliance is to be moved in the future they must be reattached to lock the drum to prevent an internal damage.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

- Do not install or use a damaged appliance.

- Follow the installation instructions supplied with the appliance.

- Do not install or use the appliance where the temperature can be less than 0^ or where it is exposed to the weather.

- The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

- Make sure that there is air circulation between the appliance and the floor.

- When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

- Do not install the appliance directly above a floor drain.

- Do not spray water on the appliance and do not expose it to excessive humidity.

- Do not install the appliance where the appliance lid cannot be fully opened.

- Do not put a closed container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• The appliance must be earthed.

• Always use a correctly installed shockproof socket.

- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

- Do not use multi-plug adapters and extension cables.

- Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- Do not touch the mains cable or the mains plug with wet hands.

- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

- This appliance complies with the E.E.C. Directives.

2.3 Water connection

- Do not cause damage to the water hoses.

- Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.

- Ensure that there are no visible water leaks during and after the first use of the appliance.

- Do not use an extension hose if the inlet hose is too short. Contact the

service centre for the replacement of the inlet hose.

- You can extend the drain hose to maximum 400 cm. Contact the service centre for the other drain hose and the extension.

2.4 Use

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

- Follow the safety instructions on the detergent packaging.

- Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

- Make sure that all metal objects are removed from the laundry.

- Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the washing machine. Prewash such fabrics by hand before loading them into the washing machine.

2.5 Service

• To repair the appliance contact an Authorised Service Centre.

- Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

- Disconnect the appliance from the mains electrical and water supplies.

- Cut off the mains electrical cable close to the appliance and dispose of it.

- Remove the door catch to prevent children or pets from becoming trapped in the drum.

- Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

3. PRODUCT DESCRIPTION

3.1 Special features

Your new washing machine meets all modern requirements for an effective treatment of laundry with low water, energy and detergent consumption and proper care of fabric.

• The ProSense technology adjusts automatically the programme

duration to the laundry in the drum to achieve perfect washing results in the minimum possible time.

- Thanks to the Soft Plus option, the fabric softener is uniformly spread out in the laundry and deeply penetrates the fabric fibres favouring a perfect softness.

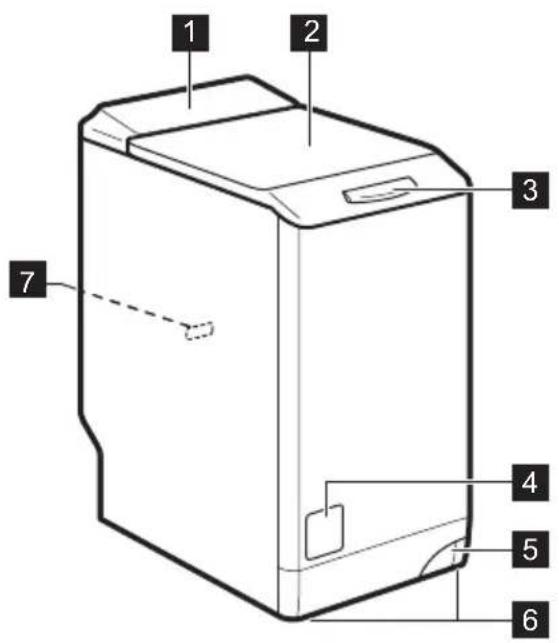

3.2 Appliance overview

1 2 3 4 5 6 7

1 Control panel
2 Lid
3 Lid handle
4 Drain pump filter
5 Lever to move the appliance
6 Feet for levelling the appliance
7 Rating plate

4. CONTROL PANEL

4.1 Control panel description

1 2 5 6 7 9 8

1 On/Off push button ①

2 Programme dial

3 Display

4 Eco touch button

5 Time Save touch button

6 Rinse skipping touch button

- Extra Rinse option

- Only Rinse option

7 Start/Pause touch button

8 Stain/Prewash skipping touch button

- Stain option

- Prewash option

9 Delay Start touch button

10 Liquid Detergent touch button

11 Spin reduction touch button

12 Temperature touch button

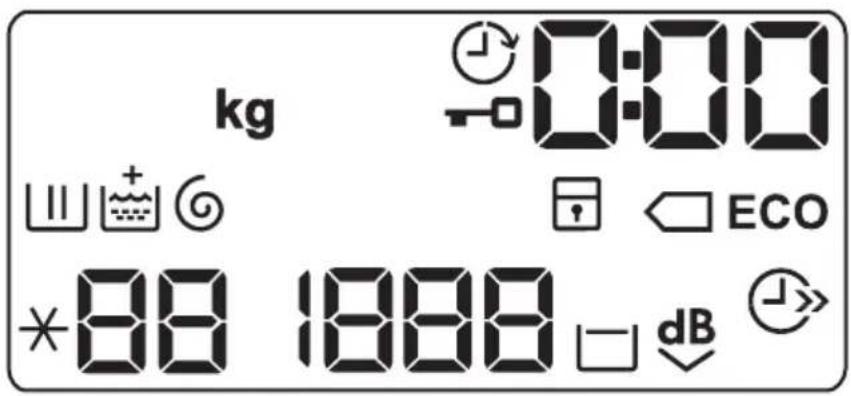

4.2 Display

kg 0:00 ECO *88 1888 dB

kg	The indicator flashes during the laundry load estimation.
-0	Door locked indicator.
	Delay start indicator.
0:00	The digital indicator can show:Programme duration (e.g.)240Delay time (e.g.30)2hCycle end()DWarning code()E20
	Washing phase indicator. It flashes during prewash and wash phase.
	Rinsing phase indicator. It flashes during rinse phase.
	Soft Plus option. The Indicator appears above the when option is set.
	Spinning and draining phase indicator. It flashes during spin and drain phase.
	Child safety lock indicator.
ECO	Energy saving indicators. The indicator appears by selecting a pro-gramme for cotton at 40 °C or 60 °C.
BB	Temperature indicator. The indicator appears when a cold wash is set.
1888	Spin speed indicator.
---	No spin speed indicator. Spin phase is off, the appliance performs only the draining phase.
	Rinse hold indicator.
dB	Extra silent indicator.
	Time saving indicator.

5. PROGRAMME CHART

Washing programmes

Programme	Default temperature Temperature range	Maximum spin speed Spin speed range	Maxi-mum load	Programme description
(DX08)Cottons	40 °C95 °C - Cold	1200 rpm1200-400 rpm	7 kg	White and coloured cotton heavily and normally soiled cotton items.Cotton Energy saving programme.This programme at 60°C with a load of 7 kg and Eco option is the reference programme for the data entered in the energy label, in compliance with EU Commission Directive 95/12/EC and measured according to EN 60456/2005.
[2405]Synthetics	40 °C60 °C - Cold	1200 rpm1200-400 rpm	3 kg	Synthetic items or mixed fabric items. Normal soil.
[7326]Delicates	40 °C40 °C - Cold	1200 rpm1200-400 rpm	2,5 kg	Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Wool/Silk	40 °C40 °C - Cold	1200 rpm1200-400 rpm	1 kg	Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol1).
Anti-Allergy	60 °C	1200 rpm 1200 - 400rpm	7 kg	White cotton items. This pro-gramme removes micro-organisms thanks to a washing phase with the temperature maintained above 60°C for several minutes. This helps re-move germs, bacteria, micro-organism and particles. An additional rins-ing phase ensures a proper removal of detergent residues and pollens/allergenic items. In this way the wash is more effective.
[Y284] 20 min. - 3 kg	30 °C 40 °C - 30 °C	1200 rpm 1200 - 400rpm	3 kg	Cotton and synthetic items lightly soiled or once worn.
Programme Default temperature Temperature range		Maximum spin speed Spin speed range	Maxi-mum load	Programme description
				Do not us fabric softener and make sure there is no softener residue in the detergent dispenser. Outdoor clothing, technical, sport fabrics, waterproof and breathable jackets, shell jackets with a removable fleece or inner insulation. The recommended laundry load is 2,5 kg. This programme can also be used as water-repellent restoring cycle, specifically tailored for treating clothes with a hydrophobic coating. To perform the water-repellent restoring cycle, proceed as follows: ·Pour the washing detergent in the compartment [11] ·Pour a special water-repellent restorer for fabric in the drawer compartment for fabric softener [2040] ·Reduce the laundry load to 1 kg. To further improve the water repellency restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
Outdoor	30 °C40 °C - Cold	1200 rpm1200 -400 rpm	2,5 kg2)1 kg3)
Duvet	40 °C60 °C - Cold	800 rpm800 - 400 rpm	2 kg	Single synthetic blanket, padded clothes, duvets, down jackets and similar items.
Easy Iron	40 °C60 °C - Cold	800 rpm800 rpm - 400 rpm	1 kg	Synthetic items requiring a gentle wash. Normal and light soil.4)

• Pour the washing detergent in the compartment
• Pour a special water-repellent restorer for fabric in the drawer compartment for fabric softener

Programme	Default temperature Temperature range	Maximum spin speed Spin speed range	Maxi-mum load	Programme description
Drain/Spin	-	1200 rpm 1200 rpm - 400 rpm	7 kg	To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.

1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
2) Washing programme.
3) Washing programme and waterproofing phase.
4) To reduce creasing, this cycle regulates the water temperature and performs a soft wash and spin phase. The appliance adds some rinses.

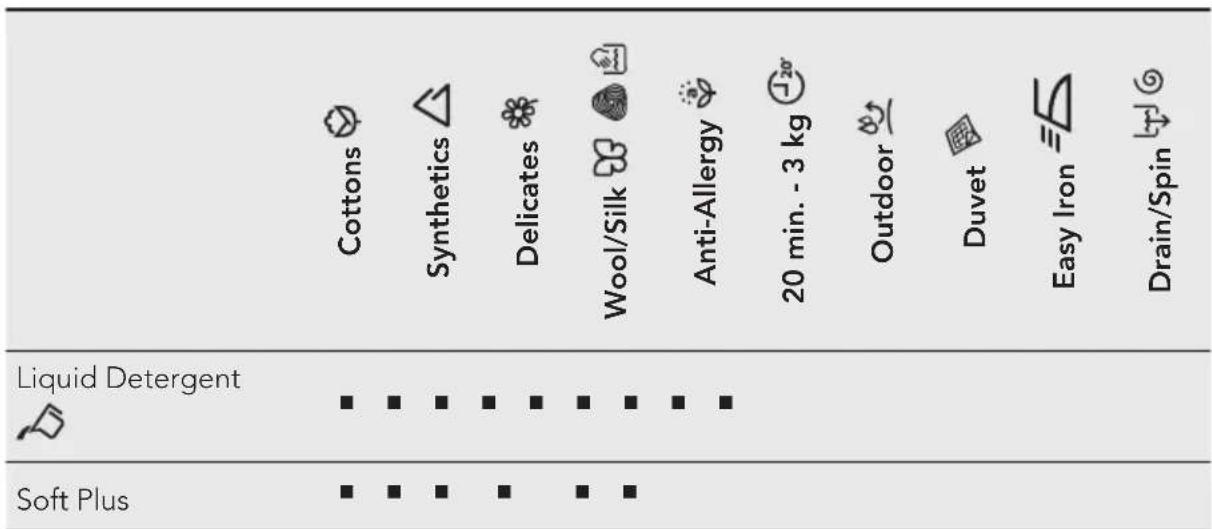

Programme options compatibility

	[Cottons]		Delicates			[GXT]		[Y082]
Spin	■	■	■	■	■	■	■
Rinse Hold	■	■	■	■	■	■
Extra Silent	■	■	■
Stain	■	■	■	■
Prewash	■	■	■	■
Extra Rinse	■	■	■	■	■
Only Rinse	■	■	■	■	■	■	■
Eco2)	■	■	■	■
Time Save3)	■	■	■	■
Delay Start	■	■	■	■	■	■	■

Cottons Synthetics Delicates Wool/Silk Anti-Allergy 20 min. - 3 kg Outdoor Duvet Easy Iron Drain/Spin Liquid Detergent Soft Plus

1) This option is not available with temperature lower than 40 °C.
2) This option is not available with a temperature lower than 30 °C.
3) If you set the shortest duration, we recommend that you decrease the load size. It is possible to fully load the appliance, however the washing results can be less satisfactory.

5.1 Woolmark Apparel Care - Blue

WOOL HAND WASH SAFE

The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the garments are washed according to the instructions issued by the manufacturer of this washing machine. Follow the garment care label for drying and other laundry instructions. M1145

The Woolmark symbol is a Certification mark in many countries.

6. CONSUMPTION VALUES

Stated values are obtained in laboratory conditions with relevant standards. Different causes can change the data: the quantity and type of laundry and ambient temperature. Water pressure, the supply voltage and the temperature of inlet water may also affect the washing programme duration.
i Technical specifications may be changed without prior notice to improve the quality of product.

During the washing programme, the Prosense function can vary the wash duration and the consumption values. For more details see 'The Prosense function' paragraph in 'Daily Use' chapter.

Programmes Load	(kg)	Energy consumption (kWh)	Water consumption (litre)	Approximate pro-gramme duration (minutes)
Cottons 60°C	71,1658197
Cotton Energy Saving Pro-gramme 60°C1)	70,9547255
Cottons 40°C	70,6156,2192
Synthetics 40°C	30,4546105
Delicates 40°C	2,50,554690
Wool/Silk 30°C	10,355065

1) «Cotton Energy Saving programme » at 60°C with a load of 7 kg and with Eco option is the reference programme for the data entered in the energy label, in compliance with EU Commission Directive 95/12/EC and measured according to EN 60456/2005.

Off Mode (W) Left On Mode (W)

0.48 0.48

The information given in the chart above is compliant with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC

7. OPTIONS

7.1 Introduction

The options/functions are not selectable with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set the incompatible options/functions together. Make sure the screen and touch buttons are always clean and dry.

7.2 On/Off ①

Pressing this button for a few seconds allows to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance to decrease the energy consumption in a few cases, you may need to activate the appliance again.

For more details, refer to Stand-by paragraph in Daily Use chapter.

7.3 Temperature

When you select a washing programme, the appliance automatically proposes a default temperature.

Set this option to change the default temperature.

The indicator =-cold water of the set temperature comes on (the appliance does not heat the water).

7.4 Spin ©

When you set a programme, the appliance automatically sets the maximum spin speed allowed.

Touch repeatedly this button to:

- Decrease the spin speed.

The display shows only the spin speeds available for the set programme.

- Activate the Rinse Hold option.

The final spin is not performed. The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum.

The display shows the indicator □.

The lid stays locked and the drum turns regularly to reduce creasing.

You must drain the water to unlock the lid.

If you touch the Start/Pause button, the appliance performs the spinning phase and drains the water.

The appliance empties the water out automatically after 18 hours approximately.

- Activate the Extra Silent option.

The intermediate and the final spinning phases are suppressed and the programme ends with water in the drum. This helps to reduce creasing.

The display shows the indicator dB. The lid stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the lid. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available.

In some programmes the rinses are performed with more water. If you touch the Start/Pause button, the appliance performs the only draining phase.

The appliance empties the water out automatically after 18 hours approximately.

7.5 Stain/Prewash

Press this button repeatedly to activate one of the two options.

- Stain

Select this option to add an anti-stain phase to a programme in order to treat heavily soiled or stained laundry with stain remover.

Pour the stain remover into

compartment The stain remover will be added in the appropriate phase of the washing programme.

This option can increase the programme duration and is not available with a temperature lower than 40^ C.

- Prewash

Use this option to add a prewash phase at 30^ C before the washing phase.

This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

This option can increase the programme duration.

The corresponding indicator above the touch button illuminates.

7.6 Rinse

With this button you can select one of the following options:

- Option Extra Rinse

This option adds a few rinses according to the selected washing programme.

Use this option for persons allergic to detergent residues and in areas where the water is soft.

This option increases slightly the programme duration.

- Skipping wash phase - Only Rinse The appliance performs only the rinsing phase, the spinning and tdraining phases of the selected programme.

The related indicator comes on.

7.7 Time Save

With this option you can decrease the programme duration.

- If your laundry is normally or lightly soiled, it may be advisable to shorten the washing programme. Touch this button once to decrease the duration.

- In case of smaller load, touch this button twice to set an extra quick programme.

The display shows the indicator ➕

7.8 Eco

Set this option for slightly or normally soiled items washed at 30^ C or higher temperatures.

8. SETTINGS

8.1 Acoustic signals

To deactivate the acoustic signals when the programme is completed touch the

and the buttons simultaneously for about 6 seconds.

The acoustic signals, they continue operate when the appliance has a malfunction.

8.2 Child Lock

With this option you can prevent that the children play with the control panel.

- To activate/deactivate this option, touch the 📂 and the ⏻ buttons simultaneously until the indicator 📋 comes on/goes off on the display.

The appliance decreases the washing temperature and extends the washing time to obtain a good washing efficiency by saving energy. The display shows the indicator ECO

7.9 Liquid Detergent

Press this button to adapt the cycle if you use a liquid detergent.

The related indicator comes on.

7.10 Delay Start ⏻

With this option you can delay the start of a programme in a more convenient time.

Touch the button repeatedly to set the required delay. The time increases by steps of 30 minutes up to 90' and from 2 hours up to 20 h.

After touching the Start/Pause button, the display shows the indicator ⏻ and the selected delay time and the appliance begins the countdown.

7.11 Start/Pause ▷||

Touch the Start/Pause button to start, pause the appliance or interrupt a running programme.

You can activate this option:

• After you touch the Start/Pause button: all the buttons and the programme dial are deactivated (except On/Off button).

- Before you touch the Start/Pause button: the appliance cannot start. The appliance keeps the selection of this option after you switch it off.

8.3 Soft Plus

Set the Soft Plus option to optimise the fabric softener distribution and improve the fabric softness.

It is suggested when you use the fabric softener.

This option increases slightly the programme duration.

To activate/deactivate this option touch the button and the button simultaneously until the indicator comes on/goes off above the indicator.

9. BEFORE FIRST USE

1. Connect the mains plug to the mains socket.

2. Open the water tap.

3. Put 2 litre of water in the detergent compartment for washing phase. This activates the drain system.

4. Put a small quantity of detergent in the compartment for washing phase.

10. DAILY USE

10.1 Activating the appliance

1. Connect the mains plug to the mains socket.

2. Open the water tap.

3. Press button On/Off to activate the appliance.

A short tune sounds.

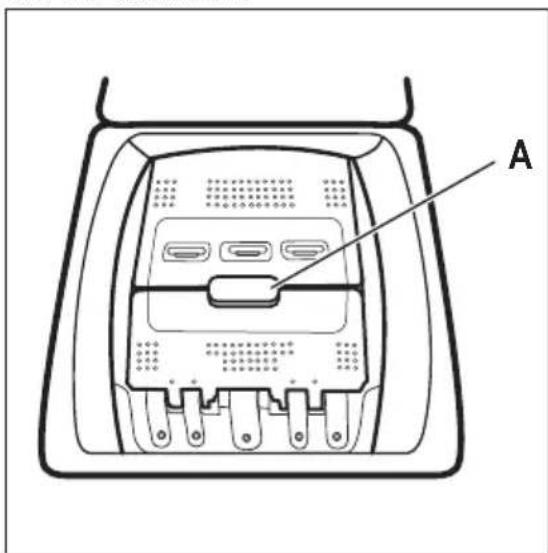

10.2 Loading the laundry

1. Open the appliance lid.

2. Push the button A.

A

The drum opens automatically.

8.4 Permanent Extra Rinse

With this option you can permanently have an extra rinse when you set a new programme.

- To activate/deactivate this option touch the 📊 button and the . 📞 The corresponding indicator next the touch button illuminates.

1. Set and start a programme for cotton at the highest temperature without laundry.

This removes all possible dirt from the drum and the tub.

1. Put the laundry in the drum, one item at a time.

2. Shake the items before you put them in the appliance.

Make sure not to put too much laundry in the drum.

1. Close the drum and the lid.

CAUTION!

Before you close the lid of your appliance, make sure that you close the drum correctly.

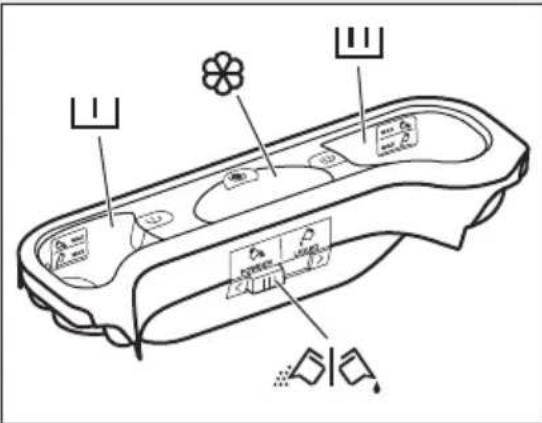

10.3 Detergent compartments. Using detergent and additives

1. Measure out specified detergents for washing machine the detergent and the fabric conditioner.

2. Put the detergent and the fabric conditioner into the proper compartments.

Always obey the instructions that you find on the packaging of the detergent products.

	Detergent compartment for pre-wash phase.The marks MAX are the maximum levels of the quantity of detergent (powder or liquid).When you set a programme with a stain, add detergent (powder or liquid).
	Detergent compartment for washing phase.The marks MAX are the maximum levels of the quantity of detergent (powder or liquid).
	Compartment for liquid additives (fabric conditioner, starch).The mark is the maximum level for the quantity liquid additives.
	Flap for powder or liquid detergent.

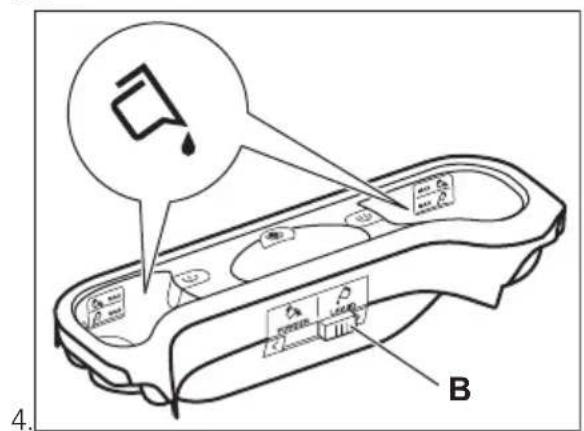

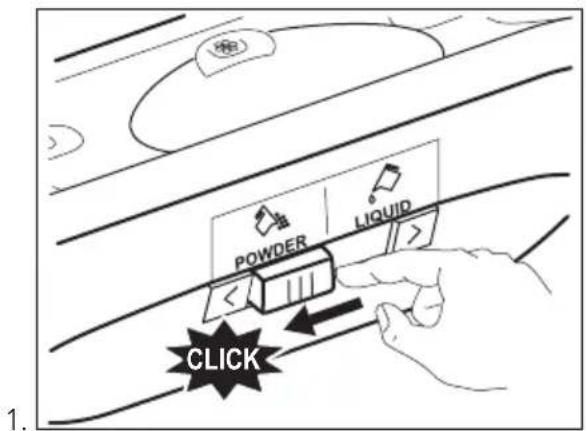

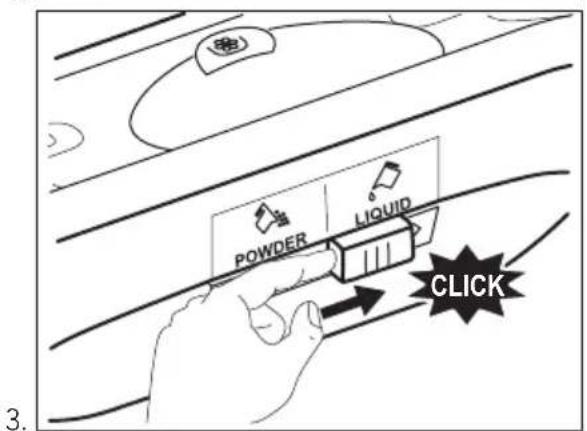

10.4 Liquid or powder detergent

POWDER LIQUID CLICK

2.

POWDER LIQUID CLICK

B 4.

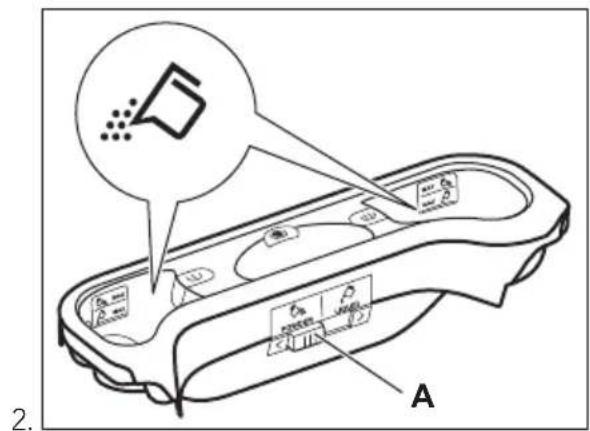

• Position A for powder detergent (factory setting).

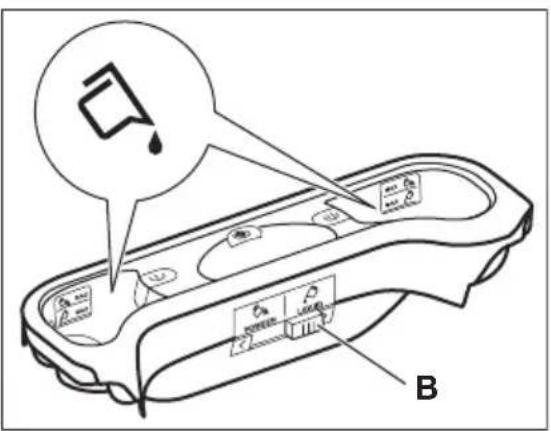

• Position B for liquid detergent.

When you use the liquid detergent:

• Do not use gelatinous or thick liquid detergents.
• Do not put more liquid then the maximum level.

10.5 Setting a programme

1. Turn the programme knob and set the programme:

2. The related programme indicator comes on.

3. The indicator of Start/Pause flashes.

4. The display shows: the default temperature, the spin speed, the indicators of the programme phases and the programme duration.

5. If necessary, change the temperature, the spin speed, the cycle duration, or add available options. When you activate an option, the indicator of the set option comes on.

In case a selection is not possible, no indicator comes on and an acoustic signal sounds.

10.6 Starting a programme without the delay start

Press button Start/Pause to start the programme.

The relevant indicator stops to flash and stays on.

On the display the indicator of the phase is operation starts to flash.

The programme starts, the lid is locked.

The display show the indicator .

The drain pump can operate for a short time when the appliance fills water.

10.7 Cycle time recalculation

After approximately 15 minutes from the start of the programme:

• The appliance adjusts automatically the cycle time to the laundry you have put in the drum to have perfect washing results in the minimum necessary time.
• The display shows the new time value.

10.8 Starting a programme with the delay start

1. Press button Delay Start again and again until the display shows the number of minutes or hours of delay. The related indicator comes on.
2. Press button Start/Pause. The appliance starts the countdown of the delay start.

When the countdown is completed, the programme starts automatically.

Before you press button Start/Pause to start the appliance, you can cancel or change the set of the delay start.

10.9 Cancelling the delay start

To cancel the delay start:

1. Press button Start/Pause to set the appliance to pause. The related indicator flashes.
2. Press button Delay Start repeatedly until the display shows ☐
3. Press button Start/Pause again to start the programme immediately.

10.10 Interrupting a programme and changing a option

You can change only some options before they operate.

1. Press button Start/Pause.
   The related indicator flashes.
2. Change the option set.
3. Press the button Start/Pause again. The programme continues.

10.11 Cancelling a running programme

1. Press button On/Off to cancel the programme and to deactivate the appliance.
2. Press button On/Off again to activate the appliance.

Now, you can set a new washing programme.

Before starting the new programme the appliance could drain the water. In this case, make sure that the detergent is still in the detergent compartment, if not fill the detergent again.

10.12 The ProSense load detection

After touching the Start/Pause button:

1. The indicator 📊 flashes.
2. The ProSense starts the laundry load detection to calculate the real programme duration. The indicator kg and the time dots: flash.
3. After about 15 minutes the display shows the new programme duration:

the indicator kg goes off and the time dots: stops flashing.

The appliance adjusts automatically the programme duration to the load to achieve perfect washing results in the minimum possible time. The programme duration could increase or decrease.

The ProSense detection is carried out with complete washing programmes only (no skipping phase selected).

10.13 Opening the door when the programme operates

CAUTION!

If the temperature and level of the water in the drum are too high, the door lock indicator stays on and you cannot open the door.

To open the door proceed as follows:

1. Press the button On/Off for some seconds to deactivate the appliance.
2. Wait for some minutes and then open carefully the appliance door.
3. Close the appliance door.
4. Activate the appliance and set the programme again.

10.14 Opening the door when the delay start is active

While the delay start operates, the appliance door is locked.

To open the appliance door:

1. Press button Start/Pause.
   In the display the door lock indicator goes off.
2. Open the appliance door.
3. Close the door and press button Start/Pause.

The delay start continues.

10.15 End of cycle

When the programme has finished, the appliance stops automatically. The acoustic signal operates (if it is active).

In the display comes on and the lid locked indicator goes off.

The indicator of Start/Pause button goes off.

1. Press button On/Off to deactivate the appliance.

After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

When you activate the appliance again, the display show the end of the last set programme. Turn the programme knob to set a new cycle.

1. Remove the laundry from the appliance.
2. Make sure that the drum is empty.
3. Keep the door ajar, to prevent mildew and odours

10.16 Draining water out after end of cycle

The washing programme is completed, but there is water in the drum:

The drum turns regularly to prevent the creases in the laundry.

The lid lock indicator is on. The lid stays locked.

You must drain the water to open the lid:

1. If necessary, decrease the spin speed.
2. Press the Start/Pause button. The appliance drains the water and spins.
3. When the programme is completed and the door lock indicator goes off, you can open the door.

11. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

11.1 The laundry load

• Divide the laundry in: white, coloured, synthetics, delicates and wool.
• Obey the washing instructions that are on the laundry care labels.

• Do not wash white and coloured items together.
  • Some coloured items can discolour with the first wash. We recommend that you wash them separately for the first times.

• Press On/Off some seconds to deactivate the appliance.

The appliance drains and spins automatically after approximately 18 hours.

10.17 AUTO Stand-by option

The AUTO Stand-by function automatically deactivates the appliance to decrease the energy consumption when:

• You do not use the appliance for 5 minutes before you press Start/Pause button.
  Press the button On/Off to activate the appliance again.
  • After 5 minutes from the end of the washing programme
  Press the button On/Off to activate the appliance again.
  The display shows the end of the last set programme.
  Turn the programme knob to set a new cycle.

If you set a programme or an option that ends with water in the drum, the AUTO Stand-by function doesn't

deactivate the appliance to remind you to drain the water.

• Button up pillowcases, close zippers, hooks and poppers. Tie up belts.
  • Empty the pockets and unfold the items.
• Turn multilayered fabrics, wool and items with painted illustrations inside out.
• Remove hard stains with a special detergent.
• Wash and pre-treat heavy soil stains before putting items in drum
• Be careful with the curtains. Remove the hooks and put the curtains in a washing bag or pillowcase.
• Do not wash laundry without hems or with cuts. Use a washing bag to wash

small and/or delicate items (e.g. underwired bras, belts, tights, etc.).

- A very small load can cause balance problems with the spin phase. If this occurs, adjust manually the items in the tub and start the spin phase again.

11.2 Stubborn stains

For some stains, water and detergent is not sufficient.

We recommend that you pre-treat these stains before you put the items in the appliance.

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

11.3 Detergents and additives

• Only use detergents and additives specially made for washing machines:
• powder detergents for all types of fabric,
• powder detergents for delicate fabrics (40 °C max) and woollens,
  – liquid detergents, preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special for woollens only.
• Do not mix different types of detergents.
• To help the environment, do not use more than the correct quantity of detergent.
• Obey the instructions that you find on the on packaging of these products.

12. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

12.1 External cleaning

Clean the appliance with soap and warm water only. Fully dry all the surfaces.

CAUTION!

Do not use alcohol, solvents or chemical products.

• Use the correct products for the type and colour of the fabric, the programme temperature and the level of soil.
• If your appliance does not have the detergent dispenser with the flap device, add the liquid detergents with a dosing ball (supplied by the detergent's manufacturer).

11.4 Ecological hints

• Set a programme without the prewash phase to wash laundry with normal soil.
  • Always start a washing programme with the maximum load of laundry allowed.
• If necessary, use a stain remover when you set a programme with a low temperature.
• To use the correct quantity of detergent, check the water hardness of your domestic system. Refer to "Water hardness".

11.5 Water hardness

If the water hardness in your area is high or moderate, we recommend that you use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener.

To know the water hardness in your area, contact your local water authority.

Use the correct quantity of the water softener. Obey the instructions that you find on the packaging of the product.

12.2 Descaling

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines.

Regularly examine the drum to prevent limescale and rust particles.

To remove rust particles use only special products for washing machines. Do this separately from the laundry wash.

Always obey the instructions that you find on the packaging of the product.

12.3 Maintenance wash

With the low temperature programmes it is possible that some detergent stays in

the drum. Perform a maintenance wash regularly. To do this:

• Remove all laundry from the drum.
• Select the cotton programme with the highest temperature with a small quantity of detergent.

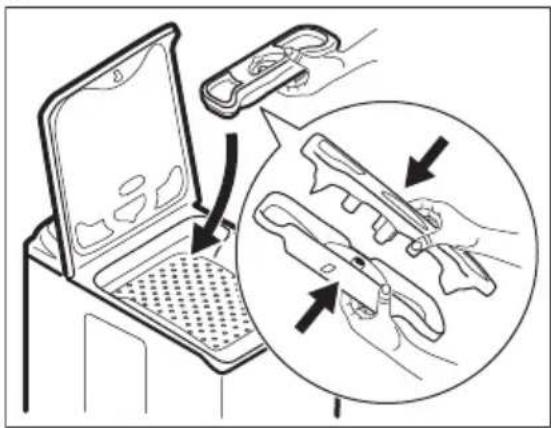

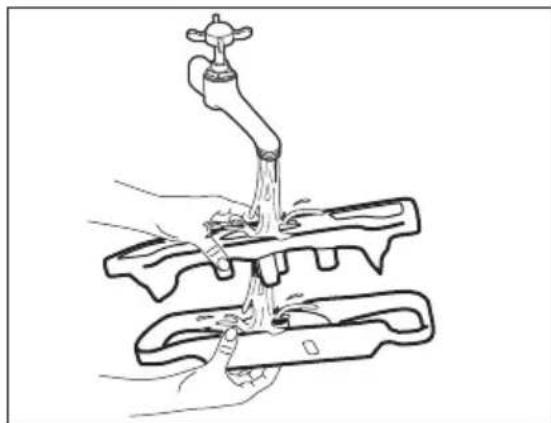

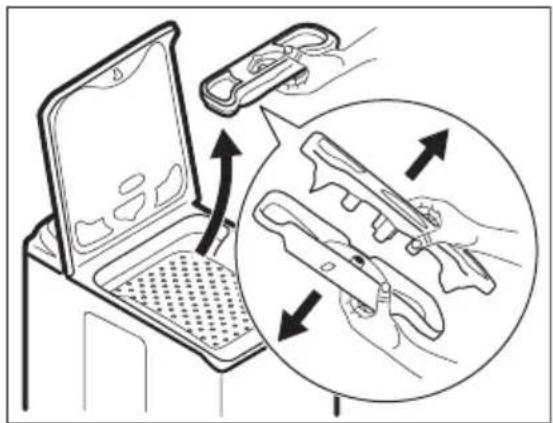

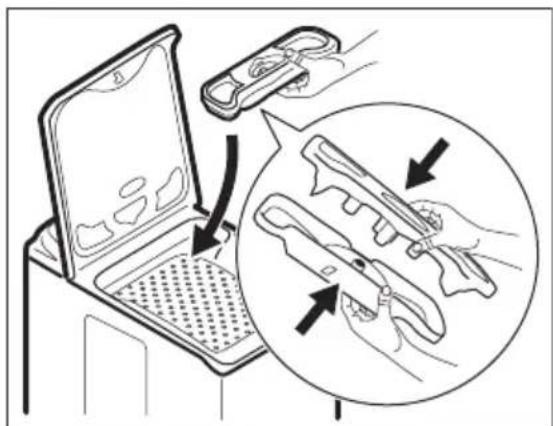

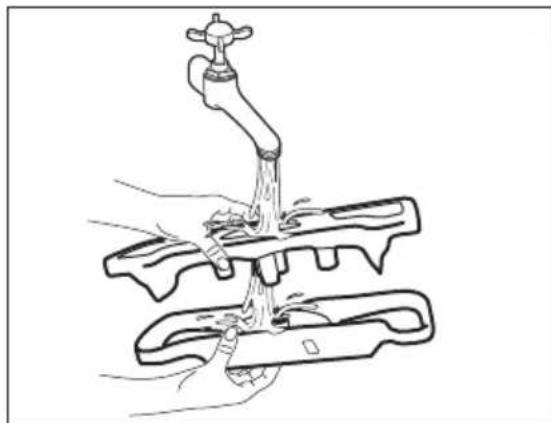

12.4 Cleaning the detergent dispenser

1.2.

Diagram illustrating a device being opened into a laptop, with magnified views showing the process and component details.

Diagram of a faucet pouring liquid into a mechanical component (no text or symbols)

3.

Diagram illustrating a mechanical device with labeled parts and an inset showing the internal components of a tool or device.

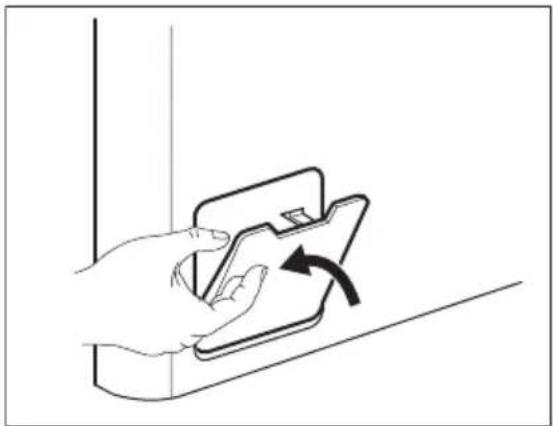

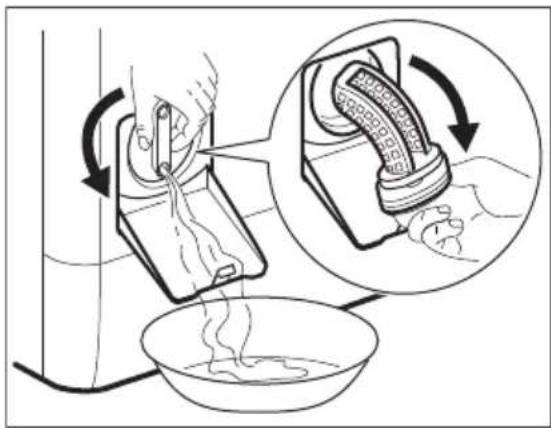

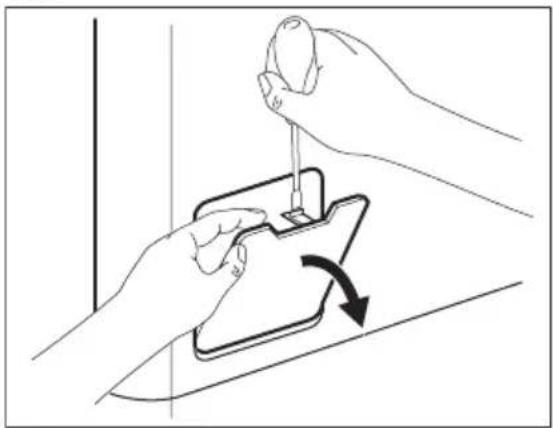

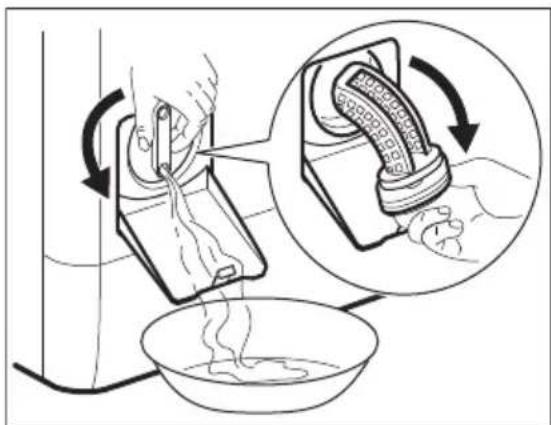

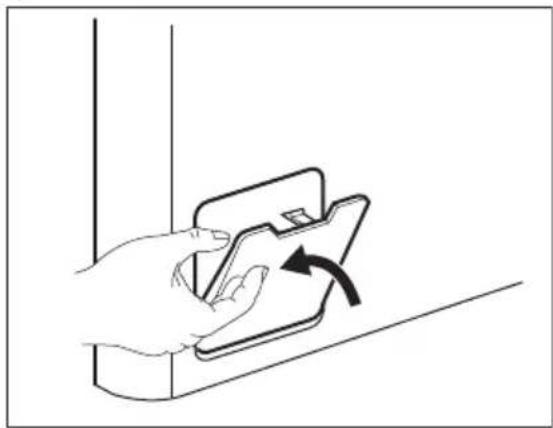

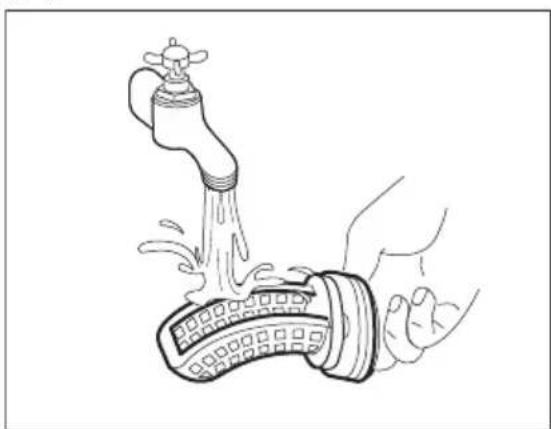

12.5 Cleaning the drain filter

i

Do not clean the drain filter if the water in the appliance is hot.

1.2.

Illustration of hands using a tool to adjust or install a device with an arrow indicating rotation (no text or symbols present)

Diagram illustrating a washing machine operation with labeled steps and a magnified view of the process.

3.4.

Line drawing of a hand washing a faucet with water splashing from it (no text or symbols)

Diagram showing a hand pressing down on a device with an inset close-up of the mechanical component (no text or symbols)

1.

Illustration of a hand holding a smartphone with an arrow indicating rotation (no text or symbols)

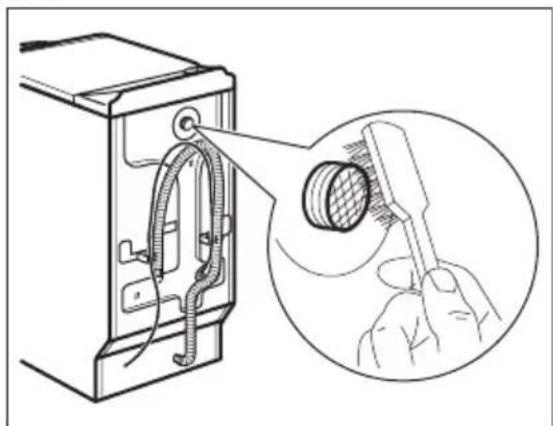

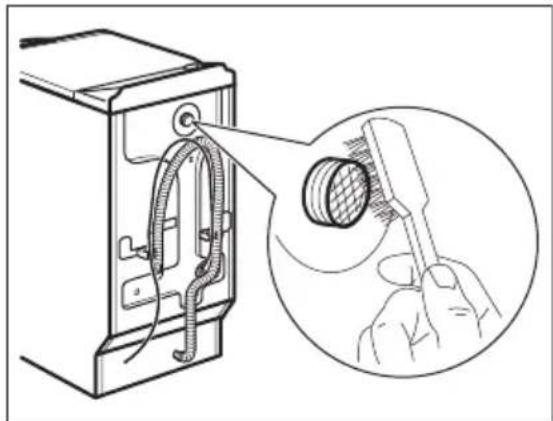

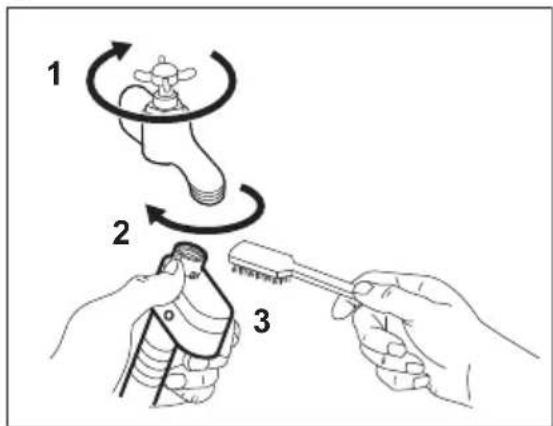

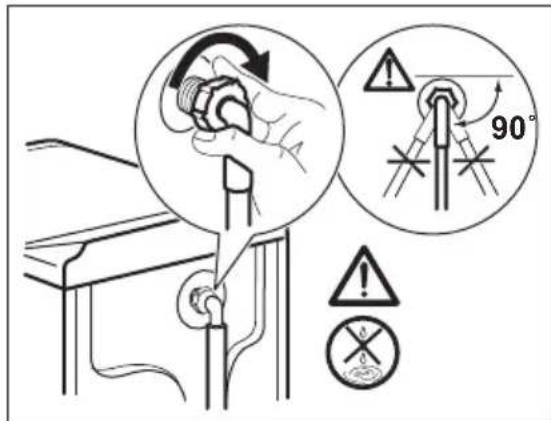

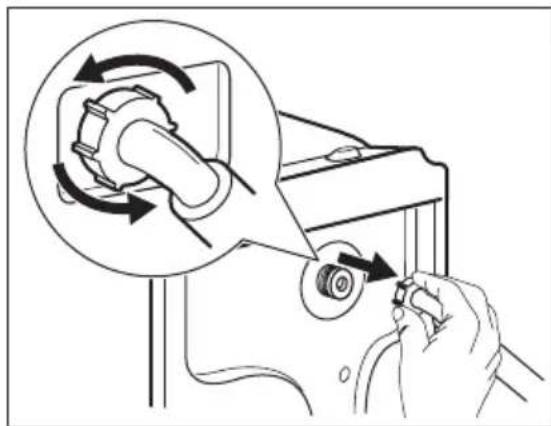

12.6 Cleaning the inlet hose and the valve filter

1.

Diagram illustrating three-step cleaning or repair procedure steps with labeled arrows and icons

2.

Illustration of a hand turning a mechanical component with rotational arrows indicating motion (no text or symbols)

3.4.

Diagram showing a device with tubing and a magnified inset of a circular component being inserted (no text or symbols)

Safety instruction diagram showing hand holding screw with 90-degree angle and warning symbols

12.7 Emergency drain

Because of a malfunction, the appliance cannot drain the water.

If this occurs, do steps (1) through (5) of 'Cleaning the drain filter'. If necessary, clean the pump.

12.8 Frost precautions

If the appliance is installed in an area where the temperature can be less than 0^ C, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.

2. Close the water tap.

3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.

4. Empty the drain pump. Refer to the emergency drain procedure.

5. When the drain pump is empty, install the inlet hose again.

WARNING!

Make sure that the temperature is higher than 0 °C before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 Introduction

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre.

With some problems, the acoustic signals operate and the display shows an alarm code:

- The appliance does not fill with water properly. Start the appliance again by pressing Start/Pause button. After 10 seconds the lid will be unlocked.

- the appliance does not drain the water.

• The appliance lid is open or not closed correctly. Please check the lid!
• EHO - The mains supply is unstable. Wait until the mains supply is stable.
• EFO - The anti-flood device is on. Disconnect the appliance and close the water tap. Contact the Authorised Service Centre.

WARNING!

Deactivate the appliance before you do the checks.

13.2 Possible failures

Problem Possible solution
The programme does not start.	Make sure that the mains plug is connected to the mains socket.Make sure that the appliance lid and drum doors are closed properly.Make sure that there is no damaged fuse in the fuse box.Make sure that the Start/Pause has been touched.If the delay start is set, cancel the setting or wait for the end of countdown.Deactivate the Child Lock function if it is on.
The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is correct.Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to 'Care and cleaning'.
The appliance fills with water and drains immediately	Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruction".
The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
The spin phase does not operate or the washing cycle lasts longer than usual.	Set the spin programme.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.Make sure that the water inlet hose and the drain hose have no damages.Make sure you use the correct detergent and the correct quantity of it.
You cannot open the appliance lid	Make sure that the washing programme is finished.Set the drain or the spin option if there is water in the tub.
The appliance makes an unusual noise and vibrates.	Make sure the levelling of the appliance is correct. Refer to "Installation instruction".Make sure that the packaging and/or the transit bolts are removed. Refer to "Installation instruction".Add more laundry in the drum. The load may be too small.
The programme duration increases or decreases during programme execution.	The ProSense function is able to adjust the programme duration according to the type and the laundry load size. Refer to "The ProSense load detection" in "Daily Use" chapter.
The washing results are not satisfactory.	Increase the detergent quantity or use a different detergent.Use special products to remove the stubborn stains before you wash the laundry.Make sure that you set the correct temperature.Decrease the laundry load.
Too much foam in the drum during the washing cycle.	Reduce the quantity of detergent.
After the washing cycle, there are some detergent residues in the dispenser drawer.	Make sure that the flap is in the correct position (left for powder detergent - right for liquid detergent).Make sure you have used the detergent dispenser according the indications given in this user manual.

After the check, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Authorised Service Centre.

If the display shows other alarm codes. Deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre.

14. TECHNICAL DATA

Dimension Width/ Height/ Depth/ Total depth	400 mm/ 890 mm/ 600 mm/ 600 mm
Electrical connection Voltage	230 V
Overall power	2200 W
Fuse	10 A
Frequency	50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture	IPX4
Water supply pressure Minimum	0,5 bar (0,05 MPa)
Maximum	8 bar (0,8 MPa)
Water supply 1)	Cold water
Maximum Load Cotton 7 kg
Energy Efficiency Class A+++
Spin Speed Maximum 1200 rpm

1) Connect the water inlet hose to a water tap with a 3/4" thread.

15. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ⚠️ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1. INFORMATIONS DE SÉCURITÉ....29
2. CONSIGNES DE SÉCURITÉ....30
3. DESCRIPTION DE L'APPAREIL....32
4. BANDEAU DE COMMANDE....33
5. TABLEAU DES PROGRAMMES....35
6. VALEURS DE CONSOMMATION.... 40
7. OPTIONS....41
8. RÉGLAGES....43
9. AVANT LA PREMIÈRE UTILISATION.... 43
10. UTILISATION QUOTIDIENNE....44
11. CONSEILS....48
12. ENTRETIEN ET NETTOYAGE....50
13. EN CAS D'ANOMALIE DE FONCTIONNEMENT....53
14. CARACTÉRISTIQUES TECHNIQUES....55

POUR DES RÉSULTATS PARFAITS

WOOL HAND WASH SAFE

Diagram of a device with labeled parts and a speech bubble indicating sound or vibration, marked as 'A'

Diagram of a baby care device with labeled parts and a magnified view showing a drop in the dose.

Diagram illustrating a device being opened into a laptop, with magnified views showing internal components and directional arrows indicating process flow.

Line drawing of a faucet pouring liquid into a mechanical component (no text or symbols)

1.

Diagram illustrating a device being opened into a device with an inset showing the internal components of the device.

Illustration of hands using a screwdriver to adjust a device with an arrow indicating rotation (no text or symbols present)

Diagram illustrating a washing machine operation with labeled steps and a magnified view of the process.

3.4.

Illustration of a hand washing a faucet with water splashing from it (no text or symbols)

Diagram showing a hand pressing down on a device with an inset close-up of the device's internal structure (no text or symbols)

1.

Line drawing of a hand inserting a card into a mobile device (no text or symbols)

Illustration of a hand operating a mechanical device with a magnified inset showing rotational components (no text or symbols)

3.4.

Diagram of a device with tubing and a magnified inset showing a brush applying material to a circular component (no text or symbols)

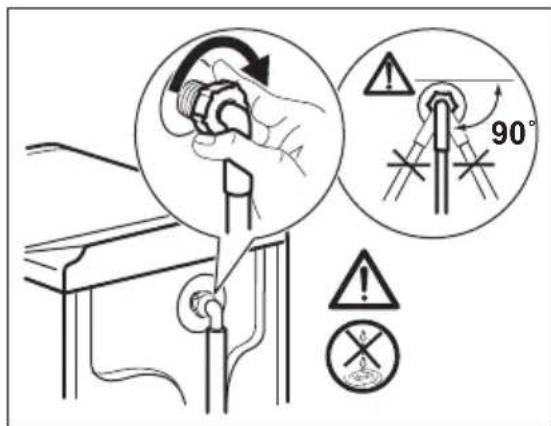

Safety instruction diagram showing hand holding screw with 90-degree angle and warning symbols

12.7 Vidange d'urgence
