USER MANUAL DCB1112 DEWALT

20V Max*/FLEXVOLT® 12 Amp Fast Charger

Chargeur rapide 12 A 20 V max*/FLEXVOLT®

Cargador Rápido de 12 Amps 20 V Máx*/FLEXVOLT®

www.DeWALT.com

If you have questions or comments, contact us. Pour toute question ou tout commentaire, nous contacter. Si tiene dudas o comentarios, contáctenos.

1-800-4-DEWALT

DEWALT Industrial Too Co, 701 East Joopa Road, Towson, MD 21286

(APR24) Part No. NA485679 DCB1112 Copyright © 2019, 2024 DEWALT

The following are trademarks for one or more DRWALT power tools: the yellow and black color scheme; the "D" shaped air in ake grill; the array of pyramids on the handgrip; the kit box configuration; and the array of lozenge shaped humos on the surface of the tool.

ENGLISH

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CUTION: indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
(1) without word) indicates a safety related message
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in a shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the tool instruction manual.

The label on your battery or charger may include the following symbols. The symbols and their definitions are as follows:

V......vatsHz......hertzmin......minutes—————or DC......direct current(○)—————Cast I Construction (grounded)A......anopronsW......yes inWt—————west hours

~or AC......alterating current~or AC/DC......alternating or direct current(○)—————Class I Construction (dipatic insulated)(●)—————everything of mind▲—————safety alert symbol△—————visible radiation—do not state into the light▶—————not of documentation(×)—————do not expose to run

Intended Use

The DCB1112 battery charger is designed to change DeWALI 2CV Max® Lithium-ion and FLEXVOLIT® battery packs. This charger requires no adjustment and is designed to be as easy as possible to operate. Simply place your battery pack into a receptacle of a plugged in charger and it will automatically charge the pack.

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then to low charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.

READ ALL INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS FOR ALL BATTERY PACKS

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and insect. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consort the chart at the end of this manual for compatibility of batteries and chargers.
• Charge the battery packs only in DEWALT chargers.
• DO NOT splash or immerse in water or other liquids.
  • DO NOT allow water or any liquid to enter battery pack.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F (40 °C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.

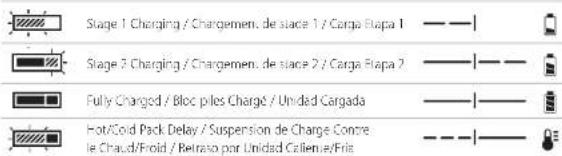

Fig. C

Charging Indicators / Indicateurs de charge / Indicadores de carga

Stage 1 Charging / Chargement, de stage 1 / Carga Flapa 1 Stage 2 Charging / Chargement, de stage 2 / Carga Flapa 2 Fully Charged / Bloc piles Charge / Unidad Cargada Hot/Cold Pack Delay / Suspension de Charge Concre le Chaud/Froid / Retraso por Unidad Calienne/Fria

NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °C (130 °C) may cause explosion.
- Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
- If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
- Contents of opened battery cells may cause respiratory irritation. Provide fresh air if symptoms persist, seek medical attention

- Battery liquid may be flammable if exposed to spark or flame.

- Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crash, drop or damage the battery pack. For no use a battery pack or charger may not be received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped out). Damaged battery packs should be returned to the service center for recycling.

Storage Recommendations

The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of the charger.

Battery Pack Cleaning Instructions

Drt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Fuel Gauge Battery Packs (Fig. B)

Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-user application.

Transportation

WARNING: Fire hazard. Do not store, carry, or transport the battery pack so that metal objects can contact batteries terminals. For example, do not place the battery pack in a range, packets, tool boxes, product air boxes, drawers, etc., with loose nice screws, keys, coins, hand tools, etc. When transporting induction battery packs, make sure that the battery terminals are protected and well insulated from manufacturers that could contact them and cause a short circuit. NOTE: Li-ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry-on baggage.

Shipping the DEWALT FLEXVOLT® Battery Pack

The DEWALT FLEXVOL * battery pack has a battery cap that should be used when shipping the battery pack. Attach the cap to the battery pack to ready it for shipping. This converts the battery pack to three

separate 20V batteries. The three batteries have the Watt hour rating labeled "Shipping" on the battery pack. If shopping without the cap or in a tool, the pack is one battery at the Watt hour rating labeled "Use."

In this example, the battery pack is three batteries with 40 Wall hours each when using the cap. Otherwise, the battery pack is one battery with 120 Wall hours.

Example battery pack label:

USE: 120 Wh SHIPPING: 3 x 40 Wh

The RBRC® Seal

Please take your spent battery packs to an authorized DBWALT service center or to your local retailer for recycling. In some areas, it is legal to place spent; battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit, www.call2recycle.org or call the toll-free number in the RUBC® Seal. RUBC® is a registered trademark of Call 2 Recycle, Inc.

IMPORTANT SAFETY INSTRUCTIONS FOR ALL BATTERY CHARGERS

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and

- Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - SAVE THESE INSTRUCTIONS - The manual contains important safety and operating instructions.

- DO NOT attempt to charge the battery pack with any chargers other than a DEWALT charger. DEWALT chargers and battery packs are specifically designed to work together.

- These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

- Do not expose the charger to rain or snow.

- Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electronation.

- When operating a charger outdoors, always provide a dry location and use an extension cord or power strip suitable for outdoor use. Use of a device suitable for outdoor use reduces the risk of electric shock.

- When using a power strip, be sure that its current rating is not exceeded by the sum of the individual device's current ratings.

- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, then is, 16 gauge box more capacity than 18 gauge. An undescent cord will cause a drop in line voltage resulting in loss of power and overheaming. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating, if in doubt, use the next heavier gauge. The lower the gauge plate, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
1204 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
2404 50 (15.3)		100 (30.5)	200 (61.8)	330 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0	6	18	18	16	14
6	10	18	18	14	12
10	12	16	16	14	12
12	16	14	12	Not Recommended

WARNING: If the plug or power cord is damaged, it must be replaced by the manufacturer or its representative or by an electric qualified person to avoid danger.

- Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

- Do not operate the charger with a damaged cord or plug—have them replaced immediately.

- Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.

- Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electricisation or fire.

- Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

- NEVER attempt to connect 2 chargers together.

- The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock may result.

WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DEWALT rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign materials. Foreign materials of a conductor nature, such as, but not limited to, grinding dust, metal chips, steel waste, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no rotary pack in the cavity. Unplug the charger before attempting to clean.

SAVE THESE INSTRUCTIONS

Charging a Battery (Fig. A, C)

NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use. Plug the charger into an appropriate outlet before inserting battery pack.

1. Connect the charger and battery pack, making sure the battery is fully seated. The (charging) light will blink continuously indicating that the charging process has started.

2. The Stage 1 Charging blink indicator represents the charge process that charges the majority of the battery's capacity. Stage 2 Charging blink indicator represents the remainder, or top off charge process, for the battery to reach full capacity.

3. The completion of charge for Stage 1 or Stage 2 will be indicated by the Stage's light remaining ON continuously. The battery pack is fully charged when both Stage 1 and Stage 2 charging lights remain ON continuously, and it may be removed and used at this time or left in the charger.

NOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed.

Leaving the Battery Pack In the Charger

The charger and battery pack can be left connected with the charge indicators showing pack charged.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack may charge at a slower rate than a warm battery pack.

The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure. A charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger or a fault battery pack.

NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized service center.

The DCB118 and DC3112 chargers are equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled.

Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger.

Electronic Protection System

Li-ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fully charged.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65°F - 75°F (18°C - 24°C). DO NOT charge when the battery pack is below 40°F (4.5°C), or above 104°F (40°C). This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;

b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;

c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65 °F – 75 °F (18 °C – 24 °C);

d. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
2. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.
3. Do not freeze or immerse the charger in water or any other liquid.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the anterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Wall Mounting

WARNING: To reduce the risk of serious personal injury, disconnect charger from the power source and remove the battery pack before mounting. An occidental start-up can cause injury.

Some chargers are designed to be wall mountable or to sit upright on a table or work surface. If we'll mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the well. Mount the charger securely using drywall screws (purchased separately) at least 1" (25.4 mm), long, with a screw head diameter of 0.24–0.35" (7–9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm); of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, disconnect charger from the power source remove the temporary pack before conducting any maintenance. An accidental store-up can cause injury.

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT. Call 1-800-4-DeWALT (1-800-433-9258) or visit our website: www.dewalt.com.

Repairs

The charger and battery pack are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIMIBILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a O+WAL1 factory service center or a O+WAL1 enharvested service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

- WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.

- CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.dewalt.com/account-login.

Three-Year Limited Warranty

For warranty terms, go to www.dewalt.com/support/warranty.

To request a written copy of the warranty terms, contact Customer Service at DRWALT Industrial Tool Co., 701 East Joppa Road, Iowson, MO 21286 or call 1-800-4-DEWALT (1-800-433-9258).

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country-specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258); for a free replacement.

FRANÇAIS

= = = c CD.....corriente directa

Eje Central Lázaro Cárdenas No. 18 - Local D. Col. Obrera (55) 5588-9377

MERIDA, YUC

Calle 63 #159-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poriente - Col. Centro (818) 375 23 13

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

DCB200, DCB201, DCB203, DCB206, DCB204, DCB208T, DCB205, DCB205G, DCB205E, DCB206, DCB208, DCB210, DCB250, DCB240, DCBP034, DCBP520, DCBP570G, DCB606, DCB609, DCB609G, DCBE12, DCB675

NING: Use of any other battery packs may create a risk of injury and fire.

NOTE: DO NOT charge when the battery pack is below 40°F (4.5°C) or above 104°F (40°C). Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C).

* Maximum initial battery voltage (measured without a workload) is 12, 20, 69 or 120 volts. Nominal voltage is 10.8, 18, 54 or 108. (120V Max* is based on using 2 CWAL T SNV Max* Lithium-ion batteries combined.)

NOTE: The rated output current, for this charger is the maximum charging rate when used with DI WALL battery packs designed to charge at this rate.
