H-4593 - Scale Uline - Free user manual and instructions

Product Type	Counting Scale
Brand	Uline
Model	H-4593
Power Supply	AC adapter included
Display	LCD screen with display indicator
Measurement Units	kg, lb, pieces
Main Functions	Weighing, piece counting, tare, zero setting, fixed sampling (10, 20, 50, 100 pieces)
Calibration	External with calibrated weight, activation by jumper SWA1
Weighing Platform	Stainless steel (estimated)
Adjustable Feet	Yes, with bubble level
Included Accessories	Allen key, AC adapter, data cable
Usage	Indoor, on a flat and stable surface
Cleaning	Soft dry cloth
Special Features	Adjustable display indicator, support base with bracket
Assembly Required	Yes, mounting of the tower and platform

Frequently Asked Questions - H-4593 Uline

How to turn on the H-4593 scale?

Plug in the AC adapter and data cable. The screen turns on automatically.

How to use the piece counting function?

Place a known sample on the platform, press the COUNT key, then remove the sample. Add the pieces to be counted, the scale displays the count.

How to tare the scale?

Place an empty container on the platform, then press the TARE key to reset the display to zero.

How to change the display unit?

Press the UNITS key (models H-670/H-4593) or Kg key (models H-747/H-794) to switch between kg, lb and pieces.

How to calibrate the scale?

Place the SWA1 jumper in the ADJ position, power on the scale, hold the Zero key until the software version appears, then follow the procedure with a calibrated weight.

What to do if the scale does not display zero?

Check that the platform is empty and the scale is level. Press the CE or Zero key to reset the display to zero.

What accessories are included with the scale?

The package includes an AC adapter, data cable, Allen key, support bracket, and tower base.

How to clean the scale?

Use a soft dry cloth to clean the platform and screen. Do not use harsh chemicals.

Is the scale pre-calibrated from the factory?

No, it requires initial calibration with accurate reference weights.

Can I use uncalibrated weights for calibration?

No, using uncalibrated weights may result in inaccurate measurements. Use only regular calibration weights.

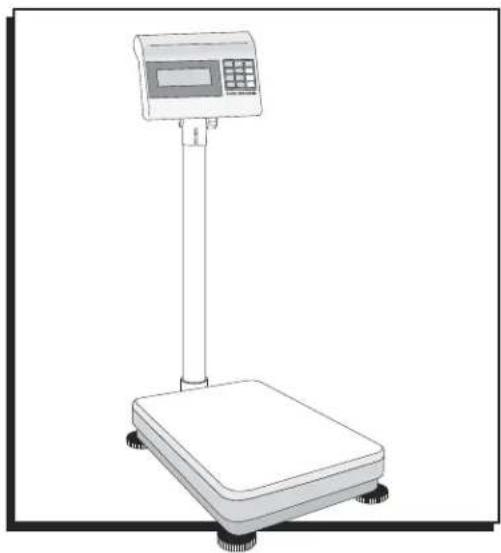

USER MANUAL H-4593 Uline

Line drawing of a digital balance scale with a digital display and control panel (no text or symbols)

TOOLS NEEDED

10 mm
Box Wrench

Allen Wrench
(Included)
PARTS

AC Adapter Support

Bracket

Tower Platform Base

Illustration of a rectangular electronic device with four wheels and a small attached component (no text or symbols)

Display Indicator
ASSEMBLY

1. Remove scale parts from packaging.
2. Lift the scale pan off the platform base.

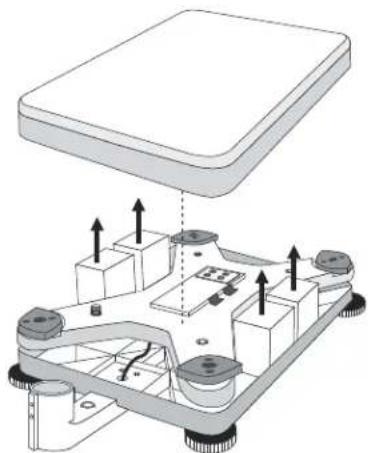

3. Remove the four styrofoam blocks from the platform base. (See Figure 1)
4. Replace the scale pan.

Figure 1

Diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

ASSEMBLY CONTINUED

1. Place the scale on the stable, level surface on which it is intended to be used.

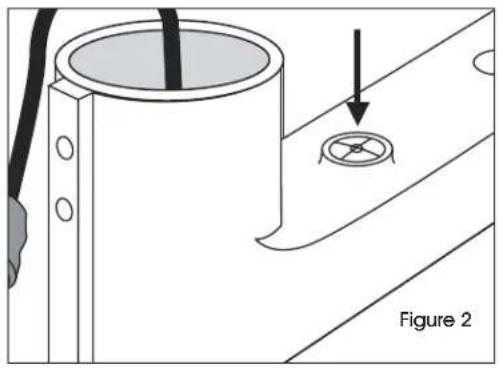

2. Using the bubble level on the base bracket as a guide, adjust the four leveling feet until scale is level. (See Figure 2)

Technical diagram showing a cylindrical component with a circular hole and a separate circular feature, labeled Figure 2 (no text or symbols on the diagram itself)

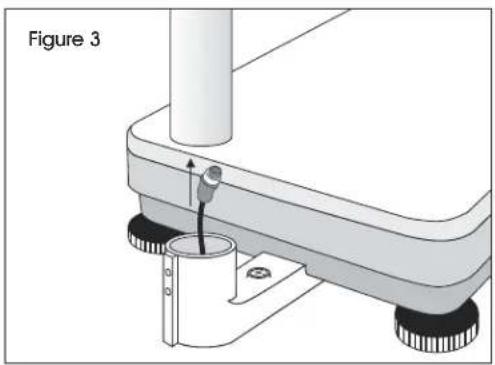

1. Feed the data cable from the base bracket through the tower. (See Figure 3)

Mechanical assembly diagram showing a lever mechanism with a person operating the pivot point (no text or symbols present)

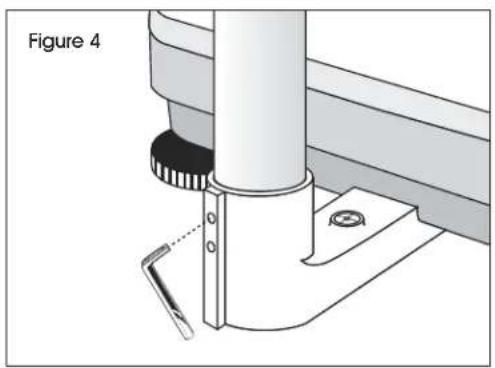

1. Tighten the set screws in the base bracket using the included Allen wrench. (See Figure 4)

Technical diagram of a mechanical assembly with a cylindrical component and base mount (no text or symbols)

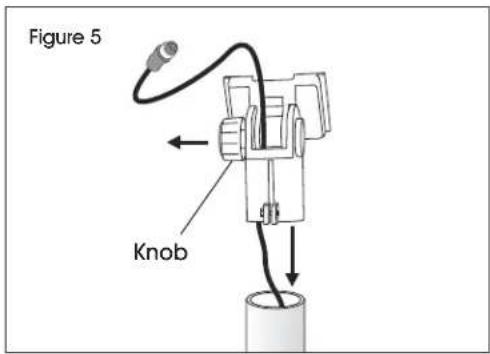

1. Feed the data cable through the support bracket by unscrewing the knob and pulling the support bracket pieces apart. (See Figure 5)
2. Once data cable is threaded through support bracket as shown, tighten the knob and place the support bracket on the tower. (See Figure 5)

Figure 5 Knob

1. Tighten the bolt at the base of the support bracket using a 10 mm box wrench.

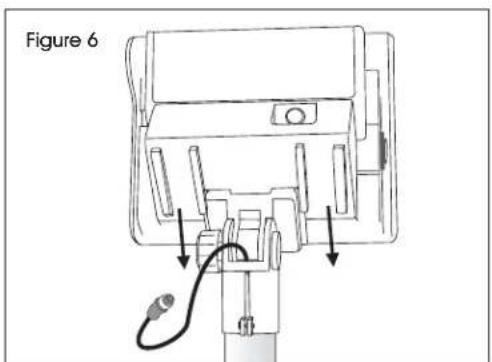

2. Slide the display Indicator onto the support bracket. Adjust the angle of the display by loosening the knob on the support bracket. Tighten the knob when finished adjusting the angle. (See Figure 6)

Figure 6

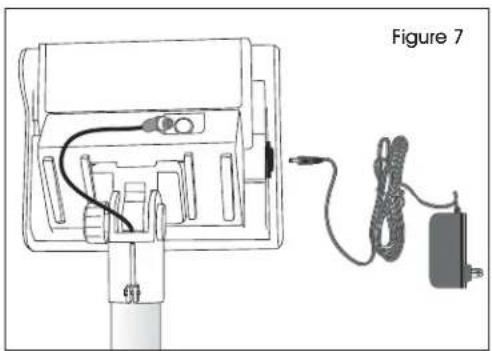

1. Plug the data cable and the AC adapter into the display indicator. (See Figure 7)

Diagram of a device with cable and power cord, labeled Figure 7 (no text or symbols on the diagram itself)

COUNTING FUNCTION

• Prior to use, connect the AC adapter and monitor cable.
• This scale has fixed samples of 10, 20, 50 and 100 pieces.

• The larger sample sizes will provide you with a more accurate unit weight.

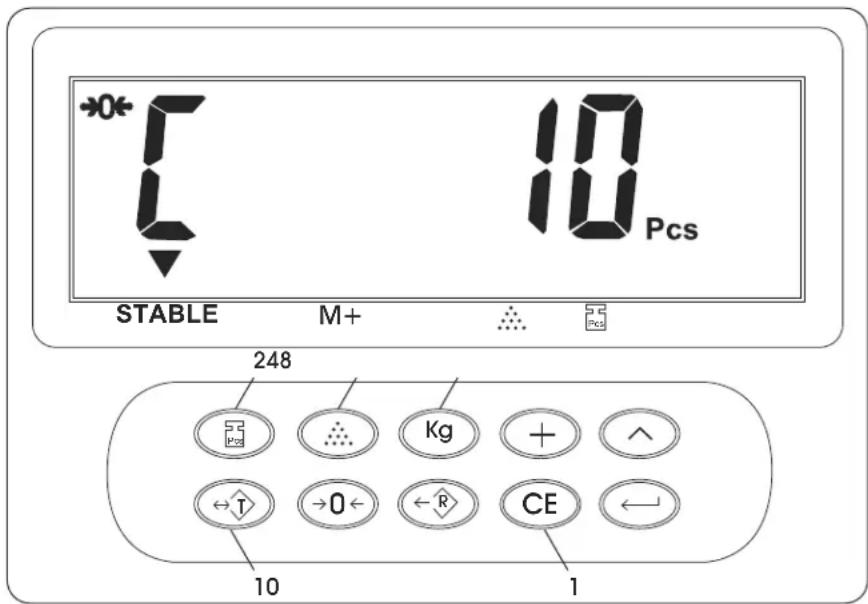

• Prior to placing any object onto the scale, press the CE key (1). (See Figure 8)

• Select the fixed sample key of 10, 20, 50, 100 pieces (2). (See Figure 8)
• Place the requested number of samples onto the scale.
• Press the COUNT key (4). (See Figure 8)
• Remove all parts from the scale.
• Place the desired number of pieces onto the scale. This will provide an accurate count reading.
• Remove all parts from the scale.
• For the H-670 and H-4593: Press the UNITS key (8) to return to the weight display screen. (See Figure 8)
• For the H-747 and H-794: Press the Kg key (8) to return to the weight display screen. (See Figure 8)
• Press the TARE key (10) to zero out the weight of a container being used to hold parts. (See Figure 8)

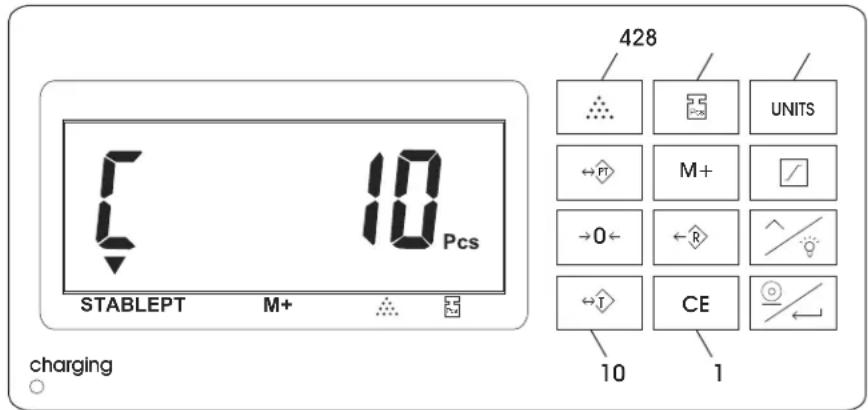

STABLEPT M+ 10 Pcs charging 428 UNITS M+ →0← R CE 10 1

H-670 & H-4593

*0* 10 Pcs STABLE M+ 248 Kg + ^ ←T →O ← R CE ← 10 1

H-747 & H-794
Figure 8

CALIBRATION INSTRUCTIONS

NOTE: Scale can only be accurately calibrated using standard calibrated scale weights. Using non-calibrated weights may result in inaccurate scale calibration. Nothing should be on the scale and scale should be level.

ACTIVATE WEIGHT CALIBRATION MODE

- Switch the mini jumper SWA1 to "ADJ" position. Adjust is down; Lock is up. The switch is located under a panel on the right side of the keypad housing.

- Turn on the scale. As scale counts down to zero, press and hold the ZERO key until the software version (ex: 02018) appears on the display.

- Release ZERO key. F appears in display.

- Press ENTER key. Display shows 2Ero.

- Press ENTER key. Display shows 0---, -CHg .

- Press UNITS or Kg key to set scale to lb or kg as needed.

- Use the UP and ENTER keys to preset the weight being used to calibrate the scale. The UP key sets the number and the ENTER key moves right one digit.

Example: To set a weight of 3.0 kg, you would press the ENTER key three times to move right three spaces and the UP key three times to enter the number 3.

• Place your calibrated weight on the scale.
• Press ENTER key. Display shows WRITE.
  • Scale displays weight and beeps.
• Scale is calibrated, it will now return to weighing mode automatically.
• Switch the mini jumper SWA1 back to "LOCK."
