USER MANUAL Stillness K-T954 KOHLER

Technical line drawing of a shower faucet with two upright stands (no text or symbols)

M product numbers are for Mexico (i.e. K-12345M)

Phillips Screwdriver

Hex Wrench
Plus: • Rags

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

☐ The valve is sold separately. Please read the instructions packed with the valve for installation procedures.
□ Please read all instructions before you begin.
□ Shut off the main water supply.
□ Observe all local plumbing and building codes.
□ Complete the finished deck material before installing.
Before installation, unpack the new faucet trim and inspect it for damage. Return it to the carton until installation.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.

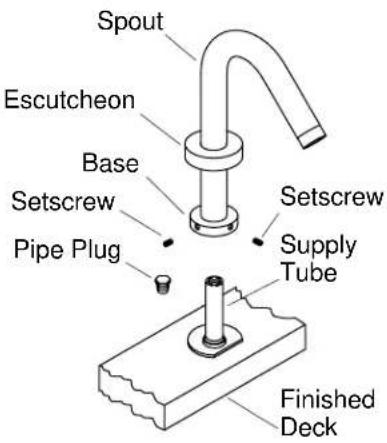

Spout Escutcheon Base Setscrew Pipe Plug Setscrew Supply Tube Finished Deck

1. Install the Spout

CAUTION: Risk of personal injury. Lines may be pressurized. Do not lean over the pipe plug when turning or removing the plug.

IMPORTANT! Keep the spout supply tube clean above the finished deck to avoid damage to the O-ring seal.

□ Remove the plaster guards.
☐ Remove the pipe plug from the supply stem, using a rag to prevent spray as the plug is removed.
□ Back the setscrews off at the base of the spout until they are clear of the supply tube.
☐ Position the spout on the supply tube, and carefully press down until the spout contacts the finished deck.
□ Align the spout as desired, and tighten the setscrews.
☐ Slide the escutcheon down the spout until it is flush with the finished deck.

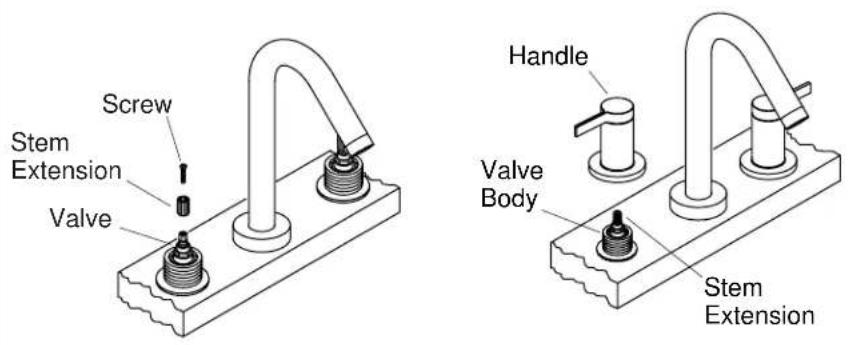

2. Install the Handles

NOTE: If the handle assembly does not reach the finished deck when it is fully tightened, replace the long stem extensions with the short plastic extensions.

□ Install a long stem extension onto each valve.
□ Secure the stem extensions with the provided screws.
☐ Close the valves (hot = clockwise, cold = counterclockwise).
☐ Thread a handle assembly onto each valve.
□ Confirm that the splines on the stem extension and skirt are engaged.
□ Orient the handles so they point away from the spout.
□ Adjust the handles so the levers point away from the spout when closed.
☐ To adjust the alignment, remove the handle assembly and reposition the stem extension on the stem.
□ Reinstall the handle assembly.
□ Repeat until the desired alignment is achieved.

Aerator

3. Complete the Installation

☐ Turn off the water (hot = clockwise, cold = counterclockwise).
□ Remove the aerator assembly.
☐ Turn on the main water supply and check for leaks.
☐ Turn on the hot and cold valves and run water through the spout to remove debris. Check for leaks.
□ Turn off the hot and cold valves.
□ Reinstall the aerator assembly.
