USER MANUAL Revival K-16135 KOHLER

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
☐ Kohler Co. reserves the right to make revisions in the design of products without notice, as specified in the Price Book.

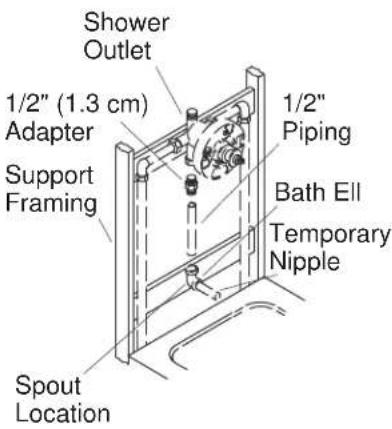

Shower Outlet 1/2" (1.3 cm) Adapter Support Framing Spout Location 1/2" Piping Bath Ell Temporary Nipple

1. Prepare the Site

NOTE: Use thread sealant on all threaded connections.

□ Determine the installation location of the spout and install the support framing as required.
☐ Install a bath elbow and adapter (if used) on 1/2" copper tubing or a 1/2" pipe of proper length and connect to the bath outlet of the valve.
☐ Install a temporary 1/2" nipple to the bath elbow to extend at least 2" (5.1 cm) beyond the finished wall.
□ Securely fasten the bath members to the framing.
☐ Turn on the water and check for leaks. Repair as required.

Nipple 1/2" (1.3 cm) Apply plumbers putty. Spout

2. Install the Spout

□ Remove the temporary nipple.
□ Apply thread sealant and install a 1/2" nipple so it extends 1/2" (1.3 cm) beyond the finished wall.
□ Apply a bead of plumbers putty or other sealant around the inlet end of the spout according to the manufacturer's instructions.
□ Carefully tighten with a clean strap wrench.
