USER MANUAL Coralais K-15275 KOHLER
M product numbers are for Mexico (i.e. K-12345M)
M corresponden a Mexico (Ej.
K-12345M)
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.
Tools and Materials
Adjustable Wrench
Hacksaw or Tubing Cutter
Plumbers Putty
Supply Stop(s) and Tubing
Before You Begin
Observe all local plumbing and building codes.
Shut off the main water supply.
Inspect the tubing for any sign of damage. Replace if necessary.
□ If possible, install this faucet before installing the sink.
Kohler Co. reserves the right to make revisions in the design of.
faucets without notice, as specified in the Price Book.

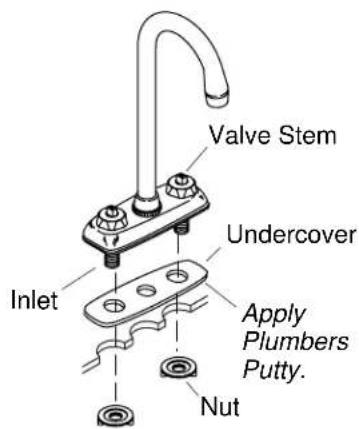

1. Install the Faucet Body
- Apply a bead of plumbers putty or other sealant to the underside of the undercover according to manufacturer's instructions.
Position the undercover over the mounting holes. Press the undercover down until it is snug against the sink.
From the top of the sink, insert the faucet body inlets into the mounting holes.
From the underside of the sink, thread a nut onto each handle valve. - Securely hand tighten the nuts.
Remove any excess putty or sealant.

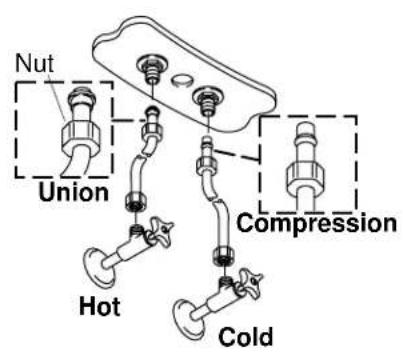

2. Supply Connections
Install the sink (if needed) according to the sink manufacturer's instructions.
- Identify the supply connection type.
- Connect the supply tubes to the handle valves, and the supply stops. Left is hot, right is cold.
- Tighten all connections.
3. Installation Checkout
Ensure that all connections are tight.
- Remove the aerator (if spout is installed).
- Open the drain.
Turn on the main water supply and check for leaks. Repair as needed.
- Open both hot and cold valves and run water through the spout (if installed) for approximately one minute to remove debris. Check for leaks. Turn the valves off.
- Remove any debris from the aerator and reinstall (if spout is installed).
