USER MANUAL HL-5040 BROTHER

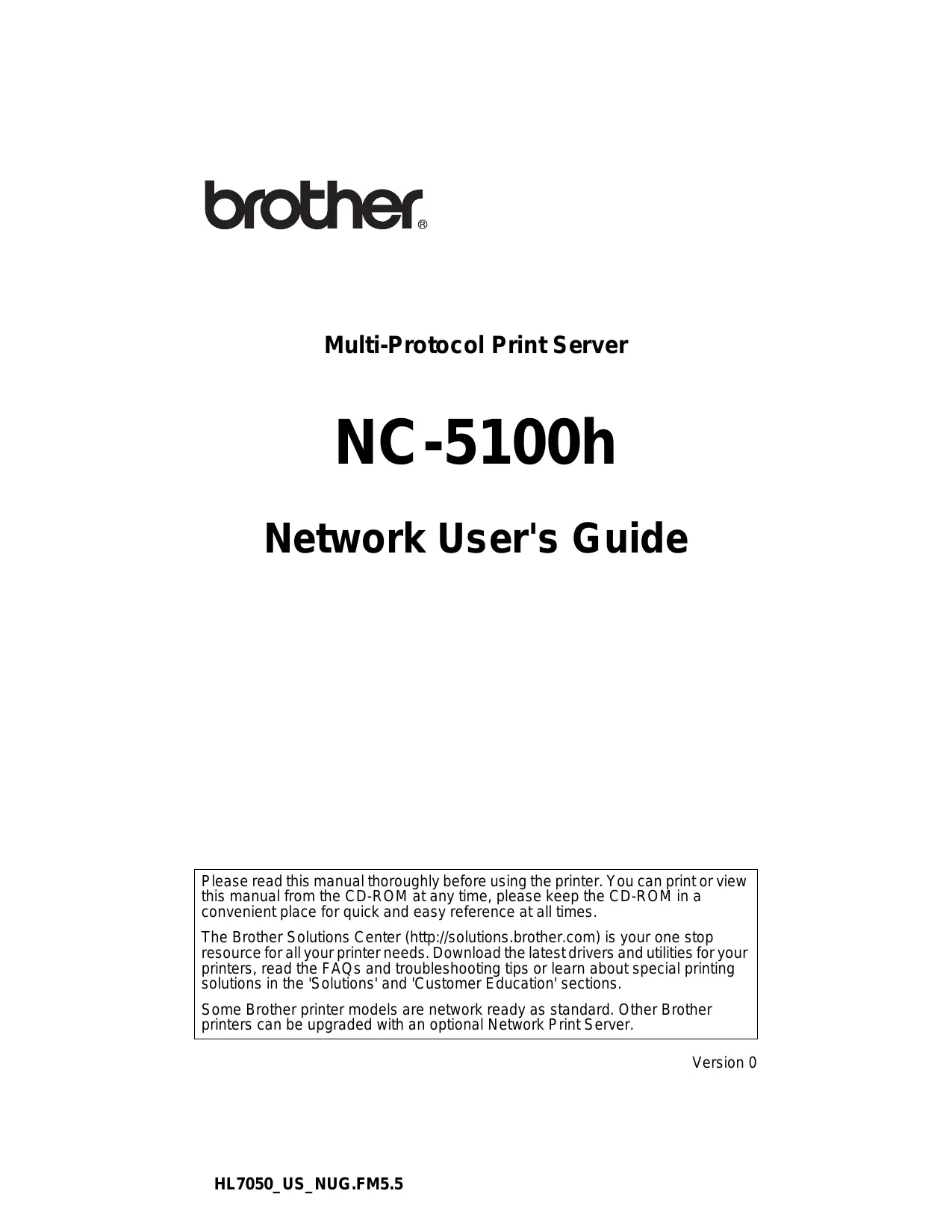

Network User's Guide

Please read this manual thoroughly before using the printer. Y ou can print or view this manual from the CD-ROM at any time, please keep the CD-ROM in a convenient place for quick and easy reference at all times.

The Brother Solutions Center (http://solutions.brother.com) is your one stop resource for all your printer needs. Download the latest drivers and utilities for your printers, read the FAQs and troubleshooting tips or learn about special printing solutions in the ‘Solutions’ and ‘Customer Education' sections.

Some Brother printer models are network ready as standard. Other Brother printers can be upgraded with an optional Network Print Server.

Brother is a registered trademark of Brother Industries, Ltd.

HP, HP/UX, J etDirect and J etAdmin are trademarks of Hewlett-Packard Company. DEC, DEC server, VMS, LAT, and ULTRIX are trademarks of Digital Equipment Corporation.

UNIX is a trademarks of UNIX Systems Laboratories.

Ethernet is trademark of Xerox Corporation.

Postscript is trademark of Adobe Systems Incorporated.

Netware is a trademark of Novell, Inc.

Apple, Macintosh, LaserWriter, and AppleTalk are trademarks of Apple Computer,

IBM, LAN Server, and AIX are trademarks of International Business Machines Corporation. :

LAN Manager, Windows®, and MS-DOS are trademarks of Microsoft Corporation.

All other brand and product names mentioned in this user's guide are registered trademarks or trademarks of respective companies.

Compilation and Publication

Underthe supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

Shipment of the print server

Iffor any reason you mustship your print server, carefully package the print server to avoid any damage during transit. It is recommended that you save and use the original packaging. The print server should also be adequately insured with the carrier.

WARNING When shipping the print server, put it into the anti-static bag to avoid damage.

YL4US_FAX2800MFC4800-FM5.5

IMPORTANT NOTE: For technical and operational assistance, you must call. Calls must be made from within that country.

In USA 1-800-276-7746

In Canada 1-877-BROTHER (514) 685-6464 (In Montreal)

If you have any comments or suggestions, please write to us at:

In Europe European Technical Services 1Tame Street Audenshaw

Manchester, M34 5JE UK In USA Printer Customer Support Brother International Corporation 15 Musick

In Canada Brother International Corporation (Canada), Ltd. - Marketing Dept. 1, rue Hôtel de Ville Dollard-des-Ormeaux, PQ, Canada H9B 3H6

Brother fax-back system (USA)

Brother Customer Service has setup an easy-to-use fax-back system so you can get instant answers to common technical questions and information about all our products. This is available 24 hours a day, seven days a week. You can use the System to send the information to any fax machine.

Callthe number below and follow the recorded instructions to receive a fax about how to use the system and an Index ofthe subjects you can getinformation about.

In USA only 1-800-521-2846 Dealers and service centers (USA) For the name of a Brother authorized dealer or service center, call 1-800-284- 4357.

Service centers (Canada) For the address of service centers in Canada, call 1-877-BROTHER.

Brother Global Web Site: http://www.brother.com

For Frequently Asked Questions (FAQs), Product Support and Technical Questions, and Driver Updates and Utilities: http://solutions.brother.com

{In USA Only) For Brother Accessories & Supplies: http://www.brothermall.com

YL4US_FAX2800MFC4800-FM5.5

IMPORTANT INFORMATION: REGULATIONS Federal Communications Commission (FCC) Declaration of Conformity (For U.S.A. only)

Responsible Party: Brother International Corporation 100 Somerset Corporate Boulevard Bridgewater, N] 08807-0911, USA TEL: (908) 704-1700

declares, thatthe products

Product Name: Brother Network Card (BR-net) Model Number: NC-5100h

complies with Part 15 ofthe FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-_Reorient or relocate the receiving antenna.

-_ Increase the separation between the equipment and receiver.

-_ Connectthe equipment into an outlet on a circuit different from that to which the receiver is connected.

-_ Consultthe dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Brother Industries, Ltd.

could void the user's authority to operate the equipment.

Industry Canada Compliance Statement (For Canada only)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada.

YL4US_FAX2800MFC4800-FM5.5

Declaration of Conformity (Europe)

We, Brother Industries, Ltd., 15-1, Naeshiro-cho, Mizuho-ku, Nagoya 467-8561, J apan

declare that this product is in conformity with the following normative documents.

Safety: EN 60950, EMC: EN 55022 Class B, EN 55024

following the provisions of the Low Voltage Directive 73/23/EEC and the Electromagnetic Compatibility Directive 89/336/EEC (as amended by 91/ 263/EEC and 92/31/EEC).

Issued by: Brother Industries, Ltd. Information & Document Company

Intel Copyright and License Information

This products includes object code from Intel's UPnP SDK. The following is the copyright and licensing information for Intel UPnP SDK.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* _Redistributions of source code mustretain the above copyrightnotice this list of conditions and the following disclaimer.

* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

* Neither name of Intel Corporation nor the names ofits contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL INTEL OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Installing the Brother Peer to Peer Software 2-6 Windows® NT 4.0 Printing Associating to the Printer... 2-7

Configuring Internet Printing for Windows® Internet Printing Installation

Other Sources of Information... 2-13

Peer to Peer Printing sms 3-1 How to Print in a Windows® 95/98/Me Peer to Peer network

Overview. Quick Tips Driver Deployment Wizard.

Installing the Brother Peer to Peer Software

Associating to the printer...

Adding a Second Brother LPR Port.

Other Sources of Information

NetBIlOS Peer to Peer Printing. 4-1 How to Printusing NetBlOS in Windows® 95/98/Me/NT/2000/

.4-1 Overview... .4-1 Print Server Configuration. .4-2 Changing the workgroup/domain name using TELNET or BRCONFIG or a web browser... 4-3 NetBlOS Port Monitor for Windows® 95/98/Me, NT4.0/ 2000/XP .4-4 Installing the Brother NetBlOS Port Monitor. .4-4 Associating the printer Windows® 95/98/Me Windows NT® 4.0 Windows® 2000/XP. Adding a Second NetBlOS Print Port... Windows® 95/98/Me Windows NT° 4.0 / Windows® 2000/XP LAN Server/0S/2 Warp Server Configuration. Server Configuration: Workstation Configuratio Other Sources of Information.

Installing the BIP software on

6 Novell NetWare Printing How to configure Novell NetWare Printing.

TCP/IP Configuration Assigning TCP/IP Information

Other Sources of Information... 6-22

AppleTalk (EtherTalk) TCP/IP Printing. Printing From a Macintosh.

Overview... Macintosh Configuration (OS 8.5 - 9.2). How to Selectthe Print Server (AppleTalk/E therT alk) How to Selectthe Print Server (TCP/IP) Macintosh Configuration (OS X v. 10/10.1/10.2) How to Selectthe Print Server (AppleTalk/E therT alk) How to Selectthe Print Server (TCP/IP) Changing the Configuration … Other Sources of Information.

Overview... Configuring DLC on Windows® NT/2000 Windows® 2000 Printer Setup Windows® NT 4.0 Printer Setup Windows® NT 3.5x Setup Configuring DLC on Other Systems Other Sources of Information

How to connect to your printer using a Browser. .9-2 Other Sources of Information 9-2

Overview. 10-1 Using the printer control panel to allocate an IP address (printers with LCD panels only) 10-2

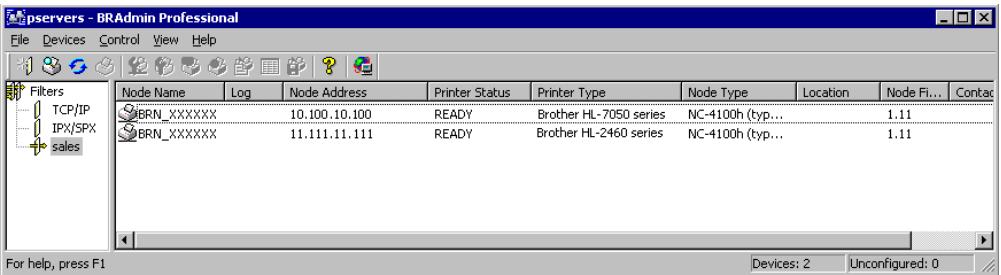

Changing the IP Address using the BRAdmin application 10-2

Using BRAdmin and the IPX/SPX Protocol to setthe IP address... 10-3 Using BRAdmin and the TCP/IP Protocol to setthe IP address... 10-4

ZleMFC-US-FAX-4750e/5750e-

Using DHCP to Configure the IP address Using APIPA to Configure the IP Address. Using ARP to Configure the Print Server IP Address Using RARP to Configure the res Using BOOTP to Configure the IP Address Configuring the IP Address with BRCONFIG. Changing the IP Address settings with

the TELNET Console Other Sources of Information

11 Troubleshooting … Overview. Installation problems. Intermittent Problems TCP/IP Troubleshootin UNIX Troubleshooting 11-5 Windows® NT/LAN Server (TCP/IP) Troubleshooting ….

Printing from Unix/Linux using TCP/IP Overview

Brother print servers are supplied with the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite. Since virtually all UNIX host computers support TCP/IP, this capability allows a printer to be shared on a UNIX Ethernet network. As with all protocols, TCP/IP communications can proceed concurrently while other protocols are active, this means that UNIX, NetWare, Apple, and other computers can share the same Brother print server over an Ethernet network.

The Linux operating system uses the same setup procedures as standard Berkeley UNIX systems. Refer to this chapter for a typical GUI based Linux installation.

The Automatic Private IP Addressing (APIPA) protocol automatically assigns an IP address from the range: 169.254.1.0 to 169.254.254.255. If you want to disable the APIPA protocol, see Chapter 3 "Network factory default setting" on page 3-11 of the User's Guide. Ifthe APIPA protocol is disabled, the default IP address of a Brother print server is 192.0.0.192. To change it, use the printer control panel (if applicable), the BRAdmin Professional, Web BRAdmin software or let your DHCP server allocate an IP address to the printer.

Refer to chapter 10 of this user guide to learn how to configure the IP address on your printer.

The default password for Brother print servers is access. The default name for a Brother print server is usually

BRN_xxxxxx (where xxxxxx is the last six digits of the Ethernet address of the print server).

YL4US_FAX2800MFC4800-FM5.5

When configuring the PRINTCAP file, pay particular attention to the service names, BINARY_P1andTEXT_P1.

TCP/IP Brother print servers appear to the network as a UNIX hostcomputer with a unique IP address running the Ipd (line printer daemon) protocol. As a result, any host computer that supports the Berkeley remote LPR command can spool jobs to Brother printservers without the need for any special software on the host computer. For special applications, raw TCP ports are also available.

Brother printservers also supportthe FTP protocol. This protocol can be used to send print jobs from Unix systems.

The Brother printserver is pre-configured to run on a TCP/IP network with a minimum of setup. The only mandatory configuration of the print server is the allocation of an IP address, which can be either automatically assigned using DHCP, BOOTP etc., or manually assigned using the ARP command, BRAdmin Professional software, or the printer control panel.

For setting the IP address of the print server, refer to the Quick Setup Guide or to chapter 10 of this user guide.

General TCP/IP UNIX Host Configuration

The configuration process for most UNIX systems is described in the following steps. As this process varies, we recommend that you refer to your system documentation for additional information.

Configure the /etc/hosts file on each UNIX hostthat needs to communicate with the print server. Use your favorite editor to add an entry to the /etc/hosts file containing the IP address and node name of the device. For example:

192.189.207.3 BRN_310107

1-2 UNIX PRINTING YL4US_FAX2800MFC4800-FM5.5

The actual format of the entry may vary depending on your system, check your system documentation and also note the format of other entries in the /etc/hosts file.

p: The node name in this file does not necessarily need to be the same as the one that is actually configured into the Brother print server (the name that appears on the printer configuration page), however, itis good practice to make the names the same. Some operating systems, such as HP/UX, do not acceptthe "_" character in the default name, for these systems you must use a different name).

In any case, the node name in the /etc/hosts file must match the node name in the /etc/printcap file.

Some systems such as HP/UX and AIX allow you to enter the IP address as the host name when setting up the print queue. If this is the case, you do not need to configure the hosts file.

Choose which print server service you want to use. There are several types of services available on Brother print servers. Binary services pass data through unmodified and are therefore required for PCL or PostScript rasterized graphics printouts. Text services add a carriage return at the end of each line for proper formatting of UNIX text files (which end in linefeed and do not have carriage returns). The text service can also be used for non-rasterized graphics, such as ASCII PostScript graphics or many types of PCL graphics.

Choose one of the available services (a service name will be used in step 3):

BINARY_P1 Binary data TEXT_P1 Text data (CR added)

You may set up multiple print queues on your UNIX host computer for the same print server, each one with a different

service name (for example, one queue for binary graphics jobs and one for text jobs).

YL4US_FAX2800MFC4800-FM5.5

Configure the /etc/printcap file on each host computer to specify the local print queue, the print server name (also called remote machine or rm), and the print server service name (also called remote printer, remote queue, or rp), and the spool directory.

3 This step applies to the majority of UNIX systems, including Linux, Sun OS (but not Solaris 2.xx), Silicon Graphics (Ipr/pd option required), DEC ULTRIX, DEC OSF/1, and Digital UNIX. SCO UNIX users should follow these steps, but should also refer to the SCO UNIX Configuration section. Users of RS/6000 AIX, HP/UX, Sun Solaris 2.xx, and other systems that do not use the printcap file should skip to section 3-a. SCO user's should also skip to section 3a (SCO uses the printcap file, but this file is automatically configured via the rlpconf command).

An example of a typical printcap file:

lgsertiPrinter on Floor 1:\

p=TEXT P1:\ :sd=/usr/spootl/tpd/laserl:

z1Make sure this information is added to the end ofthe printcap file. Also make sure that the last character in the printcap file is a colon ":".

This will create a queue named laser1l on the host computer that communicates to a Brother print server with a node name (rm) of BRN_310107 and a service name (rp) of TEXT_P1 printing text files to a Brother printer through spool directory /usr/spootl/tlpd/laser1. If you are printing binary graphics files, you would use the service BINARY_P1 instead of TEXT_P1.

1-4 UNIX PRINTING YL4US_FAX2800MFC4800-FM5.5

The rm and rp options are not available on some UNIX systems, so if necessary check your documentation to determine the equivalent options.

Users of Berkeley-compatible UNIX systems can use the Ipc command to obtain the printer status:

queuing is enabled printing is enabled no entries

Users of AT&T-compatible UNIX systems can generally use the Ipstat or rlpstat commandés to obtain similar status information. Because this procedure varies from system to system, refer to your system documentation for the exact usage.

Skip this section if you have completed Step 3, unless you have an SCO UNIX system.

If you have an HP/UX system, IBM RS/6000 AIX computer, or Sun Solaris 2.xx, there is no printcap file. This is also true for some other AT&T-based UNIX systems, as well as many VMS-based TCP/IP software packages (for example, UCX, TGV Multinet, etc.). On SCO systems, there is a printcap file, but it is automatically configured by the rlpconf command. Most of these systems generally use a printer setup program to define the service name (remote printer), the print server name (remote machine) or IP address, and the local queue name (spool directory). Refer to the appropriate section depending on your version of Unix.

YL4US_FAX2800MFC4800-FM5.5

Ifyou do not wish to use the command line interface to configure your Linux distribution, you may wish to use the Linux Printer System Manager application on your GUI. To do this, do the following:

From the Linux Printer System Manager screen, click the Add button.

You will now be asked to specify which Printer type you are using, select the Remote Unix (Ipd) Queue option and click OK.

You must now specify the remote host name, remote queue name and the input filter to use.

The Remote Host name is the IP address of the printer, orthe name from the hosts file which corresponds to the IP address of the printer.

The Remote Queue name is the service name that the printer will use when processing the data. Generally we recommend that you use the name "BINARY_P1", however, if you are planning to send text documents that do not have a carriage return and a line feed, then use "TEXT_P1".

Select the appropriate Input Filter from the list of available printers on your particular build of Linux.

In order to make your settings work, select the Restart Ipd option. As soon as the Ipd server restarts, you will be able to send printed documents from your server.

Linux Configuration using CUPS Many Linux systems support Common Unix Printing System (CUPS). CUPS typically uses PPD files are supplied on Brother's BR-Script (Brother's Postscript language emulation) ready machines. If you are using a Brother printer that does not include the BR-S cript emulation you must use an alternative driver.

For more detailed information on Linux printing visit the Brother Solutions web site at: http://solutions.brother.com

1-6 UNIX PRINTING YL4US_FAX2800MFC4800-FM5.5

In the case of HP/UX10.xx, the sam program is used to set up the remote printer. The steps are as follows:

E xecute the sam program. From the list of options, select Printers and Plotters.

Select LP Spooler. Select Printers and Plotters. Select Actions and then Add Remote Printer/Plotter.

Enter any name as the Printer Name (this will be the name of the print queue).

Enter the IP address ofthe print server as the Remote System Name.

Enter the desired print server service name as the Remote Printer Name.

Check the box next to Remote Printer is on BSD system. You may accept the default values for the remaining items. Click OK to configure the printer.

You should now be able to print using the Ip-d command with the printer name.

If you are using the HP distributed print service, the configuration procedure is slightly different because you are sending the print jobs to a file server, which in turn spools the job to the print server. You must therefore know the name of the file server (spooler host) in addition to the above information. Y ou will add a physical and a remote printer, and then assign a logical printer to the remote printer (a unique name that does not match any other name). To print, use the Ip -d command with the logical printer name.

YL4US_FAX2800MFC4800-FM5.5

Earlier versions of HP/UX use similar procedures to 10.xx users:

Enter sam and select Peripheral Devices and then Add Remote Printer (not Networked printer).

Enter the following remote printer settings (the other settings do not matter):

Line printer name (user-selectable).

Remote system name (the print server name; must match what is in hosts file or use print server IP address).

Remote printer queue (Print server binary or text service name, e.g. BINARY_P1orTEXT P1).

Remote Printer is on a BSD System (Yes). IBM RS/6000 AIX Configuration

The RS/6000 AIX operating system uses the smit program to setup the remote printer. The procedure is as follows for AIX 4.0 and later:

Enter smit and select devices.

Select Printer/Plotter.

Select Print Spooling.

Select Add a Print Queue.

Enter the following Remote Printer Settings:

Name of queue (user selectable)

Host name of Remote Printer (print server name; must match name in /etc/hosts file or use the print server IP address) Name of queue on remote printer (print server binary or text

1-8 UNIX PRINTING YL4US_FAX2800MFC4800-FM5.5

The procedure for pre-V4.0 systems is as follows.

Enter smit and select devices.

Select printer/plotter.

Select manage remote printer subsystem.

Select client services.

Select remote printer queues.

Select add a remote queue.

Enter the following remote queue settings: Name of queue to add (user selectable). Activate the queue (Yes).

Destination host (print server name; must match name in / etc/hosts file or use the print server IP address)

Name of queue on remote printer (print server binary or text service name, eg. BINARY_P1orTEXT P1).

Name of device to add (user selectable; for example Lp0).

Sun Solaris 2.x Configuration

Sun Solaris 2.x uses the Ipsystem and Ipadmin programs for remote printer configuration:

lpsystem -t bsd prnservername

lpadmin -p queue -s prnservername!prnserverservice accept queue (not required on newer Solaris systems) enable queue (not required on newer Solaris systems)

Where queue is the name of the local print queue. prnservername is the name of the print server (must match the entry in the /etc/hosts file or IP address). prnserverserviceis the print server BINARY_P1orTEXT_P1 service.

YL4US_FAX2800MFC4800-FM5.5

If this is the first printer configured, you must also use the Lpsched command prior to the accept command.

As an alternative, you may use Printer Manager in the Admintool utility under OpenWindows. Select Edit, Add, and Add Access to Remote Printer. Then enter the print server name in the format prnservername!\prnserverservice as described above. Make sure that the printer server OS is setto BSD (the default setting), and click Add.

Note that we recommend that you use the /etc/hosts file for the printer name rather than NIS or other name services. Also note that due to a bug in the Sun lpd implementation on Solaris 2.4 and earlier releases, you may experience problems printing very long print jobs. Ifthis is the case, a workaround is to use the raw TCP port software as described later in this chapter.

SCO UNIX Configuration

To configure a printer in version Version 5.x of SCO Unix, use the SCOADMIN program.

Select Printers and then Print Manager.

On the menu select Printer and then Add Remote followed by Unix...

Enter the IP address of the print server, and type in the name of the printer that will be used to spool to.

Deselect Use External remote Printing Protocol...

To ejectthe printed page, add the command rp=lpaf to the / etc/printcap file.

SCO UNIX requires TCP/IP V1.2 or later to work with Brother print servers. You must first configure the /etc/hosts and /etc/ printcap files as described in step 2. Then run the sysadmsh program as follows:

Enter the name of the print queue you entered in the /etc/ printcap file as the Printer name.

Enter anything as the Comment, and Class name. For the Use printer interface select Existing. Press the F3 key to get a list of available interfaces, and select the desired one as the Name of interface using the cursor keys (Dumb is a good choice). Select Direct as the Connection. Enter the desired Device name (/dev/1p generally works). Select Hardwired as the Device. Select No for the Require banner field.

Older SCO Unix Systems

The Brother printservers supportthe FTP protocol. Earlier SCO Unix systems are often configured to print using the FTP protocol.

To use a Brother print server with an IBM AS/400 running IBM's TCP/ IP gateways services for OS/400 (the OS/400 system must be v3.1 or later)

Use the CFGTCP command at your OS/400 prompt to add the print server's TCP/IP address to the AS/400 host table.

YL4US_FAX2800MFC4800-FM5.5

Use the following one-line OS/400 command to create the LPD queue:

CRTOUTQ QUI (equeuenamez RMSTSYS (*INTNETADR) RMTPRTQ(<service>) AUTOSTRWTR(1) CNNTYPE(*IP) DESTTYPE (*OTHER) MFRTYPMDL (<driver>)

INTNETADR ('<ipaddress>') TEXT ('<description>')

where <queuename> is the new AS/400 print queue name, <service> is the print server service name (BINARY_P1 or TEXT_P1) <driver> is the OS/400 printer driver name (*HP4 is recommended if in doubt), and <ipaddress> is the IP address of the print server. Note that the IP address and description must be enclosed in single quotes.

CRTOUTQ OUTQ(BR1) RMTSYS(*INTNETADR)

If you are using A4 paper, you may find that the printer page formatting is incorrect (this is probably because your AS/400 system is set to Letter sized paper), to resolve this problem, do the following: Editthe Host Print Transform source code:

You can also use the following command line to create a printer

Other systems use similar programs to set up print servers. These programs will generally ask for the following information:

Requested information:

Binary or Text service name

remote host computer name

Any name (must match the

name in the printcap file, if any) or in some cases, you may enter the print server IP address here

remote host IP address

IP address of print server.

Technical support specialists for these companies can usually answer configuration questions if you provide them with the equivalent UNIX configuration information (tell them that the print server looks like a remote UNIX host computer running the lpd line

YL4US_FAX2800MFC4800-FM5.5

If you have not created a spool directory for the Brother print server on your UNIX host computer, you will need to do so now (the printer setup utilities in HP/UX, AIX, Solaris 2.xx, and other systems will automatically create the spool directory). The lpd spool directory is usually located in the /usr/spoot directory (check with your system manager to see ifthe location is different for your system). To create a new spool directory, use the mkdir command. For example, to create a spool directory for the queue laser1, you would enter:

mkdir /usr/spool/lpd/laserl

On some systems it is also necessary to startthe daemon. This is done on Berkeley-compatible UNIX systems with the Lpc start command as shown in the following example:

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing.

Refer to chapter 10 of this user guide to learn how to configure the IP address ofthe printer.

1-14 UNIX PRINTING YL4US_FAX2800MFC4800-FM5.5

Users of Windows® NT can print directly to a network-ready Brother printer using the TCP/IP protocol. Microsoft Windows® NT users must install Microsofts "TCP/IP printing" protocol. Windows® 2000/ XP users are able to send print jobs directly to the printer without installing any additional software. Brother's print server also supports transparent printing from IBM LAN Server and OS/2 Warp Server file servers, as well as from OS/2 Warp Connect workstations using the TCP/IP protocol.

The Automatic Private IP Addressing (APIPA) protocol automatically assigns an IP address from the range: 169.254.1.0 to 169.254.254.255. |f you want to disable the APIPA protocol, see Chapter 3 "Network factory default setting" on page 3-11 of the User's Guide. Ifthe APIPA protocol is disabled, the default IP address of a Brother print server is 192.0.0.192. To change it, use the printer control panel (if applicable), the BRAdmin Professional, Web BRAdmin software or let your DHCP server allocate an IP address to the printer.

The default password for Brother print servers is access.

Windows® NT users mustinstall the "Microsoft TCP/IP printing" protocol (available through the control panel applet).

YL4US_FAX2800MFC4800-FM5.5

Windows® 95/98/Me users can send print jobs using the IPP protocol via a Windows® 2000/XP computer providing that the Microsoft Internet P rint Services software is installed on the clientPC, IIS is installed and running on the Windows® 2000/XP computer and that the client PC is using version 4 or later of Microsoft Internet Explorer.

The default name for a Brother print server is usually BRN_xxxxxx (where xxxxxx is the last six digits of the Ethernet address of the print server).

Windows® NT 3.5x/NT 4.0/2000/XP (TCP/IP) Configuration

If you have not already done so, install the TCP/IP protocol onto your Windows® NT system. This is done via the Network icon in the Control Panel window of the Windows® NT system (the Control Panel is in the Main window on NT 3.5x systems, or use the Start button on NT 4.0 to access the Settings/Control Panel menu). The default configuration of Windows® 2000/XP automatically installs the TCP/IP protocol. Refer to the appropriate section in this chapter for more information.

By default, Windows® 2000/XP systems install with all the necessary software required for you to be able to print. This chapter describes the two most commonly used configurations, Standard TCP/IP Port printing and IPP (Internet Printing Protocol). If you have already installed the printer driver, jump to the printer driver already installed section.

Standard TCP/IP Port Printing

From the Printers folder select Add Printer. The Add Printer Wizard will now start. Click on Next.

Now select the Local Printer option and deselectthe Automatically detect and install my Plug and Play printer option.

2-2TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

You must now select the correct Network printing port. Select a new port from the pull-down window and select Standard TCP/IP Port.

When you have done that click Next.

The Add Standard TCP/IP Port Wizard will now appear. Click the Next button.

Enter the IP address, or name of the printer you wish to configure. The Wizard will automatically enter the Port name information for you.

Click the Next button.

Windows® 2000/XP will now contact the printer that you specified. If you did not specify the correct IP address or name then you will receive an error message.

Click the Finish button to complete the Wizard.

Now that you have configured the port, you must specify which printer driver you wish to use. Selectthe appropriate driver from the list of supported printers. lf you are using a driver supplied with the printer on CD-ROM then selectthe Have Disk option to browse to the CD-ROM. You can also click the Windows Update button to connect directly to Microsofts support Web site to download printer drivers.

When the driver is installed, click the Next button.

Specify a name and click the Next button.

Now specify if you wish to share the printer, enter the share name and click Next.

Continue through the Wizard clicking the Finish button when complete.

YL4US_FAX2800MFC4800-FM5.5

IPP Printing from Windows® 2000/XP Clients

If you wish to print using the IPP protocol, follow these steps:

From the Printers folder select Add Printer. The Add Printer Wizard will now start. Click on Next.

For Windows® 2000: Select Network Printer. For Windows® XP: Select A Network Printer, or a Printer attached to another computer.

For Windows® 2000: Click the Connect to a printer on the Internet or on your intranet option.

For Windows® XP: Click the Connect to a printer on the Internet or on a home or office network option.

You must now enter a URL name. A typical example of a URL name for a printer that supports the IPP protocol is: http:// ip _ address:631/ipp (where ip address is the IP address, NetBlOS name or DNS name of the print server).

Click the Next button.

Windows® 2000/XP will now connect to the device that you specified and determine the model number of the printer. Ifthe appropriate driver is installed on the PC, it will be used. Ifthe appropriate driver is not available you will be asked to insertthe driver diskette that was supplied with the printer.

Follow the Wizard through to the end of the installation.

Click the Finish button to complete the Wizard. IPP printing from Windows 95/98/Me Clients Itis also possible to send IPP print jobs from a Windows® 95/98/Me client PC, provided that the PC has the ability to connect to and access Windows® 2000/XP resources. Visit the Microsoft web site {www.microsoft.com) and download the Windows © Internet P rint Services support software for Windows® systems. Once installed, this software will allow you to connectto a Windows®

2000/XP system thatis also running IIS and send print jobs using the IPP protocol.

2-4TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

By using Microsofts IPP software you can also send jobs to other printers that do not supportthe IPP protocol.

Windows® 2000/XP Printing (Printer Driver already installed)

If you have already installed the printer driver and wish to configure it for network printing, follow these steps:

Select the printer driver you wish to configure. Select File and then choose Properties. Click the Ports tab of the driver and click Add Port.

Select the port that you wish to use. Typically this would be Standard TCP/IP Port. Then click the New Port... button.

The standard TCP/IP Port Wizard will start. Follow steps 6-10 of the “Standard TCP/IP Port Printing” section.

Windows © NT 4.0 Printing

If you did notinstallthe TCP/IP protocol during the installation of your Windows® NT 4.0 system (either workstation or server) follow these steps. If you have already installed the TCP/IP protocol, proceed to the next section.

Go to the Start button, choose Settings, and then select Control Panel.

Run the Network applet by double clicking the Network icon and then click on the Protocols tab.

Select Add, and double click on the TCP/IP Protocol. Insertthe requested disk(s), or CD-ROM, to copy the required files. Click the Close button. The Windows® NT system will review

protocol bindings and then you will see the TCP/IP Properties dialog.

YL4US_FAX2800MFC4800-FM5.5

Configure the hostIP address, subnetmask, and gateway address in that dialog. Consult your system manager for these addresses.

Click OK to exit (your NT workstation or server will need to be re-booted).

Windows © NT 4.0 Printing Installing the Brother Peer to Peer Software

Start the CD-ROM installation menu program according to the Quick Setup Guide.

Select the desired Language and then select Install Software. Then select the Network Print Software installation program.

Click on Next in response to the Welcome message. Select the Brother Peer to Peer Print (LPR) button.

Select the desired directory to install the Brother Peer to Peer Print (LPR) files and click on Next. The installation program will create the directory for you if it does not already exist on your disk.

Enter the Port name that you wish to use and click OK. The default portname is BLP 1. Whichever name you choose, itmust be unique and it MUST begin with BLP.

You must now enter the actual IP address of the print server in the IP Address field. If you have edited the hosts file on your computer or are using Domain Name System, you can also enter the name of the print server. As the print server supports TCP/IP and NetBlOS names, you can also enter the NetBIlOS name ofthe print server. The NetBlOS name can be seen in the printer configuration page. By default the NetBlOS name will appear as BRN xxxxxx where xxxxxx is the last six digits of the Ethernet address.

Click the OK button. When prompted you must re-boot your computer.

2-6 TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

Windows © NT 4.0 Printing Associating to the Printer

You must now create a printer on your Windows® system using the standard Windows® printer setup procedure.

To do this, go to the Start button, select Settings and then Printers.

Double click the Add Printer icon to getthe Add Printer Wizard.

Select My Computer (not Network Printer) and click on Next. Selectthe Brother LPR Port(the portname you assigned in step 6 ofthe “Installing Brother P eer to Peer Software” section in this chapter) and click on Next.

Select the desired printer model. If the correct model is not displayed, click on the Have Disk option and insertthe CD- ROM supplied with your printer.

Ifthe driver already exists, select Keep Existing Driver (if it does not exist, this step will be skipped), and then click on Next.

If desired, change the name of the printer then click Next.

If desired, make the printer shared (so other user can access it), and select the operating system(s) that these other computers will be running. Click on Next.

Select Yes when you asked Would you like to print a test

page?. Click on Finish to complete the installation. You may now print to the printer as if it were a local printer.

YL4US_FAX2800MFC4800-FM5.5

Windows © NT 4.0 Printing Adding a Second Brother LPR Port

You do not need to re-run the install program to add a new Brother LPR port. Instead, press the Start button, select Settings, and open the Printers window. Click on the icon ofthe printer that you wish to configure, select File from the menu bar, and then choose Properties. Click on the Ports tab and push the Add Port button. In the Printer Ports dialog, highlight Brother LPR Port. Click the New Portbutton and enter the portname. The default portname is BLP1. If you have already used this name, you will get an error message if you try to use it again, in which case use BLP2, etc. Once you have specified the port name, click the OK button. Y ou will then see the Port Settings dialog.

Enter the IP address of the printer that you wish to print to and click OK. And then click Close in the Printer Ports dialog. You should now see the port that you have just created in the Print to the following port(s) setting of the printer driver.

Windows © NT 3.5x Printing

Go into the Control Panel and run the Network applet.

Select Add Software and TCP/IP Protocol and related components.

Selectthe TCP/IP Network Printing Support check box. And then click on the Continue button. (This option will be unavailable if the TCP/IP Network Printing Support protocol is already installed.

Insert the requested disk(s) to copy the required files. Your NT server will need to be re-booted when the files are copied over.

2-8TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

Windows © NT 3.5x Printing (Printer Driver not yet installed)

If you have Windows® NT 3.5 or 3.51, use the following procedure to configure the print server.

Go to the Main window and select the Print Manager icon. Select Printer menu.

Select Create Printer.

Enter any name for the Printer Name.

Select Driver. Choose the appropriate driver.

Select Description. Enter anything for the description.

Select Print to and then select Other.

Type in the IP address that you assigned to the print server in the Name or address of host server providing lpd: box. If you have edited your HOSTS file or are using Domain Name System, enterthe name associated with the printserver, instead of an IP address.

Type in the print server service name in the Name of printer on

that Machine. |f you do not know which service name to use, enter BINARY_P1 and then click on OK.

eu Refer to Appendix for more information on Service Names.

D: Share the printer if necessary.

Brother print servers will work with IBM LAN Server, OS/2 Warp Server networks that have IBM TCP/IP V2.0 or later installed on the file server (TCP/IP is supplied as standard with LAN Server V4.0 and later as well as Warp Server). Use the following procedure to configure the print server on an LAN Server or OS/2 Warp Server file server, or on an OS/2 Warp Connect workstation:

Server Configuration

Make sure that TCP/IP software is installed on your OS/2 file server. If you have not already done so, open the TCP/IP folder on the desktop, and double click on the TCP/IP Configuration icon to add the IP address to the OS/2 file server (consult your system manager for this address).

Refer to chapter 10 for information on how to assign an IP address to the printer.

Configuration of an OS/2 Server From the OS/2 desktop open the Templates folder. Use the right mouse button to drag the Printer icon (notthe Network Printer icon) onto the desktop.

The Create a Printer window should be open (ifitis not, double click on the printer icon).

Type in any name for the printer. Select the default printer driver. lf the desired printer driver is not

listed, click on the Install new Printer Driver button and add the driver.

2-10 TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

Choose the output port. IBM TCP/IP automatically creates 8 named pipes called \PIPE\LPDO through to \PIPE\LPD7. Pick an unused port and double click on it.

Early versions of Warp Server have a bug in which the

LP SL] èmec pipes do not appear (the problem does not affect Warp Connect or LAN Server). This problem is fixed via a patch available from IBM.

You will get the Settings window. Enter the following:

The Brother print server name (from the HOSTS file) orits IP address.

For most applications, use the Brother print server'binary'service BINARY_P1. However, if you are printing text files from the DOS or OS/2 command prompt, you should use the textservice TEXT_P1, which will add carriage returns for proper formatting of the data (but will potentially distort graphics printouts).

The IP name of the OS/2 file server

The IP address of the OS/2 file server

You may leave the other entries blank. Click on the OK button. The pipe should be highlighted:; if not, click on it.

Click on the Create button to create the printer.

Open the LAN Services folder and execute the LAN Requester

YL4US_FAX2800MFC4800-FM5.5

Select Create. Enter the following:

Alias Should be same as the printer name previously defined

Description Anything you want

Server name Name of OS/2 server

Spooler queue Name of printer as defined previously

Maximum number of users | Leave blank unless you want to limit the number of users

Exitthe LAN Requester program.

You should now be able to print. To test the queue, type the following from either the OS/2 command prompt or from a DOS workstation:

COPY C:\CONFIG.SYS \\servername\alias

Where servername is the name ofthe file server and alias is the alias name that you specified during this configuration process. This should print the CONFIG. SYS file on the printer. Note that if you selected a binary service as the LPD printer name, the lines will be staggered; don't worry about this because normal DOS, Windows®, and OS/2 applications will print OK.

The Brother print server will appear as a standard OS/2 printer to application programs. To make the print server operate transparently with DOS programs, execute the following command on each workstation:

NET USE LPTI1: \\servername\alias

This will make the printer appear to the software as a printer that is directly connected to the parallel port of the workstation.

2-12 TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing and for documents on the IPP protocol and how to configure a Windows® 2000/XP/95/98/Me System.

Refer to chapter 10 of this user guide to learn how to configure the IP address of the printer.

TCP/IP PRINTING 2-13

YL4US_FAX2800MFC4800-FM5.5

I Peer to Peer Printing

How to Print in a Windows © 95/98/Me Peer to Peer network

Microsofts Windows® 95/98/Me operating systems feature built-in networking capabilities. These capabilities allow a Windows® PC to be configured as a client workstation in a file server based network environment.

For smaller networks, Windows® 95/98/Me also allows the PC to operate in a peer-to-peer mode. In this mode, the PC can share resources with other PCs on the network without the need for a central file server.

The Automatic Private IP Addressing (APIPA) protocol automatically assigns an IP address from the range: 169.254.1.0 to 169.254.254.255. 1f you want to disable the APIPA protocol, see Chapter 3 "Network factory default setting" on page 3-11 of the User's Guide. Ifthe APIPA protocol is disabled, the default IP address of a Brother print server is 192.0.0.192. To change it, use the printer control panel (if applicable), the BRAdmin Professional, Web BR Admin software or let your DHCP server allocate an IP address to the printer.

Refer to chapter 10 of this user guide to learn how to configure the IP address on your printer.

The default password for Brother print servers is access.

3-1PEER TO PEER PRINTING YL4US_FAX2800MFC4800-FM5.5

Windows® 95/98/Me users can send print jobs using the IP P protocol via a Windows® 2000 computer providing that the Microsoft Internet Print Services software is installed on the client PC, IIS is installed and running on the Windows © 2000 and that the client PC is using version 4 or later of Microsoft Internet E xplorer.

Brother printers are also compatible with HP J etDirectsoftware, this means that you can use HP utilities to manage and to print to your Brother printer.

Driver Deployment Wizard

This installer includes the Windows PCL driver and Brother network port driver (LPR and NetBlOS).

Ifthe administrator then installs the printer driver and port driver using this software, he can save the file to the File server or send the file in E-mail to users. Then, each user just clicks that file to have the printer driver, port driver, IP address, and so on, automatically copied to their PC.

For more information, see the Driver Deployment Wizard User's Guide on the CD-ROM.

Our Peerto Peer printing software requires the TCP/IP protocol to be installed on your Windows® peer-to-peer computers and an IP Address has to be defined for the print server. Refer to your Windows® documentation for more information on how to configure the TCP/IP protocol on your Windows® PC.

If you haven't already done so, configure the IP address of the printer, for more information on IP address configuration, refer to chapter 10 of this user guide.

PEER TO PEER PRINTING 3-2

YL4US_FAX2800MFC4800-FM5.5

Installing the Brother Peer to Peer Software

j f you already installed the driver from the printer's CD-ROM Installer and you selected "Brother Peer-to-Peer Network Printer" during the installation then you do not need to install the Brother Network Print Software again.

Start the CD-ROM installation menu program according to the Quick Setup Guide.

Select the proper model and then the Software Installation menu. Then select the appropriate menu to startthe Brother Network Print Software installation program.

Push the Next button in response to the Welcome message. Select the Brother Peer to Peer Print (LPR) button.

Select the desired directory to install the Brother Peer to Peer Print (LPR) files and push Next. The installation program will create the directory for you if it does not already exist on your disk.

Enter the Port name that you wish to use and click OK. The default portname is BLP 1. Whichever name you choose, itmust be unique and it MUST begin with BLP.

You must now enter the actual IP address of the print server in the Printer name or IP address field. If you have edited the hosts file on your computer or are using Domain Name System, you can also enter the name of the print server. As the print server supports TCP/IP and NetBlOS names, you can also enter the NetBIOS name ofthe printserver. The NetBIlOS name can be seen in your printer configuration page. By default the NetBlOS name will usually appear as BRN_ xxxxxx where xxxxxx is the last six digits of the Ethernet address.

Windows® 95/98/Me store the hosts file in the default Windows® directory. By default, the Windows® hosts file is called hosts.sam. If you wish to use the hosts file you must rename the file to hosts with no extension. The .sam extension stands for sample.

3-3PEER TO PEER PRINTING YL4US_FAX2800MFC4800-FM5.5

Click the OK button. When prompted you must re-boot your computer.

Associating to the printer

You must now create a printer on your Windows® system using the standard Windows® printer setup procedure.

To do this, go the Start button, select Settings and then Printers.

Select Add Printer to begin the printer installation. Click Next when you get the Add Printer Wizard window.

Select Local Printer when you are asked how the printers are connected to your computer, and then push Next.

Select the correct driver. Click Next when you are done.

If you have selected a printer driver that is already being used, you have the option of either keeping the existing driver (recommended) or replacing it. Select the desired option and press Next.

Selectthe Brother LPR port(the portname you assigned in step 6 of the “Installing the Brother P eer to Peer Software” section) and press Next.

Enter any desired name for the Brother printer and press Next. For example, you could call the printer "Networked Brother Printer".

Windows® will now ask you if you wish to print out a test page, select Yes and then select Finish.

You have now finished installing the Peer to Peer Print(LPR) software.

PEER TO PEER PRINTING 3-4

YL4US_FAX2800MFC4800-FM5.5

Adding a Second Brother LPR Port

You do notre-run the install program to add a new Brother LPR port. Instead, press the Start button, select Settings, and open the Printers window. Click on the icon of the printer that you wish to configure, select File from the menu bar, and then choose Properties. Click on the Details tab and push the Add Port button. In the Add Port dialog, select the Other radio button and then highlight Brother LPR port. Click OK and enter the port name. The default port name is BLP 1. If you have already used this name, you will get an error message if you try to use it again, in which case use BLP2, etc. Once you have specified the port name, click the OK button. Y ou will then see the Port Properties dialog.

Enter the IP address of the printer that you wish to print to and click OK. You should now see the port that you have just created in the Print to the following port setting of the printer driver.

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing.

Refer to chapter 10 of this user guide to learn how to configure the IP address ofthe printer.

3-5PEER TO PEER PRINTING YL4US_FAX2800MFC4800-FM5.5

Brother print server range supports SMB (Server Message Block) over the TCP/IP protocol via the NetBIOS interface. This means that just like regular Windows® PC's, Brother printers can appear in your network neighborhood. The main advantage of NetBlOS printing is that you are able to print from legacy DOS applications that are running on PC's that are connected to Microsoft networks.

Refer to chapter 10 of this user guide to learn how to configure the IP address on your printer.

The default password for Brother print servers is access.

The default domain name of the print server is WORKGROUP, to change it use your web browser or the BRAdmin application.

NETBIOS PEER TO PEER PRINTING 4-1

YL4US_FAX2800MFC4800-FM5.5

Print Server Configuration

In order for this function to work, you must correctly change the DOMAIN name or WORKGROUP name to match that of your network. Once this is done, the print server will appear automatically in your network neighborhood and you will be able to send print documents to it without having to install additional software. However, in some instances you may find that your Windows © 95/98/ Me and Windows® NT4.0/2000/XP systems may receive "Printer is busy" error messages when more than one person attempts to access the printer. In this instance Brother has provided the "Brother NetBlOS Port Monitor" software which allows users to continue spooling print jobs while the printer is busy, down oroutof paper. The port monitor will hold the jobs until the printer is again available.

When you install Windows® 95/98/Me you are asked which workgroup you belong to. The default workgroup name for Windows® 95/98/Me is WORKGROUP, however you could change this to anything you want. With Windows® NT, Microsoft introduced the concept of "Domains". À domain offers centralized security management whereas a workgroup offers distributed security management. The print server does not care if your network consists of a Workgroup or a Domain, the only thing you musttell itis the name of the workgroup or domain. The Brother print server automatically has a default workgroup/domain name of WORKGROUP. If you need to change name, you can configure the Brother print server to recognize this. There are four ways of doing this. (If you are unsure about the name of your workgroup or domain, look in the identification tab in your network applet).

Use BRAdmin (This utility can use the TCP/IP protocol or Netware IPX protocol - no file server necessary.)

Use a Web browser (the print server must have a valid IP address and your computer must also have a valid IP address); you can configure the IP address by using BRAdmin.

TELNET, again your computer and printer must have a valid IP address.

Use BRCONFIG for DOS (this utility requires a Netware file server and the IPX protocol).

4-2 NETBIOS PEER TO PEER PRINTING YL4US_FAX2800MFC4800-FM5.5

Because of the way that Microsoft networks work, the print server may take several minutes to appear in the network neighborhood. Y ou will also find that the print server may take several minutes to disappear from the network neighborhood even if the printer is switched off. This is a feature of Microsoft workgroup and domain based networks.

Changing the workgroup/domain name using TELNET or BRCONFIG or a web browser

If you are unable to use the BRAdmin application, you can use TELNET, a web browser or the BRCONFIG Remote console program (BRCONFIG requires the IP X/SPX protocol to be installed on your PC).

When you are connected to the print server, enter the default password access in response to the # prompt. Type in anything in response to the Enter Username> prompt, you will then be atthe Local> prompt.

Now enter the command:

SET NETBIOS DOMAIN domainname

EXIT Where domainname is the name of the domain or workgroup that you are on. If you are not sure what your domain name or workgroup name is, look in the Identification tab in your Windows® 95/98/Me/NT 4.0 network applet.

You can also use a standard WWW browser to change the NetBIlOS name. To do this, connectto the print server using its IP address and then select the Configure NetBlOS option from the Network Configuration screen, then enter your workgroup/domain name into the Domain Name text box. Make sure you submit the changes (click on the Submit button).

NETBIOS PEER TO PEER PRINTING 4 -3

YL4US_FAX2800MFC4800-FM5.5

NetBIOS Port Monitor for Windows © 95/98/Me,

NT4.0/2000/XP This software requires the TCP/IP transport protocols to be installed on your Windows® 95/98/Me, NT4.0/2000/XP computer. To install those protocols refer to your Windows® documentation.

If you are using the TCP/IP protocol, the proper IP address should be defined on both the Brother print server and your client PC.

Installing the Brother NetBIOS Port Monitor

y" you already installed the driver from the printers CD-ROM Installer and you selected "Brother Peer-to-Peer Network Printer" during the installation then you do not need to install the Brother Network Print Software again.

Start the CD-ROM installation menu program according to the Quick Setup guide.

Select the proper model and then the Software Installation menu. Then select the Network Print Software menu to start the Brother Network Print Software installation program. Push the Next button in response to the Welcome message. Select Brother Peer-to-Peer Print (NetB1OS) installation

Select the desired directory to install the Brother Network Direct Print files and push Next.

Enter the port name that you wish to use. The port name must start with "BNT". For example BNT1. Whichever name you choose, it must be unique. Then press OK. The name must be unique on your PC, however other computers can use the same port name as the name you specify on your PC.

4-4 NETBIOS PEER TO PEER PRINTING YL4US_FAX2800MFC4800-FM5.5

You must now enter the server name and port name for the actual printserver. Y ou can use the Browse button to search for the print server, select the domain/workgroup name, and then the server is listed. If the print server does not automatically appear in your browse list, then you must ensure that the domain name is configured correctly. Otherwise you must enter the name manually. The name should be compliant with UNC (Universal Name Convention). For example: \\NodeName\ServiceName.

Where NodeName is the NetBlOS name of the Brother print server (the default name is usually BRN_ xxxxxx, where xxxxxx is the last six digits of the Ethernet address), and ServiceName is the service name for NetBlOS of the print server. By default it is BINARY_P1. For example:

\\BRN_310107\BINARY_P1

You can find the NetBlOS name and MAC address by printing outthe printer configuration page. Refer to the Quick Setup Guide for information on how to printthe configuration page on your print server.

Click the Finish button. You must now restart your computer before you can continue.

Associating the printer

You must now create a printer on your Windows® 95/98/Me, Windows NT% 4.0 and Windows® 2000/XP systems using the standard Windows® printer setup procedure. To do this, go the Start button, select Setting and then Printers.

Windows © 95/98/Me Select Add Printer to begin the printer installation.

Click Next when you get the Add Printer Wizard window.

NETBIOS PEER TO PEER PRINTING 4-5

YL4US_FAX2800MFC4800-FM5.5

Select Local Printer when you are asked how the printer is connected to your computer, and then push Next.

Select the correct driver. Click Next when you are done.

If you have selected a printer driver that is already being used, you have the option of either keeping the existing driver (recommended) or replacing it. Select the desired option and press Next.

Select the Brother NetBIOS Port (the port name you assigned in step 6 of the “Installing the Brother NetBlOS Port Monitor” section and press Next.

Enter any desired name for the Brother printer and press Next. For example, you could call the printer "Networked Brother Printer".

Windows® will now ask you if you wish to print out a test page, select Yes and then select Finish.

You are now ready to print. If necessary, you can share the printer on your PC so that all print jobs are routed through your computer.

Windows NT 4.0 /Windows ® 2000/XP Select Add Printer to begin the printer installation. Click Next when you get the Add Printer Wizard window. Select Local printer (Windows ® 2000) or Local printer attached to this computer (Windows® XP) when you are asked how the printer is connected to your computer, and then push Next. Select the Brother NetBIOS Port (the port name you assigned in step 6 of the “Installing the Brother NetBlOS Port Monitor” section and press Next.

Select the correct driver. Click Next when you are done.

4-6 NETBIOS PEER TO PEER PRINTING YL4US_FAX2800MFC4800-FM5.5

Ifyou have selected a printer driver thatis already used, you have the option of either keeping the existing driver (recommended) or replacing it. Select the desired option and press Next.

Enter any desired name for the Brother printer and press Next. For example, you could call the printer "Networked Brother Printer".

Select Not Shared or Shared and Share Name and press Next.

Windows® will now ask you if you wish to print out a test page, select Yes and then select Finish.

You are now ready to print. If necessary, you can share the printer on your PC so that all print jobs are routed through your computer.

Adding a Second NetBIOS Print Port

You do notneed to re-run the installation program to add a new NetBlOS port. Instead, press the Start button, select Settings, and open the Printers window. Click on the icon of the printer that you wish to configure, select File from the menu bar, and

then choose Properties.

Click on the Details tab and push the Add Port button. In the Add Port dialog, select the Other radio button and then highlight Brother NetBIOS port. Click OK and enter the port name. The default port name is BNT1. If you have already used this name, you will get an error message if you try to use itagain, in which case use BNT2, etc. Once you have specified the port name, click the OK button. Y ou will then see the Port Properties Dialog. Enter the print server and port name ofthe printer that you wish to print to and click OK. You should now see the port that you have just created in the Print to the following port setting of the printer driver.

NETBIOS PEER TO PEER PRINTING 4-7

YL4US_FAX2800MFC4800-FM5.5

Windows NT 4.0 / Windows® 2000/XP Click on the Port/s tab and push the Add Port button. In the Add Port dialog, highlight Brother NetBlOS port. Click New Portand enter the port name. The default portname is BNT1. If you have already used this name, you will get an error message if you try to use it again, in which case use BNT2, etc... Once you have specified the port name, click the OK button. You will then see the Port Properties Dialog. Enter the print server and port name of the printer that you wish to print to and click OK. You should now see the port that you have just created in the Print to the following port setting of the printer driver.

LAN Server/0S/2 Warp Server Configuration

As Brother print servers supportthe SMB protocol over TCP/IP via a NetBlOS interface, you can easily configure your printer to work with an IBM LAN Server and OS/2 Warp Server networks that have IBM TCP/IP V2.0 or later installed on the fileserver. Use the following procedure to configure the LAN Server, OS/2 Warp Server or OS/2 Warp connect workstation.

Server Configuration:

Open the Templates folder on the OS/2 desktop.

Using the right mouse button, drag the Printer template onto the desktop.

Type in any desired name for the printer from the Create a Printer window.

Choose an unused port (for example, LPT3) to connect to the printer.

Choose the appropriate printer driver from the list. Click Create and then OK.

If desired, indicate whether you want to share the printer.

4-8 NETBIOS PEER TO PEER PRINTING YL4US_FAX2800MFC4800-FM5.5

Workstation Configuration:

On each workstation that you wish to print from, execute the following step:

Go to the DOS or OS/2 command prompt and enter the command:

NET USE LPTx: \\NodeName\ServiceName

Where x is the LPT port number (1 through 9), NodeName is the NetBlOS Name of the print server (usually BRN_xxxxxx by default, where xxxxxx is the last six digits of Ethernet address) and ServiceName is the service name of the print server (BINARY_P1 by default).

NET USE LPT2: \\BRN_310107\BINARY P1

You can find the NetBlOS name and MAC address by printing outthe printer configuration page. Refer to the Quick Setup Guide for information on how to printthe configuration page on your print server.

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing.

Refer chapter 10 of this user guide to learn how to configure the IP address of the printer.

NETBIOS PEER TO PEER PRINTING 4-9

Brother's Brother Internet Print (BIP) software, for Windows® 95/98/ Me/NT4.0, allows a PC user at one location to send a print job to a Brother Printer at a remote location via the Internet. For example, a user on à PC in New York could print a document directly from his Microsoft Excel application program to a printer in Paris.

Windows® 2000/XP users can also use this BIP software, but are recommended to use the IPP protocol support that is part of the Windows® 2000/XP operating systems. Skip to the "Windows® 2000 IPP Printing" section of this document.

Refer to chapter 10 of this user guide to learn how to configure the IP address on your printer.

The default password for Brother print servers is access. Windows® 2000/XP users can print using TCP/IP using the

standard Network Printing software and IPP protocol software built into any Windows® 2000/XP installation.

5-1 CONFIGURING INTERNET PRINTING FOR WINDOWS ©

YL4US_FAX2800MFC4800-FM5.5

Windows® 95/98/Me users can send print jobs using the IP P protocol via Windows® 2000 computer, provided that the Microsoft Internet Print Services software is installed on the client PC, Internet Information Server (IIS) is installed and running on the server and that the client PC is using version 4 or later of Microsoft Internet E xplorer.

Brother Internet Print General Information

The BIP software is installed using a standard Windows® 95/98/Me/ NT4.0/2000/XP Installation Wizard. It creates a virtual port on the Windows® 95/98/Me/NT4.0/2000/XP PC that operates in a similar way to the standard LPT1 printer port from the application program point of view. The user can use the Windows® 95/98/MeNT4.0/2000/ XP Print Manager to create a printer that uses this port along with a standard Windows® 95/98/Me, NT4.0/2000/XP-compatible printer. Any Windows® 95/98/Me/NT4.0/2000/XP applications program can therefore print to this printer (and hence to the virtual port) without modification or operational procedure.

When a job is printed to the BIP virtual port, itis actually MIME- encoded (converted to a standard InternetE-mail message) and sent out to a Brother print server at the remote location. This means that BIP is compatible with mostcommon E-mail software packages.The only requirement is that the E-mail server be capable of sending E- mail message over the Internet.

In more detail, the procedure works in the following way: If you are connected to a Local Area Network, the E-mail message is passed to the E-mail server, which in turn transmits the message out over the Internet using the SMTP protocol (Simple Mail Transport Protocol) to the remote print server. If you are connecting via a modem directly to an Internet Service

Provider (ISP), the ISP handles the routing of the E-mail to the remote print server.

CONFIGURING INTERNET PRINTING FOR WINDOWS55-2

YL4US_FAX2800MFC4800-FM5.5

Atthe remote site, an E-mail server receives the E-mail message. The remote print server, which has its own E-mail address, uses the POP3 protocol (Post Office Protocol 3) to download the E-mail message from the e-mail server. Itthen decodes the attachment and prints it out on the printer.

If an E-mail is received that has not been configured to use the BIP virtual port driver, the printer will print the E-mail out as a text document.

Brother Internet Print Configuring the Brother Print Server

The print server can be configured using BRAdmin, by using a web browser, or by using the TELNET command.

Print Server Configuration Checklist

Before configuring the print server to receive BIP jobs, be sure that the E-mail server at the remote site (the receiving end) is configured to handle the TCP/IP POP3, and SMTP protocols (SMTP is only required if the notification feature is enabled).

Configure the POP3 server on the E-mail server at the remote site with a mail account (Mailbox name) and password for the Brother print server (generally, the mail account name will be the first part of the E mail address; for example, if you assign the Email address emailprinter@ xyz.com, then the mail account name would be emailprinter).

Make sure that the print server is installed and running with TCP/IP enabled and has a valid IP address assigned to it.

Because access to the E-mail server on most networks is usually restricted, you may need to have your network administrator check the configuration and add the mail account.

5-3 CONFIGURING INTERNET PRINTING FOR WINDOWS ©

YL4US_FAX2800MFC4800-FM5.5

= Skip this section if you wish to use the print server remote console or Web Browser to configure the print server.

Using the BRAdmin application, you can configure the Brother print server using the TCP/IP protocol, or the IPX protocol.

The steps required to configure the print server to receive print jobs from a Windows® 95/98//Me/NT4.0/2000/XP. PC running the BIP software is as follows:

Select the node name of the desired Brother print server from the list and double click on it. (the default node name is usually BRN_xxxxxx, Where xxxxxx is the last six digits of the Ethernet address (MAC address)). You will be prompted for a password; the default password is access.

LEj'ou can find the node name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

Click on the POP3/SMTP tab.

Enter the address of the POP3 server (consult your network administrator if you do not know this address).

Enter the mailbox name for the remote Brother print server. Usually this will be the first part of the E-mail address (for example, ifthe E-mail address of the print server is emailprinter@xyz, then the mailbox name would be emailprinter).

Enter the password for the mailbox, if any.

CONFIGURING INTERNET PRINTING FOR WINDOWS®5-4

YL4US_FAX2800MFC4800-FM5.5

The print server is configured by default to pollthe POP3 server every 30 seconds. You may change this value, if desired.

If you have enabled notification, enter the address of your SMTP server (consult your network administrator if you do not know this address).

Press the OK button and save the changes. Now exitthe BRAdmin application. You have now configured the print server to receive print jobs.

Brother Internet Print Using a Web Browser to configure the Print Server

Connect to the printer server IP address using your web browser.

When you reach the network configuration screen, you will be prompted for a password. The default password is "access".

Selectthe Configure POP3/SMTP option and enter the information as described above. Refer to "Brother Internet Print Using a Web Browser to configure the Print Server".

You should see a Segmented Message Timeoutoption. fa print job is separated into multiple E-mail messages using the P artial E-mail Print feature of the BIP, this value indicates how long the print server will wait for all of the segments of the message to arrive.

5-5 CONFIGURING INTERNET PRINTING FOR WINDOWS ®

= Skip this section if you used BRAdmin or a Web Browser to configure the remote print server.

As an alternative to BRAdmin, you can use the print server remote console to configure the printserver. The console can be accessed via TELNET. When you access the print server using these utilities, you will be asked for a password. The default password is access.

When you get the Local> prompt after connecting to the console, enter the command:

SET POP3 ADDRESS address

where ipaddress is the address of your POP3 server (consult with your network administrator if you do not know this address).

SET POP3 NAME mailboxname SET POP3 PASSWORD emailpassword

where mailboxname is the name of the remote print server mailbox and emailpasswordis the password associated with this mailbox. Usually the mailbox name is the same as the first part of the E-mail address that you defined previously (for example, usually ifthe E-mail address is emailprinter@ xyz.com, then the mailbox name is emailprinter).

The printserveris set by default to poll the POP3 server every 30 seconds. If you wish to change this value, enter the command:

SET POP3 POLLING rate where rate is the polling rate in seconds.

Type EXIT to exitthe console and save the changes. Y ou have now completed configuring the print server.

CONFIGURING INTERNET PRINTING FOR WINDOWS®5-6

Windows © 95/98/Me/NT4.0/2000/XP Toinstallthe BIP software on a Windows®95/98/NT4.0/2000/XP PC, execute the following steps:

Be sure thatthe PC is running an E-mail program (for example, Microsoft Outlook) that is capable of sending E-mail message using Winsock.

Be sure that your E-mail server is capable of sending messages across the Internet.

Setup from CD-ROM Start the CD-ROM installation menu program according to the Quick Setup guide.

Selectthe proper model and Software Installation menu. Then select the Network Print Software menu to startthe Brother Network Print Software installation program.

Push the Next button in response to the Welcome message. Select the Brother Internet Print button.

Selectthe desired directory to installthe BIP files and then push Next. The installation program will create the directory for you if it does not already exist.

You will then be asked for a port name. Enter the name ofthe port. The port name must begin with the BIP and end with a number, for example, BIP1.

You willthen see a message about Partial E-mail Print. Partial E-mail Printis the ability of the Brother Internet Print software to break down E-mail Print jobs into smaller sections to prevent a mail file size limitation problem for the mail server.

Press OK to continue.

5-7 CONFIGURING INTERNET PRINTING FOR WINDOWS ®

YL4US_FAX2800MFC4800-FM5.5

You will then be asked to enter the port settings for the remote print server:

Enter any unique legal Internet E-mail address for the remote print server (for example emailprinter@ xyz.com). Note that Internet E-mail addresses cannot have spaces in them.

Enter your E-mail address and the IP address of your SMTP E-mail server (consult your network administrator if you do not know this address). Also specify if you are going to use the Partial E-mail Print option and the Notification type.

Press OK to continue. Y ou will then be asked to re-start your computer.

Once your computer has re-started you must create a printer on your Windows® 95/98/Me/NT4.0/2000/XP system using the standard Windows® 95/98/Me/NT4.0/2000/XP printer setup procedure. To do this, go the Start button, select Settings and then Printers.

Select Add Printer to begin the printer installation.

Click Next when you get the Add Printer Wizard window.

Select Local Printer when you are asked how the printers are connected to your computer and push Next.

Select Local Printer, and then delete the check mark in Plug and Play check box.

<For Windows® 95/98/Me users> Select the desired model of the remote printer (for example, Brother HL-series). If necessary, click Have Disk to load the driver from the CD-ROM. Click Next when you are done. If you have selected a printer driver that is already being used, you

have the option of either keeping the existing driver (recommended) or replacing it. Select the desired option and press Next.

CONFIGURING INTERNET PRINTING FOR WINDOWS55-8

YL4US_FAX2800MFC4800-FM5.5

Select the Brother Internet port (BIP...) which you selected in step 6 and press Next.

Select the Brother Internet port (BIP...) which you selected in step 6 and press Next.

Select the desired model of the remote printer (for example, Brother HL-series). If necessary, click Have Disk to load the driver from the CD-ROM. Click Next when you are done.

If you have selected a printer driver that is already being used, you have the option of either keeping the existing driver (recommended) or replacing it. Select the desired option and press Next.

Enter any desired name for the BIP remote printer and press Next. Note thatthis name does notneed to match the portname that you assigned in step 6, or E-mail address that you assigned in step 9.

Select No when asked if you want to print a test page, unless you have already configured the remote print server to receive BIP print jobs.

You have now finished installing the BIP software. If you need to

configure another remote print server, go to the nextsection, “Adding a Second Brother Internet Port”.

5-9 CONFIGURING INTERNET PRINTING FOR WINDOWS ©

YL4US_FAX2800MFC4800-FM5.5

Adding a Second Brother Internet Port

You should not re-run the install program to add a new Brother Internet Port. Instead, press the Start button, select Settings, and open the Printers window. Click on the icon of a printer that is using BIP, select File from the menu bar, and then choose Properties. Click on the Details (Ports on Windows® NT) tab and push the Add Port button.

In the Add Port dialog, select the Other radio button (Windows® 95/ 98/Me only) and then Brother Internet Port. Click OK (New Porton Windows® NT) and it will give you the Port Name text box. Any unique name can be given here as long as it starts with "BIP" and another port does not already exist with the same name.

Windows ® 2000/XP IPP Printing

Use the following instructions if you wish to use the IPP printing capabilities of Windows® 2000/XP.

Run the Add Printer Wizard and click the Next button when you see the Welcome to the Add Printer Wizard screen.

You are now able to select Local Printer or Network Printer. For Windows® 2000: Make sure that you select Network Printer.

For Windows® XP: Make sure that you select A Network Printer, or a Printer attached to another computer.

You will see the Add Printer Wizard screen.

For Windows® 2000: Select Connect to a printer on the Internet or on your intranet and then enter the following in the URL field: http://printer ip address:631/ipp (Where printer ip addressisthelP address or DNS name of your printer).

For Windows ® XP : Select Connectto a printer on the Internet or on a home or office network and then enter the following in the URL field: http://printer ip address:631/ipp (Where printer ip addressisthelP address or DNS name of your printer).

CONFIGURING INTERNET PRINTING FOR WINDOWS %5 - 10

YL4US_FAX2800MFC4800-FM5.5

When you click Next, Windows® 2000/XP will make a connection with the URL that you specified.

IF THE PRINTER DRIVER HAS ALREADY BEEN INSTALLED Ifthe appropriate printer driver is already installed on your PC, Windows® 2000/XP will automatically use that driver for use. In this case, you will simply be asked if you wish to make the driver the default driver, after which the Driver installation Wizard will complete. You are now ready to print.

IF THE PRINTER DRIVER HAS NOT BEEN INSTALLED One of the benefits of the IPP printing protocol is that it establishes the model name of the printer when you communicate with it. After successful communication you will see the model name ofthe printer automatically. This means that you do not need to inform Windows® 2000 the type of printer driver to be used.

Click OK. You will then see the printer selection screen in the Add Printer Wizard.

If your printer is not in the list of supported printers, click the Have Disk button. Y ou will then be asked to insert the driver disk.

Click the Browse button and select the CD-ROM or network share that contains the appropriate Brother printer driver.

Now specify the model name of the printer.

Ifthe printer driver that you are installing does not have a Digital Certificate you will see a warning message. Click Yes to continue with the installation. The Add Printer Wizard will then complete.

Click the Finish button and the printer is now configured and ready to print. To test the printer connection, print a test page.

5-11 CONFIGURING INTERNET PRINTING FOR WINDOWS ®

YL4US_FAX2800MFC4800-FM5.5

Specifying a different URL Please note thatthere are several possible entries that you can enter for the URL field.

http://printer_ip_address:631/ipp This is the default URL and we recommend that you use this URL. Please note the Get More Info option will not display any printer data.

http://printer_ip_address:631/ipp/portl This is for HP J etDirect compatibility. Please note the Get More Info option will not display any printer data.

http://printer_ip_address:631/

If you forgetthe URL details, you can simply enter the above text and the printer will still receive and process data. please note the Get More Info option will not display any printer data.

If you are using the built in service names that the Brother print server supports, you can also use the following: (However, please note the Get More Info option will not display any printer data).

http://printer ip address:631/brn xxxxxx pl http://printer ip address:631/binary pl http://printer ip address:631/text pl http://printer ip address:631/postscript pl http://printer ip address:631/pcl pl http://printer ip address:631/brn xxxxxx pl at

Where printer _ ip address is the IP address ofthe printer.

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing and for documents on the IPP protocol and how to configure a Windows® 2000/95/98/Me System.

Visit Microsofts web site for the "Microsoft Internet Print Services" software for Windows® 95/98/Me.

Refer to chapter 10 of this user guide to learn how to configure the IP address of the printer.

CONFIGURING INTERNET PRINTING FOR WINDOWS 95 - 12

YL4US_FAX2800MFC4800-FM5.5

I Novell NetWare Printing

How to configure Novell NetWare Printing

Brother print servers allow NetWare client PCs to print jobs on the same printer as TCP/IP or other network protocol users. AI NetWare jobs are spooled through the Novell server and delivered to the printer when it is available.

The default password for Brother print servers is access.

6 - 1 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

In order to use a Brother print server on a NetWare network, one or more file servers must be configured with a print queue thatthe print server can service. Users send their print requests to the file server's print queue, and the jobs are then spooled (either directly, or in the case of remote printer mode, via an intermediate print server) to the appropriate Brother print server.

The system administrator can create Bindery (NetWare 3), NDS (NetWare 3 and NetWare 4) based queues in a single environment without having to switch between applications by using the BRAdmin application.

NetWare 5 users wishing to configure an NDPS printer must use the NWADMIN application supplied with NetWare 5. Please note that it is possible to create IPX BINDERY or NDS based queues on a NetWare 5 system using the BRAdmin application.

You must install the Novell NetWare Client 32 if you wish to create queue information on your NetWare servers using the BRAdmin application.

If you can'tuse the BR Admin application in your environment, you can create the queue using the traditional NetWare PCONSOLE utility or NWADMIN utilities, but you will then also need to use the Brother BRCONFIG utility, TELNET or a WWW browser to configure the print server as described later in this chapter.

Brother print servers can service up to 16 file servers and 32 queues.

NOVELL NETWARE PRINTING 6 - 2

YL4US_FAX2800MFC4800-FM5.5

Creating a NDPS Printer Using NWADMIN for NetWare5

With NetWare 5, Novell has released a new preferred printing system called Novell Distributed Print Services (NDPS). Before the print server can be configured, NDPS must be installed on the NetWare 5 server and an NDPS Manager configured on the server.

23 For further information regarding NDPS printers and printing please refer to the "Other Sources of Information" section at the end of this chapter.

This creates a NDPS managerthatinteracts with services running at the server and manages an unlimited number of printer agents.

You have to create an NDPS manager within an NDS tree before creating server-based printer agents. Ifthe NDPS manager controls a printer attached directly to the server, you must load the manager on the server that the printer is attached to.

In NetWare administrator, navigate to the area you wantthe NDPS manager to reside. Select Object | Create | NDPS Manager and click OK.

Enter an NDPS manager name.

Browse to a server (which has NDPS installed but no NDPS manager installed) where you wantto installthe NDPS manager

and then to the volume you wantthe NDPS manager database assigned to. Click create.

6 - 3 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

When NDPS is installed, an NDPS brokeris loaded onto the network. One of the Broker services Resource Management Service allows Printer Drivers to be installed onto the server for use with Printer Agents.

To add a Printer Driver to the Broker: Make sure the Resource Management Service is enabled.

Open the Broker Object's main window in NetWare Administrator

Select the Resource Management view.

The Resource Management dialog appears. Selectthe Add Resources button.

When the Manage Resources dialog appears, select the icon for the type of driver you want to add. This will be a 3.1x, 95/98/ Me or NT4.0 driver for NetWare 5 (Additionally, a Windows® 2000 driver is available for NetWare 5.1). If you are using NDPS version 1 with NetWare 4.x, only 3.1x and 95/98/Me options will be available. NDPS version 2 for NetWare 4.x will support NT drivers automatic download.

A complete list of currently loaded resources of that type appears in the Current Resources window. Click the Add button.

The Add <resource type>dialog appears. The listed resources that appear on this screen are currently installed.

Press the Browse button to locate the driver you want to add to the list. The driver list appears possibly showing several printers. This should be the driver in the different languages.

NOVELL NETWARE PRINTING 6-4

YL4US_FAX2800MFC4800-FM5.5

Creating a Printer Agent

Follow the steps below to create a Printer Agent for the control access printer (NDS object).

In NetWare Administrator, select object | create | NDPS Printer. Enter the NDPS printer name.

For further information regarding NDPS printers and printing please refer to the "Other Sources of Information" section at the end of this chapter.

If this is a new printer select create À New Printer Agent.

Ifthere is already an NDS printer and you are upgrading itto use the NDPS scheme, select Existing NDS printer object. You will then have to select which printer object you wish to upgrade.

Enter the name you wish the Printer Agent to be referred to by, and either type the name of the NDPS Manager or click the reference button and select a NDPS Manager. Select Novell Printer Gateway for the Gateway type and click OK.

Select None for the printer Type, and Novell Port Handler for the Port Handler Type. Then click OK.

You must now specify the type of connection that you are going to use. There are four possible options. Selectthe LPR over IP option.

Enter the relevant details of the printer, and Brother recommends typing Binary_P1 for the printer name. Click finish and wait. Selectthe printer drivers for the client operating systems.

Follow the steps below to create a Printer Agent forthe public access printer.

In NetWare Administrator, double click NDPS Manager. Click Printer Agent List. Click New.

6-5 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Enter the name you wish the Printer Agent to be referred to by, and select Novell Printer Gateway for the Gateway type and click OK.

Select None for the printer Type, and Novell Port Handler for the Port Handler Type. Then click OK.

You must now specify the type of connection that you are going to use. There are four possible options. Selectthe LPR over IP option.

Enter the relevant details of the printer and Brother recommends typing Binary _P1 for the printer name. Click finish and wait. Selectthe printer drivers for the client operating systems.

You are now ready to print.

Configuring NetWare 3 and NetWare 4 systems

Brother's BRAdmin application provides similar functionality to the NetWare PCONSOLE utility (or the NWADMIN utility in NetWare 4.1x or later). To use the BR Admin application to configure a Brother print server under NetWare, make sure that you are logged in as SUPERVISOR (NetWare 2.xx or 3.xx) or ADMIN (NetWare 4.1x or later) and perform the appropriate steps as detailed in the following pages.

J'° must install the Novell NetWare Client 32 if you wish to create queue information on your NetWare servers by BRAdmin.

Configuring the Brother Print Server (Queue Server Mode in Bindery emulation mode) using BRAdmin

Make sure that you logged in as SUPERVISOR (NetWare 2.xx or 3.xx) or ADMIN (NetWare 4.xx or later).

Start BRAdmin. One or more printservers will appear in the list (the defaultnode

NOVELL NETWARE PRINTING 6-6

YL4US_FAX2800MFC4800-FM5.5

names are BRN_xxxxxx, where xxxxxx is the last six digits of the Ethernet address (MAC address)).

You can find the node name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to printer the configuration page on your print server.

Select the print server that you wish to configure and double click it. You will be asked for a password. The default password is access.

Selectthe NetWare tab.

If necessary change the Print Server Name. The default NetWare print server name will usually be BRN xxxxxx_P1 where xxxxxx is the Ethernet address ofthe print server. Be careful! Changing the name may impact the configuration of other protocols because the print server service names will be altered.

Ifitis not already selected, select Queue Server as the operating mode.

Click the Change Bindery Queues button. Select the NetWare server which you wish to configure.

Selectthe New Queue button and type in the queue name which you wish to create.

Once you have done that highlight the queue name you created and click on the Add button.

Click on Close and then OK.

Now exitthe BRAdmin application. You are ready to print.

6 - 7 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Configuring the Brother Print Server (Queue Server Mode in NDS mode) using BRAdmin

Make sure that you logged in as ADMIN in NDS mode. Start BRAdmin.

One or more print server services will appear in the list of printers (the default node names are BRN_xxxxxx, where xxxxxx is the last six digits of the Ethernet address (MAC address)).

ju can find the node name and MAC address by printing

out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

Select the printer that you wish to configure and double click it. You will be asked for a password. The default password is access.

Selectthe NetWare tab.

Ifitis not already selected, select Queue Server as the operating mode.

Select the correct NDS tree and NDS context (you can manually enter this information, or by clicking on the down arrow by the side of NDS tree and the Change button by the side of NDS Context, you can let BRAdmin display your choices automatically). Once you have specified this information, click on the Change NDS queues button.

In the NetWare Print Queues screen select the appropriate TREE and Context and then click the New Queue button.

YL4US_FAX2800MFC4800-FM5.5

Your queue name will appear in the TREE and Context that you specified. Selectthe queue and click on Add. The queue name will then be transferred to the Service Print Queues Window. You will be able to see the TREE and Context information along with the queue name information in this Window.

Click on the Close button. Your Brother print server will now log into the appropriate NetWare server.

Now exitthe BRAdmin application. You are ready to print.

Configuring the Brother Print Server (Queue Server Mode in NDS mode) using Novell NWADMIN and BRAdmin

If you do not wish to use the Brother BRAdmin application solely to configure your NetWare file server, use the following instructions for configuration using the NWADMIN application in conjunction with the BRAdmin application.

Make sure that you are logged in as ADMIN in NDS mode on the NetWare 4.1x (or later) file server and startthe NWADMIN application.

Select desired Context that will contain the Printer and then click on Object from the menu bar and then Create. When you get the New Object menu, select Printer and then OK.

Enter the name of the printer and select Create.

Select the desired Context that will contain the default print queue, and then click on Object and Create to getthe New Object menu.

Select Print Queue and then OK. Make sure that Directory Service Queue is selected and then type in a name forthe default print queue.

Click on the button to selectthe print queue volume. Change the directory context if necessary, then select the desired volume

(from Available Objects) and click OK. Click Create to create the print queue.

6 - 9 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Change contextif required and then double click the name ofthe printer you created in step 3.

Change the context if necessary.

Select the print queue you created in step 5.

Click Configuration and set the Printer type to Other/ Unknown. Click OK.

Change the contextif required, select Object from the menu bar and then Create. When you get the New Object menu, select print server and then OK.

Enter the name of the print server and select Create.

LP} Erer tre NetWare print server name of the print server

exactly as it appeared in the NetWare tab of the BRAdmin application (this will generally be the BRN xxxxxx_P1 default service name, unless you changed the name). You can find the current service name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

Important: Do not assign a password to the print server or it will not log in.

Double click on the name of your print server. Click on Assignments and then Add...

Ifnecessary, change the directory context. Select the printer you created in step 3 and click OK and then OK again.

NOVELL NETWARE PRINTING 6 - 10

YL4US_FAX2800MFC4800-FM5.5

Start the appropriate BRAdmin application, and select the correct print server from the list (by default, the node name is BRN_xxxxxx, Where xxxxxx is the last six digits of the Ethernet address (MAC address)).

Double click the appropriate Brother print server. Y ou will be prompted for a password, the default password is access. Now select the NetWare tab.

Select Queue Server as the operating mode.

The same service assigned by NetWare server name cannot be used for both queue server mode and remote printer mode.

If you want to enable queue server capabilities on services other than the default NetWare services, you must define new services that are enabled for NetWare and for the desired port. Refer to the Appendix in this manual for information on how to do this.

Enter the NDS tree name (note that a print server can service both NDS and bindery queues).

Type in the name of the context where the print server resides.

Exitthe BRAdmin application making sure that you save the changes that you have made. Y ou are now ready to print.

6-11 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Configuring the Brother Print Server (Remote Printer Mode in NDS mode) using Novell NWAdmin and BRAdmin

To configure a Brother print server for remote printer mode with NWADMIN (NetWare Administrator utility) and BRAdmin, you will need to perform the following steps:

Make sure thatthe PSERVER NLM (NetWare Loadable Module) is loaded on your file server and that you are logged in as ADMIN in NDS mode on the NetWare 4.1x file server.

Start NWADMIN by double clicking on the icon. Selectthe desired Context that will contain the new printer.

Select Object from the menu bar and then Create. When you get the New Object menu, select Printer and then OK.

Enter the name of the printer and select Create.

Double click on the print server name of your PSERVER NLM. Click on Assignments and then Add.

Ifnecessary, change the directory context. Select the printer you created and click OK. Note the number ofthe printer, as you will use this later, then click OK.

Select the desired Context that will contain the default print queue, and then click on Object and Create to get New Object menu.

Select Print Queue and then OK. Make sure that Directory Service Queue is selected, and then type in a name for the default print queue.

Click on the button to selectthe print queue volume. Change the directory context if necessary, then select the desired volume (Objects) and click OK. Click Create to create the print queue.

Change contextif required and then double click the name ofthe printer you created previously.

Click Assignments and then Add.

NOVELL NETWARE PRINTING 6 - 12

YL4US_FAX2800MFC4800-FM5.5

Change context if necessary and select the print queue you created. Click OK and then OK again, and then exit NWADMIN.

Start the appropriate BRAdmin application, and select the correct print server you wish to configure (by default, the node names will begin with BRN_xxxxxx_P1)

7 Y ou can find the NetWare server name and MAC address by printing outthe printer configuration page. Refer to the Quick Setup Guide for information on how to printthe configuration page on your print server.

Double click the appropriate print server. You will be prompted for a password, the default password is access.

Now selectthe NetWare tab.

Select Remote Printer as the Operating Mode, select the name of your PSERVER NLM as the print server Name and select the number of the printer from step 6 as the Printer Number.

3 The same service assigned by NetWare print server cannot be used for both queue server mode and remote printer mode. If you want to enable remote printer capabilities on a service other than the default NetWare service, you must define new services that are enabled for NetWare and forthe desired port.

Click OK. And exit BRAdmin.

You must now unload the PSERVER NLM from your NetWare file server console and then reload it in order for the changes to take effect.

As an alternative to Brother's BR Admin application or the Novell NWADMIN application, you can use the standard Novell PCONSOLE utility in conjunction with Brother's BRCONFIG program to set up your print queues. BRCONFIG program will be installed at the same time when you install the BRAdmin and you can find the BRCONFIG in the menu Start/Program/Brother BRAdmin utilities.

6-13 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Configuring the Brother Print Server (Queue Server Mode in Bindery emulation mode)

using PCONSOLE and BRCONFIG Login as Supervisor (NetWare 3.xx) or ADMIN (NetWare 4.1x or later; be sure to specify the /b option for bindery mode).

Execute BRCONFIG from the Windows® menu.

Select the corresponding server name from the list of print servers.

When you get the message that the print server is connected,

type the default password access in response to the # prompt {the password will not echo), and then press the ENTER key in response to the Enter Username> prompt.

When you get the Local> prompt, type:

SET NETWARE SERVER servername ENABLE Where servername is the name of the file server on which the print queue will reside. If there is more than one file server that you wish to print from, repeat this command as many times as necessary.

Type EXIT to exitthe BRCONFIG remote console program and save the changes, then startthe Novell PCONSOLE utility.

If you have NetWare 4.xx, change the mode to Bindery Mode by pressing F4 key. Select print server Information (NetWare 3.xx) or print servers (NetWare 4.1x; ignore the warning message) from the Available Options menu.

You will be shown a list of current print servers. Press the INSERT key to create a new entry, type in the NetWare print servername (BRN_xxxxxx_P1 by default, where xxxxxx is the last six digits of the Ethernet address) and press ENTER. Return to the main Available Options menu by pressing ESCAPE.

Select the Print Queue Information (NetWare 3.xx) or Print Queues (NetWare 4.1x) menu option to see list of configured print queues.

NOVELL NETWARE PRINTING 6 - 14

YL4US_FAX2800MFC4800-FM5.5

Press INSERT to create a new queue on the file server, type the new queue name and press ENTER. The name does nothave to be related to the name of the print server resources, but should be short and convenient for users to remember.

Make sure that the new queue name is highlighted, and then press ENTER to configure the queue.

Select Queue Servers (in NetWare 4.1x, this item is called print servers) and press ENTER to specify which network print servers can print jobs from this print queue. The list will be empty, since none have been selected yetifthis is a new queue.

Press INSERT to get a list of the queue server candidates and select the print server service name from step 9, Press ENTER.

Press ESCAPE several times until you return to the Available Options menu.

Force the print server to rescan file servers for print jobs. You may either turn the printer off and on again or you may use the

BRCONFIG or TELNET command SET NETWARE RESCAN to make the print server rescan for file servers.

6-15 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Configuring the Brother Print Server (Queue Server Mode in NDS mode) using

PCONSOLE and BRCONFIG Make sure that you are logged in as ADMIN in NDS mode on the NetWare 4.1x file server.

Run the PCONSOLE utility from PC workstation. Select print servers from the Available Options menu.

Press INSERT and enter the print server name.

Enter the NetWare print service name of the print server exactly as it appeared in the printer configuration page (the default name is BRN_xxxxxx_P1, where xxxxxx is the last six digits of the Ethernet address (MAC address), unless you changed the name to something else). You can find the NetWare print service name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

Important: Do not assign a password to the print server or it will not log in.

Return to the main Available Options menu by pressing ESCAPE.

Select Print Queues.

Press INSERT type in the desired print queue name (you will also be asked for a volume name. Press INSERT and selectthe appropriate volume), and press ESCAPE to return to the main menu.

Make sure that the new queue name is highlighted, and press ENTER.

Select print servers and press ENTER to specify which network print servers can print jobs from this print queue. The list will be empty, since none have been selected.

NOVELL NETWARE PRINTING 6 - 16

YL4US_FAX2800MFC4800-FM5.5

Press INSERT to get a list of the queue server candidates and select the NetWare print server name from step 4, which will then be added to the list. Press ENTER. And then, press ESCAPE several times to return to the main Available Options menu.

Select Printers from the Available Options menu.

Press INSERT and enter a descriptive name for the printer. Make sure that the new printer name is highlighted, and then press ENTER. You will be shown the Printer Configuration Window.

Select Print Queues Assigned: (See List), and then press ENTER.

The list of print queues will be empty, since none has been selected.

Press INSERT to get a list of the print queues and selectthe print queue name which you entered in Step 7.

Press ESCAPE several times and go back to the Available Options menu.

Select print servers and selectthe name ofthe printserverthat you entered in Step 4.

Highlight the Printers option in the print server Information menu.

Press INSERT and selectthe name ofthe printer you entered in Step 12.

Press ESCAPE several times to return to DOS.

6-17 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Execute the BRCONFIG from the Windows® menu.

Select the print server from the list of print servers. When you get the message that the print server is connected, press the ENTER key and type the default password of access in response to the # prompt (the password will notecho), and then press the ENTER key again in response to the ENTER Username> prompt. When you get the Local> prompt, type:

SET SERVICE service TREÉE tree SET SERVICE service CONTEXT Context

Where tree is the NDS tree name.

Where context is the name of contextwhere the printserver resides.

Service is the name of the service assigned by NetWare print server name (where the default services are BRN_xxxxxx_P1 for the Brother printer, where xxxxxx is the last six digits of the Ethernet address (MAC address)). You can also enter the TREE and CONTEXT name using your web browser, by connecting to the Brother print server using the TCP/IP protocol and selecting the NetWare protocol configuration.

Use the BRCONFIG command or TELNET command: SET NETWARE RESCAN to force the print server to rescan for file servers, or power cycle the printer.

je same service assigned by NetWare print server cannot be used for both queue server mode and remote printer mode. If you want to enable remote printer capabilities on a service other than the default NetWare service, you must define new services that are enabled for NetWare and forthe desired port. Refer to Appendix in this manual for information on how to do this.

NOVELL NETWARE PRINTING 6 - 18

YL4US_FAX2800MFC4800-FM5.5

Configuring the Brother Print Server

(Remote Printer Mode) using PCONSOLE and BRCONFIG Make sure thatthe PSERVER NLM (NetWare Loadable Module) is loaded on your file server.

Log into the file server from your PC workstation as ADMIN if you are using NetWare 4.1x (if you want NDS support, do not login under bindery mode). If you are using NetWare 2.xx or 3.xx, login as SUPERVISOR.

Run the PCONSOLE utility from your PC workstation.

If you are creating a new print queue, select Print Queue Information (NetWare 3.xx) or Print Queues (NetWare 4.1x) from the Available Options menu.

Press INSERT, type in the desired print queue name (with NetWare 4.1x, you will also be asked for a volume name: press INSERT and select the appropriate volume), and press ESCAPE to return to the main menu.

The following steps apply to configuring a remote printer with NDS support on NetWare 4.1x systems:

Select print servers from the PCONSOLE menu and then select the print server name ofthe PSERVER NLM on your file server.

Press INSERT to get Object, Class menu.

Press INSERT and enterthe Printer Name (any unique name is OK).

Highlight the printer name and press ENTER twice to get to the Printer Configuration Menu.

PCONSOLE will assign a Printer Number. Remember this number, since it will be used later.

6 - 19 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

Highlight Print Queues Assigned and press ENTER and then INSERT to get a list of available queues.

Highlightthe name ofthe print queue you wish to assign to the remote printer and press ENTER.

The other settings in the menu are not required. Push ESCAPE several times to exit PCONSOLE.

Skip to the Assigning the remote printer name and number sections below.

The following steps apply to configuring a remote printer on NetWare 3.xx systems:

Select print server Information from the PCONSOLE main menu and choose the name ofthe PSERVER NLM.

Select print server configuration and then printer configuration. Select any Not Installed printer and press Enter. Remember the number of this printer, since it will be used later in the configuration process.

If desired, type in a new name for the printer.

Go to Type, press ENTER, highlight Remote Other/ Unknown and press ENTER again. The other settings in this menu are not required.

Push ESCAPE and save the changes.

Push ESCAPE and select Queues Serviced by Printer.

Highlight the printer name that you just configured and press ENTER.

Press INSERT, choose the desired print queue, and press ENTER (you can acceptthe default priority).

Press ESCAPE several times to exit PCONSOLE.

Select the Brother print server from the list of print servers. When you getthe message thatthe printserver is connected, press the ENTER key and type the default password access in response to the # prompt (the password will not echo) and then press the ENTER key again in response to the Enter Username> prompt. When you getthe Local> prompt, type:

SET NETWARE NPRINTER nlm number ON service

BR ITNETUARE RESCAN Where nlmis the name ofthe PSERVER NLM on yourfile server.

Number is the printer number (this must match the printer number you selected during the PCONSOLE configuration in the previous steps).

For example, to set up remote "Printer 3" for a Brother printer with the print server BRN_310107_P1 using the PSERVER NLM called BROTHERI1PS, you would type:

SET NETWARE NPRINTER BROTHERIPS 3 ON BRN 310107 P1 BR TNETWARE RESCAN _ :

You can also enter the remote printer name using your web browser, by connecting to the Brother print server using the TCP/ IP protocol and selecting the NetWare protocol configuration.

6 - 21 NOVELL NETWARE PRINTING YL4US_FAX2800MFC4800-FM5.5

The same services assigned by NetWare print server name cannot be used for both queue server mode and remote printer mode.

You must now unload the PSERVER NLM from your NetWare file server console and then reloaditin order forthe changes to take effect.

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing.

Refer to chapter 10 of this user guide to learn how to configure the IP address of the printer.

NOVELL NETWARE PRINTING 6 - 22

YL4US_FAX2800MFC4800-FM5.5

I Apple alk (EtherT alk) TCP/IP Printing

Printing From a Macintosh

Brother print servers support the AppleTalk protocol running over Ethernet (also known as EtherTalk). This allows Macintosh users to print at the same time as all other Ethernet network using the AppleTalk (also referred to as EtherTalk) protocol.

With the release of System 8.6 or later, Apple introduced a TCP/IP printing capability. This allows Macintosh users to send print jobs using the TCP/IP protocol.

For updated information on printing from a Macintosh visit the Brother Solutions web site at: http://solutions.brother.com

APPLETALK (ETHERTALK) TCP/IP PRINTING 7-1

YL4US_FAX2800MFC4800-FM5.5

The default name that will appear in the Chooser of a Macintosh will usually be BRN_xxxxxx_P1_AT (where xxxxxx is the last 6 digits of the Ethernet address)

From a Macintosh network, the easiest way to change this name is to assign an IP address to the printer and then use a Web browser to change the name. Connect to the printer using a web browser and then click on Network Configuration. Enter the password (the default password is access) then select Configure AppleTalk. Clickon BRN xxxxxx P1_ AT, then on Service Name. Enter the new name that you wish to appear in Chooser. Then click on Submit.

System 8.6 or later supports TCP/IP printing. The default password for Brother print servers is access.

To printa printer settings page, press the Go button three times in rapid succession.

The default IP address of Brother print servers is 192.06.0.192. To change it, use the printer control panel, the BRAdmin application, or let your DHCP server allocate an IP address to the printer.

Macintosh Configuration (OS 8.5 - 9.2)

Your Brother Printer is compatible with the standard Apple LaserWriter 8 printer driver (earlier versions of the LaserWriter drivers may crash or cause PostScript errors on large networks). If you do not have the LaserWriter 8 driver you must install it. Consult your Macintosh documentation for instructions on how to do this.

Before you try to use the Brother print server, you must first enable the EtherTalk protocol from the Network Control Panel on the Macintosh. Ifthe EtherTalk protocol is not selected, or the Network Control Panel does not exist, you must use Apple's Network Installer software to add these capabilities.

APPLETALK (ETHERTALK) TCP/IP PRINTING 7 -2

YL4US_FAX2800MFC4800-FM5.5

The appropriate PPD file supplied with your printer must first be installed. Insert the CD-ROM into the CD-ROM drive of your computer. Select the Start Here icon, select your language and follow the on-screen instructions for Install Software.

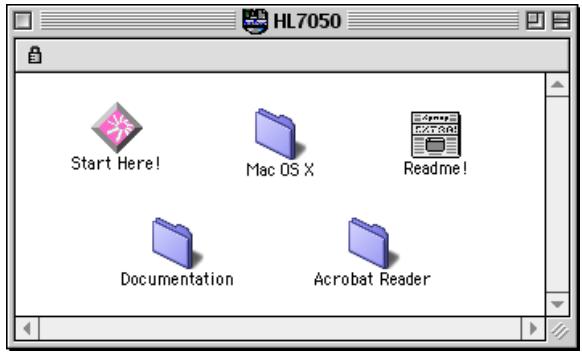

Figure 1 Typical Macintosh Installer

The above screenshotis from a Brother HL-7050 series printer driver. However, you will see à similar screen for all Brother printers that include a Macintosh printer driver.

How to Select the Print Server (AppleTalk/EtherTalk)

Once the print server is connected on your network and the printer is powered on, the Brother print server's AppleTalk service name (default is BRN_xxxxxx_P1_AT, where xxxxxx is the last six digits of the Ethernet address (MAC address) should appear in the Chooser.

You can find the service name and MAC address by printing outthe printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

7-3 APPLETALK (ETHERTALK) TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

Open the Chooser from the Apple Menu on the Macintosh, and then click on the LaserWriter icon (ifnecessary, selectthe appropriate AppleTalk zone from the Network Control Panel).

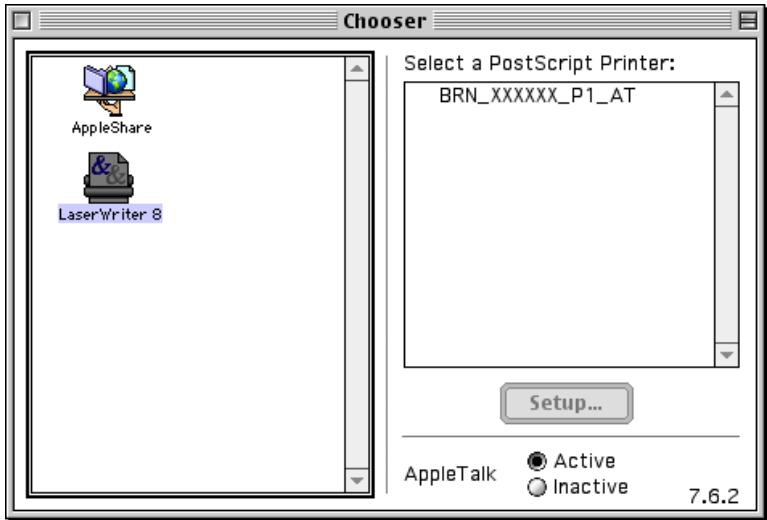

=] | Select a PostScript Printer: BRNXXXXXX_PT_AT Es]

@ Active Oinactive 6.2

Figure 2 Macintosh Chooser

Click on the appropriate print server and close the Chooser program. Ÿ ou should now be able to print from the Macintosh.

jlf you cannot see the print server, first make sure that your cabling is correct and that you have enabled EtherTalk from your Macintosh Network Control Panel. You may also need to force the print server into the correct AppleTalk zone using the BRAdmin application or a web browser.

APPLETALK (ETHERTALK) TCP/IP PRINTING 7 -4

YL4US_FAX2800MFC4800-FM5.5

How to Select the Print Server (TCP/IP)

Apple has developed the "Desktop Printer" utility. This can be found from the Apple menu (this is only available from System 8.6 or later). When you run it you will see the following screen:

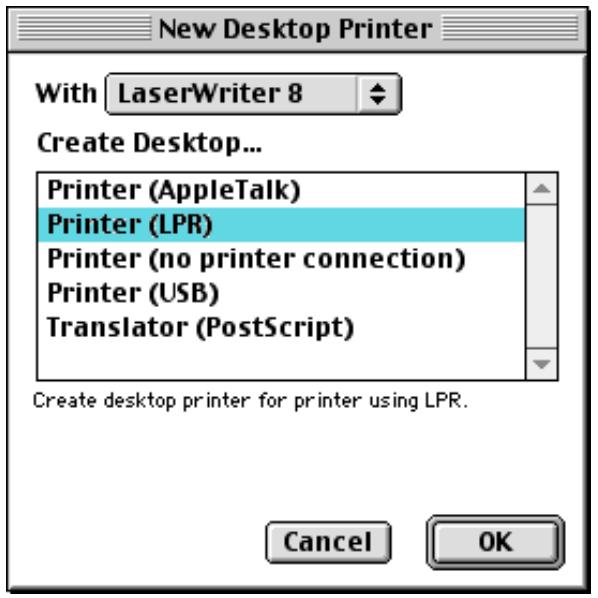

- New Desktop Printer

With | LaserWriter 8 *

Create Desktop. Printer (AppleTalk) 2

Printer (no printer connection) Printer (USB) Translator (PostScript)

Create desktop printer for printer using LPR.

Figure 3 Selecting LPR Printing

7-5 APPLETALK (ETHERTALK) TCP/IP PRINTING YLA4US_FAX2800MFC4800-FM5.5

Select the Printer (LPR) option and click OK. You will then see the following:

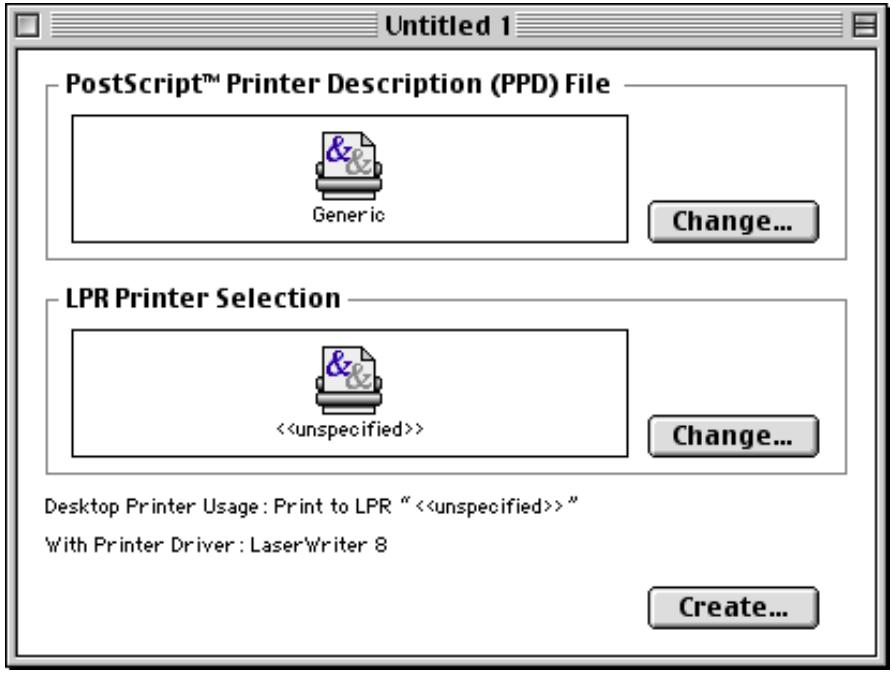

Desktop Printer Usage : Print to LPR ‘ <<unspecified>> #

With Printer Driver : Laser Writer 8

Figure 4 Selecting the PPD and LPR Configuration

Atthis point we must selectthe correct P PD file for the printer and also configure the correct LPR information. Click the Change button in the PostScript Printer Description (PPD) File section and select the appropriate P PD file for your model.

Now select the Change button below the LPR Printer Selection text.

You mustthen enter the IP address and service name details ofthe printer. When specifying the Queue, use the value

brn_xxxxxx_pl_at where xxxxxx are the last 6 digits of the Ethernet address.

APPLETALK (ETHERTALK) TCP/IP PRINTING 7-6

YL4US_FAX2800MFC4800-FM5.5

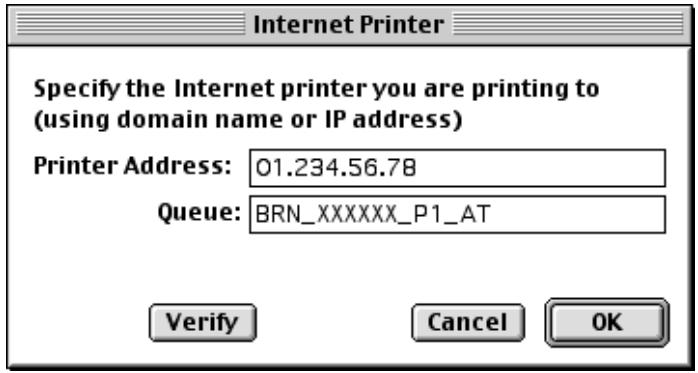

Specify the Internet printer you are printing to (using domain name or IP address)

Printer Address: [01.234.56.78 ]

Queue: [BRN_XXXXXX_P1_AT |

CO Figure 5 Entering the IP address and Queue

If you do not specify the correct value the printer may not print, oritmay notprintthe data correctly. Please ensure thatthe value you enter here matches with the Service name of the printer.

Click OK to go back to the previous screen.

You are now ready to create the printer for use. To do that, click the Create button and you will see the following:

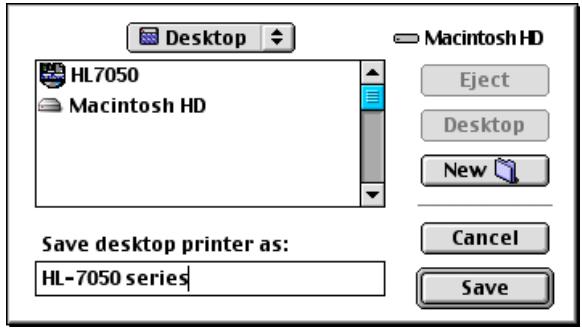

5 Desktop | + == Macintosh HD

3 Macintosh HD Desktop

Save desktop printer as:

HL-7050 series CD Figure 6 Saving the printer to the Desktop (screen shown is from the HL-7050)

Enterthe name ofthe printer in the Save desktop printer As: option and click on Save.

We must now make this our default printer by clicking the printer name once and then select Printing and Set Default Printer.

Whenever you send a print job, the printer that you just created will be used.

7-7 APPLETALK (ETHERTALK) TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

Macintosh Configuration (OS X v. 10/10.1/10.2)

The appropriate P PD file supplied with your printer mustbe installed. Insertthe CD-ROM into the CD-ROM drive of your computer. Select the Mac OS X folder. Double click on the PPD_Installer.pkg icon and follow the on-screen instructions.

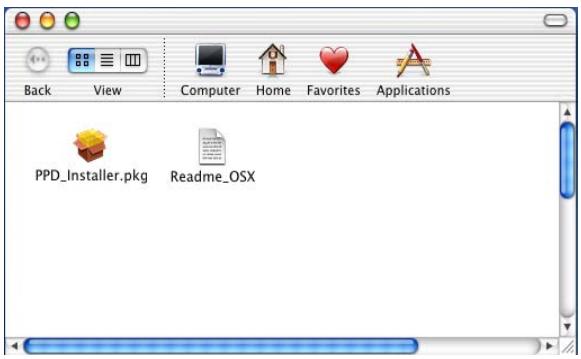

e0e e m5 5 À Ÿ À PPD_installer.pkg Readme_OSX |

How to Select the Print Server (AppleTalk/EtherTalk)

After installing the P P D, use the following steps to selectthe printer driver: Turn the power of the printer ON. Open the Applications folder. Open the Utilities folder. Open the Print Center Icon. Click the Add Printer button. Select AppleTalk. Select BRN_ XXXXXX P1_AT and click the Add button. For AppleTalk connections, the printer's AppleTalk service name is

BRN_XXXXXX_P1_AT, where XXXXXX is the last six digits of the Ethernet address.

APPLETALK (ETHERTALK) TCP/IP PRINTING 7-8

YL4US_FAX2800MFC4800-FM5.5

Printing the configuration page will allow you to confirm the MAC address. Please refer to the Quick Setup Guide for information on how to print the configuration page.

From the Printer Model pull-down list select your model. Click Add and the printer will be available from the Printer List. How to Select the Print Server (TCP/IP)

After installing the P PD, use the following steps to selectthe printer driver: Turn the power of the printer ON. Open the Applications folder. Open the Utilities folder. Open the Print Center Icon. Click the Add Printer button. Select LPR Printers using IP.

Enter the TCP/IP address of the printer into the LPR Printer's Address box.

Printing the configuration page will allow you to confirm the TCP/IP address. Please refer to the Quick Setup Guide for information on how to print the configuration page.

If you are not using the default Queue enter the Queue name you are using.

From the Printer Model pull-down list select your model.

Click Add and the printer will be available from the Printer List.

7-9 APPLETALK (ETHERTALK) TCP/IP PRINTING YL4US_FAX2800MFC4800-FM5.5

Changing the Configuration

From a Macintosh, the easiest way to change the printer or print server parameters is to use a web browser.

Simply connect to the printer using the format http://ip address where ip _ address is the address of the printer.

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing.

Refer to chapter 10 of this user guide to learn how to configure the IP address of the printer.

Refer to chapter 9 for more information on web-based management.

APPLETALK (ETHERTALK) TCP/IP PRINTING 7 - 10

YL4US_FAX2800MFC4800-FM5.5

DLC is a simple protocol that is included in Windows NT © and Windows® 2000 as standard. It can be used on other operating systems (such as Windows® 3.x) with the addition of vendor-supplied software that supports the Hewlett-Packard J etDirect card.

Quick Tips: One way to print the details of all network settings is to print a configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page.

Because DLC is a non-routable protocol, there cannot be a router between the print server and the sending computer.

Configuring DLC on Windows® NT/2000

To use DLC on Windows® NT, you mustfirst install the DLC protocol.

Log into Windows® NT with administrative privileges. Go to the NT Control Panel and double click on the Network icon. Windows® 2000 users selectthe properties of the Local Area Connection.

YL4US_FAX2800MFC4800-FM5.5

Select DLC Protocol and then OK or Add if using Windows® 2000. You may be asked for the location of the files. For Intel based computers, the necessary files are stored in the i386 directory of the Windows® NT CD-ROM. If you have a non-Intel platform, specify the correct directory on your Windows® NT CD-ROM. Click Continue (for NT 3.5x systems) or Close (for NT 4.0 systems).

Reboot your system to make the change take effect. Windows® 2000 should not require a re-boot.

Windows ® 2000 Printer Setup

Log into Windows® 2000 with administrative privileges. From the Start menu, select Settings and then Printers.

Select Add Printer (If you have already installed a Brother printer driver, double click the printer driver that you wish to configure and then select Printers/Properties, selectthe Ports tab, click on Add Port and continue from Step 6 (ignoring steps 11-14 about installing the correct driver)).

Select Local Printer and make sure that Automatically detect and install my Plug and Play printer is not checked.

Select the Create a new port: option and highlight Hewlett- Packard Network Port.

A list of available print server MAC addresses (Ethernet addresses) appears in the larger box under Card Address. Select the address of the desired print server (you can see the Ethernet address on the printer configuration page).

You can find the node name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

YL4US_FAX2800MFC4800-FM5.5

The selected print server address will then appear in the smaller box under Card Address.

Type in any desired name for the port (the name mustnotbe the name of an existing port or DOS device, such as LPT1) and click OK then on the Printer Ports screen, click Next.

Select the correct driver click Next.

Give a name to the printer and specify if you wish to be able to print from DOS application. Then click Next.

Specify the share name (if you are going to share the printer).

Enter the Location and Comment information and click Next until you see the Completing the Add Printer Wizard screen.

Log into Windows® NT with administrative privileges. From the Start menu, select Settings and then Printers.

Select Add Printer (If you have already installed a Brother printer driver, double click the printer driver that you wish to configure and then select Printers/Properties, select the Ports tab and continue from Step 4 (ignoring steps 9-11 about installing the correct driver)).

Select My Computer and then click Next.

Select Hewlett-Packard Network Port and then click New Port.

8-3 DLC PRINTING YL4US_FAX2800MFC4800-FM5.5

77 You can find the node name and MAC address by printing outthe printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

The selected print server address will then appear in the smaller box under Card Address.

Type in any desired name for the port (the name mustnotbe the name of an existing portor DOS device, such as LPT1) and click OK then on the Printer Ports screen, click Close.

The name you selected in the above step will appear as a checked port in the list of available ports. Click Next.

Select the correct driver. Click Next. Give a name to the printer. If desired, selectthe printer as the default.

Select Shared or Not Shared. If shared, specify the share name and the operating systems that will be printing to it.

Select whether or not you wantto printa test page, and then select Finish.

From the Windows® NT Main group, double click on the Print Manager icon.

Select Printer from the menu bar and click on Create Printer. Enter any desired name for the printer in the Printer Name box. Select the printer model in the Driver menu.

Choose Other (or Network Printer for V3.1 systems) from the Print to menu.

YL4US_FAX2800MFC4800-FM5.5

Click on Hewlett-Packard Network Port.

Type in your desired name for the port (this name must not be an existing port or DOS device, such as LPT1).

The MAC addresses (Ethernet addresses) of available print servers will appear in the Card Address menu. Select the desired address (You can see the Ethernet address on the printer configuration page).

f:JYou can find the node name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

If you want to share the printer, click Share the Printer on the Network.

If necessary, selectthe appropriate printer options and then click OK.

Configuring DLC on Other Systems

To use DLC on other network systems, you will generally need vendor-supplied software. Typically such software will support the Brother print servers. Follow the vendor's instructions to install the DLC protocol on your system.

Once the protocol is installed, create a network port in the same way that you did for Windows® NT in the previous sections. The MAC

address (Ethernet address) of the print server should automatically appear during the configuration process.

8-5 DLC PRINTING YL4US_FAX2800MFC4800-FM5.5

The final step is to create a printer using the normal operating system printer setup method. The only difference is that instead of connecting the printer to the LPT1 parallel port, you point it to the network port you just created.

z3 Brother does not recommend using the DLC protocol with Windows® for Workgroups 3.11 in a peer-to-peer configuration if the printer will be heavily used. This is because jobs may be rejected due to print spooler timeouts. The best solution in these situations is to set up one PC as a server for handling network print jobs. All of the other PCs send their print jobs to the server PC using NetBEUI or TCP/ IP, and the server PC then uses DLC to send the print jobs to the Brother print server.

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing.

YL4US_FAX2800MFC4800-FM5.5

I Web Based Management

How to use a Web Browser to manage your Device

A standard Web Browser (we recommend Netscape Navigator version 4.0 or later/Microsoft Internet E xplorer version 5.0 or later) can be used to manage your printer using the HTTP (Hyper Text Transfer Protocol). You can getthe following information from a printer on your network using a web browser:

Printer status information.

Take control of the printer's control panel.

Software version information of the printer and print server. Change network and printer configuration details.

You mustuse the TCP/IP protocol on your network and have a valid IP address programmed into the print server and your computer.

Refer to chapter 10 of this user guide to learn how to configure the IP address on your printer.

WEB BASED MANAGEMENT 9-1

YL4US_FAX2800MFC4800-FM5.5

The default password for Brother print servers is access. You can use a web browser on most computing platforms, for example, Macintosh and Unix users are also able to connectto the printer and manage it.

You can also use the BRAdmin application to manage the printer and its network configuration.

How to connect to your printer using a Browser

Typehttp://printer’s IP Address / into your browser (you can also use the NetBlOS name of the print server, if you are in a Microsoft Windows domain/Workgroup environment). Enterthe DNS name of the printer if connecting to a network that uses the DNS protocol.

Other Sources of Information

Visit http://solutions.brother.com/ for more information on network printing.

Refer to chapter 10 of this user guide to learn how to configure the IP address of the printer.

WEB BASED MANAGEMENT 9-2

The TCP/IP protocol requires that each device on the network have its own unique IP address. Use the following information to learn about IP address configuration.

However, you can easily change this IP address number to match with the IP address details of your network. This can be done in any of the following ways:

From your printer's control panel settings (if your printer has an LCD panel).

BRAdmin application (for Windows® 95/98/Me, Windows NT 4.0 and Windows® 2000/XP, using the IPX/SP X or TCP/IP protocols).

DHCP, APIPA, Reverse ARP (rarp) or BOOTP. The ARP command.

Brother BRCONFIG NetWare utility (a Novell Network is necessary).

The printer's control panel. TELNET.

TCP/IP CONFIGURATION 10-1

YL4US_FAX2800MFC4800-FM5.5

Other SNMP based management utility.

These configuration methods are described in the following paragraphs.

pe The IP address you assign to the print server must be on the same logical network as your host computers. Ifitis not, you must properly configure the subnet mask and the router (gateway).

Using the printer control panel to allocate an IP address (printers with LCD panels only)

Refer to the Quick Setup Guide for details on how to configure IP address information using the printer control panel. By using the control panel on the printer, you can program the IP address details at the same time that other printer parameters are configured.

Changing the IP Address using the BRAdmin application

:3 Please use BRAdmin Professional version 1.59 or later.

Startthe BRAdmin application (from Windows® 95/98/Me, Windows NT® 4.0 and Windows® 2000/XP).

+ - BRdmin Pi Devces Control few Ho

YLA4US_FAX2800MFC4800-FM5.5

The BRAdmin application can use the IP X/SPX or TCP/IP protocols to communicate with the Brother print server.

If you wish to use the TCP/IP protocol to manage the print server make sure thatthe print server has a valid IP address. There are two ways to change the IP address using the BRAdmin Professional software:

Use the IPX/SPX protocol.

Use the TCP/IP protocol and let BRAdmin find the Brother print server as an unconfigured device.

Using BRAdmin and the IPX/SPX Protocol to set the IP address

If your PC is using the Novell Netware Client software and is using the IPX/SPX protocol, do the following:

Select IPX/SPX filter in the left frame of the main window.

Check the print server name (the default node name is BRN_xxxxxx, Where xxxxxx is the last six digits of the Ethernet address (MAC address)).

If you cannot find your server name, select the Device menu and choose Search Active Devices (you can also press the F4 key) and try again.

You can find the node name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

Select the print server that you wish to configure and double click it. You will be asked for a password. The default password is access.

Selectthe TCP/IP tab and setthe IP address, Subnet mask and Gateway as needed.

In the IP Config box, click the Static radio button.

10 -3 TCP/IP CONFIGURATION YL4US_FAX2800MFC4800-FM5.5

Restart the print server by using BRAdmin, Web Browser or TELNET. If you are not sure how to restartthe print server, you may simply turn the printer's power switch off, and then switch it on.

Using BRAdmin and the TCP/IP Protocol to set the IP address

If your PC is using the TCP/IP protocol, do the following: Select TCP/IP filter in the left frame of the main window.

Select the Device menu and choose the Search Active Devices.

= lfthe print server is set to its factory default settings, it will not appear in the BRAdmin screen. However, selecting the Search Active Devices option will force the BRAdmin software to find the device as an unconfigured device.

Select the Device menu and choose Setup Unconfigured Device.

Selectthe MAC address of your print server and click the Configure button.

You can find the node name and MAC address by printing out the printer configuration page. Refer to the Quick Setup Guide for information on how to print the configuration page on your print server.

Enter the IP address, Subnet mask and Gateway (if needed) of your print server.

Click OK then select Close.

With the correctly programmed IP address, you will see the Brother print server in the device list.

TCP/IP CONFIGURATION 10 -4

YL4US_FAX2800MFC4800-FM5.5

Using DHCP to Configure the IP address

The Dynamic Host Configuration Protocol (DHCP) is one of several automated mechanisms for IP address allocation. If you have DHCP Server in our network (typically a Unix/Linux, Windows NT © 4.0, Windows® 2000 or Novell Netware network) the print server will automatically obtains its IP address from DHCP server and register its name with any RFC 1001 and 1002-compliant dynamic name services.

zj1f you do not want your print server configured via DHCP, BOOTP orRARP, you mustsetthe BOOT METHOD to static so thatthe print server has a static IP address. This will prevent the print server from trying to obtain an IP address from any ofthese systems. To change the BOOT METHOD, use the printer's control panel (for those printers that have a LCD panel), TELNET (using the SET IP METHOD command), a Web browser or by using the BRAdmin application.

Using APIPA to Configure the IP Address

With Automatic Private IP Addressing (APIPA), DHCP clients automatically configure an IP address and subnet mask when a DHCP server is not available. The device chooses it's own IP address in the range 169.254.1.0 through to 169.254.254.255. The subnet mask is automatically set to 255.255.0.0 and the gateway address is set to 0.0.0.0.

By default, the APIPA protocol is enabled.

10-5 TCP/IP CONFIGURATION YL4US_FAX2800MFC4800-FM5.5

Using ARP to Configure the Print Server IP Address

If you are unable to use the BR Admin application or the printer's control panel and your network does not use a DHCP server, you can also use the ARP command. The ARP command is available on Windows® systems that have TCP/IP installed as well as Unix systems. To use arp enter the following command at the command prompt:

arp -s ipaddress ethernetaddress

Where ethernetaddress is the Ethernet address (MAC address) of the print server and ipaddress is the IP address of the print server. For example:

Windows® Systems require the colon ":" character between each digit of the Ethernet address.

Typically, Unix systems require the hash "-" character between each digit of the Ethernet address.

arp -s 192.189.207.2 00-80-77-31-01-07

3 Y ou must be on the same Ethernet segment (thatis, there cannot be a router between the print server and operating system) to use the arp -s command.

Ifthere is a router, you may use BOOTP or other methods described in this chapter to enter the IP address.

If your Administrator has configured the system to deliver IP addresses using BOOTP, DHCP orRARP your Brother print server can receive an |P address from any one of these IP address allocation systems. In which case, you will not need to use the ARP command. The ARP command only works once. For security reasons, once you have successfully configured the IP address of a Brother print server using the ARP command, you cannotuse the ARP command again to change the address. The print server will ignore any attempts to do this. If you wish to change the IP address again, use a Web Browser, TELNET (using the SET IP ADDRESS command) the printer's control panel (if your printer has an LCD panel) or factory reset the print server (which will then allow you to use the ARP command again).

To configure the print server and to verify the connection, enter the following command ping ipaddress where ipaddress is the IP address ofthe printserver. Forexample, ping 192.189.207.2.

10-7 TCP/IP CONFIGURATION YL4US_FAX2800MFC4800-FM5.5

Using RARP to Configure the IP Address

The Brother print server's IP address can be configured using the Reverse ARP (rarp) facility on your host computer. This is done by editing the /etc/ethers file (if this file does not exist, you can create it) with an entry similar to the following:

00:80:77:31:01:07 BRN 310107

Where the first entry is the Ethernet address of the print server and the second entry is the name of the print server (the name must be the same as the one you putin the /etc/hosts file).

Ifthe rarp daemon is not already running, start it (depending on the system the command can be rarpd, rarpd -a, in.rarpd -a or something else; type man rarpd or refer to your system documentation for additional information). To verify that the rarp daemon is running on a Berkeley UNIX-based system, type the following command:

ps -ax | grep -v grep | grep rarpd For AT&T UNIX-based systems, type: ps -ef | grep -v grep | grep rarpd

The Brother print server will getthe IP address from the rarp daemon when the printer is powered on.

TCP/IP CONFIGURATION 10 -8

YL4US_FAX2800MFC4800-FM5.5

Using BOOTP to Configure the IP Address

BOOTP is an alternative to rarp that has the advantage of allowing configuration of the subnet mask and gateway. In order to use BOOTP to configure the IP address make sure that BOOTP is installed and running on your host computer (it should appear in the /etc/services file on your host as a real service; type man bootpd or refer to your system documentation for information). BOOTP is usually started up via the /etc/inetd.conf file, so you may need to enable it by removing the "#' in front of the bootp entry in that file. For example, a typical bootp entry in the /etc/inetd.conf file would be:

#bootp dgram udp wait /usr/etc/bootpd bootpd -i

Depending on the system, this entry might be called "bootps"instead of "bootp".

In order to enable BOOTP, simply use an editor to delete the "#' (ifthere is no "#", then BOOTP is already enabled). Then editthe BOOTP configuration file (usually /etc/bootptab) and enter the name, network type (1 for Ethernet), Ethernet address andthe IP address, subnet mask and gateway ofthe print server. Unfortunately, the exact format for doing this is not standardized, so you will need to refer to your system documentation to determine how to enter this information {many UNIX systems also have template examples in the bootptab file that you can use for reference). Some examples of typical /etc/bootptab entries include:

BRN_310107 1 00:80:77:31:01:07 192.189.207.3

10 -9 TCP/IP CONFIGURATION YL4US_FAX2800MFC4800-FM5.5

Certain BOOTP host software implementations will not respond to BOOTP requests if you have notincluded a download filename in the configuration file; if this is the case, simply create a null file on the host and specify the name of this file and its path in the configuration file.

As with rarp, the print server will load its IP address from the BOOTP server when the printer is powered on.

Configuring the IP Address with BRCONFIG Users of Novell networks have additional alternatives for configuring the IP address of Brother print servers by using the remote console facility.

On a NetWare network, you can use the BRCONFIG utility which is included with every print server.

Execute BRCONFIG from the Windows® menu. Select the corresponding server name from the list of print servers. When you get the message that the print server is connected, type the default password access in response to the “# prompt.

You will be prompted for a user name. Enter anything in response to this prompt.

You will then getthe Local> prompt. Type SET IP ADDRESS ipaddress, where ipaddress is the desired IP address you wish to assign to the printserver (check with your network manager forthe IP address to use). For example:

Local> SET IP ADDRESS 192.189.207.3 You will now need to setthe subnetmask by typing SET IP SUBNET subnet mask, where subnet mask is the desired subnet mask you wish to assign to the print server (check with your network manager for the subnet mask to use). For example:

Local> SET IP SUBNET 255.255.255.0

TCP/IP CONFIGURATION 10 - 10

YL4US_FAX2800MFC4800-FM5.5

If you do not have any subnets, use one of the following default subnet masks:

255.255.255.0 for class C networks 255.255.0.0 for class B networks 255.0.0.0 for class À networks

The leftmost group of digits in your IP address can identify the type of network you have. The value of this group ranges from 192 through 255 for Class C networks (e.g., 192.189.207.3), 128 through 191 for Class B networks (e.g.,128.10.1.30), and 1 through 127 for Class À networks (e.g., 13.27.7.1).

If you have a gateway (router), enter its address with the command SET IP ROUTER routeraddress, where routeraddress is the desired IP address of the gateway you wish to assign to the print server. For example:

Local> SET IP ROUTER 192.189.207.1

Type SET IP METHOD STATIC to setthe method ofIP access configuration to static.

To verify that you have entered the IP information correctly, type SHOW IP.

Type EXIT or CTR-D (i.e., hold down the control key and type "D") to end the remote console session.

Changing the IP Address settings with the TELNET Console

You can also use the TELNET command to change the IP address.

Using TELNET is effective way, when you change the IP address. But a valid IP address must already be programmed into the print server.

If you are using the TELNET, you will be expected to enter the password of the print server. Press RETURN and enter the default password of access in response to the "#"' prompt (it will not echo).

You will be prompted for a user name. Enter anything in response to this prompt.

10-11 TCP/IP CONFIGURATION YL4US_FAX2800MFC4800-FM5.5

Local> SET IP ADDRESS 192.189.207.3

You will now need to setthe subnetmask by typing SET IP SUBNET subnet mask, where subnet mask is the desired subnet mask you wish to assign to the print server (check with your network manager for the subnet mask to use). For example:

Local> SET IP SUBNET 255.255.255.0

If you do not have any subnets, use one of the following default subnet masks:

255.255.255.0 for class C networks 255.255.0.0 for class B networks 255.0.0.0 for class À networks

Local> SET IP ROUTER 192.189.207.1

Type SET IP METHOD STATIC to setthe method ofIP access configuration to static.

To verify that you have entered the IP information correctly, type SHOW IP.

Type EXIT or CTR-D (i.e., hold down the control key and type "D") to end the remote console session.

TCP/IP CONFIGURATION 10 - 12

YL4US_FAX2800MFC4800-FM5.5

Other Sources of Information

This chapter describes procedures for troubleshooting problems you may encounter with a Brother print server, it is divided into the following sections:

intermittent Problems

Protocol-S pecific Troubleshooting

Installation problems

If you cannot print over the network, check the following:

Make sure thatthe printer is powered on, is on-line and ready to print.

Verify that the printer and the configuration are good by printing the printer settings page. Refer to the Quick Setup Guide. Ifthe test fails, check:

Ifthe LED is not blinking after connected to the network, then the network firmware settings may be corrupted. Please refer to Step 3.

In this event, try to restore the factory default settings of the print server. To learn how to reset the print server, see Chapter 3 "Network factory default setting" on page 3-11 of the User's Guide. Once you have done that, switch the printer off and then on again, and try to print out the configuration

11-1 TROUBLESHOOTING YL4US_FAX2800MFC4800-FM5.5

Ifthe configuration page prints but you cannot print documents, try the following

If none of the following steps are successful, there is almost certainly a hardware or network problem!

If you are using TCP/IP:

Try pinging the print server from the host operating system command prompt with the command:

Where ipaddress is the printserverlP address (note thatin some instances it can take up to two minutes for the print server to load its IP address after setting the IP address). fa successful response is received, then proceed to the UNIX, TCP/IP Windows® NT/LAN Server, Windows ®98/95/Me Peer to Peer (LPR), Internet Printing or Web Browser troubleshooting section. Otherwise, proceed to step 3, and then go to TCP/IP Troubleshooting section.

If you are using Novell system:

Verify that the print server can be seen on the network. To do this, login as the SUPERVISOR (not as someone with supervisor privileges) or ADMIN (for Netware 4 or later servers), go into PCONSOLE or NWADMIN, select PRINT SERVER INFORMATION, and select the name of the print server (make sure that you have entered the print server name). If you can see Print Server Status and Control in the menu, then the Brother print server is visible to the network, proceed to the Novel NetWare Installation Troubleshooting Section. Otherwise, go to step 3.

If you are running AppleTalk for Macintosh:

Make sure that you can see the print server name under the LaserWriter 8 icon in the Chooser. Ifitis visible, then the connection is good, so proceed to the AppleTalk for Macintosh Section. Otherwise, go to step 3.

If you use the Rendevous function, please visit the Brother Solutions Center web site on: http://solutions.brother.com

11-2 TROUBLESHOOTING YL4US_FAX2800MFC4800-FM5.5

If you cannot make any of the connections in step 2, check the following:

Make sure the printer is powered on and on-line.

Check the cabling, network connection, and print out a configuration page in the Network STATISTICS information to see if bytes are being transmitted and received.

Check to see ifthere is any LED activity.

The NC-5100h print server has two LEDs on the back panel of the printer. The upper side LED shows Link/Speed status. The lower side LED shows Activity (Receive/Transmit) status.

Ifthe both of two LEDs are off, then the print server is not connected to the network.

Link/S peed LED is orange: Fast Ethernet

The Link/Speed LED will be orange if the print server is connected to a 100BaseTX Fast Ethernet network.

Link/S peed LED is green: 10BaseT Ethernet

The Link/S peed LED will blink ifthe print serveris receiving or transmitting data.

If you are using a repeater or hub, make sure that SQE (heartbeat) is turned off at the hub (if applicable). Also, if you have a hub or multi-port repeater, verify thatthe hub or repeater portis good by trying the print server on a different portor on the other hub or multi-port repeater.

If you have a bridge or router located between the print server and host computer, make sure that the device is setup to allow the print server to send and receive data from the host. For example, a bridge can be set up to only allow certain types of Ethernet addresses to pass through (a process known as filtering); therefore, such a bridge must be configured to allow Brother print server addresses. Likewise, a router can be setup to pass only certain protocols, so be sure that the desired protocol can be passed through to the print server.

TROUBLESHOOTING 11 - 3

YL4US_FAX2800MFC4800-FM5.5

Ifthe job exits the queue but does not print, make sure that you are not trying to print a text job to a PostScript printer. If you have a printer that is capable of automatic language switching, make sure that the printer is not forced into PostScript mode.

Intermittent Problems

Ifthe print server and printer start up OK, but you intermittently have problems printing, check the following:

If you can print small jobs but large graphics jobs are distorted or incomplete, make sure that you have adequate memory in your printer and the latest printer driver installed on your computer. The latest Brother printer drivers can be downloaded from http://solutions.brother.com

Check the individual protocol troubleshooting sections in this chapter for additional causes of intermittent printer problems.

TCP/IP Troubleshooting

If you are using TCP/IP and cannot print to the print server and you have checked the hardware and network as described in the previous steps, then check the following:

7" is always à good idea to try following in order to eliminate the possibility of setup errors.

Turning off the printer and then again, Deleting and recreating the print server and creating a new print queue in order to eliminate the possibility of setup errors.

The problem may be the result of mismatched or duplicate IP address. Verify that the IP address is correctly loaded into the print server (via the configuration page. Make sure that no other nodes on the network have this address (DUPLICATE IP ADDRESS ARE THE BIGGEST CAUSE OF TCP/IP PRINTING PROBLEMS).

11-4 TROUBLESHOOTING YL4US_FAX2800MFC4800-FM5.5

If you used BRCONFIG, NCP or to enterthe IP address, make sure that you exited the remote console properly with a CTRL- D or EXIT and that you turned the printer off and then again (it may take up to two minutes for the IP address to take effect).

Make sure thatthe TCP/IP protocol of the print server is enabled.

If you used rarp, make sure that you started the rarp daemon on any workstation using the rarpd, rarpd-a, or equivalent command. Verify thatthe /etc/ethers file contains the correct Ethernet address and that the print server name matches the name in the /etc/hosts file.

If you used bootp, make sure that you started the bootp daemon on any UNIX workstation and bootp is enabled (i.e., the "#" is removed from the bootp entry) in the /etc/bootptab file is correctly configured.

Also verify that host computer and the print server are either on

the same subnet, otherwise that the router is properly configured to pass data between the two devices.

UNIX Troubleshooting

Make sure thatthe /etc/printcapfile (if applicable) is typed in correctly. In particular, look for missing ":" and "\" characters, because a small error anywhere in the file can have major consequences. Also check the /usr/spool directory to make sure that you have created a valid spool directory.

If you are using a Linux operating system, the X-Window Print tool program that is included with Linux may not properly configure the etc/printcap file for Ipd operation, then you might also editthe etc/printcap file and change the following line in the entry for the printer.

if ilp = /dev/null: \

TROUBLESHOOTING 11-5

YL4US_FAX2800MFC4800-FM5.5

If you are using a Berkeley-based UNIX, make sure that the daemon is started on Berkeley based systems with the command lpc start printer, where printer is the name ofthe local print queue.

If you are using an AT&T-based UNIX, make sure the printer is enabled (enable printer, where printer is the name of the local print queue).

Make sure thatthe Ipr/Ipd remote line printer service are running on the host computer (refer to your host computer documentation for information on how to do this).

If you are having trouble printing more than one job at a time, try increasing the IP timeout using the SET IP TIMEOUT command or using BRAdmin.

If text or PCL jobs are run together, try setting the service (remote printer) with EOT set to string number 2 (ESC>E). For example:

SET SERVICE BRN xxxxxx P1 EOT 2

If PostS cript jobs fail to print or are run together, try setting the service (remote printer) with EOT set to string number 3 (control-D). For example:

SET SERVICE BRN xxxxxx_ P1 EOT 3

Ifthe lines of a text file are staggered, make sure that you have specified a remote printer (rp) name of TEXT in your /etc/ printcap file.

If you are using Sun Solaris V2.4 or earlier, there is a bug which causes long print jobs to fail when using a print server. If you are having trouble printing long jobs (over 1MB), add the line mx#0 to your etc/printcap file entry.

If you cannot print from DEC TCP/IP Service for VMS (UCX), make sure that you have version 2.0B or later of this software, because earlier versions will not work with Brother print servers.

11-6 TROUBLESHOOTING YL4US_FAX2800MFC4800-FM5.5

Windows® NT/LAN Server (TCP/IP) Troubleshooting

If you are having trouble printing with Windows® NT or LAN Server, check the following:

Make sure that TCP/IP and TCP/IP print service are installed and running on the Windows® NT system orthe LAN Server file server.

If you are using DHCP and you have not created a reservation for the printserver, make sure that you enter the NetBIOS name ofthe print server in the Name or address of server providing Ipd box.

If you are having trouble printing on a Windows® 95/98/Me P eer-to- Peer network (LPR method), check the following:

Make sure that the Brother LPR Port driver is correctly installed and configured according to the Windows® 95/98/Me P eer-to- Peer chapters.

Try to turn the Byte Count on in the Configure port area of printer driver properties.

You may find that during the installation of BLP software, the screen that prompts you for a Portname is not displayed. This may happen

on some Windows® 95/98/Me computers. Press the ALT and TAB keys to make it appear.

TROUBLESHOOTING 11-7

YL4US_FAX2800MFC4800-FM5.5

If you are having trouble printing on a Windows® 95/98/Me P eer-to- Peer network, check the following (HP J etAdmin compatible method):

Ifthe print server does not show up under] etAdmin on a Windows® 95/98/Me Peer-to-Peer network, try removing all of the Windows® 95/98/Me network software from the Network Control panel and then reinstalling them as follows:

First install the IP X/SP X-Compatible Protocol (or the TCP/IP protocol if you are using a later version of J etAdmin), the Client for Microsoft Networks, and the network adapter card driver.

Install the Latest HP J etAdmin software.

Restart the system, and then add the HP J etAdmin service.

If you are having trouble printing on a Windows® 95/98/Me/NT 4.0 (or later) Peer-to-Peer network (NetBlOS), check the following:

Make sure that the Brother NetBlOS Port driver is securely installed and configured according to the Windows® 95/98/Me/ NT 4.0 Peer-to-Peer (NetBlOS) chapters. You may find that during the installation of the port driver, the screen that prompts you for a Port name is not displayed. This happens on some Windows® 95/98/Me/NT 4.0 computers. Press the ALT and TAB keys to make it appear.

Make sure that the print server is configured to be in the same workgroup or domain as the rest of your computers. It may take

several minutes for the print server to appear in the network neighborhood.

11-8 TROUBLESHOOTING YL4US_FAX2800MFC4800-FM5.5

Brother Internet Print (TCP/IP) Troubleshooting

The first step in troubleshooting is to make sure that you have a valid E-mail connection on both the sending PC and the receiving print server. Try sending an E-mail message from the PC to a user atthe remote site who can receive mail via the POP3 server. If this does not work, there may be an E-mail configuration problem on the PC, on the local E-mail server, or on the remote POP3 server. Double check to make sure thatthe E-mail parameters that you configured on the PC and on the remote print server match those that are configured on the E-mail servers.

If you can print small files OK but are having problems printing large files, the problem may be in the e-mail system! Some E-mail systems have difficulties printing large files. If the file does not reach its destination intact, then the problem is with the E-mail system.

You can also enable the partial e-mail print facility on your client PC, this will splitthe e-mail up into fragments which should then notoverwhelm your e-mail server. To do this, selectthe property dialog of the Brother Internet Print Port.

Want to use a different Port number other than 631

If you are using Port 631 for IPP printing, you may find that your firewall may not let the print data through. If this is the case, use a different port number (port 80), or configure your Firewall to allow Port 631 data through.

To send a print job using IP P to a printer using P ort 80 (the standard HTTP port) enter the following when configuring your Windows® 2000/XP system.

http://ip address/ipp

TROUBLESHOOTING 11-9

YL4US_FAX2800MFC4800-FM5.5

Get More Info option in Windows® 2000 not working If you are using a URL of:

http://ip address:631 or http://ip_address:631/ipp, the Get More Info option in Windows® 2000 will not function. If you wish to use the Get More Info option use the following URL:

This will then force Windows® 2000/XP to use P ort 80 to communicate with the Brother print server.

Windows® 95/98/Me clients not able to get the driver from a Windows® 2000/XP system.

You must be using version 4.0 or later of Internet Explorer and the

Microsoft Internet Print Services software must be installed on your client computers.

Novell NetWare Troubleshooting

If you cannot print from NetWare and you have checked the hardware and network as described in the previous steps, first verify thatthe Brother print server is attached to the server queue by going to PCONSOLE, selecting PRINT QUEUE INFORMATION, and then CURRENTLY ATTACHED SERVERS. If the print server does not appear in the list of attached servers, then check the following:

Itis always a good idea to try followings in order to eliminate the possibility of setup errors.

Turning off the printer and then on again to force to rescan the Netware queue.

Deleting and recreating the print server and creating a new print queue in order to eliminate the possibility of setup errors.

11-10 TROUBLESHOOTING YL4US_FAX2800MFC4800-FM5.5

If you changed the login password, you must change the password in both the Brother print server (using the SET NETWARE PASSWORD command if you are using the BRConfig software) or by using a web browser orthe BR Admin application and in the file server (using the PCONSOLE Print Server Information Change Password command).

If you created the print queue using PCONSOLE and instead of BRAdmin, make sure that you have enabled at least one NetWare file server using the SET NETWARE SERVER servername ENABLED command.

Have you exceeded your NetWare user limit?

Make sure that the print server name you used in PCONSOLE exactly matches the name that is configured in the print server, and make sureitis defined as a Queue Server forthe print queue.

If you are running both 802.3 and Ethernet Il frames on different file servers on your network, there is a possibility that the print server may not make a connection to the desired file server. Try forcing the frame type to the desired one using the SET NETWARE FRAME command from the print server remote console or using BRAdmin.

If you are using DOS CAPTURE statement and losing portions of your print job, try setting the TIMEOUT parameter in your CAPTURE statement to a higher value (at least 50 seconds for Windows).

AppleTalk Troubleshooting

If you cannot print from an AppleTalk for Macintosh computer and you have checked the hardware and network as described in the previous steps, then check the following:

Make sure that you are running Phase 2 AppleTalk and that you have selected the correct network interface from the AppleT alk Control Panel on the Macintosh.

Make sure that the AppleTalk protocol of the print server is enabled.

TROUBLESHOOTING 11-11

YL4US_FAX2800MFC4800-FM5.5

If you have a large network, make sure that you have the Laser Writer V8.xx or equivalent driver, since earlier versions may cause PostScript errors. Also, verify that you get the correct printer information when you select Printer Info from the Setup button in the Chooser.

Make sure that you have selected the correct P rinter Description File {PPD) from the Chooser (otherwise PostScript errors may result).

Verify that you have selected the correct AppleTalk zone. Because the print server gets its zone information from router broadcasts, it may not be in the zone you expect, and will therefore not show up in the Chooser. lfthis is the case, you may need to force the zone name using BRAdmin, a web browser or the SET APPLETALK ZONE command from TELNET.

DLC/LLC Troubleshooting

If you are having trouble printing with DLC/LLC, check the following:

Make sure that the DLC/LLC protocol is enabled using either BRAdmin, a web browser or TELNET.

Make sure thatthe MAC address ofthe Windows® setting is the same as shown in the print configuration page printout.

Web Browser Troubleshooting (TCP/IP)

Ifyou can notconnectto the print server using your web browser it may be worth checking the Proxy Settings of your browser. Look in the E xceptions setting and if necessary, type in the IP address ofthe print server. This will stop your PC from trying to connect to your ISP or proxy server every time you wish to look atthe printer server.

Make sure that you are using the proper Web Browser, we recommend Netscape Navigator version 4.0 or later/ Microsoft Internet E xplorer version 4.0 or later.

11-12 TROUBLESHOOTING YL4US_FAX2800MFC4800-FM5.5

You can change the configuration of your print server using any of the following methods.

+ Web] etAdmin Software

+ TELNET (command utility)

+ Brother BRCONFIG NetWare Utility (command utility)

BRAdmin (Recommended)

The Brother BRAdmin application can use the TCP/IP orIPX/SPX protocol. This utility allows you to graphically manage aspects ofthe network and printer. It can also be used to upgrade the firmware of the print server.

The Web BRAdmin software is designed to manage all LAN/WAN Brother network connected devices. By installing the Web BRAdmin server software on a computer running IIS*, Administrators with a Web browser can connect to the Web BRAdmin server, which then communicates with the device itself. Unlike the BRAdmin Professional software - which is designed for Windows® systems only - the Web BRAdmin server software can be accessed from any client computer with a web browser that supports J ava.

Please note this software may not be included on the CD-ROM that was supplied with your Brother product. If it was not, please visit http://solutions.brother.com/webbradmin to learn more about this software and to download it.

HS* = Internet Information Server 4.0 or 5.0

À - 1 APPENDIX YL4US_FAX2800MFC4800-FM5.5

HTTP (Recommended) Use your favorite web browser to connect to the Brother print server. This will allow you to configure printer and/or printserver parameters.

Web] etAdmin Brother's print server range is HP Web] etAdmin compatible.

TELNET To connect to the print server using TELNET on UNIX, Windows NT, or most other TCP/IP systems, type: TELNET ipaddress atthe command prompt of the system prompt, where ipaddress is the IP address ofthe printserver. When you are connected, push RETURN or ENTER to getthe "#"' prompt, enter the password access (the password will not appear on the screen), and type anything in response to the Enter Username> prompt. When you see the Local> prompt, you are ready to enter commands.

Enter HELP atthe command prompt for a list of supported commands.

BRCONFIG The Brother BRCONFIG utility runs from the DOS system prompt and is installed with BRAdmin. To connectthe print server using the Brother BRCONFIG NetWare utility, choose the BRCONFIG utility from the Brother BR Admin utilities menu. If you have only one print server, you will be immediately connected to that server. If you have more than one print server, you will be given a list of available print servers. Type the number of the print server to which you wish to connect. When you are connected, enterthe password access (the password will not appear on the screen) atthe "#"' prompt, and type anything in response to the Enter Username> prompt. When you get the Local> prompt, you are ready to enter commands. To use BRCONFIG, a Novell Server (running the IP X protocol) is necessary and an active connection must be made to the server.

Enter HELP atthe command prompt for a list of supported commands.

À - 2 APPENDIX YL4US_FAX2800MFC4800-FM5.5

A service is a resource that can be accessed by computers that wish to print to the Brother print server. The Brother print server provides the following predefined services (do a SHOW SERVICE command in the Brother print server remote console to see a list of available

services): Enter HELP atthe command prompt for a list of supported

TCP/IP binary, NetBIOS service.

TCP/IP text service (adds carriage retum after each line feed).

BRN xxxxxx_P1 AT AppleTalk and LPD service for Mac OS 8.6 or later.

NetWare service (TCP/IP is enabled for backwards compatibility).

Where xxxxxx is the last six digits of the Ethernet address (for example, BRN_310107 P1).

The firmware on the print server is stored in flash memory. This means that you can upgrade the firmware by downloading the appropriate update file. To get the latest firmware update, visit the Brother Solutions web site at http://solutions.brother.com/

LF50me software versions that we provide will automatically

factory reset your print server parameters. We try to avoid doing this. However, ifwe add a significant new feature to our print server, it can result in the print server being factory reset.

Because of this, we STRONGLY recommend that you make a note of the current print server configuration before you upgrade. To do this, print out a configuration page (refer to your Quick Setup Guide for information on how to print a configuration page).

There are three methods of upgrading the firmware in your Brother print server:

Use the BRAdmin application (Recommended)

Use the FTP protocol (Recommended if running on Macintosh or Unix network)

Use another system (such as a Novell or Unix system to send the new firmware file to the print server).

À - 4 APPENDIX YL4US_FAX2800MFC4800-FM5.5

Reloading firmware using BRAdmin

The BRAdmin application can be used to easily re-program your Brother print server.

Highlight the appropriate print server. Then press select the Control menu and choose Load Firmware. You can select more than one print server by pressing CTRL+<select> or SHIFT+<select> on each additional print server.

There are three possible ways of sending the new software version to the print server. For whichever method you select, you must enter a password for the print server. The default password for the print server is access.

TFTP PUT from this host

Use this method if you have TCP/IP already installed on your PC. BRAdmin will use the TFTP protocol to send the new firmware data to the print server.

TFTP GET from a server

If you have a TFTP server installed in your network (many Unix systems provide TFTP support), you may wish to use this option. The new firmware file must be located in the TFTP BOOT directory on your TFTP server. In this case, your PC makes the print server read the firmware data from the assigned TFTP server. If you do not provide the correct file name, then the upgrade will fail. You must also ensure that the firmware file is set so that the print server can read the file. On Unix systems you can use the chmod command to specify file attributes. For example, chmod filename 666 allows the filename to be accessed by anyone. Also make sure that the TFTP service is running on your Unix server.

Netware GET from a server

You must have a Netware server on your network (running IP X/ SP X) and you muststore the new firmware file in the SYS/Login directory of the server. In this case, your PC makes the print server read the firmware data from the assigned Netware server, the print server attaches to the Netware server and reads the firmware itself.

YL4US_FAX2800MFC4800-FM5.5

The Data LED on the printer control panel will blink during the firmware file loading process. During programming process, the backlight on the printer's LCD goes off, and Erase xxxxxx and Write xxxxxx Will be indicated alternately on the LCD. After the firmware update is completed, the printer will re-start automatically. DO NOT TURN OFF THE PRINTER DURING THESE PROCESSES.

Ifthe Data LED does notstop blinking after abouttwo minutes, check to make sure that you correctly entered all parameters and that your network connections are good. Then power the print server/printer off and then on again, to retry the download.

If you encounter problems upgrading the firmware and you find thatthe network portion ofthe printer no longer functions, you should try re-programming the print server by using the COPY command from the DOS prompt of your PC. To do this, connect a parallel cable between your PC and printer and use the command COPY filename LPT1:/B (where filename is the new firmware file).

À - 6 APPENDIX YL4US_FAX2800MFC4800-FM5.5

Reloading using the FTP Protocol from a command prompt

By specifying the print server PASSWORD AS THE USERNAME when logging on, it becomes possible to upgrade the firmware ofthe print server or printer (if supported). The following example assumes that the print server password is "cambridge"

> 56B°rè Read command OK. 70 > has Haëh mark printing on ftp: (2048 bytes/hash mark) . ftp> send brnt261.blf 200 Ready command OK. 150 Transfer Start

HER HER HER HR ARR FERRER RER HART HART HR FERRER RER HART HART HR FERRER RARE RARE HART HER HR RARE 226 Data Transfer OK/Entering FirmWareUpdate mode. fie: 1498053 bytes sent in 8.52Seconds 77Kbytes/sec. fl > close 226 Data Transfer OK. ftp> quit

When you see "226 Data Transfer OK/Entering FirmWareUpdate mode", you can be sure that the firmware file is being transferred to the print server. If you do not see this message, the file you are sending to the printer will either be ignored or the printer will print garbage.

D: You must use the "bin" command to put the FTP client into Binary communications mode. If you do not specify the bin command the upgrade process will not function correctly.

YL4US_FAX2800MFC4800-FM5.5

Please visitthe Brother Solutions Web site at http://solutions.brother.com for more information on upgrading the print server using a web browser.

E-mail emailpassword
