USER MANUAL HL-2060 BROTHER

Please read this manual thoroughly before using the printer.

Keep this manual in a convenient place for quick and easy reference at all times.

Trademarks

Brother is a registered trademark of Brother Industries, Ltd.

Apple and LaserWriter are registered trademarks, and TrueType is a trademark of Apple Computer, Inc.

Centronics is a trademark of Genicom Corporation.

EPSON is a registered trademark, and FX-850 and FX-80 are trademarks of Seiko Epson Corporation.

Hewlett-Packard, HP and PCL are registered trademarks, and HP LaserJet 5, HP LaserJet 4+ , HP LaserJet Plus, HP LaserJet II, HP LaserJet IID, HP LaserJet IIID HP-GL, HP-GL/2, and Bi-Tronics are trademarks of Hewlett-Packard Company. IBM, Proprinter XL, Proprinter, and IBM/PC are registered trademarks of International Business Machines Corporation.

Intellifont is a registered trademark of AGFA Corporation, a division of Miles, Inc.

Microsoft and MS-DOS are registered trademarks of Microsoft Corporation.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

PostScript is a registered trademark of Adobe Systems Incorporated.

All other brand and product names mentioned in this user's guide are registered trademarks or trademarks of respective companies.

Compilation and Publication

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

This product is designed for use in a Professional Environment.

1998 Brother Industries Ltd.

Shipment of the Printer

If for any reason you must ship your Printer, carefully package the Printer to avoid any damage during transit. It is recommended that you save and use the original packaging. The Printer should also be adequately insured with the carrier.

WARNING

When shipping the Printer, the TONER CARTRIDGE must be removed from the Printer. Failure to remove the Toner Cartridge during shipping will cause severe damage to the Printer and will Void THE WARRANTY.

brother

Laser Printer

HL-2060

USER'S GUIDE

(For USA & CANADA Only)

For technical and operational assistance, please call:

In USA

1-800-276-7746

(outside California)

949-859-9700 Ext. 329

(within California)

In CANADA

1-800-853-6660

514-685-6464

(within Montreal)

If you have comments or suggestions, please write us at:

In USA

Printer Customer Support

Brother International Corporation

15 Musick

Irvine, CA 92718

In CANADA

Brother International Corporation (Canada), Ltd.

• Marketing Dept.

For downloading drivers from our Bulletin Board Service, call:

In USA

1-888-298-3616

In CANADA

1-514-685-2040

Please log on to our BBS with your first name, last name and a four digit number for your password. Our BBS supports modem speeds up to 14,400, 8 bits no parity, 1 stop bit.

Fax-Back System (For USA and Canada Only)

Brother Customer Service has installed an easy to use Fax-Back System so you can get instant answers to common technical questions and product information for all Brother products. This is available 24 hours a day, 7 days a week. You can use the system to send the information to any fax machine, not just the one you are calling from. Please call 1-800-521-2846 (USA) or 1-800-681-9838 (Canada) and follow the voice prompts to receive faxed instructions on how to use the system and your index of Fax-Back subjects.

DEALER/SERVICE CENTERS (USA only)

For the name of an authorized dealer or service center, call 1-800-284-4357.

SERVICE CENTERS (Canada only)

For service center addresses in Canada, call 1-800-853-6660

INTERNET ADDRESS

For technical questions and downloading drivers: http://www.brother.com

Definitions ofWarnings, Cautions, and Notes

The following conventions are used in this User's Guide:

Warning

Indicates warnings that must be observed to prevent possible personal injury.

Caution

Indicates cautions that must be observed to use the printer properly or prevent damage to the printer.

ote

Indicates notes and useful tips to remember when using the printer.

To Use the Printer Safely

Warning

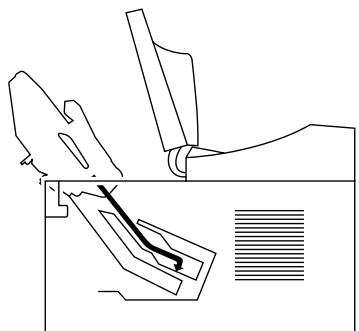

The fixing roller is extremely hot during operation. Remove the paper carefully.

TABLE OF CONTENTS

IMPORTANT INFORMATION: REGULATIONS

CHAPTER 1 GENERAL 1-1

ABOUT THIS MANUAL. 1-1

INSTALLATION FROM CD-ROM 1-2

Installing the printer driver and TrueType fonts 1-3

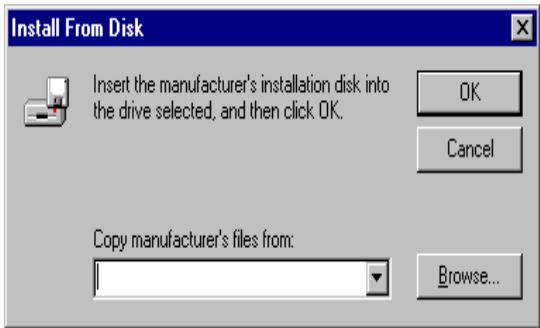

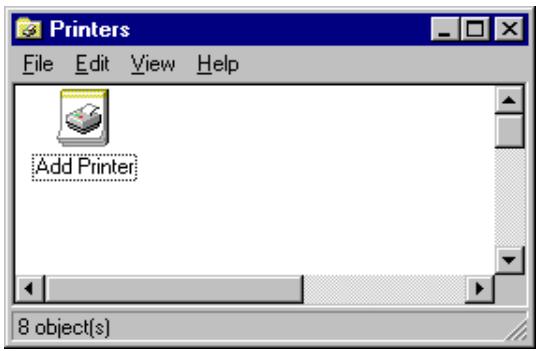

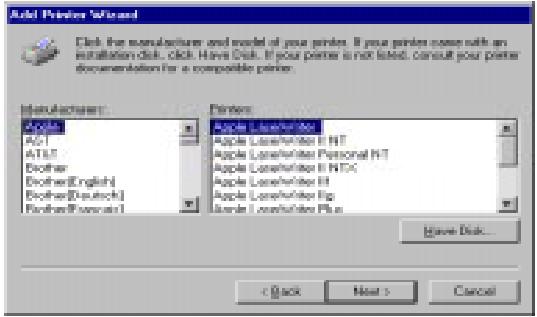

For Windows 95/98/NT 4.0 1-3

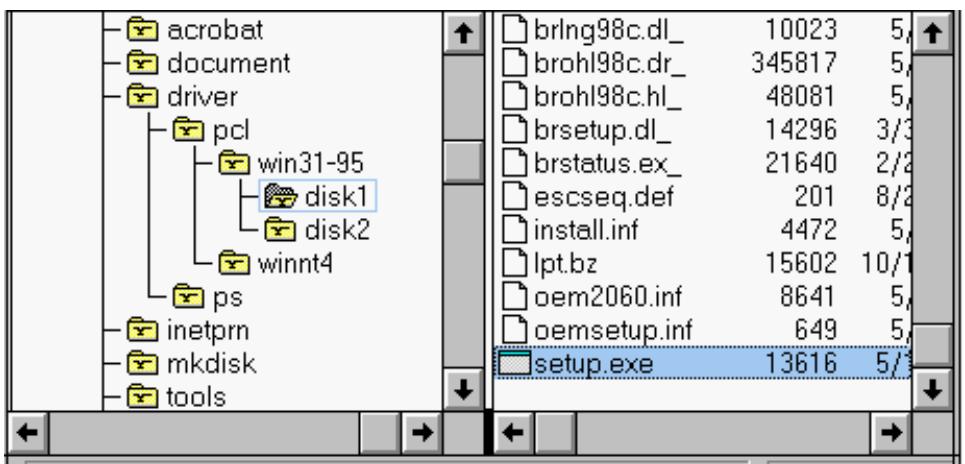

For Windows 3/1/3.11 1-4

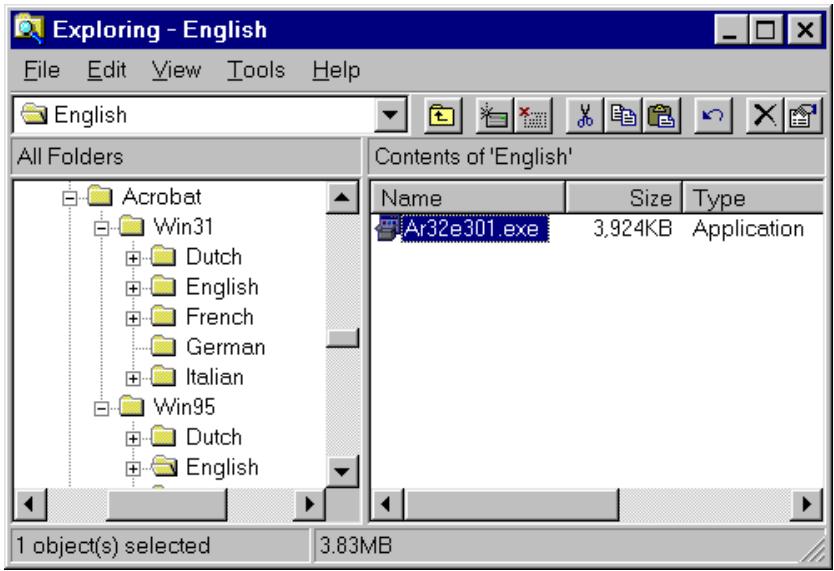

Installing the Adobe® Acrobat Reader Software 1-5

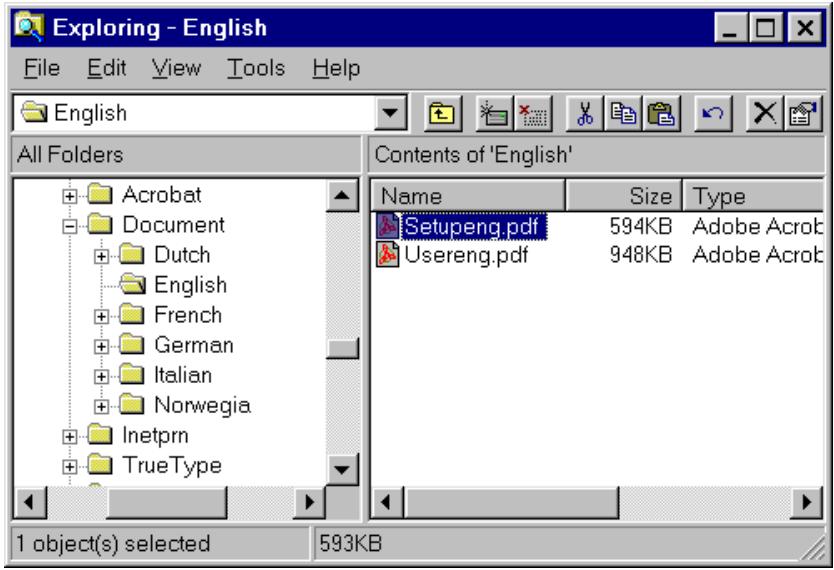

Viewing the User's Guide 1-6

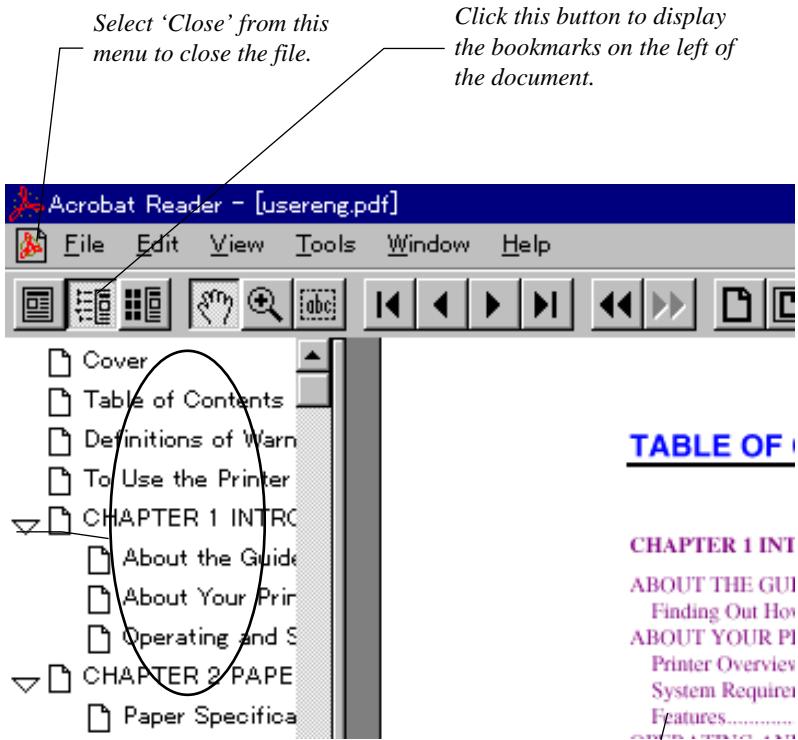

How to use the Adobe® Acrobat® Reader 1-7

INSTALLATION FROM FLOPPY DISKS 1-8

For Windows 95/98. 1-8

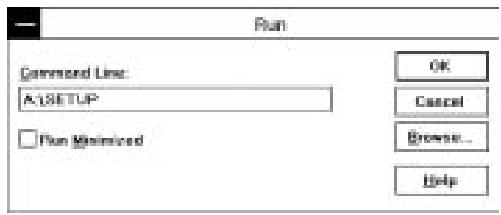

For Windows 3.1 1-8

CONNECTING YOUR PRINTER TO YOUR COMPUTER

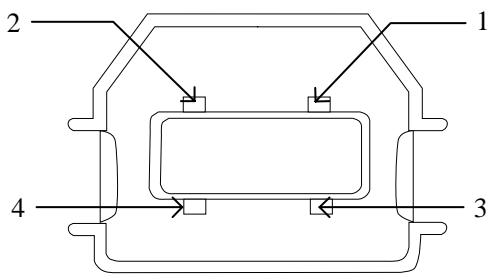

USING THE USB INTERFACE 1-10

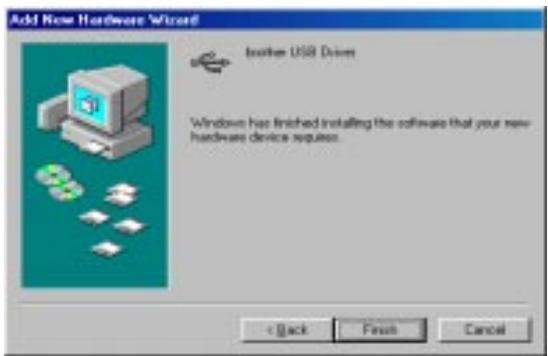

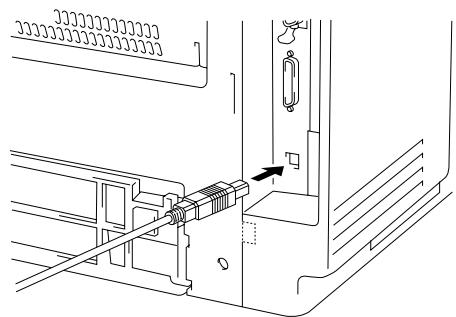

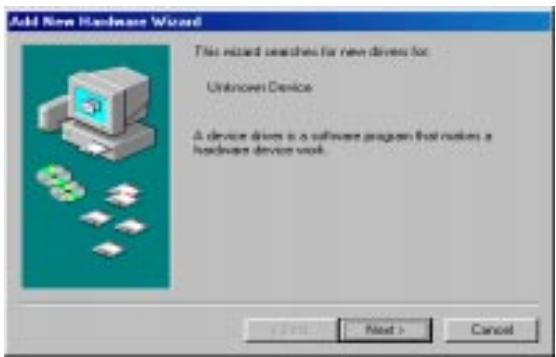

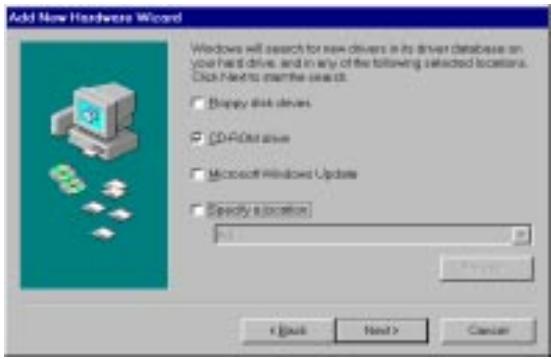

Install the USB driver into your PC 1-10
Install the printer driver into your PC. 1-12

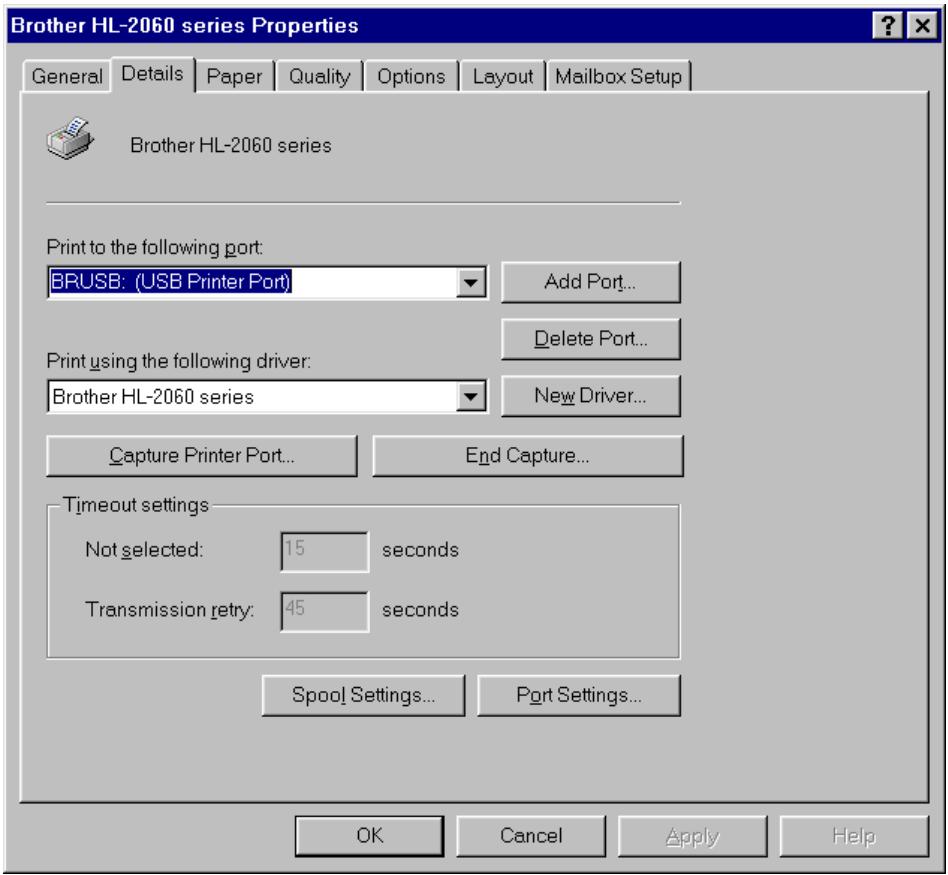

Set the printer port to USB 1-12
Troubleshooting 1-13

ABOUT THIS PRINTER. 1-14

Features 1-14
Options 1-20

CHAPTER 2 GETTING STARTED 2-1

BEFORE USING THE PRINTER 2-1

Checking the Components. 2-1

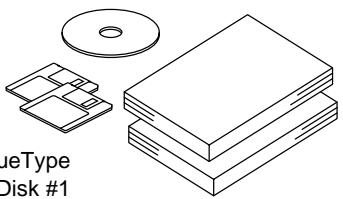

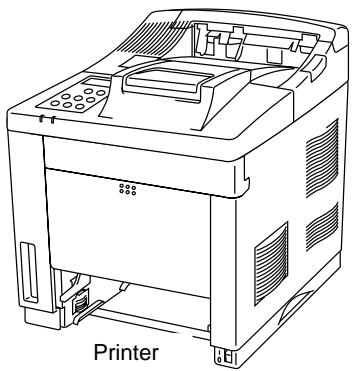

Printer Carton. 2-1
Toner Cartridge. 2-2

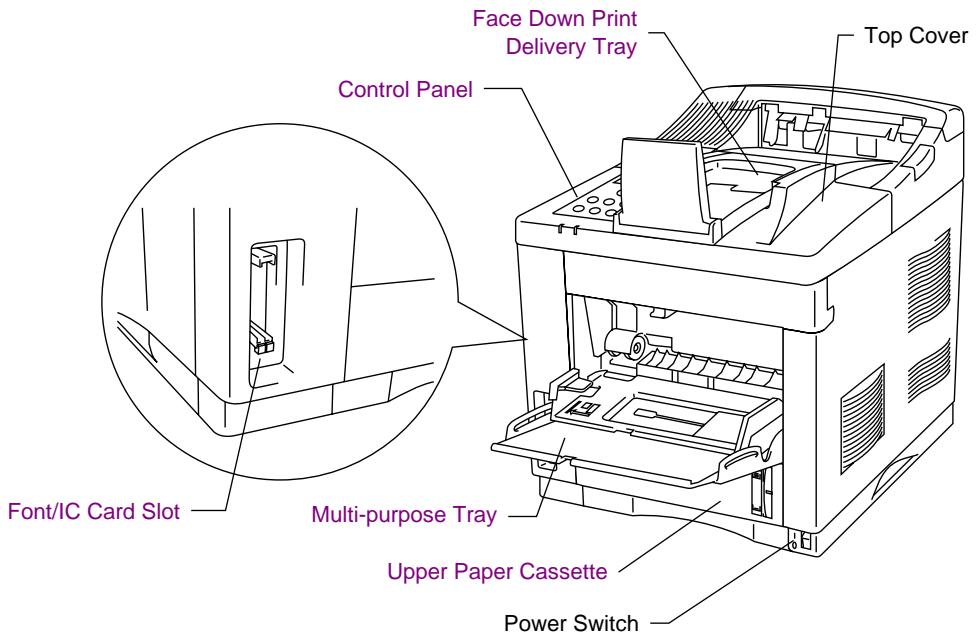

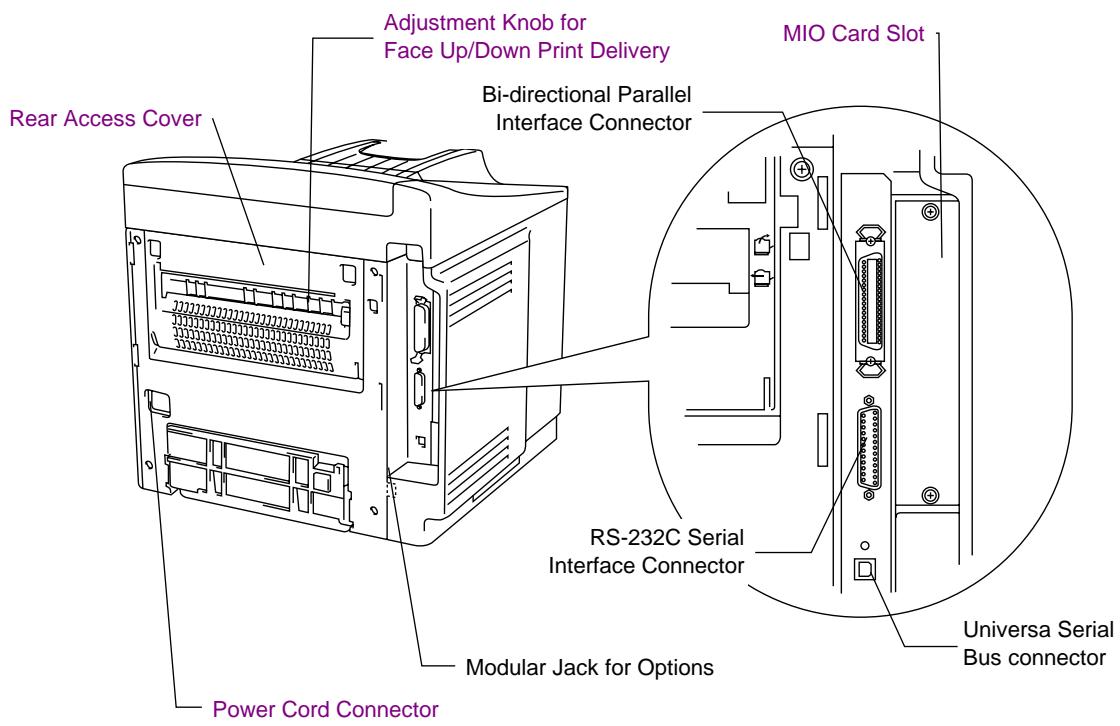

General View 2-3

Operating and Storage Environment 2-4

Power Supply 2-4
Environment 2-4

SETTING UP THE PRINTER 2-5

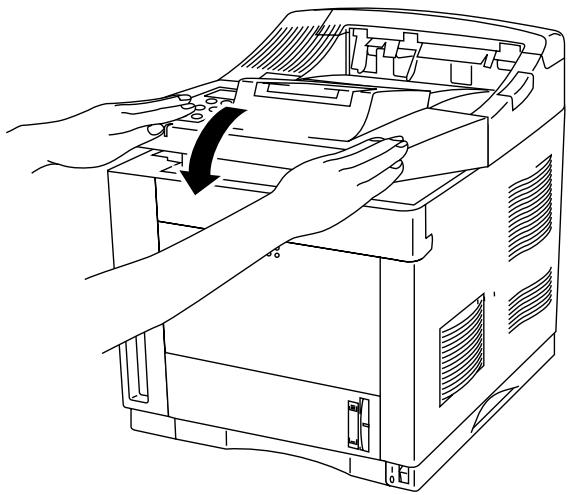

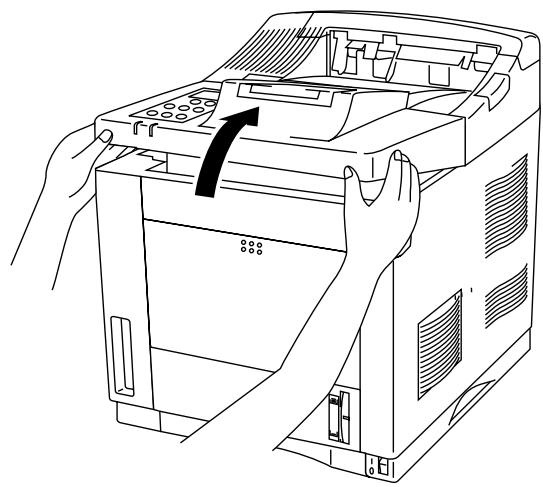

Opening and Closing the Printer 2-5

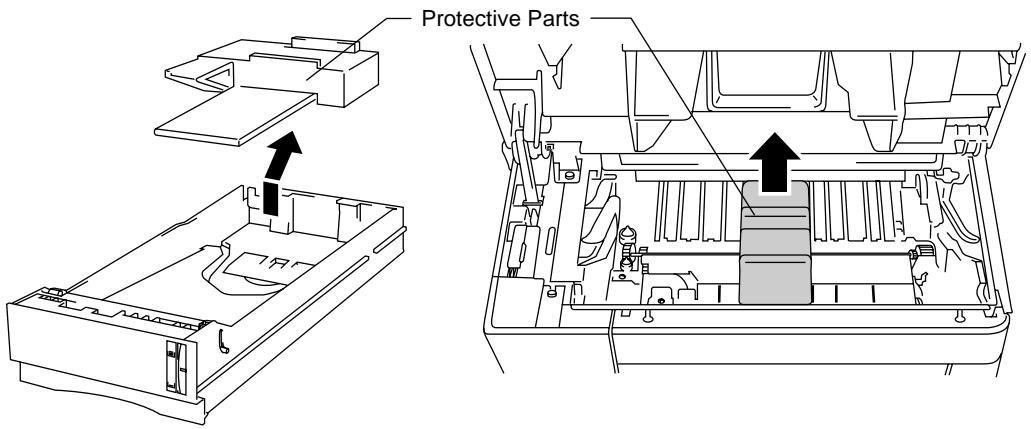

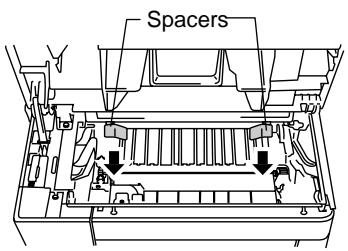

Removing the Protective Parts 2-6

Installing the Toner Cartridge 2-7

Loading Paper in the Paper Cassette 2-11

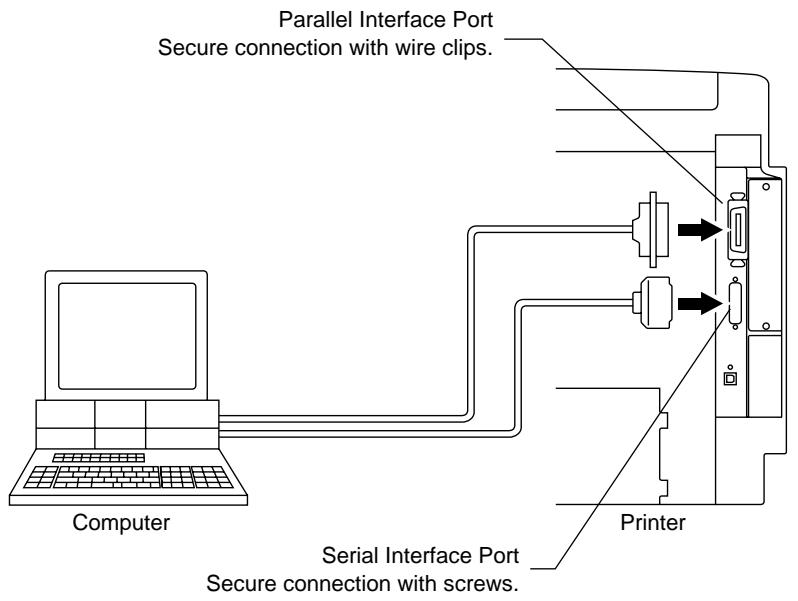

Connecting the Printer to Your Computer. 2-15

Turning the Printer On and Off 2-17

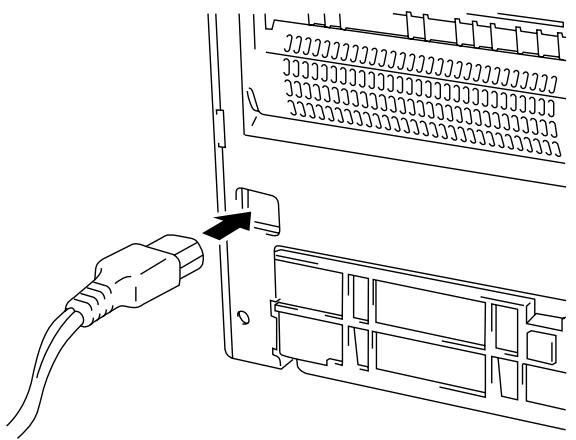

Plugging in the Power Cord 2-17

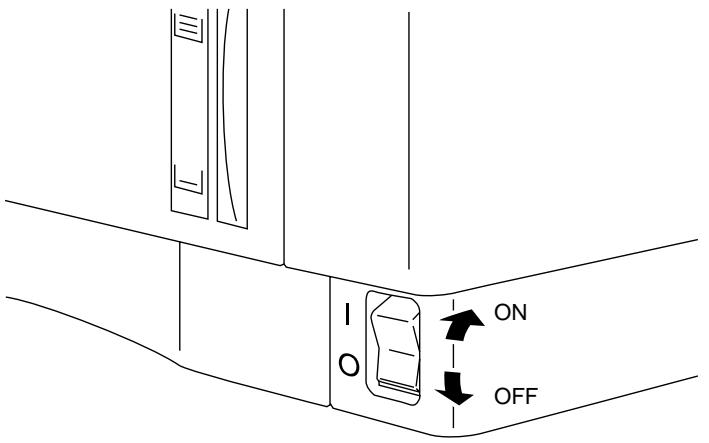

Pressing the POWER Switch 2-18

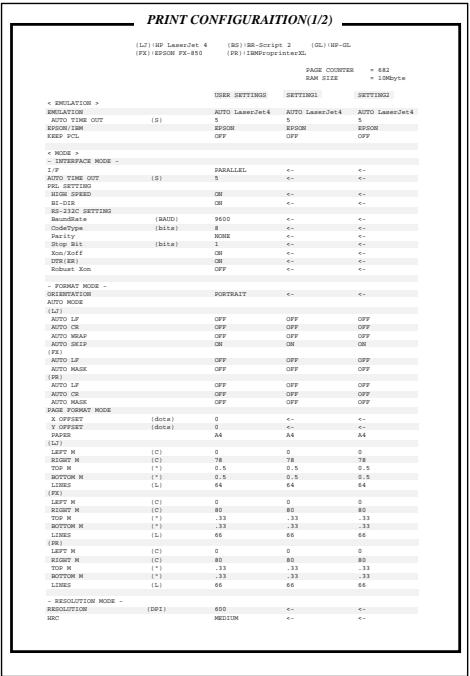

Printing the Test Patterns or Lists. 2-19

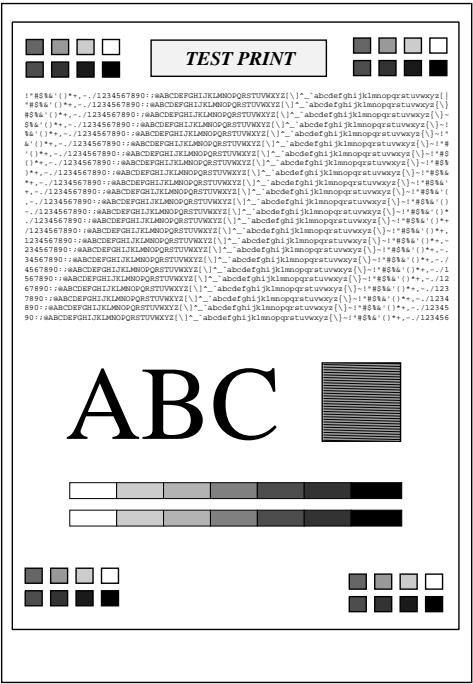

Checking the Printed Test Pattern or Demo Page 2-22

CHAPTER 3 BEFORE WORKING WITH THE PRINTER 3-1

SOFTWARE COMPATIBILITY 3-1
AUTOMATIC EMULATION SELECTION 3-3
AUTOMATIC INTERFACE SELECTION 3-5
ABOUT THE CONTROL PANEL 3-7

Selecting the Local Language Display 3-7
Turning the Maintenance Message Off 3-7

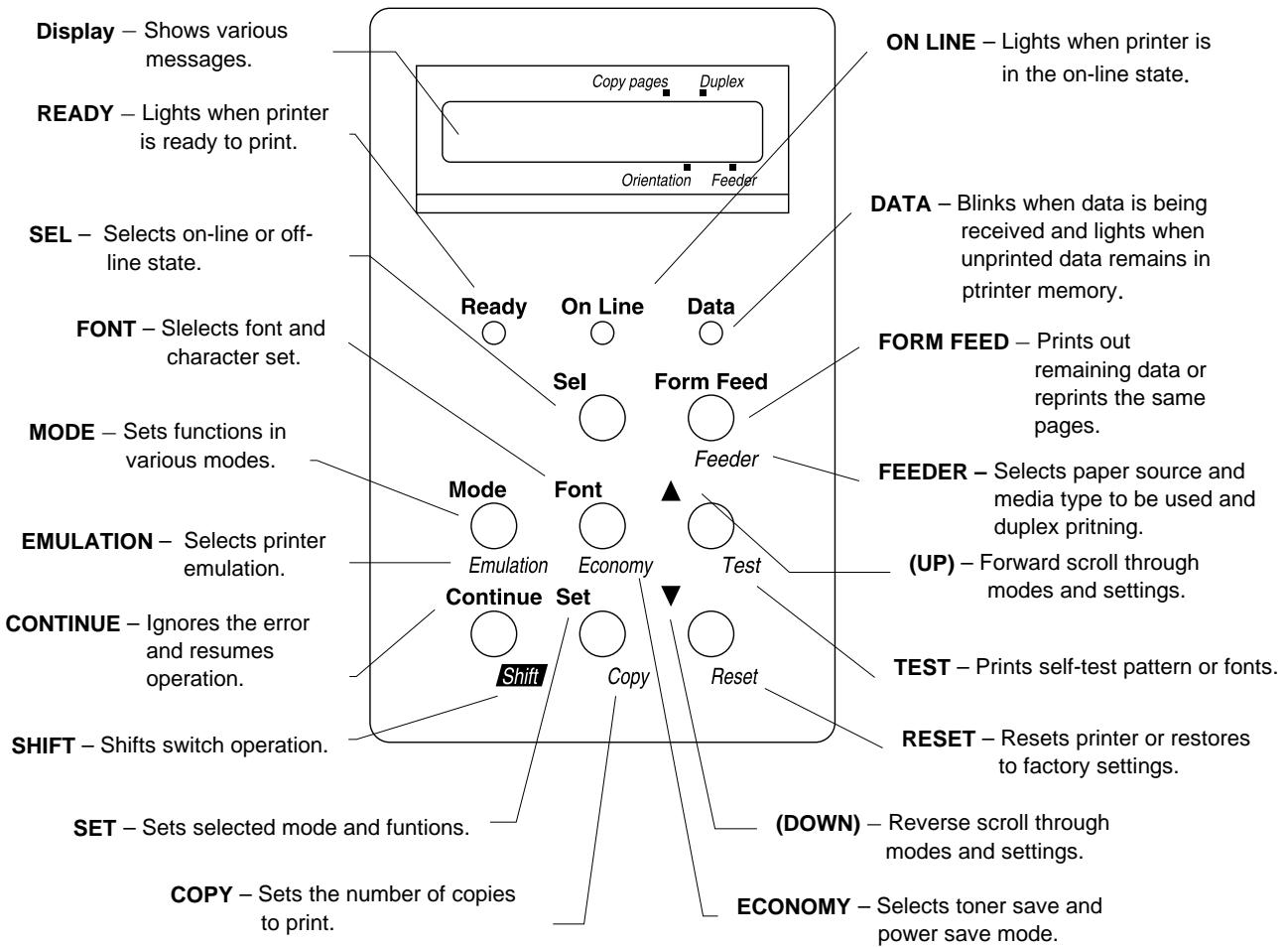

Using the Panel Switches 3-8
Printer Settings 3-9
User Settings 3-9
Factory Settings 3-9

PAPER HANDLING 3-10

Print Media. 3-10

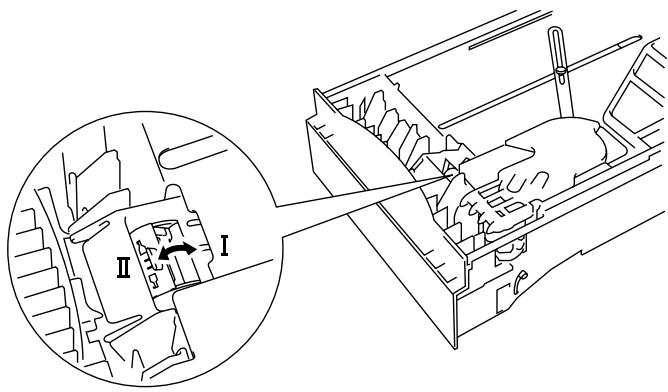

Paper Size 3-10

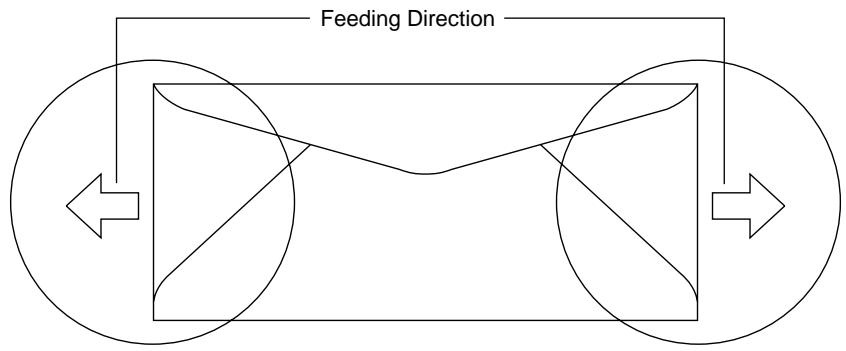

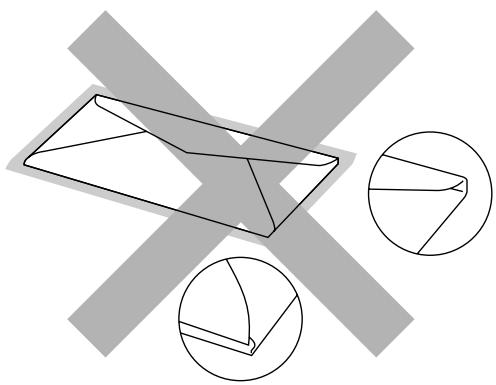

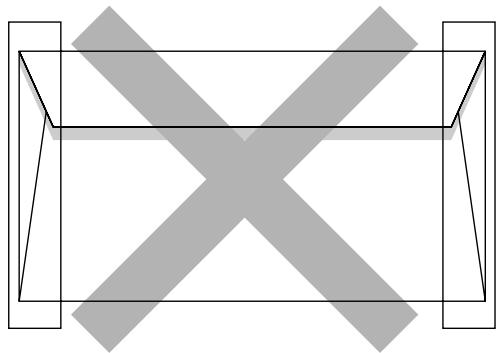

Using Envelopes 3-12

Cassette Feed 3-14

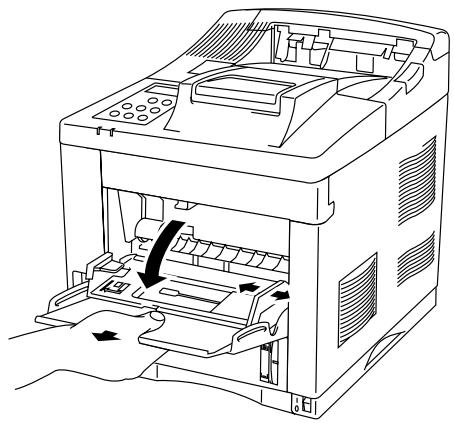

Manual Feed. 3-15

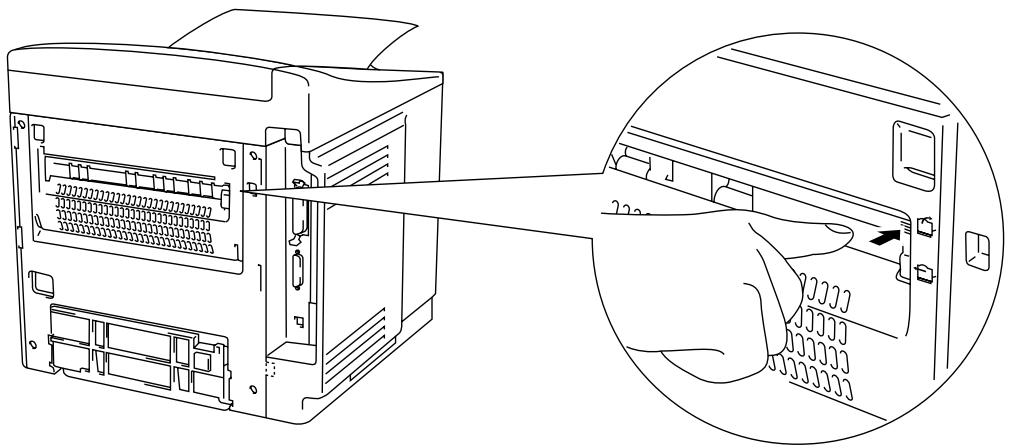

Face Down Print Delivery 3-16

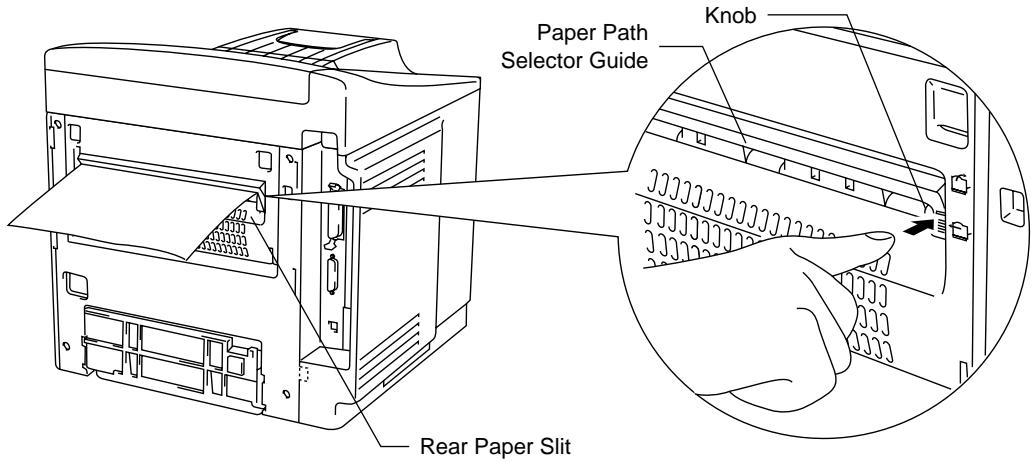

Face Up Print Delivery 3-16

CHAPTER 4 CONTROL PANEL 4-1

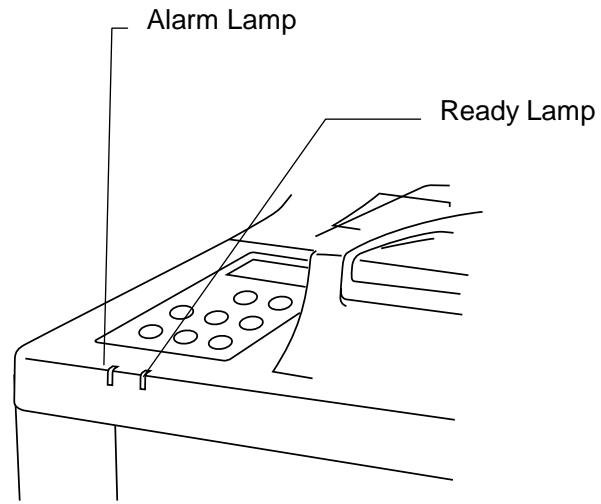

DISPLAY AND LAMPS 4-1

Display 4-2

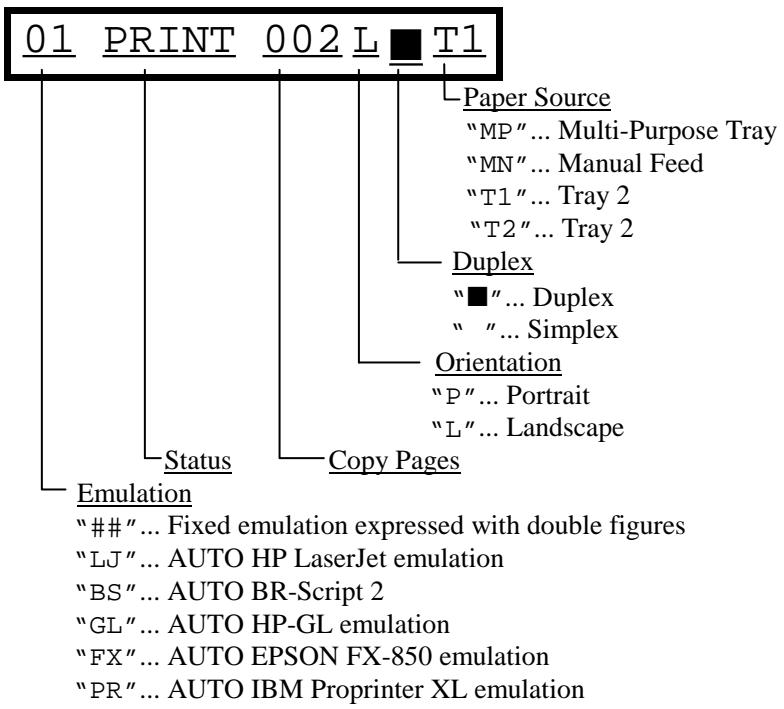

Printer Status Messages 4-2

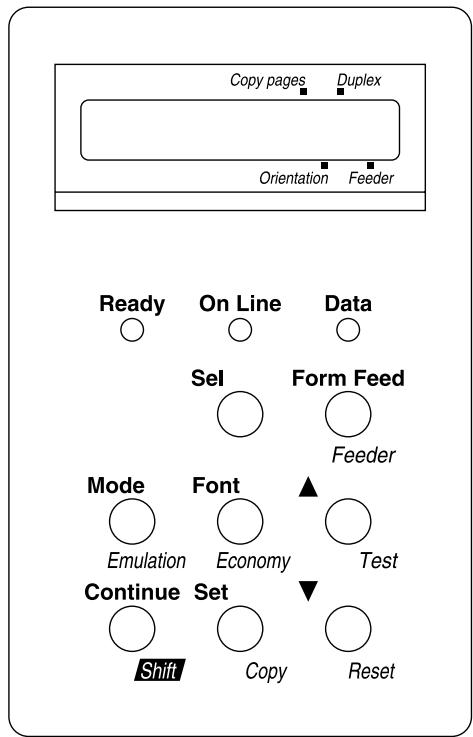

LAMPS. 4-5

READY. 4-5

DATA 4-5

ON LINE 4-5

ALARM 4-5

SWITCHES IN NORMAL MODE 4-6

SEL Switch 4-7

SET Switch 4-8

(UP) or (DOWN) Switch 4-8

MODE Switch 4-9

MODE Switch Settings in HP LaserJet,

EPSON FX-850, and IBM Proprinter XL Modes. 4-10

MODE Switch Settings in BR-Script 2 Mode 4-13

MODE Switch Settings in HP-GL Mode 4-15

Basic Operation Procedures. 4-17

Operation Example: Selecting the Parallel Interface 4-18

INTERFACE MODE 4-19

FORMAT MODE 4-22

ORIENTATION 4-22

AUTO MODE 4-24

PAGE FORMAT MODE 4-25

GRAPHICS MODE 4-28

RESOLUTION MODE 4-31

PAGE PROTECTION 4-36

CARD OPERATION 4-37

ADVANCED MODE 4-46

NETWORK MODE 4-46

ERROR PRINT 4-48

CONTINUE MODE 4-49

SCALABLE FONT 4-49

PRINT DENSITY 4-50

INPUT BUFFER 4-50

SAVE SETTINGS 4-51

PAGE COUNTER. 4-52

EXIT MODE 4-52

FONT Switch 4-53

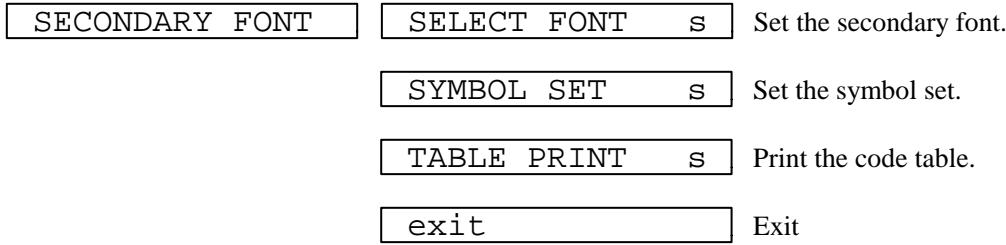

Setting the Font and Symbol Set in the HP LaserJet Mode 4-53

Setting the Font and Character Set in the EPSON FX-850, or IBM Proprinter XL Mode 4-58

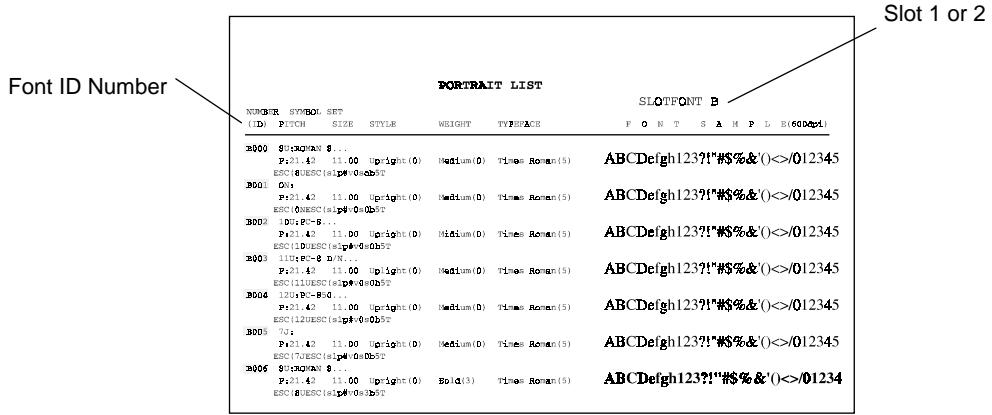

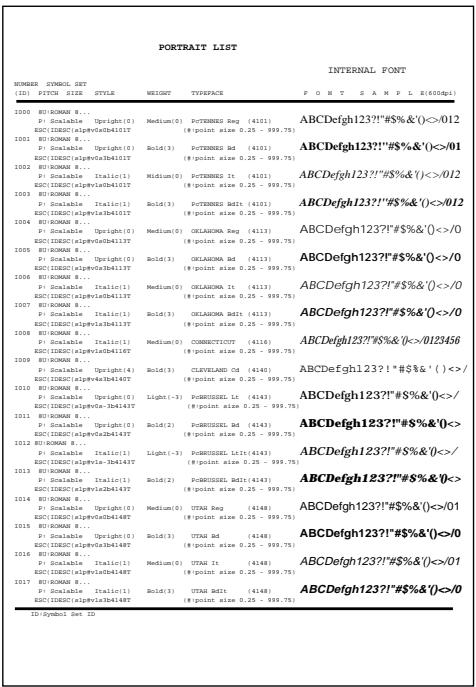

List of Fonts 4-63

List of Symbol/Character Sets 4-64

FORM FEED Switch (REPRINT Switch) 4-65

Form Feed. 4-65

Reprint Function 4-65

CONTINUE Switch 4-67

SWITCHES IN SHIFT MODE 4-68

SHIFT Switch 4-68

EMULATION Switch 4-69

About Emulation Modes 4-71

ECONOMY Switch 4-73

TONER SAVE MODE 4-73

POWER SAVE MODE 4-73

FEEDER Switch 4-74

FEEDER 4-74

MP FIRST 4-76

MANUAL FEED 4-77

MP TRAY SETTING 4-78

MEDIA TYPE 4-79

DUPLEX MODE 4-80

COPY Switch 4-81

RESET Switch 4-82

List of Factory Settings. 4-84

TEST Switch. 4-89

HEX DUMP MODE 4-92

CHAPTER 5 OPTIONS 5-1

LOWER TRAY UNIT (LT-2000) 5-1

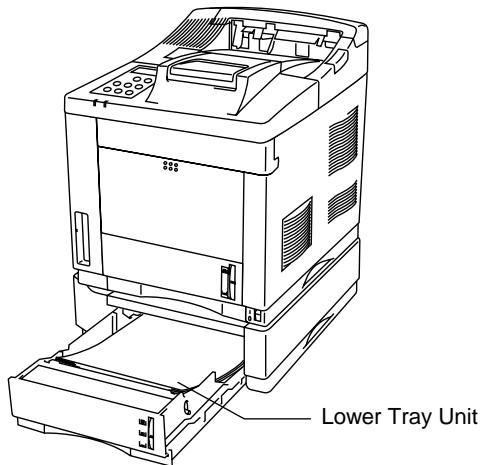

Loading Paper from the Lower Paper Cassette 5-1

FONT CARD, FLASH MEMORY/HDD CARD 5-3

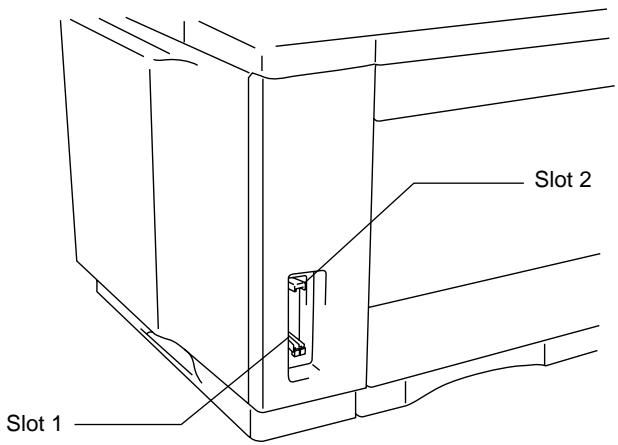

Installing a Font Card, Flash Memory Card and

HDD Card 5-3

Selecting the Optional Fonts 5-5

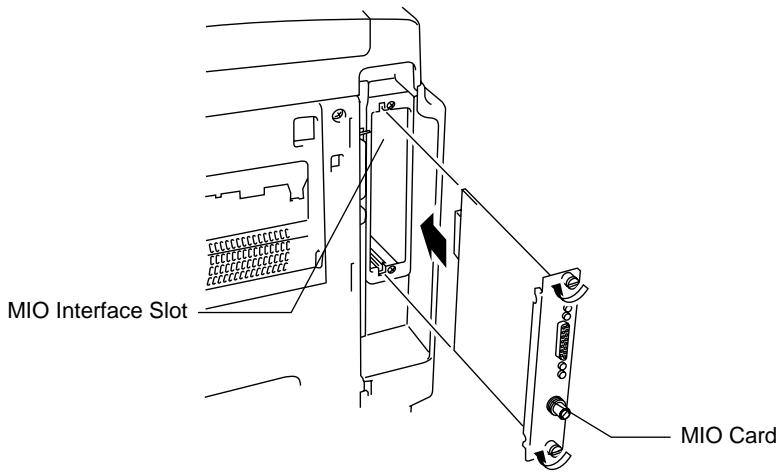

MODULAR I/O CARD 5-7

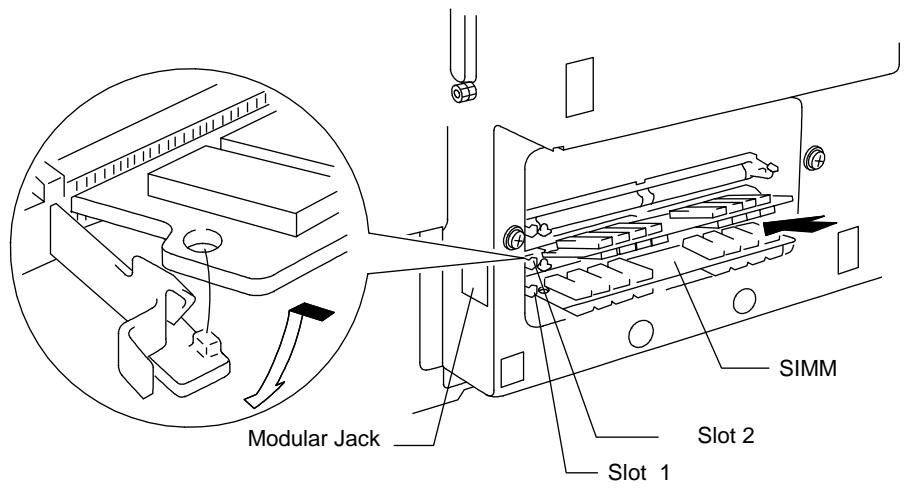

RAM EXPANSION 5-8

DUPLEX UNIT (DX-2000) 5-13

CHAPTER 6 MAINTENANCE 6-1

MAINTENANCE 6-1

Toner Cartridge 6-1

Toner Empty Message 6-1

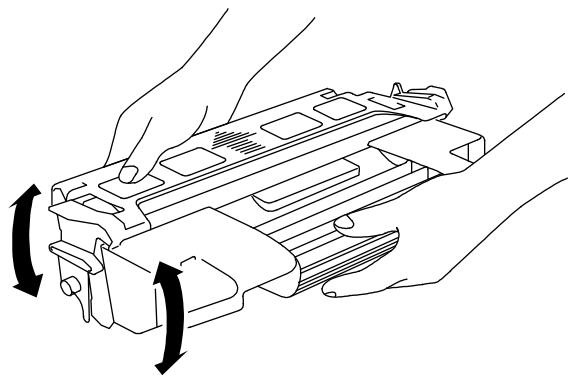

Replacing the Toner Cartridge. 6-2

Cleaning 6-5

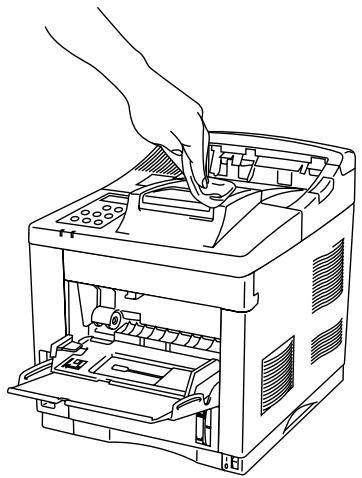

Cleaning the Printer Exterior 6-5

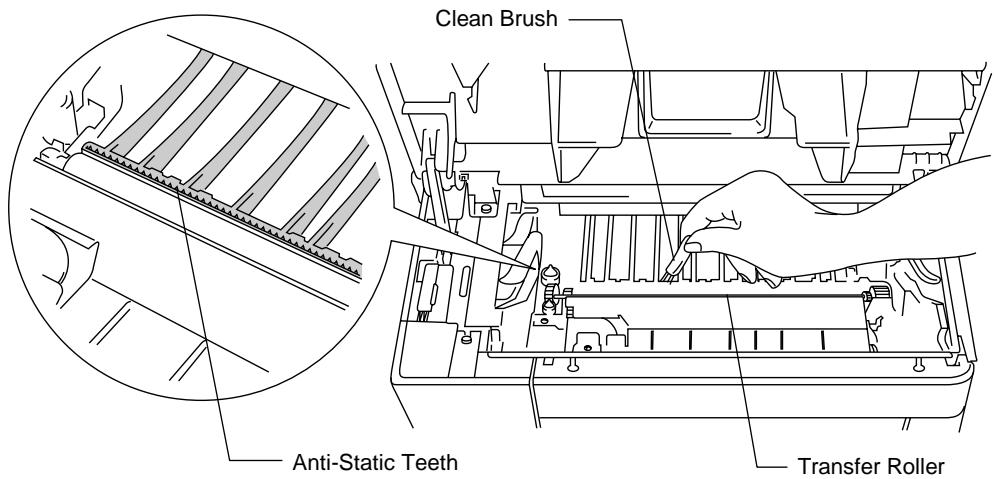

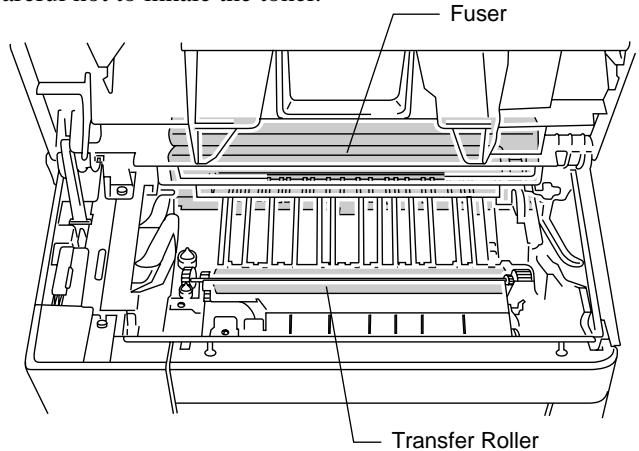

Cleaning the Printer Interior 6-6

MAINTENANCE MESSAGES 6-8

CHAPTER 7 TROUBLESHOOTING 7-1

TROUBLESHOOTING 7-1

Operator Call Messages. 7-1

Error Messages 7-3

Service Call Messages 7-5

Possible Problems. 7-6

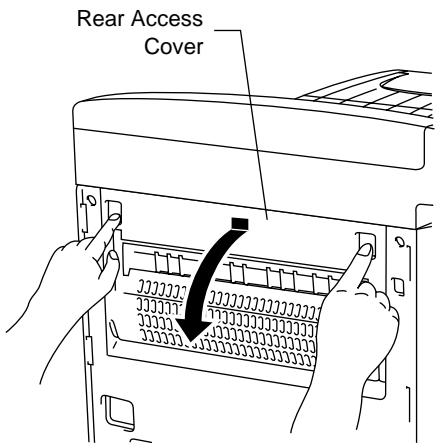

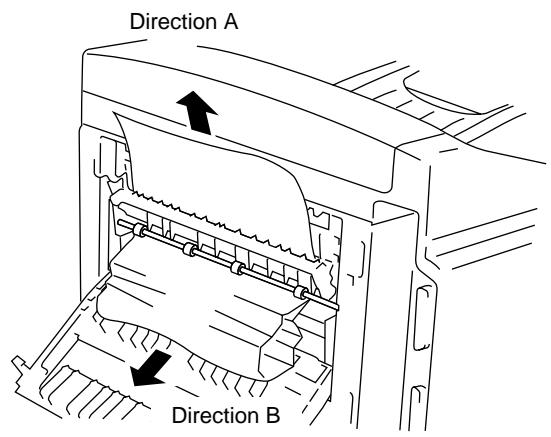

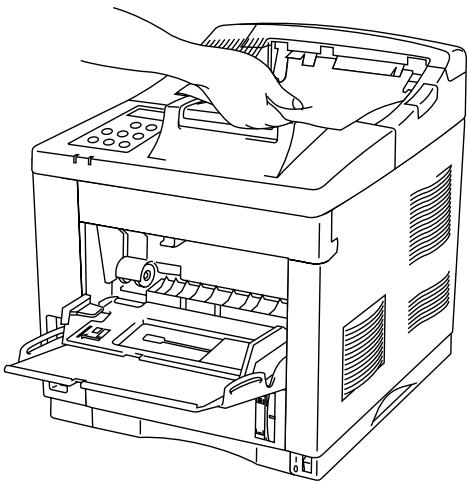

Paper Jam. 7-6

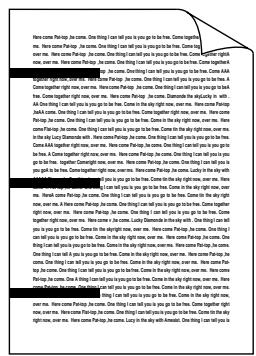

Unsatisfactory Printouts 7-12

APPENDICES . Appendix-1

PRINTER SPECIFICATIONS Appendix-1

Printing.. Appendix-1

Functions . Appendix-2

Electrical and Mechanical.. Appendix-3

PAPER SPECIFICATIONS.. Appendix-4

INTERFACE SPECIFICATIONS Appendix-8

Bi-directional Parallel Interface.. Appendix-8

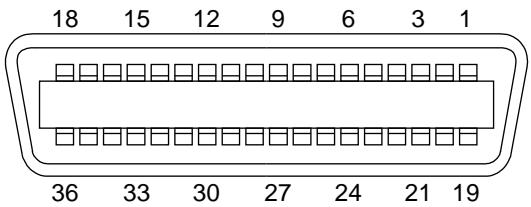

Interface Connector . Appendix-8

Pin Assignment . Appendix-8

Signal Description . Appendix-9

Parallel Cable Connection for IBM-PC/AT or Compatible and IBM-PS/2 Computers . Appendix-10

RS-232C Serial Interface.. Appendix-11

Standard Specifications.. Appendix-11

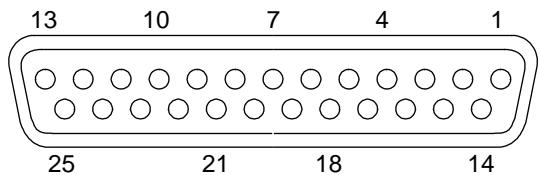

Interface Connectors.. Appendix-11

Pin Assignment . Appendix-11

Signal Description . Appendix-12

Serial Cable Connection for IBM-PC/AT or Compatible Computers and IBM-PS/2 Computers.. Appendix-13

SYMBOL/CHARACTER SETS

OCR Symbol Sets.. Appendix-15

HP LaserJet Mode . Appendix-16

EPSON Mode.. Appendix-24

IBM Mode . Appendix-27

HP-GL Mode.. Appendix-29

Symbol Sets Supported by the Printer's Intellifont Compatible

Typefaces . Appendix-34

Symbol Sets Supported by the Printer's TrueType and Type 1 Font

Compatible, and Original Typefaces.. Appendix-36

QUICK REFERENCE OF COMMANDS.. Appendix-38

HP LaserJet Mode . Appendix-38

PCL Command Sets.. Appendix-38

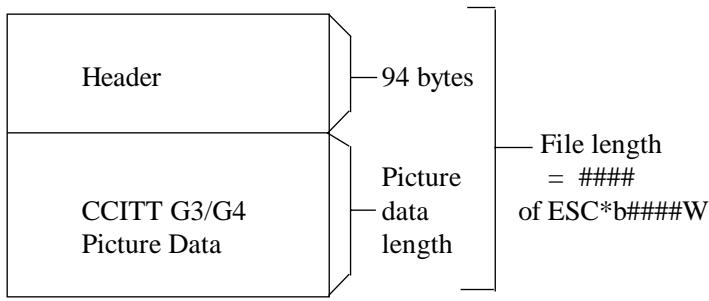

CCITT G3/G4 and TIFF. Appendix-51

Horizontal 1200-dpi Image Format Mode.. Appendix-54

HP-GL/2 Command Sets . Appendix-57

Printer Job Language Commands Syntax.. Appendix-59

EPSON FX-850 Mode.. Appendix-60

IBM Proprinter XL Mode.. Appendix-63

HP-GL Mode.. Appendix-66

Bar Code Control. Appendix-68

Print Bar Codes or Expanded Characters

INDEX

IMPORTANT INFORMATION: REGULATIONS

Federal Communications Commission(FCC) Declaration of Conformity

(For USA Only)

Responsible Party : Brother International Corporation

100 Somerset Corporate Boulevard

Bridgewater, NJ 08807-0911, USA

TEL:[phone]

declares, that the products

Product Name :Brother Laser Printer HL-2060

Model Number : HL-2060

Product Options : Lower Tray Unit LT-200 and Duplex Unit DX-2000

complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Important

A shielded interface cable should be used in order to ensure compliance with the limits for a Class B digital device.

Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user's authority to operate the equipment.

International Energy Star Compliance Statement

The purpose of the International Energy Star Program is to promote the development and popularization of energy-efficient office equipments, which includes computers, monitors, printers, facsimile receivers and copy machines world-wide.

As an International Energy Star partner, Brother Industries, Ltd. has decided that this product meets the guideline of the program.

Industry Canada Compliance Statement (For Canada Only)

This Class B digital apparatus complies with Canadian ICES-003.

Laser Safety (110-120 V model only)

This printer is certified as a Class I laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the printer does not produce hazardous laser radiation.

Since radiation emitted inside the printer is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation.

FDA Regulations (110-120 V model only)

U.S. Food and Drug Administration (FDA) has implemented regulations for laser products manufactured on and after August 2, 1976. Compliance is mandatory for products marketed in the United States. The label shown on the back of the printer indicates compliance with the FDA regulations and must be attached to laser products marketed in the United States.

MANUFACTURED:

BROTHER INDUSTRIES, LTD.

15-1 Naeshiro-cho Mizuho-ku Nagoya, 467-8561 Japan

This product complies with FDA radiation performance standards, 21 CFR chapter 1 subchapter J.

Caution:

Use of controls, adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

Radio Interference(220-240 V model only)

This printer complies with EN55022(CISPR Publication 22)/Class B.

Before this product is used, ensure that you use a double-shielded interface cable with twisted-pair conductors and that it is marked "IEEE1284 compliant". The cable must not exceed 1.8 metres in length

IEC 825 Specification (220-240 V model only)

This printer is a Class 1 laser product as defined in IEC 825 specifications. The label shown below is attached in countries where required.

This printer has a Class 3B Laser Diode which emits invisible laser radiation in the Scanner Unit. The Scanner Unit should not be opened under any circumstances.

Caution: Use of controls, adjustments or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

The following caution label is attached on the cover of the scanner unit.

For Finland and Sweden LUOKAN 1 LASERLAITE KCLASS 1 LASER APPARAT

IMPORTANT - For Your Safety

To ensure safe operation the three-pin plug supplied must be inserted only into a standard three-pin power point which is properly grounded through the normal household wiring.

Extension cords used with the equipment must be three-pin plug type and correctly wired to provide proper grounding. Incorrectly wired extension cords may cause personal injury an equipment damage.

The fact that the equipment operates satisfactorily does not imply that the power is grounded and that the installation is completely safe. For your safety, if in any doubt about the effective grounding of the power, consult a qualified electrician.

Gerauschemission / Acoustic Noise Emission (For Germany Only)

Lpa < 70 dB (A) DIN 45635-19-01-KL2

Wiring Information (For U.K. only)

Important

If the mains plug supplied with this printer is not suitable for your socket outlet, remove the plug from the mains cord and fit an appropriate three pin plug. If the replacement plug is intended to take a fuse then fit the same rating fuse as the original.

If a moulded plug is severed from the mains cord then it should be destroyed because a plug with cut wires is dangerous if engaged in a live socket outlet. Do not leave it where a child might find it!

In the event of replacing the plug fuse, fit a fuse approved by ASTA to BS1362 with the same rating as the original fuse.

Always replace the fuse cover. Never use a plug with the cover omitted.

WARNING - THIS PRINTER MUST BE EARTHED

The wires in the mains cord are coloured in accordance with the following code :

GREEN AND YELLOW : EARTH

BLUE : NEUTRAL

BROWN : LIVE

The colours of the wires in the mains lead of this printer may not correspond with the coloured markings identifying the terminals in your plug.

If you need to fit a different plug, proceed as follows.

Remove a length of the cord outer sheath, taking care not to damage the coloured insulation of the wires inside.

Cut each of the three wires to the appropriate length. If the construction of the plug permits, leave the green and yellow wire longer than the others so that, in the event that the cord is pulled out of the plug, the green and yellow wire will be the last to disconnect.

Remove a short section of the coloured insulation to expose the wires.

The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter "E" or by the safety earth symbol , or coloured green or green and yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter "N" or coloured black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter "L" or coloured red or brown.

The outer sheath of the cord must be secured inside the plug. The coloured wires should not hang out of the plug.

DECLARATION OF CONFORMITY (EUROPE)

We, Brother International Europe Ltd.,
Brother House 1 tame Street, Guide Bridge, Audenshaw, Manchester M34 5JE, UK.

declare that this product is in conformity with the following normative documents:

Safety: EN 60950, EN 60825 EMC: EN 55022 Class B, EN 50082-1

following the provisions of the Low Voltage Directive 73/23/EEC and the Electromagnetic Compatibility Directive 89/336/EEC (as amended by 91/263/EEC and 92/31/EEC).

Manufacture at the following facilities is carried out under a Quality System which is registered by BSI Quality Assurance and JQA Quality Assurance.

Brother Industries, Ltd., Kariya Plant 1-5, Kitajizoyama, Noda-cho, Kariya-shi, Aichi-ken 448-0803, Japan. BSI Certificate of Registration No. FM27391 JQA Certificate of Registration No. 0340

• When used with the DX-2000, this product complies with EN 55022 Class A.

Issued by:

Brother International Europe Ltd. European Development and Technical Services Division

CHAPTER 1GENERAL

ABOUT THIS MANUAL

This manual acts as your guide to the setup and operation of your printer and covers the following topics:

CHAPTER 1 GENERAL provides an overview of the printer. Read this chapter first to get familiar with the printer.

CHAPTER 2 GETTING STARTED gives you general information about this printer. Be sure to read this chapter before you use the printer.

CHAPTER 3 BEFORE WORKING WITH THE PRINTER gives you important information on the printer setup to work with your computer and software. Be sure to read this chapter before you work with the printer.

CHAPTER 4 CONTROL PANEL details the functions of the panel switches and lamps.

CHAPTER 5 OPTIONS describes the optional accessories for this printer.

CHAPTER 6 MAINTENANCE provides guidance on how to maintain your printer

CHAPTER 7 TROUBLESHOOTING helps you troubleshoot the printer in case of problems.

APPENDICES contain detailed technical information on the printer as well as the character sets and a quick reference guide to the printer control commands.

INDEX provides an alphabetical list of the contents of this manual.

Note

When you read this user's guide, note the following:

• This user's guide contains instructions or steps to teach you various operations of the printer. Remember that the instructions start with the factory settings, particularly in Chapter 2 and Chapter 3. If you change the settings, particularly the emulation mode, the display messages change accordingly.
• The paper size has been factory set to letter and legal or A4, depending upon the final destination of the printer. Some display messages appear differently in accordance with this setting.

The supplied CD-ROM contains the following materials.

• Printer Driver & TrueType™ fonts -

You need to configure your PC for the printer by installing the printer driver and TrueType-compatible fonts.

• Other useful utilities -

Several other useful utility software programs are available on the CD-ROM.

• Documentation -

This Setup guide and the User's Guide are available on the CD-ROM. You can view the On-Line guides with the Adobe® Acrobat® Reader software included on the CD-ROM.

If your PC does not have a CD-ROM drive, you can install the printer driver from the supplied floppy disks. For the other software that is supplied on the CD-ROM, it is possible to make disk sets from the CD-ROM if you can get access temporarily to a PC with CD-ROM and Floppy disk drives.

Installing the printer driver and TrueType fonts

For Windows® 95/98/NT4.0

1. Insert the supplied CD-ROM into your CD-ROM drive.
2. Click the Start button and select Settings.
3. Select Printers and double click the Add Printer icon.

1. Select Have Disk.

1. Click the Browse.

1. Open the following directory.

D (or the appropriate directory letter):\driver \pcl \Win31-95\Disk1

D (or the appropriate directory letter) : \ driver \ pcl \ WinNT4

1. Click the OK button.
2. Follow the instructions in Windows 95/98/NT.

For Windows 3.1/3.11

1. Close all the applications running on your PC.
2. Insert the supplied compact disc into the CD-ROM drive.
3. View the contents of the CD-ROM by using File Manager (Windows 3.1/3.11).

1. Open the sub folder (sub-directory) which 'Win31-95' in the folder (directory) 'Driver'.
2. Double click the file 'setup.exe' in the folder 'Disk 1' to run the installer.

After the installer stars, simply follow the instructions that appear on the screen.

Installing the Adobe® Acrobat® Reader Software

You need to install the Adobe Acrobat Reader software to view the User's guide.

1. Close all the applications running on your PC.
2. Insert the supplied compact disc into the CD-ROM drive.
3. View the contents of the CD-ROM by using Explorer (Windows 95/98/NT 4.0) or File Manager (Windows 3.1/3.11).

1. Open the sub folder (sub-directory) which has the required language in the folder (directory) 'Acrobat'.

Ar16x301.exe - Windows3.1/3.11

Ar32X301.exe Windows95/98/NT4.0

X stands for the language version.

1. Double click the file 'ArXXX301.exe' to run the installer.

After the installer starts, simply follow the instructions that appear on the screen.

Viewing the User's Guide

1. Insert the supplied compact disc into the CD-ROM drive.
2. View the contents of the CD-ROM by using Explorer (Windows 95/98/NT 4.0) or File Manager (Windows 3.1/3.11).

1. Open the sub folder (sub-directory) which has the required language in the folder (directory) 'Document'.

Userxxx.pdf - User's Guide

xxx stands for the language version.

1. Double click the file to be opened.
2. The Acrobat Reader software is automatically launched and the required manual will be opened.

Refer to the next section 'How to use the Adobe® Acrobat® Reader'.

How to use the Adobe® Acrobat® Reader

- Bookmarks -

These bookmarks contain the titles of each section. To go to the destination specified by a bookmark, click the bookmark text or double- click the page icon to the left of the bookmark name.

TABLE OF

CHAPTER 1 INT

ABOUT THE GUI Finding Out How ABOUT YOUR PI Printer Overview System Required Features... OPERATING AN

The texts marked with purple color have links to the related pages. The shape of cursor pointer will be changed to the 'finger' when positioned over a link. To go to the destination specified by these links, click on it.

INSTALLATION FROM FLOPPY DISKS

You need to configure Windows for the printer by installing the printer driver and TrueType-compatible fonts from the supplied floppy disks.

For Windows 95/98

1. Insert the supplied floppy disk labeled "disk1" into your floppy disk drive.
2. Click the Start button and select Settings.
3. Select Printers and double click the Add Printer icon.

1. Follow the instructions in Windows 95/98.

For Windows 3.1

Because the supplied printer driver and fonts are compressed on the floppy disks, be sure to use the supplied installer program to install them. These instructions assume you will install the driver and fonts from the floppy disk drive A:.

1. Start Windows 3.1.
2. Insert the supplied disk for Windows into your floppy disk drive.

3. Choose Run from the File menu in the Program Manager.

4. Type the drive name where you inserted the supplied disk and "SETUP" in the box: for example, A:\SETUP. Click the OK button or press the Enter key.

1. The installer program will begin. Follow the instructions on the computer screen. (Be sure to restart Windows when the installation process is completed.)

Note

• The installer automatically updates your SYSTEM.INI Windows file by adding DEVICE=bi-di.386 under the [386Enh] section. If any bi-directional parallel communications device driver has previously been installed, it will be deactivated by this new driver. If you want to use the driver that was previously installed, you should re-install your previous driver. However, re-installing the previous driver will make the HL-2060 series driver inactive.
• The installer makes the installed printer driver the Windows default.
• The installer automatically sets the printer port to the parallel interface, LPT1.
• During this installation, changes have been made to the SYSTEM.INI file. It is necessary to restart Windows so that the changes become effective and the installed bi-directional parallel communications device driver can take effect.

Connecting Your Printer to Your Computer using the USB interface

The Universal Serial Bus is an interface which allows the printer to be connected to multiple peripheral devices. If your PC has a USB port, you can connect the printer to your PC by using the USB interface as described in the following procedure.

Note

• We recommend that you use the USB interface with this printer on Microsoft Windows® 98. Although Microsoft Windows® 95 OSR2.1 supports the USB interface, some PCs do not work correctly with the USB interface.
• Only one Brother printer can be used in the same chain of the USB connection. If more than one Brother printer exists in the same chain of the USB connection, only one printer can be used.
• To obtain the latest driver, refer to the following page on our web site:

http://www.brother.com/english/E-ftp/softwin.html/

Install the USB driver into your PC

1. Turn the printer power off. Connect your PC and HL2060 with the USB interface cable.

1. Turn the printer power on.

The dialog shown on the left will appear on your PC.

Click the Next button.

1. Select "Search for the best driver for your device."

Click the Next button.

1. Insert the supplied CD-ROM into the drive of your PC.

Select "Specify a location" depending on which media you use.

Click the Next button.

1. Click the Next button.

The USB driver is installed.

1. When the dialog shown left appears on your PC, click Finish button.

Be sure to restart Windows 98 so that the installed USB driver will be effective.

Install the printer driver into your PC

When the installation of the USB driver is complete, install the printer driver.

From CD-ROM: Run the CD-ROM program and go to the 'Install driver' menu.

From Floppy disk: Refer to the Software Quick Setup Guide.

Set the printer port to USB

After installing the USB driver and printer driver, the printer port has to be set to 'USB port'.

1. Click the Start button and select Printers in Settings.
2. Select HL-2060 icon in printers so that the selected HL-2060 icon is highlighted.
3. Select Properties from File menu.

4. Click Details tab.

1. Select BRUSB:(USB Printer Port) in the box for "Print to the following port".
2. Click OK to close the properties dialog box.

Troubleshooting

If the printer does not print from the USB port, try reinstalling the USB driver as follows;

1. Double-click the file 'DeinsUSB.exe' in the USB directory of CD-ROM.
2. Turn the printer off and on again.
3. "Add New Hardware Wizard" is launched again, follow the instruction of the Wizard.

Features

This printer has the following standard features. When you need more information on how to use a particular feature, turn to the page indicated at the end of the paragraph.

High Speed and Quiet Laser Printing

This printer uses electrophotography technology by laser beam scanning so that it can print A4 size paper at a speed of up to 20 pages per minute or letter size paper at up to 21 pages per minute. The controller utilizes a high speed 32-bit RISC microprocessor and special hardware chips. The quiet printing will not bother you working in your office or at home: max. 55 dB A (printing)/40 dB A (stand-by) or 52 dB A (printing)/45 dB A (stand-by).

1,200 DPI Resolution

This printer uses a print engine with a resolution of 1,200 dots per inch (dpi). Compared with a 300-dpi engine, the quality of the output is far superior. See page 4-31. By utilizing the 300-dpi mode, the printer can also print 300-dpi data, if necessary. (In HP emulation you can select a horizontal 1200-dpi mode by special control command. See page Appendix-54.)

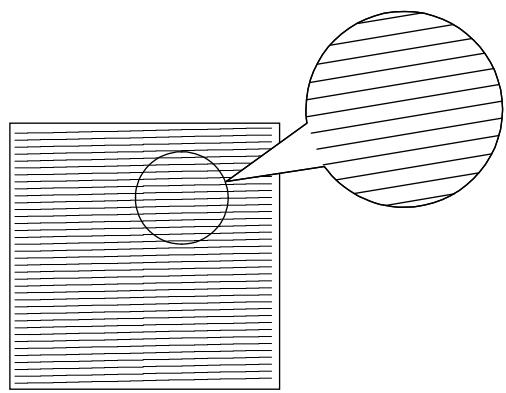

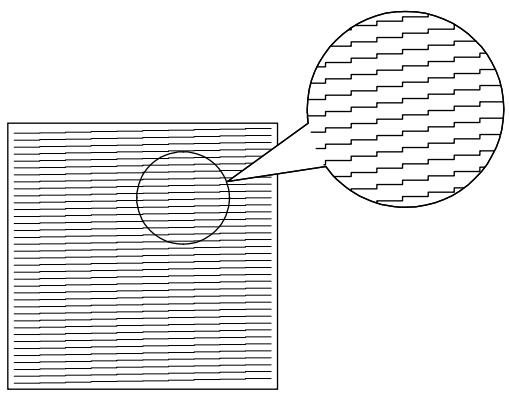

High Resolution Control

The high resolution control (HRC) technology provides clear and crisp printouts. See 4-34.

Maintenance-Free Toner Cartridge

The toner cartridge can print up to 9,000 single-sided pages at 5% coverage. The one piece, easy-to-replace toner cartridge does not require difficult maintenance. Just install it. See 2-7.

Advanced Photoscale Technology

This printer can print graphics in 256 shades of gray in HP® LaserJet 5^TM emulation and BR-Script level 2, producing nearly photographic quality.

Manual Loading

This printer loads paper automatically from the paper cassette. Even envelopes can be loaded from the multi-purpose tray and the upper paper cassette. In addition, the multi-purpose tray allows you to load paper sheet by sheet. See 3-15 for auto loading and manual loading.

Four Interfaces

This printer has a high speed bi-directional parallel interface, an RS-232C serial interface, a Universal Serial Bus (USB) and a modular input/output (MIO) compatible interface.

If your application software supports the bi-directional parallel interface, you can monitor the printer status. It is fully compatible with the industry-standard bi-directional parallel interface. See page 2-15.

The RS-232C serial interface is an industry standard so that you can connect it to any computer using a standard serial cable. See page 2-15.

The Universal Serial Bus is an interface which allows the printer to be connected with multiple peripheral devices. (Window 98 only)

The MIO interface allows you to install a commercial MIO-compatible card. If you install the card, you can use one more interface port for features such as networking or printer sharing. See page 5-7.

Automatic Interface Selection

This printer can automatically select the bi-directional parallel, RS-232C serial, Universal Serial Bus, or MIO interface depending on the interface port through which it receives data. With this feature, the printer can be connected to more than one computer. See page 3-5.

Five Emulation Modes

This printer can emulate the Hewlett-Packard® laser printer-LaserJet 5 (PCL® 6), PostScript® Level 2 language emulation (Brother BR-Script Level 2) printers, the industry-standard HP-GL™ plotter as well as EPSON® FX-850™, and IBM® Proprinter XL® printers. You can print with all application programs that support one of these printers. See page 3-1.

Automatic Emulation Selection

This printer can automatically select the printer emulation mode depending on the print commands it receives from the computer software. With this feature, many users can share the printer on a network. See page 3-3.

Data Compression Technology

This printer can internally compress the received graphics and font data in its memory so that it can print larger graphics and more fonts without additional memory.

Memory Expansion

This printer has 8-Mbytes of RAM as standard. It can be expanded up to 72 Mbytes When you select duplex mode with an optional duplex unit installed, the memory should be expanded to 10Mbytes in total or more to enjoy 600-dpi duplex printing. See pages 4-33 and 5-8. (The standard memory fitted can vary depending on the printer model and country.)

75 Scalable and 12 Bitmapped Fonts

This printer has the following scalable fonts and bitmapped fonts. The fonts that can be used vary according to the current emulation mode.

HP LaserJet, EPSON FX-850, and IBM Proprinter XL Modes

Scalable Fonts:

Intellifont Compatible Fonts:
Alaska, Extrabold
- Antique Oakland, Oblique, Bold
- Brougham, Oblique, Bold, BoldOblique
Cleveland Condensed
Connecticut
- Guatemala Antique, Italic, Bold, BoldItalic
- Letter Gothic, Oblique, Bold
- Maryland
- Oklahoma, Oblique, Bold, BoldOblique
- PC Brussels Light, LightItalic, Demi, DemiItalic
- PC Tennessee Roman, Italic, Bold, BoldItalic
Utah, Oblique, Bold, BoldOblique
Utah Condensed, Oblique, Bold, BoldOblique

Microsoft® Windows® 3.1 / Windows 95/98 TrueType

Compatible Fonts:

• BR Symbol
  Helsinki, Oblique, Bold, BoldOblique
• Tennessee Roman, Italic, Bold, BoldItalic
  W Dingbats

Type 1 Font Compatible Fonts:

• Atlanta Book, BookOblique, Demi, DemiOblique
• Calgary MediumItalic
  Copenhagen Roman, Italic, Bold, BoldItalic
• Portugal Roman, Italic, Bold, BoldItalic

Brother Original Fonts:

Bermuda Script
Germany
San Diego
US Roman

Bitmaped Fonts (Portrait and Landscape):

• LetterGothic16.66 Medium, Italic, Bold, BoldItalic
• OCR-A
  -OCR-B

■ BR-Script 2 Mode

Scalable Fonts:
- Atlanta Book, BookOblique, Demi, DemiOblique
Alaska, Extrabold
- Antique Oakland, Oblique, Bold
Bermuda Script
BR Dingbats
- BR Symbol
- Brougham, Oblique, Bold, BoldOblique
- Brussels Light, LightItalic, Demi, DemiItalic
- Calgary MediumItalic
Cleveland Condensed
Connecticut
Copenhagen Roman, Italic, Bold, BoldItalic
Germany
- Guatemala Antique, Italic, Bold, BoldItalic
- Helsinki, Oblique, Bold, BoldOblique
- Helsinki Narrow, Oblique, Bold, BoldOblique
- Letter Gothic, Oblique, Bold
Maryland
- Oklahoma, Oblique, Bold, Bold Oblique
- Portugal Roman, Italic, Bold, BoldItalic
San Diego
- Tennessee Roman, Italic, Bold, BoldItalic
US Roman
- Utah, Oblique, Bold, BoldOblique
- Utah Condensed, Oblique, Bold, BoldOblique

High Speed Printing with Microsoft Windows 95 / 98 / NT 4.0 / Windows 3.1

Since TrueType compatible fonts are resident in this printer, the printer can print them with Microsoft Windows 95 / 98 / NT 4.0 / Windows version 3.1 at a high speed without downloading them. Because the printer has a TrueType Font rasterizer, it can rasterize fonts at a high speed.

Bar Code Print

This printer can print the following 11 types of bar codes:

Code 39
- Interleaved 2 of 5
EAN-8
EAN-13
- UPC-A
EAN-128

• UPC-E
  Codabar
  US-PostNet
  ISBN
  Code 128

CCITT G3/G4

Since this printer supports the CCITT G3/G4 format in addition to HP-compatible formats, it can quickly receive and print data compressed in this format.

Lock Panel

If the panel switch settings have been changed, the printer may not work as you expect. You can lock your settings to prevent changes from being made. See page 4-46.

Power Save Mode

This printer has a power saving mode. As laser printers consume power to keep the fixing assembly at a high temperature, this feature can save electricity when the printer is on but not being used. The factory setting of the Power Save mode is ON that complies with EPA Energy Star new specification. Compared with conventional laser printers, this printer consumes less power even when the power saving mode is turned off. See page 4-73.

Toner Save Mode

This printer has an economical toner save mode. You can cut your printer running cost substantially by using this mode in addition to the improved life expectancy of the toner cartridge. See page 4-73

Reprint Function

You can reprint the last job printed with a touch of a panel switch which allows reprinting without sending the data again from the computer. See page 4-65.

Font Card, Flash Memory Card and HDD Card

This printer has two slots for an optional font card, flash memory card or HDD card.

If you have installed optional font card(s), you can use the fonts stored in them as well as the resident fonts. For optional font cards, consult the dealer where you purchased the printer.

Saving User Settings

You can operate the printer differently from other users with your own panel switch settings. Two sets of user settings can be stored. See page 4-51.

Options

The following options are available for this printer:

Lower Tray Unit

A lower tray unit expands the paper source capacity. You can load extra paper and switch between the upper and lower paper sources automatically. See page 5-1.

Duplex Unit

A duplex unit enables you to print on both sides of the paper. See page 5-13.

The following commercial products can be installed into this printer:

MIO Card

A commercial modular input/output (MIO) compatible sharing/network card gives you an additional interface port for attaching the printer to a network or sharing your printer with multiple computers. See page 5-7.

Font cards

Commercial font cards containing additional scalable fonts or bitmapped fonts. See page 5-3.

Flash Memory Card and HDD Card

A commercial flash memory card or a HDD card can be installed. You can store fonts, macros, logos, and other print data in a commercial PCMCIA-compatible flash memory card or HDD card. See pages 4-37 and 5-3.

RAM Expansion

Installing commercial memory modules expands the memory capacity up to 72 Mbytes. See pages 5-8.

CHAPTER 2 GETTING STARTED

BEFORE USING THE PRINTER

Checking the Components

Printer Carton

When you unpack the printer, check to see that you have all of the following parts.

Power Cord

Windows Driver/TrueType Compatible Font Disk #1 Windows Driver/TrueType Compatible Font Disk #2 CD-ROM
User's Guide (this book), Software Quick Setup Guide

Upper Paper Cassette (installed inside the printer)

Fig. 2-1 Components in the Printer Carton

Note

• An interface cable is not a standard accessory. Please purchase an appropriate cable according to the interface you intend to use. The power cord may differ slightly from this figure depending on the country where you purchased the printer.

• The paper size has been factory set to letter, legal or A4 depending upon the final destination of the printer.

• 110/120V model: letter or legal size paper set.
  220/240V model: A4 size paper set.

The illustration of the HL-2060 printer in this manual shows the A4 paper cassette installed.

When the letter/legal size paper cassette is installed, it extends beyond the rear of the printer.

The A4 cassette does not extend beyond the rear of the printer.

Toner Cartridge

The toner cartridge is inside the toner cartridge carton.

Caution

The toner cartridge is packed inside a bag. Do not open it now. Open it immediately before you install the toner cartridge. The toner cartridge must not be exposed to light for a long time.

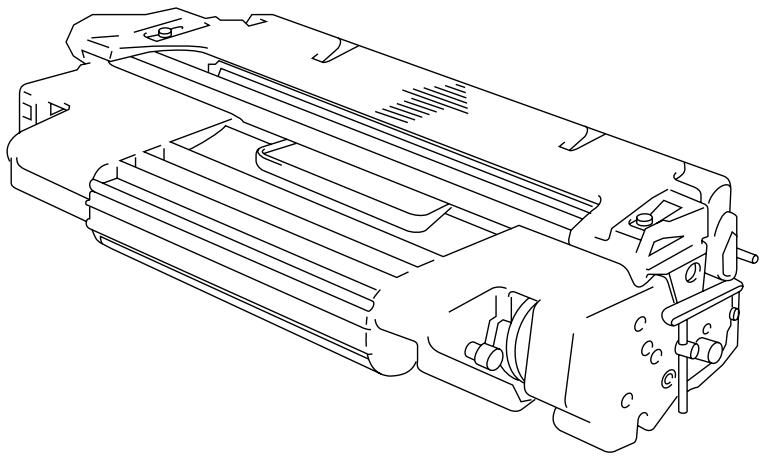

Fig. 2-2 Toner Cartridge

General View

Fig. 2-3 Front View

Fig. 2-4 Rear View

Operating and Storage Environment

Please take note of the following before using the printer.

Power Supply

Use the printer within the specified power range.

AC power: ±10% of the rated power voltage

Frequency: 50 / 60Hz (220-240 V) or 50 / 60Hz (110-120 V)

The power cord, including extensions, should not exceed 5 meters (16.5 feet).

Do not share the same power circuit with other high-power appliances, particularly an air conditioner, copier, shredder, etc. If it is unavoidable that you must use the printer with these appliances, we recommend you use a voltage transformer or a high-frequency noise filter.

Use a voltage regulator if the power source is not stable.

Environment

Use the printer only within the following ranges of temperature and humidity.

Ambient temperature: 10^ to 32.5^ (50^ to 90.5^)

Ambient humidity: 20% to 80% (without condensation)

Do not block the air exit on top of the printer. Do not place objects on top of the printer, especially on the air exit.

Ventilate the room where you use the printer.

Do not place the printer where it is exposed to direct sunlight. Use a blind or a heavy curtain to protect the printer from direct sunlight if the printer is unavoidably set up near a window.

Do not install the printer near devices that contain magnets or generate magnetic fields.

Do not subject the printer to strong physical shocks or vibrations. Do not expose the printer to open flames or salty or corrosive gasses.

Place the printer on a flat, horizontal surface.

• Keep the printer clean. Do not install the printer in a dusty place.
• Do not install the printer near an air conditioner.

Opening and Closing the Printer

To install the toner cartridge or to access the paper path, you need to open the top cover of the printer. Remember the following steps to open and close the printer.

To open the printer, hold both sides of the top cover and raise it upwards until it latches.

Fig. 2-5 Opening the Top Cover

To close the printer, lower the top cover and push both sides gently until it latches.

Fig. 2-6 Closing the Top Cover

Removing the Protective Parts

After checking that you have all of the correct parts, temporarily place the printer where you can easily reach all sides. Remove the protective parts that secure the printer against damage during transportation, as shown below:

Note

Keep all packing materials for transporting or storing the printer later.

1. Open the top cover and the upper paper cassette.
2. Remove the protective parts from inside the printer and the cassette.
3. Remove both spacers from the fixing roller.

Fig. 2-7 Removing the Protective Parts

Fig. 2-8 Removing the Protective Parts

Fig. 2-9 Removing the Spacers

Installing the Toner Cartridge

This printer uses a toner cartridge to print. You have one toner cartridge as standard. A new cartridge contains enough toner to print up to approximately 9,000 A4 or letter-size single-sided pages at about 5% coverage (if the print density is set at level 8).

If you turn on the printer without the toner cartridge installed, the display shows the following operator call message to prompt you to install the toner cartridge.

14 NO CARTRIDGE

To install the toner cartridge, follow these steps:

1. Open the top cover of the printer.
2. Open the bag to unpack the toner cartridge.

Caution

• Do not expose the toner cartridge to direct light.
• Do not stand the toner cartridge on its end or turn it up-side down.

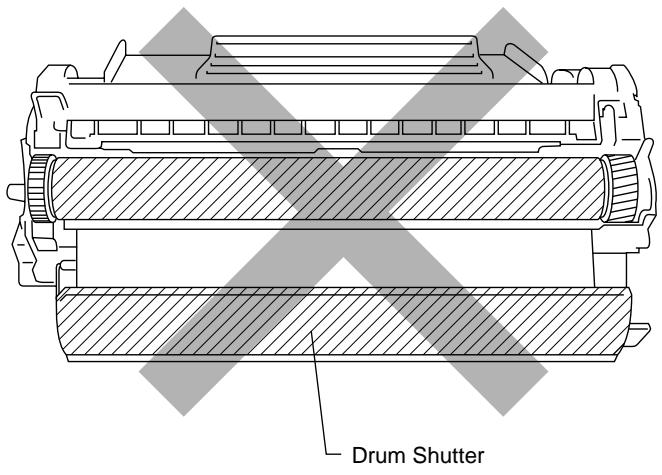

• Do not touch the shaded parts shown below.
• Do not open the drum shutter otherwise the toner or drum is adversely affected and might cause serious damage when printing.

Fig. 2-10 Don'ts When Handling the Toner Cartridge

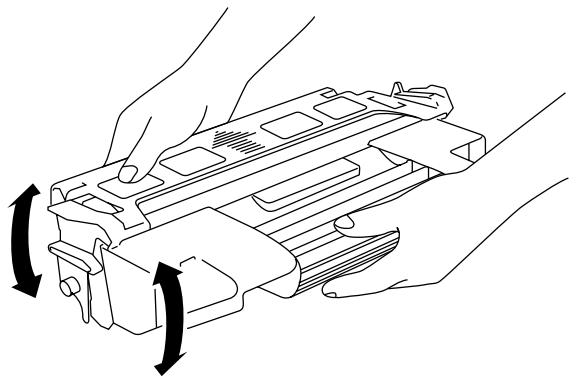

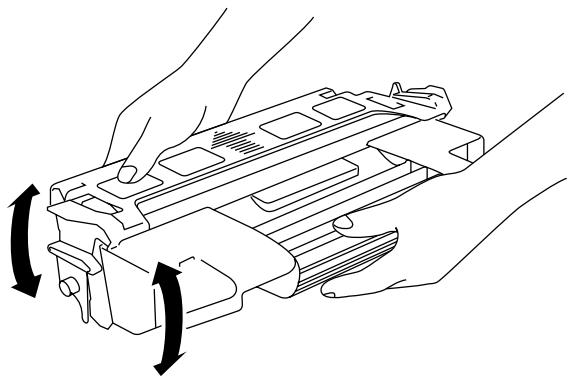

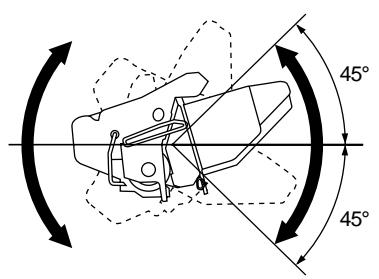

1. Hold the toner cartridge with both hands. Rock it gently several times at a 45^ angle. This distributes the toner evenly inside the cartridge.

Fig. 2-11 Rocking the Toner Cartridge

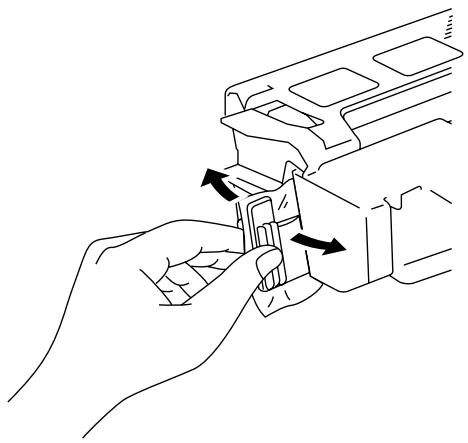

1. Bend the tab up and down several times until it is detached from the toner cartridge.

Fig. 2-12 Detaching the Tab

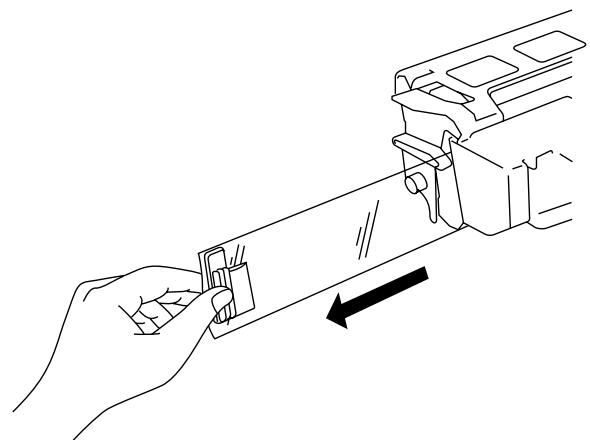

1. Hold the tab firmly and pull it out until the sealing tape comes out all the way.

Fig. 2-13 Pulling Out the Sealing Tape

Caution

If the tab breaks from the sealing tape, hold and pull out the tape. If your hands or clothes get dirty with toner, wipe or wash it off immediately with cold water.

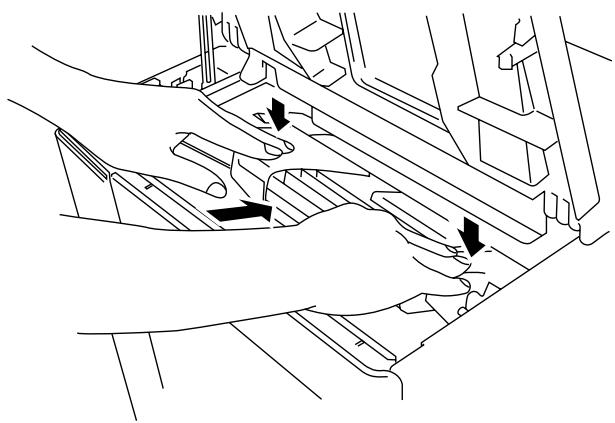

1. Insert the toner cartridge in the direction of the arrows engraved on the cartridge into the side guides until it stops securely in the cartridge holder inside the printer.

Push both sides of the toner cartridge gently until the cartridge is seated in its place.

Fig. 2-14 Inserting the Toner Cartridge

1. Close the top cover of the printer.

When the cartridge has almost run out of toner, the display shows the following operator call message to prompt you to replace the toner cartridge.

16 TONER EMPTY

Although you can print several pages after the toner empty message appears, be sure to replace the toner cartridge with a new one before it becomes completely empty.

Note

You can select the printer's operation when the "Toner Empty" message is displayed with the MODE switch. The printer continues or stops printing. For further information, see "Toner Low" in Chapter 4.

For toner cartridge replacement, see "Toner Cartridge" in Chapter 6.

Loading Paper in the Paper Cassette

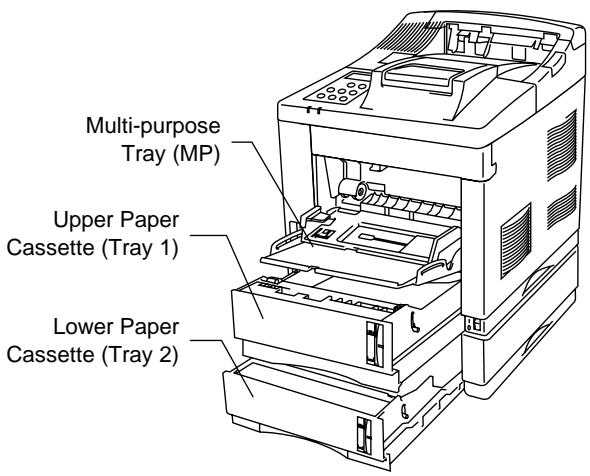

The printer usually loads paper from the installed multi-purpose tray, upper cassette or optional lower paper tray.

Note

The lower tray unit is an option for this printer. This section refers to the upper paper cassette. For information about the lower paper cassette, see "LOWER TRAY UNIT" in Chapter 5.

The paper sources have the following limitation. For more information about paper, see "PRINT MEDIA" in Chapter 3.

paper source	available size	available type and capacity
the multi-purpose tray (MP)	cut sheet : letter, legal and A4 envelope: COM 10, Monarch, C5, DL and ISO B5	plain paper : 150 (80 g/m2or 20 lbs) envelope : 10 OHP film : 100 label stock : 100 other type : weight = 60 to 199 g/m2(16 to 53 lbs)
the upper paper cassette (T1)	cut sheet : letter and legal (letter/legal cassette), A4 (A4 cassette)	plain paper : 500 (80 g/m2or 20 lbs) weight = 60 to 90 g/m2(16 to 24 lbs)
the optional lower paper cassette (T2)	cut sheet : letter and legal (letter/legal cassette), A4 (A4 cassette)	plain paper : 500 (80 g/m2or 20 lbs) weight = 60 to 90 g/m2(16 to 24 lbs)
all sources for duplex printing (DX)	cut sheet : letter, legal, A4, ISO B5 (except T2) and Executive	* The capacity of T1 is reduced from the above specified capacities with when the duplex unit installed.

Note

If you will print paper that is more than 135g / m^2 (36 lbs) from the MP tray, please insert the paper in the MP tray one sheet at a time, and print it by using the face up print output.

Follow these steps to set paper and install the paper cassette:

Note

Be sure to select the same paper size as the paper to be used from your application software, or correct printing cannot be obtained.

If your application software does not support paper size selection on its print menu, you can change the paper size with the MODE switch in the FORMAT MODE. For paper size change, see "MODE Switch" in

Chapter 4.

The paper size has been factory set to letter, legal or A4, depending upon the final destination of the printer.

-110/120V model: letter or legal size paper set.
-220/240V model: A4 size paper set.

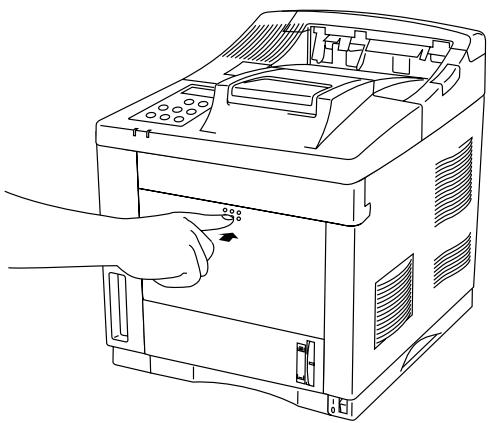

1. Open the multi-purpose tray by pressing the front door of the tray lightly and lowering it gently.

Note

Pull out the extension tray of the multi-purpose tray for long paper if it is necessary.

Fig. 2-15 Opening the Multi-purpose Tray and Pulling Out the Extension Tray

1. Lift up and slide the paper width guide to the far right side.
2. Place a stack of paper or envelopes on the tray until it is securely seated.

Note

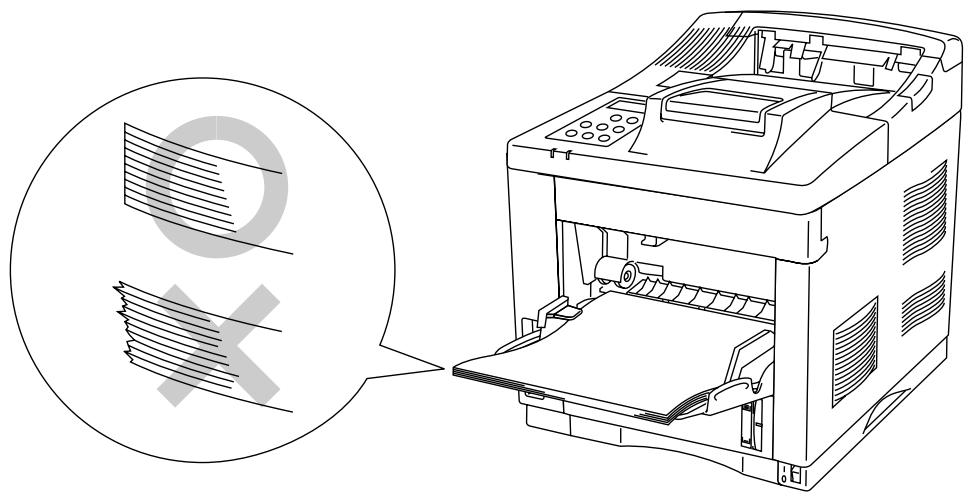

When you place paper on the multi-purpose tray, note the following:

• If you will be printing on paper that is more than 135g / m^2 (36 lbs) from the MP tray, please insert the paper in the MP tray one sheet at a time and print it by using the face up print output.
• The print surface must be face up.
• The leading edge must be placed inside first and lightly against the printer.
• The left side must be aligned with the left guide.
• The top of the paper stack must be under the holders on both sides of the tray. The maximum thickness is 15mm or 0.59 inches.

Fig. 2-16 Placing Paper on the Multi-purpose Tray

1. Lift up and slide the paper width guide to match the paper width, so that it lightly touches the right side of the paper stack.

Caution

• Make sure that the neatly stacked paper is correctly seated on the multi-purpose tray, otherwise paper may not be fed correctly, resulting in a skewed printout or a paper jam.
• When printing, the inside tray automatically rises to feed paper into the printer.

Connecting the Printer to Your Computer

This printer has a bi-directional parallel interface, an RS-232C serial interface, and a Universal Serial Bus (USB) interface. They allow the printer to communicate with IBM/PC® or compatible computers. Before connecting the printer and computer, you need to purchase or make a connecting cable specifically for the interface to be used. See "INTERFACE SPECIFICATIONS" in Appendix.

Since the automatic interface selection mode has been factory set, simply connect the interface cable to the printer. In some cases, you need to turn off the high-speed and bi-directional parallel communications with the MODE switch. For further information, see "MODE Switch" in Chapter 4.

When you use the serial interface, you need to have the same communications settings on both the printer and computer. Since the automatic interface selection mode has been factory set with certain factory settings (baud rate = 9600, code type = 8 bits, parity = none, stop bit = 1, Xon/Xoff = ON, DTR (ER) = ON, and Robust Xon = ON), you may simply connect the interface cable if these are the same as the settings on your computer. When necessary, set the communications parameters with the MODE switch on the printer. For further information, see "MODE Switch" in Chapter 4. For the settings on the computer, see the manual of the computer or software you use.

Connect the printer to your computer as follows:

1. Make sure that both the computer and the printer are turned off.

Caution

• Always turn off the printer and computer when connecting and disconnecting the cable.

• When connecting and disconnecting the cable from the Universal Serial Bus interface, however, it is not necessary to turn off the printer and computer.

• Connect one end of the interface cable to the interface connector located on the back of the printer.

• Secure the connection with wire clips or screws on the printer.

Fig. 2-17 Connecting the Printer and Computer

1. Connect the other end of the interface cable to the interface connector on your computer. Be sure to secure the connection on the computer, also.

Turning the Printer On and Off

Plugging in the Power Cord

Plug in the power cord as follows:

1. Make sure that the POWER switch is OFF "O": the switch is on the front right hand side of the printer.
2. Attach the power cord to the printer and plug it into an appropriate AC outlet.

Fig. 2-18 Plugging in the Power Cord

Caution

• Check the AC voltage. This printer should be operated at the specified voltage and frequency.

USA and Canada: AC 110 to 120V 50 / 60Hz
- Europe and Australia: AC 220 to 240V , 50/60Hz

• Since this printer must be electrically grounded, the power cord should be connected to a grounded AC outlet.
• The total length of the power cord, including extension cords, should not exceed 5 meters (16.4 feet). Use of a longer power cord may result in reduced voltage or malfunctions.
• Do not unplug the power cord to turn off the printer.
• The printer should be installed near a power outlet which is easily accessible.

Pressing the POWER Switch

The POWER switch is on the front right hand side of the printer. Pressing the ON side “|” supplies power to the printer, which then performs a self test and warm up. Pressing the OFF side “O” turns the power off.

Fig. 2-19 Pressing the POWER Switch

Caution

Always wait at least 2 seconds after turning off the power before turning it back on.

Do not turn the power off while the printer is printing, as this may cause a paper jam and adversely affect the printer.

The printer performs a self-diagnosis at start-up to check its hardware and software. If the printer should find any problems, the display will show the corresponding message. See "TROUBLESHOOTING" in Chapter 7.

04 SELF TEST

The display shows several messages quickly at start-up. If the printer detects no errors, it automatically goes on-line and the message changes to show the current printer status and settings.

LJ READY 001P T1

LJ : The auto emulation selection is set and currently the HP LaserJet emulation mode is selected.

READY: The printer is ready to print.

001 : The number of copies to print is set to 1 .

P: Portrait print is selected.

T1: Paper is fed from Tray 1.

Printing the Test Patterns or Lists

You can check print quality and print a list of available fonts before you actually start working with the printer. To do so, follow these steps:

1. Make sure that you have already set the toner cartridge and loaded paper into the cassette or the multi-purpose tray.
   2 Turn on the printer. Wait until the display shows the message as follows.

or

LJ READY 001P MP

1. Press the SEL switch to set the printer off-line.

The ON LINE lamp goes off.

1. Hold down the SHIFT switch and press the TEST switch.
2. Press the or switch to scroll through the display until the desired message appears. To print your selection, press the SET switch.

Choose from one of the following selections :

To print out the demo page,

DEMO PAGE

To print out the test pattern,

TEST PRINT

To print out the list of printer settings,

PRINT CONFIG

To print out the list of internal or resident fonts,

PRINT FONTS I

To print out the list of optional font card,

PRINT FONTS C

To print out the list of permanent download fonts,

PRINT FONTS P

To exit from the test mode,

exit

Note

The messages "PRINT FONTS C" or "PRINT FONTS P" appear only when an optional font card is installed in the font slot or the permanent download fonts are stored in printer memory respectively.

• If the optional font card is installed, you can print out a list of optional fonts. Since the list shows the ID numbers specific to each optional font, it helps you to select them with the FONT switch. For further information, see “FONT Switch” in Chapter 4 and “FONT CARD, FLASH MEMORY/HDD CARD” in Chapter 5.

• If user-defined characters are already downloaded into the printer memory as permanent download fonts, you can print out a list of them. For further information, see "FONT Switch" in Chapter 4.

• Press the SET switch.

The printer starts printing the selected test pattern or list. When the printer finishes printing, it automatically exits to the off-line state.

TEST PRINT

PRINT CONFIG

PRINT FONTS I
Fig. 2-20 Test Pattern, Setting List, and Font List

Checking the Printed Test Pattern or Demo Page

After you print out the test pattern or demo page as described in the previous section, take a look at the printed sheet to check print quality.

The printer has been shipped with the print density properly adjusted with the control panel switches. If you are not satisfied with the printout (too light or dark for example), adjust the print density as follows:

1. Turn on the printer.
2. Press the SEL switch to set the printer off-line state.
3. Press the MODE switch.
4. Press the or switch to scroll through the display until the "ADVANCED MODE" appears.
5. Press the SET switch.
6. Press the or switch to scroll through the display until the "PRINT DENSITY" appears.
7. Press the SET switch.
8. Press the or switch until the desired print density value appears.

The value can change from 1 (light) to 15 (dark).

1. Press the SET switch.
2. Press the SEL switch to exit from the mode menus and set the printer on-line state.

For more information, see "MODE Switch" in Chapter 4.

CHAPTER 3

BEFORE WORKING WITH THE PRINTER

SOFTWARE COMPATIBILITY

Before working with your application software, you need to set up or install the printer driver in your software. Locate the printers that your application software supports and install the desired printer driver. Each software package differs in the way the printer driver is selected. Read the software manual and follow the setup or installation procedures.

Be sure to select the printer emulation mode that matches the installed printer driver. This printer emulates particular printer models of the following manufacturers. Since this printer has been factory set with the automatic emulation selection on, you may not need to select the emulation mode. When necessary, select the appropriate printer emulation mode with the panel switches according to the printer driver installed in your application software. See "CHAPTER 4 CONTROL PANEL."

Printer Driver	Emulation Mode
HL 2060	HP LaserJet 5
HL 1660/1660e	HP LaserJet 5
HL 1260/1260e	HP LaserJet 5
HP LaserJet 5	HP LaserJet 5
HP LaserJet 4/4+	HP LaserJet 5
HL-10h	HP LaserJet 5
HP LaserJet 4+	HP LaserJet 5
HL 2060	BR-Script 2
HL 1660/1660e (BR Script 2)	BR-Script 2
HL 1260/1260e	BR-Script 2
PostScript® level 2 language printer	BR-Script 2
HL-10h (BR-Script)	BR-Script 2
HL-10PS/DPS	BR-Script 2
HL-8PS	BR-Script 2
Apple® LaserWriter® II NT/NTX	BR-Script 2
PostScript® language printer	BR-Script 2
* HP 7475ATM	HP-GL
HP-GLTM	HP-GL
* EPSON FX-850	EPSON FX-850
EPSON FX-80TM	EPSON FX-850
* IBM Proprinter XL	IBM Proprinter XL
IBM Proprinter®	IBM Proprinter XL

To get the most out of this printer, you need to install the printer driver for this printer or the HP LaserJet and select the HP LaserJet emulation mode: this is the best combination. When any other HP LaserJet series printer driver is installed, select the HP LaserJet emulation mode. When any other printer driver is installed, select the HP-GL, BR-Script 2, EPSON, or IBM emulation mode according to the installed printer driver. You may find difficulty in printing EPS file format pictures with the HP LaserJet mode. In this case, it is better to select the BR-Script 2 mode.

An asterisk (*) indicates the best or recommended combination of the printer driver and emulation mode. Be sure to use any of these best or recommended combinations if circumstances permit. When an emulation mode other than the HP mode or BR-Script 2 is selected, the printout may differ slightly from the printout that the target printer produces.

For Windows 95/98/NT 4.0 or Windows 3.1 users, to get the best performance from your printer, install the driver supplied with your printer.

AUTOMATIC EMULATION SELECTION

This printer has an automatic emulation selection function. When the printer receives data from the computer, it automatically selects the emulation mode. This function has been factory set to ON.

The printer can select the emulation among the following combinations:

EPSON/IBM Priority	EPSON (default)	IBM
Auto Selection Mode	HP LaserJet	HP LaserJet
	BR-Script 2	BR-Script 2
	HP-GL	HP-GL
	EPSON FX-850	IBM Proprinter XL

To get the most out of this laser printer, we recommend you use the HP LaserJet emulation mode, which is a true laser printer mode. Since the HP LaserJet mode takes the highest priority in the automatic emulation selection, you can start using the printer as it is with the factory settings in most cases.

When the automatic emulation selection is active, you can check the current emulation on the display. When the printer is in ready, print, or wait states, the display reads as follows:

Emulation	Status Display in Ready State
HP LaserJet	LJ	READY	001P	T1
BR-Script 2	BS	IDLE	001P	T1
HP-GL	GL	READY	001P	T1
EPSON FX-850	FX	READY	001P	T1
IBM Proprinter XL	PR	READY	001P	T1

To select the emulation mode manually, use the EMULATION switch. For further information, see "EMULATION Switch" in Chapter 4.

Note

When you use the automatic emulation selection, note the following:

• Once the emulation is automatically changed, it is not changed again for a short period of time. This time period is called "Time Out" and it can be set with the EMULATION switch. The factory setting is 5 seconds.
• The EPSON or IBM emulation mode priority must be selected, as the printer cannot distinguish between them. Since the factory setting is the EPSON emulation mode, you might need to select the IBM emulation mode with the EMULATION switch when you need to use this emulation.
• Try this function with your application software or network server. If the function does not work properly, select the required emulation mode manually using the printer panel switches or use emulation selection commands from your software.

AUTOMATIC INTERFACE SELECTION

This printer has an automatic interface selection function. When the printer receives data from the computer, it automatically selects the bidirectional parallel, Universal Serial Bus (USB) interface, RS-232C serial interface or MIO interface as appropriate.

When you use the parallel interface, you can turn the high-speed and bidirectional parallel communications on or off with the MODE switch. For further information, see "MODE Switch" in Chapter 4. Since the automatic interface selection mode has been factory set to ON, simply connect the interface cable to the printer.

When you use the serial interface, you need to have the same communications settings on both the printer and computer. Since the automatic interface selection mode has been factory set with certain settings, you may be able to simply connect the interface cable to the printer if your computer has the settings listed below.

Communications Parameters	Factory Settings
Baud rate (data transfer speed)	9600
Code type (data length)	8 bits
Parity (data error check)	None
Stop bit (data separator)	1 stop bit
Xon/Xoff (handshake protocol)	ON
DTR (ER)	ON
Robust Xon	OFF

If a commercial interface card has been installed in the MIO card slot, it can be selected automatically.

When necessary, select the interface or the serial communications parameters manually with the MODE switch (INTERFACE MODE) on the printer. For further information, see "MODE Switch" in Chapter 4. For the settings on the computer, see the manual of the computer or software you are using.

Note

When you use the automatic interface selection, note the following:

• Once the interface is automatically changed, it is not changed again for a short period of time. This time period is called "Time Out" and it can be set with the MODE switch. The factory setting is 5 seconds.
• The communications parameters [ baud rate, code type, parity, stop bit, Xon/Xoff, DTR(ER), and Robust Xon] must be set for the serial interface. Although they have been factory set as shown in the above table, you may need to change them with the MODE switch.
• This function takes a few seconds to work. If you want to speed up printing, select the required interface manually with the MODE switch.

If you constantly use only one interface, we recommend that you select that interface in the interface mode. The printer allocates all of the input buffer to that interface if only one interface is selected.

ABOUT THE CONTROL PANEL

Selecting the Local Language Display

The display usually shows the current printer status. When you operate the control panel switches, it shows functions and settings. If any problems occur, it shows the corresponding error message. You can see these messages in several languages. The default language is English.

• English

• German

• Spanish

Norwegian

• Danish

• French

Dutch

Italian

• Finnish

• Portuguese

To change to another language:

1. Turn off the printer.
2. Hold down the FORM FEED switch and turn on the printer.

The message "SELF TEST" appears and then the message changes to "LANG.=ENGLISH *".

1. Press the or switch until your desired language appears on the display.
2. Press the SET switch to make the selected language message effective.

An asterisk (*) appears at the end of the display for a short time, and then the printer automatically returns to on-line state with the selected language message on the display.

Turning the Maintenance Message Off

This printer periodically prompts you to replace parts to enjoy high quality and reliable printing jobs.

Turning the messages off:

You can turn these messages off by taking the following steps.

1. Turn on the printer with pressing the "FORM FEED" key.
2. Choose "MAINTENANCE" with the key and press the SET key.
3. Choose "MAINTENANCE = OFF" with the key and press the SET key.

Using the Panel Switches

The printer has a versatile control panel. It has two operation modes:

When you press the switches, they work in the NORMAL mode as indicated above the switches. When you press the switches with the SHIFT switch held down, they work in the SHIFT mode as indicated below the switches. You can control the basic printer operations and make various printer settings in the NORMAL and SHIFT modes.

For further information, see "SWITCHES IN NORMAL MODE" and "SWITCHES IN SHIFT MODE" in Chapter 4.

Fig. 3-1 Switch Operation in NORMAL and SHIFT Modes

Note

When the printer is in use in the BR-Script 2 mode, some switches are not used.

Printer Settings

You may operate the printer with the panel switch settings unchanged. They have been factory set. When necessary, change and store them in the printer memory as user settings.

There are two types of printer settings available on this printer:

1. User Settings
2. Factory Settings

Remember that the user settings override the factory settings. The user settings are effective until other settings are made or they are restored to the factory settings.

User Settings

Although the printer settings have been factory set, you can change them with the control panel switches. Since this printer has a memory, you can store the panel switch settings in the memory as "User Settings." They are recalled every time you turn on the printer.

In addition to the current settings, you can save two more sets of user settings with the MODE switch and restore to them with the RESET switch. The current settings are cleared after restoring one of the saved user settings.

Factory Settings

The printer settings have been set at the factory before shipment. They are called "Factory Settings." Although you can operate the printer with these factory settings unchanged, you can tailor the printer by making user settings.

Note

Changing the user settings does not affect factory settings. You cannot modify the preset factory settings.

The changed user settings can be restored to the factory default settings with the RESET switch. For further information, see "RESET Switch" in Chapter 4.

Print Media

Paper Size

1. The upper paper cassette

You can use letter and legal or A4 sizes of paper in the paper cassette. The cassette can hold up to 500 sheets of paper (80 g/m² or 20 lbs).

110/120V model: letter or legal size paper set.
220/240V model: A4 size paper set.

2. The multi-purpose tray

The multi-purpose tray is the most useful feeder for you to handle many types of paper. The multi-purpose tray can hold up to 150 sheets of paper (80 g/m² or 20 lbs) or up to 10 envelopes.

The paper types and sizes that can be fed from the multi-purpose tray are as follows:

• Plain paper from 95mm× 216mm (3.75''x8.5'') to 148mm× 356mm (5.8''x14'') [Weight = 60 to 199g / m^2 (16 to 53 lbs)]
  Overhead projector (OHP) films
• Colored paper
  Label stock
• Envelopes of COM10, Monarch, C5, DL, or ISO B5 size

3. The optional lower paper cassette (option)

The paper cassette expands the paper source capacity, The cassette can hold up to 500 sheets of paper (80 g/m² 20 lbs). You can use letter and legal or A4.

4. The duplex unit

The duplex unit can handle letter, legal, A4, Executive and ISO B5 (except Tray 2) size papers from the feeders.

Note

If you will be printing on paper of more than 135g / m^2 (36 lbs) weight from the MP tray, please place the paper in the MP tray one sheet at a time and print it by using the face up output.

paper source	available size	available type and capacity
the multi-purpose tray (MP)	cut sheet : letter, legal and A4, envelope: COM 10, Monarch, C5, DL and ISO B5 other size: wide 95-216mm (3.75"-8.5") long 148-356mm (5.8"-14")	plain paper : 150 (80 g/m2or 20 lbs) envelope : 10 OHP film : 100 label stock : 100 other type : weight = 60 to 199 g/m2(16 to 53 lbs)
the upper paper cassette (T1)	cut sheet : letter and legal (letter/legal cassette), A4 (A4 cassette)	plain paper : 500 (80 g/m2or 20 lbs) weight = 60 to 105 g/m2(16 to 28 lbs)
the optional lower paper cassette (T2)	cut sheet : letter and legal (letter/legal cassette), A4 (A4 cassette)	plain paper : 500 (80 g/m220 lbs) weight = 60 to 90 g/m2(16 to 24 lbs)
all sources for duplex printing (DX)	cut sheet : letter, legal, A4, ISO B5 (except T2) and Executive	* The capacity of T1 is reduced from the above specified capacities with the duplex unit installed.

Using Envelopes

Avoid using envelopes with the following characteristics:

• Smooth or shiny surfaces
• Protection cover at envelopes' adhesive parts
• Sealing flaps that have not been folded at purchase
• Sealing flaps as shown below

• Three or more layers of paper in the marked area

Each side folded as shown below

Fig. 3-2 Envelope Information

Before loading envelopes in the cassette, check the following:

• Envelopes should have a lengthwise sealing flap.
• The sealing flaps should be crisply and correctly folded (irregularly cut or folded envelopes may cause paper jams).
• Envelopes should consist of two layers of paper in the following marked area.

Fig. 3-3 Envelopes

Note

If envelopes get smudged during printing, set the print density to a higher value in the ADVANCED MODE with MODE switch for darker printouts. To adjust the print density setting, see "Checking the Printed Test Pattern or Demo Page" in Chapter 2.

• Envelope joints that are sealed by the manufacturer should be secure.
• All sides should be properly folded without any wrinkles or creases.

Cassette Feed

The printer can feed paper from the multi-purpose tray, the upper cassette and the optional lower paper cassette. You can select the multi-purpose tray as a paper cassette with the FEEDER switch. Since the auto paper feed mode has been factory set, the printer usually feeds paper from the upper paper cassette. When the optional lower paper cassette is installed and the upper paper cassette runs out of paper, the printer automatically switches to the lower paper cassette. When the lower paper cassette runs out of paper or it is not installed, the printer automatically switches to the multi-purpose tray (T1 > T2 > MP) and feeds from there as long as they contain paper of the same size. When necessary, select the feeder with the FEEDER switch. For further information, see "FEEDER Switch" in Chapter 4. For information about the lower paper cassette, see "LOWER TRAY UNIT" in Chapter 5.

Note

When you load paper into the multi-purpose tray or the paper cassette, note the following:

• If you use the multi-purpose tray, the paper size has to be manually set in the MP TRAY SETTING mode with the FEEDER switch.
• If your application software supports paper size selection on the print menu, you can select it through the software. If your application software does not support it, you can set the paper size with the MODE switch.
• The paper size has been factory set to letter for 110/120V models or A4 for 220/240V models. If you want to use other sizes of paper or envelopes, change the paper size in the PAGE FORMAT MODE of the FORMAT MODE with the MODE switch. For paper size selection, see "MODE Switch" in Chapter 4.
• If you use pre-printed paper in the cassettes, please note that the paper should be loaded with the printed side face down and the top of the paper to the front of the cassette. If you use pre-printed paper in the multi-purpose tray, the paper should be loaded with the printed side face up and the top of the paper towards the printer.

You can set the paper size for the paper cassette with the MODE switch in the PAGE FORMAT mode. The printer automatically detects the paper size you set in the paper cassette. If you load a different size of paper in the paper cassette from the size selected with the MODE switch or through your application software, the printer prompts you to set the proper size of paper as follows:

( * * ) indicates the paper size you have selected with the MODE switch in the PAGE FORMAT mode or through your application software.)

Fig. 3-4 Cassette Feed

Manual Feed

When you set paper in the multi-purpose tray with the setting MANUAL FEED = ON selected with the FEEDER switch, the printer loads paper only from the multi-purpose tray regardless of the previous feeder selection. When you select the setting PAPER IN = CONT in the MP TRAY SETTING mode, the printer loads paper automatically from the multi-purpose tray. When you select the setting PAPER IN = STOP, the printer waits for you to press the SEL key to start printing. You can set the paper feed mode and the paper size with the FEEDER switch. For further information, see "FEEDER Switch" in Chapter 4.

Note

When you feed paper manually, note the following:

• If your application software supports a manual feed selection in the print menu, you can select it through the software. Since the software or command setting overrides the switch setting, you do not need to set the manual feed mode and the paper size with the FEEDER switch.
• If you use pre-printed paper in the multipurpose tray, please note that it is inserted with the pre-printed side face up. Insert the top of the page towards the printer in the multi-purpose tray.

Face Down Print Delivery

The printer normally ejects paper onto the top of the printer with the printed page face down.

Fig. 3-5 Face Down Print Delivery

Face Up Print Delivery

You can change the print delivery path from the top to the rear of the printer. Push down the knob located inside the rear paper slit on the left of the paper path selector guide.

Fig. 3-6 Face Up Print Delivery

The printer ejects paper through the rear paper slit with the printed page face up.

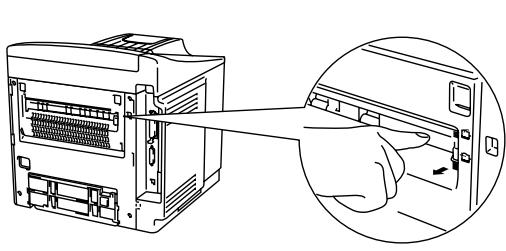

Note

After you have finished face up print delivery, be sure to reset the knob to switch back to the face down print delivery.

CHAPTER 4 CONTROL PANEL

DISPLAY AND LAMPS

This printer has one liquid crystal display (LCD) and five lamps on the control panel. The display can show various messages with up to 16 characters. The lamps light to indicate the current printer status.

Fig. 4-1 Display and Lamps

Display

The display usually shows the current printer status. When you operate the control panel, you can change settings interactively on the display.

When you turn the printer off-line, the display changes to show the currently selected emulation and informs you that you can make settings in the current emulation.

If any problems occur, the display shows the corresponding operator call, error, or service call message to prompt you to take an action. For more information on these messages, see "TROUBLESHOOTING" in Chapter 7.

Printer Status Messages

The following table shows the printer status messages that are displayed during normal operation:

Printer Status Message				Meaning
00	READY	001P	T1	The printer is ready to print.
00	IDLE	001P	T1	The printer is idle. (BR-Script 2 mode only)
AUTO	LaserJet	5		The printer is off-line and currently in HP LaserJet mode under AUTO emulation mode selected.
HP	LaserJet	5		The printer is off-line and in HP LaserJet mode under HP LaserJet emulation mode selected.
00	BUSY	001P	T1	The printer is busy. (BR-Script 2 mode only)
00	SLEEP	001P	T1	The printer is in sleep status (power save mode).
01	PRINT	001P	T1	The printer is printing.
01	PR300	001P	T1	The printer is printing by decreasing the resolution from more than 600 dpi to 300 dpi because of insufficient memory.
01	SX	001P	T1	The printer is printing in simplex mode due to insufficient memory for the selected duplex mode.
02	WAIT	001P	T1	The printer is warming up.
04	SELF	TEST		The printer is performing self-diagnosis.

Printer Status Message	Meaning
05 TEST PRINT	The printer is printing the test pattern.
06 DEMO PAGE	The printer is printing the demonstration.
06 PRINT CONFIG	The printer is printing the list of the current printer settings.
06 PRINT FONTS I	The printer is printing the list of the internal or resident fonts.
06 PRINT FONTS C	The printer is printing the list of the optional fonts stored in an installed font card.
06 PRINT FONTS P	The printer is printing the list of the permanent download fonts.
06 CARD PRINT	The printer is printing the contents of a flash memory card or HDD card.
07 FF PAUSE	The printer has suspended feeding forms. Pressing the SEL switch resumes form feed.
08 RESET TO USER SETTINGS	The printer is restoring itself to the user settings you selected with the panel switches. (The message appears only momentarily.)
09 RESET TO FACTORY SETTINGS	The printer is restoring itself to the factory settings. (The message appears only momentarily.)
Now initializing	The printer is initializing the MIO card or initializing the printer for BR-Script 2 emulation.

Fig. 4-2 Display

Lamps

The lamps light or blink to indicate the current printer status.

READY

LED indication	Meaning
On	Ready to print
Blinking	Warming up

DATA

LED indication	Meaning
On	Data remains in the printer buffer. Pressing the FORM FEED switch prints the data and clears the buffer.
Blinking	Receiving or processing data

ON LINE

LED indication	Meaning
On	The printer is on-line and ready to print
Off	The printer is off-line and stops printing.

ALARM

LED indication	Meaning
On	Some problem has occurred in the printer.

You can control the basic printer operations and change various printer settings in the NORMAL mode. Functions available in the NORMAL mode are shown above the panel switches.

Fig. 4-3 Switches in NORMAL Mode

Note

The factory settings are printed in bold in this section.

SEL Switch

Pressing the SEL switch changes the state of the printer between on-line and off-line. When the printer is on-line, the ON LINE lamp lights and the printer is ready to receive data from the computer. When the printer is off-line, the ON LINE lamp is off.

To receive data from the computer, set the printer on-line. To operate the control panel switches, set the printer off-line.

When you press the SEL switch when the printer is the on-line state, it turns off-line and the LCD displays the current emulation mode.

AUTO LaserJet 5

You can enter other emulations in the auto emulation mode by pressing the (UP) or (DOWN) switch.

Notes

When you press the SEL switch, remember the following:

• All other switches—except the SEL switch—are operational only when the printer is off-line.
• If the printer is not in auto emulation mode, the LCD displays the current emulation by pressing the SEL key to take it off-line, but you cannot enter other emulation modes. To make settings in other emulation modes, press the EMULATION switch and select the emulation.
• The SEL switch works as a "quick exit" switch. If you are lost in the display menus or you want to quickly exit the display menu, press the SEL switch. You can exit quickly from any depth of the display menu to the on-line ready state. If you have already made a setting effective by pressing the SET switch and then press the SEL switch to quickly exit, your setting (whether made by accident or on purpose) will remain effective. Pressing the SEL switch will not cancel any setting.

SET Switch

Pressing the SET switch allows you to select certain items on the display or make the displayed menu or setting effective. The switch also works as an execute switch to perform the displayed function.

When you press the SET switch, the printer stores the settings you have selected into the memory as "User Settings." Every time you turn on the printer, it is reset according to these user settings. They remain effective until you make new settings or restore them to the factory settings. For factory reset, see "RESET Switch" in this chapter.

Note

When you press the SET switch to select a setting, an asterisk appears at the end of display for a short time. Since the asterisk indicates the selection, you can easily find the current setting when you scroll through the display.

(UP) or (DOWN) Switch

Pressing (UP) or (DOWN) switch scrolls the menus and settings forward or backward respectively on the display. Press or keep pressing the switch until you access the desired item.

MODE Switch

Pressing the MODE switch allows you to enter modes where you change settings. The mode menus and settings vary according to the current emulation mode and options. For details, refer to the pages indicated in parentheses.

HP LaserJet, EPSON

FX-850, and IBM Proprinter XL Modes

INTERFACE MODE

Set interface, parameters. (4-19)

BR-Script Mode

INTERFACE MODE

Set interface, parameters. (4-19)

HP-GL Mode

INTERFACE MODE

Set interface, parameters. (4-19)

FORMAT MODE

Set orientation, paper size, margins, & others. (4-22)

FORMAT MODE

Set horizontal & vertical offsets. (4-22)

FORMAT MODE

Set orientation, paper size, margins, pen setting & others. (4-22)

RESOLUTION MODE

Set resolution & HRC. (4-31)

RESOLUTION MODE

Set resolution & HRC. (4-31)

RESOLUTION MODE

Set resolution & HRC. (4-31)

PAGE PROTECTION

Protect data on a page. (4-36)

Not available.

CARD OPERATION

Set a flash memory card or a HDD card in HP mode. (4-37)

CARD OPERATION

Set a flash memory card or a HDD card. (4-37)

PAGE PROTECTION

Protect data on a page. (4-36)

ADVANCED MODE

Set network mode, print density, & others. (4-46)

ADVANCED MODE

Set network mode, print density, & others. (4-46)

CARD OPERATION

Set a flash memory card or a HDD card. (4-37)

PAGE COUNTER

Show # of printed pages. (4-52)

PAGE COUNTER

Show # of printed pages. (4-52)

ADVANCED MODE

Set network mode, print density, & others. (4-46)

exit MODE

Exit to off-line ready state. (4-52)

exit MODE

Exit to off-line ready state. (4-52)

exit MODE

Exit to off-line ready state. (4-52)

MODE Switch Settings in HP LaserJet, EPSON FX-850, and IBM Proprinter XL Modes

The following table shows all the selections you can make with the MODE switch in the HP LaserJet, EPSON FX-850, and IBM Proprinter XL modes.

Note

The mode menus and settings that can appear vary according to the current emulation mode, printer status, and any options that may be installed in the printer.

Mode Menu	Setting Menu	Sub-Setting Menu	Setting
INTERFACE MODE(See 4-19.)	I/F=PARALLEL	HIGH SPEED=ON	ON or OFF
		BI-DIR=ON	ON or OFF
	I/F=RS-232C	BaudRate= 9600	150, 300, 600, 1200, 2400,4800, 9600, 19200, 38400,57600, or 115200 baud
		CodeType=8 bits	7 or 8 bits
		Parity =NONE	NONE, EVEN, or ODD
		Stop Bit=1 bits	1 or 2 stop bits
		Xon/Xoff=ON	ON or OFF
		DTR (ER)=ON	ON or OFF
		Robust Xon=OFF	ON or OFF
		exit	Exit to INTERFACE MODE
	I/F=USB
	I/F=OPTION	Available only when a commercial MIO card has been installed.
		MIO Setting	The settings available on theinstalled MIO card can appear under the sub-setting menu.
		exit	Exit to INTERFACE MODE
	I/F=AUTO	TIME OUT= 5s	1 to 99 seconds
		PRL Setting	Bi-directional settings forAUTO
		HIGH SPEED=ON	ON or OFF
		BI-DIR=ON	ON or OFF
		exit	Exit to PRL Setting
		RS-232C Setting	Parameters for AUTO mode
		BaudRate= 9600	150, 300, 600, 1200, 2400,4800, 9600, 19200, 38400,57600, or 115200 baud
		CodeType=8 bits	7 or 8 bits
		Parry =NONE	NONE, EVEN, or ODD
		Stop Bit=1 bits	1 or 2 stop bits
		Xon/Xoff=ON	ON or OFF
		DTR (ER)=ON	ON or OFF
		Robust Xon=OFF	ON or OFF
		exit	Exit to RS-232C Setting
Mode Menu (Continued)	Setting Menu	Sub-Setting Menu	Setting
INTERFACE MODE(Continued)	I/F AUTO(Continued)	MIO Setting	Available only when a commercial MIO card has been installed. The settings available on the installed MIO card can appear under the sub-setting menu.
FORMAT MODE(See 4-22.)	ORIENTATION	ORI=PORTRAIT	PORTRAIT or LANDSCAPE
	AUTO MODE	AUTO LF=OFF	ON ... LF + CROFF ... CR only
		AUTO CR=OFF	ON ... LF, FF, or VT + CROFF ... LF, FF, or VT only
		AUTO WRAP=OFF	ON ... Auto wrap onOFF ... Auto wrap off
		AUTO SKIP=ON(HP mode)	ON ... Auto FF at bottom marginOFF ... No FF at bottom margin
		AUTO MASK=OFF(EPSON & IBM modes)	ON ... Auto mask onOFF ... Auto mask off
		exit	Exit to AUTO MODE
	PAGE FORMAT MODE	PAPER =LETTER(For 110/120V model)PAPER =A4(For 220/240V model)	LETTER, LEGAL, A4, A5,A6, B5, B6, EXECUTIVE,COM10, MONARCH, C5 andDL
		LEFT M = 0C	0 to 126 columns
		RIGHT M = 80C(Letter, Portrait)	10 to 136 columns
		RIGHT M = 78C(A4, Portrait)	10 to 136 columns
		TOP M =0.5" (HP mode)	0, 0.33, 0.5, 1.0, 1.5, or 2.0"
		BOTTOM M=0.5"(HP mode)	0, 0.33, 0.5, 1.0, 1.5, or 2.0"
		LINES = 60L(HP, Letter, Portrait)	5 to 128 lines/page
		LINES = 64L(HP, A4, Portrait)	5 to 128 lines/page
		X OFFSET=0	-500 (left) to +500 (right) dots
		Y OFFSET=0	-500 (down) to +500 (up) dots
		exit	Exit to PAGE FORMAT MODE
	exit		Exit to FORMAT MODE
RESOLUTION MODE(See 4-31.)	RESOLUTION	RESOLUTION	300, 600 or 1200 dpi
	HRC SETTING	HRC=MEDIUM	OFF, LIGHT, MEDIUM, or DARK
	exit		Exit to RESOLUTION MODE
PAGE PROTECTION(See 4-36.)	PROTECT=AUTO		AUTO, OFF, LETTER, A4, or LEGAL
CARD OPERATION(See 4-37.)(HP mode only)CARD 1CARD 2exit	When the commercial flash memory card or the HDD card has not been formatted:Format CARD Format the flash memory card or the HDD card.
	exit		Exit to CARD OPERATION CARD 1 (2)
CARD OPERATION (HP mode only)	When the commercial flash memory card or the HDD card has been formatted:
	EXECUTE DATA		Execute the data on the card.
		DATA ID=#########	Execute the selected data.
		exit	Exit to EXECUTE DATA
	CARD LIST		Print the contents of the card.
	SAVE	SAVE DATA	Send data to be saved.
		SET KEY--> END	End saving the data.
		DATA ID=#########	Set data ID for saved data.
		SAVE MACRO	Save a macro.
		MACRO ID=#########	Set macro ID for saved macro.
		PRIMARY FONT	Save primary font.
		FONT ID=#########	Set primary font ID for saved font.
		SECONDARY FONT	Save secondary font.
		FONT ID=#########	Set secondary font ID for saved font.
		DOWNLOAD FONT	Save download font.
		FONT ID=#########	Set download font ID for saved font.
		exit	Exit to CARD 1 (2) OPERATION
	DELETE	MACRO ID=#########	Delete the selected macro.
		DATA ID=#########	Delete the selected data.
		FONT ID=#########	Delete the selected font.
		FORMAT CARD	Format the flash card.
		SET -> DELETE ALL	Execute formatting the card.
		exit	Exit to FORMAT CARD
	exit		Exit to CARD 1 (2) OPERATION
ADVANCED MODE (See 4-46.)	NETWORK MODE	LOCK PANEL=OFF	ON or OFF
		PASS NO=#####	Enter pass number.
		AUTO FF=OFF	ON or OFF
		WAIT TIME=5s	1 to 99 seconds for AUTO ON
		FF SUPPRESS=OFF	ON or OFF
		TONER LOW=CONT	CONT or STOP
		exit	exit to NETWORK MODE
	CONTINUE MODE	CONTINUE=MANUAL	AUTO or MANUAL
	SCALABLE FONT	FONT=ALL	ALL, LJ4
	PRINT DENSITY		Increase or decrease the print density. (15 levels)

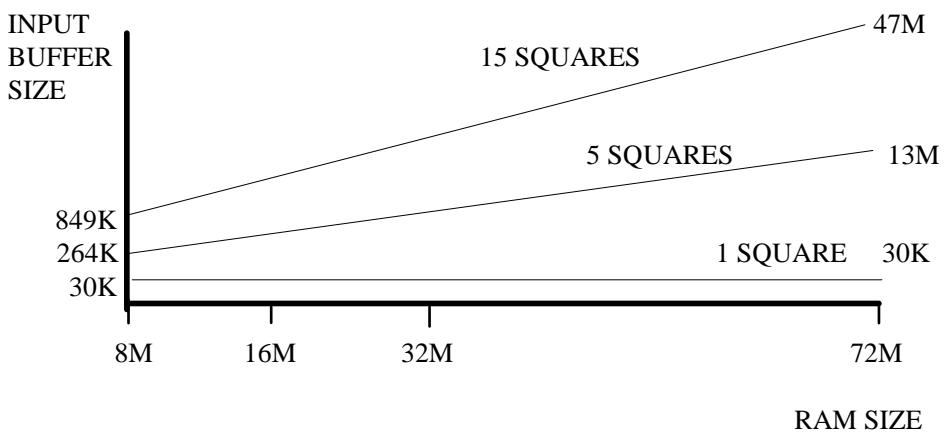

	INPUT BUFFER	□□□□□	Increase or decrease the input buffer capacity. (15 levels)
	SAVE SETTINGS	SAVE SETTING 1	Save the current setting as #1
		SAVE SETTING 2	Save the current settings as #2
	exit		exit to ADVANCED MODE
PAGE COUNTER (See 4-52.)	COUNT=0		Shows the number of printed pages.
exit MODE (See 4-52.)			Exit MODE.

MODE Switch Settings in BR-Script 2 Mode

The following table shows all the selections you can make with the MODE switch in the BR-Script 2 mode.

Note

The mode menus and settings that can appear vary according to the current emulation mode, printer status, and any options that may be installed in the printer.

Mode Menu	Setting Menu	Sub-Setting Menu	Setting
INTERFACE MODE Same as HP LaserJet Mode (See 4-19.)
FORMAT MODE (See 4-22.)	X OFFSET=0		-500 (left) to +500 (right) dots
	Y OFFSET=0		-500 (up) to +500 (down) dots
	exit		Exit to PAGE FORMAT MODE
RESOLUTION MODE (See 4-31.)	RESOLUTION	RESOLUTION=600	300, 600 or 1200 dpi
	APT SETTING	APT=OFF	ON or OFF
	HRC SETTING	HRC=MEDIUM	OFF, LIGHT, MEDIUM, or DARK
	exit		Exit to RESOLUTION MODE
CARD OPERATION (See 4-37.) CARD 1 CARD 2 exit	When the commercial flash memory card or the HDD card has not been formatted: Format CARD		Format the flash memory card or the HDD card.
	When the commercial flash memory card or the HDD card has been formatted: Format the data on the card.
	DATA ID=#########		Execute the data on the card.
	CARD LIST		Print the contents of the card.
	SAVE	SAVE DATA	Send data to be saved.
		SET KEY---> END	End saving the data.
		DATA ID=#########	Set data ID for saved data.
		exit	Exit to CARD OPERATION
	DELETE	MACRO ID=#########	Delete the selected macro.
		DATA ID=#########	Delete the selected data.
		FONT ID=#########	Delete the selected font.
		FORMAT CARD	Format the card.
		SET -> DELETE ALL	Execute formatting the card.
		exit	Exit to FORMAT CARD OPERATION
	exit		Exit to CARD 1 (2) OPERATION
Mode Menu (Continued)	Setting Menu	Sub-Setting Menu	Setting
ADVANCED MODE (See 4-46.)	NETWORK MODE	LOCK PANEL=OFF	ON or OFF
		PASS NO=#########	Enter pass number.
		AUTO FF=OFF	ON or OFF
		WAIT TIME=5s	1 to 99 seconds for AUTO ON
		FF SUPPRESS=OFF	ON or OFF
		TONER LOW=CONT	CONT or STOP
		exit	exit to NETWORK MODE
	ERROR PRINT	ERROR PRINT=OFF	ON or OFF
	CONTINUE MODE	CONTINUE=MANUAL	AUTO or MANUAL
	PRINT DENSITY		Increase or decrease the print density. (15 levels)
	INPUT BUFFER	□□□□□	Increase or decrease the input buffer capacity. (15 levels)
	SAVE SETTINGS	SAVE SETTING 1	Save the current setting as #1
		SAVE SETTING 2	Save the current settings as #2
	exit		exit to ADVANCED MODE
PAGE COUNTER (See 4-52)	COUNT=0		Shows the number of printed pages.
exit MODE (See 4-52)			Exit MODE

MODE Switch Settings in HP-GL Mode

The following table shows all the selections you can make with the MODE switch in the HP-GL mode.

Note

The mode menus and settings that can appear vary according to the current emulation mode, printer status, and any options that may be installed in the printer.

Mode Menu	Setting Menu	Sub-Setting Menu	Setting
INTERFACE MODE Same as LaserJet Mode (See 4-19.)
FORMAT MODE (See 4-22.)	PAGE FORMAT MODE	PAPER=LETTER (For 110/120V mode)	LETTER, LEGAL, A4, A5, A6, B5, B6, EXECUTIVE, COM10, MONARCH, C5, and DL
		X OFFSET=0	-500 (left) to +500 (right) dots
		Y OFFSET=0	-500 (up) to +500 (down) dots
		exit	Exit to PAGE FORMAT MODE
	GRAPHICS MODE	PEN SETTING
		SETTING PEN1	PEN1 to 6 (Set size and gray percentage for the selected pen.)
		SIZE#=3 dots	1 to 10 dots (pen size in dots) (# is the selected pen number.)
		GRAY#=100%	15, 30, 45, 75, 90, or 100% (# is the selected pen number.)
		exit	Exit to SETTING PEN1-6
		exit	Exit to GRAPHICS MODE
		CHARACTER SET
		STANDARD SET	Standard character set
		ANSI ASCII	See character sets on page 4-28.
		ALTERNATE SET	Alternate character set
		ANSI ASCII	See character sets on page 4-28.
		exit	Exit to GRAPHICS MODE
	exit		Exit to FORMAT MODE
RESOLUTION MODE (See 4-31.)	RESOLUTION	RESOLUTION=600	300, 600 or 1200 dpi
	HRC SETTING	HRC=MEDIUM	OFF, LIGHT, MEDIUM, or DARK
	exit		Exit to RESOLUTION MODE
Mode Menu (Continued)	Setting Menu	Sub-Setting Menu	Setting
PAGE PROTECTION(See 4-36.)	PROTECT=AUTO		AUTO, OFF, LETTER, A4, or LEGAL
	exit		Exit to CARD OPERATION
CARD OPERATIONSame as BR-Script mode(See 4-37.)
ADVANCED MODESame as HP LaserJet mode(See 4-46.)
PAGE COUNTER(See 4-52.)	COUNT=0		Shows the number of printed pages.
exit MODE(See 4-52.)			Exit MODE

Basic Operation Procedures

When you operate the MODE switch, remember the following basic steps:

1. Press the SEL switch to set the printer off-line.
2. Press the MODE switch to enter the MODE menus.

The first mode menu appears on the display.

INTERFACE MODE

• Press the or switch to scroll through the menus forward or backward. (Pressing the MODE switch allows forward scroll.)

INTERFACE MODE or FORMAT MODE or RESOLUTION MODE or ...

• Press the SET switch to enter the next lower menu level of the selected menu.

Mode Menu—SET→Setting Menu—SET→Sub-Setting Menu

• Press the or switch to select the setting on the display.

I / F = PARALLEL or I / F = RS - 232C or I/F=OPTION or

• Press the SET switch to make the selected setting effective. Then you move to the next selection or exit to the upper menu level.

When you see "exit" and press the SET switch, you can exit from the current level of menu to the next higher level of the menu.

1. Advance to "exit MODE" and press the SET switch to exit from the mode menus to the off-line ready state.

Pressing the SEL switch any time in any level of the menus allows you to exit from the mode menus to the on-line state. The settings you have made with the SET switch before exit are effective.

Operation Example: Selecting the Parallel Interface

For this session, select the parallel interface manually as follows:

1. Press the SEL switch to set the printer off-line.
2. Press the MODE switch.

The display shows the first menu.

INTERFACE MODE

1. Press the SET switch.

When you enter the interface mode, the display first shows the current interface with the asterisk.

I/F=AUTO

1. Press the or switch until the desired interface appears on the display.

I/F=PARALLEL

Display Message	Interface Mode
I/F=PARALLEL	Parallel interface
I/F=RS-232C	Serial interface
I/F=USB	Universal Serial Bus interface
I/F=OPTION	Optional interface for MIO card
I/F=AUTO	Auto interface selection

Note

The optional interface is available only when a commercial MIO compatible sharing/network card has been installed.

1. Press the SET switch to make the displayed selection effective.

An asterisk appears at the end of the display for a short time. Then the printer automatically exits from the setting menu to the interface menu.

INTERFACE MODE

1. Press the or switch until the exit menu appears on the display.

exit MODE

1. Press the SET switch.

Then the printer automatically returns to the off-line ready state.

INTERFACE MODE

The automatic interface selection has been factory set. If you want to select a specific interface manually, use the interface mode to set it.

Display Message	Interface Mode
I / F=PARALLEL	Parallel interface
I / F=RS-232C	Serial interface
I / F=USB	Universal Serial Bus interface
I / F=OPTION	Optional interface for MIO card
I / F=AUTO	Auto interface selection

Select the setting menu and enter the sub-setting menu to change the setting as follows:

Automatic Interface Selection

1. When you use the automatic interface selection function, select the function on the display as follows:

I/F=AUTO

1. When you select this function with the SET switch, the display shows the next sub-setting menu as follows:

TIME OUT

1. When you press the SET switch again, the display shows the following messages:

TIME OUT= 5s

You need to set the time out for the auto interface selection from 1 to 99 seconds with the or switch: factory setting = 5 seconds. This time out is the duration during which the printer will not allow another automatic change to the interface.

Even if you choose the automatic interface selection, you need to set the communications parameters for the serial interface, high speed/bi-directional communications for the parallel interface, and the optional interface settings if the installed MIO card requires them. See the tables below.

For further information about automatic interface selection, see "AUTOMATIC INTERFACE SELECTION" in Chapter 3.

Parallel Interface

When you intend to use the bi-directional parallel interface, select the interface on the display as follows:

I/F=PARALLEL

When you use the parallel interface, you need to set the communications mode in the following sub-setting menu.

Display Message	High Speed and Bi-directional Parallel Communications
HIGH SPEED=ON	Turns on or off the high speed parallel communications.
BI-DIR=ON	Turns on or off the bi-directional parallel communications.

The above high-speed and bi-directional settings are used for the bi-directional parallel interface of this printer. The bi-directional parallel interface is compatible with the IEEE 1284 standard bi-directional parallel interface. Although it uses the same cable, hardware, and software as the bi-directional parallel interface, to use its enhanced capabilities—such as bi-directional communication between the computer and printer and faster transmission of data—you need a printer driver or software that supports these features. Check with your software vendor to see if your software supports bi-directional parallel features.

Serial Interface

When you intend to use the serial interface, be sure to select the same communications parameters on both the printer and computer. You must set them for the automatic interface selection, too.

Display Message	Parameters	Settings
BaudRate= 9600	Baud rate (Data transfer speed)	150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 baud
CodeType=8 bits	Code type (Data length)	7 bits or 8 bits
Parity =NONE	Parity (Data error check)	None, even, or odd
Stop Bit=1 bits	Stop bits (Data separator)	1 or 2
Xon/Xoff=ON	Xon/Xoff (Handshake protocol)	ON: DTR & Xon/Xoff handshake OFF: DTR handshake only
DTR(ER) =ON (Effective when Xon/Xoff=ON)	Data terminal ready (ER)	ON: Makes DTR (ER) low when the buffer is full. OFF: Does not make DTR (ER) low when the buffer is full. DTR(ER) goes low only when the printer is off-line.
Robust Xon =OFF (Effective when Xon/Xoff=ON)	Robust Xon	ON: Sends Xon while waiting. OFF: Sends Xon once, when the printer status changes from off-line to on-line.

Universal Serial Bus (USB) interface

If your computer has a USB interface, you can connect the printer and computer with the USB interface. When using the USB interface, select the interface on the display as follows;

I/F=USB

■ Optional Interface

If you have installed a commercial modular input/output (MIO) card in the printer, you can select the optional MIO interface in this mode. If the installed MIO card requires any optional interface settings, they appear under this menu. Set them, referring to the manual of the MIO card.

I/F=OPTION

Note

This setting appears only when the MIO card has been installed. For installation of the MIO card, see “MODULAR I/O CARD” in Chapter 5.

FORMAT MODE

ORIENTATION

When you select "ORIENTATION", you can set portrait or landscape orientation.

Note

The ORIENTATION selection is effective in the HP LaserJet, EPSON FX-850, and IBM Proprinter XL modes. It does not work in other emulation modes.

This printer can print pages in portrait or landscape orientation. You can check the current orientation on the display.

PORTRAIT

LANDSCAPE

Fig. 4-4 Page Orientation

When you enter the setting mode, the display first shows the current orientation with an asterisk.

ORI=PORTRAIT

Press the or switch until the desired orientation appears on the display.

Display Message	Orientation
ORI=PORTRAIT	Portrait
ORI=LANDSCAPE	Landscape

Press the SET switch to make the displayed selection effective.

An asterisk appears at the end of the display for a short time. Then the printer automatically exits from the setting mode to the FORMAT MODE.

When portrait has been selected, the display may look as follows:

00 READY 001P T1

When landscape has been selected, the display may look as follows:

00 READY 001L T1

AUTO MODE

Note

The settings in this mode menu are effective in the HP LaserJet, EPSON FX-850, and IBM Proprinter XL modes. They do not appear in other emulation modes.

The page/line termination is set in this mode.

Display Message			Setting	Auto Mode
AUTO	LF	=OFF	ON	CR → CR+LF
			OFF	CR → CR
AUTO	CR	=OFF	ON	LF → LF+CR, FF → FF+CR, VT → VT+CR
			OFF	LF → LF, FF → FF, VT → VT
AUTO	WRAP	=OFF	ON	Line feed and carriage return occur when the printer position reaches the right margin.
			OFF	No line feed and carriage return occur when the printer position reaches the right margin.
AUTO	SKIP	=ON	ON	Form feed occurs when the printer position reaches the bottom margin.
			OFF	No form feed occurs when the printer position reaches the bottom margin.
AUTO	MASK	=OFF	ON	The printer ignores the top and bottom margin settings you make with the control panel. The page length is automatically set to 11" for letter or A4-size paper and to 14" for legal-size paper.
			OFF	The printer operates according to the margin settings you make with the control panel.

/ Note on

Note on "AUTO MASK"

When you use application software in non-HP modes, be sure to set "AUTO MASK" to ON. When you use letter- or A4-size paper, the top and bottom 2 lines are masked and they do not appear on the printout.

The auto modes are subject to the current emulation mode.

O : The auto modes can be set.
X : The auto modes cannot be changed and no setting appears.
The auto modes are not available.

AUTO Mode	Printer Emulation (Factory settings in bold print)
	HP	EPSON	IBM
	LaserJet	FX-850	Proprinter XL
AUTO LF	○ OFF	○ OFF	○ OFF
AUTO CR	○ OFF	× ON	○ OFF (Note)
AUTO WRAP	○ OFF	× ON	× ON
AUTO SKIP	○ ON	—	—
AUTO MASK	—	○ OFF	○ OFF

Note

In the IBM emulation mode, FF codes are always followed by a CR code.

PAGE FORMAT MODE

Notes

The settings in this mode menu vary as follows:

• All settings are effective in the HP LaserJet, EPSON FX-850, and IBM Proprinter XL modes.
• The X and Y (vertical and horizontal) offsets are effective in the BR-Script 2 mode. Other settings are not effective and they do not appear in this mode.
• The paper size and the X and Y (vertical and horizontal) offsets are effective in the HP-GL mode. Other settings are not effective and they do not appear in this mode.

The following settings can be made in this mode:

Display Message		Page Format Mode
PAPER	=LETTER	Set cut sheet paper size to letter, A4, legal, B5, A5, B6, A6, or executive, or envelope size to COM10, Monarch, C5, or DL.
LEFT M	= 0C P	Set the left margin at column 0-126 at 10cpi.
RIGHT M	= 80C P	Set the right margin at column 10-136 at 10cpi. See “List of Factory Settings” in this chapter.
TOP M	=0.5" P	Set the top margin at a distance from the top edge of the paper: 0, 0.33, 0.5, 1.0, 1.5, or 2.0 inches. factory setting = 0.33 (Non-HP), 0.5 (HP)
BOTTOM M=0.5" P		Set the bottom margin at a distance from the bottom edge of the paper: 0, 0.33, 0.5, 1.0, 1.5, or 2.0 inches. factory setting = 0.33 (Non-HP), 0.5 (HP)
LINES	= 60L P	Set the number of lines per page from 5 to 128 lines. See “List of Factory Settings” in this chapter.

The letter "P" in the display messages indicates that the page orientation is portrait. The letter "L" is displayed when it is landscape.

Display Message		Page Format Mode (Continued)
X OFFSET=	0	Move the print start position (at the upper left corner on pages) horizontally up to -500 dots to the left or +500 dots to the right in 300dpi dot unit increments: factory setting = 0.
Y OFFSET=	0	Move the print start position (at the upper left corner on pages) vertically up to -500 dots downward or +500 dots upward in 300dpi dot increments: factory setting = 0.

Note

When you make settings in PAGE FORMAT MODE, note the following:

• The letter size has been factory set for 110/120V model. The A4 size has been factory set for 220/240V model.
• When you use a smaller size of paper than that specified in the PAGE FORMAT MODE, be sure that the print area is smaller than the paper size, or the inside of the printer will get stained with toner. It is recommended that you perform a test before actual use: for this test, you could use a letter or A4 size of paper to see the printed area is completely inside the paper size you are going to use. This simple test will help prevent toner from being incorrectly applied to the inside of your printer, which may cause later print jobs to be smudged with toner.
• The factory settings of the right/left margins and lines vary according to the paper size and orientation. See the tables below.
• The top and bottom margins have been factory set to 0.5" in the HP emulation mode and to 0.33" in the non-HP emulation modes.
• The setting margins are subject to the current page orientation. The display shows the current orientation with "P" for portrait and "L" for landscape.
• Images offset outside the print area are not printed.

■ About Right and Left Margins

The settings range of the right and left margins are subject to the page orientation as follows. The right margin should be placed 10 columns greater than the left margin: minimum text width = 10 columns.

If the orientation is changed, the margin settings are restored to the factory settings. If the paper size is changed and the right and left margins exceed the paper size, they are restored to the factory settings: if they do not exceed the paper size, they remain effective.

The following table shows the settings range in columns. The factory settings are printed in bold.

Paper Size	Portrait		Landscape
	Left Margin	Right Margin	Left Margin	Right Margin
Letter	0-70	10-80	0-96	10-106
Legal	0-70	10-80	0-126	10-136
A4	0-70	10-78-80	0-103	10-113

About Line Settings

Setting the number of lines/page automatically sets the line spacing or line feed pitch. If the paper size is changed, the number of lines/page changes accordingly. The new setting is calculated with the following expression and the remainder, if any, is ignored. However, the line feed pitch and the top and bottom margins remain effective.

$$ # \text {o f L i n e s / P a g e} = \frac {\text {P a g e L e n g t h} - (\text {T o p M a r g i n} + \text {B o t t o m M a r g i n})}{\text {L i n e F e e d P i t c h} [ \text {V e r t i c a l M o t i o n I n d e x (V M I)} ]} $$

The setting of lines/page is subject to the current paper size and orientation. For example, when letter-sized paper is used, the printer can print 60 lines per page in portrait orientation. If the orientation is changed, the line settings are restored to the factory settings in that orientation.

The following tables show the factory settings in each emulation mode.

In HP Mode

Size	Orientation
	Portrait	Landscape
Letter	60 lines	45 lines
Legal	78 lines	45 lines
A4	64 lines	43 lines

In Non-HP Modes

Size	Orientation
	Portrait	Landscape
Letter	62 lines	47 lines
Legal	80 lines	47 lines
A4	66 lines	45 lines

Note

When you use application software in the non-HP modes, the recommended settings are as follows:

• Left margin = column 0
• Right margin = Max. value
• Auto MASK ON

GRAPHICS MODE

Note

The settings in this mode menu are effective only in the HP-GL mode. They do not appear in any other emulation modes.

Since the HP-GL emulation mode is for a plotter, you can select the plotter pens, the pen size and percentage of gray in this mode menu.

Display Message	Graphics Mode
PEN SETTING	Set the size and percentage of gray separately for six plotter pens.
CHARACTER SET	Set the standard and alternate character sets.

Note

In most cases, the application software controls the above graphics mode settings, so you do not need to set them in this menu with the MODE switch. The software or command setting overrides the switch setting.

Select the setting menu and enter the sub-setting menu to make the settings as follows:

Pen Setting

When you select "PEN SETTING," you can set the size and percentage of gray for each plotter pen. You can make settings separately for six pens.

Select the pen with the or switch and enter the menu with the SET switch.

SETTING PEN1

After you select the pen, advance to the sub-setting menu for size or gray percentage selection with the or switch and enter the menu with the SET switch.

When the following message appears, the pen size can be set from 1 dot to 10 dots with the or switch:

SIZE 1=3 dots *

When the following message appears, the shades of gray can be set to 15, 30, 45, 75, 90, or 100% with the or switch.

GRAY 1 = 100%

Note

• When another pen is selected, the display shows the selected pen with the number after "SIZE" or "GRAY."
• Whichever resolution you have selected, the pen size takes effect in units of 300 dpi.

Character Set

When you select "CHARACTER SET," you can select the standard and alternate character sets used in the HP-GL emulation mode.

Enter the sub-setting menu and select the menu for the standard or alternate character set with the or switch:

To set the standard character set, select the following message:

STANDARD SET

or

To set the alternate character set, select the following message:

ALTERNATE SET

Then press the SET switch to show the following message:

ANSI ASCII

Change the character set with the or switch and make the selection effective by pressing the SET switch. For specific character sets, see "SYMBOL/CHARACTER SETS" in Appendix.

Character Sets in HP-GL Emulation Mode

ANSI ASCII (Factory setting)

9825 CHR. SET

FRENCH/German

SCANDINAVIAN

SPANISH/LATIN

JIS ASCII

ROMAN8 EXT.

ISO IRV

ISO SWEDISH

ISO SWEDISH:N

ISO NORWAY 1

ISO GERMAN

ISO FRENCH

ISO U.K.

ISO ITALIAN

ISO SPANISH

ISO PORTUGUESE

ISO NORWAY 2

RESOLUTION MODE

The resolution, advanced photoscale technology (APT) and high resolution control (HRC) can be set in this mode menu.

Display Message	Resolution Mode
RESOLUTION	Set the resolution of the printer.
APT SETTING	Set the APT function. This menu appears only in the BR-Script 2 mode.
HRC SETTING	Set the HRC function.

Select the setting menu and enter the sub-setting menu to make the settings as follows:

Resolution

When you select "RESOLUTION," you can choose a resolution of 300, 600 or 1200 dots per inch (dpi) on this printer. You can set the resolution in this mode according to your requirement.

The printer may not be able to print large files because of the resolution and the printer's memory. The higher the resolution and file size, the more memory is required.

Display Message	Resolution
RESOLUTION=1200	Set the resolution to 1200 dpi.
RESOLUTION=600	Set the resolution to 600 dpi. (Factory setting)
RESOLUTION=300	Set the resolution to 300 dpi.

Select the print resolution in this mode according to the resolution required for your print jobs as shown below:

Resolution	Setting in Resolution Mode		Resolution Setting in Resolution Mode
Print Jobs	300 dpi	600 dpi	1200 dpi 600 dpi
300 dpi	For optimum print quality	For mixing 300 dpi bitmaps with 600 dpi	For mixing 300 dpi bitmaps with 1200 dpi. For mixing 300 dpi bitmaps with 600 dpi
600 dpi	Not recommended	For optimum print quality	For mixing 600 dpi bitmaps with 1200 dpi. For optimum print quality
1200 dpi	Not recommended	Not recommended	For optimum print quality

Note

Even if you set the resolution to more than 300 dpi in this mode, the printer may not be able to print large files at your selected resolution because of insufficient memory. However, it automatically decreases the higher resolution that you set to 300 dpi to print them. While the printer is printing, the display prompts "01 PR300 ..."

If the printer cannot print files even at 300 dpi, the “MEMORY FULL” error occurs. See “TROUBLESHOOTING” in Chapter 7.

This automatic resolution decrease function works in the BR-Script 2 mode and other emulation modes with the page protection on. See also "PAGE PROTECTION" in this chapter.

When you want to print without decreasing the resolution, you must expand the memory capacity of the printer.

Expand the memory capacity referring to the table below. It shows the minimum size of memory required in the BR-Script 2 mode.

Paper Size

300 dpi

600 dpi

1200 dpi

Letter or A4

4 Mbytes

6 Mbytes

16 Mbytes

Legal

4 Mbytes

6 Mbytes

16 Mbytes

Duplex printing)

4 Mbytes

10 Mbytes

For memory expansion, see "RAM EXPANSION" in Chapter 5 or consult the dealer where you purchased the printer.

APT Setting

When you select "APT SETTING," you can use the advanced photoscale technology (APT). This function offers photographic fine grayscale on graphics. APT setting is available only at 600 dpi resolution in BR-Script 2. When you set APT=ON, the setting of high resolution control (HRC) is unavailable.

Display Message	Advanced Photoscale Technology
APT =OFF	Cancel the advanced photoscale technology. (factory setting)
APT =ON	Effectuate the advanced photoscale technology.

Note

The APT setting is not valid if you print at 1200 dpi.

HRC Setting

When you select "HRC SETTING," you can set the high resolution control (HRC). This function is a special function that offers improved print quality of characters and graphics that conventional laser printers cannot attain with resolutions of 300 or 600 dpi. You can set this function in this mode.

Display Message	High Resolution Control
HRC =OFF	Cancel the high resolution control.
HRC =LIGHT	Set the high resolution control to the light level.
HRC =MEDIUM	Set the high resolution control to the medium level. (Factory setting)
HRC =DARK	Set the high resolution control to the dark level.

Note

The HRC setting is not valid if you print at 1200 dpi.

The following figures show jagged print with the high resolution control set to "OFF" on the left and clear and crisp print with the control set to "MEDIUM" on the right.

ABC

HRC = OFF

Fig. 4-5 High Resolution Control

ABC

HRC = MEDIUM

The high resolution control has been factory set to "MEDIUM." The "LIGHT" or "DARK" setting might be better depending on the selected print density. Choose the best setting for clear and crisp printouts.

To check the printout with the high resolution control, perform the test print with the TEST switch. For operation, see "TEST Switch."

When you perform "TEST PRINT," the printer prints the test pattern including a block of lines. If the high resolution control is "OFF," the lines in the test pattern are unsmoothed or stepped as shown in the left figure below. The pattern will be smoother if the high resolution control is set to LIGHT, MEDIUM, or DARK. Choose an HRC setting and perform the test print so that stepped lines become unnoticeable.

HRC = OFF

HRC = MEDIUM
Fig. 4-6 High Resolution Control in Test Printout

PAGE PROTECTION

Note

The setting in this mode menu is effective in the HP LaserJet, EPSON FX-850, IBM Proprinter XL, and HP-GL modes. It does not appear in the BR-Script 2 mode.

If print images are too complex to print, the printer may print them out in parts or only on part of the page. If this occurs, the printer loses print data and shows the following message:

31 PRINT OVERRUN

The page protection function reserves additional memory so that the printer can create the entire page image in memory before physically printing it out. This function can be set for letter, A4, or legal size paper. Select the paper size for page protection.

Display Message	Page Protection
PROTECT=AUTO	Page protection on only when it is necessary. (Factory setting)
PROTECT=LETTER	Page protection on for letter size paper.
PROTECT=A4	Page protection on for A4 size paper.
PROTECT=LEGAL	Page protection on for legal size paper.
PROTECT=OFF	Page protection off

To protect pages, you need the memory capacity as shown in the following table:

Protection	300 dpi	600 dpi
Off	standard	standard
Letter or A4	standard	standard
Legal	standard	standard
(Duplex)	standard	10 Mbytes

CARD OPERATION

Note

• BE SURE TO TURN OFF THE PRINTER POWER SWITCH BEFORE INSTALLING OR REMOVING THE FLASH MEMORY CARD OR HDD CARD, OR THE CARD WILL BE DAMAGED.
• The settings in this mode menu are effective only when you have installed a flash memory card or a HDD card in the card slot of the printer and you have selected the HP LaserJet, HP-GL, or BR-Script 2 mode. They do not appear when the printer has no card or is in any other emulation mode.
• If you turn the printer off or remove the flash memory card or the HDD card while data is being written onto or deleted from the card, all the data on the card may be lost.
• If the write protect switch of the flash memory card or the HDD card is on, this mode menu does not appear.
• PCMCIA cards that require a 12 Volt supply can only be fitted into SLOT 2.

Be sure to install a commercial flash memory card or HDD card in the card slot of the printer.

When you are in this mode menu, you can save macros and fonts in the installed flash memory card or the HDD card.

The sub-setting menus displayed in this mode menu vary according to the state of the installed card.

When the installed card is not formatted:

When you enter this mode menu with the flash memory card or the HDD card installed but not formatted by this printer, you must first format the card.

Display Message	Card Operation
FORMAT CARD	Format a new flash memory card or HDD card.
exit	Exit to CARD OPERATION

When the display shows "FORMAT CARD," press the SET switch to format the installed card.

After the printer finishes formatting the card, you exit to the "CARD OPERATION" menu.

Note

• If the card is formatted, data that has been previously written is erased.
• It takes ten or more seconds to format a 2-Mbyte flash memory card or HDD card. The more the capacity of the card, the longer time it takes to format the card.

When the installed flash memory card or HDD card is formatted:

When you enter this mode menu with the formatted flash memory card or HDD card installed, the display shows the following menus:

Display Message	Flash Operation
EXECUTE DATA	Select the data ID and execute the selected data. This menu appears only when any data has been saved on the card.
CARD LIST	Print out the contents of the flash memory card or the HDD card. This menu appears only when anything has been saved in the card.
SAVE	Save received data, macros, and fonts.
DELETE	Delete items from the card.

Note

A common use of the flash memory is with FORMS software packages. With these commercially available software packages you have an option to send a form to the printer without any data. After you send the form to the printer, you may save the form in the flash memory as a Macro. Then the next time you want to print this form, you would setup your FORMS software package to SEND DATA ONLY - USE FORM IN PRINTER. This process would save you anything from 1 to 4 minutes per print job.

Select the setting menu and enter the sub-setting menu to change the settings as follows:

■ Execute Data

Note

This menu appears only when data has been saved on the card.

When you select "EXECUTE DATA," you can execute any of the data saved in the SAVE DATA mode.

When you enter this sub-setting menu with the SET switch, the printer prompts you to select the ID of the data.

DATA = # # # # #

Select the ID with the or switch and press the SET switch again, so that the printer executes the selected data.

Card List

When you select "CARD LIST" and you press the SET switch, the printer automatically loads paper and starts printing the contents of the installed flash memory card or HDD card. You can check the contents and the unused capacity of the card.

Save

When you select "SAVE" and you press the SET switch, you can enter the following sub-setting menus to save the macros and fonts in the installed card:

Display Message	Save Menu
SAVE DATA	Save data that the printer will receive and set its ID.
SAVE MACRO	Save a macro. This menu appears only in the HP LaserJet emulation mode.
PRIMARY FONT	Save the primary font selected with the FONT switch. This menu appears only in the HP LaserJet emulation mode.
SECONDARY FONT	Save the secondary font selected with the FONT switch. This menu appears only in the HP LaserJet emulation mode.
DOWNLOAD FONT	Save a download font. This menu appears only in the HP LaserJet emulation mode.

Note

If the capacity of the card becomes low while macros and fonts are being saved, the display shows the "CARD FULL" error message and they cannot be saved. Use a new card or delete unnecessary macros and fonts from the card. The CARD LIST displays the contents and the used capacity.

- Save Data

You can send data and save it on the card. In this mode, any kind of data such as PCL data, BR-Script 2 data, and command strings can be saved. When you select "SAVE DATA" and you press the SET switch, the display shows the following guide menus.

SET KEY ---> END

This message prompts you to press the SET switch again so that the printer exits from the data reception status when you finish sending data.

Send data from your computer.

Note

When you send data to be saved on the card, it is temporarily stored in the RAM of the printer. Note the following:

• If the received data exceeds the RAM capacity, a memory full error occurs. You can clear this error with the CONTINUE switch. When this error occurs, only part of the image has been stored in RAM, therefore, you cannot save the data to the card.
• The printer is reset to ensure as much capacity as possible in RAM. If any data remains, it is printed out first.

After you have finished sending data, press the SET switch again, so that the printer exits from the data reception status.

When you exit from the data reception status, you see the following message on the display:

DATA ID = # # # # #

Select the data ID with the or switch and press the SET switch. The printer will then save the received data with the ID on the card.

Note

• When you see an asterisk on the display, the ID number has been used for other data or a macro. If you select the used ID number, the old data or macro is erased and replaced with the new data.
• Once the data is saved, you can execute it with "EXECUTE DATA" or with a data execution command.

• The data saved in the SAVE DATA mode can not be run with the macro execution command in HP LaserJet emulation.

• Save Macro

Note

The "SAVE MACRO" menu appears only in the HP LaserJet emulation mode.

If you have downloaded a macro in the printer's memory, you can save the macro on the installed flash memory card or HDD card.

If a macro has been downloaded in the printer's memory and you press the SET switch at "SAVE MACRO," the printer prompts you to select the ID of the macro.

Select the ID with the or switch and press the SET switch again, so that the printer saves the macro with the selected ID.

Note

When you see an asterisk on the display, the ID number has been used for another macro or data. If you select the used ID number, the old macro or data is erased and replaced with the new macro.

You can execute a macro with the macro execution command.

• Primary Font or Secondary Font

Note

The "PRIMARY FONT" and "SECONDARY FONT" menus appear only in the HP LaserJet emulation mode.

If you have selected the primary or secondary font with the FONT switch, you can save the font on the installed flash memory card or HDD card.

When you press the SET switch at "PRIMARY FONT" or "SECONDARY FONT," the printer prompts you to select the ID of the font.

FONT ID = ##

Select the ID with the or switch and press the SET switch again, so that the printer saves the font with the selected ID.

Note

When you see an asterisk on the display, the ID number has been used for another font. If you select the used ID number, the old font is erased and replaced with the new one.

Whatever font you have selected with the FONT switch, the printer saves the font as a bitmapped font as long as the print size is no more than 24 points, so that the printer can print it faster than when they are not saved. It is recommended that you save the scalable font you frequently use for faster printing.

Since the flash memory card or the HDD card is in the card slot of the printer and fonts stored in the card behave in the same way as they would if they were in a dedicated Font Card, you can select the saved fonts as "CARD1 FONT" or "CARD2 FONT" with the FONT switch or the font selection command from your software. For font selection, see "FONT Switch" in Chapter 4.

You can check the saved fonts by printing the list of fonts with the TEST switch. See "TEST Switch" in Chapter 4.

Note

When you save the primary or secondary font, note the following:

• The font is temporarily stored in the RAM of the printer before it is saved on the card. If the font data exceeds the RAM capacity, a memory full error occurs. You can clear this error with the CONTINUE switch. As not all the font data has been stored in RAM, you cannot save the font to the card. When the font data is saved, the printer is reset to ensure as much capacity as possible in RAM. If any data remains, it is printed out.

• If you have saved the font at 600 or 1200 dpi resolution, the printer cannot print the font at 300 dpi.

• Download Font

Note

• The "DOWNLOAD FONT" menu appears only in the HP LaserJet emulation mode.
• Be sure to print out the list of download fonts with the TEST switch and check the download font ID on the list before you enter this menu. You need to select the font in this menu with the same number you see on the list.

If you have downloaded a font into the printer memory, you can save it on the flash memory card or the HDD card.

The printer prompts you to select the download font ID that you can find from the font list. Press the SET switch to move the cursor to the ID and select it with the or switch.

FONT ID = ##

Note

The download font IDs do not appear when fonts have not been downloaded.

After you select the download font ID, press the SET switch, so that the printer saves the selected download font. Vector or bitmapped fonts are saved in the format of the original font.

Once you save the download font in the card, you do not need to download the font every time you need it.

Since the flash memory card or the HDD card is in the slot of the printer, you can select the saved fonts as "CARD1 FONT" or "CARD2 FONT" with the FONT switch or the font selection command from your software. For font selection, see "FONT Switch" in Chapter 4.

You can check the fonts saved on the card by printing the list of fonts with the TEST switch. See "TEST Switch" in Chapter 4.

Note

When the fonts on the HDD card are selected in a print job, they are copied into the printer RAM. It may tend to cause the printer memory full error because those fonts occupy some RAM space. It is recommended to install optional SIMM to use the downloaded fonts on the HDD card.

Delete

When you select "DELETE" and press the SET switch, you can enter the following sub-setting menus to delete macros and fonts or format the installed flash memory card or HDD card:

Display Message	Delete Menu
MACRO ID=#########	Delete the selected ID macro.
DATA ID=#########	Delete the selected ID data.
FONT ID=#########	Delete the selected ID font.
FORMAT CARD	Format the flash memory card or the HDD card.

Macro

When you press the SET switch at "MACRO ID=#########," the cursor moves to the ID number. The printer prompts you to select the ID number of the macro to be deleted.

MACRO ID = ###

Select the ID number with the or switch and press the SET switch, so that the printer deletes the selected macro.

Data

When you press the SET switch at "DATA ID=#########" the cursor moves to the ID number. The printer prompts you to select the ID number of the data to be deleted.

DATA ID = ####

Select the ID number with the or switch and press the SET switch, so that the printer deletes the selected data.

• Font

When you press the SET switch at "FONT ID=#########" the cursor moves to the ID number. The printer prompts you to select the ID number of the font to be deleted.

FONT ID = ####

Select the ID number with the or switch and press the SET switch, so that the printer deletes the selected font.

• Format Card

You can format the flash memory card or the HDD card to delete its contents. Instructions are in the following menu:

FORMAT CARD

When you press the SET switch in this menu, the printer asks if you want to delete all contents of the card:

SET-->DELETE ALL

Press the SET switch to start formatting the card.

When you want to cancel formatting, move to the following menu with the or switch and press the SET switch.

exit

ADVANCED MODE

NETWORK MODE

Display Message	Network Mode
LOCK PANEL=OFF	Turns on or off lock panel function.
AUTO FF=ON	Turns on or off auto form feed.
FF SUPPRESS=OFF	Turns on or off the form feed suppress function.
TONER LOW=CONT	Select the printer's action when “TONER EMPTY” is detected

■ Lock panel

If someone other than you has changed the panel switch settings and you do not know about it, the printer may not print as you expected or it may not print at all.

To cope with this problem, you can lock or unlock the panel switches with your pass number as follows:

Display Message	Lock Panel
LOCK=OFF	Unlock the panel switches of the printer. (Factory setting)
LOCK=ON	Lock the panel switches of the printer.

Even if you lock the panel switches, you can use the SEL, FORM FEED, COPY, CONTINUE, RESET and TEST switches. You can only check the settings of the other switches, but you cannot change them. To change them, unlock the panel switches.

When you lock or unlock the panel switches as above, you need to enter a 3-digit pass number.

PASS NO = * * *

Change the number with the or switch and move to the next digit with the SET switch. After you finish entering your 3-digit pass number, the panel switches are locked or unlocked.

Note

Do not forget your pass number that you have used to lock the panel switches. If you enter a wrong number, you cannot unlock them. The display shows the following message:

INCORRECT!!

Auto Form Feed

If unprinted data remains in the printer's memory, the DATA lamp stays on. You need to print out the remaining data with the FORM FEED switch. See "FORM FEED Switch" in Chapter 4.

The auto form feed you can set in this mode menu allows you to print out the remaining data without pressing the FORM FEED switch.

You can turn on or off the auto form feed in this mode menu as follows:

Display Message	Auto Form Feed
AUTO FF=OFF	Turn off the auto form feed. You need to press the FORM FEED switch every time data remains in the printer's memory. (Factory setting)
AUTO FF=ON	Turn on the auto form feed. Every time data remains in the printer's memory, the auto form feed takes place after the wait time set as below.

When you turn on the auto form feed as above, you need to set the wait time in the following sub-setting menu:

Display Message	Wait Time
WAIT TIME= 1s	Set the wait time for the auto form feed.
·	The printer automatically prints out the remaining data after the set wait time.
WAIT TIME=99s	The wait time can be set from 1 to 99 seconds.

Form Feed Suppress

You can turn on or off the form feed suppress function in this mode menu as follows:

Display Message	Form Feed Suppress
FF SUPPRESS=OFF	Turn off the form feed suppress function. (Factory setting)
FF SUPPRESS=ON	Turn on the form feed suppress function.

If pages contain no print data, the printer would normally print blank pages. When you turn this function on, you can suppress printing blank pages.

When the printer is used in the network environment, it may print a blank page at the end of each print job. When you turn on this function, the printer does not print blank pages.

■ Toner Low

You can select the printer's action when "TONER EMPTY" is detected.

Display Message		Network Mode
TONER	LOW=CONT	Continue printing if the “TONER EMPTY” error occurs. (Factory setting)
TONER	LOW=STOP	Stop printing if the “TONER EMPTY” error occurs.

ERROR PRINT

Note

The setting in this mode menu is effective only in the BR-Script 2 mode. It does not appear in any other emulation modes.

You can turn on or off the error print mode in this mode.

Display Message	Error Mode
ERROR PRINT=ON	Turn on the error mode so that the printer prints an error if it occurs.
ERROR PRINT=OFF	Turn off the error mode so that the printer does not print an error if it occurs. (Factory setting)

CONTINUE MODE

If any recoverable error occurs including "Toner Empty," it can be cleared with the CONTINUE switch. The CONTINUE switch function is selected with this mode setting.

Display Message	Continue Mode
CONTINUE=MANUAL	Select the manual or auto error recovery mode. Press the CONTINUE switch to clear errors. (Factory setting)
CONTINUE=AUTO	Select the auto error recovery mode. The printer automatically clears recoverable errors. You need not press the CONTINUE switch.

SCALABLE FONT

Note

The setting in this mode menu is effective only in the HP LaserJet mode. It does not appear in any other emulation modes.

Since this printer has many scalable fonts, some application programs may not be able to handle them correctly. When the HP LaserJet emulation mode has been selected, the printer may print a different font rather than the font you have selected with your program (or the font selection command).

To cope with this font problem, you can restrict the font selection by this command as follows:

Display Message	Scalable Font
FONT=ALL	All scalable fonts of this printer can be selected with the font selection command. (Factory Setting)
FONT=LJ	Scalable fonts of this printer other than the following can be selected with the font selection command: Atlanta, Bermuda Script, PC Brussels, Copenhagen, Germany, Portugal, Calgary, San Diego, and US Roman.

Even if you restrict the font selection as above, you can select among all the scalable fonts with the FONT switch. The setting in this mode menu merely restricts the font selection command.

PRINT DENSITY

You can increase or decrease the print density with the or switch in this mode menu as follows:

Display Message	Print Density
The more black squares, the darker the print density. The black squares indicate the density level.	The more black squares, the darker the print density. The black squares indicate the density level.
The density can be set to 15 levels.	(The Factory setting = )

INPUT BUFFER

You can increase or decrease the capacity of the input buffer with the or switch in this mode menu. A larger capacity allows the printer to receive data from the computer faster.

Display Message	Input Buffer
□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□☐	The more squares, the larger the capacity of the input buffer. The squares indicate the level of the capacity but not the size in Mbytes.
□□	The capacity can be set 15 levels.
□	(Factory setting =□□□□□□)

After you change the input buffer capacity (make sure you press SET switch), be sure to turn off the printer and then turn it on again. The setting takes effect the next time you turn on the printer.

Note

• The set capacity is not changed even if the emulation mode is changed.
• The actual capacity of the input buffer varies according to the installed RAM. If the RAM capacity is small, the input buffer capacity may not be increased.
• When you select duplex printing, it requires more memory to run duplex printing. If you set a large input buffer and the remaining memory is not enough to run duplex printing, the print speed may decrease in duplex printing, the 600 and 1200 dpi resolution may decrease to 300dpi, or the printer may automatically change duplex printing to simplex printing. In such a case, you need to install optional SIMM memory or set a smaller input buffer size in this mode.

CHAPTER 4 CONTROL PANEL
Fig. 4-7 Input buffer size

SAVE SETTINGS

Suppose you share this printer with others who want different panel switch settings or you use the printer with different settings.

Since you can save the current settings in the printer's memory, you can easily reset the printer to your necessary settings after they are changed. For resetting the printer, see "RESET Switch" in Chapter 4.

Use the panel switches to set the configuration of the printer to your needs and then enter this mode menu to save your settings. Two sets of user settings can be saved in the printer as follows:

Display Message		User Setting
SAVE	SETTING 1	Save the current settings as No. 1 in the printer's memory.
SAVE	SETTING 2	Save the current settings as No. 2 in the printer's memory.

If you want to check the user settings, you can print out a list of the settings with the TEST switch. See "TEST Switch" in Chapter 4.

Note

No user settings have been factory set.

PAGE COUNTER

You can check the total number of printed pages with this mode. When you enter this mode, the display shows the number for a short time and automatically moves to "exit MODE" menu.

COUNT= 861

EXIT MODE

When you finish setting your desired item in the mode menus, advance to the following message:

exit MODE

Press the SET switch to exit from the mode menus to the off-line ready state.

Note

Remember that you can exit from the mode menu any time with the SEL switch. After you make a setting effective with the SET switch, press the SEL switch. You will exit from the mode menu to the on-line ready state. The settings you have changed with the SET switch are effective after a quick exit.

FONT Switch

Pressing the FONT switch allows you to select fonts and symbol/character sets.

Note

When you use the FONT switch, note the following:

• The FONT switch is effective in the HP LaserJet, EPSON FX-850, and IBM Proprinter XL modes. However the settings are subject to the current emulation mode. Note that the FONT switch does not work in the BR-Script 2 mode.
• If the application software supports font and symbol/character set selection, you do not need to set them with the FONT switch. The software or command setting overrides the switch setting.
• If you want to use optional fonts other than the printer's resident fonts, be sure to install a font card that has your desired fonts. The printer automatically selects the font that has exactly the same or similar characteristics as those you set through the software or with a command. If the installed font card happens to have a font of similar characteristics, the printer will print with an unexpected font.
• You can store the fonts you require on a flash memory card or HDD card only in the HP LaserJet mode or BR-Script 2 mode when one is installed. See "CARD OPERATION."

Setting the Font and Symbol Set in the HP LaserJet Mode

When the HP LaserJet emulation mode has been selected, the font and symbol set can be set separately as the primary or secondary font.

The display shows the following setting menus:

PRIMARY FONT

SELECT FONT p

Set the primary font.

SYMBOL SET p

Set the symbol set.

TABLE PRINT p

Print the code table.

exit

Exit

To select the font and symbol set in the HP LaserJet mode, follow these steps:

1. Press the SEL switch to set the printer off-line.
2. Press the FONT switch.

The display shows the following menu.

PRIMARY FONT

1. Press the or switch to select the primary or secondary font setting menu.

PRIMARY FONT

SECONDARY FONT

For this session, select the primary font setting menu.

1. Press the SET switch.

The display shows the font setting menu. You can skip the font setting menu and advance to the symbol set setting menu with the or switch. For this session, go to the next step.

SELECT FONT p

Note

The last lowercase letter "p" or "s" indicates the primary or secondary font setting mode. If you select the secondary font setting mode, the display shows "s" in the following messages.

1. Press the SET switch.

When you enter the "SELECT FONT" menu, you can select the internal font, optional slot font, or permanent download font. The display shows the following message.

INTERNAL FONT p*

Press the or switch until the desired font source appears on the display.

Display Message	Font Source
INTERNAL FONT	Internal font of the printer
CARD1 FONT	Optional font card in slot 1
CARD2 FONT	Optional font card in slot 2
PERMANENT FONT	Permanent download font defined in the HP emulation mode

Since these steps instruct you to select the standard font, select the "INTERNAL FONT" message.

Note

When you select the optional fonts or permanent download fonts, note the following:

• If the optional font card is not installed, the optional font cannot be selected. No selection appears on the display.
• If permanent fonts are not downloaded in the HP emulation mode or another emulation mode is selected, they cannot be selected. No selection appears on the display.

• The list you can print out with the TEST switch helps you to select the optional fonts or permanent download fonts. See "TEST switch" in this chapter or "Selecting the Optional Fonts" in Chapter 5.

• Press the SET switch.

When you enter the font setting mode, the display first shows the current font with an asterisk.

BROUGHAM ^

1. Press the or switch until the desired font appears on the display.

See "List of Fonts" on page 4-63.

1. Press the SET switch to make the displayed selection effective.

The steps you follow vary according to the font type, scalable or bitmapped.

If you select a resident bitmapped font (Letter Gothic 16.66) or optional bitmapped fonts, the display shows the symbol set setting menu.

SYMBOL SET p

Go to step 9.

If you select resident scalable fonts or optional scalable fonts, the display shows the font style setting menu.

BROUGHAM p

The display changes to the font style menu.

BROUGHAM Reg p*

Press the or switch until the desired style appears on the display.

Display Message	Font Style
... ... ... Lt	Light
... ... ... Reg	Regular, Roman, Book, or Antique
... ... ... Bd	Bold or Demi
... ... ... Xb	Extrabold
... ... ... It	Italic or Oblique

Note

The style indication appears after the font name and the style name differs according to the font name. The italic or oblique indication can appear after other style indication: "BdIt" indicates a bold italic font, "LtIt" indicates a light italic font, etc.

Press the SET switch to make the displayed selection effective, then the display shows the font size setting menu.

Note

When you have selected fixed-pitch fonts, you set the font size by the character pitch (width). When you have selected proportional spacing fonts, you set the font size in points (height). The display shows "PITCH" or "POINT" accordingly. The following displays show "PITCH" to simplify instructions.

PITCH= 10.00 *

Press the or switch until the desired font size appears on the display.

Press the SET switch to make the displayed selection effective. The blinking cursor then moves to the decimal part of the number.

Press the or switch until the desired decimal number appears on the display.

PITCH= 16.66

Press the SET switch to make the displayed selection effective. The display then shows the symbol set setting menu.

SYMBOL SET p

1. Press the SET switch.

When you enter the symbol set setting mode, the display first shows the current symbol set with an asterisk.

PC - 8 p^

1. Press the or switch until the desired symbol set appears on the display.

See "List of Symbol/Character Sets" on page 4-64.

1. Press the SET switch to make the displayed selection effective.

The display then shows the next menu.

TABLE PRINT p

1. Press the SET switch to start printing the code table of the selected font, or press the or switch to skip this menu.

The display shows the exit menu.

exit

1. Press the SET switch to exit from the setting mode.

The printer returns to the off-line state.

Setting the Font and Character Set in the EPSON FX-850, or IBM Proprinter XL Mode

When the EPSON FX-850 or IBM Proprinter XL mode has been selected, the font and character set can be selected.

The display shows the following setting menus.

SELECT FONT

Select the font.

CHARACTER SET

Select the character set.

TABLE PRINT

Print the code table.

exit

Exit

To select the font and character set in the EPSON

FX-850 or IBM Proprinter XL mode, follow these steps:

1. Press the SEL switch to set the printer off-line.

2. Press the FONT switch.

The display shows the font setting menu. You can skip the font setting menu and advance to the character set setting menu with the or switch. For this session, go to the next step.

SELECT FONT

1. Press the SET switch.

When you enter the "SELECT FONT" menu, you can select the internal font, optional slot font, or permanent download font. The display shows the following message.

INTERNAL FONT

Press the or switch until the desired font source appears on the display.

Display Message	Font Source
INTERNAL FONT	Internal font of the printer
CARD1 FONT	Optional card font in slot 1
CARD2 FONT	Optional font card in slot 2
PERMANENT FONT	Permanent download font defined in the HP emulation mode

Since these steps instruct you to select the standard font, select the "INTERNAL FONT" message.

Note

When you select the optional fonts or permanent download fonts, note the following:

• If the optional font card is not installed, the optional font cannot be selected. No selection appears on the display.
• If permanent fonts are not downloaded in the HP emulation mode or another emulation mode is selected, the permanent fonts cannot be selected. No selection appears on the display.

• When you select the optional font or download font, press the SET switch to enter the sub-menu. After you select your desired one with the or switch, press the SET switch again. The list you can print out with the TEST switch helps you to select the optional fonts or permanent download fonts. See "TEST switch" in this chapter or "Selecting the Optional Fonts" in Chapter 5.

• Press the SET switch.

When you enter the font setting mode, the display first shows the current font with an asterisk.

BROUGHHAM

*

1. Press the or switch until the desired font appears on the display.

See "List of Fonts" on page 4-63.

1. Press the SET switch to make the displayed selection effective.

The steps you follow vary according to the font type, scalable or bitmapped.

If you select a resident bitmapped font (Letter Gothic 16.66) or optional bitmapped fonts, the display shows the character set setting menu.

CHARACTER SET

Go to step 7.

If you select the resident scalable fonts or optional scalable fonts, the display shows the font style setting menu.

BROUGHHAM

The display changes to the font style menu.

BROUGHAM Reg

Press the or switch until the desired style appears on the display.

Display Message	Font Style
... ... ... Lt	Light
... ... ... Reg	Regular, Roman, Book, or Antique
... ... ... Bd	Bold or Demi
... ... ... Xb	Extrabold
... ... ... It	Italic or Oblique

Note

The style indication appears after the font name and the style name differs according to the font name. The italic or oblique indication can appear after any style indication: "BdIt" indicates a bold italic font, "LtIt" indicates a light italic font, etc.

Press the SET switch to make the displayed selection effective, then the display shows the font size setting menu.

Note

When you have selected fixed-pitch fonts, you set the font size by the character pitch (width). When you have selected proportional spacing fonts, you set the font size in points (height). The display shows "PITCH" or "POINT" accordingly. The following displays show "PITCH" to simplify instructions.

PITCH= 10.00

Press the or switch until the desired font size appears on the display.

Press the SET switch to make the displayed selection effective. Then the blinking cursor moves to the decimal part of the number.

Press the or switch until the desired decimal number appears on the display.

PITCH= 16.66

Press the SET switch to make the displayed selection effective. The display then shows the character set setting menu.

CHARACTER SET

1. Press the SET switch.

When you enter the character set setting mode, the display first shows the current character set with an asterisk.

US ASCII

*

Note

The character set varies according to the current emulation mode. The above display shows the factory setting in the EPSON FX-850 emulation mode.

1. Press the or switch until the desired character set appears on the display.

See "List of Symbol/Character Sets" on page 4-64.

1. Press the SET switch to make the displayed selection effective.

Then the display shows the next menu.

TABLE PRINT

1. Press the SET switch to start printing the code table of the selected font, or press the or switch to skip this menu.

Then the display shows the exit menu.

exit

1. Press the SET switch to exit from the setting mode.

The printer returns to the off-line state.

List of Fonts

For specific characters in resident bitmapped and scalable fonts, see "SYMBOL/CHARACTER SETS" in Appendix.

Display Message	Font
BROUGHAM	Scalable Brougham
LETTERGOTHIC	Scalable LetterGothic
OCR-A	Bitmapped OCR-A 12 cpi
OCR-B	Bitmapped OCR-B 12 cpi
LETTERGOTH16.6	Bitmapped Letter Gothic 16.66 cpi
LTRGOTH16 LTN2	Bitmapped Letter Gothic 16.66 cpi ISO 8859-1 Latin2
LTRGOTH16 LTN5	Bitmapped Letter Gothic 16.66 cpi ISO 8859-1 Latin5
LTRGOTH16 LTN6	Bitmapped Letter Gothic 16.66 cpi ISO 8859-1 Latin6
PcTENNESSEE	Scalable PC Tennessee
OKLAHOMA	Scalable Oklahoma
CONNECTICUT	Scalable Connecticut
CLEVELAND Cd	Scalable Cleveland Condensed
PcBRUSSELS	Scalable PC Brussels
UTAH	Scalable Utah
UTAH CONDENSED	Scalable Utah Condensed
AntiqueOAKLAND	Scalable Antique Oakland
GUATEMALA	Scalable Guatemala Antique
MARYLAND	Scalable Maryland
ALASKA	Scalable Alaska
HELSINKI	Scalable Helsinki
BR SYMBOL	Scalable BR Symbol
TENNESSEE	Scalable Tennessee
W DINGBATS	Scalable W Dingbats
GERMANY	Scalable Germany
SAN DIEGO	Scalable San Diego
BERMUDA SCRIPT	Scalable Bermuda Script
US ROMAN	Scalable US Roman
ATLANTA	Scalable Atlanta
COPENHAGEN	Scalable Copenhagen
PORTUGAL	Scalable Portugal
CALGARY	Scalable Calgary

List of Symbol/Character Sets

The symbol sets and character sets are subject to the current emulation mode. For specific symbol/character sets, see "SYMBOL/CHARACTER SETS" in Appendix.

HP LaserJet	EPSON	IBM
ROMAN 8	US ASCII *	PC-8 *
ISO LATIN1	GERMAN	PC-8 D/N
ISO LATIN2	UK ASCII I	PC-850
ISO LATIN5	FRENCH I	PC-852
ISO LATIN6
PC-775
PC-8 *	DANISH I	PC-860
PC-8 D/N	ITALY	PC-863
PC-850	SPANISH	PC-865
PC-852	SWEDISH	PC-8 TURKISH
PC-8 TURKISH	JAPANESE
PC-1004
WINDOWS LATIN1	NORWEGIAN
WINDOWS LATIN2	DANISH II
WINDOWS LATIN5	UK ASCII II
WINDOWS BALTIC
LEGAL	FRENCH II
ISO 2 IRV	DUTCH
ISO 4 UK	SOUTH AFRICAN
ISO 6 ASCII	PC-8
ISO10 SWE/FIN	PC-8 D/N
ISO11 SWEDISH	PC-850
ISO14 JISASCII	PC-852
ISO15 ITALIAN	PC-860
ISO16 POR	PC-863
ISO17 SPANISH	PC-865
ISO21 GERMAN	PC-8 TURKISH
ISO25 FRENCH
ISO57 CHINESE
ISO60 NOR v1
ISO61 NOR v2
ISO69 FRENCH
ISO84 POR
ISO85 SPANISH
HP GERMAN
HP SPANISH
VENTURA MATH
VENTURA INTL
VENTURA US
PS MATH
PS TEXT
MATH-8
PI FONT
MS PUBLISHING
WINDOWS 3.0
MC TEXT
DESKTOP

Note

The factory settings are indicated by an asterisk " * " in the table above.

FORM FEED Switch (REPRINT Switch)

The FORM FEED switch works in two ways according to the DATA lamp status.

Form Feed

When the printer is off-line and there is data remaining in the printer memory, the DATA lamp comes on. Pressing the FORM FEED switch executes a form feed and prints out the remaining data. The display may look as follows:

01 PRINT 001P T1

If you set the number of copies with the COPY switch and press the FORM FEED switch during copy printing, the printer suspends the form feed operation and the display shows the following message:

07 FF PAUSE

Pressing the SEL switch again resumes the form feed operation.

When no data remains in the printer memory and you press the FORM FEED switch, the printer ignores this switch operation and the display shows the following message:

No Data !!!

Note

If you want the printer to print out the remaining data automatically, you can set the auto form feed function with the MODE switch. See “AUTO FORMFEED” in Chapter 4.

Reprint Function

You can reprint the last print job data without sending it from the computer again. When you press the FORM FEED switch with the DATA lamp off, the printer reprints the last print job if there is sufficient memory to sore the complete job, otherwise it will reprint the last page of the job. You can use this function in order to recover printing when a paper jam has occurred.

After printing is finished, set the printer off-line and press the FORM FEED switch once, so that the printer prints reprints the last job.

The display shows the following message during reprinting:

REPRINT 1 JOB

If the printer does not have enough memory to reprint the entire job, it reprints the last page only, and the display shows the following message during reprinting:

REPRINT 1 PAGE

When you press the FORM FEED switch one or more times during reprinting, you can set the number of pages to reprint. The printer reprints the same job the number of times you press the switch.

Note

• The reprint data remains in the printer's memory until the printer is reset or the emulation, or some settings are changed. After you have reprinted confidential data, be sure to reset the printer to clear it from the printer's memory.
• If the printer cannot distinguish the job unit, it prints the last page only. You can reprint the job by using the supplied attached printer driver.
• You cannot use the reprint function in the BR-Script 2 emulation mode.

CONTINUE Switch

If there is a problem with the printer, it automatically suspends printing and goes off-line. Pressing the CONTINUE switch may ignore the error and resume printer operation.

The function of this switch varies according to the CONTINUE mode set with the MODE switch.

Since the CONTINUE mode has been factory set to MANUAL, you need to press the CONTINUE switch to recover from a printer error message.

If you set the mode to AUTO, the printer attempts to resume the operation without pressing the CONTINUE switch.

For further information, see "CONTINUE MODE" in Chapter 4.

Note

The CONTINUE switch is not a cure-all. The printer cannot recover from some errors. Take corrective action, referring to the error message. See "TROUBLESHOOTING" in Chapter 7.

You can control the basic printer operations and make various printer settings also in the SHIFT mode. Functions available in the SHIFT mode are labeled with the indications just below the panel switches.

Fig. 4-8 Switches in SHIFT Mode

Note

The factory settings are printed in bold in this section.

SHIFT Switch

When you hold the SHIFT switch down with the printer off-line, you can change settings with the panel switches in the SHIFT mode. Since the shift state is not locked, you need to hold it down and press the switch to get access to the corresponding shifted function labeled under the switch.

EMULATION Switch

This printer has been factory set with the automatic emulation selection function on. The printer can select the emulation mode automatically when it receives data from the computer.

When you want to set the emulation mode manually, hold down the SHIFT switch and press the EMULATION switch. Then you enter the setting mode where you change the emulation.

To set the emulation mode, follow these steps:

1. Press the SEL switch to set the printer off-line.
2. Hold down the SHIFT switch and press the EMULATION switch.

When you enter the setting mode, the display first shows the current emulation mode with an asterisk.

AUTO

*

1. Press the or switch until the desired emulation mode appears on the display.

Display Message	Emulation Mode
HP LaserJet 5	HP LaserJet
BR-Script 2	BR-Script level 2 mode
HP-GL	HP-GL Plotter Mode
EPSON FX-850	EPSON FX-850
IBMProprinterXL	IBM Proprinter XL
AUTO	Auto Emulation Selection

1. Press the SET switch to make the displayed selection effective.

When you select any specific emulation mode other than "AUTO," an asterisk appears at the end of the display for a short time. Then the printer automatically exits from the setting mode to the off-line state.

When you select "AUTO," the sub-item "Time Out" for the automatic emulation selection appears on the display. Go to the next step.

1. Set "Time Out" with the or switch.

TIME OUT= 5s

This time out is the duration during which the printer will not allow an automatic emulation change. You can set it from 1 second to 99 seconds: the factory setting is 5 seconds.

1. Press the SET switch.

The next sub-item "EPSON/IBM" appears on the display.

EPSON/IBM EPSON*

1. Select EPSON or IBM with the or switch.

Since the printer cannot distinguish between the EPSON and IBM emulation modes, you need to select the EPSON or IBM emulation even in the AUTO mode.

When the printer receives data from the computer, it automatically selects the emulation mode in any of the following combinations:

EPSON/IBM Priority	EPSON	IBM
Auto Selection Mode	HP LaserJet	HP LaserJet
	BR-Script 2	BR-Script 2
	HP-GL	HP-GL
	EPSON FX-850	IBM Proprinter XL

1. Press the SET switch.

The next sub-item "KEEP PCL" appears on the display.

KEEP PCL=OFF

This function is for permanent macros and fonts downloaded in the HP LaserJet mode.

1. Turn on or off the "KEEP PCL" function with the or switch.

When you do not need to use the permanent macros and fonts in the HP LaserJet mode, turn this function off. When you use them, you can turn it on.

If the function is turned on, the downloaded macros and fonts are kept in the printer's memory until the printer is turned off, so that they are not cleared by switching the emulation to the BR-Script 2 mode.

Note

The "KEEP PCL" function reserves free space in the printer's memory and may cause a memory full error. If a memory full error occurs, expand the memory capacity or turn off this function.

1. Press the SET switch.

The "exit" message appears on the display.

1. Press the SET switch again.

The printer exits from the setting mode to the off-line state.

Note

When you use the automatic emulation selection, try it with your application software or network server. If the function does not work properly, select a particular emulation mode manually. You can use the following commands to select the emulation on the network.

Commands Hex

Emulation

ESC CR H 1B0D48

HP LaserJet

ESC CR AB 1B 0D 41

BR-Script 2

ESC CR GL 1B 0D 47

HP-GL

ESC CRE 1B0D45

EPSON FX-850

ESC CR I 1B 0D 49

IBM Proprinter XL

About Emulation Modes

This printer has the following emulation modes:

HP LaserJet Mode

The HP LaserJet mode (or HP mode) is the emulation mode where this printer emulates the Hewlett-Packard LaserJet laser printer. Since a large number of application software packages support this type of laser printer, your printer will operate at its optimum performance in this mode.

■ BR-Script 2 Mode

BR-Script is a Brother original page description language and it is a PostScript® language emulation interpreter. This printer supports level 2. The BR-Script interpreter of this printer can control text and graphics on pages completely and satisfactorily.

Average users do not need to know much about PostScript® language. If you want to obtain technical information about PostScript® commands, see the following commercial manuals:

• Adobe Systems Incorporated. PostScript® Language Reference Manual, 2nd Edition. Menlo Park: Addison-Wesley Publishing Company, Inc., 1990.
• Adobe Systems Incorporated. PostScript® Language Program Design. Menlo Park: Addison-Wesley Publishing Company, Inc., 1988.
• Adobe Systems Incorporated. PostScript® Language Reference Manual. Menlo Park: Addison-Wesley Publishing Company, Inc., 1985.
• Adobe Systems Incorporated. PostScript® Language Tutorial and Cookbook. Menlo Park: Addison-Wesley Publishing Company, Inc., 1985.

HP-GL Mode

The HP-GL mode is the emulation mode where this printer emulates the Hewlett-Packard plotter model HP-7475A. Since many graphics and CAD applications support this type of plotter, you can get more out of this printer working with your application software.

EPSON FX-850 and IBM Proprinter XL Mode

The EPSON FX-850 and IBM Proprinter XL modes are the emulation modes where this printer emulates the industry-standard dot matrix printers of respective manufacturers. Since most applications support these printers, you do not have to be concerned about compatibility.

ECONOMY Switch

TONER SAVE MODE

You can turn on or off the toner save mode as follows:

Display Message		Toner Save Mode
TONER	SAVE=OFF	Turn off the toner save mode. (Factory setting)
TONER	SAVE=ON	Turn on the toner save mode. The amount of toner on the paper decreases and the printed image may look light gray.

POWER SAVE MODE

You can turn on or off the power save mode as follows:

Display Message		Power Save Mode
POWER	SAVE=ON	Turn on the power save mode. The fixing assembly of the print engine is turned off after the specified time to save power. (Factory setting)
POWER	SAVE=OFF	Turn off the power save mode. The fixing assembly of the print engine is always powered on to keep its temperature at the specified level.

1. When you turn on the power save mode, the display shows the following message:

TIME OUT

1. When you press the SET switch, the display show this message:

TIME OUT=30m

You need to set the time out for the power save mode from 1 to 99 minutes with the or switch: factory setting = 30 minutes. The time out is the duration after which the fixing assembly of the print engine is turned off ("SLEEP") to save power.

When the power save mode is turned on, the printer turns on the fixing assembly again after it receives data from the computer. Since the fixing assembly must reach the specified high temperature, it takes a little longer time to start printing the first page.

FEEDER Switch

You can select the feeder, manual feed mode, or MP tray settings with the FEEDER switch, and also select the duplex printing mode if the optional duplex printing unit is installed.

Display Message	Feeder
FEEDER=AUTO	Select a feeder or auto paper feed.
MP FIRST=OFF	Turns MP first on or off.
MANUAL FEED=OFF	Turns manual feed on or off.
MP TRAY SETTING	MP tray settings
TRAY SETTING	Tray 1, Tray 2 settings
MEDIA TYPE	Select print media
DUPLEX MODE	Selects duplex printing mode (only with the duplex option installed.)

You can check the current feeder and the duplex mode on the display.

When tray 1 has been selected, the display may look as follows:

00 READY 001P T1

When the multi-purpose tray and the duplex printing mode have been selected, the display may look as follows:

00 READY 001P MP

The black square indicates that duplex printing mode is selected.

When you want to change settings with the FEEDER switch, hold down the SHIFT switch and press the FEEDER switch. You will then enter the setting mode where you change the feeder, manual feed mode, etc.

FEEDER

To select the feeder, follow these steps:

1. Press the SEL switch to set the printer off-line.
2. Hold down the SHIFT switch and press the FEEDER switch.

When you enter the setting mode, the display first shows the current feeder setting with the asterisk.

FEEDER=AUTO

1. Press the or switch until the desired feeder appears on the display.

Display Message	Paper Feed Method/Paper Source
FEEDER=AUTO	Auto paper feed
FEEDER=MP TRAY	Feed from multi-purpose tray (MP tray)
FEEDER=TRAY1	Upper paper cassette (Tray 1)
FEEDER=TRAY2	Lower paper cassette (Tray 2)

Note

When you select a feeder, note the following:

• The "FEEDER=TRAY2" message appears only when the optional lower tray unit has been installed.
• The FEEDER=AUTO setting allows you to optimize your printing environment. This setting allows a print job to continue uninterrupted when a paper out condition occurs. The default setting is AUTO. This setting allows a common printing situation: Loading the same size and type of paper in all paper trays. This allows your print job to continue without error if one of the paper trays becomes empty. The printer will automatically select another tray if one tray becomes empty.
• When you select the FEEDER=AUTO, the printer automatically searches for the paper size you set with the MODE switch in the PAGE FORMAT mode and loads the paper from the paper source that contains the selected size of paper. If all of the upper and lower paper cassettes and the multi-purpose tray contain different sizes of paper and one paper cassette runs out of paper, the printer stops printing without automatically changing to the other paper source to feed paper. It prevents a different size of paper from being printed by mistake.

• If you have the same size of paper loaded but of different type (i.e.: FORM "A" in Tray 1, Form "B" in Multi-purpose Tray) it is recommended to change the feeder setting from AUTO to Tray 1. This setting will allow the printer to pause when a paper empty condition occurs, allowing you to load the correct type of paper, then press SEL to finish to print job.

• Press the SET switch to make the displayed selection effective.

When you select "MP TRAY", "TRAY1," or "TRAY2," an asterisk appears at the end of the display for a short time. Then the "exit" message appears on the display. Press the SET switch again, so that the printer exits from the setting mode to the off-line state.

When you select "AUTO", the tray selection menu for the auto paper feed appears on the display. Go to the next step.

1. Change the tray combination and priority with the or switch. For example:

AUTO T1>MP

When "AUTO T1>MP" is set, both tray 1 and the multi-purpose tray are selected but tray 1 will be selected first if the paper size in tray 1 and the page size for the printing job match each other.

1. Press the SET switch.

MP FIRST

The display shows the current setting for the MP FIRST mode for the multi-purpose tray with an asterisk.

MP FIRST=OFF

1. Press the or switch to select on or off for the MP FIRST mode in the multi-purpose tray.

Note

• When you want to print the first page on paper such as letterhead in the multi-purpose tray, and the following pages on paper such as plain paper in another tray, place a sheet for the first page on the multi-purpose tray and select "MP FIRST=ON" in this menu. Then the printer first selects the multi-purpose tray regardless of the "FEEDER=####" setting and then automatically switches to the feeder selected in the "FEEDER=####" menu after the multi-purpose tray becomes empty.

• You can use the MP tray as a convenient temporary feeder by setting MP FIRST=ON. When MP FIRST=ON is set, if you place paper on MP tray, this paper will be printed, and if you do not place paper on MP tray, another tray will be selected according to the command or the “FEEDER=########” setting.

• You can set "MP FIRST=ON" so that you can use the MP tray paper first until it becomes empty and then switch to other paper sources which hold the same size of paper. You can set "MP FIRST=ON" for this purpose only when all the trays hold the same type and size of paper. When the MP tray paper size is different from paper in other trays, you must not select "ON" if you do not want to use MP tray paper.

• Press the SET switch.

MANUAL FEED

The display shows manual feed mode with an asterisk as follows:

MANUAL FEED=OFF*

1. Press the or switch to turn the manual feed mode on or off.
2. Press the SET switch to make the setting effective.

Note

When you select the "MANUAL FEED=ON", note that the feeder set in the "FEEDER=####" menu is ignored and the manual feed mode from the multi-purpose tray is selected. You must set "MANUAL FEED=OFF" so that the feeder selection in the "FEEDER=####" menu can be effective.

MP TRAY SETTING

1. The display then shows the MP tray setting menu. Press the SET switch to enter this menu.

Then the display shows the current paper size setting for the multipurpose tray with an asterisk.

MP SIZE LETTER*

1. Press the or switch to select the paper size in the multi-purpose tray.

Note

When you select the multi-purpose tray as a paper source, you must set the "MP SIZE" manually since the tray cannot sense the size automatically.

1. Press the SET switch to make the displayed setting effective.

Then the display shows the current "PAPER IN" setting with the asterisk as follows:

PAPER IN=CONT

1. Press the or switch to select the printer action to continue or stop during manual feed.

Note

You can select the printer action either to continue or to stop printing when you select the manual feed with this switch or by a command. When you set "PAPER IN=CONTINUE", the printer feeds paper from the multipurpose tray. When you set "PAPER IN=STOP", the printer stops feeding paper until the SEL key is pressed. If you want to place the paper on the multi-purpose tray after you make a print request from the PC, select the "PAPER IN=STOP" so that the printer waits for the paper.

1. Press the SET switch to make the setting effective.

MEDIA TYPE

When you use any paper other than ordinary plain paper, such as thick bond paper, envelope, or transparency, the appropriate media type must be selected in the media type mode in order to get the best print quality.

To select a media type, follow these steps:

1. The display shows the following message:

MEDIA TYPE

1. Press the SET switch to enter the media type mode. The display then shows the current setting with an asterisk:

REGULAR

*

1. Press the or switch to select regular, thick paper, or transparency.

2. Press the SET switch to make the setting effective.

Note

• Please do not forget to change the setting back after you print your special media with the setting changed.
• Envelopes cannot be fed from Tray 2 although you can set them in it.
• You must not load transparencies into Tray 1 or Tray 2. Please use the multi-purpose tray.
• Please select the 'THICK PAPER' or 'THICKER PAPER 2' setting (300 or 600 dpi only) when the toner is not fixed enough by the normal setting when you are printing on thick paper.

DUPLEX MODE

If the optional duplex printing unit has been installed, the duplex mode appears on the display as follows:

DUPLEX MODE

1. Press the SET switch to enter the duplex mode menu.

Then the display shows the current selection for the duplex printing or simplex printing (duplex off) with an asterisk as follows:

D L E O F

1. Press the or switch to select the duplex or simplex (duplex off), and press the SET switch.

When you set "DOUBLEX=ON", the display shows the current bind setting with an asterisk as follows:

BIND=LONG

1. Press the or switch to select long edge binding or short edge binding.

BIND=LONG

BIND=SHORT
Fig. 4-9 Binding

1. Press the SET switch to exit the DUPLEX MODE.

The printer exits from the setting mode to the off-line state.

1. Press the SET switch again to exit the FEEDER switch setting mode to the printer off-line state.

Note

The duplex printing unit can handle letter, legal, A4, ISO B5 (except T2) and executive sizes of paper. It can not handle shorter sizes of paper than B5 (250mm-9.8 inches long).

COPY Switch

You can set the number of copies to print of the same page with the COPY switch. The computer will release from a printing job in a shorter time if you use this feature than when you set the copy print quantity with your application software. Check the current setting on the display.

When the number of copies has been set at 1, the display may look as follows:

00 READY 001P T1

When the number of copies has been set at 3, the display may look as follows:

00 READY 003P T1

Note

If you send too many pages to be stored in the printer memory, part or all of the set pages or copies may not be printed.

To set the number of copies, follow these steps:

1. Press the SEL switch to set the printer off-line.
2. Hold down the SHIFT switch and press the COPY switch.

When you enter the setting mode, the display first shows the current setting with the asterisk.

COPY PAGES = 1*

1. Press the or switch until the desired number appears on the display.

Display Message			# of Copies to Print Same Pages
COPY	PAGES=	1	1 page
COPY	PAGES=	2	2 pages
			...
COPY	PAGES=999		999 pages (max.)

1. Press the SET switch to make the displayed selection effective.

An asterisk appears at the end of the display for a short time. Then the printer automatically exits from the setting mode to the off-line state.

RESET Switch

You can reset the printer with the RESET switch. The print data that the printer has already received from the computer is cleared and the printer settings are restored to the user settings or factory settings.

The temporary download fonts and macro settings you set with commands in the HP LaserJet mode are also cleared.

When you want to reset the printer, hold down the SHIFT switch and press the RESET switch. You then enter the reset mode where you reset the printer.

To reset the printer, follow these steps:

1. Press the SEL switch to set the printer off-line.
2. Hold down the SHIFT switch and press the RESET switch.

When you enter the reset mode, the display shows the first reset mode item.

RESET PRINTER

1. Press the or switch until the desired reset mode appears on the display.

Display Message		Reset Mode
RESET	PRINTER	Reset the printer and restores all printer settings—including command settings—to settings you have previously made with the panel switches.
RESET	SETTING 1	Reset the printer and restores all printer settings—including command settings—to the selected number (1-2) of user settings you have previously made with the MODE switch.
RESET	SETTING 2
FACTORY	SETTINGS	Reset the printer and restores all printer settings—including command settings—to the factory settings. See “List of Factory Settings.”
exit		Exits from the reset mode. The printer is not reset.

1. Press the SET switch to make the displayed selection effective.

The printer is reset according to the selected reset mode.

When the "RESET PRINTER" mode has been selected, the printer is reset showing the message alternately as follows:

When the "RESET SETTING 1-2" mode has been selected, the printer is reset showing the message alternately as follows (# indicates the selected number of saved settings):

When the "FACTORY SETTINGS" mode has been selected, the printer is reset showing the message alternately as follows:

Then the printer automatically exits from the reset mode to the on-line state.

List of Factory Settings

The following table shows the factory settings initially set before shipment.

Note

• The settings are subject to the emulation mode. Effective modes are indicated in parentheses in the following table.
• The following settings cannot be restored to the factory settings with the RESET switch in the "FACTORY SETTINGS" mode: INTERFACE MODE, HRC SETTING, PAGE PROTECTION, Scalable FONT, LOCK PANEL, and PAGE COUNTER, and local language for display messages.
• The COPY setting is always restored to the factory setting when the printer is turned off and on again.
• The user settings are overwritten after resetting to setting 1 or 2.

Switch	Item	Sub-Item	Factory Setting
MODE	INTERFACE MODE	-	I/F=AUTO
		For AUTO mode
		TIME OUT	TIME OUT=5s
		For bi-directional PARALLEL interface
		HIGH SPEED	HIGH SPEED=ON
		BI-DIR	BI-DIR=ON
		For RS-232C serial interface
		Baud Rate	BaudRate=9600
		Code Type	CodeType=8 bits
		Parity	Parity=NONE
		Stop Bit	Stop Bit=1 bits
		Xon/Xoff	Xon/Xoff=ON
		DTR (ER)	DTR (ER)=ON
		Robust Xon	Robust Xon=OFF
	FORMAT MODE	ORIENTATION (Except for BR-Script 2)	ORI=PORTRAIT
		AUTO MODE (HP LaserJet)
		AUTO LF	OFF
		AUTO CR	OFF
		AUTO WRAP	OFF
		AUTO SKIP	ON
		AUTO MODE (EPSON)
		AUTO LF	OFF
MODE (continued)	FORMAT MODE (continued)	AUTO CR	ON (No indication)
		AUTO WRAP	ON (No indication)
		AUTO MASK	OFF
		AUTO MODE (IBM)
		AUTO LF	OFF
		AUTO CR	OFF
		AUTO WRAP	ON (No indication)
		AUTO MASK	OFF
		PAGE FORMAT MODE (HP LaserJet, EPSON, & IBM)
		PAPER	LETTER (For 110/120V model) A4 (For 220/240V model)
		LEFT M	0 (LETTER, PORTRAIT) 0 (LEGAL, PORTRAIT) 0 (A4, PORTRAIT) 0 (LETTER, LANDSCAPE) 0 (LEGAL, LANDSCAPE) 0 (A4, LANDSCAPE) 0 (A5, LANDSCAPE) 0 (A6, LANDSCAPE)
		RIGHT M	80 (LETTER, PORTRAIT) 80 (LEGAL, PORTRAIT) 78 (A4, PORTRAIT) 106 (LETTER, LANDSCAPE) 136 (LEGAL, LANDSCAPE) 113 (A4, LANDSCAPE) 113 (A5, LANDSCAPE) 113 (A6, LANDSCAPE)
		TOP M	0.5" (HP) 0.33" (Non-HP)
		BOTTOM M	0.5" (HP) 0.33" (Non-HP)
MODE (continued)	PAGE FORMAT (continued)	LINES (HP)	60 (LETTER, PORTRAIT)
			78 (LEGAL, PORTRAIT)
			64 (A4, PORTRAIT)
			64 (A5, PORTRAIT)
			64 (A6, PORTRAIT)
			45 (LETTER, LANDSCAPE)
			45 (LEGAL, LANDSCAPE)
			43 (A4, LANDSCAPE)
			43 (A5, LANDSCAPE)
			43 (A6, LANDSCAPE)
		LINES (Non-HP)	62 (LETTER, PORTRAIT)
			80 (LEGAL, PORTRAIT)
			66 (A4, PORTRAIT)
			66 (A5, PORTRAIT)
			66 (A6, PORTRAIT)
			47 (LETTER, LANDSCAPE)
			47 (LEGAL, LANDSCAPE)
			45 (A4, LANDSCAPE)
			45 (A5, LANDSCAPE)
			45 (A6, LANDSCAPE)
		X OFFSET	X OFFSET=0
		Y OFFSET	Y OFFSET=0
FORMAT MODE (BR-Script 2)		X OFFSET	X OFFSET=0
		Y OFFSET	Y OFFSET=0
FORMAT MODE (HP-GL)		PAGE FORMAT MODE
		PAPER	LETTER (For 110/120V model)
			A4 (For 220/240V model)
		X OFFSET	X OFFSET=0
		Y OFFSET	Y OFFSET=0
		GRAPHICS MODE (HP-GL)
		PEN SETTING	SIZE: 3 dots
			GRAY: 100%
MODE (continued)
	RESOLUTION MODE	RESOLUTION	RESOLUTION=600
		APT SETTING	APT=OFF
		HRC SETTING	HRC=MEDIUM
	PAGE PROTECTION (Non-BR-Script2)	-	PROTECT=AUTO
	ADVANCED MODE	NETWORK MODE
		LOCK PANEL	LOCK PANEL=OFF
		AUTO FF	AUTO FF=OFF
		For AUTO FF=ON	WAIT TIME=5s
		WAIT TIME
		FF SUPPRESS	FF SUPPRESS=OFF
		TONER LOW	TONER LOW=CONT
		ERROR PRINT (BR-Script2)	ERROR PRINT=OFF
		CONTINUE MODE	CONTINUE=MANUAL
		SCALABLE FONT
		(HP, EPSON, & IBM)	FONT=ALL
		PRINT DENSITY
		For any interfaces
		INPUT BUFFER
	PAGE COUNTER	-	0
FONT (HP)
	PRIMARY FONT	SELECT FONT	BROUGHAM
		SYMBOL SET	PC-8
	SECONDARY FONT	SELECT FONT	BROUGHAM
		SYMBOL SET	PC-8
FONT (EPSON)
	FONT	-	BROUGHAM
	CHARACTER SET	-	US ASCII
FONT (IBM)
	FONT	-	BROUGHAM
	CHARACTER SET	-	PC-8
EMULATION
	-	-	AUTO
	For AUTO mode	TIME OUT	TIME OUT=5s
		EPSON/IBM	EPSON/IBM=EPSON
		KEEP PCL	KEEP PCL=OFF
Switch Item		Sub-Item	Factory Setting
ECONOMY		-
	TONER SAVE MODE	-	TONER SAVE=OFF
	POWER SAVE MODE	-	POWER SAVE=ON
		For POWER SAVE=ON
		TIME OUT	TIME OUT=30m
FEEDER
	FEEDER	-	FEEDER=AUTO
			For FEEDER=AUTO
			AUTO T1>T2>MP
	MP FIRST		MP FIRST=OFF
	MANUAL FEED	-	MANUAL FEED=OFF
	MP TRAY SETTING	MP SIZE	MP SIZE=LETTER (For 110/120V model)
			MP SIZE=A4 (For 220V/240V model)
		PAPER IN	PAPER IN=CONT
	MEDIA TYPE	-	REGULAR
	DUPLEX MODE	DUPLEX	DUPLEX=OFF
		BIND	BIND=LONG
COPY	-	-	COPY PAGES=1
LANGUAGE (FORM FEED + POWER ON)		-	LANG=ENGLISH

TEST Switch

You can test the printer or print out the list of fonts with the TEST switch. To do so, hold down the SHIFT switch and press the TEST switch. You will then enter the test mode where you may test the printer or print out the list of fonts.

To test the printer, follow these steps:

1. Press the SEL switch to set the printer off-line.
2. Hold down the SHIFT switch and press the TEST switch.

When you enter the test mode, the display shows the first test mode item.

DEMO PAGE

1. Press the or switch until the desired test mode appears on the display.

Display Message	Test Mode
DEMO PAGE	Prints out the demonstration.
TEST PRINT	Performs the printer test and prints out the test pattern.
PRINT CONFIG	Prints out the list of panel switch settings you have configured for the printer as user settings.
PRINT FONTS I	Prints out the list of internal or resident fonts.
PRINT FONTS C	Prints out the list of optional fonts stored in the font card.
PRINT FONTS P	Prints out the list of permanent download fonts.
exit	Exits from the test mode. The printer does not perform the test.

Note

The message "PRINT FONTS C" or "PRINT FONTS P" appears only when the optional font card is installed in the font slot or permanent download fonts are stored in printer memory.

• If the optional font card is installed, you can print out the list of optional fonts. Since the list shows the ID numbers specific to each optional font, it helps you to select them with the FONT switch. For further information, see “FONT Switch” in Chapter 4 and “FONT CARD, FLASH MEMORY/HDD CARD” in Chapter 5.

• If user-defined characters are already downloaded into the printer memory as permanent download fonts, you can print out the list of them. For further information, see "FONT Switch" in Chapter 4.

• Press the SET switch to make the displayed selection effective.

The printer prints out the test patterns or lists according to the selected test mode.

■ When the "DEMO PAGE" mode has been selected, the display shows the following message and the printer starts printing out the demonstration pattern.

06 DEMO PAGE

■ When the "TEST PRINT" mode has been selected, the display shows the following message and the printer starts printing out the test pattern.

05 TEST PRINT

■ When the "PRINT CONFIG" mode has been selected, the display shows the following message and the printer starts printing out the list of printer settings.

06 PRINT CONFIG

Note

The printed list shows the panel switch settings you have made as user settings with the MODE switch. See "SAVE SETTINGS" in Chapter 4.

■ When the "PRINT FONTS" mode has been selected, the display shows the selected mode and the printer starts printing out the font list. The display may look like this:

06 PRINT FONTS I

When the printer finishes printing, it automatically exits from the test mode to the off-line state.

This printer has a useful hex dump mode for checking the print data sent from your computer. The printer lists the print data in hexadecimal form.

To enter the hex dump mode, follow these steps:

1. Check the power state.

2. Operate the switches according to the power state.

3. If the printer has been turned off, turn on the printer.

The printer starts the self-test and the display shows the following message.

04 SELF TEST

• If the printer has been turned on, reset the printer with the RESET switch.

1) Press the SEL switch to set the printer off-line.
2) Hold down the SHIFT switch and press the RESET switch. The display will show "RESET PRINTER".
3) Press the SET switch with the "RESET PRINTER" selected.

The printer begins its reset and the display shows the following message alternately.

08 RESET TO

USER SETTINGS

3. Press the CONTINUE/SHIFT switch.

The printer checks the CONTINUE/SHIFT switch at the end of self-test or printer reset. If the switch is held down, the printer enters the hex dump mode and goes on-line. The display will show the message "HEX DUMP MODE" and the printer will return to the on-line state.

Note

If the printer returns to the on-line state without displaying the message "HEX DUMP MODE", you did not press the CONTINUE/SHIFT switch immediately after pressing the SET switch. Try the above steps once again.

1. Send data from your computer.

When the printer receives data, it starts printing hexadecimal values of the received data.

To exit from the hex dump mode, follow these basic steps:

1. Press the SEL switch to set the printer off-line.
2. Reset the printer with the RESET switch.

Or turn off the printer, wait for a few seconds, and turn it on again.

CHAPTER 5 OPTIONS

LOWER TRAY UNIT (LT-2000)

Loading Paper from the Lower Paper Cassette

The lower tray unit is a device that functions as a third paper source which can contain a maximum of 500 sheets of paper (80 g/m² or 20 lb.). For the optional lower tray unit, consult the dealer where you purchased the printer.

Fig. 5-1 Loading Paper in the Lower Tray Unit

With the lower tray unit installed, load paper into the lower paper cassette in the same way as you do the upper paper cassette. See "Setting Up the Printer" in Chapter 2.

The paper sizes available for the lower paper cassette are not the same for the upper paper cassette as shown below.

paper source	available size	available type and capacity
the optional lower paper cassette (T2)	cut sheet : letter and legal or A4	plain paper : 500 weight = 80 g/m2or 20 lbs

Note

Be sure to select the same paper size as the paper to be used from your application software, or correct printing cannot be obtained.

If your application software does not support paper size selection on its print menu, you can change the paper size with the MODE switch in the FORMAT MODE. For paper size change, see "MODE Switch" in

Chapter 4.

The paper size has been factory set to letter or A4, depending upon the final destination of the printer.

110/120V model: letter or legal size paper set
220/240V model: A4 size paper set

FONT CARD, FLASH MEMORY/HDD CARD

Installing Card, Flash Memory Card and HDD Card

This printer has two slots for optional font cards, flash memory cards or an HDD card.

If you install the optional font card, you can use the fonts stored in them as well as resident fonts. For optional font cards, consult the dealer where you purchased the printer.

If you install the optional flash memory card or HDD card, you can save macros and fonts on it. For flash memory card and HDD card operation and information, see "CARD OPERATION" in Chapter 4.

Note

• Do not install or remove cards with the printer power on, or you may lose all data from the card, or may seriously damage the card if you do this.
• For more information about the cards, consult the dealer where you purchased the printer.

Follow these steps to install or remove a card:

1. Make sure that the printer is turned off.

If the printer is turned on, be sure to press the SEL switch to set the printer off-line. If data remains in the printer memory, the DATA lamp stays on. Press the FORM FEED switch to print out the remaining data, then the DATA lamp goes off. Turn off the printer.

1. Fit a flash memory or font card into either slot 1 or slot 2 with the label facing to the left. Make sure they are inserted correctly.

To remove the card, press the release button located under the card and then pull the card out of the slot with the printer turned off.

The following type of flash memory card can be installed:

• 4 Mbyte: MB98A81273
• 8 Mbyte: MB98A81373
  16 Mbyte: MB98A81473
  32 Mbyte: MB98A81573

• 1 Mbyte: AMC001CFLKA
• 2 Mbyte: AMC002CFLKA
• 4 Mbyte: AMC004CFLKA
  10 Mbyte: AMC010CFLKA

4 Mbyte: AMC004DFLKA
8 Mbyte: AMC008DFLKA
20 Mbyte: AMC020DFLKA

<SanDisk (or SanDisk OEM Products)

2 to 85 Mbyte: PCMCIA PC Card ATA

The following type of HDD card can be installed:

Fig. 5-7 Installing or Removing the Card

Note

PCMCIA cards that require a 12 Volt supply can only be used in SLOT 2.

Selecting the Optional Fonts

After you have installed the optional font card, you can select optional fonts by any of the following methods:

1. Through your application software
2. With a font selection command
3. With the FONT switch

When you select fonts through your application software, follow the instructions specific to your software. Refer to your software manual if you need assistance. When you select fonts with a font selection command, embed the font selection command in your program. See the Technical Reference Manual, which is optionally available for this printer.

Note

When you select the fonts through your software or with a command, note the following:

• You do not need to be concerned about the FONT switch setting. The software or command setting overrides the switch setting.
• Be sure to install the font card that has your desired fonts. The printer automatically selects the font that has exactly the same or similar characteristics as those you set through the software or with a command. If the installed font card happens to have a font of similar characteristics, the printer will print in an unexpected font.

To select fonts with the FONT switch, follow these basic steps:

1. Print out the list of optional fonts in the PRINT FONTS C mode with the SHIFT and TEST switches.

See "Printing the Test Pattern or Font List" in Chapter 2.

1. Find the font slot and font ID number on the list.

Fig. 5-8 Font ID Numbers on the Font List

1. Select the font with the FONT switch.

See "FONT Switch" in Chapter 4.

This printer has a modular input/output (MIO) interface slot on the rear panel. This slot allows you to install a commercial MIO-compatible sharing/network card.

For more information about MIO cards, consult the dealer where you purchased this printer.

When you install the MIO card, follow these steps:

1. Turn off the printer and unplug the power cord from the wall socket.

Note

Be sure to turn off the power to the printer before installing or removing the MIO card.

1. Remove the two screws and cover plate from the MIO interface slot.
2. Unpack the MIO card and hold it on its edge.

Note

Do not touch the card surface. If static electricity collects, it damages the card.

1. Insert the card until it is securely seated.
   5 Secure the MIO card with the two captive screws on the card
2. Retain the cover plate and two screws removed in 2 in case you want to remove the MIO card later.

Fig. 5-9 Installing the MIO Card

This printer has 8 Mbytes of memory standard and 2 slots for optional expansion memory. The memory can be expanded up to 72 Mbytes by installing commercially available single in-line memory modules (SIMMs). (The standard memory fitted can vary depending on the printer model and country.)

Minimum Memory Recommendation (Including 8 Mbytes of internal memory)

HP LaserJet, HP-GL, EPSON FX-850, and IBM Proprinter XL emulation modes

Page Protect = Off
	300 dpi	600 dpi
Letter/A4	standard	standard
Legal	standard	standard

Page Protect = On
	300 dpi	600 dpi
Letter/A4	standard	standard
Legal	standard	standard

■ BR-Script 2 mode

	300 dpi	600 dpi	1200 dpi
Letter/A4	standard	standard	16 Mbytes
Legal	standard	standard	16 Mbytes

Duplex printing

	300 dpi	600 dpi
HP LaserJet	standard	10 Mbytes
BR-Script 2	standard	10 Mbytes

The following capacity of SIMM can be installed:

-1 Mbyte HITACHI HB56D25632B-6A, -7A, -8A

MITSUBISHI MH25632BJ-7, -8

-2 Mbyte HITACHI HB56D51232B-6A, -7A, -8A

MITSUBISHI MH51232BJ-7, -8

-4 Mbyte HITACHI HB56A132BV-7A,-7AL,-7B,-7BL,-8AL,-8B,

8BL

MITSUBISHI MH1M32ADJ-7, -8

-8 Mbyte HITACHI HB56A232BT-7A, -7AL, -7B, -7BL

MITSUBISHI MH2M32EJ-7, -8, MH2M32DJ-7, -8

-16 Mbyte TOSHIBA THM324000BSG-60, -70, -80

-32 Mbyte TOSHIBA THM328020BSG-60, -70, -80

In general, the SIMM must have the following specifications:

Type: 72 pin and 32 bit or 36 bit output

Access Time: 80 msec. or less

Capacity: 1, 2, 4, 8, 16 or 32 Mbyte

Height: 46mm (1.8 inches) or less

There are 40 bit output SIMMs for workstations. Such SIMMs do not fit this printer.

For SIMMs and installation, consult the dealer where you purchased the printer.

When you install SIMMs, follow these steps:

1. Turn off the printer and unplug the power cord from the wall socket.

Note

Be sure to turn off the power to the printer before installing or removing the SIMMs.

1. Open the top cover of the printer.

2. Push the tab located on the left inside the printer to unlock the left side cover.

Fig. 5-10 Unlocking the Left Side Cover

1. Remove the left side cover by sliding it to the rear of the printer.

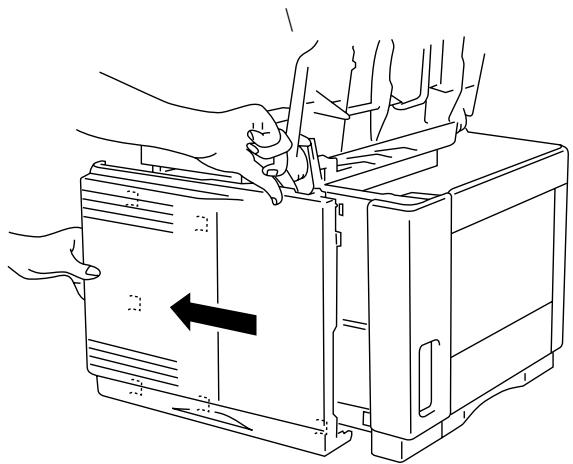

Fig. 5-11 Removing the Left Side Cover

1. Loosen the screws and then slide and remove the metal cover.

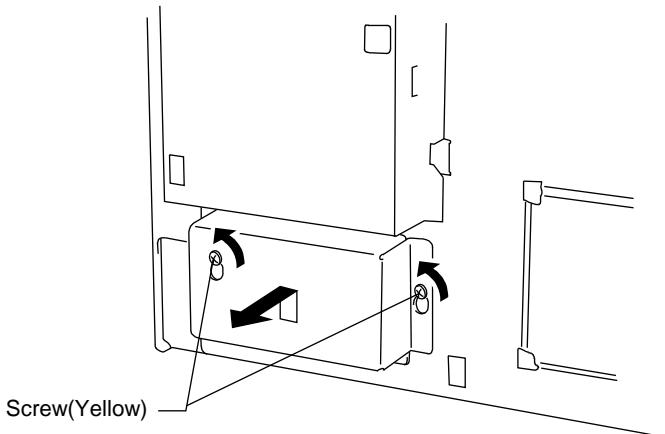

Fig. 5-12 Removing the Metal Cover

1. Unpack a SIMM and hold it on its edge.

Caution

SIMM boards may be damaged by even a small amount of state electricity. Do not touch the memory chips or the board surface.

When handling the board and before installing or removing it, wear an antistatic wrist strap, or frequently touch the surface of the antistatic package or bare metal on the printer.

1. Install as many SIMMs as you need.

2. Set a SIMM into the slot at an angle.

3. Push the tip gently towards the vertical until it clicks into place.

Note

• When you install less than two SIMMs, be sure to install them in the order of slots 1 and 2.
• When you install different capacities of SIMMs, be sure to install the larger capacity SIMMs in the lower socket and smaller capacity SIMMs in order in the upper sockets.
• Be careful not to connect the network interface cable into the modular jack for options located inside the left side cover, or it may damage the printer.

Fig. 5-13 Installing the SIMMs

1. Refit the metal plate and secure it with the screws.
2. Refit the left side cover to the printer.
3. Plug in the power cord and turn on the printer.

If you have installed the SIMMs incorrectly, the printer prints a report to alert you.

The duplex unit is an optional device that allows printing on both sides of pages. When it is installed, you can select either duplex printing or simplex printing from the control panel or by software command. For more information about the control panel, see “FEEDER switch” in Chapter 4.

Be sure to install the following capacity of RAM to enjoy duplex printing, or the printer cannot manage all the data for duplex printing at 600 dpi resolution and automatically switches to simplex printing or decreases the resolution from 600 or 1200 dpi to a lower resolution.

Duplex printing

	300 dpi	600 dpi
HP LaserJet	standard	10 Mbytes
BR-Script 2	standard	10 Mbytes

Notes

• The Duplex unit can handle cut sheet paper of the sizes shown below [Weight = 60 to 105 g/m² (16 to 28 lbs)].
• When the duplex unit is installed, the capacity of the upper paper cassette decreases as shown below.
• When the duplex unit is installed, legal size paper can not be loaded into the upper paper cassette with the standard paper guide. Be sure to replace it with the duplex paper guide for the both simplex and duplex printing.
• When the printer automatically changes the setting to the 300 dpi resolution, the display temporarily shows "02 PR300" during printing.
• When the printer automatically changes the setting to the simplex printing, the display temporarily shows "02 SX" during printing.

When the printer automatically changes the setting to the simplex printing, the display temporarily shows "02 SX" during printing.

When the duplex unit is installed, paper handling and capacity of the upper paper cassette changes as follows:

For Duplex

paper source	available size	available type and capacity
all sources for duplex printing (DX)	cut sheet : letter, legal, A4, ISO B5, (except T2) & Executive	*The capacity of T1 is reduced when the duplex is unit installed

The upper paper cassette with duplex unit installed

paper source	available size	capacity
the upper paper cassette (T1)	cut sheet : letter, legal, A4, envelope : COM 10	:200 sheets/27.5mm : 15 sheets/20.5mm : 15 sheets/20.5mm : 15 sheets/20.5mm : 15 sheets/20.5mm : 15 sheets/20.5mm : 15 sheets/20.5mm
	Monarch
	C5
	DL
	ISO B5

CHAPTER 6 MAINTENANCE

MAINTENANCE

Toner Cartridge

A new toner cartridge contains enough toner to print approximately 9,000 A4/Letter-size single-sided pages at about 5% coverage (if the print density is set at level 8).

You can check the current page count or the number of printed pages with the MODE switch (PAGE COUNTER). For further information, see "MODE Switch" in Chapter 4.

Notes

Toner consumption varies according to the image coverage on the page and the print density setting.

• The greater the image coverage, the greater the toner consumption.
• If you change the print density setting for lighter or darker printing, toner consumption varies accordingly. To adjust print density setting, see "Checking the Printed Test Pattern or Demo Page" in Chapter 2.

Toner Empty Message

Check printed pages, page counter, and display messages periodically. If the display shows the following message, the printer has almost run out of toner or the toner is not evenly distributed inside the cartridge.

16 TONER EMPTY

Although you can print between 30 and 100 additional pages after the toner empty message first appears, be sure to replace the toner cartridge with a new one before it becomes completely empty.

You can select the printer's action when the "TONER EMPTY" message appears, whether to stop or continue printing. See "ADVANCED MODE" in Chapter 4.

Follow these steps to check the toner cartridge:

1. Remove the toner cartridge from the printer.

If you turn on the printer without a toner cartridge installed, the display shows the following operator call message to prompt you to install the toner cartridge.

14 NO CARTRIDGE

1. Rock the toner cartridge gently several times at a 45^ angle to distribute the toner evenly inside the cartridge.
2. Install the toner cartridge again.
3. Try printing and check the printed page.

If you are not satisfied with it or the display still shows the toner empty message, replace the old toner cartridge with a new one.

Replacing the Toner Cartridge

Every time you replace the toner cartridge, you need to clean the inside of the printer. For further information on cleaning, see "Cleaning" in this chapter.

Note

To ensure optimum print quality, be sure to use quality toner cartridges. To obtain toner cartridges, consult the dealer where you purchased the printer.

Before you begin the following steps, refer to "Installing the Toner Cartridge" in Chapter 2.

To replace the toner cartridge, follow these steps:

1. Turn off the printer.
   2 Open the top cover of the printer.
2. Lift the top of the toner cartridge slightly and pull it out of the printer.
3. Clean the anti-static teeth with a clean brush.

Never touch or clean the transfer roller, or print quality may deteriorate.

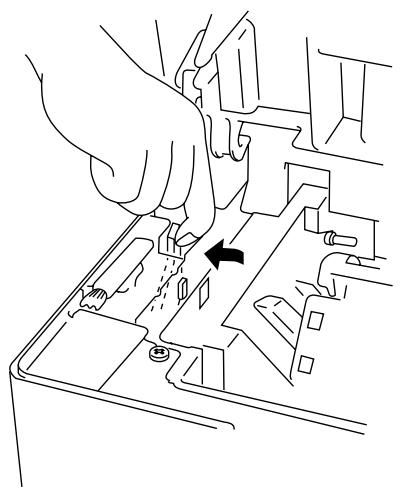

Fig. 6-1 Cleaning the Anti-Static Teeth

1. Clean the transfer guide, referring to "Cleaning the Printer Interior" in this chapter.
2. Open the bag and unpack the new toner cartridge.

Handle the toner cartridge with care.

1. Hold the toner cartridge with both hands. Rock it gently several times at a 45^ angle. This distributes the toner evenly inside the cartridge.

Fig. 6-2 Rocking the Toner Cartridge

1. Bend the tab up and down several times until it is detached from the toner cartridge.
2. Hold the tab firmly and pull it until the sealing tape comes out all the way.
3. Insert the toner cartridge in the direction of the arrows engraved on the cartridge into the side guides until it stops securely in the cartridge holder inside the printer.

Note

Push both sides of the toner cartridge gently until the cartridge is seated correctly in place.

1. Close the top cover of the printer.

Cleaning

Clean the printer exterior and interior periodically with a dry soft cloth. When you replace the toner cartridge, be sure to clean the printer interior with a dry soft cloth. If the printed page gets stained with toner, clean the printer interior with a dry soft cloth.

Cleaning the Printer Exterior

Clean the printer exterior as follows:

1. Turn off the printer and unplug the power cord.
2. Remove the paper cassette and any optional font cards.
3. Open the multi-purpose tray.
4. Wipe the printer body with a soft cloth to remove dust from it.

Dip the cloth in water and wring it out thoroughly for cleaning.

Note

Use water or neutral detergents for cleaning. Cleaning with volatile liquids such as thinner or benzene damages the surface of the printer. Do not use cleaning materials that contain ammonia. It might damage the printer, particularly the toner cartridge.

Fig. 6-3 Cleaning the Printer Exterior

1. If paper or foreign objects are stuck in the paper cassettes, remove them.

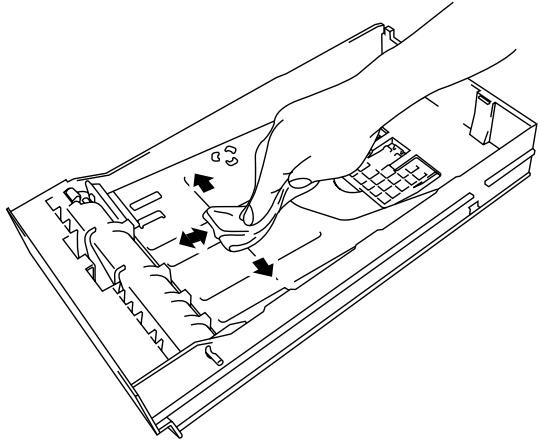

Fig. 6-4 Cleaning the Paper Cassette

1. Replace the paper cassette and the optional font card.

Cleaning the Printer Interior

Dip a soft cloth in water and wring it out thoroughly for cleaning the printer interior.

Note

When you clean the printer interior, pay attention to the following:

• If your clothes are smeared with toner, wipe off toner with a dry cloth and wash clothes in cold water. If you wash them in hot water, toner gets dissolved inside the material and it will not come out.
• Never touch the hot fuser.
• Never touch or clean the transfer roller, or print quality may be adversely affected.
• Be careful not to inhale the toner.

Fig. 6-5 Fuser and Transfer Roller

Clean the printer interior as follows:

1. Turn off the printer and unplug the power cord.
2. Open the top cover of the printer and remove the toner cartridge.
3. Clean both sides of the paper access cover and transfer guide by wiping off toner and paper particles with a dry, soft cloth. The paper access cover can be lifted up to allow easier access for cleaning.

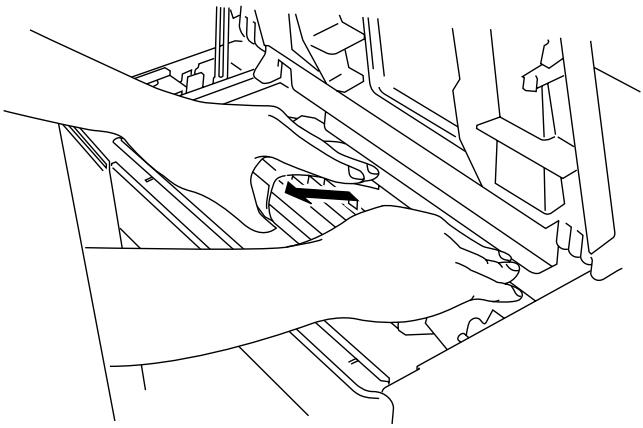

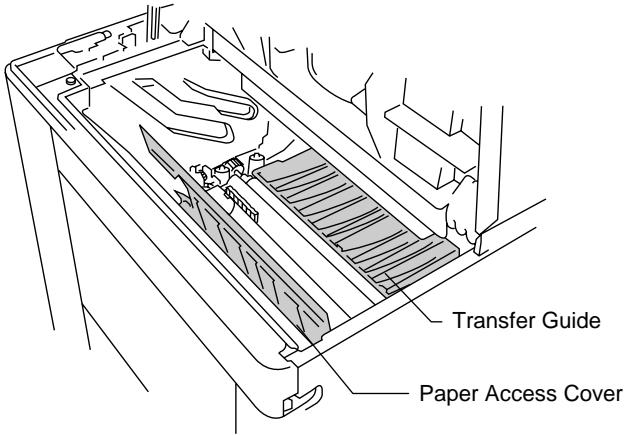

Fig. 6-6 Cleaning the Paper Access Cover and Transfer Guide

1. Wipe off toner and paper particles from the top surface of the black plastic paper guide with a dry, soft cloth.

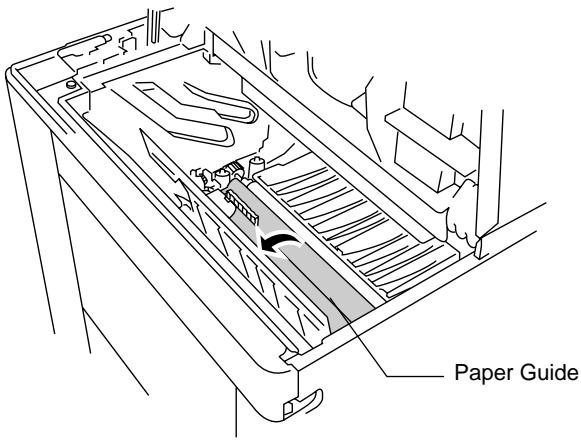

Fig. 6-7 Cleaning the Paper Guide

1. Detach the cleaning brush from the top cover and clean the anti-static teeth by brushing them several times. After cleaning, replace the brush in its slot.
2. Refit the toner cartridge as described in REPLACING THE TONER CARTRIDGE.
3. Close the top cover of the printer and plug in the power cord.

MAINTENANCE MESSAGES

This printer periodically prompts you to replace parts to enjoy high quality and reliable printing jobs.

MAINTENANCE 1

When the following message is displayed, it is recommended to replace the fuser, transfer roller, separation pad and pick-up roller. Please consult your dealer for replacement.

73 MAINTENANCE 1

MAINTENANCE 2

When the following message is displayed, it is recommended to replace the scanner unit. Please consult your dealer for replacement.

73 MAINTENANCE 2

CHAPTER 7 TROUBLE SHOOTING

TROUBLESHOOTING

If any problems occur, the printer automatically stops printing, diagnoses the problem, and displays the corresponding message to alert you. Take the appropriate action, referring to the following tables. If you cannot clear the problem, consult the dealer where you purchased the printer. Inform the dealer of the message number for quick troubleshooting.

Operator Call Messages

Operator Call Message	Meaning	Action
CHECK XXXXXXXX	Check the paper tray.XXXXXXXXX is MP TRAY/TRAY 1/ TRAY 2.	Check the adjustment lever at the bottom of the upper paper cassette and adjust to the correct setting in case of CHECK TRAY 1. See page 7-6. Load a stack of paper into the cassette.
12 COVER OPEN	The upper cover of the printer is open.	Close the cover.
13 JAM XXXXXXXX	Paper is jammed in the printer.XXXXXXXXX is TRAYS/INSIDE/ REAR/ DUPLEX.	Remove the jammed paper from the indicated area. See page 7-6.
14 NO CARTRIDGE	The toner cartridge is not installed in the printer.	Install a toner cartridge.
XX NO CASSETTE	The paper cassette is not installed. XX is T1/ T2.	Install the paper cassette.
16 TONER EMPTY	The printer has almost run out of toner: you may print another 30 to 100 pages. (The ALARM lamp lights at the same time.)	Remove the toner cartridge, rock it several times at 45°, and install it again. Replace the toner cartridge with a new one.
XX LOAD PAPERXXXX SIZE	The wrong size of paper was loaded in the paper cassette XX. XX is MP/ T1/ T2.(The message appears alternately to show a particular size.)	Load the requested size of paper in the paper cassette, or load it on the manual feed tray and press the FORM FEED switch.

USER'S GUIDE

Operator Call Message	Meaning	Action
18 MANUAL FEED ******** SIZE	The printer requests you to load paper manually. (The message appears alternately to show a particular size.)	Load the requested size of paper on the multi-purpose tray and press the SEL switch.
19 CHECK FONT	An error occurred in the optional font card.	Turn off the printer, and re-install or replace the optional font card.
20 FONT REMOVAL	The font card was removed while the printer is on-line.	Turn off the printer, install the font card, and turn on the printer. The CONTINUE switch will allow you to temporarily ignore this message.
27 NO DX UNIT	The duplex unit is not installed with the printer when the duplex printing mode is selected.	Install the duplex unit correctly. See the DX-2000/DX-1600 user's guide.
27 NO DX TRAY	The duplex paper guide tray is not installed in T1 when duplex printing mode is selected.	Install the duplex paper guide tray into T1. See the DX-2000/DX-1600 user's guide.
27 DX OPEN	The cover of the duplex unit is open.	Close the cover. See the DX-2000/DX-1600 user's guide.
STACK FULL	There is too much paper in the print delivery tray.	Remove the paper from the print delivery tray.

Error Messages

Error Message			Meaning	Action
31	PRINT	OVERRUN	Print overrun	Press the CONTINUE switch to start printing the next page. Data which overrun the print area on the page cannot be printed. Check your page protection setting with the MODE switch. Setting page protection to the correct size could solve this problem. If printing at 600 dpi or 1200 dpi, you may need to add optional SIMM memory. See page 5-8.
32	BUFFER	ERROR	Input buffer overflow	Press the CONTINUE switch to resume printing. Data lost in overflow cannot be printed. See page 4-50.
34	MEMORY	FULL	Work memory overflow	Press the CONTINUE switch to resume printing. If the same error should occur after you press the CONTINUE switch, turn off the printer. Wait a few seconds, then turn it on again. Reduce the input buffer size. See page 4-50. Turn off “KEEP PCL.” Add SIMM memory with power off. Download font and the fonts saved in the HDD card might cause the error, for it occupies the same work area as the RAM. Memory expansion is recommended in that case. See page 5-8.
40	LINE	ERROR	Error in the communications circuit	When the serial interface is used, check the communications parameters such as baud rate, code type, parity, and handshake protocols. When the parallel interface is used, check the interface cable connection.
41	PRINT	CHECK	Error in communication with the engine controller	Turn off the printer. Wait a few seconds, then turn it on again.

Error Message		Meaning	Action
42	CARD FULL	Card overflow	Delete unnecessary macros or fonts, or use a new card. See page 4-37.
43	CARD W ERROR	Card write error	Set the write protect switch of the card to OFF if it has been set to ON. Use a new card. If the same error occurs, consult your dealer or service personnel.
44	SIMM ERROR	Incorrect installation of SIMMs	Install SIMMs correctly, referring to the printed error message. See page 5-8.
45	MIO ERROR	Error in communication with the MIO card	Install the MIO card correctly. See page 5-7.
46	OPT IO ERROR	Connection error with optional feeders and duplex unit.	Check the interface cable connection between the printer and the fitted option.
47	CARD R ERROR	Card read error	Use a new card. If the same error occurs, consult your dealer or service personnel.
XX	SIZE ERROR	Paper of incorrect size is loaded into XX. XX is T2/ DX.	Set the correct size of paper in T2 or for duplex printing. See “Paper Handling” in Chapter 3.
IGNORE DATA (BR-Script 2 mode only)		Data is ignored because of an error in the PostScript® language program.	Press the RESET switch. If the same error occurs, you may need to add optional SIMM memory. See page 5-8.

Service Call Messages

Service Call Message		Meaning	Action
50	FUSER MALF	Malfunction of fuser	Turn off the printer. Wait 15 minutes, then turn it on again.
51	LASER BD MALF	Malfunction of laser beam detector	Turn off the printer. Wait a few seconds, then turn it on again.
52	SCANNER MALF	Malfunction of laser scanner motor	Turn off the printer. Wait a few seconds, then turn it on again.
53	DX FAN MALF	Malfunction of fan motor in the duplex unit	Turn off the printer. Wait a few seconds, then turn it on again.
54	MOTOR MALF	Malfunction of main motor	Turn off the printer. Wait a few seconds, then turn it on again.
55	HIGH VOL MALF	Malfunction of high voltage power supply	Turn off the printer. Wait a few seconds, then turn it on again.
61	PROG ERROR	Program ROM checksum error	Turn off the printer. Wait a few seconds, then turn it on again.
62	FONT ERROR	Font ROM checksum error	Turn off the printer. Wait a few seconds, then turn it on again.
63	D-RAM ERROR	D-RAM error	Turn off the printer. Wait a few seconds, then turn it on again.
66	NV-W ERROR	NV-RAM error	Turn off the printer. Wait a few seconds, then turn it on again.
67	NV-R ERROR	NV-RAM error	Turn off the printer. Wait a few seconds, then turn it on again.
68	NV-B ERROR	NV-RAM error	Turn off the printer. Wait a few seconds, then turn it on again.
99	SERVICE	System error	Turn off the printer. Wait a few seconds, then turn it on again.
48	INCORRECT LT	Your lower tray is not an LT-2000, and it is not the correct tray for your 20 ppm printer.	Change to an LT-2000
49	INCORRECT DX	Your duplex unit is a DX-2000, and it is not correct for your 2016/17 ppm printer.	Change to an DX-2000.
73	MAINTENANCE 1	Your printer requires a maintenance 1 service.	See 6-8.
73	MAINTENANCE 2	Your printer requires a maintenance 2 service.	See 6-8.

Possible Problems

This printer has been designed to be trouble free. However, if any problem should occur, note the display message and take the appropriate action. This section describes the actions to be taken against paper jams and unsatisfactory printouts.

Paper Jam

If paper jams in the printer, it stops printing and displays the following message.

13 JAM XXXXXXXX

Note

If paper jams frequently occur, check the adjustment lever located in the bottom of the paper cassette or clean the printer interior and check the paper quality.

About the Adjustment Lever

If paper is misfeeding or doublefeeding frequently, set the adjustment lever according to the table below.

Recommended Paper Size

I. Backwards : letter, legal, A4, ISO B5, Executive and A5
II. Forwards : ISO B6, A6, COM10, Monarch, C5 and DL

If CHECK TRAY is shown when the paper cassette is filled with paper, check the adjustment lever and adjust to the correct setting.

Fig. 7-1 Adjustment Lever

Do not use the following paper:

• Bent paper
• Moist paper
• Paper that does not meet specifications

Paper may jam in the paper cassette, inside the printer, at the rear access cover or at the paper exit. Check the jam location and follow the instructions below to remove the jammed paper.

After you have followed the instructions, the printer automatically resumes printing. However, the DATA lamp may come on and the following message may appear on the display.

07 FF PAUSE

After a paper jam has occurred, data usually remains in the printer memory. The message prompts you to execute a form feed and print out the remaining data. Press the SEL switch to continue.

Paper Jam at Paper Exit

13 JAM REAR

If paper has passed behind the rear access cover and a paper jam has occurred at the paper exit, remove the jammed paper by pulling it slowly from the exit as shown below:

Fig. 7-2 Paper Jam at Paper Exit

Paper Jam at Rear Access Cover

13 JAM REAR

If a paper jam occurs behind the rear access cover before the paper exit, remove the jammed paper as follows:

1. Open the rear access cover.
2. Pull out the jammed paper slowly in direction A or B.

Fig. 7-3 Paper Jam at Rear Access Cover

1. Close the rear access cover.

Paper Jam at Fixing Roller inside the printer

13 JAM INSIDE

If a paper jam occurs at the fixing roller, follow these steps to remove the jammed paper:

1. Open the top cover and remove the toner cartridge.
2. Remove the jammed paper by holding it with both hands and pulling it slowly towards you.

Warning

The fixing roller is extremely hot during operation. Remove the paper carefully.

Caution

• After having removed the jammed paper, if the printed paper has a stain, print several pages before restarting your printing.
• Remove the jammed paper carefully so as not to spread toner.
• Take care not to stain your hands and clothes with toner. Wash toner stains immediately with cold water.
• Never touch the transfer roller.

Fixing Roller
Fig. 7-4 Paper Jam at Fixing Roller

1. Install the toner cartridge and close the top cover.

Paper Jam at the Paper Access Cover Inside the Printer

13 JAM INSIDE

If a paper jam occurs at the paper access cover, follow these steps to remove the jammed paper:

1. Pull the upper paper cassette out of the printer to release the edge of the paper from the paper feed roller, or the paper might be torn and difficult to remove.
2. Open the top cover and remove the toner cartridge.
3. Raise the paper access cover.
4. Remove the jammed paper using the following methods:

If paper has passed through the paper access cover and toner is on the paper, pull it with making paper edge round in direction A (toward the upper side of the printer).

Caution

Take care not to stain your hands and clothes with toner. Wash out toner stains immediately with cold water.

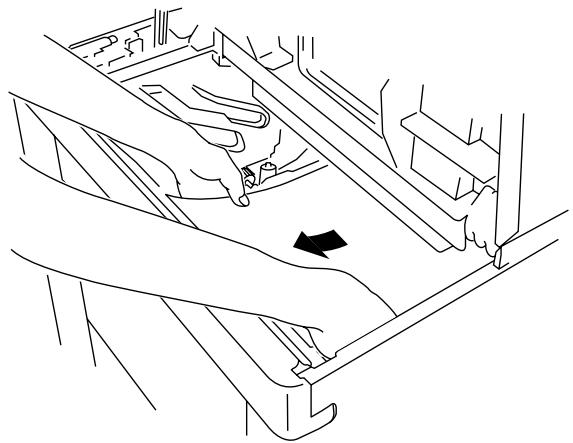

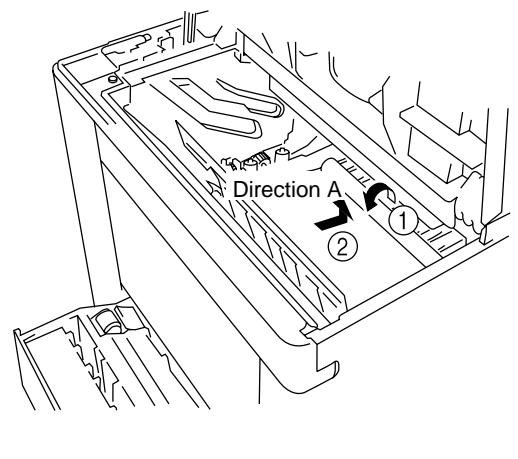

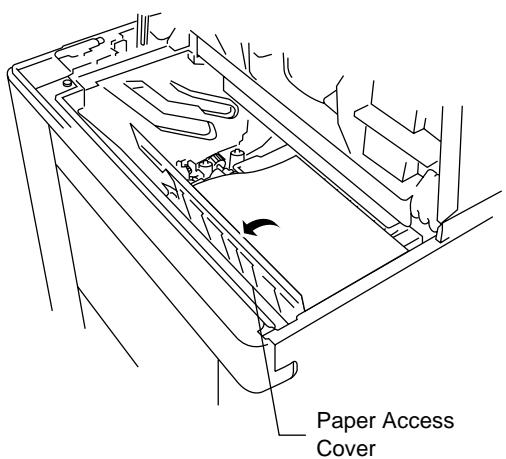

Fig. 7-5 Paper Jam at Paper Access Cover

1. Close the paper access cover.
2. Install the toner cartridge and close the top cover.

Paper Jam in the Paper Cassette

13 JAM TRAYS

If a paper jam occurs inside the paper cassette, follow these steps:

1. Pull out the paper cassette.
2. Remove the jammed paper.

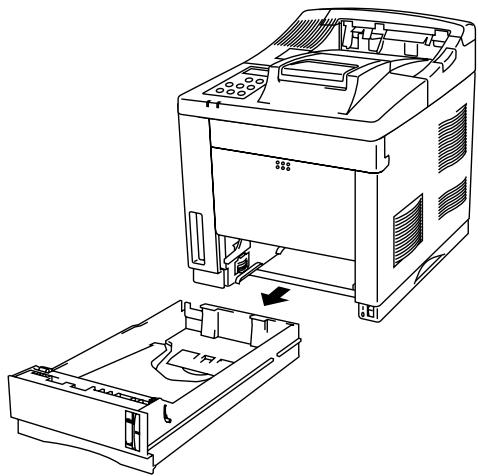

Fig. 7-6 Paper Jam at Paper Cassette

1. Install the paper cassette.

Caution

Do not pull out the upper paper cassette while paper is being fed from the lower paper cassette, or it causes a paper jam.

Paper Jam in the Multi-purpose Tray

13 JAM TRAYS

If a paper jam occurs in the multi-purpose tray, follow these steps:

1. Remove the jammed paper in the multi-purpose tray.
2. Reset all the paper on the multi-purpose tray correctly.
3. Open and close the top cover.

Unsatisfactory Printouts

If you are not satisfied with the printout quality, check the problem and take the necessary action to clear it.

Note

It is possible that paper could meet all of the guidelines listed in the specifications and still not print satisfactorily. This may be due to temperature, humidity or other variables over which the printer has no control. If you cannot clear print problems, consult the dealer where you purchased the printer.

Unclear Printouts

The printed page may have white stripes or faint images.

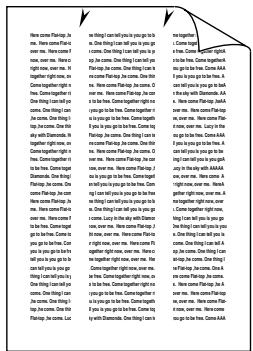

Fig. 7-7 White Stripes or Faint Images

If you see these print problems, check for the toner empty message. The toner may not be distributed evenly in the cartridge or the toner cartridge may be empty.

16 TONER EMPTY

Follow these steps to clear the problem:

1. Open the top cover of the printer.

Fig. 7-8 Opening the Top Cover

1. Remove the toner cartridge from the printer.

Fig. 7-9 Removing the Toner Cartridge

1. Rock the cartridge gently several times at a 45^ angle.

This distributes the toner evenly inside the cartridge.

Fig. 7-10 Distributing the Toner Evenly

1. Install the toner cartridge and close the top cover of the printer.
2. Print out several pages.

If you are still not satisfied with the printout, replace the toner cartridge with a new one.

Stains and Stripes

If the printed page is stained with toner or has vertical stripes, clean the printer interior. See "Cleaning" in Chapter 6.

Stains

Stripes

Stains at Fixed Intervals

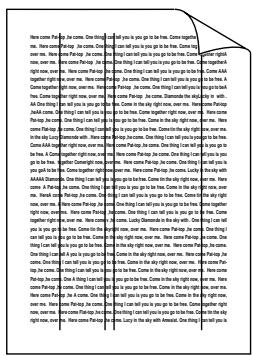

Fig. 7-11 Dark Stripes or Toner Stains

If the same print problem occurs after cleaning, take any of the following actions:

• Make sure that you use paper or OHP films that meet specifications and have the correct printing surface.
• Check that the toner cartridge is not damaged. If it is damaged, replace it with a new one.

If the stripes or stains are vertically repetitive on a page, take the following action in accordance with the intervals of the stripes or stains.

Interval	Action
95 mm or 3.7”	Replace the toner cartridge.
53 mm or 2.1”	Print several pages. *
51 mm or 2.0”	Replace the toner cartridge.
38 mm or 1.5”	Replace the toner cartridge.

• If the problem occurs repeatedly, the transfer roller needs to be replaced with a new one. Consult your dealer or sales personnel.

■ White Spots

The printed page may have white spots in black text and graphics areas. Make sure that you use paper or OHP films that meet specifications and have the correct printing surface.

Fig. 7-12 White Spots

Toner Scatter

If toner scatters around printed characters and stains the printed page, clean the printer interior. See "Cleaning" in Chapter 6.

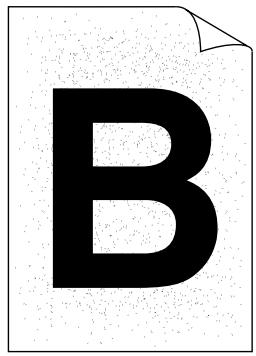

Fig. 7-13 Toner Scatter

If the same print problem occurs after cleaning, take any of the following actions:

• Make sure that you use paper, OHP films, or envelopes that meet specifications.
• Check for glue on the paper. Glue causes toner to scatter.
• If toner scatters over the entire printing surface, adjust the print density. See “Checking the Printed Test Pattern or Demo page” in Chapter 2.

■ Black Page

If an entire page is printed in black, make sure that the toner cartridge is properly installed. Never use heat-sensitive paper, or it may cause this problem.

Fig. 7-14 Black Page

■ White Page

If nothing is printed on pages, make sure that the toner cartridge is not empty, the sealing tape is removed from the toner cartridge, or you use paper, OHP films, or envelopes that meet specifications.

If a stack of paper is not fanned, more than one sheet may be loaded at a time, which may cause blank pages to be ejected.

Fig. 7-15 White Page

■ Dropout

If nothing or part of a page is printed, make sure that the toner cartridge is not empty or the toner is evenly distributed in the cartridge. Take the proper action, referring to "Unclear Printouts" in this section.

Also, make sure that you use paper, OHP films or envelopes that meet specifications. Moist paper causes this problem.

If the print density is set too low, this problem may occur. Adjust the print density to the proper setting. See "Checking the Printed Test Pattern or Demo page" in Chapter 2.

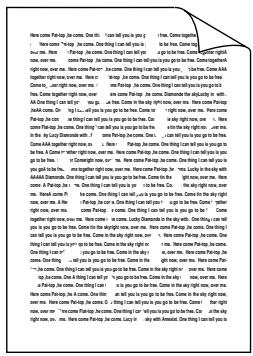

Fig. 7-16 Dropout

Poor Halftone or Grayscale Transitions

If images do not have smooth transitions as gray shades gradually change, turn off the high resolution control (HRC SETTING) in “RESOLUTION MODE” with the MODE switch.

HRC = OFF

HRC = MEDIUM
Fig. 7-17 Adjustment of High Resolution Control

APPENDICES

PRINTER SPECIFICATIONS

Printing

Print Method	Electrophotography by semiconductor laser beam scanning
Laser	Wavelength: 780 nm Pulse duration: 25 ns Output: 5 mW max.
Resolution	1,200 dots per inch (The resolution can be enhanced by using high resolution control feature.)
Print Speed	20 pages per minute (600 or 300 dpi / A4 size) 21 pages per minute (600 or 300 dpi / Letter size) 10 pages per minute (1200 dpi / A4 & Letter size)
Warm Up	Max. 1 minute at 20°C (68°F)
First Print	16 seconds or less (A4 size by face down print delivery from cassette feed) Prestart by software command for 10 second first print
Print Media	Toner in a single-component cartridge Life Expectancy: 9,000 single-sided pages/cartridge (A4 or letter size paper with the print density set at level 8 with about 5% coverage).
Resident Printer Fonts	HP LaserJet, EPSON FX-850, and IBM Proprinter XL modes 66 scalable fonts and 12 bitmapped fonts BR-Script Level 2 mode 66 scalable fonts

Functions

CPU	MB86832 100 MHz (SPARC architecture)
Emulation	Automatic emulation selection • HP LaserJet 5 • BR-Script Level 2 • HP-GL • EPSON FX-850 • IBM Proprinter XL
Interface	Automatic interface selection among bi-directional parallel, RS-232C serial, Universal Serial Bus, and MIO interface. For further information, see the section “INTERFACE SPECIFICATIONS” in Appendix.
RAM	8 Mbyte (expendable to 72 Mbytes with SIMMs) The standard memory fitted can vary depending on the printer model and country.
Font Card Slots	right slot for Type I and II left slot for PCMCIA Type I, II and III Compatible for FLASH Memory or HDD cards
Control Panel	8 switches, 5 lamps, and 16-column liquid crystal display
Diagnostics	Self-diagnostic program

Electrical and Mechanical

Power Source	U.S.A. and Canada:	AC 110 to 120 V, 50/60 Hz
	Europe and Australia:	AC 220 to 240 V, 50/60 Hz

Power Consumption	Printing: 500 W or less
	Stand-by: 90 W or less
	Stand-by in sleep mode: 25 W or less

Noise	Printing:	55 dB A or less
	Stand-by:	40 dB A or less

Temperature	Operating:	10 to 32.5°C (50°F to 90.5°F)
	Storage:	0 to 35°C (38°F to 95°F)

Humidity	Operating:	20 to 80% (without condensation)
	Storage:	10 to 80% (without condensation)

Dimensions	110/120 V model :	396 (W) x 389 (H) x 452 (D) mm
		(15.6 x 15.4 x 17.8 inches)
	220/240 V model :	396 (W) x 389 (H) x 400 (D) mm
		(15.6 x 15.4 x 15.7 inches)

Weight

Approx. 15 kg (33 lbs.)

PAPER SPECIFICATIONS

Paper Input

Cassettes :

• Standard upper cassette (Tray 1)
• Optional lower cassette (Tray 2)
• Paper size:

TRAY 1: letter, legal and A4

TRAY 2: letter, legal and A4 (OPTION)

Max. stacking height in the cassette = 55mm(2.1^ )
- Max. paper cassette capacity = Approx. 500 sheets of 80g / m^2 or 20 lbs when duplex unit installed = Approx. 250 sheets of 80g / m^2 or 20 lbs A 4/letter (Tray 1)

Multi-purpose tray :

Multi-purpose tray capacity = Approx. 150 sheets of 80g / m^2

Printed Output

Face down print delivery: Approx. 500 sheets Face up output delivery

Paper Type

Cassette Feed:

Standard upper cassette (Tray 1):

• Plain paper of letter and legal or A4 sizes [60 to 105g / m^2 (16 to 28 lbs)]

Multi-purpose tray (MP tray) :

• Plain paper from 95 × 148 ~mm to 216 × 356 ~mm (from 3.75'' × 5.8'' to 8.5'' × 14'' ) [60 to 199 ~g / m^2 (16 to 53 lbs)]
  Overhead projector (OHP) films
• Colored paper
• Label stock
• Envelopes of COM10, Monarch, C5, DL and ISO B5 sizes

Optional lower cassette (Tray 2) :

Plain paper of A4, letter and legal sizes

[60 to 90g / m^2 (16 to 24 lbs)]

Test printing on paper, especially envelopes, is recommended before making a large purchase. The following types of envelopes are not recommended for use.

• Envelopes with thick and/or crooked edges
• Damaged, curled, wrinkled, or irregularly shaped envelopes
• Extremely shiny or highly textured envelopes
• Envelopes with clasps
• Envelopes of baggy construction
• Envelopes not sharply creased
• Embossed envelopes
• Envelopes already printed with a laser printer
• Envelopes pre-printed on the inside
• Envelopes that cannot be arranged uniformly when placed in a pile

Notes

• An area 15mm (0.6") from the edges of the envelope will not be printed.
• Avoid feeding labels with the carrier sheet exposed. Otherwise, your printer will be damaged.
• When feeding OHP film, the use of a recommended type for laser printers will ensure optimum printing. For detailed information on the specification or purchase, please contact your nearest authorized sales representative or the place of purchase.

PAPER

The printer is designed to work well with most types of xerographic and bond paper. However, some paper variables may have an effect on print quality or handling reliability. Always test samples of paper before buying to ensure that it provides acceptable performance. Some important guidelines when selecting paper are:

1. Supplier should be informed that the paper or envelopes will be used in a laser printer.
2. Preprinted papers must use inks that can withstand the temperature of the printers fusing process. (200 degrees centigrade)
3. If selecting a cotton bond paper, paper having a rough surface such as cockle or laid finished paper, or paper that is wrinkled or puckered, these may exhibit degraded performance.

Note

The manufacturer neither warrants or recommends the use of any particular paper. The operator is responsible for the quality of paper used with the printer.

Paper Types to Avoid

Some types of paper might not perform well or may cause damage to your printer.

Types of paper to avoid are:

1. Highly textured paper.
2. Smooth or shiny paper.
3. Paper that is coated or has a chemical finish.
4. Damaged, wrinkled or prefolded paper.
5. Paper exceeding the recommend weight specification specified in the manual.
6. Paper with tabs and staples.
7. Letterheads using low temperature dyes or thermography.
8. Multipart or carbonless paper.

DAMAGE OR OTHER DEFECTS CAUSED BY THE USE OF PAPERS LISTED UNDER "PAPER TYPES TO AVOID" WILL NOT BE COVERED UNDER ANY WARRANTY OR SERVICE AGREEMENTS.

ENVELOPES

Most envelopes will perform acceptably on your printer. However; some envelopes will have feeding and print quality problems because of their construction. A suitable envelope should have edges with a straight, well creased folds and should not have more than two thickness of paper along the lead edge. The envelope should lie flat and not have baggy or flimsy construction. Purchase quality envelopes only from a supplier who understands that the envelopes will be used in a laser printer. All envelopes should be tested prior to use to ensure desirable print results.

Envelope Types to Avoid

1. Envelopes constructed with a paper with a weight that exceeds the paper weight specifications for the printer.
2. Poorly manufactured envelopes with edges that are not straight or consistently square.
3. Envelopes with "baggy" construction or folds that are not sharply creased.

4. Envelopes with transparent windows, holes, cutouts or perforations.

5. Envelopes with clasps, snaps or tie strings.

6. Envelopes made with smooth or shiny paper.
7. Envelopes that are rough, highly textured, or deeply embossed.
8. Envelopes which do not lie flat or that are curled, wrinkled, or irregularly shaped.
9. Envelopes having an open flap with an adhesive that seals the envelope.

USE OF ANY OF THE ENVELOPES LISTED ABOVE MAY CAUSE DAMAGE TO YOUR PRINTER. SUCH DAMAGE IS NOT COVERED UNDER ANY WARRANTY OR SERVICE AGREEMENT.

Note

The manufacturer neither warrants nor recommends the use of a particular envelope because envelope properties are subject to change by the envelope manufacturer. The entire responsibility for the quality and performance of the envelope lies with the customer.

LABELS AND OVERHEAD TRANSPARENCIES

The printer will print on most type of labels and transparencies designed for use with a laser printer. Labels should have an adhesive that is acrylic-based since such material is more stable at the high temperatures in the fusing unit. Adhesives should not come in contact with any part of the printer, because the label stock may stick to the drum or rollers and cause jams and print quality problems. No adhesive should be exposed between the labels. Labels should be arranged so that they cover the entire page with the only exposed spaces being lengthwise down the sheet. Using labels with spaces may result in labels peeling off and causing serious jam or print problems.

All labels and transparencies used in this printer must be able to withstand a temperature of 200 degrees centigrade (392 degrees Fahrenheit) for a period of 0.1 seconds.

Label and transparency sheets should not exceed the paper weight specifications described in the User's Guide. Labels and transparencies exceeding this specification may not feed or print properly and cause damage to your printer.

The entire responsibility for the quality and performance of labels and transparencies lies with the customer.

DAMAGE CAUSED BY THE USE OF UNSATISFACTORY LABELS OR TRANSPARENCIES IS NOT COVERED UNDER ANY WARRANTY OR SERVICE AGREEMENTS.

Bi-directional Parallel Interface

Interface Connector

A shielded cable that is IEEE 1284 compliant with the following pin assignment should be used. Most existing parallel cables support bidirectional communication, but some might have incompatible pin assignments or may not be IEEE 1284 compliant.

Fig. A-1 Parallel Interface Connector

Pin Assignment

Pin No.	Signal	Pin No.	Signal
1	DATA STROBE	19	Twisted pair ground
2	DATA 0	20	Twisted pair ground
3	DATA 1	21	Twisted pair ground
4	DATA 2	22	Twisted pair ground
5	DATA 3	23	Twisted pair ground
6	DATA 4	24	Twisted pair ground
7	DATA 5	25	Twisted pair ground
8	DATA 6	26	Twisted pair ground
9	DATA 7	27	Twisted pair ground
10	ACKNLG	28	Twisted pair ground
11	BUSY	29	Twisted pair ground
12	PE	30	INPUT PRIME RET
13	SLCT	31	INPUT PRIME
14	AUTO FEED	32	FAULT
15	N.C.	33	N.C.
16	0V	34	N.C.
17	0V	35	N.C.
18	+5V	36	SELECT IN

Signal Description

Pin No.	Signal Name	IN/OUT	Explanation
1	DATA STROBE	IN	Data is latched at the leading edge of this signal.
2 - 9	DATA 0 - 7	IN	Parallel 8 bit data
10	ACKNLG	OUT	Data reception is completed and the printer is ready for the next data reception when this signal becomes low.
11	BUSY	OUT	The printer cannot receive data when this signal is high. The signal becomes high under data receiving, off-line, or error states.
12	PE	OUT	This signal becomes high when a paper empty state is detected.
13	SLCT	OUT	This signal becomes high when the printer is selected and low when it is deselected.
14	AUTO FEED	IN	This signal is used only for the bi-directional interface.
31	INPUT PRIME	IN	This signal is used only for the bi-directional interface.
32	FAULT	OUT	This signal becomes low when the printer is in the paper empty, off-line, or error states.
36	SLCT IN	IN	This signal is used only for the bi-directional interface.

Parallel Cable Connection for IBM-PC/AT or Compatible Computers and IBM-PS/2 Computers

Signal	Printer Pin No.	Computer Pin No.
DATA STROBE	1	1
DATA 0	2	2
DATA 1	3	3
DATA 2	4	4
DATA 3	5	5
DATA 4	6	6
DATA 5	7	7
DATA 6	8	8
DATA 7	9	9
ACKNLG	10	10
BUSY	11	11
PE	12	12
SLCT	13	13
AUTO FEED	14	14
GND	19 - 30	18 - 25
FAULT	32	15
SLCT IN	36	17

RS-232C Serial Interface

Standard Specifications

1) Baud rate: 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 baud
2) Synchronization: Start-stop
3) Communications control: No protocol
4) Data length: Serial 7 bits or 8 bits
5) Parity: Odd, even, or none
6) Stop bit: 1 or 2 stop bits
7) Protocol: Xon/Xoff or DTR

Interface Connectors

A shielded cable should be used.

Fig. A-2 Serial Interface Connector

Pin Assignment

Pin No.	Signal	IN/OUT		Pin No.	Signal	IN/OUT
		Printer	Controller			Printer	Controller
1	FG	←→		14	NC
2	SD	←→		15	NC
3	RD	←→		16	NC
4	RS	←→		17	NC
5	NC			18	NC
6	DR	←→		19	NC
7	SG	←→		20	ER
8	NC			21	NC
9	NC			22	NC
10	NC			23	NC
11	NC			24	NC
12	NC			25	NC
13	NC

Signal Description

Signal Name	IN/OUT	Explanation
FG	-	Frame Ground
SD	OUT	Send Data.
RD	IN	Receive Data. Receives data transmitted from the computer.
RS	OUT	Request To Send. “SPACE” level when the printer is ready to send data to the computer.
DR	IN	Data Set Ready. When DSR is at “SPACE” level, data can be accepted.
SG	-	Signal Ground
ER	OUT	Data Terminal Ready. “MARK” level when the printer is Busy.

Serial Cable Connection for IBM-PC/AT or Compatible Computers and IBM-PS/2 Computers

The following diagrams show the pin connections for the most common serial communications.

DB-9 Serial Connection

When you use a computer with a 9-pin serial port, use a cable with the following pin configurations.

Printer (Male)			Computer (Female)
SD	2		2	RD
RD	3		3	SD
DR (DSR)	6		4	ER (DTR)
SG	7		5	SG
ER (DTR)	20		6	DR (DSR)
			8	CS (CTS)

DB-25 Serial Connection

When you use a computer with a 25-pin serial port, use a cable with the following pin configurations.

Printer (Male)			Computer (Female)
FG	1	——	1	FG
SD	2	——	3	RD
RD	3	——	2	SD
DR (DSR)	6	——	20	ER (DTR)
SG	7	——	7	SG
ER (DTR)	20	——	5	CS (CTS)
			6	DR (DSR)

Note

Any pins not shown in the figures above are not connected.

Universal Serial Bus (USB) Interface

Interface Connector

Fig. A-3 Universal Serial Bus Interface

Pin Assignment

Pin No.	Signal
1	Vcc (+5V)
2	- Data	Serial Data -
3	+ Data	Serial Data +
4	Ground

You can select the symbol and character sets with the FONT switch in the HP LaserJet, EPSON FX-850, and IBM Proprinter XL emulation modes. See "FONT Switch" in Chapter 4.

When you have selected the HP-GL emulation mode, you can select the standard or alternate character set with the MODE switch. See "GRAPHICS MODE" in Chapter 4.

OCR Symbol Sets

When the OCR-A or OCR-B font is selected, the corresponding symbol set is always used.

OCR-A

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 a P h p
1	! L A Q a q
2	" 2 B R b r
3	# 3 C S c s
4	$ 4 D T d t
5	% 5 E U e u
6	& 6 F V f v
7	' 7 G W g w
8	( & H X h x
9	) 9 I Y i y
A	* : J Z j z
B	+ : K [ k {
C	, < . L \ l |
D	- = M ] m }
E	. > N ^ n J
F	/ ? 0 4 o ■

OCR-B

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 a P p R
1	! 1 A Q a q
2	" 2 B R b r
3	# 3 C S c s
4	$ 4 D T d t
5	% 5 E U e u
6	& 6 F V f v
7	' 7 G W g w
8	( 8 H X h x
9	) 9 I Y i y
A	* : J Z j z
B	+ ; K [ k {
C	, < L \ l |
D	- = M ] m}
E	. > N ^ n
F	/ ? 0 _ o ■

HP LaserJet Mode

Roman 8 (8U)

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 @ P ' p - a Å A P
1	! 1 A Q a q Å Y ð 1 Å b
2	" 2 B R b r Å Y ð 0 ā -a .
3	# 3 C S C S ð ° ð ð μ
4	$ 4 D T d t E C Ḃ Ḃ ð €
5	€ 5 E U e u E C é i 1 3/4
6	& 6 F V f v I N ð 0 ā -I -
7	' 7 G W g w I ð ì ñ ð ð ã 1/4
8	( 8 H X h x -i ā Å O ð 1/2
9	) 9 I Y i y -c ð i ð û
A	* : J Z j z -a ð û ð û
B	+ ; K [ k { - ð û û ÷ ÷ û <
C	, < L \ l | - ¥ ñ õ õ -
D	- = M ] m} ð ë ñ ñ ÿ
E	. > N ^ n ~ ð f ë ß õ õ +
F	/ ? O _ o õ £ € ñ õ

ISO Latin1 (0N)

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 @ P ^ p
1	! 1 A Q a q
2	" 2 B R b r
3	# 3 C S C S
4	$ 4 D T d t
5	% 5 E U e u
6	& 6 F V f v
7	' 7 G W g w
8	( 8 H X h x
9	) 9 I Y i y
A	* : J Z j z
B	+ ; K [ k {
C	, < L \ l |
D	- = M ] m}
E	. > N ^ n ^
F	/ ? O _ o

ISO Latin2 (2N)

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 @ P ^ p ° R D r d
1	! 1 A Q a q A a A N á n
2	" 2 B R b r ° A N a n
3	# 3 C S C S L Z A O Å o
4	$ 4 D T d t a ° A O ā o
5	% 5 E U e u L L L O l o
6	& 6 F V f v S S S C O c o
7	' 7 G W g w S ° C × C ÷
8	( 8 H X h x ° C R C k
9	) 9 I Y i y S S E U e u
A	* : J Z j z S S E U e u
B	+ ; K [ k { T t ' E U e u
C	, < L \ l | Z Z E U e ü
D	- = M ] m} - ' I Y I y
E	. > N ^ n ° Z Z I T I t
F	/ ? O _ o ® Z Z D B d °

ISO Latin5 (5N)

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 @ P ^ p
1	! 1 A Q a q
2	'' 2 B R b r
3	# 3 C S C S
4	4 D T d t
5	5 E U e u
6	& 6 F V f v
7	' 7 G W g w
8	( 8 H X h x
9	) 9 I Y i y
A	* : J Z j z
B	+ ; K [ k {
C	, < L \ l |
D	- = M ] m}
E	. > N ^ n ^
F	/ ? O _ o

ISO Latin6 (6N)

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 @ P ` p
1	! 1 A Q a q
2	'' 2 B R b r
3	# 3 C S c s
4	$ 4 D T d t
5	% 5 E U e u
6	& 6 F V f v
7	' 7 G W g w
8	( 8 H X h x
9	) 9 I Y i y
A	* : J Z j z
B	+ ; K [ k {
C	, < L \ l |
D	- = M ] m}
E	. > N ^ n ~
F	/ ? O _ o

PC-8 (10U)

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

0

1

⊗

▲

!

1

A

Q

a

q

ü

æ

1

⊥

T

β

±

2

●

‡

"

2

B

R

b

r

é

E

ó

T

π

Γ

≥

3

♥

¶

#

3

C

S

c

s

á

ó

ú

|

-

L

π

≤

4

◆

¶

$

4

D

T

d

t

ä

ö

ñ

-

-

L

Σ

∫

5

♣

S

%

5

E

U

e

u

á

o

Ñ

-

+

F

σ

∫

6

♠

-

&

6

F

V

f

v

á

ú

a

||

F

π

μ

÷

7

●

‡

'

7

G

W

g

w

c

ü

o

π

||

+

τ

≈

8

■

↑

(

8

H

X

h

x

é

ü

z

J

L

+

Φ

°

9

○

↓

)

9

I

Y

i

y

è

ü

-

||

F

J

Θ

.

A

■

→

*

:

J

Z

j

z

è

ü

-

||

IL

-

Ω

.

B

♂

←

+

;

K

[

k

{

i

Φ

1/2

π

π

■

δ

√

C

♀

←

,

<

L

\

l

|

i

£

1/2

||

||

■

∞

n

D

♂

←

-

=

M

]

m

}

i

¥

i

||

=

■

φ

2

E

♂

▲

.

>

N

^

n

~

Å

Pt

«

J

||

■

ε

.

F

*

▼

/

?

O

_

o

△

A

f

»

J

=

■

∩

PC-8 D/N (11U)

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

0

0

@

P

`

p

C

E

á

L

II

α

≡

1

1

A

Q

a

q

ü

æ

í

⊥

T

β

±

2

2

B

R

b

r

é

E

ó

T

π

Γ

≥

3

#

3

C

S

c

s

á

ó

ú

|

L

π

≤

4

$

4

D

T

d

t

ä

ö

ñ

-

-

L

Σ

∫

5

%

5

E

U

e

u

á

ó

Ñ

+

+

F

σ

∫

6

&

6

F

V

f

v

á

ú

ō

|

F

π

μ

÷

7

'

7

G

W

g

w

c

ü

ō

π

|

+

τ

≈

8

↑

(

8

H

X

h

x

é

ü

ü

ü

L

+

Φ

°

°

9

O

↓

)

9

I

Y

i

y

è

ö

ā

|

|

J

Θ

.

A

→

*

:

J

Z

j

z

è

ü

Å

A

|

|

Ω

.

B

σ

←

+

;

K

[

k

{

i

ø

ℓ

π

π

δ

√

C

♀

,

<

L

\

l

|

i

£

n

|

|

|

∞

n

D

♀

←

-

=

M

]

m

}

i

ø

;

|

=

|

φ

2

E

月

▲

.

>

N

^

n

~

Ä

L

3

J

|

€

.

F

♀

/

?

O

_

o

△

A

l

α

γ

|

|

∩

PC-850 (12U)

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

0

0

@

P

p

C

E

á

L

ó

O

-

1

∅

!

1

A

Q

a

q

ü

æ

í

⊥

β

±

2

●

"

2

B

R

b

r

é

E

ó

T

E

O

=

3

♥

!!

#

3

C

S

c

s

á

ó

ú

-

E

O

=

4

◆

¶

$

4

D

T

d

t

ä

ö

ñ

-

-

E

ō

¶

5

♣

S

%

5

E

U

e

u

á

o

Ñ

A

+

I

ō

S

6

♠

-

&

6

F

V

f

v

á

ú

a

A

ã

I

μ

÷

7

●

‡

'

7

G

W

g

w

c

ü

o

A

A

I

b

.

8

□

↑

(

8

H

X

h

x

é

y

ü

ü

L

I

b

°

9

○

↓

)

9

I

Y

i

y

è

Ö

®

∥

/

J

Ü

..

A

■

→

*

:

J

Z

j

z

é

ü

ü

∥

共

/

Ü

.

B

♂

←

+

;

K

[

k

i

ø

½

½

Ⅱ

■

■

U

1

C

♀

←

,

<

L

\

l

|

i

£

¼

½

|

■

¥

3

D

♂

←

-

=

M

]

m

]

i

Ø

i

Φ

=

|

¥

2

E

♀♀

▲

.

>

N

^

n

^

A

×

«

¥

Ⅱ

I

-

.

F

△

▼

/

?

O

_

o

△

A

f

»

η

■

■

-

PC-852 (17U)

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

0

0

@

P

'

p

C

E

á

L

d

O

-

1

1

A

Q

a

q

ü

L

í

⊥

p

B

°

2

2

B

R

b

r

é

ó

T

D

O

.

3

#

3

C

S

c

s

á

ó

ú

|

E

N

.

4

4

D

T

d

t

ä

ö

A

-

a

n

.

5

5

E

U

e

u

ü

L

á

A

+

Ñ

n

S

6

&

6

F

V

f

v

é

I'

ž

A

Í

S

÷

7

'

7

G

W

g

w

C

S

ž

E

a

I

S

.

8

↑

(

8

H

X

h

x

I

s

E

S

L

ě

R

°

9

O

↓

)

9

I

Y

i

y

ö

e

||

J

Ü

..

A

→

*

:

J

Z

j

z

Ö

Ü

J

||

J

J

F

.

B

←

+

;

K

[

k

{

ó

T

ž

π

π

■

Ü

ü

C

♀

,

<

L

\

l

|

I

t

C

J

||

■

Y

R

D

♀

←

-

=

M

]

m

}

Z

L

S

ž

=

T

Y

Y

E

♂

.

>

N

^

n

~

A

×

«

ž

||

I

Ü

t

.

F

♀

/

?

O

_

o

△

C

X

»

J

α

■

.

PC-775 (26U)

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

0

0

@

P

`

p

C

E

A

L

a

O

-

1

1

A

Q

a

q

ü

æ

I

⊥

č

β

±

2

2

B

R

b

r

é

E

ó

T

e

O

"

3

#

3

C

S

c

s

a

o

Z

|

é

N

3

4

$

4

D

T

d

t

ä

ö

z

-

-

i

ö

¶

5

S

5

E

U

e

u

g

G

Z

A

+

s

Ö

S

6

&

6

F

V

f

v

á

φ

"

CU

U

μ

÷

7

7

G

W

g

w

é

S

|

E

Ü

ü

n

"

8

↑

(

8

H

X

h

x

½

é

E

L

ž

K

°

9

O

↓

)

9

I

Y

i

y

é

Ö

®

||

|

J

k

.

A

→

*

:

J

Z

j

z

R

U

-

||

||

|

L

.

B

←

+

;

K

[

k

{

r

ø

½

||

||

||

|

1

C

♀

,

<

L

\

l

|

i

£

¼

||

||

||

n

3

D

♀

←

-

=

M

]

m

}

ž

Ø

E

I

=

E

E

2

E

♂

.

>

N

^

n

~

Ä

×

«

S

||

||

N

.

F

*

▼

/

?

O

_

o

△

A

à

»

?

Z

■

,

PC-1004 (9J)

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0
1	! 1 A Q a q , i ± A N á n
2	" 2 B R b r , ' Φ² A O à o
3	# 3 C S c s " £³ ð ò ā o
4	$ 4 D T d t , " x ' A O à o
5	% 5 E U e u ... ¥ μ A O à o
6	& 6 F V f v † - | ¶ E O æ o
7	' 7 G W g w ‡ - S ' C × C ÷
8	( 8 H X h x ^ ~ ' E Ø e Ø
9	) 9 I Y i y % m @ ' E û ë ù
A	* : J Z j z S s a o E ë ë ë
B	+ ; K [ k { < > « » E û ë ë
C	, < L \ l | € ø ¬ 1 ã ë ë ë
D	- = M ] m} - 1/2 ë ë ë
E	. > N ^ n ~ 3/4 ë ë ë
F	/ ? O _ o △ ñ ñ ñ

PC-8 Turkish (9T)

	0	1	2	3	4	5	6	7	8	9	A	B	C	D	E	F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F

Windows Latin1 (19U)

	0 1 2 3 4 5 6 7 8 9 A B C D E F
0	0 @ P ` p ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ``
1	! 1 A Q a q ` ` ` ` ` ` ± ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ‘
2	'' 2 B R b r , ' ` ` ` ` ` ` € ^ 2 ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` `
3	# 3 C S C S f " £ ^ 3 ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` �
4	$ 4 D T d t ,'' ^ ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` 5	% 5 E U e u ... * ¥ ^µ Å ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð û ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ð ÷
6	& 6 F V f v † - | ¶ E O à eö
7	' 7 G W g w ‡ - S • G × G ÷
8	( 8 H X h x ^ ~ ~ ' E Ε ù eø
9	) 9 I Y i y % † ' E ù Æ e ù
A	* : J Z j z S S S a o E ù ô ù
B	+ ; K [ k { < > « » E ù ô ù
C	, < L \ l | @æ - 1 / 4 I Ü i ü
D	- = M ] m} - 1/2 I I Y i y
