How DOES THE REPEATER WORK?

Is the WiFi signal of your modem too weak in certain rooms in your home? The repeater allows you to relay, and therefore extend the signal of your WiFi base (modem or router) in areas with weak coverage.

The repeater “repeats” an existing WiFi signal to allow you benefit from an extended WiFi network. The repeater uses the same frequency band to receive the WiFi network and emit the repeated network.

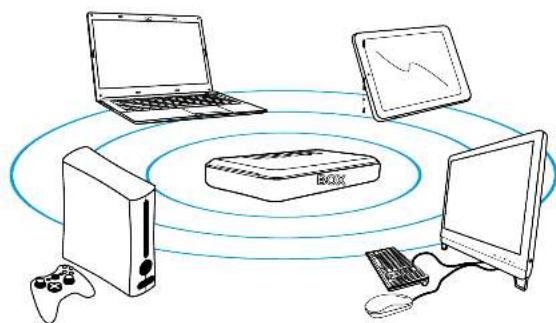

Your internet modem emits 100% of the wireless signal on the same frequency band.

Bandwidth: 100%

Illustration of three connected devices (laptop, monitor, console) with a central device and circular connections, no text or symbols present.

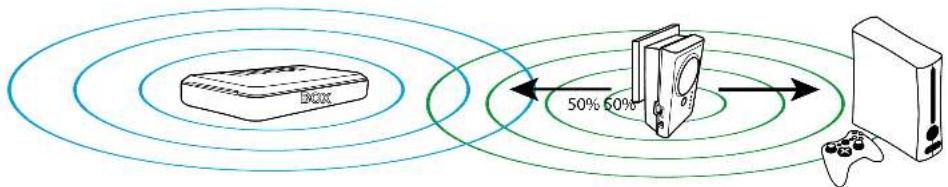

The repeater only emits 50% to connected accessories. In fact, the remaining 50% is used to receive the signal emitted by your modem.

Bandwidth: 100%

Bandwidth:

50% to capture the modem output

50% sent to connected accessories

DXX 50% 60%

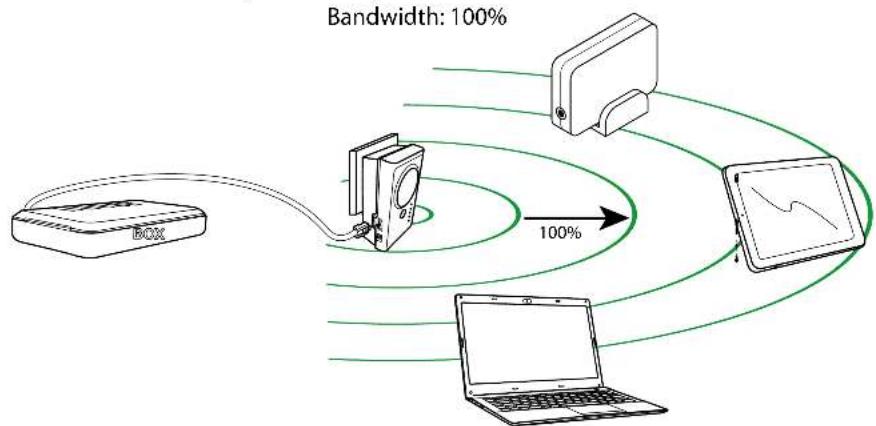

To ensure that your repeater uses 100% of its frequency band, it must be configured in Access point mode and it must be connected to the wired modem (Ethernet).
    note right of B Bandwidth: 100%

How CAN YOU OPTIMISE RECEPTION OF THE SIGNAL?

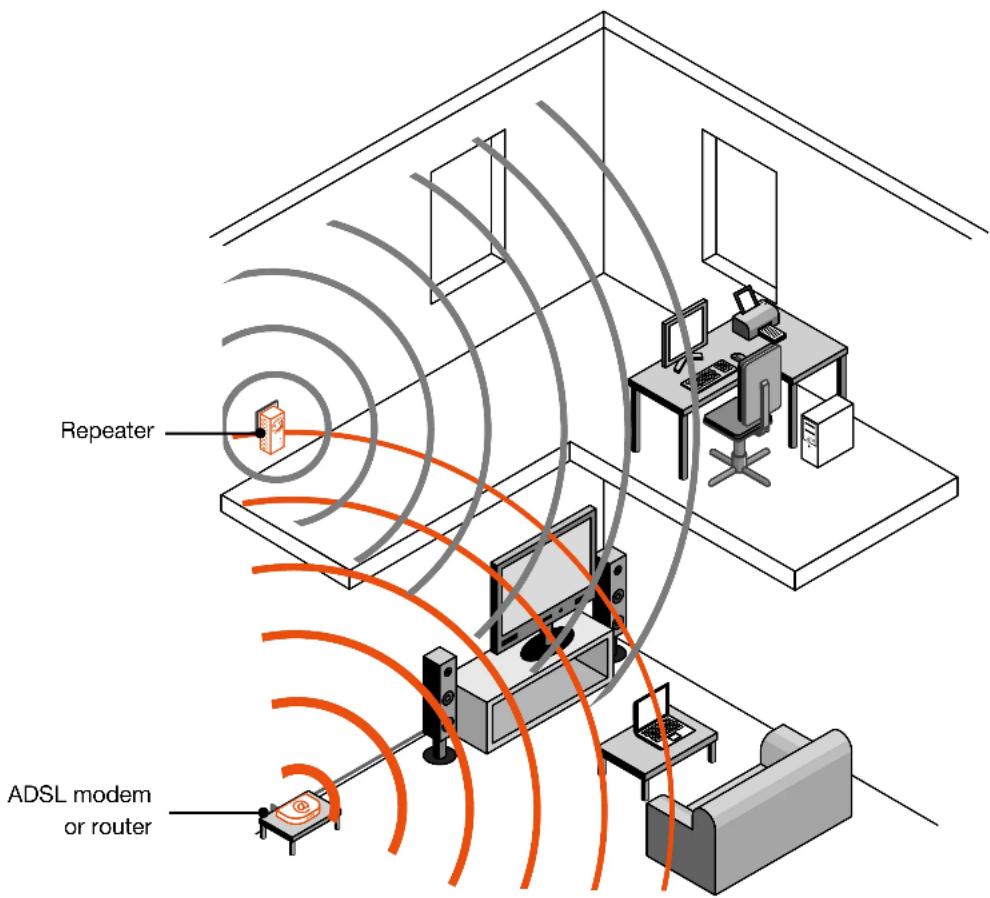

To optimise the signal emitted by the repeater, it is important that you position it correctly within the coverage area of your internet modem or router:

If you place it too close to your modem, the repeater will not be able to extend your coverage area.
. If you place it too far away, the quality of the repeated signal will be poor.

Repeater ADSL modem or router

The repeater must be placed in an area without any electromagnetic interference, and ideally with the least possible obstacles.

The WiFi coverage of a modem or repeater can significantly be reduced by walls and floors.

Avoid, for example, transmitting through heavy concrete walls, metal objects or having a microwave oven nearby.

How CAN YOU CHECK THE QUALITY OF THE SIGNAL?

A good way to check that you have chosen a good position for the repeater, is to check the signal strength in the settings interface.

To do this, connect to your repeater's interface either through WiFi or as a wired network (Ethernet). Then open your web browser to enter the IP address relevant to your product.

Please refer to the following table to find access information, according to the specific repeater you're using.

Essentiel b Repeater Easy Wifi N300	Product code 8003983
	IP address	http://easywifi.configor directly 192.168.1.1
	Default WiFi network name Easy Wifi 300_XXXXXX
	Default password	12345678We advise youto change it
Essentiel b Repeater N300 Easy Wifi 300P	Product code 8001726
	IP address	http://easywifi.configor directly 192.168.1.1
	Default WiFi network name Easy Wifi 300P_XXXXX
	Default password	12345678We advise youto change it
Essentiel b Repeater Easy Wifi N300	Product code 8009347
	IP address	http://easywifi.configor directly 192.168.1.1
	Default WiFi network name Repeater N300_2.4GHz_XXXXXX
	Default password	12345678We advise youto change it
Essentiel b N300 Easy Wifi 300P Repeater	Product code 8009346
	IP address	http://easywifi.configor directly 192.168.1.1
	Default WiFi network name Repeater N300P_2.4GHz_XXXXXX
	Default password	12345678We advise youto change it
Essentiel b Repeater AC750 Easy Wifi	Product code 8005328
	IP address	http://easywifi.configor directly 192.168.1.200
	Default WiFi network name	2.4G SSID: easywifi_AC750_2.4G_XXXXXX5G SSID: easywifi_AC750_5G_XXXXXX
	Default password	12345678We advise youto change it
Essentiel b Repeater AC750 Easy Wifi	Product code 8009345
	IP address	http://easywifi.configor directly 192.168.1.200
	Default WiFi network name	2.4G SSID: easywifi_AC750_2.4G_XXXXXX5G SSID: easywifi_AC750_5G_XXXXXX
	Default password	12345678We advise youto change it

You can then access the following settings page (the password is: admin).

essentiel

Please Login

English

Password

Login

Once logged in to the interface, select Universal Repeater mode, then click on Next.

Then click on Site Survey to display the various WiFi networks available.

Select Operation Mode

○ AP

Transform your existing wired network to a wireless network.

Universal Repeater

Extend your existing wireless coverage by relaying wireless signal.

Next

Remote Settings

Click "Site Survey" button to scan the wireless signal, then select the remote AP you want to connect. Click "Close Scan" button to empty the scan list. (Be sure to select the correct channel: 1 \~ 13 channels for the 2.4G wireless channels, the others for the 5G wireless channels)

Remote SSID

Bbox_Blab_24G

2.4G/5G Channel

5540MHz (Channel 108)

Security Mode

WPA - Personal

Encryption

AES

○ TKIP

Password

A table with the list of available WiFi networks displays, with, in the signal column, the strength of each related signal.

5

Select the WiFi network to be extended

1. Click on Detection and select your WiFi network (this is generally your modem's WiFi network).

Choose SSID Signal

My WiFi network 90%

Warning! Check that the signal for your chosen network is above 60%. If not, repeating the network will not ensure a sufficient speed.

1. Enter the security key of your WiFi network and click on:

Next

Check that the signal you want to amplify is at least 60%. Below this level, the signal strength is too weak to ensure sufficient speed.

If this is the case, move the repeater closer to the modem to improve the signal strength and ensure you are in an open area (without any walls or obstacles) between the repeater and the modem.

Diagram illustrating network topology with devices like a router, laptops, and monitors connected by circular connections.

Select Operation Mode

○ AP

Transform your existing wired network to a wireless network.

Universal Repeater

Extend your existing wireless coverage by relaying wireless signal.

Next

Remote Settings

Click "Site Survey" button to scan the wireless signal, then select the remote AP you want to connect. Click "Close Scan" button to empty the scan list. (Be sure to select the correct channel: 1 \~ 13 channels for the 2.4G wireless channels, the others for the 5G wireless channels)

Remote SSID

Bbox_Blab_24G

2.4G/5G Channel

5540MHz (Channel 108)

Security Mode

WPA - Personal

Encryption

AES

○ TKIP

Password

......

Back

Next

Diagram illustrating network architecture with gaming devices, a central device labeled '游戏' (Game), and two laptops connected by circular connections.

essentiel b Select Operation Mode ○ AP Transform your existing wired network to a wireless network. ● Universal Repeater Extend your existing wireless coverage by relaying wireless signal. Next essentiel b Remote Settings Click "Site Survey" button to scan the wireless signal, then select the remote AP you want to connect.Click "Close Scan" button to empty the scan list.(Be sure to select the correct channel: 1 ~ 13 channels for the 2.4G wireless channels, the others for the 5G wireless channels) Remote SSID Bbox_Blab_24G 2.4G/5G Channel 5540MHz (Channel 108) Security Mode WPA - Personal Encryption ○ AES ○ TKIP Password Back Next

Illustration of three connected devices (TV, gaming console, desktop) with no visible text or symbols

BOX 50% 50%

Repeater ADSL-box of router

essentiel b Select Operation Mode ○ AP Transform your existing wired network to a wireless network. ● Universal Repeater Extend your existing wireless coverage by relaying wireless signal. Next essentiel b Remote Settings Click "Site Survey" button to scan the wireless signal, then select the remote AP you want to connect.Click "Close Scan" button to empty the scan list.(Be sure to select the correct channel: 1 ~ 13 channels for the 2.4G wireless channels, the others for the 5G wireless channels) Remote SSID Bbox_Blab_24G 2.4G/5G Channel 5540MHz (Channel 108) Security Mode WPA - Personal Encryption ● AES ○ TKIP Password Back Next
