USER MANUAL KBV14T ELECTROLUX

EN Instructions | Vacuum Printer 2

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Visit our website to:

Receive advice, download our brochures, solve any anomaly and find information on technical support: www.electrolux.com

Register your product and receive a better service: www.electrolux.com/productregistration

Purchase accessories, consumables and original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER SERVICE AND MAINTENANCE

We recommend always using original spare parts.

Always have the following information at hand when you contact the authorised Assistance Centre: Model, PNC and serial number.

You can find the information on the rating plate.

Warning/Attention - Important safety information.

Information and general recommendations.

Environmental information.

Subject to change without notice.

Carefully read the instructions before installing and using the appliance. The manufacturer is not liable for improper installation and use of the appliance that may cause injuries and damage. Always keep the instructions available for future reference.

1.1 Safety of children and vulnerable adults

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they are given supervision or trained on how to use the appliance in a safe way and understand the hazards involved.
  Children should not play with the appliance.
• Keep packaging materials away from children.
• Keep children and pets away from the appliance during operation.
• Cleaning and maintenance should not be done by children without supervision.
  Children under the age of 3 years must be kept away unless constantly supervised.

1.2Warnings on general safety

• Only qualified personnel can install the appliance and replace the cables.
• Disconnect the appliance from the power supply before carrying out any maintenance operation.
• Do not use steam cleaners to clean the appliance.
• Do not use abrasive detergents or metal scrapers to clean the appliance.
• If the power cord is damaged it must be replaced by the manufacturer, by an authorised technician or by a qualified person to prevent hazardous situations.

1.3 Environments of use

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments.
• Farm houses.
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.

2. SAFETY INSTRUCTIONS

2.1 Installation

CAUTION!

The appliance must be installed by qualified personnel only.

• Remove the packaging material.
• Do not install or use the appliance if damaged.
• Comply with the instructions supplied with the appliance.
  Always pay attention when moving the appliance.
  Always wear safety gloves.
• Do not turn the appliance upside down or tilt it! This may cause oil to leak from the pump and damage the equipment.
• Respect the minimum distance from other appliances.
• Make sure the appliance is installed and secured to a fixed structure.
• The sides of the appliance must be adjacent to other equipment or units having the same height.

2.2 Electrical connection

CAUTION!

Risk of fire and electric shock.

• All the electrical connections must be made by a qualified electrician.

• The appliance must be earthed.

• Make sure that all the electrical data shown on the data plate correspond to those of the system. Otherwise, contact an electrician.
  Always use an electrical outlet with a correctly installed protective contact.
• Do not use multi-plug adapters or extension cables.
• Make sure not to damage the mains plug and the mains cable. If the power cable must be replaced, this should be carried out by our Assistance Centre.
• Shock protection devices must be fastened in such a way that they cannot be removed without tools.
• Connect the mains plug to the mains socket only once installation has been completed.
• Do not connect the mains plug if the mains socket is loose.
• Do not pull the mains cable to disconnect the appliance. Pull only the mains plug.
• Use only suitable isolation devices: circuit breakers, fuses (screw type fuses must be removed from the fuse holder), earth fault current releases and relays.
• The electric system must be equipped with an isolation device that allows you to disconnect the appliance from the mains at every pole. The isolation device must have a contact opening width of a minimum 3 mm.
• This appliance complies with the EEC directives.

4 ENGLISH

2.3 Use

CAUTION!

Risk of injury, burns, electric shock or explosion.

• Do not touch the sealing bar after use. Residual heat can cause burns.
• Use this appliance only in a household environment.
• Do not modify the specifications of this appliance.
• Do not leave the appliance unattended during operation.
• Turn the appliance off after use.
• Do not use the appliance with wet hands or when it could come into contact with water.
• Do not apply pressure on the drawer.
• Do not use the appliance as a work surface or as a support surface.
• Avoid the presence of sparks or open flames near the appliance when you open the drawer.
• Do not place or keep flammable liquids, materials or objects on the appliance, or inside or close to it.

CAUTION!

You may damage the appliance.

• Pay attention when you remove or insert the accessories.

• Do not force the lid open during the work cycle.

• Do not force the lid open during the work cycle in the case of a power cut.

• Do not place any weight on the lid.
• Prevent any object from falling on the lid! This can compromise the integrity, causing cracks or damage.
• Close the drawer gently, without slamming or forcing it unnecessarily.

2.4 Cleaning and maintenance

CAUTION!

There is a risk of injury, fire or damage.

• Before carrying out any maintenance operation, turn the appliance off and disconnect the plug from the mains socket.
• Check that the appliance is cold.

2.5 Disposing of the appliance

CAUTION!

Risk of injury and choking.

• Disconnect the plug from the power supply.
• Remove the mains cable and dispose of it.

2.6 Technical Assistance

• Contact the authorised Assistance Centre to repair the appliance.
• Only use original spare parts.

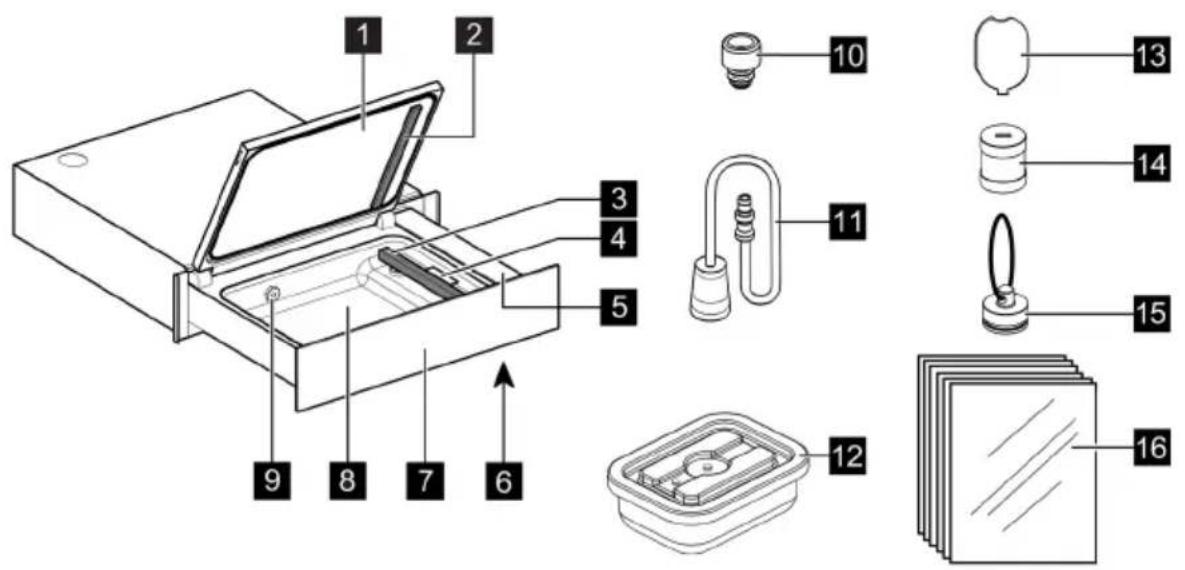

3.PRODUCT DESCRIPTION

1 Lid
2 Sealing cushion
3 Sealing bar
4 Bag holding clip
5 Control panel
6 Thermal switch
7 Front panel
8 Chamber
9 Suction nozzle

10 Vacuum cork
11 External vacuum accessory
12 Glass vacuum container *
13 Key to unscrew filter
14 Oil filter
15 Cap
Vacuum bags for storage and SousVide cooking

(*) Available on selected models

3.1 Product Introduction

This product uses the so-called "bell" vacuum technology capable of reaching up to 99.9% vacuum, a much higher value than that of traditional vacuum machines.

The more air that is extracted inside the bag or container, the less oxidation the food will undergo.

The almost total extraction (up to 99.9% ) of the air will therefore be able to guarantee the preservation of the food for a longer period than traditional vacuum machines and to prepare the food for vacuum cooking in an optimal way.

This technology also makes it easy to preserve liquid foods such as soups, marinated foods, in bags or containers.

You will find on this product additional innovative functions that are not feasible with traditional vacuum sealers, such as fast marinating that will allow you to save a lot of time, fast preparation of pickles, vacuum packing in containers useful for reducing food waste, the cold extraction technique for the preparation of infusions and many others.

4. CONTROL PANEL

1 Display
2 ON/OFF button

Press Move

Touch the surface with fingertip

Slide fingertip over the surface

5. BEFORE FIRST USE

CAUTION!

Refer to the chapters on safety.
- The plastic cap 15 removed during installation must be kept for future assistance.
- Comply with the instructions supplied with the appliance.

5.1 Cleaning for the first time

Refer to the "CLEANING AND MAINTENANCE" chapter.
- Wipe all parts with a damp cloth before the first use.

5.2 First use

Turn the appliance on by holding down the button 1 until the display turns on.

The appliance performs a first setup cycle to ensure good product performances.

6. DAILY USE

• Push the front panel to open the drawer.
• Turn the appliance on by holding down the button until the display turns on.
• Press Functions and select the desired program (see table below).
• Open the lid and place the bag or container inside the chamber. For packaging with bags, leave at least 2 cm beyond the sealing bar.

Use if needed the bag holding clip 4.

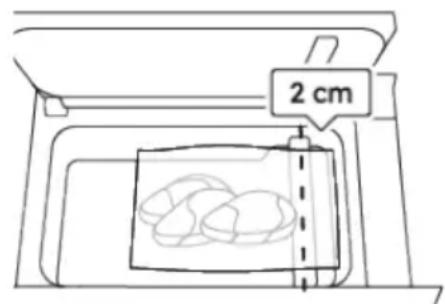

Fold down the edge of the bag outwards by 4 - 5cm to ensure a clean and dry sealing area.

Once the food is inside the bag, fold back the edge of the bag again in its initial condition.

• Close the lid.
• Touch the START button. The packaging cycle will then begin.
• At the end of the cycle, open the lid and remove the bag/container.

Do not touch the sealing bar after use. Residual heat can cause burns.

If the appliance is not used for 20 minutes it switches off automatically.

Vacuum seal

For keeping food fresh longer or prepare it for SousVide cooking.

Preserving food in vacuum bags extends the time the food is kept fresh in storage. SousVide is a cooking technique where the food is cooked slowly at low temperature.

The benefits with SousVide cooking are many:

Flavour and texture remain unaltered.
Nutrients and moist is kept in the food.
- No need for oils or fats for cooking.

Set Food type and Bag type depending on the food that you intend to vacuum seal and the bag used.

In case of Liquids (such as soups, etc) fill the bag with Max 1/3 of the bag's volume.

Risk of liquid spillage from the bag.

Do not use hot liquids.

Seal

For sealing or resealing bags to keep food fresh longer.

Suitable for foods that may deform easily such as crisps, biscuits, fresh salad etc. This method does not involve vacuum.

Set Bag type based on the thickness of the bag used.

Containers

For keeping food fresh in airtight containers or jars.

This function works for a variety of different types of containers and jars.

Re-sealing jars with twist-off lid: Put the lid in place, but make sure the lid is NOT turned tightly before the function is started, for the vacuum to be created properly.

To ensure a perfect air-tight seal, use new twist-off lid every time.

Note: when vacuuming Liquids, fill max 1/2 of the container's volume. Do not use hot liquids.

External vacuum

For vacuum sealing bigger containers or bottles that do not fit inside the chamber.

Make sure the container or bottle cork has a vacuum valve. Set Container type depending on container material or bottle.

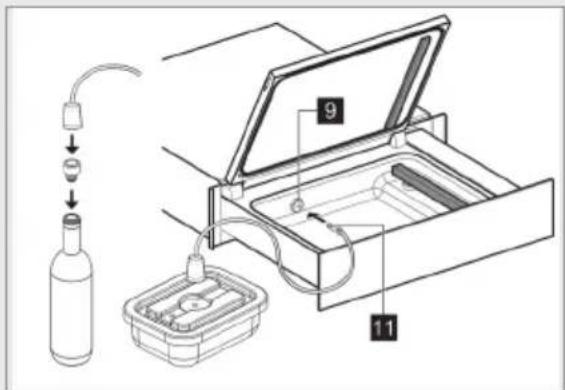

Connect the external vacuum accessory 11 to the suction nozzle 9 inside the chamber. Make sure it is fully inserted.

With the drawer lid open, press START to start the function.

Note: do not use hot liquids.

Marinate

For quick marination of food for the best taste.

This technique allows the seasoning to penetrate the surface of the food in less time.

Set Intensity and Bag type based on desired flavour intensity and the use of either an open container or a bag of varying thickness.

Tenderise

For effortlessly making meat more tender before cooking.

Set Bag type depending on the use of either an open container or a bag with varying thickness.

Infuse	For extracting the best flavours by soaking ingredients in liquid. Good for oils, vinegars, and cold brew coffee. Place liquid and ingredients to provide the flavours in an open container or a bag. Set Intensity and Bag type based on desired flavour intensity and the use of either an open container or a bag of varying thickness.
Pickle	For preserving food in pickle brine. Good for vegetables and fruits. Set Container/Bag type depending on the use of a container (either closed with lid, or open without lid), or a bag of varying thickness.
Dehydrate	For quick drying after baking to create a crispier crust. Good for bread and pastry. Place the food openly in the chamber.
Clean shells	For cleaning mussels and clams to prepare them for cooking. Place shellfish in an open container and cover it with a solution of water and salt using the following proportions: - max 500 grams shellfish - 0.5 litres of water - 1 tablespoon of salt Note: The water will bubble during the process. After the function finishes, dry the chamber carefully in case of any water spillage.

NOTE: During the program the drawer can be closed.

7. CLEANING AND MAINTENANCE

CAUTION!

Refer to the chapters on safety.

• Clean the appliance after each use with a damp and soft cloth.
• Follow the safety instructions indicated on the packaging when using products to clean the steel chamber 8.

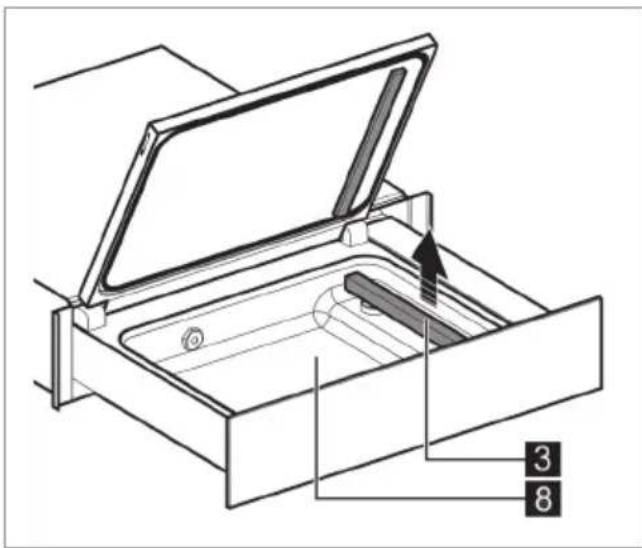

• Clean the chamber 8, especially in the case of residue liquid, it is advisable to remove the sealing bar 3 upward.
• Clean the sealing bar 3 with a dry cloth. Remove any residue that deposits on the bar.
• Clean the metal surfaces using mild detergents suitable for stainless steel.

• Keep the control panel clean and dry.

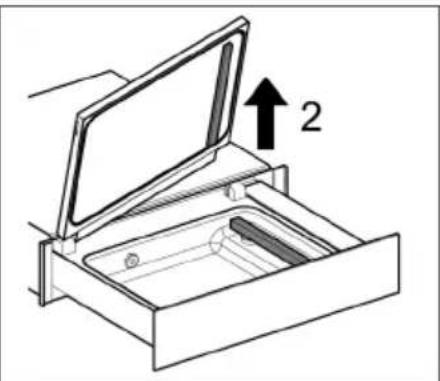

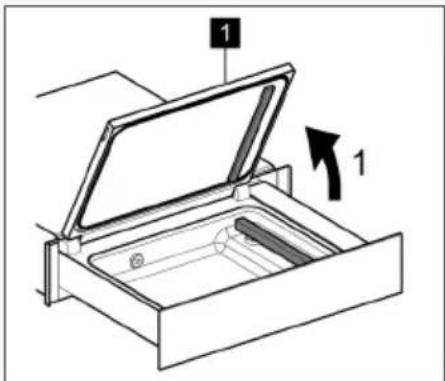

• Clean the lid 1 inside and out using only neutral detergents (water and soap).

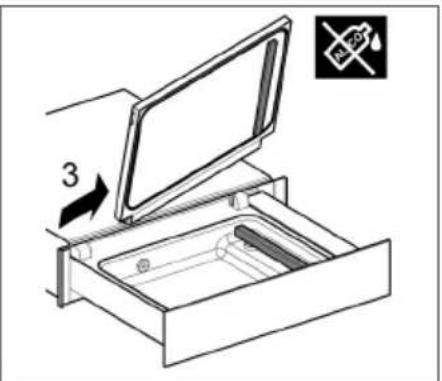

• Do not use abrasive products, alcohol-based detergents, abrasive sponges, solvents or metal objects.

7.1 Oil Maintenance

The oil maintenance is an automatic program that checks and cleans the oil pump used to create vacuum. The program can be found under "Maintenance" when turning on the machine.

CAUTION!

The chamber must be empty.

The machine will notify when oil maintenance is necessary:

• During first use (5.2)
• Every 200 cycles

8. TROUBLESHOOTING

CAUTION!

Refer to the chapters on safety.

8.1 What to do if...

Problem Possible cause Solution
The bag is not sealed correctly.	The bag type thickness selected is not correct.	Change the bag type thickness.
	The lid gasket is dirty or worn. Clean or replace the lid gasket (contact the Technical Assistance Service for a replacement).
	The bag is not placed correctly on the sealing bar.	Position the bag correctly.
	The sealing bar is worn (the Teflon coating is burnt).	Replace the sealing bar (contact the Technical Assistance Service for a replacement).
	The blade placed under the Teflon of the sealing bar is broken.	Replace the sealing bar (contact the Technical Assistance Service for a replacement).
The bag is not sealed.	Thermal safety intervention.	Press the thermal switch button 6 on the bottom, front right corner.

Problem Possible cause Solution
Final vacuum is poor. The lid gasket is dirty or worn. Clean or replace the lid gasket (contact the Technical Assistance Service for a replacement).
	The lid is not closed correctly. Close the lid correctly. Make sure that objects or dirt are not found between the lid and chamber.
The lid does not open.	No power supply. Wait until the power supply is restored.
The lid is cracked or broken.	Damaged lid. Replace the lid (contact the Technical Assistance Service for a replacement).

Alarm messages

Alarm Possible cause Solution
Press lid to create vacuum	The lid is not closed correctly. Close the lid correctly.
Oil change needed The pump oil needs to be changed. Contact the Technical Assistance Service.
Oil maintenance needed	A pump oil maintenance cycle is required. Perform an oil maintenance cycle.
Error occurred An error occurred. Contact the Technical Assistance Service.

8.2 Assistance Data

If it is not possible to find a solution to the problem, contact the authorised Assistance Centre.

The information required for the Assistance Centre is found on the data plate on the left side of the appliance. Do not remove the data plate.

9. ENERGY EFFICIENCY

9.1 Product Information for power consumption and maximum time to reach applicable low power mode

Power consumption in off mode 0,3 W

Maximum time needed for the equipment to automatically reach the applicable low power mode

20 min

10. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

Put the packaging in relevant containers to recycle it.

Help protect the environment and human health by recycling waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms.

The list of official SENS collection points can be found at www.erecycling.ch

TABLE DES MATIÈRES

1. CONSIGNES FONDAMENTALES DE SECURITE 15
2. INSTRUCTIONS POUR LA SECURITE 16
   3.DESCRIPTION DU PRODUIT 18
   4.PANNEAU DE COMMANDE 19
3. AVANT LA PREMIÈRE UTILISATION 19
4. UTILISATION QUOTIDIENNE 20
5. NETTOYAGE ET ENTRETIEN 22
6. RÉSOLUTION DES PROBLEMES 23
   9.EFFICACITE ENERGETIQUE 24
7. EN MATIÈRE DE PROTECTION DE L'ENVIRONNEMENT 25

PENSES POUR VOUS

2.6 Assistance technique

www.electrolux.com/productregistration

The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

NOTES - REMARQUES - ANMERKUNGEN - NOTE

electrolux.com
