Product Type	Graphics Tablet
Brand	Huion
Model	Inspiroy Dial Q620M
Touch Area (Computer)	266.7 x 166.7 mm
Touch Area (Android)	104.2 x 166.7 mm
Dimensions	375.5 x 220.4 x 8 mm
Weight	666 g
Resolution	5080 LPI
Pen Pressure Levels	8192
Detection Height	10 mm
Report Rate	266 PPS
Interface	USB-C
Programmable Buttons	8 buttons + Dial
Wireless Connection	Yes (USB 2.4 GHz receiver)
Power Supply	USB-C or built-in rechargeable battery
Software Compatibility	Windows 7+, macOS 10.12+, Android 6.0+
Included Pen	PW500 (battery-free, 163.7 x 14.3 mm, 14 g)
Replacement Nibs	Included (replacement via the provided tool)
Maintenance	Clean with a soft cloth, no detergents
Safety	Do not expose to water or magnetic sources
Included Accessories	USB-C cable, wireless receiver, pen holder, cloth, quick guide, warranty card
After-Sales Service	www.huion.com | [e-mail] | [phone]

Frequently Asked Questions - Inspiroy Dial Q620M Huion

How to connect the Huion Inspiroy Dial Q620M tablet to a computer?

You can connect the tablet wired via the provided USB-C cable, or wirelessly by plugging the 2.4 GHz receiver into a USB port on the computer and turning on the tablet with the power button. Make sure the drivers are installed.

How to install the tablet drivers?

Download the drivers from the official Huion website (www.huion.com/fr/download). Before installation, uninstall any other tablet drivers and close graphics software. Run the installer, then connect the tablet. The driver icon in the taskbar should turn colored.

How to replace the pen nib?

Use the provided replacement tool (the pen holder). Insert the old nib into the hole at the bottom of the holder, tilt the pen to remove it. Then, insert the new nib by pushing it firmly until it stops.

How to customize the buttons and the Dial?

Open the Huion driver, go to the 'Touch Keys' or 'Buttons' tab. Click on the button icon to configure, choose a function (key combination, mouse function, etc.) and confirm with 'Apply'. The Dial can be set for zoom, scrolling, etc.

Does the tablet work with an Android smartphone?

Yes, with an Android 6.0+ smartphone supporting OTG. Connect the wireless receiver to an OTG adapter, then plug it into the phone. Turn on the tablet. The active area reduces to the left part of the tablet. Buttons are not supported in phone mode.

How to adjust pen pressure sensitivity?

In the Huion driver, 'Digital Pen' tab, move the sensitivity slider. To the left (up): more sensitive; to the right (down): less sensitive. Click the '' button to revert to default values.

What to do if the cursor does not follow the pen?

Check that the pen is original, the drivers are correctly installed, and the tablet is connected. Try recalibrating the pen via the driver. If the problem persists, change USB port or reinstall the drivers.

How to use the tablet with multiple monitors?

In the driver, go to 'Work Area' and select the desired monitor (in extended mode). In mirror mode, the cursor appears on all screens. You can also set a custom area.

Does the tablet automatically go to sleep?

Yes, after 15 minutes of inactivity, the tablet goes to sleep. To wake it, press the power button. For continuous wired use, disable sleep in the tablet settings if necessary.

What to do if the buttons do not respond?

Check that the buttons are enabled in the driver ('Enable Touch Keys' checkbox ticked). Make sure each button has a function assigned. If a lock exists, unlock it. Restart the driver or computer.

USER MANUAL Inspiroy Dial Q620M Huion

Front view of a rectangular device with circular buttons and a plus button, no text or symbols present.

Contents

1 / Precautions....3
2 / Product Overview 4

2.1 Tablet Introduction....4
2.2 Product and Accessories....4
2.3 Tablet Connection....5
2.4 Introduction to LED Indicator....7
2.5 Install Driver 8

3 / Pen Basic Operation 9

3.1 Hold the Pen....9
3.2 Position the Cursor....9
3.3 Click....10
3.4 Move....10
3.5 Use the Side Buttons....10
3.6 Pen Nib Replacement....11

4 / Function Setting....12

4.1 Working Area Setting....12
4.2 Tablet Setting 13
4.3 Press Keys Function Setting....15
4.4 Pen Buttons Function Setting....17
4.5 Enable the Windows Ink Feature....17
4.6 Pressure Sensitivity Setting....18
4.7 Pen Pressure Testing....19
4.8 Pen Nib Activity Setting 19
4.9 Data Export and Import 20
5 / Specifications 21
6 / Trouble Shooting 22
7 / After-service Contact 23

1 / Precautions

【Please read this manual carefully before using, and keep it well for future reference.】

--Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.

--Don't expose this product to water or other liquids. Take care to never spill liquids onto the tablet and pen. Exposing this product to water or other liquids may cause product malfunction or electrical shock.

--Do not place the tablet on where is unstable or a height for children reaching easily in order to avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children are biting on them.

--Power off your tablet in locations where/when electronic devices is not allowed. Because the tablet may cause other electronic devices to malfunction in some locations where/when the use of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.

--Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or pen. Such action may cause heat generation, ignition, electronic shock, or other damage, including human injury. Disassembling the product will void your warranty.

--While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.

--Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock.

©

2.2.2 Accessories

Battery-free pen Pen Hold Replacement Nibs (inside the pen holder)

Wireless Receiver Cleaning ClothNib Clip (inside the pen holder)

USB-C Cable

Quick Start Guide

Warranty Card

2.3 Tablet Connection

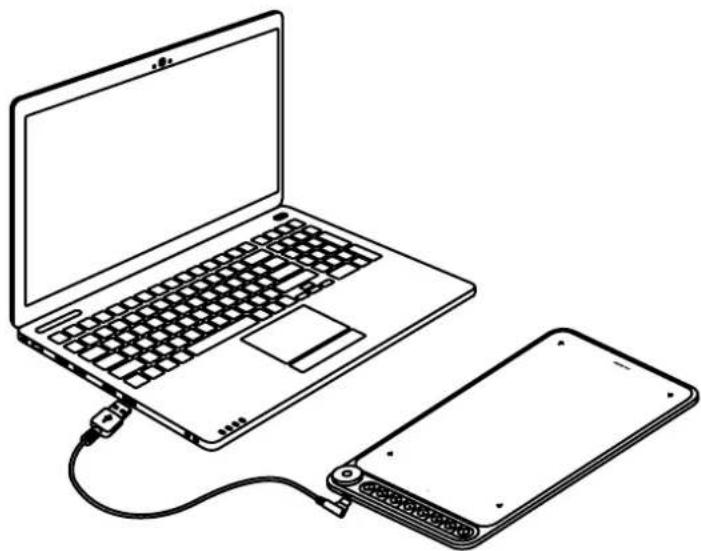

2.3.1 Connecting to Computer

Connect the tablet to your computer with USB cable.

[1] Take out the Usb cable from the package, then connect tablet to your computer. [2] Open the driver interface, the lower corner shows device connected, indicating that the tablet is successfully connected to the computer. You can start use the tablet.

Line drawing of a laptop connected to a smartphone via cable (no text or symbols)

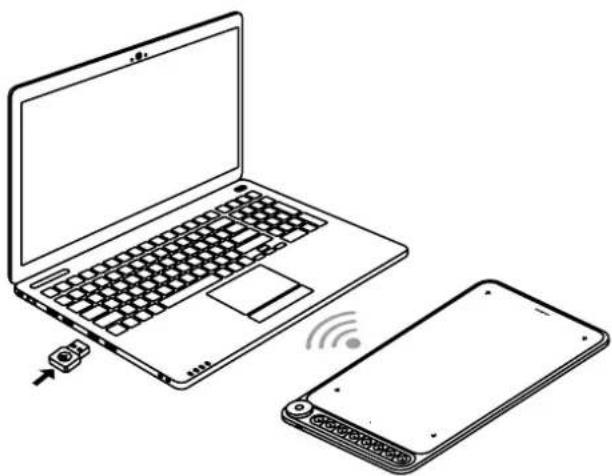

Wireless Mode

[1] Insert the wireless receiver to your computer.

[2] Switch the power button on to power on the tablet.

[3] Not using 15 mins, the tablet will enter sleep mode. In this case, you need to switch the power button on again to wake the tablet up.

Line drawing of a laptop and smartphone with wireless signal icons (no text or symbols)

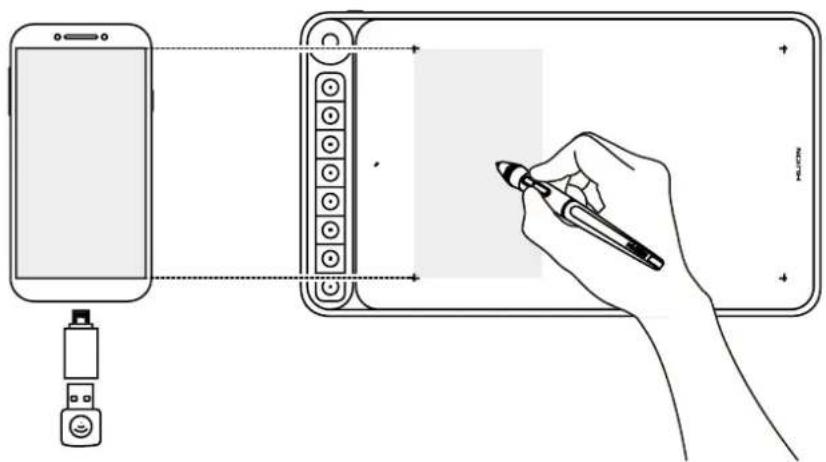

2.3.2 Connecting to Android Phone & Tablet

[1] Please make sure your phone/tablet OS is as following: Android OS 6.0 or later.

[2] For some models, you need to go phone/tablet "Settings" then enable "OTG" function.

[3] Choose the right OTG Adapter from package, which depends on USB port type of your phone/tablet, insert the wireless receiver into the OTG adapter, and then insert the OTG adapter into the mobile phone interface. At this time, turn on the tablet switch to communicate with the mobile phone through 2.4G wireless. At this time, turn on the tablet switch to communicate with the mobile phone through 2.4G wireless.

Diagram illustrating a device interaction with a hand holding a pen, showing a smartphone connected to a screen and a battery.

Notes:

[1] The phone will reverse charge the tablet when they are wired connected and will quickly drain the phone battery, so it can only be used by wirelessly connecting to the phone.
[2] The pen tablet can works without installing any driver into your phone/tablet.
[3] Once connected, the tablet will automatically enter the phone mode, in which the pen can only work in the left gray area.
[4] Please note that the press keys of pen tablet and digital pen are not supported in phone mode.

2.4 Introduction to LED Indicator

Eight press keys on Q620M are embedded with a LED light in the center respectively, which will serve as indicators of real time battery consumption, low battery and status of the tablet.

Light Effects:

[1] Power On (wired & wireless): 8 LED lights turn on one after another and flash twice before they go off. The battery check will be automatically activated after 2 secs, where the LED lights will be on for 3 secs, and via the quantity of lights users can tell the real time battery consumption of the tablet.
[2] Power Off/Sleep (wired & wireless): 8 LED lights embedded on the keys flash twice together and go off one after another.
[3] Battery Charge (wired): Lights will turn on one by one to indicate the charging progress, and all lights will be off when the battery is fully charged.
[4] Low Battery (wireless): When the battery runs out to a certain level, lights indicating the real time battery consumption will turn on for 3 secs and then go off. It's a reminder to have the tablet charged when there is only one light on, which indicates that only 13% of power remains in the battery.

Close-up of a black electronic device with a circular button and green sensor array (no text or symbols visible)

2.5 Install Driver

2.5.1 OS Support

Windows 7 or later, macOS 10.12 or later.

2.5.2 Install Driver

Please download the driver from our website: www.huion.com/download.

After finishing installation, you can find the driver icon "⚡" in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color "⚡", which means the driver has already recognized the tablet and you can start using it now.

Notes:

[1] Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
[2] Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

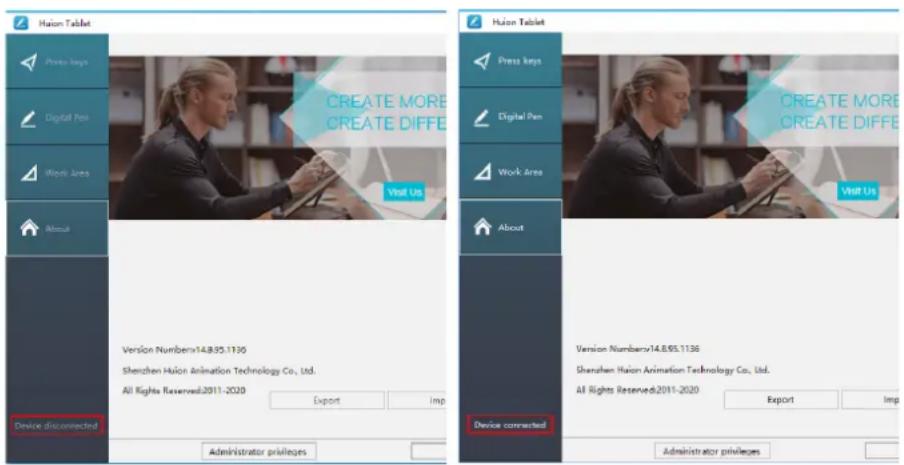

2.5.3 Driver Page

After the download is successful, double-click to open the driver, Connect the tablet to your computer and phone using a USB cable.

When the connection is complete, watch for a prompt at the bottom left of the driver page that displays two states: "Device disconnected" or "Device connected".

Husion Tablet Print keys Digital pen Work Area About Device disconnected Administrator privileges CREATE MORE CREATE DIFFE Visit Us Version Number:14.895.1136 Shenzhen Husion Animation Technology Co., Ltd. All Rights Reserved:2011-2020 Export Import Husion Tablet Press keys Digital Pen Work Area About Device connected Administrator privileges CREATE MORE CREATE DIFFE Visit Us Version Number:14.895.1136 Shenzhen Husion Animation Technology Co., Ltd. All Rights Reserved:2011-2020 Export Import

3 / Pen Basic Operation

3.1 Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice:

When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

Line drawing of a hand holding a pen, no text or symbols present

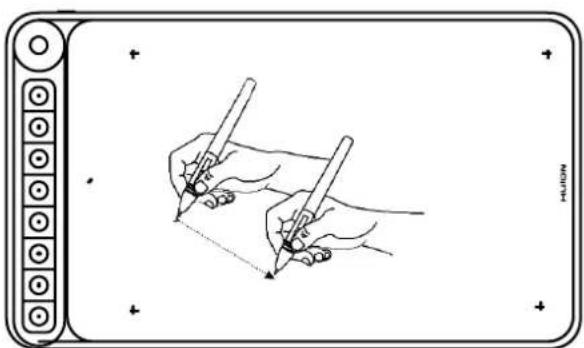

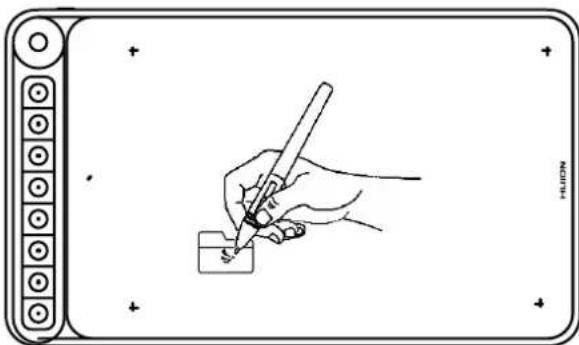

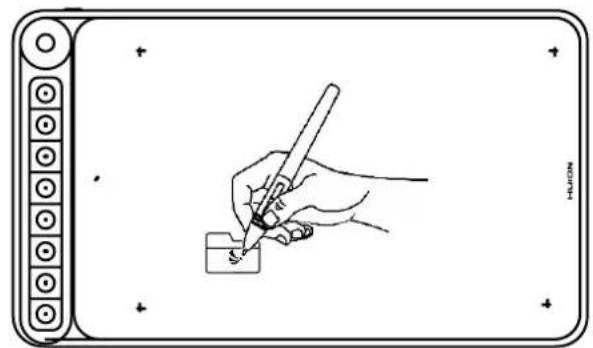

3.2 Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly.

Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

Illustration of two hands holding pens, one writing on a paper sheet (no text or symbols present)

Diagram showing a hand holding a pen writing on a small object, with a device panel and plus signs in the corner.

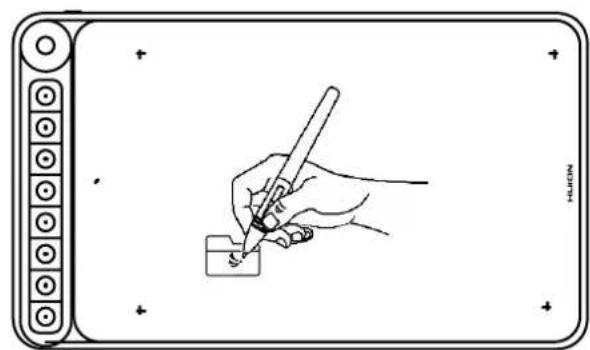

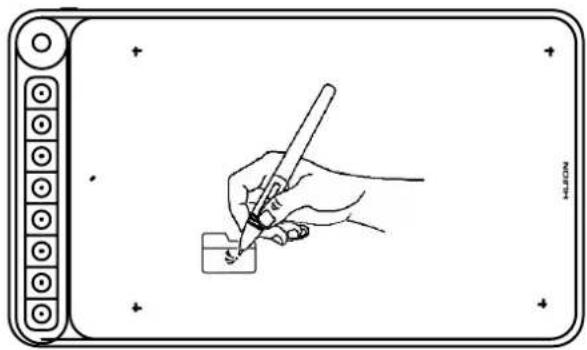

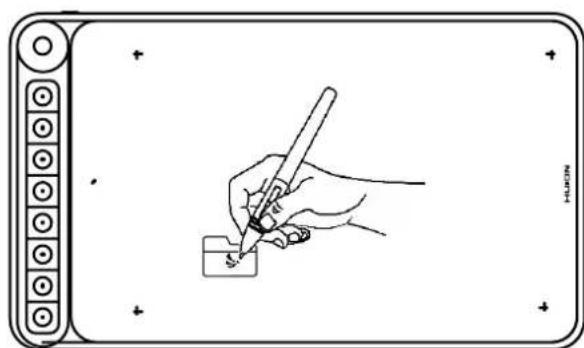

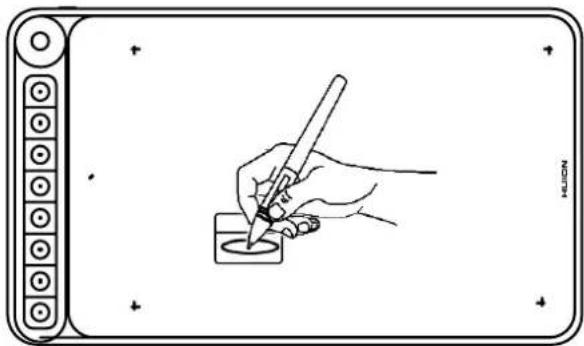

3.3 Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Line drawing of a hand holding a pen writing on a square object, enclosed in a rounded rectangle (no text or symbols)

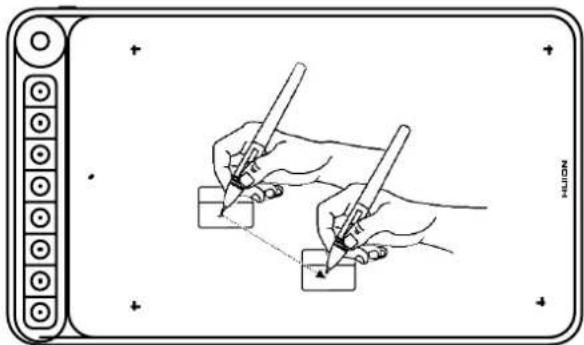

3.4 Move

Select the object, then slide the pen tip across the screen to move it.

Diagram showing two hands drawing a square with a pencil, labeled 'NO.14' in the corner.

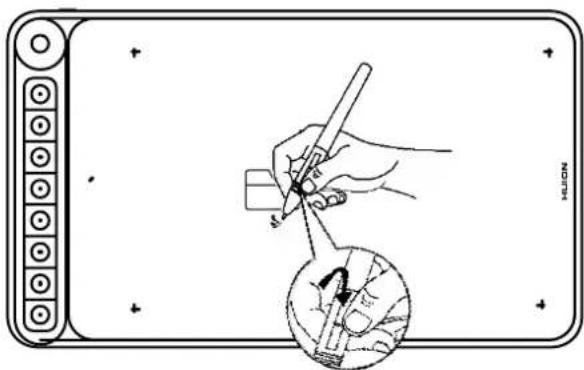

3.5 Use the side buttons

The buttons on the pen can be set to two different customizable functions.

You can use the buttons whenever the pen tip is within 10mm of the tablet active area.

You do not have to touch the pen tip to the tablet in order to use the switch.

Diagram illustrating a hand using a pen to adjust or mark a component, with an inset showing the tool's tip and magnified view.

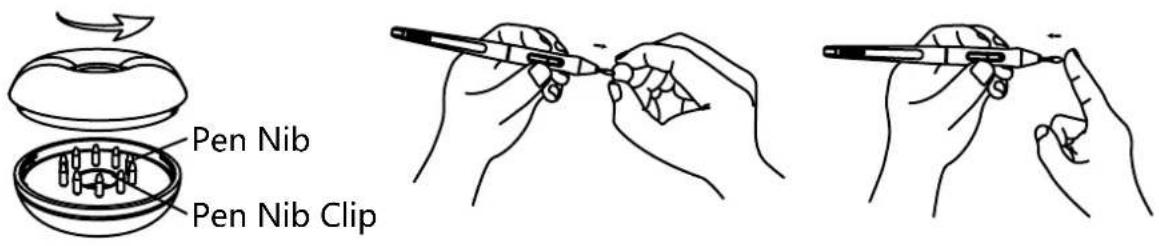

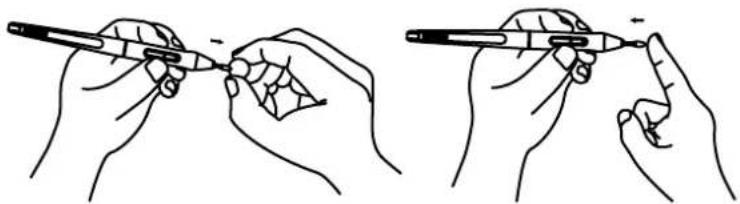

3.6 Pen Nib Replacement

The nib will be wear off after using for a long time, then you need to replace a new nib.

[1] Anticlockwise rotate the pen holder to open the cover, take a new nib out.
[2] Insert the pen nib into the pen nib clip and tilt the pen to pull out the old nib.
[3] Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.

Pen Nib Pen Nib Clip

4 / Function Setting

4.1 Working Area Setting

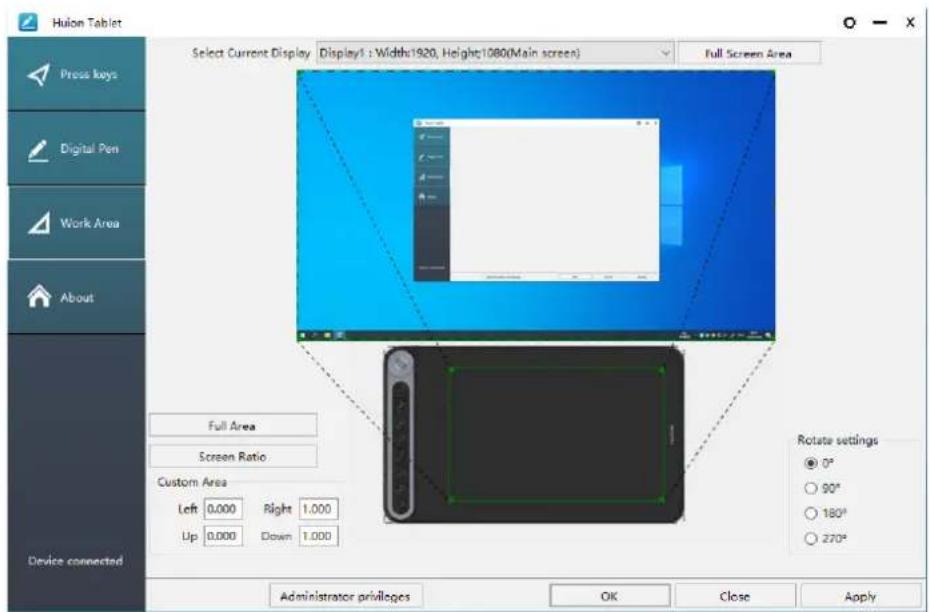

4.1.1 Using Multiple Monitors

Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.

By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.

Huilon Tablet Select Current Display Display1 : Width:1920, Height:1080(Main screen) Full Screen Area Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

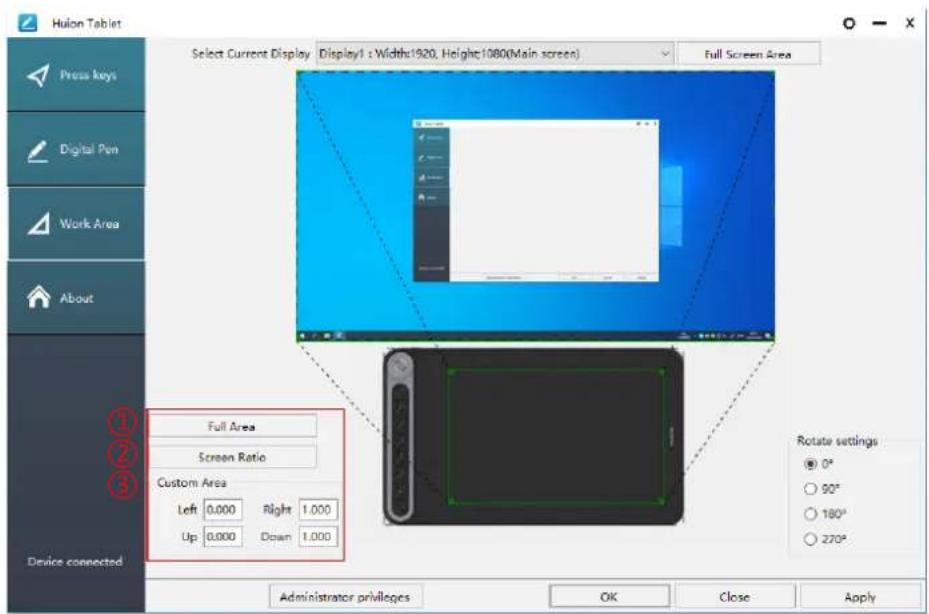

4.1.2 Working Area Setting

Define the tablet area that will be mapped to the screen area.

[1] Full Area: the entire active area of the tablet. This is the default setting.
[2] Screen Ratio: As a general rule, be 16:9.
[3] Customized Area:

1> Enter coordinate values.

2> Drag the corners of the foreground graphic to select the screen area.

Hulon Tablet Select Current Display Display1:Width:1920, Height:1080(Main screen) Full Screen Area Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

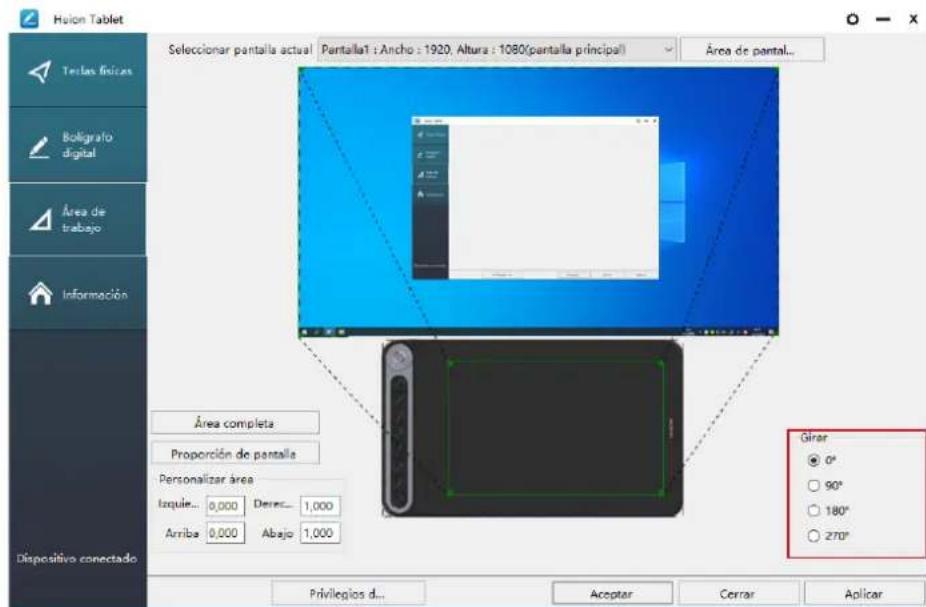

4.1.3 Rotate Working Area

By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0^ , 90^ , 180^ or 270^ .

Huilon Tablet Select Current Display Display1 : Width:1920, Height:1080(Main screen) Full Screen Area Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

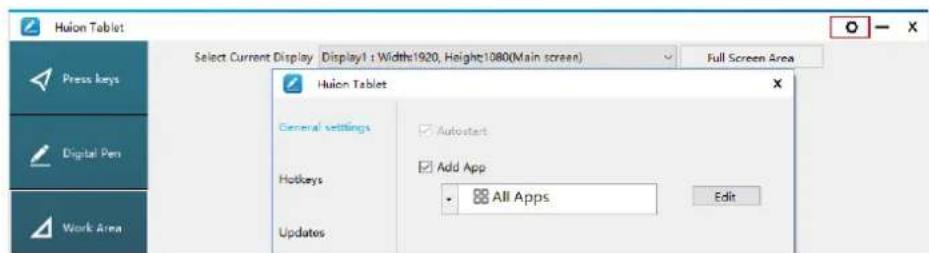

4.2 Tablet Setting

Click the "o" in the upper right corner of the driver to set the Tablet, including General settings, Hotkeys and Updates.

Huion Tablet Select Current Display | Display1 : Width:1920, Height:1080(Main screen) | Full Screen Area Press keys Digital Pen Work Area Huion Tablet General settings Hotkeys Updates Autostart Add App All Apps Edit

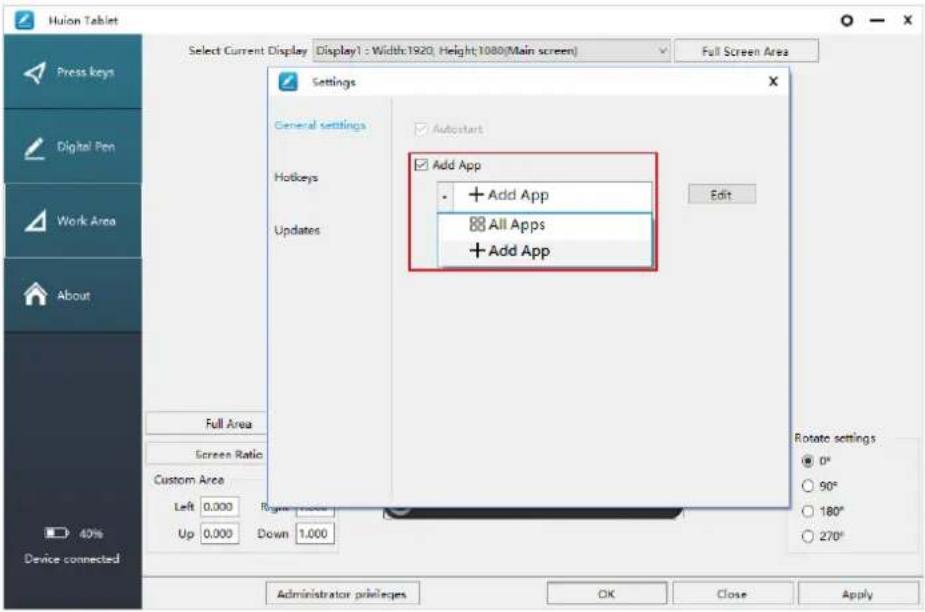

4.2.1 General settings

Add App: Shortcut key function can be set by adding different programs.

When opening different programs, the driver will automatically recognize that the shortcut function is the corresponding function set.

Huion Tablet Select Current Display (Display): Width:1920, Height:1080(Main screen) Full Screen Area Press keys Digital Pen Work Area About Settings General settings Hotkeys Updates Autocastart Add App - + Add App All Apps + Add App Edit Full Area Screen Ratio Custom Area Left 0.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected 40%

4.2.2 Hotkeys settings

Set the shortcut key to quickly open the driver interface. The default value is Ctrl+Alt+H, which can be set according to usage habits.

Huion Tablet Select Current Display Display1 : Width: 1920, Height: 1080(Main screen) Full Screen Area Press keys Digital Pen Work Area About Open the driver interface Ctrl + Alt + H Hotkeys Updates Resto... Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

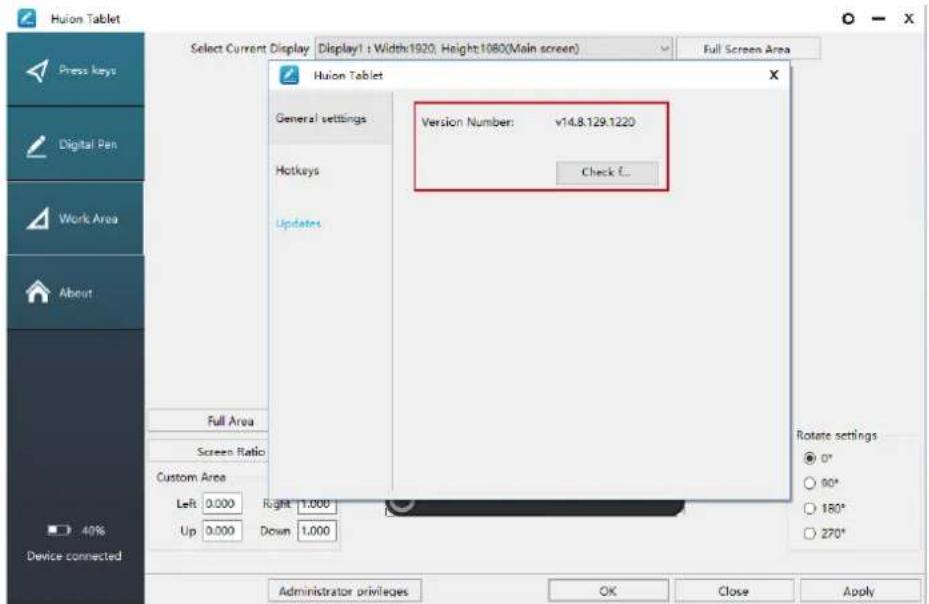

4.2.3 Updates

You can view the driver version number, click "Check for Update", view the latest driver version, and update according to the system prompt.

Huion Tablet Select Current Display | Display1 : Width:1920, Height:1080(Main screen) | Full Screen Area Huaon Tablet General settings Version Number: v14.8.129.1220 Hotkeys Check E... Updates Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

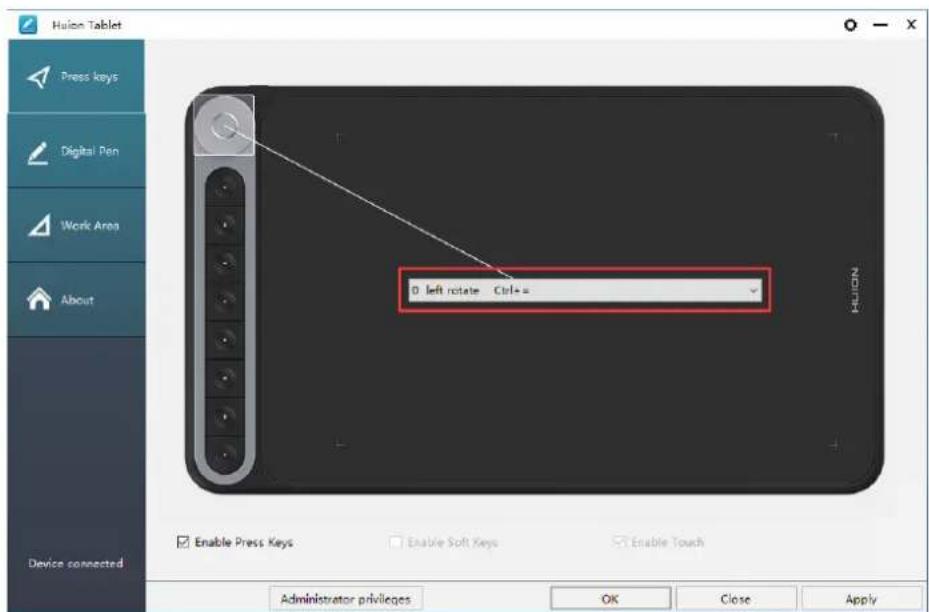

4.3 Press Keys Function Setting

Default Setting: Place the cursor on the press key or click the press key to find the default values.

Customized Setting: Select the function to be achieved on the pop-up dialog box, then click "Apply" or "OK" to take effect.

Enable/Disable Press Keys: Check/Uncheck "Enable Press Keys".

Huilon Tablet Press keys Digital Pen Work Area About Device connected D left rotate Ctrl+= Enable Press Keys Enable Soft Keys Enable Touch Administrator privileges OK Close Apply

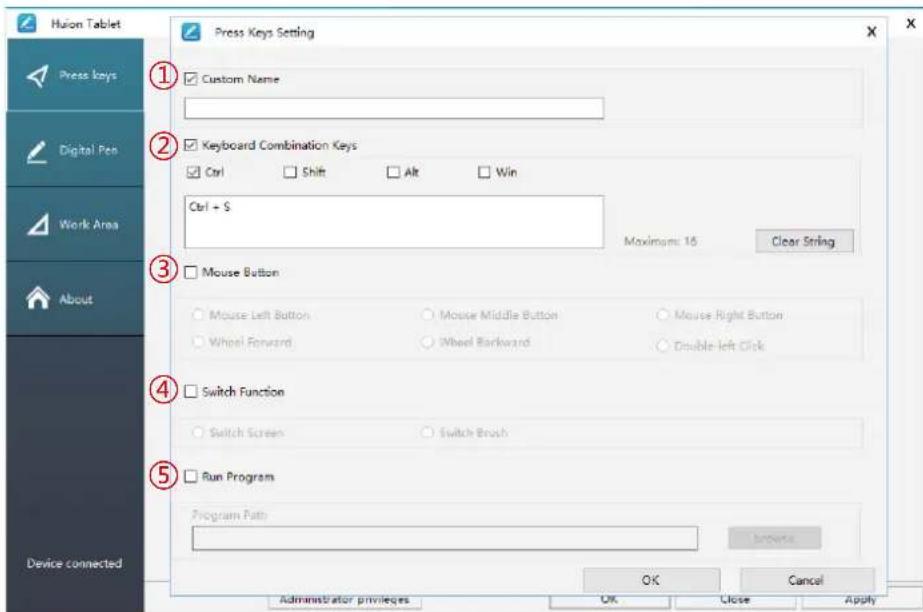

The following shortcut key customization interface is displayed, with a total of 5 Settings.

① Custom: according to the use of custom or professional terms to set.
② Key combination function keys: Ctrl, Shift, Alt, Win+ any letter or other. Ctrl, Shift, Alt, Win, you can select one or more of them, and you can arrange them in any combination. Enter the corresponding Settings in the input box. For example: deselect -ctrl +D, enter task manager -ctrl +Alt+Delete, etc.

③ Mouse Button Function: click the box, select the required function, can be set to complete.

④ Switch function: also click the box, select the required function.

⑤ Run the program function: click browse, select the connection, to achieve the required run the program function.

Husion Tablet Press Keys Setting ① Custom Name ② Keyboard Combination Keys ③ Ctrl Shift Alt Win Ctrl + S Maximum: 15 Clear String ④ Mouse Button Mouse Left Button Mouse Middle Button Mouse Right Button Wheel Forward Wheel Backward Double left Click ⑤ Switch Function Switch Screen Switch Brush Run Program Program Path OK Cancel Administrator privileges OK Close Apply Device connected

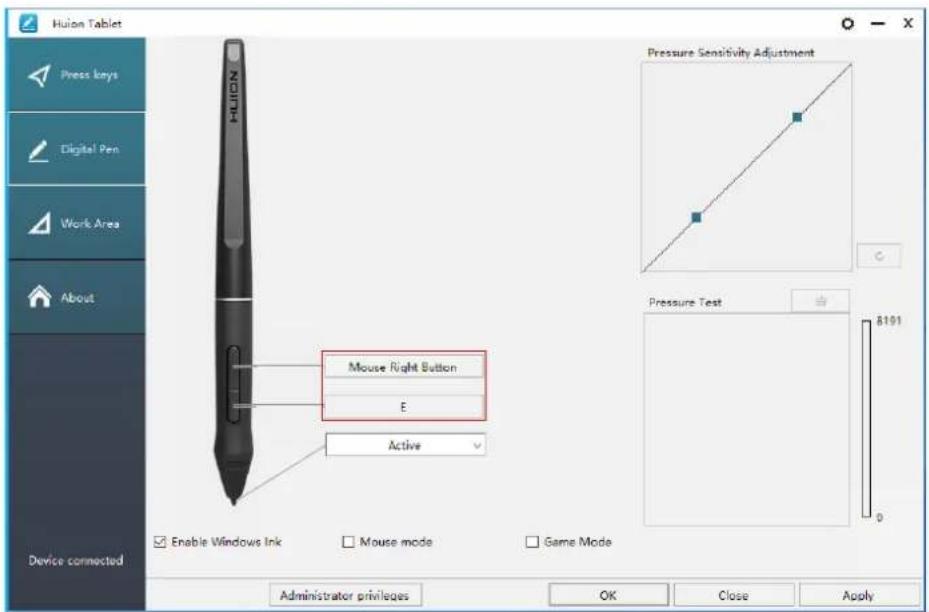

4.4 Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click "Apply" or "OK" to take effect.

Huilon Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button E Active Enable Windows Ink Mouse mode Game Mode Pressure Sensitivity Adjustment Pressure Test 8101 0 Administrator privileges OK Close Apply

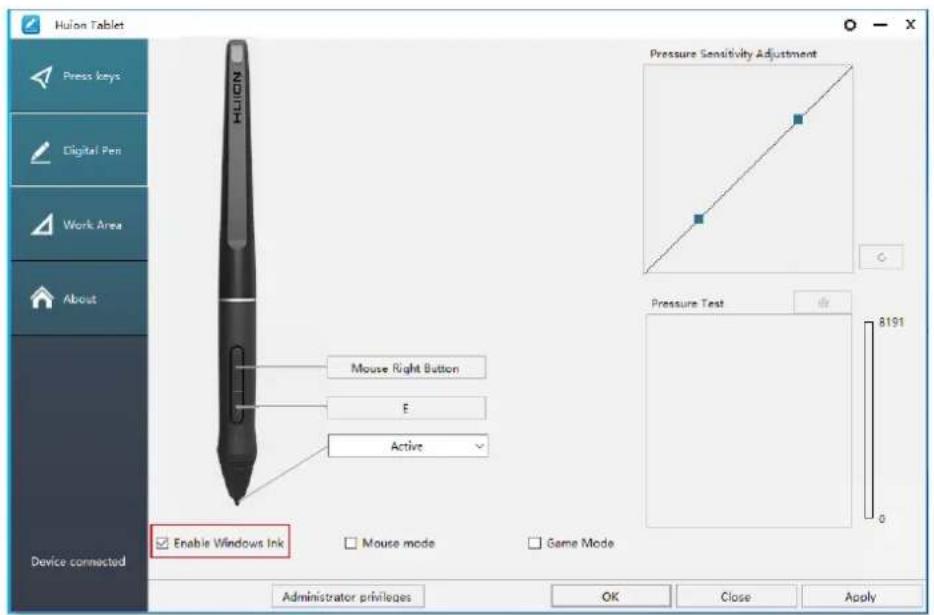

4.5 Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on.

Hulon Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button E Active Enable Windows Ink Mouse mode Game Mode Pressure Sensitivity Adjustment Pressure Test 8191 0 Administrator privileges OK Close Apply

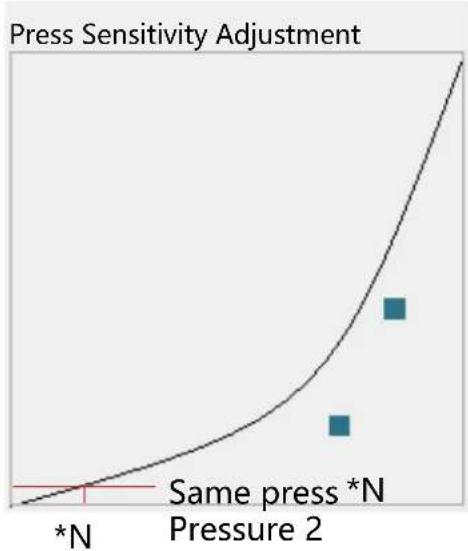

4.6 Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Hulon Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button E Active Enable Windows Ink Mouse mode Game Mode Pressure Sensitivity Adjustment Pressure Test 8191 Administrator privileges OK Close Apply

Drag upward (left): the pressure change is more obvious, small pressure produces a great pressure.

Drag down (right): pressure change is weak, a lot of pressure produces less pressure.

Click the button ☐ at the bottom right of the Settings box to reset the pressure sensitivity to the default state.

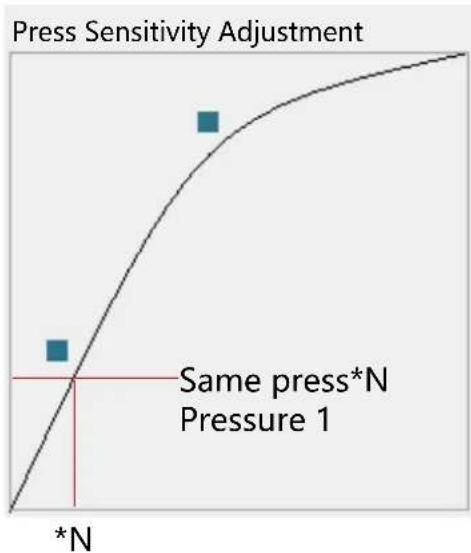

For example: apply *N respectively the same pressure, under different pressure coefficient produced different pressure effect. According to their habit of holding the pen posture and the size of the hand for the appropriate pressure Settings.

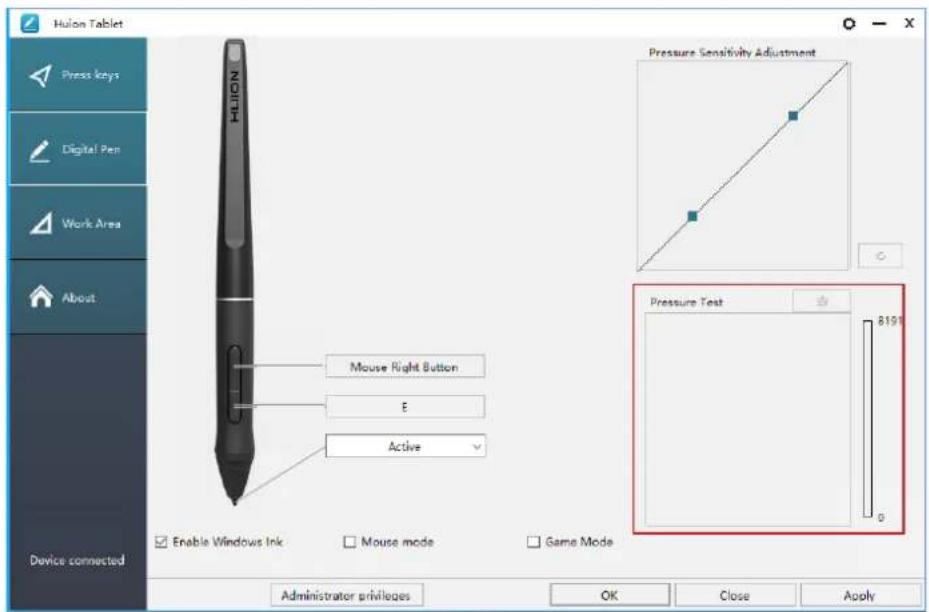

4.7 Pen Pressure Testing

You can gradually apply pressure to the stylus on the screen to test the pressure level. Click "☐" button to clear all the ink.

Halon Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button E Active Enable Windows Ink Mouse mode Game Mode Pressure Sensitivity Adjustment Pressure Test 8190 0 Administrator privileges OK Close Apply

4.8 Pen Nib Activity Setting

The pen nibs can be set to be Active/Inactive as needed.Click the drop-down option to select, and click OK again to save the Settings. In Active mode, the digital pen can be used normally. In Inactive mode, the digital pen has cursor movement, but cannot complete the specified action.

Hulon Tablet Press keys Digital Pen Work Area About Mouse Right Button E Inactive Active Inactive Enable Windows Ink Mouse mode Game Mode Pressure Sensitivity Adjustment Pressure Test 8191 0 40% Device connected Administrator privileges OK Close Apply

4.9 Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

Huion Tablet Press keys Digital Pen Work Area About CREATE MORE CREATE DIFFERENT Visit Us Version Numbers:14.8.95.1136 Shenzhen Huion Animation Technology Co., Ltd. All Rights Reserved:2011-2020 Export Import Default Setting Device connected Administrator privileges OK Close Apply HUION

6 / Specifications

Tablet
Model	Q620M
Touch Technology	Battery-Free Electromagnetic Resonance
Working Area	Computer: 266.7 x 166.7mmAndroid: 104.2 x 166.7mm
Dimension	375.5 x 220.4 x 8mm
Net Weight	666g
Touch Resolution	5080LPI
Report Rate	266PPS
Pen Sensing Height	10mm
Interface	USB-C
Press Keys	8 Programmable Press Keys + Dial
OS Support	Windows 7 or later,macOS 10.12 or laterAndroid 6.0 or later
Digital Pen
Model	PW500
Dimension	163.7 x Φ14.3mm
Weight	14g
Pressure	8192Levels
Accuracy	±0.3mm

7 / Trouble Shooting

Abnormal Phenomena Possible Solutions
There is no pressure in the graphics software but the cursor moves	You may have installed other tablet drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.'
The pen does not work	1. Make sure you are using the pen that originally came with your tablet.2. Make sure you installed the driver correctly.
Press Keys does not work	1. Make sure the Press Keys function were enabled in the driver.2. Make sure you have correctly defined the Press Keys.3. Check if the press lock switch is on the unlock position.
The computer can't enter sleep mode	When you are not using the tablet, please do not put the pen on the tablet surface, which will keep the computer awake.
The side button of the pen doesn't work	When pressing the side button, please make sure that the nib didn't touch the tablet surface and the distance between the nib and surface is within 10mm.
The side button of the pen doesn't work	Make sure the USB port is functional, if not, please change to another USB port.

8 / After-service Contact

SHENZHEN HUION ANIMATION TECHNOLOGY CO., LTD.

Bldg 28, Quarter 4, HuaiDeCuiGang Industrial Park, Fuyong Street, Bao'an District, Shenzhen, 518106, China

[phone]
www.huion.com
www.facebook.com/huion
[e-mail]
huion-skype
https://twitter.com/HuionTab

Inhalt

Line drawing of a laptop connected to a smartphone via cable (no text or symbols)

Wireless Mode:

Line drawing of a laptop and smartphone with wireless signal icon (no text or symbols)

Diagram illustrating a device interaction with a hand holding a pen, showing a smartphone connected to a screen and a battery.

Hinweis:

Line drawing of a hand holding a pen, no text or symbols present

Line drawing of two hands holding pens, one writing on paper (no text or symbols present)

Diagram showing a hand writing on a small object with a pen, enclosed in a rectangular frame with a keypad and 'NOEFH' label.

3.3 Klicken

Line drawing of a hand holding a pen and eraser, writing on a square object (no text or symbols present)

3.4 Bewegung

Diagram showing two hands writing on a digital device interface with icons and a pencil, labeled 'HORN' in the corner.

Diagram illustrating a hand holding a pen and writing on paper, with an inset showing the same object as a tool.

Line drawing of a laptop connected to a smartphone via cable (no text or symbols)

Mode Sans Fil

Line drawing of a laptop and smartphone with a wireless signal icon, no text or symbols present

Diagram showing a hand holding a pen writing on a device panel, with a smartphone connected to its left screen and a USB port nearby.

Notes:

Line drawing of a hand holding a pen, no text or symbols present

Illustration of hands holding pens and writing on a line, enclosed in a rounded rectangle (no text or symbols)

Line drawing of a hand holding a pen writing on a small object, enclosed in a rounded rectangular frame (no text or symbols)

3.3 Clic

Line drawing of a hand holding a pen writing on a square object, enclosed in a rounded rectangle (no text or symbols)

3.4 Mouvement

Diagram showing two hands writing on a document with a ruler, enclosed in a rounded rectangle with a keypad and plus signs at corners.

Diagram illustrating a hand using a pen to write a small object, with a magnified inset showing the process.

Line drawing of a laptop connected to a smartphone via cable (no text or symbols)

ワイヤレスモード

Line drawing of a laptop and smartphone with wireless signal icon (no text or symbols)

Diagram showing a hand holding a pen writing on a device panel, with a smartphone and USB port visible nearby.

① ご注意：

Line drawing of a hand holding a pen, no text or symbols present

3.2 カーソルの移動

Line drawing of hands holding pens and erasers, writing on a line (no text or symbols present)

Line drawing of a hand holding a pen writing on a small object, enclosed in a rounded rectangle (no text or symbols)

3.3 クリック

Line drawing of a hand holding a pen writing on a square object, enclosed in a rounded rectangle (no text or symbols)

3.4 アイテムの移動

Diagram showing hands writing on a document with a pen, enclosed in a device interface panel.

3.5 サイドボタンを使用する

Diagram illustrating a hand using a tool to write a component, with an inset showing the magnified view of the component.

3.6 替え芯をセットする

Diagram of a food item with a lid and container, showing a curved arrow indicating rotation (no text or symbols)

交換用ペン先

ペン先クリップ

Line drawings of two hands holding pens, no text or symbols present

4 / 機能設定

4.1 作業領域の設定

4.1.1 マルチモニター設定

Line drawing of a laptop connected to a smartphone via cable (no text or symbols)

Modalità Wireless

Line drawing of a laptop and smartphone with wireless signal icon (no text or symbols)

2.3.2 Connessione al telefono/tablet Android

Diagram showing a hand holding a pen writing on a device panel, with a battery and connector attached to the screen.

Gli appunti:

Line drawing of a hand holding a pen, no text or symbols present

Line drawing of hands holding pens and erasers, writing on a line (no text or symbols present)

Line drawing of a hand using a pen to write a small object on a device (no text or symbols present)

3.3 Cliccare

Line drawing of a hand holding a pen writing on a square object, enclosed in a rounded rectangle (no text or symbols)

3.4 Spostare

Illustration of hands using stethoscope to write on a small object, enclosed in a rectangular frame (no text or symbols)

Diagram illustrating a hand using a pen to draw a tool, with an inset showing the same tool's magnified view.

Line drawing of a laptop connected to a smartphone via cable (no text or symbols)

Modo inalámbrico

Line drawing of a laptop and smartphone with wireless signal icon (no text or symbols)

Diagram illustrating the process of inserting a device into a tablet, with a hand holding a pen to write on the screen.

Notas:

Line drawing of a hand holding a pen, no text or symbols present

Illustration of two hands holding pens, one writing on a line, against a plain background (no text or symbols)

Line drawing of a hand holding a pen writing on a small object, enclosed in a rounded rectangular frame (no text or symbols)

3.3 Click

Line drawing of a hand holding a pen writing on a square object, enclosed in a rectangular frame (no text or symbols)

3.4 Movimiento

Illustration of hands drawing or editing a rectangular object with two pens, no text or symbols present

Diagram illustrating a hand using a pen to draw a tool, with an inset showing the same tool's tip and magnified view.

4.1.3 Rotate Working Area

Rotar el Área de Trabajo By changing the direction of the display to adapt to the left and right hand operation. You can rotate the display by 0^, 90^, 180^ or 270^ .

*N
presión 2

Blue crown logo with stylized design and text 'HUION' below (no additional symbols or text)
