USER MANUAL 1684FL Flama

Black FlAMA vacuum cleaner with coiled hose and base mount (no visible text or symbols)

1684FL

PT ASPIRADOR SEM SACO 1
ES ASPIRADOR SIN BOLSA 7
EN BAGLESS VACCUM CLEANER 13
FR ASPIRATEUR SANS SAC 19

5 4 8 7 15 2 4 3 6 14 13 12 11 10 9 1

Close-up of a black plastic ring component (no text or symbols visible)

Black plastic mechanical component with a circular hole, no visible text or symbols

CAUTION - Before using the appliance, to avoid surface damages, remove the plastic protectors. These two pieces are to protect the appliance during shipping.

Hand holding a black cylindrical device with a transparent container, no visible text or symbols

Exploded view of a cleaning or dust cleaner assembly (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Hand holding a black cylindrical device with a transparent glass cover, no visible text or symbols

Exploded view of a cleaning or dust cleaner assembly (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Please read these instructions carefully before using the appliance for the first time and keep them for future reference. FLAMA shall not be liable for any use that is not in accordance with the instructions.

Please check that the supply voltage of your electrical system corresponds to the voltage on the appliance's rating plate.

Always connect the appliance to an earthed socket.

This appliance may be used by children aged 8 and over and by persons with limited physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or have received instructions concerning the safe use of the appliance and understand the risks involved.

Children must not play with the appliance.

Cleaning and maintenance must not be carried out by unsupervised children.

Turn the vacuum cleaner off using the ON/OFF switch and unplug it before carrying out any maintenance or cleaning activity.

Do not vacuum incandescent materials. Never use the appliance on damp surfaces.

Never vacuum water or any other liquid.

Never vacuum flammable substances or hot ash.

If the suction tube becomes blocked with dirt, immediately disconnect the appliance from the power supply and unblock the tubes.

Never direct the suction tip at people or animals and especially not at the eyes and ears, nor put it in your mouth when it is

connected to the vacuum cleaner and it is switched on.

It is important that the deposit is placed correctly, otherwise the appliance may be damaged.

Never use the appliance without motor protection filters, as this may damage the motor and reduce the useful life of the appliance.

Always use accessories recommended by the manufacturer.

Do not use the appliance if it is not working properly. If there are any damages, for example, in the power cord or the plug, please visit an Authorized Flama Technical Assistance Service immediately. Any intervention other than cleaning must be carried out only by authorized FLAMA agents.

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified personnel in order to avoid a hazard.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

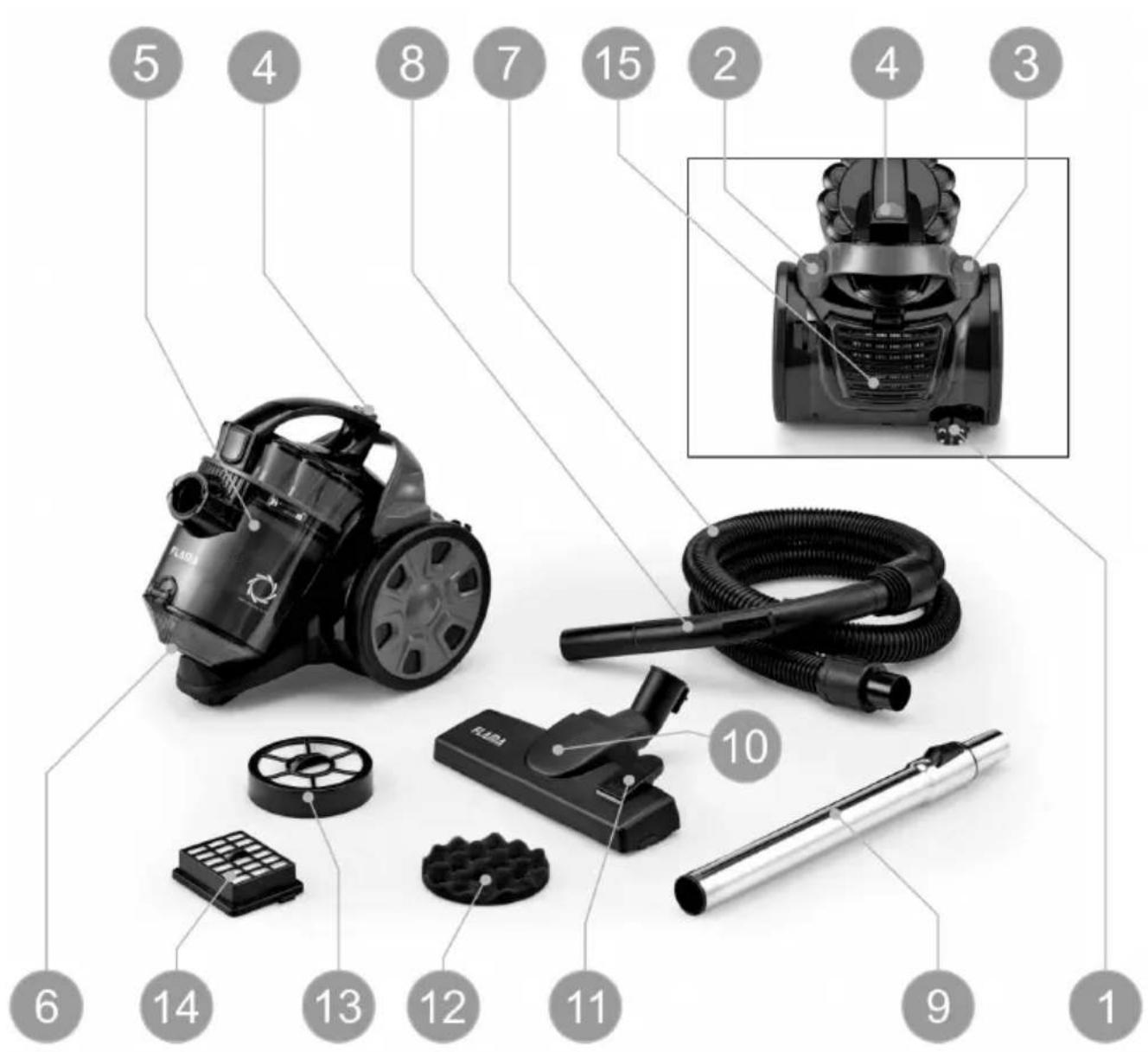

DESCRIPTION

1. Power cord.
2. ON/OFF button.
3. Power cord retraction button.
4. Dust bin release button.
5. Dust bin deposit.
6. Connection to the vacuum.
7. Flexible tube.
8. Tube handle.
9. Solid tube with length regulator.
10. Multi-surface brush.
11. Surface selector.
12. Sponge filter.
13. Sponge filter support.
14. HEPA filter.
15. HEPA filter lid.

OPERATION

Before first use

Remove the appliance from the box, along with the accessories. All of the plastic bags included in the vacuum box may not be used as toys.

Using a slight pressure, insert the tip of the flexible tube in the connection of the vacuum, which is at the front of the appliance.

Fit the solid tube with the length regulator into the flexible tube.

The solid tube is telescopic, you may adjust it to the length that is most convenient, with the help of the length regulator.

Attach the multi-surface brush or the desired accessory at the other end of the solid tube with the length regulator.

When the previous instructions have been completed, unwind the power cord up to the distance needed for its use.

Use:

When the previous instructions have been completed, unwind the power cord up to the distance needed for its use.

WARNING- when unrolling the power cord, be careful not to exceed the yellow mark. If you force the unrolling beyond the red mark, you may damage the appliance. To retract the cord, press the cord retraction button.

Insert the power cable into the electrical socket.

To start the vacuum, press the ON/OFF switch.

Adjust the air volume, closing and/or opening the window to allow air to enter the tube handle, thus regulating the power of the vacuum.

NOTE- If you experience loss of vacuum power, a strange noise, or the appliance stops working, check immediately whether the rigid tube or flexible tube is blocked with objects or if the bin is full. If you cannot find the reason for the anomaly, go to the Technical Assistance Service.

Multi-surface brush:

The multi-surface brush may be used on carpets or floors.

Brush bristles out for hard pavements.

Brush bristles retracted for carpets.

Accessories:

Use the tip/brush for scratches, connecting it directly to the tube handle or the rigid tube.

After use

Press the On/Off button of the appliance, and press the cord retraction button so that the cord is retracted continuously.

Warning: If the cord cannot be fully retracted, pull the cord a bit and press the button to retract the cord again. You may repeat this step of retracting the cord until the cord is

fully retracted.

Emptying the dust bin:

Hand holding a black cylindrical device with a transparent cover, pointing at it (no visible text or symbols)

Turn off the vacuum using the ON/OFF button and remove the power cord plug from the electrical socket.

Turn off the appliance and disconnect the flexible tube from the dust bin.

Press the dust bin deposit button and pull the deposit along with the cleaning system, using the handle connected to it.

Secure the dust bin deposit over a trash can and press the button to release the bottom of the deposit.

Eliminate the dust from the inside.

Once again replace the base of the dust bin deposit in its original position.

NOTE- If the dust is compact and hard to remove, tap the side of the dust bin lightly against the waste bin. Use this operation to clean the sponge filter of the motor. Place it in its starting position once again.

CLEANING AND MAINTENANCE

Clean the exterior of the vacuum with a soft, damp cloth followed by a soft, dry cloth.

Never use harsh liquids to clean the vacuum.

Cleaning the deposit filter:

Exploded view of a cleaning or dust cleaner assembly (no text or symbols visible)

Remove the dust bin.

Remove the plastic filter and the sponge filter.

Shake the filters over a trash can and then brush them.

The plastic filter should be washed frequently when dirty to avoid the formation of barriers.

When the sponge filter is full of dust, it should be washed or replaced.

Warning: Do not wash the filter in the washing machine or dry it with an electric heater. Please replace it after it has air dried.

WARNING- Never under any circumstances should you wash the filters in the washing machine or dishwasher!

If necessary, rinse the filters in clean, warm water. Next, shake the excess water and let the parts air dry completely.

Clean the dust bin deposit with a damp cloth.

After cleaning, set up the filters again and place them in the dust bin deposit.

WARNING- Do not place the filters inside the dust bin if one of the parts is damp.

Place the dust bin in the vacuum.

Cleaning the HEPA filter:

The HEPA filter is located at the back of the vacuum, behind the filter lid. It filters the air that leaves the vacuum before it is returned to the environment. The HEPA filter should be cleaned regularly.

Remove the HEPA filter lid.

Remove the filter.

Shake the filter over the trash can. If necessary, you may clean it with clean, warm water. Next, shake the excess water and let the filter air dry completely.

WARNING- Never install the filter, while it is still damp. Brush or clean the filter compartment, if necessary.

Insert the filter.

Replace the protective grill on the vacuum.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with no text or numbers present

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
If the motor is not operating	Power cord disconnected. Connect the power cord.
	ON/OFF button disconnected. Press the ON/OFF switch.
	Cable or plug damaged. Contact technical assistance.
Loss of suction power	Flexible/telescopic tube obstructed. Clean the tubes.
	The dust bin is too full.	Empty the dust bin.
	The dust bin is placed incorrectly. Install the dust bin.
	The lid of the bin is not fully closed. Close the lid properly.

STOWAGE

Store the vacuum in a cool, dry place, which is not accessible to children and pets.

ASPIRATEUR SANS SAC

CONSIGNES DE SÉCURITÉ

Hand holding a black cylindrical device with a transparent lid, no visible text or symbols

Exploded view of a black and white industrial vacuum cleaner with internal components (no text or symbols visible)

DYSFONCTIONNEMENTS ET RÉPARATIONS

This page has been deliberately left blank

This page has been deliberately left blank

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.

CONDITIONS DE GARANTIE

CONDITIONS DE GARANTIE
