USER MANUAL Glenbrook K-5293 KOHLER

Drinking Fountain and Cuspidor

K-5293, K-5295

Technical line drawing of two bracket-shaped metal fixtures with mounting holes (no text or symbols)

Mproduct numbers are for Mexico (i.e. K-12345M)

• Various Carpentry Tools

BeforeYouBegin

CAUTION: Riskofpersonalinjury. Handle with care. Vitreous china can break or chip if the product is handled carelessly.

NOTE: The water supply to the cuspidor is controlled from the drinking fountain.

□ Observe all local plumbing and building codes.

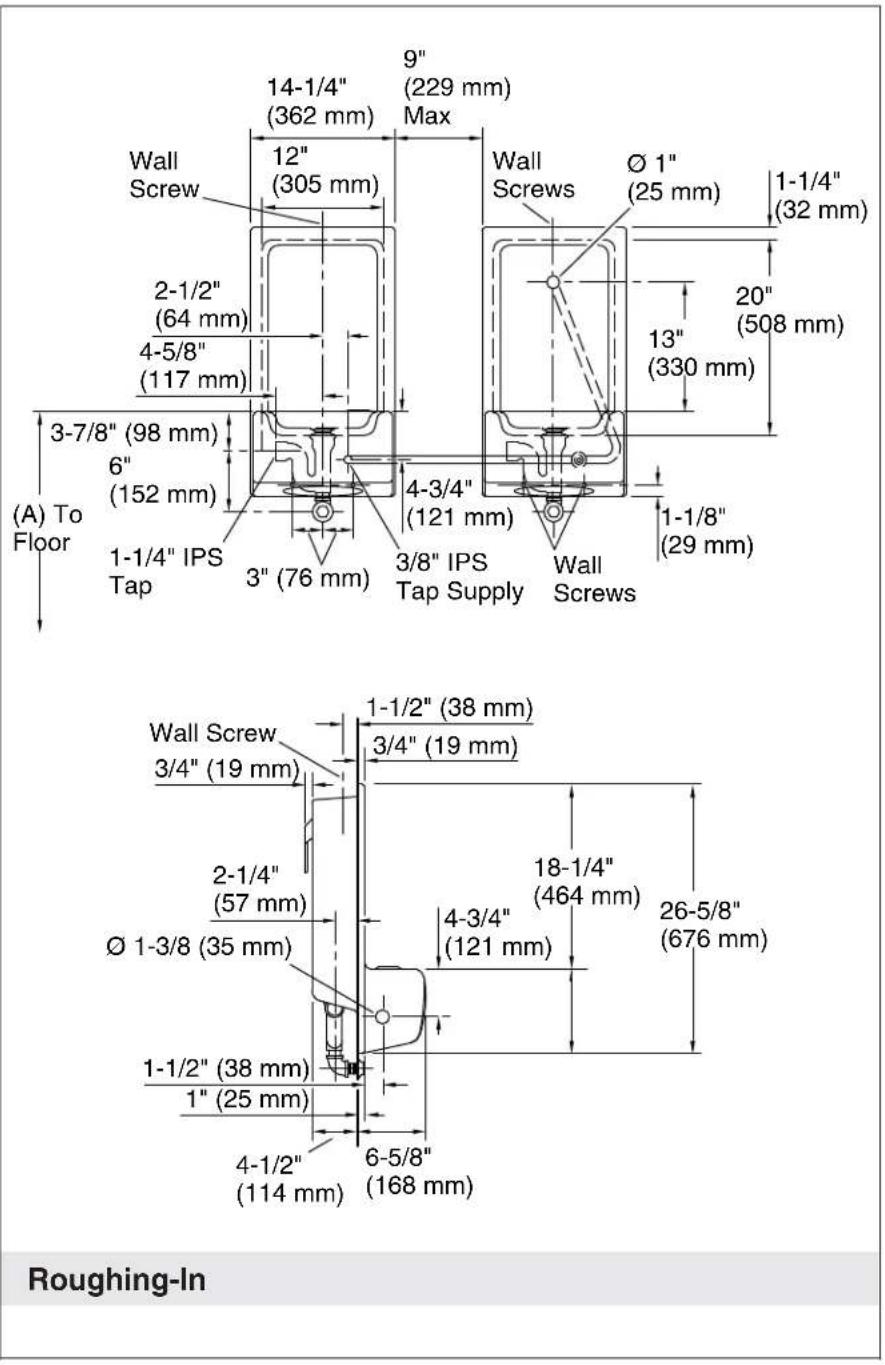

Roughing-In

Kohler Co. 3 105126-2-AC

Roughing-In(cont.)

- The distance between the rim and the floor (dimension A) is 30" (762 mm) for grade schools and 36" (914 mm) to 44" (1118 mm) for other buildings.

105126-2-AC 4 Kohler Co.

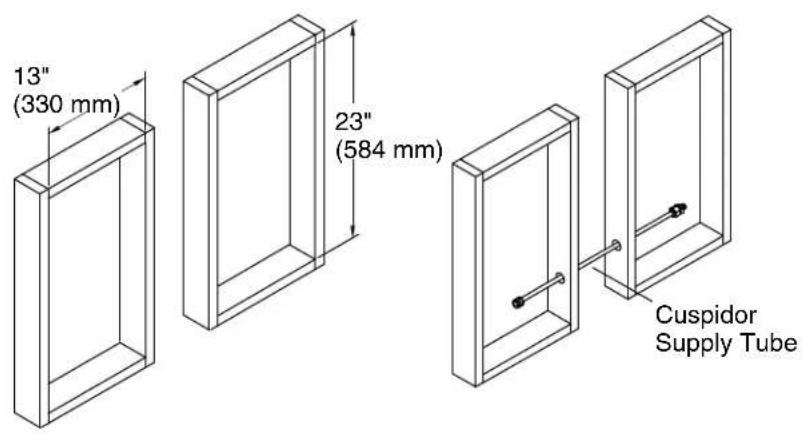

13" (330 mm) 23" (584 mm) Cuspidor Supply Tube

1. PreparetheRecess

NOTE: Be sure to provide adequate backing for the fasteners.

☐ Determine the desired "A" dimension, as shown in the roughing-in. Add 17" (432 mm) to the "A" dimension chosen. The overall inside height dimension produced from this calculation is needed in the next step.
☐ Prepare a stud framing box at the chosen installation site. The inside dimensions of the framed box must be 13" (330 mm) wide by 23" (584 mm) high. The distance between the top inside of the box and the floor must be the dimension previously calculated.
☐ Rough-in the supply and drain piping according to the roughing-in.
□ Provide adequate backing for the fasteners.
□ Prepare and drill the stud framing for the cuspidor supply tube.
☐ Route the cuspidor supply tube through the stud framing so that the ground-joint fitting is on the drinking fountain side.
☐ Position the cuspidor supply tube so that it protrudes evenly from both ends of the stud framing.

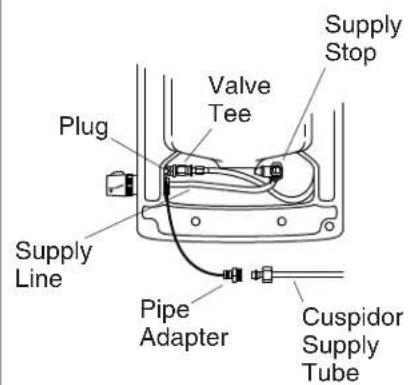

Supply Stop Valve Tee Plug Supply Line Pipe Adapter Cuspidor Supply Tube

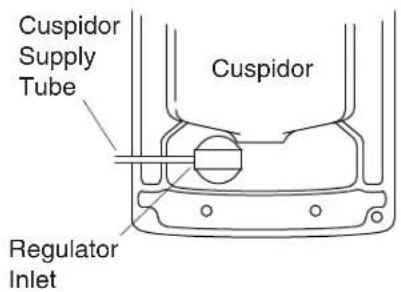

Cuspidor Supply Tube Cuspidor Regulator Inlet

2. InstalltheDrinkingFountain

☐ Attach the supply stop to the drinking fountain supply line so that the supply stop adjustment screw will be accessible after installation.
□ Remove the plug from the drinking fountain valve tee.
□ Remove the pipe adapter from the cuspidor supply tube.
□ Apply thread sealant to the pipe adapter, and thread it into the valve tee. Tighten securely.
□ Apply thread sealant to the cuspidor end of the cuspidor supply tube, and thread the regulator inlet to the cuspidor supply tube.
☐ Tighten securely so that the regulator adjustment screw will be accessible after installation.

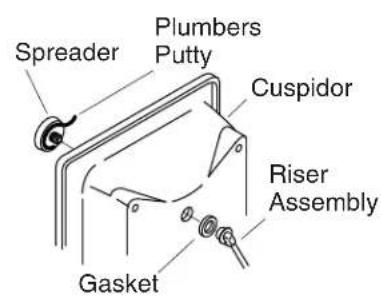

Spreader Plumbers Putty Cuspidor Riser Assembly Gasket

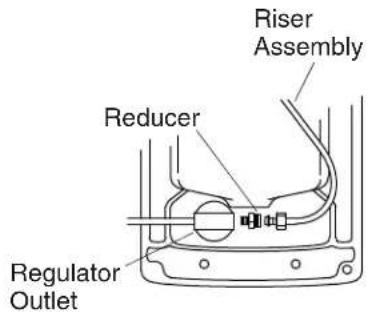

Riser Assembly Reducer Regulator Outlet

3.InstalltheSpreader

□ Apply a bead of plumbers putty around the spreader according to the manufacturer's instructions.
□ Install the spreader through the cuspidor to the gasket and riser assembly.
□ Securely tighten so the riser is positioned at an angle, as shown.
□ Position the spreader so the holes face the bottom of the cuspidor.
□ Remove the reducer from the riser assembly, and apply thread sealant to the reducer.
☐ Thread the reducer into the regulator outlet, and tighten securely.

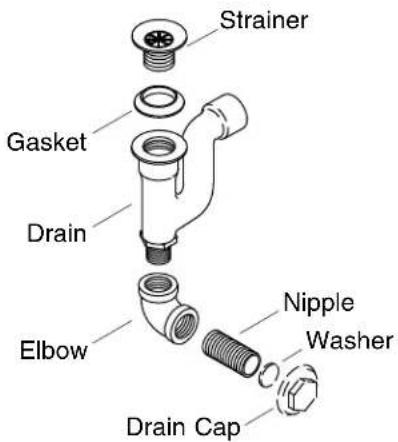

Strainer Gasket Drain Elbow Nipple Washer Drain Cap

4. InstalltheDrain

□ Remove the strainers and gaskets from the drains.
□ Install the drains to the rough drain connections according to the roughing-in.
□ Apply thread sealant to the elbows, and thread them to the drains so they face outward. Securely tighten.
□ Apply thread sealant to the nipples, and thread them to the elbows.
☐ Do not install the washers and plated drain caps until the wall is finished.

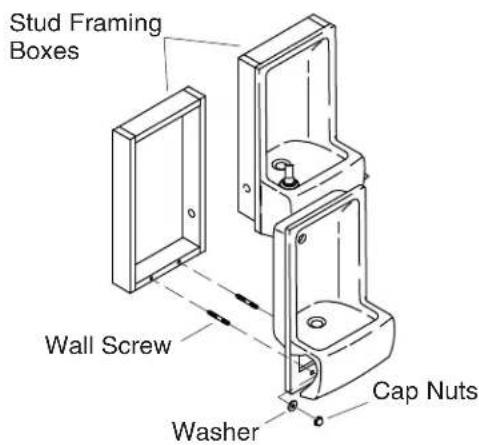

Stud Framing Boxes Wall Screw Washer Cap Nuts

5. InstalltheFixtures

☐ Install two wall screws into the bottom of the stud framing boxes, according to the roughing-in.
☐ Install the fixtures into their respective stud framing boxes, and hold them in place by hand tightening the cap nuts and washers to the wall screws. Donotwrenchtightenatthistime.
☐ Check the fit of the fixtures and all plumbing connections. Remove the fixtures as needed, and make adjustments.
☐ Reinstall the fixtures when adjustments are completed.

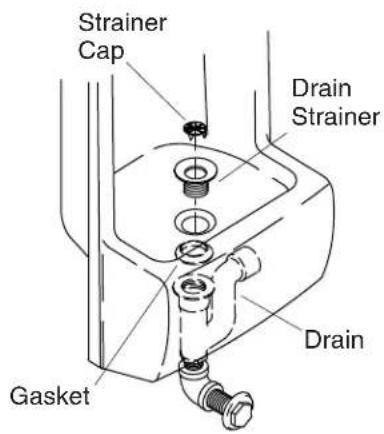

Strainer Cap Drain Strainer Drain Gasket

6. InstalltheStrainer

□ Carefully remove the strainer cap from the drain strainer.
☐ Position the gasket on the cuspidor drain with the tapered side up.
□ Apply a bead of plumbers putty around the bottom of the strainer according to the manufacturer's instructions.
☐ Thread the strainer to the drain. Tighten securely, and remove any excess plumbers putty.
□ Snap the strainer cap onto the strainer.
□ Repeat for the drinking fountain.

105126-2-AC 10 Kohler Co.

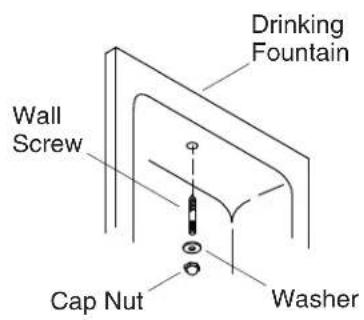

Drinking Fountain Wall Screw Cap Nut Washer

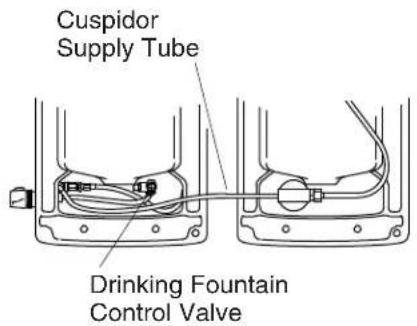

Cuspidor Supply Tube Drinking Fountain Control Valve

7. SecuretheFixture

CAUTION: Riskofpersonalinjury. Overtightening can cause vitreous china to break or chip.

☐ Thread the remaining cap nut to the wall screw.
☐ Add the washer, and use the wall screw to secure the top of the drinking fountain. Securely tighten.
□ Securely tighten the bottom cap nuts.
□ Repeat for the cuspidor.
□ Carefully bend the cuspidor supply tube to fit the distance between the drinking fountain and cuspidor.
□ Connect the cuspidor supply tube to the drinking fountain and cuspidor. Securely tighten.
- Connect the supply tube to the drinking fountain control valve. Securely tighten.

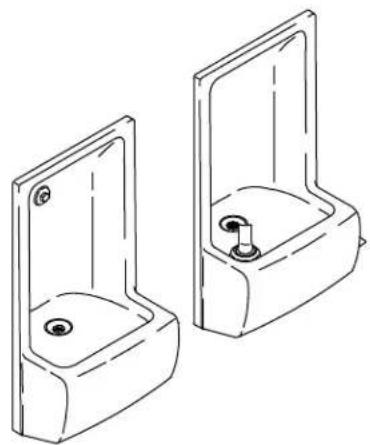

Line drawing of two bathroom sink compartments with no text or symbols

8. Complethethel Installation

□ Complete the finished wall.
□ Install the plated drain caps and washers to the nipples. Securely tighten.
□ Turn on the water supply.
□ Open the drinking fountain supply stop.
□ Open the drinking fountain control valve. Water should flow from the drinking fountain and cuspidor.
□ Inspect both fixtures for leaks or incorrect operation. Adjust as needed.
□ Adjust the cuspidor regulator so water flows from the spreader as desired.

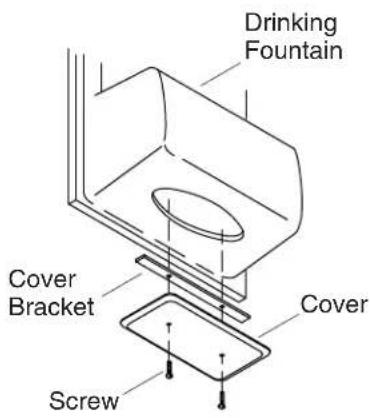

Drinking Fountain Cover Bracket Screw Cover

9. InstalltheCoverBracket

☐ Loosely assemble the drinking fountain cover bracket to the cover with two screws.
☐ Fit the cover to the bottom access hole, and evenly tighten the screws until the cover is securely fitted.
□ Repeat for the cuspidor.
