Vinamour 29 Uno - Wine cellar Klarstein - Free user manual and instructions

Product Type	Wine Cellar
Brand	Klarstein
Model	Vinamour 29 Uno
Capacity	29 bottles (750 ml standard)
Temperature range	5 °C to 22 °C
Number of temperature zones	2 (upper and lower)
Display	Digital LED
Interior light	LED
Door	Glass door with handle
Reversible door opening	Yes
Refrigerant type	R600a (isobutane)
Defrost	Manual
Climate class	SN-ST (10 °C to 38 °C)
Energy class	G
Annual energy consumption	138 kWh/year
Noise level	41 dB(A)
Power supply voltage	220-240 V ~ 50 Hz
Dimensions (H x W x D)	870 x 480 x 430 mm
Weight (approx.)	35 kg
Child lock	Yes
Recommended wine temperature	12 °C
Number of shelves	Not specified (capacity 29 bottles)

Frequently Asked Questions - Vinamour 29 Uno Klarstein

What is the capacity of the Vinamour 29 Uno wine cellar?

The Vinamour 29 Uno wine cellar can hold up to 29 standard 750 ml bottles (Bordeaux type).

What temperature should I set to store my wine?

It is recommended to set the temperature to 12 °C. For red wines, between 15 and 18 °C, white wines 9-14 °C, rosé 10-11 °C, champagnes 5-8 °C.

How to reverse the door opening direction?

To reverse the opening direction, remove the upper hinge cover, unscrew the hinge, lift the door, then reassemble the lower hinge on the other side and reposition the door. Refer to the manual for details.

What to do if the appliance does not cool sufficiently?

Check the temperature setting, ensure the appliance is not exposed to sunlight or a heat source, and avoid frequent door openings. If the problem persists, contact customer service.

How to clean the interior of the wine cellar?

Unplug the appliance, clean the interior with a soft cloth and water. Do not use solvents or alkaline cleaners. Do not rinse the interior.

What do error codes E1 and E2 mean?

Code E1 indicates an open circuit of the temperature sensor, and E2 a short circuit. Contact customer service.

Can food be frozen in this wine cellar?

No, this wine cellar is designed only for wine storage, not for freezing.

How to lock the control panel to prevent accidental adjustments?

To lock, press both the up and down buttons simultaneously for three seconds. Do the same to unlock.

Why is there condensation on the glass door?

Condensation can occur if the door is opened too often or for too long, if the ambient temperature is high, or if the set temperature is too low. Reduce openings and adjust the temperature.

What to do in case of a power outage?

In case of a power outage, avoid opening the door to preserve the cold. If the outage is prolonged, take measures to protect your wines (e.g., transfer them to another cool place).

USER MANUAL Vinamour 29 Uno Klarstein

VINAMOUR 29D BAROSSA 29D

Weinkühlschrank

Wine Cooler

Vinoteca

Cave à vin

INHALTSVERZEICHNIS

Technical line drawing of a refrigerator with an 180-degree angle indicator (no text or symbols on the diagram itself)

Line drawing of a rectangular cabinet or enclosure with mounting brackets and a side panel (no text or symbols)

INSTALLATION

Standort

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 22

Device Description 25

Assembly 26

Installation 28

Start Operation 28

Control Panel 29

Maintenance and Cleaning 31

Troubleshooting 32

Product Data Sheet 34

Disposal Considerations 36

Manufacturer & Importer (UK) 36

TECHNICAL DATA

Item number 10033083, 10041124, 10035846

Power supply 220-240 V ~ 50 Hz

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

- Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is fl ammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant fl owing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special notes

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the unit, make sure that the power cord is not pinched or damaged.
  • Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

- A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
  • This appliance is not suitable for freezing food.
• The shelves have been installed in advance to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil; if the temperature is set too low, a lot of electricity is consumed.

Special notes on the shelves

• The shelves were placed in advance in such a way that they allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use other types of shelves not approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown to ensure the most efficient use of energy.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate.

SN	Extended temperate	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ C to 25^ C.

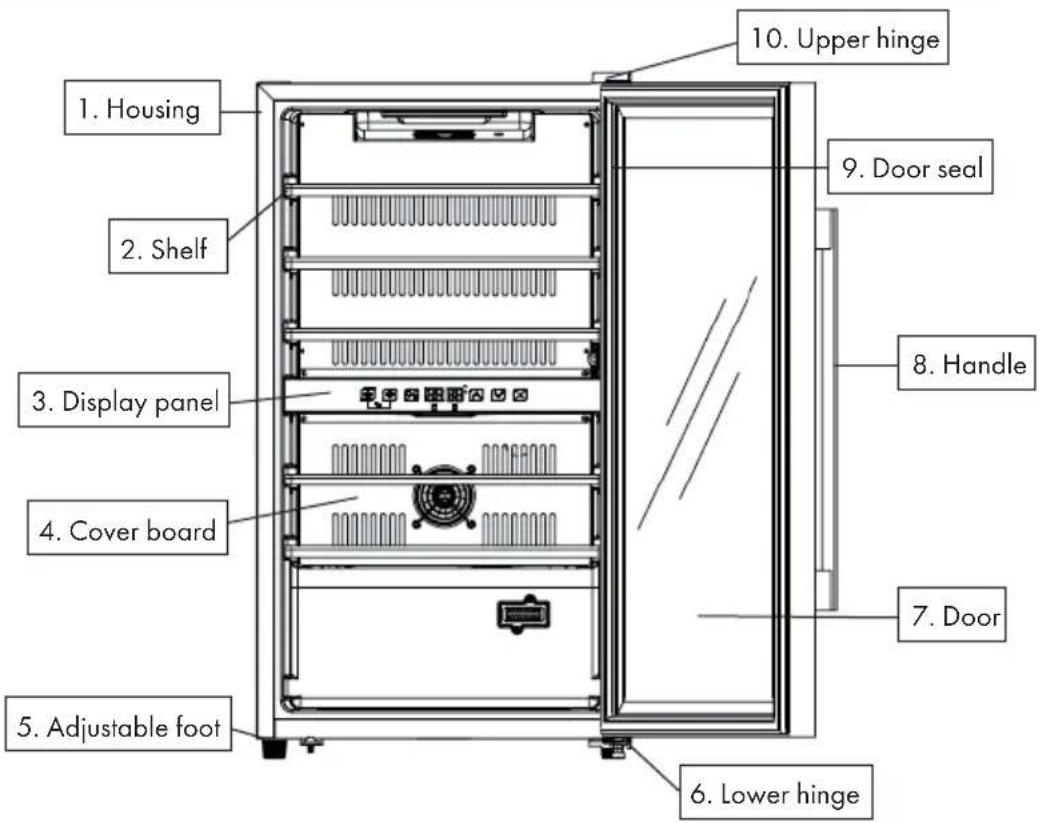

DEVICE DESCRIPTION

Note: Shelves, door frame, handle and other accessories could be different according to different models and configuration. All photos in this manual are for reference. The appliance you buy might not be exactly the same as shown here. Please refer to the actual product.

Note: The net weight includes shelves and the unit dimension does not include the handle on the door. The manufacturer reserves all rights to change the above parameters without prior notice. Please refer to the nameplate of your appliance. The loading capacity may vary due to different ways of arranging the bottles and different bottle sizes (standard 750ml Bordeaux is used here as a reference).

ASSEMBLY

Fixing the handle and reversing the door of the wine cooler

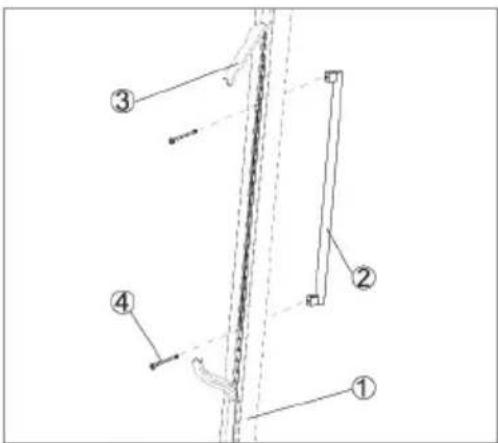

1. Install handle to the door frame of the appliance.

The handle is delivered in a separated package along with the required screws.

(1) Reveal two small holes on the inner side of the door frame by lightly pulling the door seal out.

(2) Line the handle up with the holes and insert the screws from inside.

(3) Screw them up with a screw-driver.

(4) Replace the door seal to cover the screws.

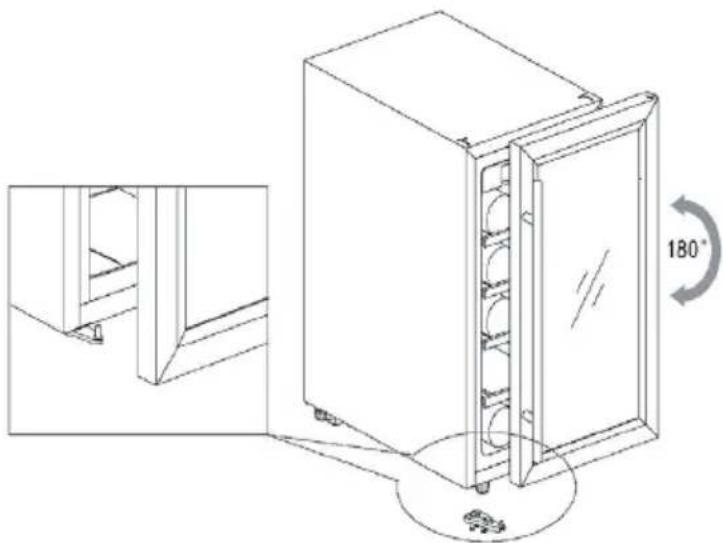

2. Reversing the door

Our wine cooler is delivered with the door opening from left to right. To reverse the opening direction:

1 Close the door.

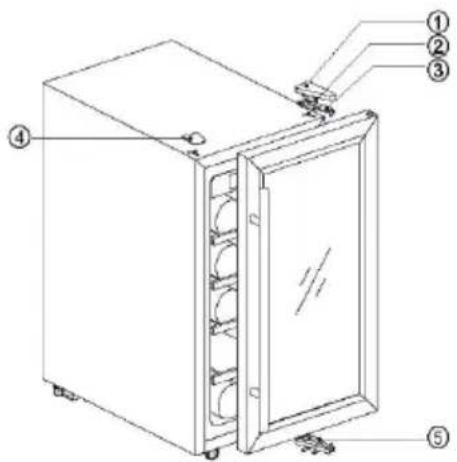

2 (1) Take off the door hinge cover on the up right corner. (2) Unscrew the flange screws. (3) Take off the door hinge. (4) Remove the up left side cap.
3 (5) Lift the door up until the door gets off the lower door hinge.
4 Unscrew the lower door hinge.

5 Fit the lower door hinge to the down left corner. Reverse the door by 180°. Put the door above the lower hinge and insert in.

Technical line drawing of a cabinet with internal components and a 180° rotation indicator (no text or symbols)

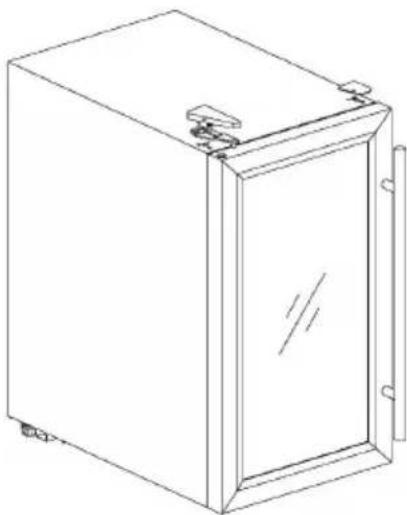

6 Fit the door hinge to the up left corner and screw the flange screws. Put on the door hinge cover. Put the cap to the up right side. Door reversing is finished.

Line drawing of a rectangular cabinet or enclosure with mounting brackets and a central door (no text or symbols)

INSTALLATION

Position

• Do not turn the appliance more than 45^ when moving it into position.
• The appliance must be put on a flat, firm & dry floor or similar noncombustible pad; do not use the foam pad used in the packaging.
• Do not put the appliance where it is wet.
• Do not use the appliance where it will freeze.
• Do not use the appliance outdoors in case of direct sunlight or rain.

Wine bottles can be stored when you feel like cooling off inside. The appliance will operate after around 1 hour.

START OPERATION

1. Cleaning the compartment

Before powering the appliance on, clean the inside of the appliance and check the drainage pipe is properly connected. (For further details, please refer to "Maintenance and cleaning".)

2. Let the appliance stand

Before powering it on, place the appliance on a level, firm & dry floor for at least 30 minutes.

3. Power on

The appliance can now be switched on and will have sufficiently cooled down inside after 1 hour, otherwise you should check the power connection.

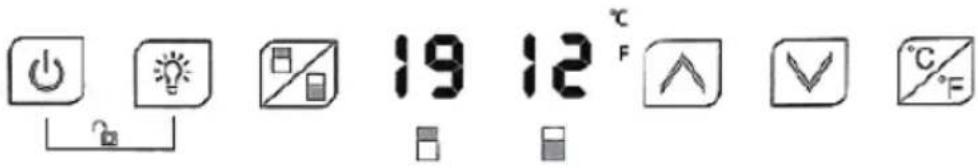

CONTROL PANEL

Note: No buttons will work when locked. Make sure to unlock them first.

ON/OFF:

1. Hold down the button for 3 seconds and it will power down and go into stand-by mode.
2. Hold down the button for another 3 seconds to switch the appliance back on.

Light:

Press the button to turn the LED lights inside the appliance on or off. In stand-by mode, this button will not work.

Zone switch:

Press the button to switch between the upper zone and lower zone when choosing which zone to set the temperature for. Press the button once and the LED display in the chosen zone will flash multiple times. Press the up and down buttons to set the temperature. Press the button again to switch zones and then set the temperature.

UP:

Press the button once and the LED display will flash, showing the current set temperature. Continue pressing to adjust the set temperature; each time you press the button, the temperature will increase by 1°C. The display will stop flashing after 5 seconds if it detects no activity and the new set temperature will be saved. The LED display will return to showing the current temperature inside.

Down:

Press the button once and the LED display will flash, showing the current set temperature. Continue pressing to adjust the set temperature; each time you press the button, the temperature will decrease by 1. The display will stop flashing after 5 seconds if it detects no activity and the new set temperature will be saved. The LED display will return to showing the current temperature inside.

Child Lock (Combination key):

1 Lock: hold both buttons down at the same time for 3 seconds to lock.
2 Unlock: hold both buttons down at the same time for 3 seconds to unlock.

Fahrenheit/Celsius display interchange:

Switch the temperature display between Fahrenheit and Celsius by pressing the button.

Note: For both the upper and lower zones, the cooling temperature can be set between 5 and 22°C.

Alarm sound:

If a system malfunction occurs and the alarm sounds, press any key on the control panel to cancel the alarm sound.

Temperature sensor failure:

If the temperature sensor fails, an error code is displayed: "E1" for open circuit, "E2" for short circuit.

Wine storage

• The appliance is equipped with sufficient independent shelving to allow your collection of wine to steadily grow.

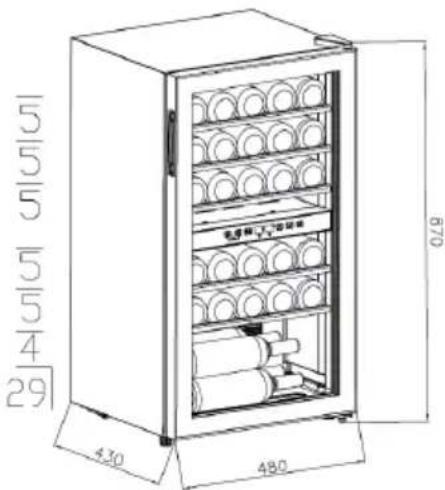

  • Full shelf loading capacity: 29 bottles (standard Bordeaux with 750ml).

- Loading capacity will vary due to different ways of arranging the bottles and different bottle sizes.

• Each shelf is designed to hold 1 or 2 layers of wine bottles. Placing more than 2 layers of bottles on one shelf is not recommended.

• Each shelf with a sliding roller can partly pull out to easily store wine bottles.

- Open the door fully before pulling out shelves.

- If the wine cooler is not going to be used for an extended period of time, it is recommended that you power it off, clean it carefully and open the door for ventilation.

- The table below shows the recommended temperature for storing & drinking different types of wine:

Red wine 15-18°C
White wine 9-14°C
Rosé wine 10-11°C
Champagne & sparkling wine	5-8°C

MAINTENANCE AND CLEANING

Cleaning

• Disconnect the appliance from the power source before cleaning.
• Clean the appliance with a soft cloth or sponge and water.
• Do not use organic solvents, alkaline detergents, boiling water, washing powder or acidic liquids etc.
  • Do not flush the compartment of the appliance.

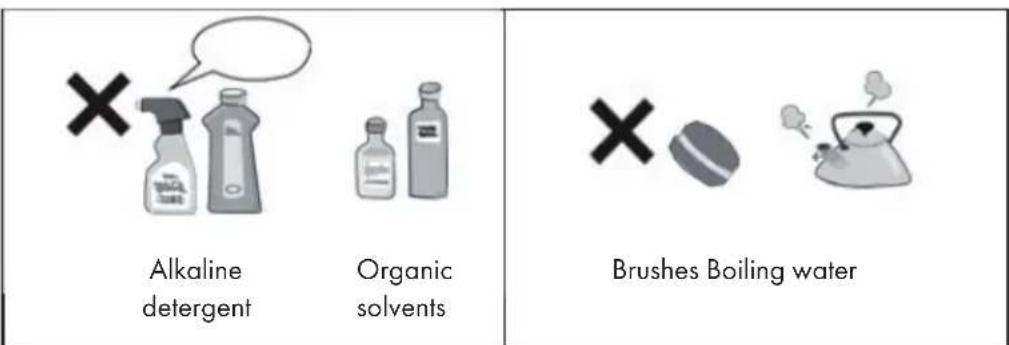

  • The items shown below will damage the surface of the wine cooler:

Power cut

- Most power cuts can be resolved within a short time. To protect your wines during a power cut, avoid opening the door as much as possible. During longer power cuts, take the necessary measures to protect your wine.

Out of service for long time

- Remove all bottles from the appliance, unplug the appliance, thoroughly clean the inside and outside of the appliance and store the appliance safely and properly.

Note: If the appliance is disconnected or if there is a power cut, wait at least five minutes before re-starting.

Moving the appliance

• Cut off the power supply and unplug the appliance.
• Remove all bottles from the appliance.
• When moving the appliance, do not turn the appliance more than 45^ .

TROUBLESHOOTING

Problem Possible cause and suggested solution
The appliance makes lots of noise.	Adjust the front foot, keeping the appliance level.
	Keep the appliance away from walls.
Liquid flowing can be heard from inside the appliance.	This is normal due to the refrigerant working inside.
The appliance does not start.	Make sure the appliance is connected to the power properly.
	Make sure you have switched on the power.
	The compressor will re-start 5 minutes after a power cut.
The compressor is running continuously.	If the appliance is not cooling down properly, call the after-sale service.
The door does not seal tightly.	After extended use, the door seal might become stiff and partially distorted.1 Heat the door seal with a hair dryer or a hot towel.2 The door seal will soften and the door can be closed.
The appliance does not cool sufficiently.	Adjust temperature setting.
	Keep the appliance away from sunlight or heat.
	Do not open the door frequently.
Unpleasant smells inside cabinet.	A slight smell of plastic is normal with recently bought appliances and will disappear after a short time.
	Clean the compartment and allow it to ventilate for a few hours.
Condensation on the glass door.	Do not open the door frequently or leave it open for a long time.
	Do not set the temperature too low.
	High ambient temperature and humidity can also cause condensation.
The light is not working.	Check the power supply first.
	Call the retailer's after-sale service if the light is broken.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10033083, 10041124, 10035846
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating appliance:				No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 870		Total volume (dm3 or L)	80
	Width	480
	Depth	430
EEI		171	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		138 Climate class:		extended temperate, temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage Yes 80	12 - M
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments:
Fast freeze facility			No
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Estimado cliente:

ÍNDICE DE CONTENIDOS

Technical line drawing of a refrigerator with an 180-degree angle indicator (no text or symbols on the diagram itself)

Line drawing of a rectangular cabinet or enclosure with mounting brackets and a central door (no text or symbols)

INSTALACIÓN

Emplazamiento

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Cher client,

SOMMAIRE

Technical line drawing of a cabinet with internal components and a 180-degree rotation indicator (no text or symbols)

Line drawing of a rectangular cabinet or enclosure with mounting brackets and a side panel (no text or symbols)

INSTALLATION

Emplacement

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Gentile cliente,

INDICE

Technical line drawing of a cabinet with internal components and a 180-degree rotation indicator (no text or symbols)

Line drawing of a rectangular cabinet or enclosure with mounting clips and a side panel (no text or symbols)

INSTALLAZIONE

Posizione

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

KLARSTEIN
