USER MANUAL Bathroom K-13770 KOHLER

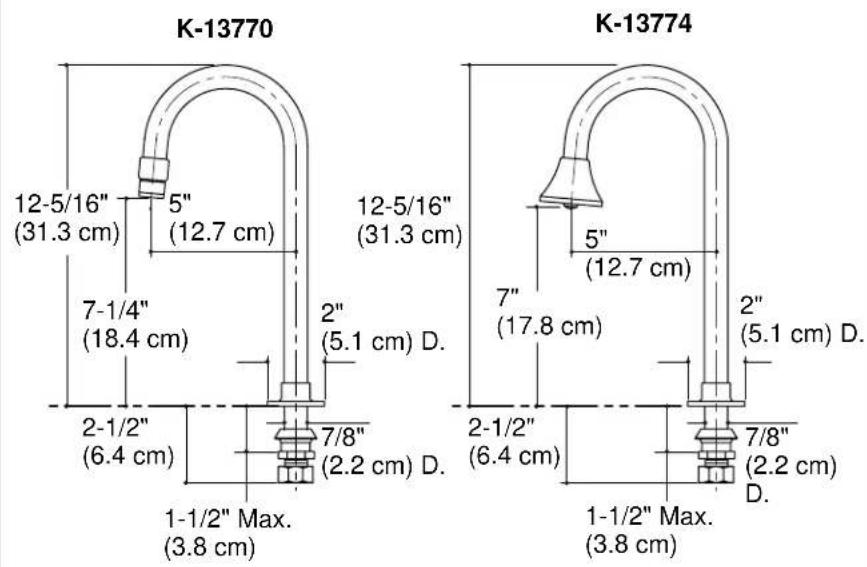

Lavatory Gooseneck Spout
K-13770 K-13774
M product numbers are for Mexico (i.e. K-12345M)
Adjustable Wrench Plumbers Putty Sealant Tape
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.
Before You Begin
□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.


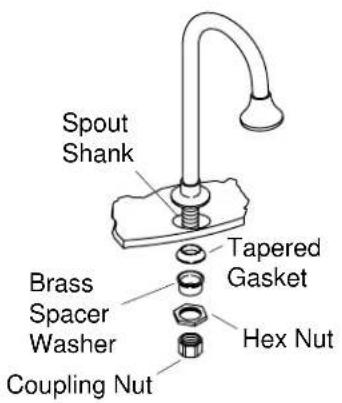

Spout Shank Tapered Gasket Brass Spacer Washer Coupling Nut Hex Nut1. Faucet Installation
☐ Insert the spout into the countertop or lavatory hole.
□ Secure the faucet by installing the tapered gasket, brass spacer washer (thin-wall surfaces), and the hex nut to the faucet shank.
□ Tighten the hex nut.
NOTE: For thin-wall mounting surfaces, use the brass spacer washer so the flared end faces upward.
□ Use the provided coupling nut for ground-joint connections.
□ Turn on the water supply, and inspect for leaks.
