USER MANUAL WES41-700S WESTINGHOUSE

Westinghouse

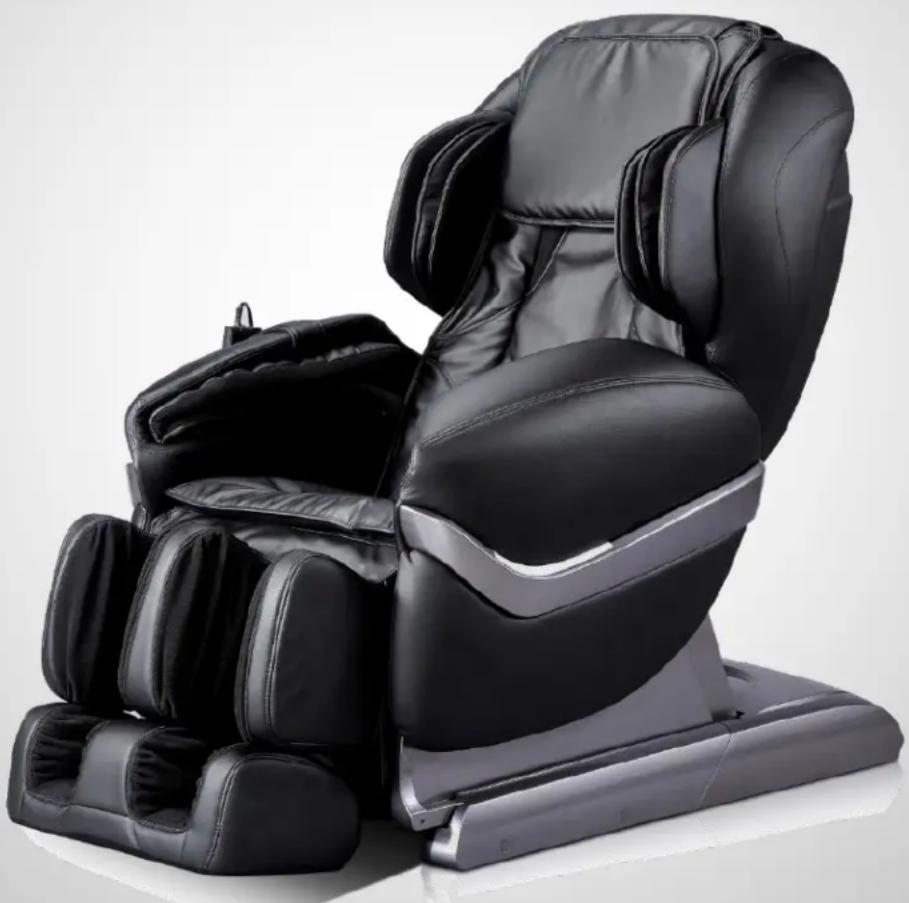

WES41-700S MASSAGE CHAIR FAUTEUIL DE MASSAGE

Thank you for purchasing this product. Please read this instruction manual carefully before operating this massage chair.

Please pay attention to the important safety warnings and keep this manual for future use.

Note: EBI reserves the right to revise the design and description of this product without notice.

CONTENT

1. SAFETY WARNING
2. RESTRICTIONS
3. MAINTENANCE
4. TROUBLESHOOTING
5. FEATURES AND BENEFITS
6. INSTALLATION
7. COMPONENTS
8. OPERATION
9. MOVING THE CHAIR
10. FLOOR PROTECTION
11. PRODUCT SPECIFICATIONS
12. WARRANTY

FRANÇAIS

1. SAFETY WARNING

• This product is not recommended for children.
- Disconnect the chair before cleaning.
- Please pull out the AC power cord after use or before cleaning to avoid injury or damage to the product.
- Please operate this product according to the instructions in this manual.
- Use only accessories recommended by Westinghouse®.
- This product is designed for indoor use only.
- Recommended use time is 20 minutes or less.
- Please avoid use if the chair is damaged and call your Westinghouse® technician or dealer.
- Make sure behind the chair is well ventilated and not obstructed.
- Please make sure small objects are not dropped into the chair mechanism.
- Use of this chair under the influence of drugs or alcohol is not recommended.
- Do not use wet hands to pull the AC cord.
- Do not spill liquids onto this product to avoid electric shock or cause damage to this product.
- Maintain your chair and avoid damaging the wires.
- Do not use a wet cloth to clean the electric parts.
- In the event of a power failure disconnect the chair.
- If the chair works abnormally, stop using it, disconnect the chair and call your Westinghouse® service technician or customer service representative at 1-866-967-7333 ext 227.
- This chair should be used only in a well ventilated, normally dry and dust-free environment.

2. RESTRICTIONS

People with osteoporosis, heart disease and heart pacemakers, pregnancies, injuries or any other health-related issues should consult their doctor before using this massage chair.

Stop immediately the use of this massage chair if you feel unwell and consult your doctor.

3. MAINTENANCE

• This product should only be maintained by Westinghouse® certified technicians. Otherwise, EBI reserves the right to void the warranty.
• Disconnect the power cord after if you do not plan to use the chair for a long period.
• Make sure the wall outlet is in good working order before use.
• If this chair will not be used for an extended period, store in a dry and dustless environment.
• Avoid chair exposure to high temperatures and direct sunlight.
• Clean this product with a dry cloth. Do not use thinner, benzene or alcohol.
• When moving the chair on a wood floor, rough ground or in a narrow space two people should lift the chair together.
• We recommend using the massage chair intermittently and not for long periods.

4. TROUBLESHOOTING

• It is normal for the motor to make noise while in use.
• If the controller doesn't normally work, please check that the plug and socket are properly connected, and the switch is turned on.
• When the programmed working time is over, the chair will power off automatically.
• After several uses, the chair might power off because of overheating. It can be used again after half an hour of cooling time.

5. FEATURES AND BENEFITS

Enjoy the new Westinghouse® WES41-700S massage chair. Its vertical to horizontal movable quad-rollers will massage from your neck all the way to your thighs. Very versatile, the Westinghouse® WES41-700S massage chair reproduces over 5 massage actions with the sensation of a professional massage in the comfort of your very own home! It even includes shoulder, seat, forearms, hands and foot massages.

6. INSTALLATION

The WES41-700S massage chair comes partly assembled.

• Assemble this massage chair according to the installation instructions provided in this guide.
• Check the parts list carefully to make sure nothing is missing.
• Sitting in the massage chair before it is completely assembled could result in permanent damage to the chair and personal injury.
• This massage chair is equipped with a cord having a grounding conductor. The cord must be plugged into an appropriate AC wall outlet.

- If the massage chair fuse is burned out, please use the chair's main On/Off button to turn it off and unplug the AC power cord. You can unscrew the fuse located in the switch box at the bottom right of the chair in the back.

Use a same size and type of fuse to replace the old one and then cover the lid.

You can call Westinghouse ^® at 1-866-967-7333 ext 227 if you need help.

CAUTION: Never substitute a missing part with one of your own. If a part is missing, contact customer service at: 1-866-967-7333 ext 227

Unpacking

1) Remove the massage chair, cushions and accessories from the main box.

2) Remove all plastic wraps.

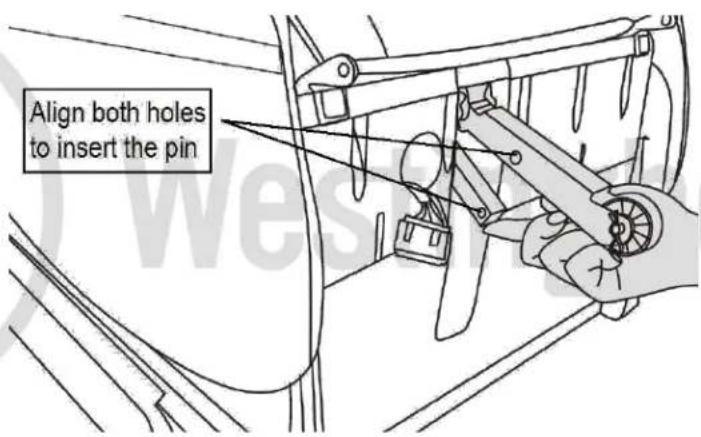

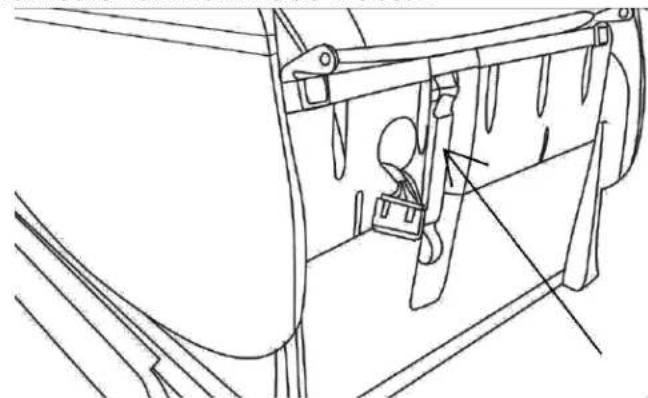

Leg and foot massager linkage pole installation

For the leg massager to be able to incline and recline, you must install the leg massager linkage pole correctly.

a) Take off the linkage pole mechanism from inside the seat.

b) Align both holes of the mechanisms and insert the locking pin.

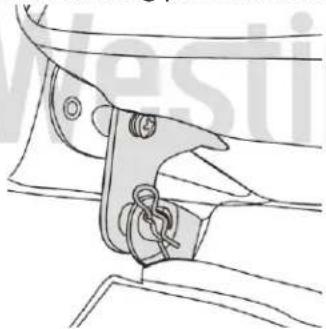

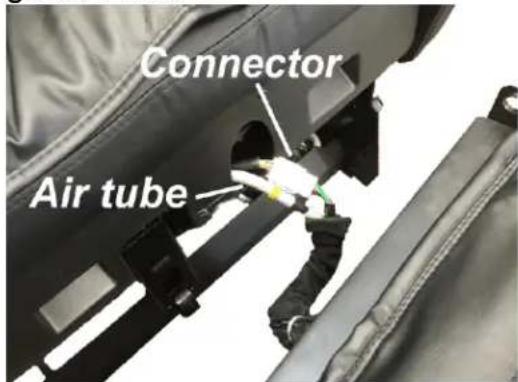

Leg and foot massager installation

a) Place the leg and foot massager close to the front of the massage chair. Connect the air tube of the chair into the leg and foot massager. Connect the square power cords together. Make sure they are secured and tight.

IMPORTANT: Avoid bending the air tube.

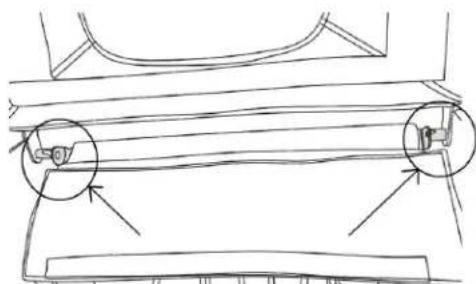

b) Insert the left round holding pin of the foot massager into the left shaft on the massage chair.

c) Do the same for the right side

d) Once inserted well on both sides, insert the locking pins into both shafts.

Back and head cushions

Install the back and head cushions using the cushion's Velcro tape and zipper.

Final Installation

1) Insert the AC power cord into the massage chair power socket and then into the wall power outlet.
2) Turn on the main power switch at the bottom, behind the massage chair.

3) Congratulations!

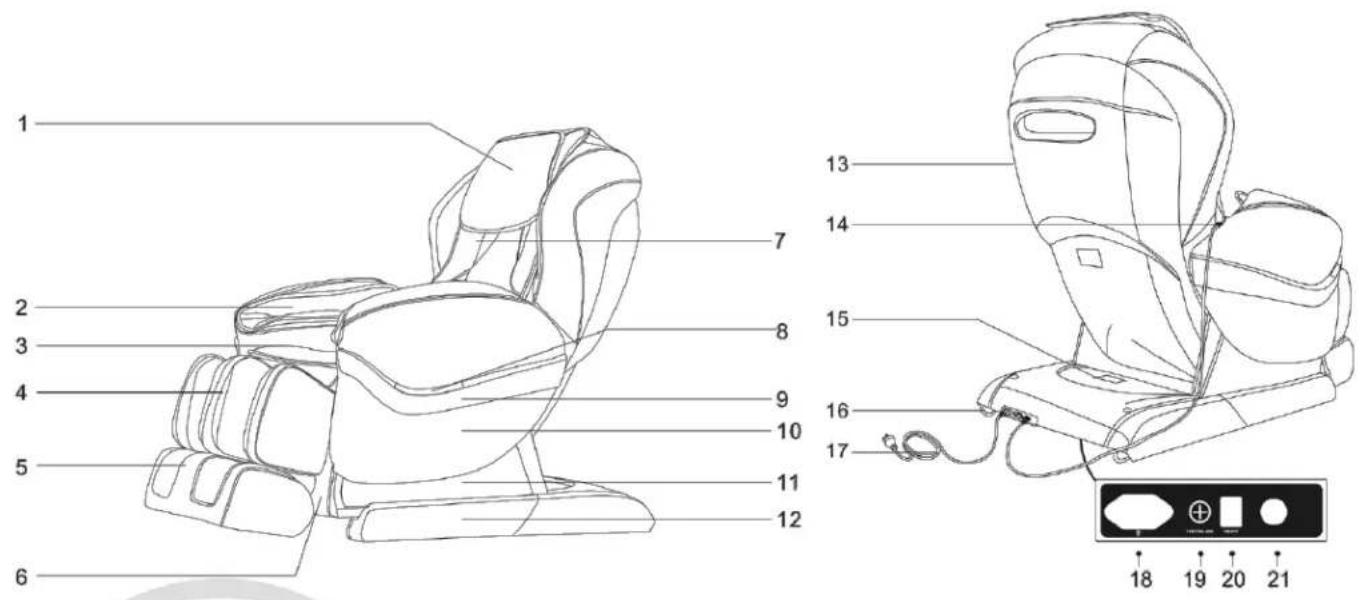

7. COMPONENTS

1. Head Rest
2. Arm Rest
3. Seat cushion
4. Leg Massager
5. Foot Massager
6. Front Cover
7. Back cushion
8. LED colour light
9. Decorating strip
10. Side Cover

11. Base Cover

12. Wheel Base Cover

13. Back Cover
14. Remote Control
15. Main Cover
16. Wheels
17. Power cord
18. Power cord socket
19. Fuse box
20. Main power switch
21. Remote control socket

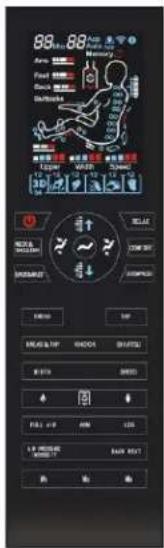

Remote Control

8. OPERATION

We recommend adjusting the chair angle before powering up the chair. This way, the body measurements done automatically by the massage chair will be done correctly.

Back section up and down adjustments

Press this button to lower the back and raise the leg and foot section.

Press this button to lower the leg and foot section and raise the back.

Then, press on the power On/Off button

ssage. The WES41-700S will scan the

length of your back. Once done (about 10 seconds), the automatic massage mode will start. You can choose another automatic massage mode. There are five automatic massage modes. You can interrupt the automatic massage mode at any point by shutting off the unit. The massage chair will then return to its original position.

If you prefer to use the manual massage mode, you can choose the type of massage you want (Shiatsu, knead, tap, etc.). The massage chair will then use the massage mode you have chosen.

During a massage, you can press on the power

button at any time. This will pause all

massage functions. The remote control will dis

ng light for 10 seconds. Press on the power

button again and the chair will go back to its original position and deactivate. massage chair will come back to its original position and shut off.

Automatic massage modes

A. Press on the 'adjust shoulder' buttons your preference.

or 📄 to adjust the massage chair course length to

B. Press one the Automatic massage mode button of your choice.

Memory mode

M1) During an automatic massage, the first press of the on/off button deactivates the massage function and the remote control displays "memory", you can choose any button of M1

M2 M3 buttons M₁ M₂ M₃ to remember the massage and the position. You can

press the on/off

return to its original position.

or wait for 10s, the position and massage function will

If you don't choose any button of M1 M2 M3, you need to press the on/off button one more time to deactivate the massage chair.

When a massage mode or running time is expired, the remote control display will show the word 'Memory' and flicker at the same time. Pressing at this time on the memory M1 button

M1 M2 M3, will store the massage height adjustment that just ended. You can recall this stored memory mode the next time you use your massage chair by pressing on this same button per body massage will be the same as the last time you used your massage chair.

Memory function: manual controller screen will glitter with memory, you can choose M1, M2 or M3 as you need to store it, and the screen will display corresponding icons. Or press power button again, stop the machine, the massage hands, backrest, footrest will restore, or wait for 10s, it will stop automatically, massage hands, backrests, footrests will restore to their original position.

M2) When a massage mode or running time is expired, the remote control display will show the word 'Memory' and flicker at the same time. Pressing at this time on the memory M2 button

M1 M2 M3, will store the massage height adjustment that just ended. You can recall this stored memory mode the next time you use your massage chair by pressing on this same button after having activated your massage chair. The massage height adjustment for the lower-body massage will be the same as the last time you used your massage chair.

M3) When a massage mode or running time is expired, the remote control display will show the word 'Memory' and flicker at the same time. Pressing at this time on the memory M3 button

M1 M2 M3, will store the massage height adjustment that just ended. You can recall this stored memory mode the next time you use your massage chair by pressing on this same button after having activated your massage chair. The massage height adjustment for the lower-body massage will be the same as the last time you used your massage chair.

Manual mode

Knead

Press this button to activate the Kneading massage feature.

In this manual mode, you can adjust the speed.

Tap

Press this button to activate the Tapping massage feature.

In this manual mode, you can adjust the width and the speed.

Knock

Press this button to activate the Knock massage feature.

KNEAD & TAP

KNOCK

SHIATSU

In this manual mode, you can adjust the width and the speed.

Knead & Tap

Press this button to activate the Kneading and Tapping massage features at the same time.

KNEAD & TAP

KNOCK

SHIATSU

In this manual mode, you can adjust the speed.

Shiatsu

Press this button to activate the Shiatsu massage feature.

KNEAD & TAP

KNOCK

SHIATSU

In this manual mode, you can adjust the width and the speed.

Upper and lower body areas massage adjustments

The massage mechanism of the WES41-700Smoves from the neck area all the way down to the thigh area. Pressing twice on the Back-Stretch button will determine the area of the massage.

Press once to massage a fixed point. You must then use the up and down buttons to determine the exact area. The remote will display HO.

Press twice to massage a small area. You must then use the up and down buttons to determine the exact area. The remote will display H1.

Press three times to massage the full upper body. The remote will display H2.

Press four times to massage the neck and shoulder. The remote will display H3.

Press five times to massage the back and waist. The remote will display H4.

Speed

WIDTH

SPEED

There are three speed massage options available. Press repeatedly on the speed button to choose the speed of your choice.

Width

WIDTH

SPEED

This feature adjusts the width of the massage mechanism. There are three width adjustment options. Press repeatedly on the width button to choose the massage width of your choice.

Air bag massage mode adjustments

FULL AIR

ARM

LEG

There are three air bag massage mode adjustment modes:

Full Air: Arms, legs and feet massage air bags are activated.

Arm: Arm massage air bags are activated.

Leg: Leg air bags are activated.

Air pressure intensity

There are 3 intensity levels for each air massage mode. Press on the intensity button repeatedly to choose the intensity level of your choice (low, medium and strong)

Back heat

Press on this button to activate the lower back, infrared heat. Press again to deactivate it.

Auto lie down mode:

There are three automatic lie-down positions. Press the button repeatedly to choose the best position for you.

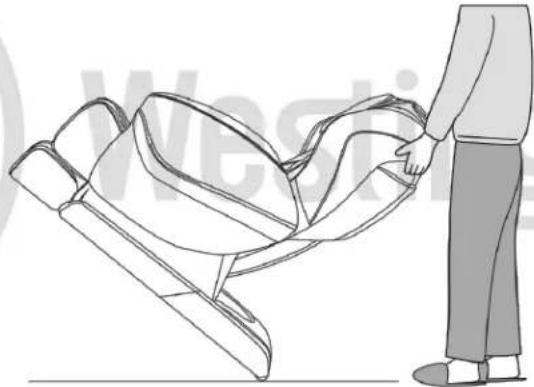

9. MOVING THE CHAIR

Make sure that the AC power cord is pulled out of the chair. Turn the back backward to a proper angle so the centre gravity falls onto the casters. Pull the massage chair forward or backward as you wish.

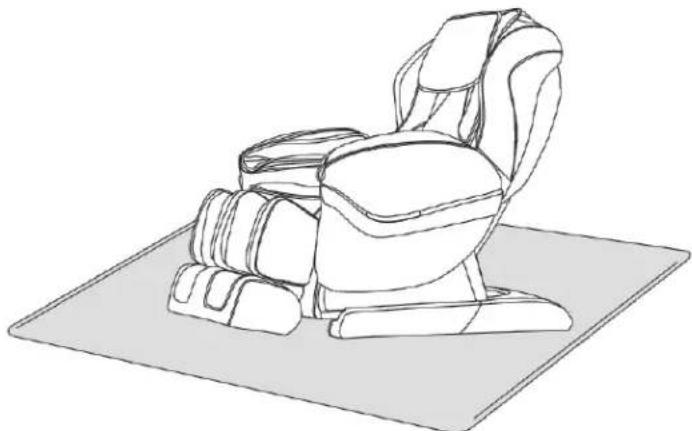

10. FLOOR PROTECTION

Prolonged use of this massage chair can damage wood floors. To prevent permanent damage, place a carpet or mat under the chair.

11. PRODUCT SPECIFICATIONS

Power: 150 Watts

12. WARRANTY

LIMITED ONE (1) YEAR WARRANTY

This product is guaranteed against all manufactured faults and defects for a period of one (1) year from the date of purchase.

For repairs or product defects, please call our customer service department at: 1-866-967-7333. Please have your proof of purchase on hand. If we are not able to replace your defective part, we will send you a service technician for repairs.

Important notes: Any damages caused by an accident or an abusive usage are NOT covered under warranty. We also decline all responsibility concerning indirect or consecutive damages. In certain Canadian provinces, it is not permitted to limit indirect or consecutive damages. Therefore, it is possible these limitations are not applicable to you. This warranty gives you specific legal rights. You may also have other legal rights which vary from one province to another.

CUSTOMER SERVICE: 1-866-967-7333 ext 227
