USER MANUAL DC155 SCHEPPACH

Line drawing of a vacuum cleaner with coiled tubing and top cover (no text or symbols)

https://www.scheppach.com/id/service scheppach

DC155

DE	AbsauganlageOriginalbetriebsanleitung	4
GB	Chip extraction systemTranslation of original instruction manual	13
FR	AspirateurTraduction des instructions d'origine	22

1 2 3 4 5 6 7 8 9 6a

2 2a 6 6a2 10a10b 8 7

3 2 12a 2a

4 1 10a 10b 1 10

5 1 10

6 9 31 4 9

7 8 6 5

8 6 8 6a

Günzburger Straße 69

D-89335 Ichenhausen

Hinweis:

Explanation of the symbols on the product

Symbols are used in this operating manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning - Read and comply with the operating manual to reduce the risk of injury.
	Wear hearing protection. Exposure to noise can cause hearing loss.
	Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!
	Protection class II
	The product complies with the applicable European directives.

Explanation of the signal words in the operating manual

△ DANGER	Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury
△ WARNING	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury
△ CAUTION	Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury
ATTENTION	Signal word for marking a possible hazardous situation which, if not avoided, could result in material damage to the product or property/ possessions

Table of contents: Page:

1. Introduction.... 15
2. Proper use 15
3. Product description (Fig. 1) 15
4. Scope of delivery 16
5. Unpacking....16
6. Technical data.... 16
7. Safety instructions 16
8. Assembly / Before commissioning 18
9. Operation....18
10. Electrical connection 19
11. Cleaning and maintenance.... 19
12. Storage and transport.... 20
13. Repair & ordering spare parts 20
14. Disposal and recycling....20
15. Troubleshooting 21
16. Declaration of conformity 35

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failures of the electrical system due to failure to observe the national electrical requirements and regulations

Note:

The operating manual is part of the product and contain important information for safe, proper and economical operation. Please also observe the applicable national regulations. Read all operating and safety instructions carefully before use and only use the product as described. Keep the manual and pass it on when you give the product to someone else.

2. Proper use

The machine complies with the applicable EC machinery directive.

• The machine has been built according to the state-of-the-art and the technical safety requirements. Nevertheless, its use may cause danger to the life and limb of the user or third parties, or damage to the machine and other material assets.
• Only use the machine when in a technically faultless condition, appropriately and in compliance with the operating manual and with full knowledge of safety and hazards! In particular, rectify malfunctions that could impair safety immediately (or commission rectification works accordingly)!

• The chip extraction system is used for extracting chips which are produced when working with wood or wood-like materials.

• Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

• Check the filter regularly for damage. Replace damaged filters! Regularly check the housing seal and the seals for the filter and dust bag.
• When using the cleaning nozzles, do not suck up any foreign bodies such as screws, nails, pieces of plastic or wood.
• The machine may only be operated with original parts and original accessories from the manufacturer.
• The suction of wood dust and wood chippings in commercial areas is not permitted.
• Only suitable for collecting chips (not dust).
• Any use beyond this is improper use. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.
• The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.
• The machine may only be used, maintained or repaired by persons who are familiar with it and have been informed of the dangers. The manufacturer shall not be liable for damage resulting from unauthorised changes to the machine.
• An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

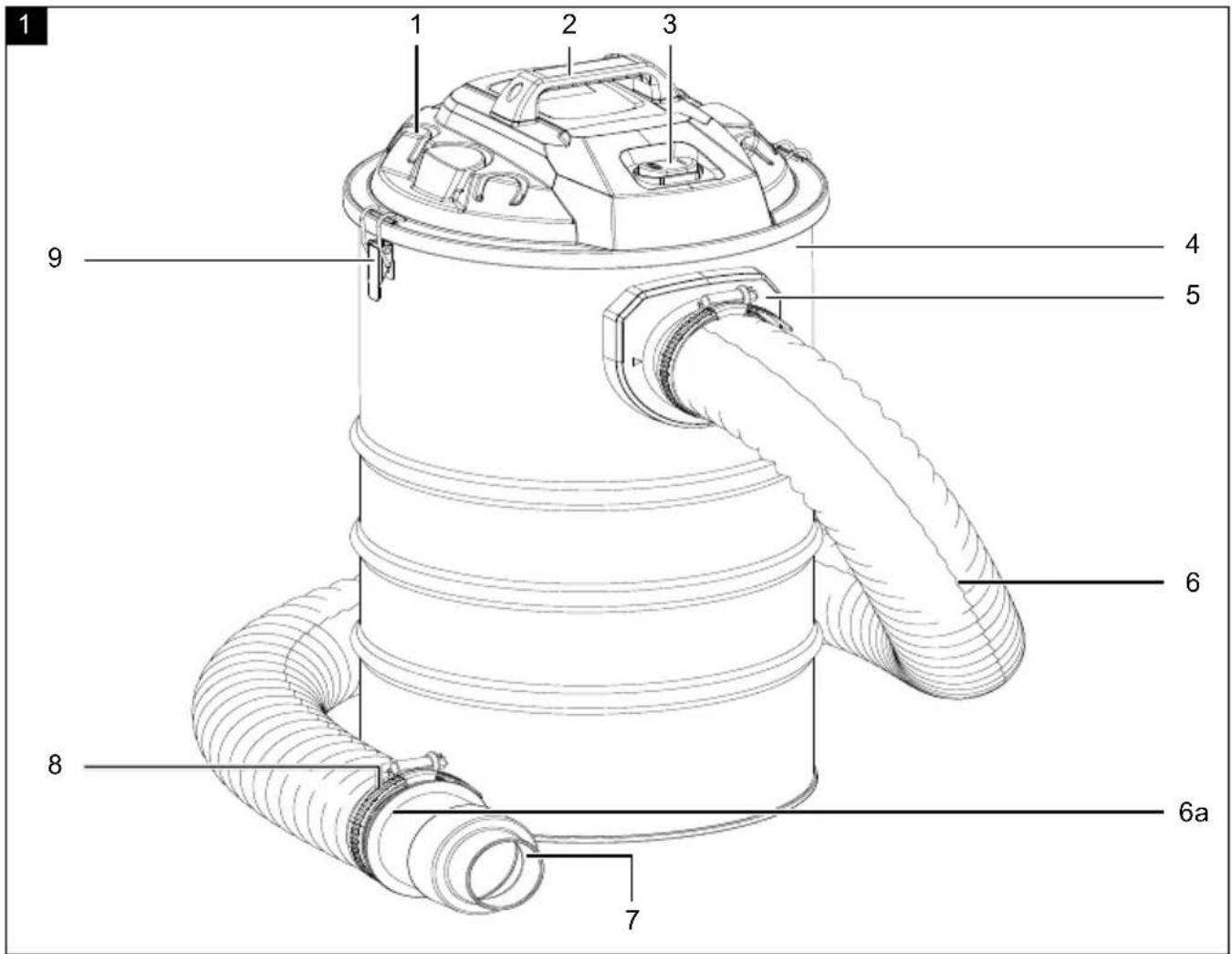

3. Product description (Fig. 1)

1. Motor housing
2. Handle
   2a. Screw
3. On/off switch
4. Container
5. Suction port
6. Suction hose
   6a. Hose coupling
7. Adapter
8. Hose clamp
9. Locking hooks
10. Filter unit
    10a. Filter cartridge
    10b. Filter bag

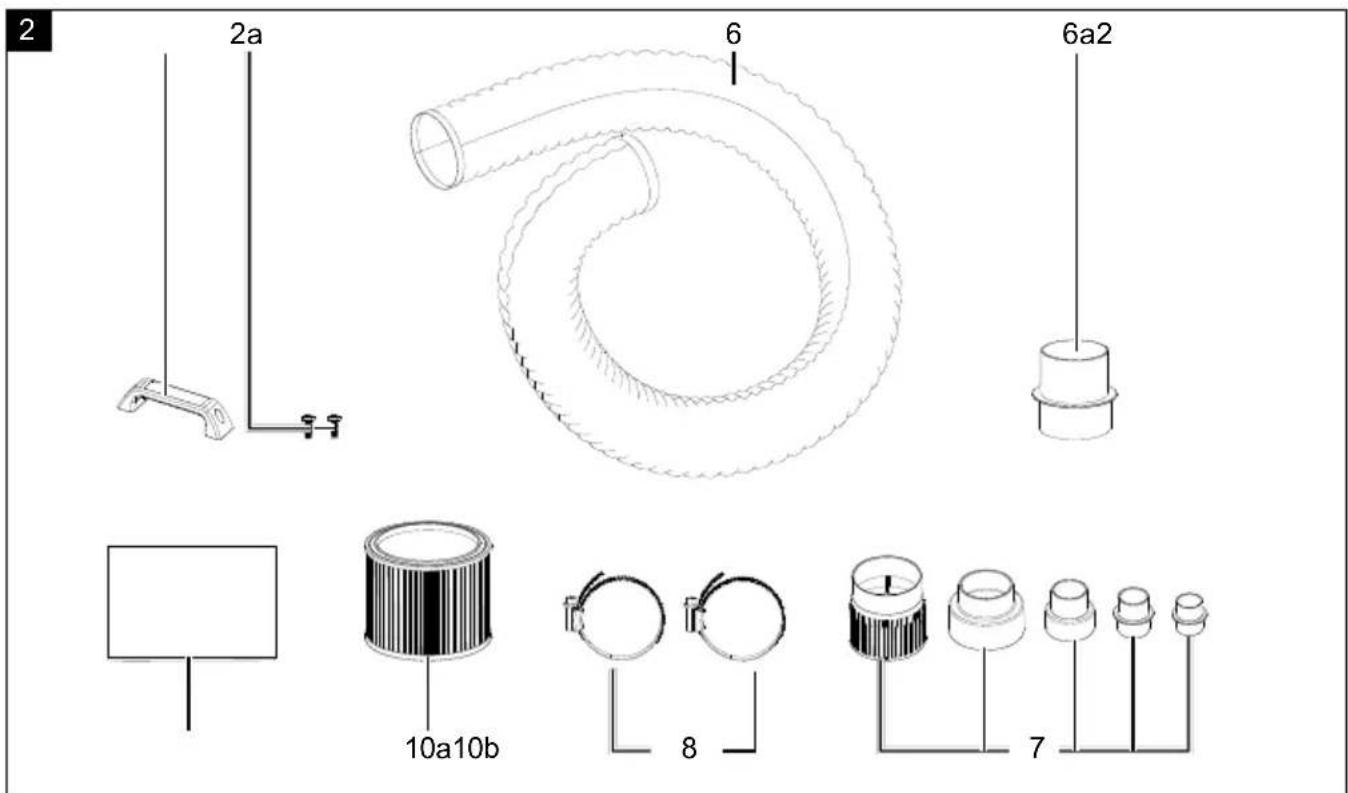

4. Scope of delivery

Item	Quantity	Designation
	1x	Product body
2	1x	Handle
2a	2x	Screw
6	1x	Suction hose
6a	1x	Hose coupling
7	5x	Adapter
8	2x	Hose clamp
10a	1x	Filter cartridge
10b	4x	Filter bag
	1x	Operating manual

5. Unpacking

⚠ WARNING

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

6. Technical data

Dimensions (L x W x H) 420 x 430 x 700 mm

Electric motor 220 - 240 V\~, 50 / 60 Hz

Rated input 1200 W

Motor speed 40000 - 45000 rpm

Suction port, connection ∅ 100 mm

Hose length 2000 mm

Air power 215 m³/h

Pressure difference 25000 Pa

Container volume 55 |

Weight 6.75 kg

Subject to technical changes!

7. Safety instructions

⚠ WARNING - Read all safety information, instructions, illustrations and technical data for this product.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" used in the safety instructions refers to mains-powered power tools (with a mains cable) and battery-powered power tools (without a mains cable).

⚠ Attention! The following basic safety measures must be observed when using power tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the power tool and store the safety instructions well for later reference.

Safe work

• Warning: When power tools are used, basic safety precautions must be followed to eliminate the risks of fire, electric shock and injury to persons.
• Follow all these instructions before and while working with the machine.
• Store these safety instructions safely.
• Protect yourself from electric shock! Avoid physical contact with earthed parts.
• Unused devices should be stored in a dry, locked place and out of reach of children.

- Keep tools sharp and clean in order to be able to work better and more safely.

- Check the cable of the tool regularly and have it replaced by a recognised specialist when damaged.

- Check extension cables regularly and replace them when damaged.

- Only use extension cables that have been approved and appropriately labelled for use outdoors.

- Pay attention to what you are doing. Remain sensible when working. Do not use the tool when you are fatigued.

- Do not use any tools on which the switch cannot be switched on and off.

- Warning! The use of other insertion tools and other accessories can entail a danger of injury.

- Pull out the mains plug for any adjustment or repair tasks.

• Pass the safety instructions on to all persons who work on the machine.

- Before commissioning, check that the voltage on the device type plate corresponds to the mains voltage.

- If an extension cable is required, make sure that its cross-section is sufficient for the current consumption of the device. Minimum cross-section 1.5 ~mm^2 .

- Only use cable reels in the unrolled state.

- Check the mains connection cable. Never use any faulty or damaged connection cables.

- Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

- Do not expose the machine to rain and do not use the machine in a damp or wet environment.

- Ensure good lighting.

- Do not work with the product in the vicinity of combustible fluids or gases.

- When working outdoors, anti-slip footwear is recommended. Tie long hair back in a hair net. Avoid abnormal posture.

- The operating person must be at least 18 years of age; trainees must be at least 16 years, however only under supervision.

- Keep children away from the device when connected to the mains.

- Keep the workplace free of wood debris and parts lying around.

• Disorder in the work area can lead to accidents.

- Do not allow other persons, especially children, to touch the tool or the mains cable. Keep such persons away from the workplace.

- Personnel working on the machine must not be distracted.

- Only carry out modifications, adjustments, measurements and cleaning work when the engine is switched off. - Pull out the mains plug -

- Before switching on, make sure that keys and adjusting tools are removed.

- Switch off the engine and pull out the mains plug when leaving the work station.

- All protective and safety equipment must be reassembled immediately after repair or when maintenance is completed.

- The safety, operating and maintenance information of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

- The applicable accident prevention regulations and the other generally accepted safety rules must be observed.

- Do not use low-output machines for heavy work.

- Do not use the cable for purposes for which it is not intended!

• Make sure that you have secure footing and always maintain your balance.

- Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the tool.

- Damaged protective devices and parts must be repaired properly or replaced by a recognised specialist workshop unless otherwise specified in the operating instructions.

- Have damaged switches replaced by a customer service workshop.

- This tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise, accidents can occur.

- If necessary, wear suitable personal protective equipment. This could include:

- Hearing protection to avoid the risk of becoming hearing impaired;

- Respiratory protection to avoid the risk of inhaling harmful dust.

- The operator must be informed about the conditions that influence the noise generation.

- Errors in the machine must be reported to the person responsible for safety as soon as they are discovered.

- This device is not designed to collect dangerous dust.

- This machine must not be used by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

• Children should not be left unattended, to ensure they do not play with the device.
- WARNING: Operators must be adequately instructed in the use of these machines.
- WARNING: This machine is not suitable for picking up dust that is hazardous to health.
- WARNING: This machine is intended for dry use only.
- WARNING: This machine is intended for indoor use only.
- WARNING: This machine may only be stored indoors.
- WARNING: Do not allow the mains connection cable to come into contact with the rotating brushes.
- If the mains connection cable is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation. Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.

• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating instructions as a whole are observed.
• Use the tool attachment that is recommended in this operating manual. This is how to ensure that your product provides optimum performance.
• Keep your hands away from the working area when the product is in operation.
• Risk to health from wood dust or wood chippings. Wearing personal protective equipment such as protective goggles and dust masks is mandatory.

• Dust inhalation may occur when closing and changing the dust collection bag. A failure to observe the disposal notes in the operating instructions (e.g. regarding the use of dust masks P2) may result in dust inhalation.

• Risk to health due to noise. The permissible noise level is exceeded during operations. It is essential that personal protective equipment, such as hearing protection, is worn.
  • Health hazard due to electrical power, with the use of improper electrical connection cables.

• Avoid accidental start-ups of the product: The operating button may not be pressed when inserting the plug in a socket.

8. Assembly / Before commissioning

⚠ WARNING

Always remove the mains plug before carrying out adjustments on the product.

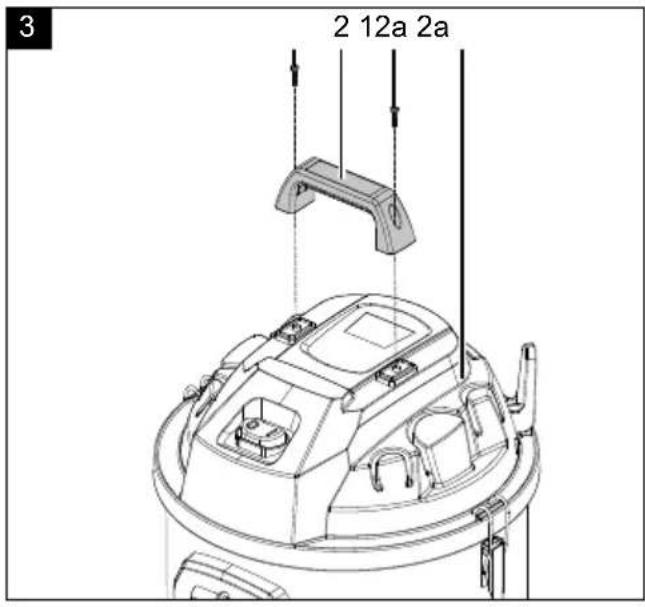

8.1 Fitting the handle (2) (Fig. 3)

1. Attach the handle (2) to the motor housing (1) as shown.
2. Secure the handle (2) using the screws (2a).

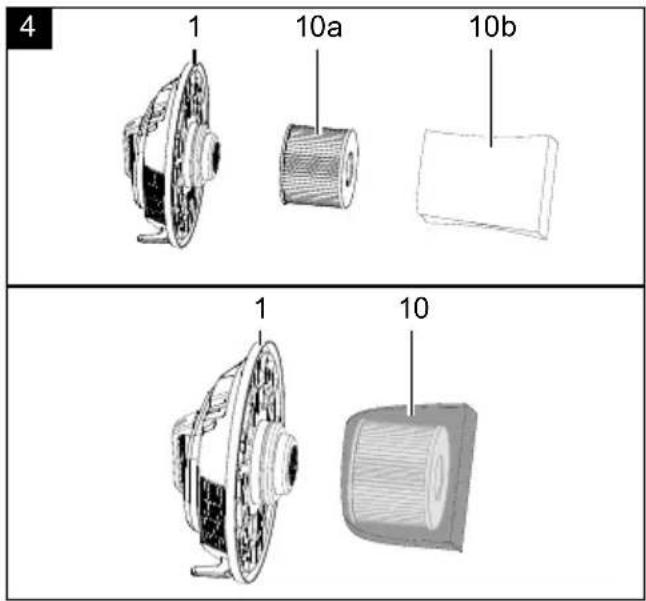

8.2 Fitting the filter unit (10) (Fig. 4, 5, 6)

1. Insert the filter cartridge (10a) into the filter bag (10b). Press the overhang into the filter cartridge (10a). (Fig. 4)

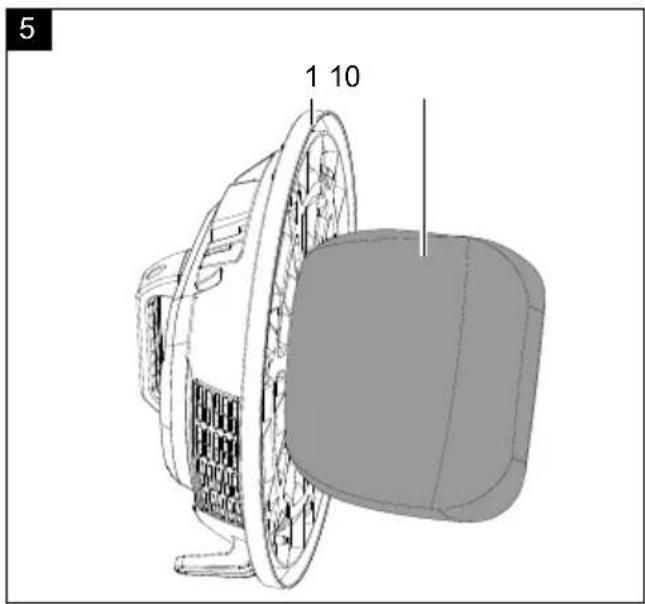

2. Attach the filter unit (10) to the motor housing (1). (Fig. 5)
3. Place the complete motor housing (1) on the container (4) and secure it using the locking hooks (9). (Fig. 6)

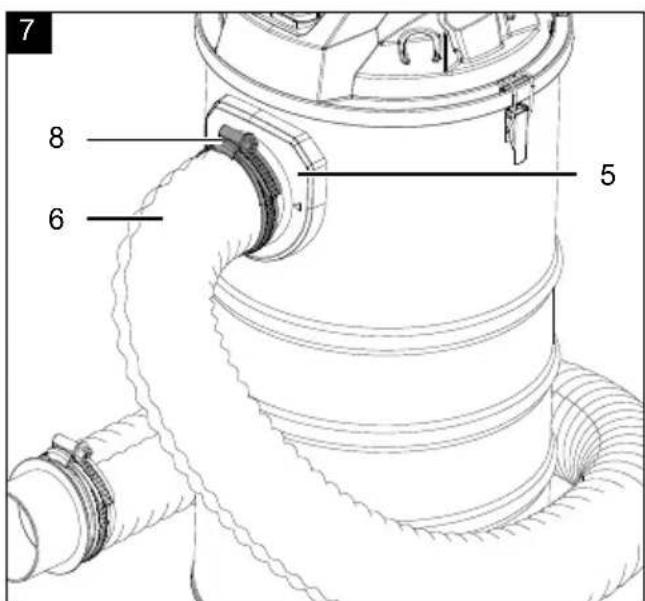

8.3 Installing the suction hose (6) (Fig. 1, 7, 8)

1. Attach the suction hose (6) to the suction connection (5) using the hose clamp (8). (Fig. 7)

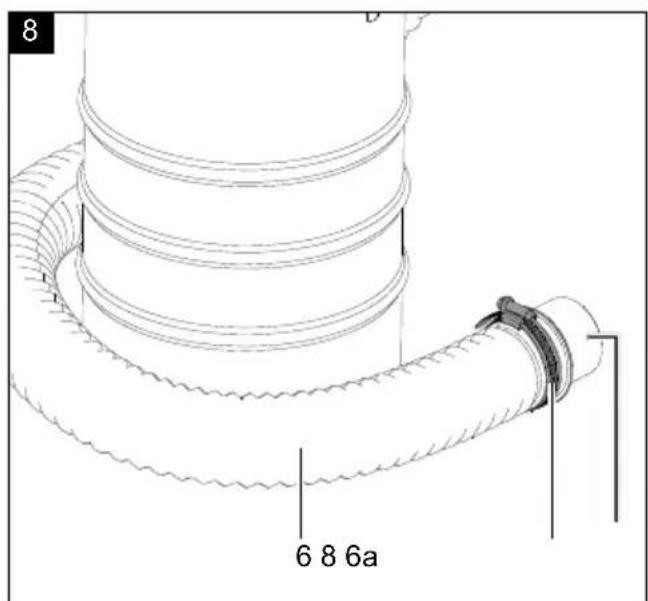

2. Fit the other side of the suction hose (6) with the hose clamp (8) and the hose coupling (6a). (Fig. 8)
3. The desired adapters (7) can now be attached to the hose coupling (6a). (Fig. 1)

9. Operation

⚠ WARNING

Always make sure the product is fully assembled before commissioning!

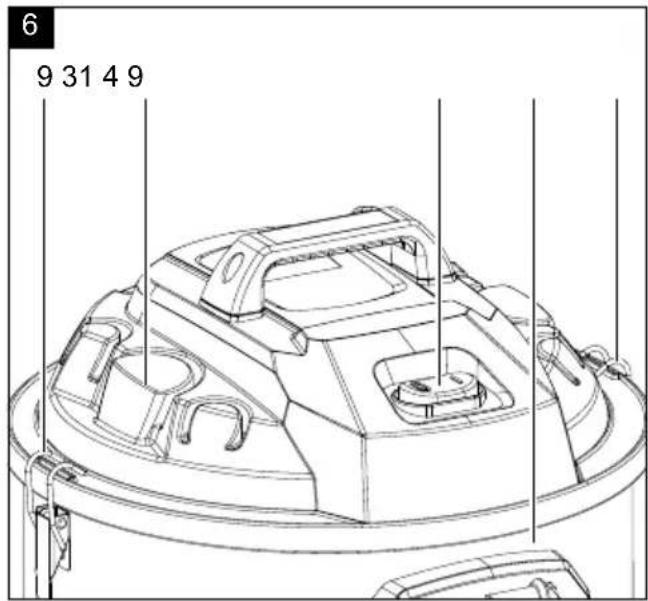

9.1 Switching on/off (Fig. 6)

• To switch on, set the on/off switch (3) to position "I".
• To switch off, set the on/off switch (3) to position "0".

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

10.1 Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall socket.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for products with a high starting current (from 3000 watts)!

10.2 Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

10.3 AC motor

- Before commissioning, ensure that the mains voltage matches with the operating voltage on the type plate.

• Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .
• Connections and repair work on the electrical equipment may only be carried out by electricians.

11. Cleaning and maintenance

⚠ WARNING

Pull out the mains plug before carrying out any cleaning or maintenance work.

11.1 Cleaning

• We recommend that you clean the product directly after every use.
- Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Wipe the product with a clean cloth from time to time.
- Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product.
- Make sure that no water can penetrate the interior of the product. Water penetration increases the risk of an electric shock.

11.1.1 Cleaning the filter unit (10) (Fig. 4, 5, 6)

1. Open the locking hooks (9) and remove the motor housing (1) from the container (4). (Fig. 6)
2. The filter unit (10) is now visible. (Fig. 5)
3. Remove the filter unit (10) from the motor housing (1). (Fig. 4)
4. Remove the filter cartridge (10a) from the filter bag (10b).
5. Clean the filter bag (10b) and replace it if it is very dirty.
6. Blow out the filter cartridge (10a) with low-pressure compressed air.
7. Insert the filter cartridge (10a) into the filter bag (10b). Press the overhang into the filter cartridge (10a). (Fig. 4)
8. Attach the filter unit (10) to the motor housing (1). (Fig. 5)
9. Place the complete motor housing (1) on the container (4) and secure it using the locking hooks (9). (Fig. 6)

11.2 Maintenance

The interior of the product has no internal parts that require maintenance.

12. Storage and transport

⚠ WARNING

Disconnect the mains plug before storing or transporting the product.

12.1 Storage

• Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 °C.
• Store the product in its original packaging.
  • Cover the product to protect it from dust or moisture.
• Store the operating manual with the product.

12.2 Transport

- Lift and carry the product by the handle (2).

13. Repair & ordering spare parts

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

13.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Item number
• Type plate data

13.2 Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any queries:

• Type of current for the motor
• Machine data - type plate
- Motor data - type plate

13.3 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Filter cartridge, filter bag

* may not be included in the scope of delivery!

14. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards).

- Points of sale of electrical devices (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

15. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your product failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Engine does not run	Mains plug not plugged in	Check whether the mains plug is plugged in. If necessary, plug the mains plug back into the socket.
	Socket not connected to the power supply	Call an electrician.
	Product not switched on	Check that the on/off switch has been set to “I”. If not, switch on the product.
Reduced vacuuming power	Product clogged Remove the blockage.
	Filter unit dirty Clean the filter unit.

Günzburger Straße 69

D-89335 Ichenhausen

Remarque :

Exploded view diagram of a mechanical device with numbered parts for identification

Scheppach GmbH, Günzburger Str. 69, 89335 Ichenhausen

DE	EU-KonformitätserklärungÜbersetzung der OriginalkonformitätserklärungWir erklären in alleiniger Verantwortung, dass das hier beschriebene Produkt mit den geltenden Richtlinien und Normen übereinstimmt.		Der hier beschriebene Gegenstand der Erklärung erfüllt die Vorschriften der Richtlinie 2011/65/EU des Europäischen Parlaments und des Rates vom 8. Juni 2011 zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten.*Technische Unterlagen verfügbar bei: **
	Artikelnummer***	Artikelbezeichnung: Absauganlage DC155		Marke****
GB	EU Declaration of ConformityTranslation of the original Declaration of ConformityWe declare under our sole responsibility that the product described here complies with the applicable directives and standards.		The object of the declaration described here fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.*Technical documentation available at: **
	Item number***	Item designation: Chip extraction system DC155		Brand****
FR	Déclaration UE de conformitéTraduction de la déclaration de conformité originaleNous déclarons, sous notre propre responsabilité, que le produit décrit ici est conforme aux directives et normes en vigueur.		L'appareil décrit ci-dessus dans la déclaration est conforme aux réglementations de la directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 visant à limiter l'utilisation de substances dangereuses dans la fabrication des appareils électriques et électroniques.*Dossier technique auprès de:**
	Référence ***	Désignation de l'article: Aspirateur DC155		Marque ****
	***59063099913			****SCHEPPACH

**:Georg KohlerGünzburger Str. 69D-89335 Ichenhauseni.V.Andreas Pecher /Head of Project Managementi.V. Simon Schunk /Division Manager Product CenterIchenhausen, 19.12.2025	X 2011/65/EU*X 2014/30/EU□ 2016/1628/EU□ 2014/29/EUX 2014/35/EU□ 2004/22/EG□ 2014/68/EU□ 89/686/EWG_96/58/EG□ 90/396/EWG□ 2023/826/EU	□ 2006/42/EG□ Annex IVNotified Body:Notified Body No.:Certificate No.:	□ 2000/14/EG_2005/88/EGNoise:measured L_WA =guaranteed L_WA =□ Annex V□ Annex VINotified Body:Notified Body No.:
	□ 2016/1628/EUEmission No.:
	EN 62233:2008;EN IEC 60335-2-2:2023+A11:2023EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021+A16:2023EN IEC 55014-1:2021EN IEC 55014-2:2021EN IEC 61000-3-2:2019+A1:2021+A2:2024EN 61000-3-3:2013+A1:2019+A2:2021

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
