USER MANUAL AP-C500 HOMEDICS

powered by Homedics Home app

Homenics please take a moment now register your product at www.Homedics.com/register Your valuable input regarding this product will help us create the products you will want in the future.

INSTRUCTION MANUAL AND WARRANTY INFORMATION

3-year limited warranty

AP-C500 | L-03116, Rev 1

IMPORTANT SAFETY INSTRUCTIONS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

• ALWAYS unplug the air purifier from the electrical outlet immediately after using and before cleaning or replacing filters.
• Keep cord away from heated surfaces.
• ALWAYS place the air purifier on a firm, level surface.
• ALWAYS place the air purifier at least 6 inches away from walls and 3 feet from heat sources, such as stoves, radiators, or heaters.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
  • DO NOT place in or drop into water or other liquid.
• Keep dry — DO NOT operate in wet or moist conditions.
• Check your air purifier cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

CAUTION: DO NOT attempt to defeat this safety feature. To do so could result in an electric shock hazard.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

• Always unplug the air purifier when not in use.
- DO NOT operate the air purifier with a damaged cord or plug, or after the air purifier malfunctions, or has been dropped or damaged in any manner. Return to a Homedics Service Center for examination, electrical or mechanical adjustment, or repair.
- This air purifier is not intended for use in bathrooms, laundry areas, or similar moist indoor locations.
- DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
- DO NOT route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.
- To disconnect the air purifier, first turn controls to the off position, then remove plug from outlet.
- DO NOT tilt or move the air purifier while it is in operation. Shut off and remove plug from outlet before moving.
- DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air purifier.
- DO NOT block air intakes or exhaust in any manner. Do not use on any soft surface, like a bed, where openings may become blocked.
- Use this air purifier only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
- This product is intended for household use only.
- WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, DO NOT Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer).
- This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period.
WARNING – Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before relamping or servicing. Replace Lamp With Homedics Lamp Model No. PP-APT200UVBLB at Homedics.com.

SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE.

UNIQUE FEATURES & SPECIFICATIONS

THREE-IN-ONE TRUE HEPA FILTRATION SYSTEM

• TRUE HEPA FILTRATION
  Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odor, mold spores, and smoke that passes through the filter media.
  • ACTIVATED CARBON ODOR FILTRATION
  Reduces household odors and VOCs (volatile organic compounds)/gases as shown by independent laboratory testing.
• PREFILTER
  Captures large particles.

UV-C TECHNOLOGY

UV-C Technology reduces E. coli bacteria, Phi-X174 virus, A. niger mold, and P. citrinum fungus in the air with UV-C on. Shown by independent laboratory testing.

AUTO MODE/DIGITAL PARTICLE SENSOR

The auto mode/particle sensor automatically adjusts the fan speed based on indoor air quality.

FAN SETTINGS

5 speeds including sleep mode.

REPLACE FILTER INDICATOR

Displays when it is time to replace the filter.

SUGGESTED ROOM SIZE

553 ft ^2 /51.3 m ^2 . Portable air purifiers will be more effective in rooms where all the doors and windows are closed. Suggested room size is based on AHAM AC-1 test results.

AIR CHANGES PER HOUR

This air purifier will purify the air in a 553 ft ^2 /51.3 m ^2 room (assuming an 8 ft/2.43 m ceiling) every 12.5 minutes and 1 time per hour in a 2679 ft ^2 /248.8 m ^2 room on the highest speed setting in a closed room.

OIL TRAY

Includes 3 essential oil pads. Use with essential oil (not included) to deliver scent into the air.

WI-FI® ENABLED

Smart Wi-Fi enabled app.

VOICE CONTROL

Control your smart air purifier using just your voice with Amazon Alexa or Google Assistant-enabled devices.

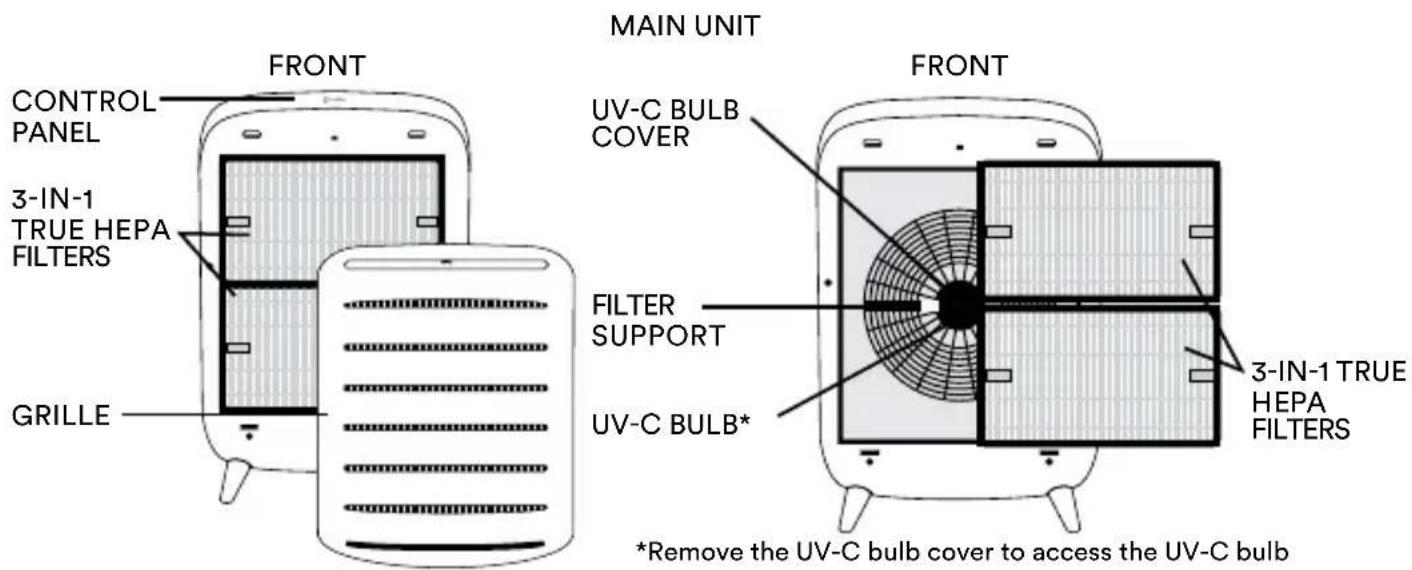

LOCATION OF PARTS AND CONTROLS

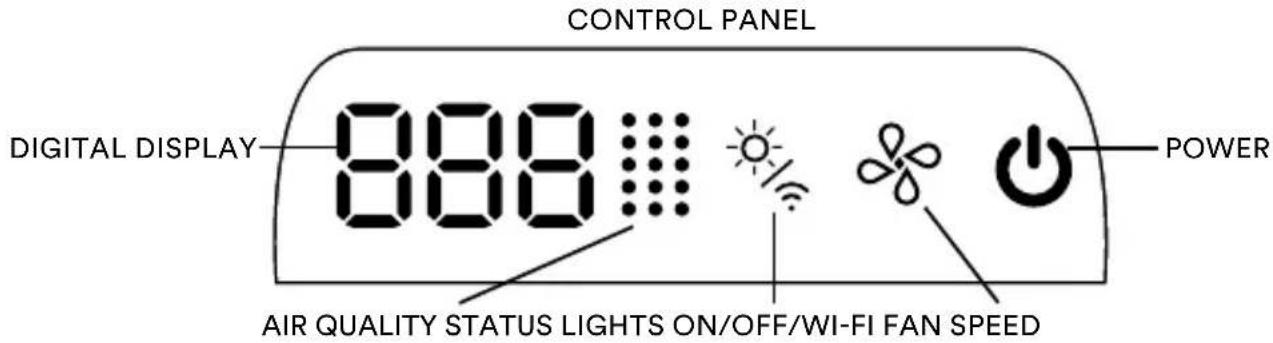

CONTROL PANEL DIGITAL DISPLAY 888:00 AIR QUALITY STATUS LIGHTS ON/OFF/WI-FI FAN SPEED POWER

CONTROL PANEL 3-IN-1 TRUE HEPA FILTERS GRILLE FRONT MAIN UNIT UV-C BULB COVER FILTER SUPPORT UV-C BULB* FRONT 3-IN-1 TRUE HEPA FILTERS *Remove the UV-C bulb cover to access the UV-C bulb

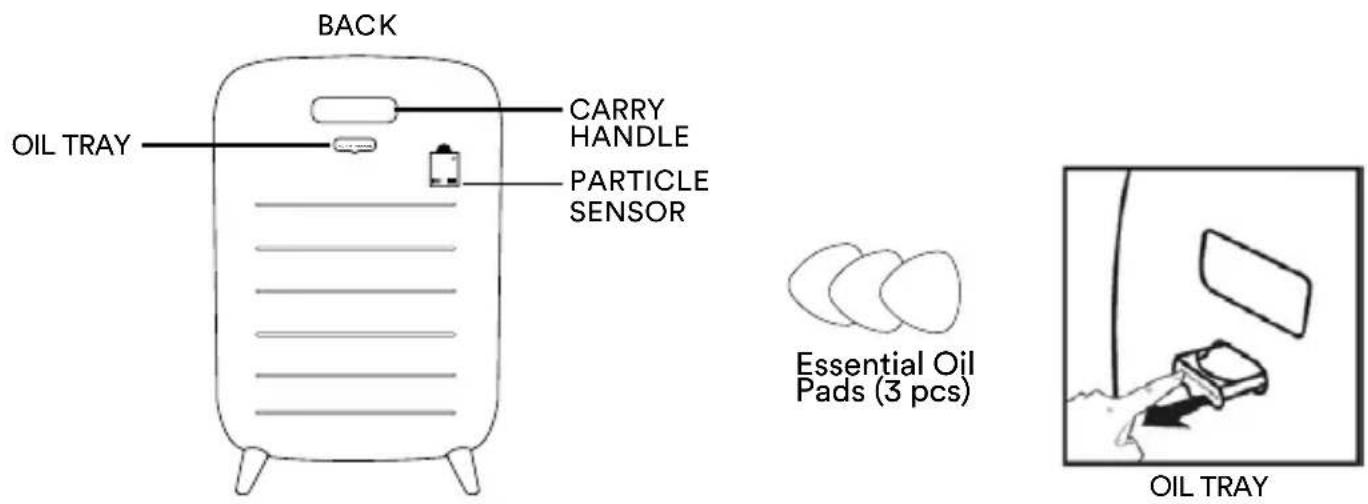

OIL TRAY BACK CARRY HANDLE PARTICLE SENSOR Essential Oil Pads (3 pcs) OIL TRAY

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag.
- Place the air purifier on a firm, level surface.
- Plug the power cord into a household electrical outlet.

CONNECTING TO MOBILE APP

H®

1. Download the Homedics Home app in the App Store® or Google Play store or scan the QR code.
2. Open the Homedics Home app. If you already have an account, log in. To create a new account, tap Sign Up.
3. Press the power button to turn the air purifier on.
4. Follow the in-app instructions to add your air purifier.
   4a. Login or Register 4b. Add New Device 4c. Enter Pairing Mode 4d. Connect to Wi-Fi

H Log in Sign Up

If you have an existing Homedics Home account, please login, otherwise register and then login.

1:41 v HomeMills 36°F Excellent Outdoor RMS 80.0% Outdoor Humid... AddDevice Create Some 28.0mm Outdoor Air Pt... All Devices Living Room Master Backs... No devices Add Device

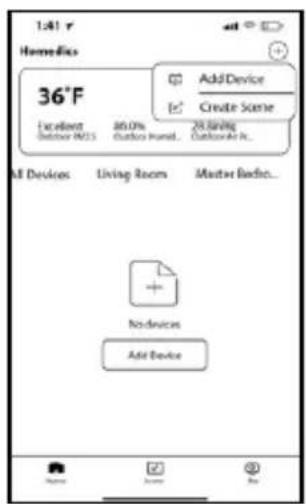

Press the “+” or “add device” on the home screen to pair a new a device.

Diagram showing a finger pressing a button with icons for zoom, refresh, and power control

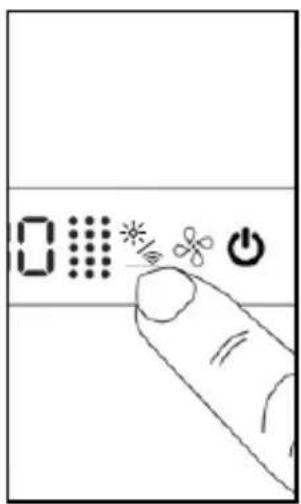

Press and hold the Light/Wi-Fi button for 3 seconds to enter pairing mode. You will hear a beep.

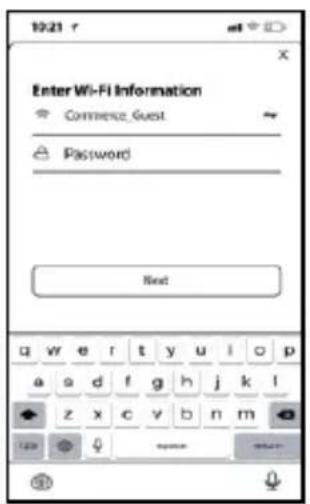

Enter Wi-Fi Information Commerce_Guest Password Next

Enter Wi-Fi name and password and press Next. If no password is required, press Next.

LINK TO AMAZON ALEXA OR GOOGLE ASSISTANT

Voice Autistaeth Name Google Assistant Home Management Message Center IAD & Feedback

In the Homedics Home app, tap Me at the bottom of the right screen.

Select Alexa (♀ under Voice Assistants and follow the in-app instructions.

Select Google Assistant under Voice Assistants and follow the in-app instructions.

HOW TO USE

POWER BUTTON AND FAN SPEED SETTINGS

• Press the power button to turn the air purifier on/off
• Press the fan speed button to select the desired fan speed: Auto, Sleep, 1, 2, 3, 4.
• When sleep is selected, "SL" is shown on the digital display. The fan speed is set to a minimum speed lower than speed 1 and the lights will automatically turn off after a few seconds. To exit sleep, select another fan speed.

AUTO MODE/DIGITAL PARTICLE SENSOR

Press the fan speed button to select auto mode "AU". The room air quality PM2.5 particle value is shown on the digital display and color-coded as:

• Green (good)
• Yellow (moderate)
• Orange (unhealthy for sensitive groups)
• Red (unhealthy)

The auto mode automatically adjusts the fan speed based on room air quality. The fan speed will adjust to 1 when the air quality is green, 2 when yellow, 3 when orange, and 4 when red. To exit auto mode, select another fan speed.

DISPLAY LIGHTS

Press the Light/Wi-Fi button to turn the display lights on/off.

OIL TRAY

Use essential oil (not included) to deliver scent into the air.

NOTE: For use with the included Homedics essential oil pads only. Do not add essential oils anywhere else in the unit, as it may cause damage.

NOTE: Do not leave a filled essential oil pad in the oil tray if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

ADDING ESSENTIAL OILS

WARNING: Putting oil anywhere but the oil tray will damage the air purifier.

Simple diagram showing a rectangular object with an arrow pointing to a small rectangular object (no text or symbols)

1. The oil tray is located on the back of the air purifier.

Hand pressing a button on a door panel (no text or symbols visible)

1. Push to open and remove the tray.

Illustration of a hand holding a small container with arrows indicating flow or movement (no text or symbols)

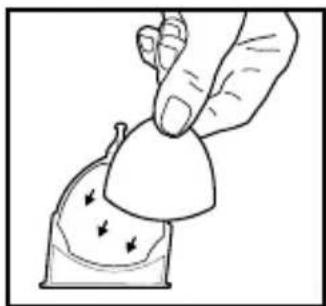

1. An aroma pad is preloaded (3 included) into the oil tray.

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

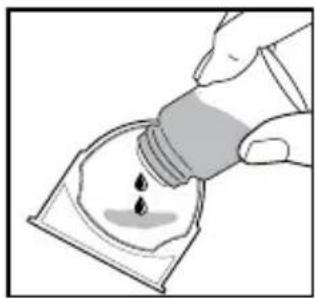

1. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference. WARNING: Only place essential oil on the pad and NOT directly into the tray.

Hand holding a small object with an arrow pointing to it, next to a blank rectangular area (no text or symbols)

1. Place the oil tray back in its compartment and push to close. The scent will start automatically when the air purifier is turned on.

To purchase genuine Homedics Replacement Essential Oil Pads, Model # UHE-PAD1, go to your retailer where you purchased your Homedics Air Purifier, or visit www.homedics.com (US), www.homedics.ca (CAN). To purchase genuine Homedics Essential Oils, go to your retailer where you purchased your Homedics Air Purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

FILTER REPLACEMENT

REPLACE FILTER INDICATOR

When the filter needs to be replaced, "F-1" will flash a few seconds on the digital display and return to the PM2.5 particle count. This repeats each time the air purifier is turned on until it is reset.

F - 1 ⋮️ 🌿 ⚙️ ⬤

REPLACING THE TRUE HEPA FILTER

For optimal performance, replace every 12 months under normal usage conditions.

Line drawing of a car's side profile with curved roof and rectangular opening (no text or symbols)

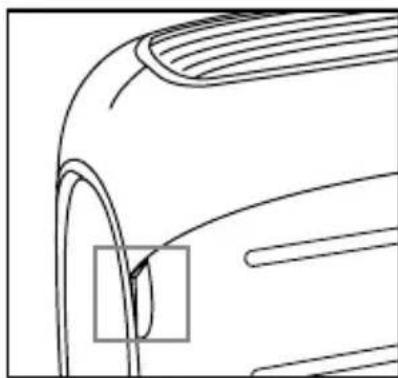

1. Unplug the air purifier. Pull the indents on each side of the grille cover.

Illustration of a smartphone and a document with horizontal lines, no text or symbols present

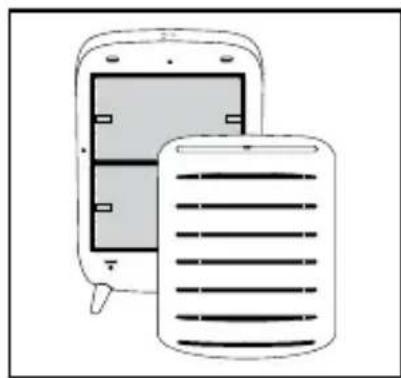

1. Remove the grille cover and set aside.

Front view of a rectangular electronic device with two internal compartments and mounting feet (no text or symbols)

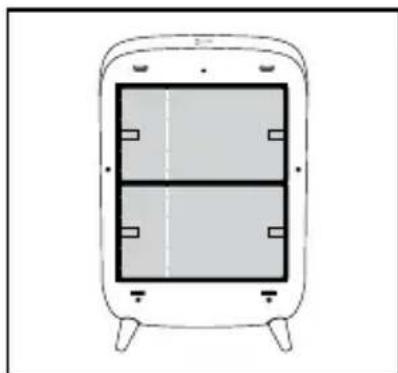

1. Pull the tabs to remove the old filters.

Diagram of a portable air conditioner unit with fan and vent slots (no text or symbols)

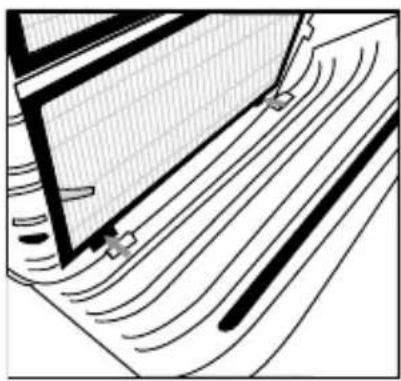

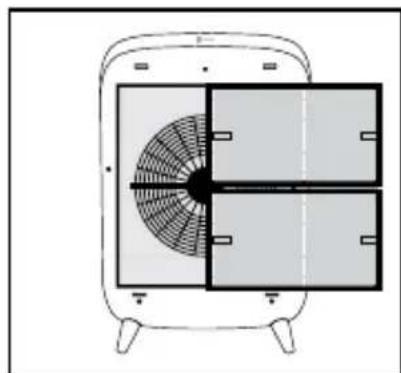

1. With the filter tabs facing outward, insert the new True HEPA filters.

Diagram of a car interior with curved airflow lines and a hand holding a clip (no text or symbols)

1. Place the tabs at the bottom of the grille cover into the base of the air purifier. Gently push the grille cover until it snaps into place.

Simple line drawing of a finger pressing a button with an 'Power' icon (no text or symbols)

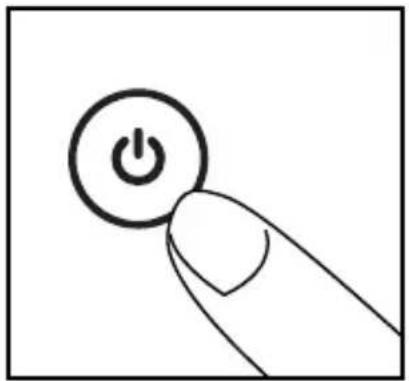

1. Plug the power cord into a standard AC outlet. Turn the air purifier on.

Simple line drawing of a finger pointing at a circular symbol with four petal-like elements (no text or labels)

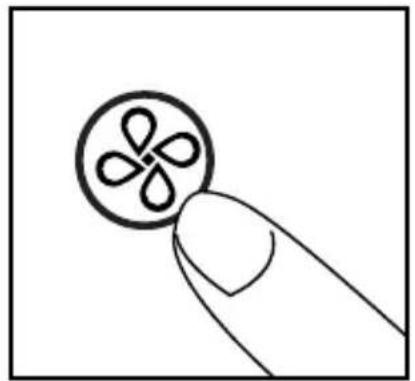

1. Press and hold the fan button until "F-1" turns off.

CLEANING AND MAINTENANCE PARTICLE SENSOR

Diagram showing a device with speech bubble and labeled components, likely illustrating a system or control interface.

Line drawing of a hand inserting a USB into a device (no text or symbols visible)

NOTE: The particle sensor needs to be vacuumed monthly under normal usage.

1. Unplug the air purifier.
2. Remove the particle sensor door.

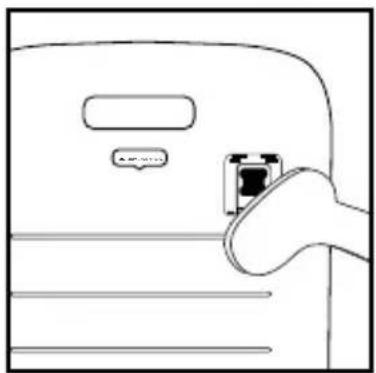

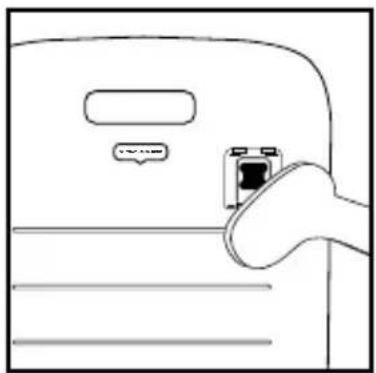

3. Vacuum the particle sensor using the brush attachment of your vacuum cleaner.
4. Reattach the particle sensor door.
5. Plug the power cord into a household electrical outlet.

To purchase genuine Homedics replacement True HEPA filters, model AP-C500FL, go back to your retailer where you purchased your air purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

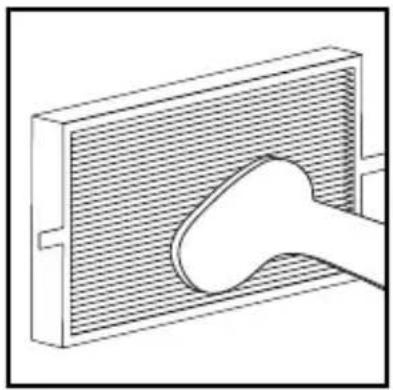

CLEANING THE PREFILTER

Technical line drawing of a heat exchanger with a handle inserted into the chamber (no text or symbols)

NOTE: For best performance, vacuum the prefilter once a month under normal usage.

1. Unplug the air purifier.
2. Remove the True HEPA filters as described in the Replacing the True HEPA Filter section.
3. Vacuum the outside of the True HEPA filters using the brush attachment of your vacuum cleaner, cleaning it thoroughly.
4. Place the True HEPA filters back into the air purifier and close the grille.
5. Plug the power cord into a household electrical outlet.

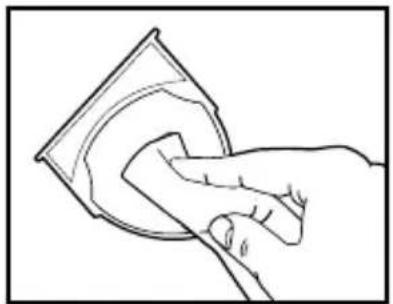

TO CLEAN THE OIL TRAY

Line drawing of a hand cleaning a circular object (no text or symbols)

Open the oil tray and remove the pad. Essential oil pads should be changed when switching to a different essential oil scent. If continuing to use the same scent, set the essential oil pad aside for reuse. Wipe down the inside of the oil tray with a soft cloth. Place the essential oil pad back in the tray and close.

NOTE: Remove the essential oil pad from the tray when storing.

FOR BEST PERFORMANCE:

• NEVER use water or any household cleaners or detergents to clean the True HEPA filters.
• Clean off the outside of the unit with a soft, dry cloth as needed.
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit.
• Clean off the grille cover using a damp cloth or the brush attachment of your vacuum as needed.
  • Vacuum the prefilter monthly under normal usage conditions.
• Replace the True HEPA filters every 12 months under normal usage conditions.
• ALWAYS use genuine Homedics replacement filters for optimal performance.

UV-C BULB REPLACEMENT

The UV-C bulb is designed to last for approximately 10,000 hours of use. When the UV-C bulb needs to be replaced, “U-1” will flash for a few seconds on the digital display and return to the PM2.5 particle count. This repeats each time the air purifier is turned on until the UV-C bulb is replaced.

U-1: sun, wind, fan, power

NOTE: The air purifier will continue to operate without the UV-C function when the UV-C bulb burns out.

CAUTION: DO NOT operate the air purifier without the protective UV-C bulb cover.

CAUTION: Unplug the power cord before servicing or replacing the UV-C bulb.

Illustration of hands installing or adjusting a component with a tool (no text or symbols visible)

1. Remove the front grille.

Illustration of a device with a handle and panel, no text or symbols present

1. Remove the upper and lower filters.

Diagram of a mechanical assembly with a tool inserted into a circular component (no text or symbols visible)

1. Unscrew and remove the UV-C bulb cover.

Diagram of a mechanical or electrical component inside a circular grid structure, with no visible text or symbols.

1. Pull the UV-C bulb out.

Illustration of a hand interacting with a mechanical component inside a circular grid structure (no text or symbols)

1. Insert a new UV-C bulb.

Diagram of a hand using a tool to interact with a circular object on a woven mat (no text or symbols visible)

1. Reinstall the UV-C bulb cover, filters, and front grille.

NOTE: The UV-C bulb contains mercury (Hg). Dispose of according to local, state, and federal law / www.lamprecycle.org.

To purchase genuine Homedics UV-C replacement bulbs, model PP-APT200UVBLB, go back to your retailer where you purchased your air purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit will not operate • Unit is not plugged inPower button not pressedNo power to unitTrue HEPA filters not installed correctlyGrille cover not installed correctly		Plug unit inPress the power button to turn the power onCheck circuits, fuses, try a different outletReinstall the True HEPA filtersReinstall the grille cover
Reduced airflow • The grille may be blockedPrefilter needs to be vacuumedThe True HEPA filters need to be replaced		Check to make sure nothing is blocking the grille and air outletVacuum the prefilter with the brush attachment of your vacuum cleanerReplace the True HEPA filters
Reduced odor removal • The True HEPA filters need to be replaced		Replace the True HEPA filters
Excessive noise	• The unit is not level	Place the unit on a flat, level surface
F-1 flashes on the digital display when the air purifier is turned on after filter replacement	• The replace filter indicator needs to be reset	Press and hold the fan button until the replace filter F-1 message turns off
Display lights are off •LightsON/OFFsettingSleep fan speed setting		Press the lights on/off buttonPress the fan speed button to select another speed
U-1 flashes on the digital display when the air purifier is turned on	• UV-C bulb needs replacing	Replace the UV-C bulb
Smart air purifier is not connecting to the Homedics Home App	Bluetooth® not turned onWi-Fi name and password not entered	Make sure your phone has Bluetooth® turned onEnter Wi-Fi name and password
Air purifier not pairing with App	Not in pairing mode	Press and hold the Light/Wi-Fi button for 3 seconds to enter pairing mode. You will hear a beep
Air purifier not connecting to Wi-Fi	Wi-Fi network not entered correctlyPassword not entered correctly	Enter Wi-Fi nameBe sure the password is entered correctly
Amazon Alexa or Google Assistant voice command not working	Not set up properly • In the Homedics	Home app tap “Me”in the lower right-hand corner of the screen. Select Alexa or Google Assistant under Voice Assistants and follow the in-app instructions

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: Smart Air Purifier

Model Number: AP-C500

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. This device contains license-exempt transmitter/receiver that complies with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-003(B)/NMB-003(B)

RF Exposure Statement

This equipment complies with FCC and ISED RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

3-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 3 years from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.Homedics.com. For Canada, please visit www.Homedics.ca.

FOR SERVICE IN THE USA

[e-mail]

8:30AM-7:00PM EST MONDAY-FRIDAY

1-800-466-3342

FOR SERVICE IN CANADA

[e-mail]

8:30AM-5:00PM EST MONDAY-FRIDAY

1-888-225-7378

©2023 Homedics, LLC. All rights reserved. Homedics is a registered trademark of Homedics, LLC.

Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Google, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. The App Store is a service mark of Apple, Inc. Wi-Fi ^® is a registered trademark of Wi-Fi Alliance. The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Homedics is under license. Other trademarks and trade names are those of their respective owners.

Distributed by Homedics, LLC, 3000 N Pontiac Trail, Commerce Township, MI 48390

IB-APC500

Made in China

Homedics

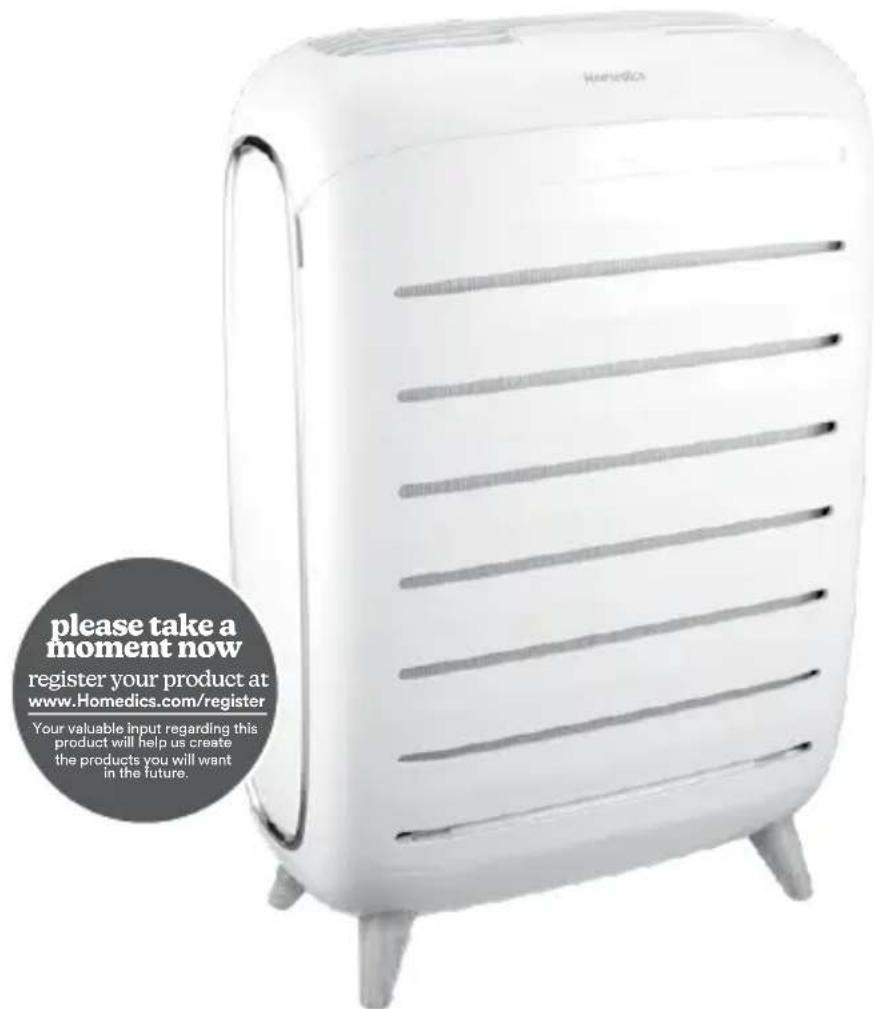

Homedics please take a moment now register your product at www.Homedics.com/register Your valuable input regarding this product will help us create the products you will want in the future.

MANUEL D'INSTRUCTIONS ET INFORMATIONS SUR LA GARANTIE

AP-C500 | L-03116, Rev 1

CONSIGNES DE SÉCURITÉ IMPORTANTES:

LORS DE L'UTILISATION D'APPAREILS ÉLECTRIQUES, EN PARTICULIER EN LA PRÉSENCE D'ENFANTS, LA SÉCURITÉ DE BASE LES PRÉCAUTIONS DOIVENT TOUJOURS ÊTRE SUIVIES, Y COMPRIS LES SUIVANTES :

LIRE TOUTES LES INSTRUCTIONS AVANT L'UTILISATION.

DANGER – POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE:

BRÛLURES, D'ÉLECTROCUTION, D'INCENDIE ET DE BLESSURES:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

H Log In Sign Up

1:41 HomeBics 36°F Excellent Service No.1 80.0% Guidon Point... Add Device Create Scene 25 Rating Guidon Air R... All Devices Living Room Master Radio... No devices Add Device

Diagram showing a finger pressing a button with icons for timer, refresh, and power button

Enter Wi-Fi Information Commerce Guest Password Next

Voice Assistant Name Group Assistant Home Management > Message Center > IAD & Feedback >

Simple diagram showing a device with an arrow pointing to a component (no text or symbols)

Hand pressing a button on a door panel (no text or symbols visible)

Illustration of a hand holding a small container with arrows indicating flow or movement (no text or symbols)

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

Hand holding a small electronic component with an arrow pointing to it, next to a rectangular panel (no text or symbols visible)

REPLACEMENT DES FILTRES

VOYANT DE REMPLACEMENT DU FILTRE

Line drawing of a car's side profile with a highlighted section (no text or symbols)

Illustration of a smartphone and a document with horizontal lines, no text or symbols present

Front view of a simple electronic device with two rectangular panels and mounting feet (no text or symbols)

Top-down schematic of a portable air conditioner unit with fan and vent slots (no text or symbols)

Pure technical diagram showing layered structure with no text, numbers, or symbols

Simple line drawing of a finger pressing a button with an 'Power' icon (no text or symbols)

Simple line drawing of a finger pointing to a circular object with four petal-like shapes (no text or symbols)

Simple line drawing of a door with a speech bubble and a small object inside (no text or symbols)

Line drawing of a door handle inserting into a socket (no text or symbols)

Technical line drawing of a mechanical component with a curved handle inserted into a rectangular plate (no text or symbols)

TO CLEAN THE OIL TRAY

Line drawing of a hand cleaning a circular object with a cloth (no text or symbols)

REEMPLACEMENT DE L'AMPOULE UV-C

Illustration of hands installing or adjusting a mechanical component (no text or symbols visible)

1. Retirer la grille avant.

Illustration of hands holding a rectangular device with internal components (no text or symbols visible)

Illustration of a hand using a tool to lift a circular object into a woven basket (no text or symbols)

Diagram of a circular mechanical or electrical component with radial lines and a central arrow, no visible text or symbols.

Hand holding a small electronic component inside a circular grid structure (no text or symbols visible)

Diagram of a mechanical device with a central component and surrounding wires (no text or symbols)

Adresse : 3000 N Pontiac Trail, Commerce Township, MI 48390

AP-C500 | L-03116, Rev 1

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

H Log In Sign Up

1:31 v HomeDix 36°F Excellent Service RDS 80.0% Outdoor Print... Add Device Create Scene 25.0%ing Outdoor Air P+ All Devices Living Room Master Radio... No devices Add Device

Diagram showing a finger pressing a button with icons for timer, refresh, and power button

Enter Wi-Fi Information Commerce_Guest Password Next

Voice Assisteth None Google Assistant Home Management Message Center IAD & Feedback

Simple diagram showing a rectangular object with an arrow pointing to it, no text or symbols present.

Hand pressing a button on a door panel (no text or symbols visible)

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

Hand holding a small electronic component with an arrow pointing to it, next to a rectangular panel (no text or symbols visible)

Line drawing of a car's side profile with curved roof and highlighted section (no text or symbols)

Illustration of a mobile phone connected to a document with horizontal lines (no text or symbols)

Front view of a simple electrical device with two rectangular compartments and mounting feet (no text or symbols)

Diagram of a portable air conditioner unit with fan layout and ventilation slots (no text or symbols)

Pure technical diagram showing layered structure with no text, numbers, or symbols

Hand holding a finger with a circular button labeled 'Power' (no additional text or symbols)

Simple line drawing of a finger pointing at a circular symbol with four petal-like elements (no text or labels)

Line drawing of a door with a handle inserting a small object into the seat (no text or symbols)

Technical line drawing of a heat exchanger with a handle inserted into the chamber (no text or symbols)

Line drawing of a hand cleaning a circular object with a magnified inset (no text or symbols)

U-13 sun wind butter power

Illustration of hands installing or adjusting a component on a device (no text or symbols visible)

1. Retire la rejilla delantera

Illustration of a hand holding a small object next to a multi-tiered device (no text or symbols visible)

Diagram of a mechanical assembly with a tool inserted into a circular component (no text or symbols visible)

1. Desenrosque y retire la tapa de la bombilla UV-C.

Diagram of a mechanical assembly inside a circular grid structure, showing components and directional arrow (no text or labels)

1. Extraiga la bombilla UV-C.

Hand interacting with a mechanical component inside a circular grid pattern (no text or symbols visible)

Diagram of a mechanical device with a central circular component and a tool inserted, showing no text or symbols.

Empresa: Homedics, LLC.

Dirección: 3000 N Pontiac Trail, Commerce Township, MI 48390

De lunes a viernes, de 8:30 a. m. a 7:00 p. m. EST 1-800-466-3342
