Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all instructions regarding safety and use. Use the product only as described and for the specified range of applications. Please also pass on all documents to any future owner.

Intended use

This appliance is suitable for making straight and curved cuts as well as mitre cuts of up to 45^ in angular workpieces made of plastic, wood and (light metal only with a suitable saw blade). This appliance is exclusively intended for private use in dry indoor spaces. Observe the guidelines on saw blade types. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

Features

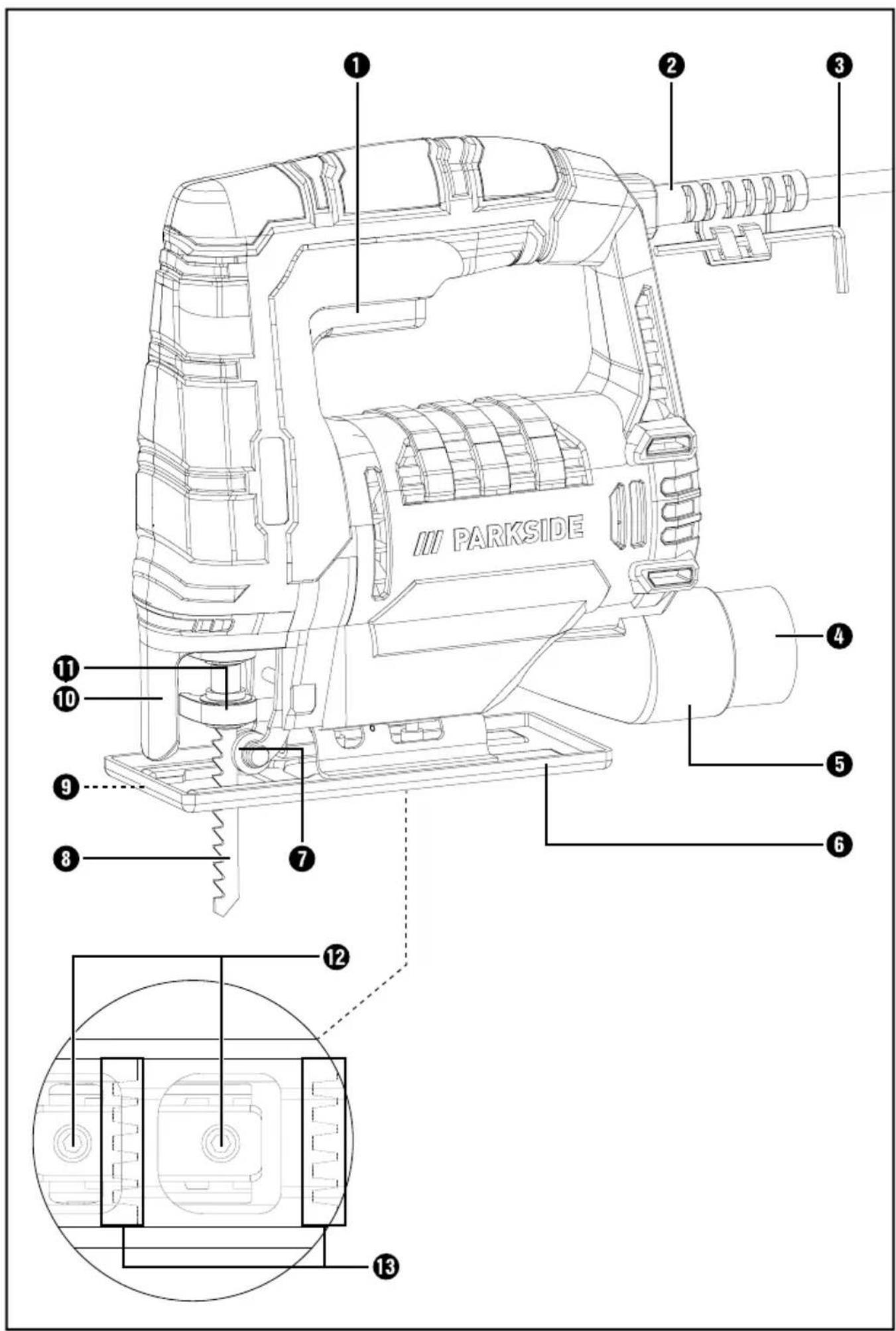

① ON/OFF switch
② Power cord
③ Hex key
4 Reducer
⑤ Extraction nozzle
⑥ Base plate
⑦ Guide roller
⑧ Saw blade (for woodworking)

⑨ Notch
⑩ Blade guard
⑪ Quick-release chuck
⑫ Clamping screws
⑬ Toothing

Package contents

1 jigsaw incl. extraction connector
1 reducer
1 saw blade for woodworking
1 hex key
1 set of operating instructions

Technical specifications

Rated voltage 230 V \~, 50 Hz (AC)

Rated power

consumption 350 W

Idle speed n 0–3000 rpm

Cutting depth Wood/metal: 55/6 mm

Diagonal cuts 0°/15°/30°/45°

left/right

Protection class II/ □ (double insulation)

Noise emission value

Noise measurement value determined in accordance with EN 62841. The

A-weighted noise level of the power tool is typically as follows:

Sound pressure level L _nA = 87.3 dB

Uncertainty _pA = 3 dB K

Sound power level: L _WA = 95.3 dB

Uncertainty _WA = 3 dB K

Wear hearing protection!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Total vibration value

(vector sum of three directions) determined in accordance with EN 62841:

Sawing chipboards a _h,B = 9.571 m/s ^2

Uncertainty K = 1.5 m/s ^2

Sawing sheet metal a _hM=9.076 m/s^2

Uncertainty K ^2 =

NOTE

The vibration emission values and noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
▶ The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
▶ Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power/sool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.
b) Usepersonal protective equipment. Always wear safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security, and do not ignore the safety regulations for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for jigsaws

• Hold the power tool only by the insulated handles when you are carrying out work in which the accessory tool may come into contact with concealed power cables or the tool's own power cord. Contact with a live cable may also cause metal parts of the tool to become live and could result in an electric shock.
• Fix and secure the workpiece to a sturdy work surface using clamps or other methods. If you hold the workpiece in your hands or against your body only, it will remain unstable. This can result in a loss of control.
• Keep your hands away from the sawing area. Do not reach underneath the workpiece. Contact with the saw blade may result in injury.
• Keep your hands away from the stroke rod and the quick-release chuck. There is a risk of crushing if contact is made with these components.
  ■ Always switch on the power tool before applying it to the workpiece. Otherwise, there is a risk of a kickback.
  ■ When sawing, ensure that the base plate ⑥ is in contact with the workpiece.
  ■ After completing your work, switch the power tool off and do not pull the saw blade ⑧ out of the cut until the tool has stopped entirely. This prevents kickbacks and allows you to put the tool down safely.
  ■ Only use undamaged saw blades that are in perfect working order. Bent and blunt saw blades can break or may cause a kickback.
• Do not try and slow the saw blade ⑧ down after switching off by applying lateral pressure. The saw blade ⑧ can be damaged, break or cause a kickback.

■ Always route the power cord towards the rear, away from the appliance.
■ Never work on moistened materials or damp surfaces.
Risks due to dust! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate dust extraction device.
■ Wear a dust mask!
■ Ensure that there is adequate ventilation.

Original accessories/auxiliary equipment

■ Only use the accessories and additional equipment that are specified in the operating instructions and compatible with the appliance.

Information on saw blades

NOTE

▶You can use any saw blade, provided it is fitted with a suitable mounting (single-lug shank).
▶ For long, straight cuts, please use the Parkside saw blade supplied.

Type of saw blade
suitable unsuitable

Getting started

Fitting/changing the saw blade

Always remove the plug from the power socket before working on the appliance.

♦ Turn the quick-release chuck ⑪ and hold it in this position.

♦ Push the required saw blade into the quick-release chuck ⑪ as far as the stop.
Let go of the quick-release chuck ⑪ so that it returns to its initial position. The saw blade is now locked.
■ ATTENTION! The saw blade teeth must face the front (see fold-out page)!

Connecting the sawdust extractor

♦ Push the reducer ④ into the extraction nozzle ⑤ until it is firmly in place.
◆ Attach an approved dust and sawdust extractor to the reducer ④ or directly to the extraction nozzle ⑤.

Use

Setting the cutting angle

• Loosen the clamping screws ⑫ with the hex key ③ and slide the base plate ⑥ forwards.
  Adjust the cutting angle to 0^/15^/30^/45^ with the aid of the markings on the base plate ⑥. Push the base plate ⑥ backwards so that the locking pin engages in the toothing ⑬.
  ◆ Retighten the clamping screws ⑫ with the hex key ③.

Switching on/off

Switching the appliance on Press the ON/OFF switch ①.

Switching the appliance off Release the ON/OFF switch ①.

Setting the stroke rate

Light pressure on the ON/OFF switch ① results in low stroke rate. Increasing the pressure increases the number of strokes.

NOTE

The integrated motor brake ensures rapid stoppage.

Maintenance and cleaning

WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appli- ance.

■ The appliance must always be kept clean, dry and free from oil or grease.
■ Use a dry cloth to clean the housing.

WARNING!

If it is necessary to replace the power cord, this must be carried out by the manufacturer or its representative in order to avoid a safety risk.

• Replace the saw blade ⑧ as soon as its teeth are too blunt for adequate sawing.
  ■ Clean the appliance after completing your sawing work.
  ■ Remove any dirt (e.g. sawdust). If necessary, clean the saw blade holder and the chip ejection opening with a brush or by blowing out with compressed air.

Disposal

Applies only to France

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste! The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

The warranty does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 490352_2404 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional faults or other defects occur, please first contact the service department listed below by telephone or use our contact form, which you can find on parkside-diy.com in the Service category.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can view and download these instructions along with many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your

country and use the search box to search for the operating instructions. Enter the article number (IAN) 490352_2404 to find the operating instructions for your article.

WARNING!

■ Have your appliances repaired by the Service Centre or a trained electrician, and use only original replacement parts. This will ensure that the safety of the appliance is maintained.
If it is necessary to replace the power cord, this must be carried out by the manufacturer or its representative in order to avoid a safety risk.

NOTE

▶Replacement parts not listed (such as carbon brushes, switches) can be ordered via our service hotline.

Service

GB Service Great Britain

Tel.: [phone]

Contact form on parkside-diy.com

IE Service Ireland

Tel.: [phone]

Contact form on parkside-diy.com

IAN 490352_2404

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original declaration of conformity

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive

(2006/42/EC)

EMC (Electromagnetic Compatibility)

(2014/30/EU)

RoHS Directive

(2011/65/EU)*

* The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied harmonised standards

EN 62841-1:2015/A11:2022

EN 62841-2-11: 2016/A11:2024

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

Type designation of machine: Hand Jigsaw PSTD 350 A1

Year of manufacture: 09–2024

Serial number: IAN 490352_2404

Bochum, 24/07/2024

Sofia Fyush

CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Inhaltsverzeichnis

Einleitung 12

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Informations relatives aux lames 28

Mise en service 29

Monter/remplacer la lame de scie 29

Informations relatives aux lames

REMARQUE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

J. R. W. F. G. S.

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

J. R. W. F. G. S.

CE

Semi Uguzlu

- manažer kvality -

Sedict CE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

J. R. W. F. G. S.

CE

Semi Uguzlu

- Manažér kvality -

Diagram of saw cutting process with a diagonal line indicating cutting edge (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Diagram showing mechanical components with zigzag lines and a diagonal line, no text or symbols present

Messa in funzione

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
