PMST 100 B2 - Jigsaw PARKSIDE - Free user manual and instructions
Find the device manual for free PMST 100 B2 PARKSIDE in PDF.
| Product Type | Jigsaw |
| Model | PMST 100 B2 |
| Brand | Parkside |
| Rated Voltage | 230 V ~ 50 Hz |
| Rated Power Consumption | 75 W (S2 - 10 min) |
| No-Load Stroke Rate | 1000 - 4500 min⁻¹ (continuously variable) |
| Cutting Depth (Wood) | Up to 12 mm |
| Cutting Depth (Plastic) | Up to 5 mm |
| Cutting Angles | 45°, 30°, 15°, 0° (left/right) |
| Dimensions | Length: 230 mm |
| Weight | Approx. 900 g |
| Protection Class | II (Double insulation) |
| Sound Pressure Level | 88.7 dB(A) (K=3 dB) |
| Sound Power Level | 99.7 dB(A) (K=3 dB) |
| Vibration Emission (Cutting boards) | 7.424 m/s² (K=1.5 m/s²) |
| Vibration Emission (Sawing metal sheet) | 8.602 m/s² (K=1.5 m/s²) |
| Key Features | Speed control knob, On/Off switch, Hanger, Baseplate with scale, Rip fence, Guide roller, Saw blade holder, Locking screws |
| Package Contents | 1 jigsaw, 1 rip fence, 2 saw blades for wood/plastic, 1 hex key for blade changing, 1 hex key for base plate adjustment, 1 set of operating instructions |
| Maintenance | Clean with dry cloth; replace saw blade when blunt; oil piston and guide roller every 30 minutes |
| Safety Notes | Hold only by insulated gripping surfaces; remove plug before adjustments; use ear protection |
| Warranty | 3 years |
| Spare Parts and Reparability | Saw blades replaceable; rip fence adjustable; other parts to be serviced by qualified personnel |
Frequently Asked Questions - PMST 100 B2 PARKSIDE
User questions about PMST 100 B2 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Jigsaw in PDF format for free! Find your manual PMST 100 B2 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PMST 100 B2 by PARKSIDE.
USER MANUAL PMST 100 B2 PARKSIDE
JIGSAW PMST 100 B2
GB
JIGSAW
Translation of the original instructions
DE AT CH
MODELLBAU-STICHSÄGE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB Translation of the original instructions Page 1
General Power Tool Safety Warnings 3
- Work area safety 3
- Electrical safety 3
- Personal safety 3
- Power tool use and care 4
- Service 4
Appliance-specific safety instructions for jigsaws 4
Original accessories/auxiliary equipment 5
Information on saw blades 5
Operation 5
Fitting/changing the saw blade 5
Fitting the rip fence 5
Handling 6
Setting the cutting angle 6
Switching the appliance on/off 6
Setting the stroke rate 6
Maintenance and cleaning 6
Kompernass Handels GmbH warranty 7
Service 8
Importer 8
Disposal 8
Translation of the original Conformity Declaration ....8
JIGSAW PMST 100 B2
Introduction
Congratulations on the purchase of your new appliance. You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).
Intended use
This appliance is suitable for straight and curved cutting as well as mitre cuts of up to 45^ on angular workpieces made of plastic, wood, acrylic glass, fibreglass sheets and non-ferrous metal. This appliance is exclusively intended for private use in dry indoor spaces. Observe the guidelines on saw blade types. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.
Features
① Speed control knob
② On/Off switch
3 Hanger
4 Power cord
5 Scale
6 Baseplate
⑦ Rip fence
8 Saw blade
9 Insertion openings (each incl. locking screw)
10 Guide roller
11 Piston with saw blade holder
12 Locking screw (clamp)
13 Locking screw (base plate)
14 Hex key (small)
15 Hex key (large)
A Metal housing
B Insulated gripping surface
Package contents
1 jigsaw
1 rip fence
2 saw blades for wood and plastic processing
1 Hex key for saw blade changing
1 Hex key for adjusting base plate
1 set of operating instructions
Technical data
Jigsaw: PMST 100 B2
Rated voltage: 230 V \~ 50 Hz (alternating current)
Rated power
consumption: 75 W (*S2 - 10 min)
No-load stroke rate
(continuously variable] _0 1000-4500 min ^-1
Cutting depth: Wood up to 12 mm Plastic up to 5 mm
Cutting angles: 45^/30^/15^/0^ left/right
Length: 230
Weight: approx. 900 g
Protection class: II / ☐ (double insulation)
*Short-term operation S2 with a constant loading duration of 10 minutes. Afterwards, you must take a break until the appliance temperature is within 2°C of room temperature.
Noise emission values:
Measured values for noise determined in accordance with EN 62841. The A-rated noise level of the power tool at the working location is typically as follows:
Sound pressure level: L_PA = 88.7 dB (A)
Uncertainty: K_PA = 3 dB
Sound power level: L_WA = 99.7 dB (A)
Uncertainty: K_WA= 3 dB
Wear ear protection!
Total vibration value:
Cutting boards: a_h,B = 7.424 m/s^2
Uncertainty K = 1.5 m/s²
Sawing of metal sheet: q_h,B = 8.602 m/s^2
Uncertainty K = 1.5 m/s²
NOTE
The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.
WARNING!
The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestimation of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General Power Tool Safety Warnings
WARNING!
▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
h) Do not weigh yourself in the wrong direction and do not ignore the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within seconds.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not allow safe operation and control of the power tool in unforeseen situations.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions for jigsaws
- Hold power tool by insulated gripping surfaces Ⓛnly, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Hold or touch the metal housing Ⓐs not allowed. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
■ Attach and secure the work piece by means of clamps or other means on a stable support. If you hold the workpiece only by hand or against your body, it remains unstable, which can lead to loss of control.
Original accessories/auxiliary equipment
■ Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.
Information on saw blades
The Parkside basic equipment includes saw blades principally for use with wood.
- 2 wood sawblades
NOTE
▶ You can use any saw blade provided it has a suitable mounting.
Saw blade type
suitable unsuitable
WARNING!
▶ Always remove the plug from the power socket before working on the appliance.
Fitting/changing the saw blade
◆ Undo the locking screw using the Hex key 14
Insert the saw blade 8 into the slot of the saw blade holder 11 The saw teeth facing forward.
ATTENTION!
■ The saw blade must sit in the groove of the guide roller 10
♦ Retighten the locking screw ^12 using the Hex key ^14
Fitting the rip fence
The rip fence 7 an be fixed on the left- or right-hand side of the appliance.
♦ Push the rip fence into the insertion openings.9.
♦ Screw both the locking screws on the insertion openings 9.
Set the desired cut width with the help of the scale on the rip fence 7 and the edge of the insertion opening 9 see also Fig. A).

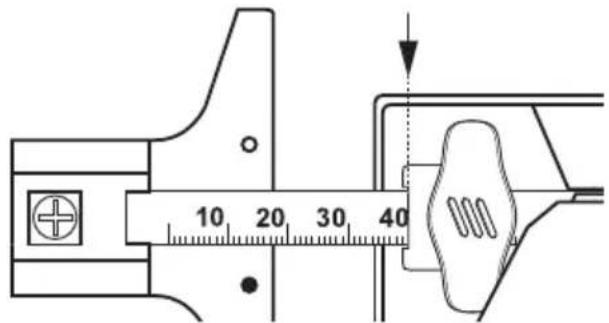

Fig. A: Cutting width 4 cm
♦ Tighten the two locking screws.
NOTE
▶ If you want to use the rip fence for curved cuts, insert a nail through the bottom hole, which is in line with the saw blade. Otherwise you get a wrong diameter.
Handling
Setting the cutting angle
◆ Undo the locking screw 13 using the Hex key 15.
Adjust the cutting angle to 0^/15^/30^/45^ with the aid of the markings on the scale ⑤.
◆ Retighten the locking screws 3 using the Hex key 15
NOTE
▶ If you want to set a cutting angle in combination with the rip fence, you need to remove the locking screw from the insertion opening ⑨ so you can tilt the appliance to the desired angle.
Switching the appliance on/off
Switching the appliance on:
- Set the ON/OFF switch ^2 to "I" to switch the appliance on.
Switching the appliance off:
Set the ON/OFF switch ^2 to "O" to switch the appliance off.
Setting the stroke rate
Use the speed control knob to set the required stroke rate.
■ Set a higher stroke rate and use a coarse-toothed blade for soft materials.
■ Set a lower stroke rate and use a fine-toothed blade for hard materials.
Maintenance and cleaning
NING! RISK OF INJURY! Switch the appliance off and remove the power plug before commencing any work to the appliance.
■ The appliance must always be kept clean, dry and free from oil or grease.
■ Use a soft, dry cloth to clean the housing.
■ Ensure that all ventilation slits are free of obstructions.
WARNING!
If the mains cord requires replacement, this should be carried out by the manufacturer or an approved representative to avoid safety hazards.
■ Replace the saw blad ^8 as soon as its teeth are blunt and proper sawing is therefore no longer possible. Only sharp and undamaged saw blades make an optimum cut and prevent your appliance from being overloaded.
■ Clean the appliance after completing your sawing work.
■ Remove any dirt (e.g. sawdust). Clean the saw blade holder, if necessary, with a brush or by blowing it out with compressed air.
■ Add a few drops of motor oil to the piston and the guide roller regularly (after approx. 30 minutes of runtime engine).
■ Pay attention to the short-term operation S2 of max. 10 minutes.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.
If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 286096
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
kaging is made from environmen- tally friendly material and can be disposed of at your local recycling plant.
dispose of power tools in your normal household waste!
European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.
Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, DE-44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive (2006/42/EC)
EMC (Electromagnetic Compatibility) (2014/30/EU)
RoHS Directive (2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Applied harmonised standards:
EN 62841-1:2015
EN 62841-2-11:2016
EN 55014-1: 2006 / A2: 2011
EN 55014-2: 2015
EN 61000-3-2: 2014
EN 61000-3-3:2013
Type designation of machine:
Jigsaw PMST 100 B2
Year of manufacture: 06 - 2017
Serial number: IAN 286096
Bochum, 30/05/2017
CE
Semi Uguzlu
- Quality Manager -
The right to effect technical changes in the context of further development is reserved.
Inhaltsverzeichnis
Einleitung 10
⚠️ WARNING!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Entsorgung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE - 44867 BOCHUM
GERMANY
www.kompernass.com
- JIGSAW PMST 100 B2
- JIGSAW
- MODELLBAU-STICHSÄGE
- General Power Tool Safety Warnings 3
- Operation 5
- Handling 6
- Maintenance and cleaning 6
- Kompernass Handels GmbH warranty 7
- Service 8
- Importer 8
- Disposal 8
- Translation of the original Conformity Declaration ....8
- Introduction
- Intended use
- Features
- Package contents
- Technical data
- Jigsaw: PMST 100 B2
- Noise emission values:
- Wear ear protection!
- Total vibration value:
- NOTE
- WARNING!
- General Power Tool Safety Warnings
- Save all warnings and instructions for future reference.
- Work area safety
- Electrical safety
- Personal safety
- Power tool use and care
- Service
- Appliance-specific safety instructions for jigsaws
- Original accessories/auxiliary equipment
- Information on saw blades
- Saw blade type
- Operation
- Fitting/changing the saw blade
- ATTENTION!
- Fitting the rip fence
- Handling
- Setting the cutting angle
- Switching the appliance on/off
- Switching the appliance on:
- Switching the appliance off:
- Setting the stroke rate
- Maintenance and cleaning
- Warranty conditions
- Warranty period and statutory claims for defects
- Scope of the warranty
- Warranty claim procedure
- Service
- Importer
- Disposal
- Translation of the original Conformity Declaration
- Applied harmonised standards:
- Inhaltsverzeichnis
- Einleitung 10
- Inbetriebnahme
- ⚠️ WARNING!
- Entsorgung
Brand : PARKSIDE
Model : PMST 100 B2
Category : Jigsaw
