USER MANUAL STV 50 I1 SILVERCREST

Operating instructions and safety instructions

NL BE

TORENVENTILATOR

Last Information Update

Oriental conductivity Alkaline an aldehyde solution

Akratuate na zukode najrovačen morrde Aktivačin na aktiće jevaných projekté

https://www.targa.gmbh/downloads/conformity/472097_2407.pdf

1. Intended use....19
2. Package contents....19
3. Overview ...... 20
4. Technical specifications....20
   4.1 Information requirements....21
5. Safety instructions....21
6. Copyright....25
7. Before you start....25
   7.1 Unpacking....25
   7.2 Assembly 25
8. Getting started....27
   8.1 Switching the fan on and off....27
   8.2 Adjusting the fan speed....27
   8.3 Setting the TIMER....27
   8.4 Oscillation 28
9. Maintenance/cleaning 28
10. Storage when not in use ....28
11. Environmental regulations and disposal information....29
12. Conformity notes ....30
13. Warranty and Service Information....30

Congratulations!

By purchasing the SilverCrest STV 50 11 tower fan, hereinafter referred to as the fan, you have opted for a quality product.

Before first using it, familiarise yourself with the way the fan works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the fan as described in the operating instructions and for the applications given.

Keep these operating instructions in a safe place. If you pass the fan on to someone else, make sure to give them all the relevant documents with them.

1. Intended use

This fan has been designed for providing a cool air circulation. This fan may not be used outdoors or in tropical climates. This fan has not been designed for corporate or commercial use. Use the fan in domestic environments for private applications only. Any other use does not correspond to the intended use. This fan fulfils all relevant norms and standards concerning CE conformity. Any modifications to the fan other than recommended changes by the manufacturer may result in these norms no longer being met. The manufacturer accepts no liability for any damage or malfunctions resulting from this. Only use accessories recommended by the manufacturer.

Observe the regulations and laws in the country of use.

2. Package contents

• SilverCrest STV 50 l1 tower fan
- 2-piece stand
- Quick guide (complete operating instructions available online)

3. Overview

These operating instructions have a fold-out cover. On the inside of the cover is a diagram of the fan with the components numbered. The meanings of the numbers are as follows:

1	Tower fan
2	Rotary switch (switch on/off / set the timer)
3	button (oscillation movement)
4	Button 3 - high fan speed
5	Button 2 - medium fan speed
6	Button 1 - low fan speed
7	OFF button - switch off
8	Stand (consisting of pieces number 9 and 10)
9	Front half of stand
10	Back half of stand
11	Power cable recess
12	Cable guides
13	Power cable
14	Locking catches
15	Cord wrap (on the back)

4. Technical specifications

Input voltage	220 V to 240 V~ (AC), 50 Hz
Power consumption 50W
Protection class II

The technical data and design may be changed without prior notice.

4.1 Information requirements

Information to identify the model(s) to which the information relates to: SilverCrest STV 50 I1, IAN 472097_2407
Name	Symbol	Value
Maximum fan flow rate F 22.2	m		^3 /min
Fan power input P 42.5 W
Service value SV 0.5 (m			^3 /min)/W
Standby power consumption P	SB	0.43	W
Fan sound pressure level L	WA	58.0	dB(A)
Maximum air velocity c 2.2 m/s
Seasonal power consumption Q		16.5 kWh/a
Measurement standard for service value	EN IEC 60879:2019
Contact address for further information	TARGA GmbH, Coesterweg 45, 59494 Soest, GERMANY

5. Safety instructions

Before you use this fan for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the fan or give them away, pass on the operating instructions at the same time.

DANGER! This signal word indicates a danger with a high risk, which will lead to death or major injuries if not avoided.

WARNING! This signal word indicates a danger with a moderate risk, which can lead to death or major injuries if not avoided.

CAUTION! This signal word indicates important instructions to protect against damage to property.

This symbol denotes further information on the topic.

AC voltage

Protection Class II

Manufacturer's address

DANGER! Personal safety

This fan may be used by children of 8 years or over or by persons with physical, sensory or mental impairments or those with no knowledge or experience, providing they are supervised or they have been given instructions on the proper use of the fan and they understand the associated risks. Do not allow children to play with the fan. The product must not be cleaned or maintained by unsupervised children. Keep the packaging materials out of the reach of children. There is a risk of suffocation.

DANGER! Risk of electric shock!

• Protect the product against moisture and humidity and drips or sprays of water. Never immerse in water or other liquids!
• If liquid does penetrate into the device, disconnect the mains plug immediately. Get the product checked by an expert before using it again.

- Never operate the product with wet or damp hands.

- Do not touch the product if it is in water or another liquid, instead, pull the plug from the power socket.

- Do not use the product if the power plug or the power cable is damaged, if it does not work properly, if it has fallen into water, been dropped, or if it showing any other signs of damage. In this case, please consult an expert to repair the product.

- Only connect the power cable to a properly installed, easily accessible power socket whose mains voltage corresponds to that in the "Technical specifications" chapter. The power socket must also be easily accessible after connecting.

- Make sure that the power cable cannot be damaged by sharp edges or hot spots.

- When using the product, make sure that the power cable is not jammed or squashed in any way.

- Even when switched off, the product is not entirely disconnected from the mains power. Pull the power plug to disconnect it completely. Always pull on the power plug, not the cable.

- Unplug the power plug from the power socket:

○ if a problem occurs,
○ if you are not using the product,
o for installation,
- before cleaning the product and
○ if there is a thunderstorm.

• Never try to repair the product yourself. In the event of a problem, switch off the product, unplug the power plug and contact our customer service.
• If the power cable of this product is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person, in order to avoid any possible danger.

WARNING! Risk of injury!

• Do not insert any finger or any objects into the product while it is switched on.
• Do not use the product near explosive or flammable materials.
• Keep your hair, clothing and other objects away of the protective grille when switched on.
• Do not move the product while it is in use.

CAUTION! Damage to equipment!

• This product is not intended for operation with an external clock timer or separate remote control system.
• Never put the product on a hot surface (e.g. a hob) or near heat sources or open fires.
• Only use original accessories.
• Do not hang or wall-mount this product.

• Only operate the product on an even and stable surface.

• Never use the product near flammable materials, such as curtains. Maintain a clearance of at least 50 cm around the product to flammable and combustible materials.

• Do not expose the fan to any direct heat sources (e.g. heaters), direct sunlight or artificial light. The product must not be exposed to spray or dripping water or abrasive liquids. Do not use the product near water. It is especially important that the product is never immersed (do not place any containers containing liquids such as drinks, vases, etc. on the product).
• Make sure that the product is not subject to excessive shocks or vibrations. Do not introduce any foreign bodies into the device.

6. Copyright

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

7. Before you start

7.1 Unpacking

• Remove the product from the packaging.
• Remove all package material.
• Check the packaging for any missing contents. Please contact Customer Service immediately if any items are missing.

7.2 Assembly

Figure A:

Join the front (9) and back (10) half parts of the stand (8).

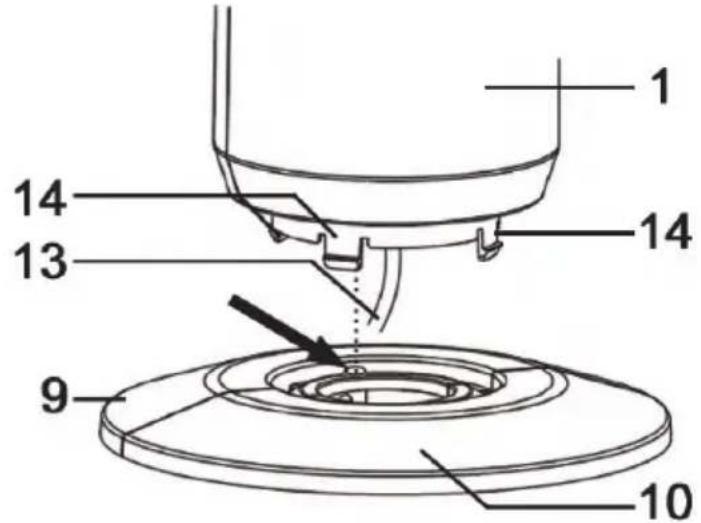

Figure B:

A practical way to mount the stand (8) is to place the tower fan (1) on a horizontal surface (e.g. table) and mount the stand (8) from the side. This procedure facilitates the passage of the mains cable (13) and the guidance of the locking catches (14) into the recesses provided.

Be sure to place a blanket or similar cushioning material between the shelf and the tower fan (1) to protect it from scratches during assembly.

First guide the power cable (13) through the stand (8). Then align the stand (8) so with the tower fan (1) that the 4 locking catches (14) fit into the corresponding slots on the stand (8). In addition, the plastic lug on the bottom of the tower fan (1) must engage in the recess (arrow) on the front half (9) of the stand (8). Next apply some pressure onto the stand (8) so you can hear the locking catches (14) click in place.

1 14 13 14 9 10

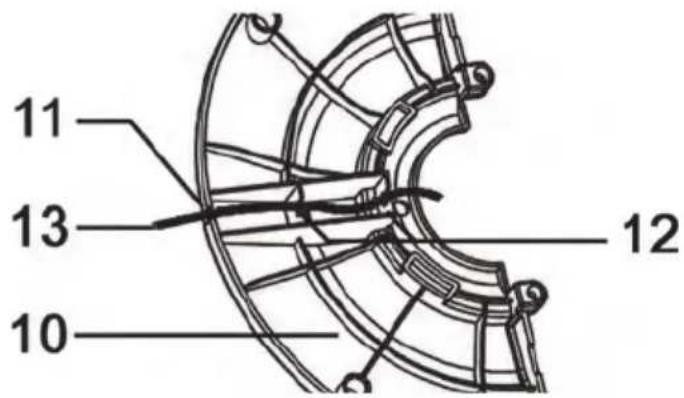

- Always lay the power cord (13) under the stand (8), as shown in the following diagram:

11 13 12 10

8. Getting started

8.1 Switching the fan on and off

Proceed as follows to getting started using the fan:

• Select a location according to the safety instructions.
• Operate the fan on a flat, stable surface.
• Insert the power plug into a properly installed power socket.

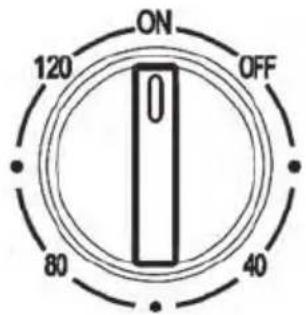

• To switch the device on, turn the rotary switch (2) to ON.

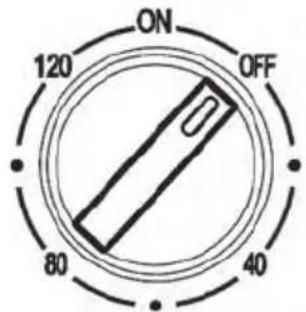

- To switch the device off, turn the rotary switch (2) to OFF.

ON 120 OFF 80 40

ON 120 OFF 80 40

8.2 Adjusting the fan speed

• Low fan speed: Press button 1 (6) until it locks.
• Medium fan speed: Press button 2 (5) until it locks.
• High fan speed: Press button 3 (4) until it locks.
• To stop the air circulation, press the OFF button (7).

8.3 Setting the TIMER

You can use the TIMER to program a runtime between 0 and 120 minutes.

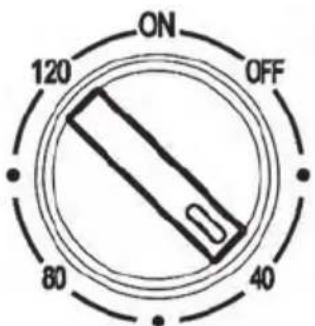

• To switch the TIMER on, turn the rotary switch (2) to a position between 0 and 120 minutes. The device switches on.
• Please note that an exact setting to the minutes it is not possible.
• To switch the TIMER off, turn the rotary switch (2) to OFF.

ON 120 OFF 80 40

8.4 Oscillation

You can get the fan to make horizontal movements (oscillations):

• Press the 🎨 button (3) to the lower position to switch oscillation on.
• Press the 🎨 button (3) again to switch oscillation off. The 🎨 button (3) toggles back to the upper position.

9. Maintenance/cleaning

DANGER! Risk of electric shock!

• Unplug the fan from the mains before cleaning it.
• Never immerse the fan in water for cleaning.
• Do not put water or detergent directly into the fan.

Repairs are required if the fan has been damaged in any way, for example if the device housing is damaged, when liquids or objects have penetrated into the fan or when the product has been exposed to rain or moisture. Servicing is also necessary when the product does not perform normally or if it has been dropped. If smoke, unusual noises or smells are noticed, disconnect the fan from the mains immediately. If this occurs, the fan should no longer be used until it has been inspected by authorised service personnel. All servicing work must be carried out by qualified specialist personnel. Never open the housing of the fan.

• You can remove major dust portions with a vacuum cleaner.
- Only use a clean, slightly dampened cloth to clean the fan. Never use any aggressive liquids.
• For stubborn dirt, add a little detergent to the damp cloth.
• If necessary, you can also clean the protective grille with a soft brush.

10. Storage when not in use

If you do not use the tower fan (1) for an extended period, clean it and wind the power cable (13) around the cord wrap (15). Insert the pins on the plug of the power cable (13) into the corresponding holes of the cord wrap (15) and store the tower fan (1) in a safe and dust-free place.

11. Environmental regulations and disposal information

	Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid damage to the environment and risks to your personal health by disposing of the device properly. For further information about proper disposal, contact your local government, disposal bodies or the shop where you bought the device.
	Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.
ES/PT
Only relevant for Spain and Portugal:Please separate the packaging material and dispose of it in the relevant collection containers according to the symbols on the packaging:
Only relevant for France:Points de collecte sur www.quefairedemesdechets.frPrivilégiez la réparation ou le don de votre appareil!“Sorting made easy”The product, the accessories, the printed material and the packaging are recyclable. They are subject to enhanced manufacturer responsibility and are sorted and collected separately.

"Sorting made easy"

	Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:1-7: plastic / 20–22: paper and cardboard / 80-98: composite materials.
Symbol Material Contained in the following packaging elements for this product
	Corrugated cardboard	Sales packaging
	Paper Tissue paper to	protect the product

12. Conformity notes

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.

The product complies with the requirements of the applicable national directives of the Republic of Serbia.

The complete EU Declaration of Conformity is available for download from this link:

https://www.targa.gmbh/downloads/conformity/472097 2407.pdf

Contact address in accordance with 2023/988 Product Safety Regulation: [e-mail]

13. Warranty and Service Information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

- You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to the LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) to access your operating manual.

PDF ONLINE www.lidl-service.com

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 472097_2407

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA GmbH

Coesterweg 45

59494 Soest

GERMANY
