USER MANUAL MBH-37 Brondell

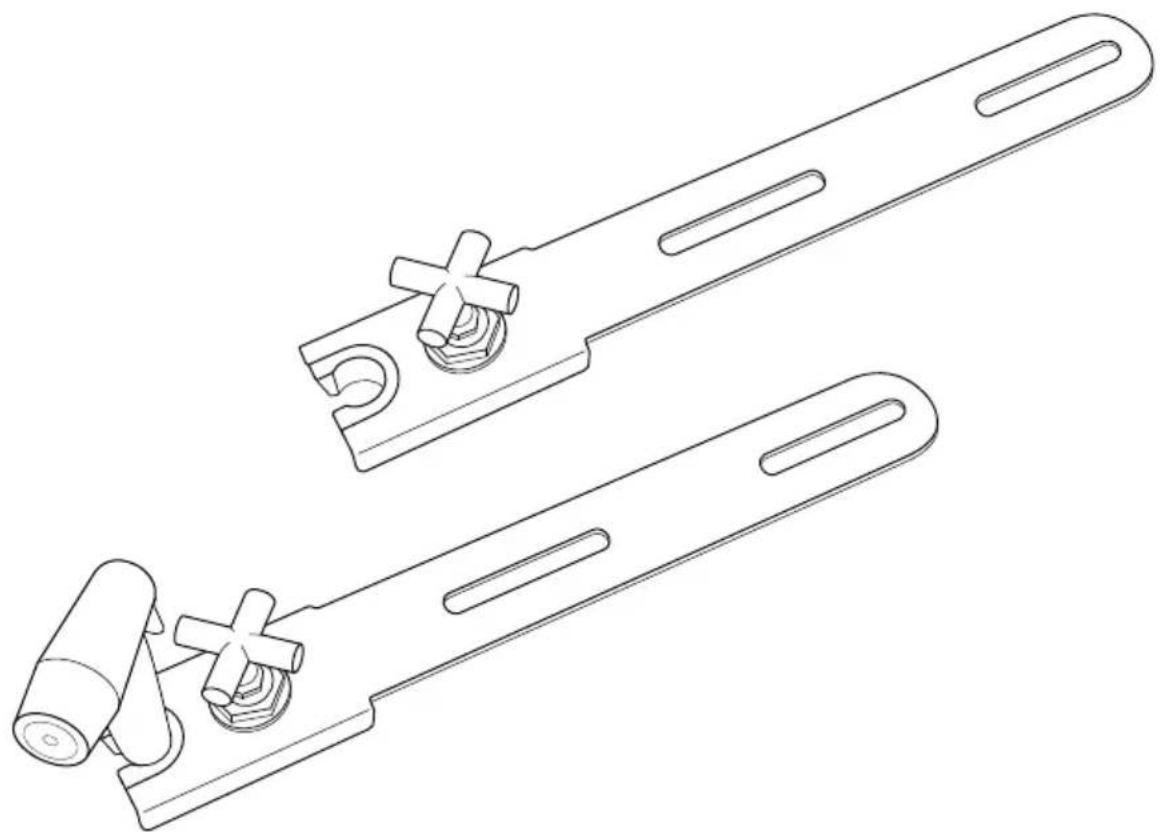

Hand-Held Bidet Holster with Integrated Shut Off

BIDET SPRAYER ACCESSORY MODELS MBH-10/MBH-37/MBH-40

Technical line drawing of two mechanical clamps with cross-shaped fittings (no text or symbols)

Table of Contents

This manual contains important safety information.

Before operating your Hand-Held Bidet Holster with

Integrated Shut Off, please read this manual thoroughly

and retain it for future reference.

GENERAL INFORMATION

01 PRODUCT INFORMATION

01 Product Features

02 Product Dimensions

03 Product Parts

TECHNICAL INFORMATION

08 MAINTENANCE

09 PRODUCT SPECIFICATIONS

10 WARRANTY

11 CONTACT

PRODUCT INSTALLATION

04 PRODUCT INSTALLATION

04 Before Installation

05 Installation

TRANSLATIONS

01 ENGLISH

12 SPANISH

24 FRENCH

PRODUCT OPERATION

07 PRODUCT OPERATION

07 Using the Hand-Held Bidet Holster with Integrated Shut Off

PRODUCT INFORMATION

Product Features

Polished Stainless Steel Hand-Held Bidet Sprayer Mount

Integrated Chrome Water Shut Off Handle

Universal Hand-Held Sprayer Holster Works With Any Sprayer

High-Quality Metal 7/8" T-Valve

Durable Braided Metal Cold Water Hose

No Electricity Or Batteries Required

Easy Installation And Adjustable Toilet Fit

One-Year Warranty

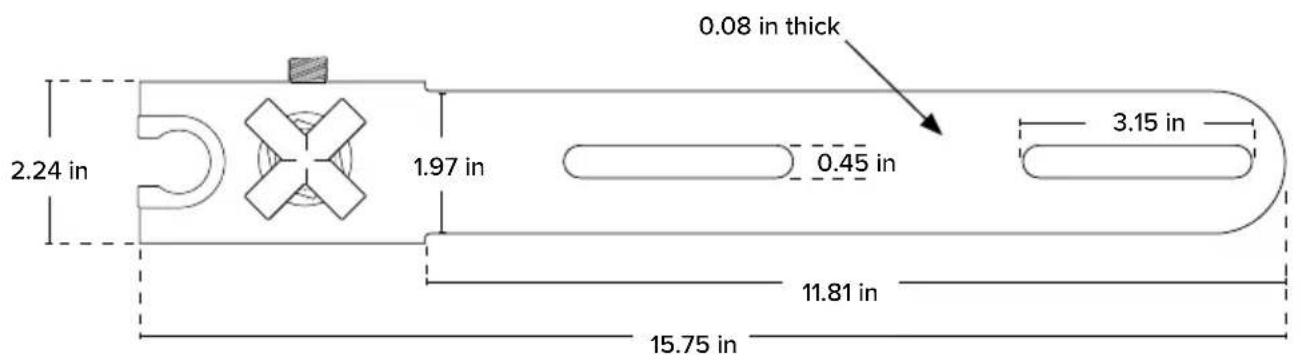

2.24 in 1.97 in 0.08 in thick 0.45 in 3.15 in 11.81 in 15.75 in

1. Stainless Steel Mount

2. Cold Water Braided Metal Hose

3. Large Rubber Washer (1)

4. Cold Water T-Valve Connector (7/8" x 7/8" x 3/8")

Technical line drawing of a mechanical clamp or tool with a handle and base (no text or symbols)

Diagram of a U-shaped pipe with mesh texture and two end caps, no text or symbols present

Technical line drawing of a mechanical valve or fitting with threaded end and flange (no text or symbols)

MBH-37/MBH-40 Only

1. Sprayer Head
2. Metal Sprayer Hose ( 12 " X 12 ")

Simple line drawing of a handheld hairdryer (no text or symbols)

Simple U-shaped pipe diagram with two flanged ends and a circular label '2' in the top-left corner (no text or symbols on the pipe itself)

PRODUCT INSTALLATION

Before Installation

You must have a CleanSpa hand-held bidet or equivalent product with a 12 " connection sprayer hose in order to install the Hand-Held Bidet Holster with Integrated Shut Off.

IMPORTANT

Please be advised that the provided cold water T-valve should be installed at the fill valve under the toilet tank, NOT at the cold water supply coming from the wall.

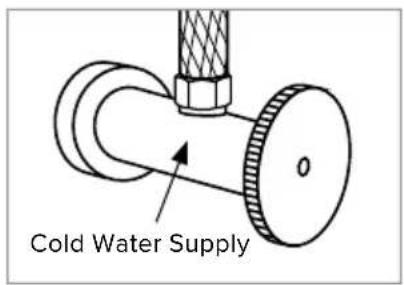

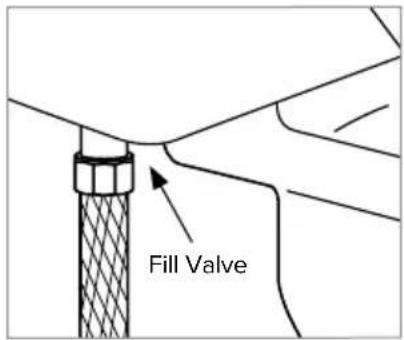

Check Water Supply Line

If the pipe that connects the toilet tank fill valve to the water shutoff valve at the wall is rigid, you will need to purchase a flexible water supply hose to replace it before installing the Hand-Held Bidet Holster with Integrated Shut Off. The length of the hose may vary and the top connection size should be 78 " ballcock to connect to the T-valve that you will install under the toilet tank and the bottom connection will vary (most common are 38 " and 12 " female compression).

Cold Water Supply

INCORRECT

Fill Valve

CORRECT

Installation

Please read these instructions carefully before installing your Hand-Held Bidet Holster with Integrated Shut Off. Failure to do so could result in flooding, leaking or damage to the product.

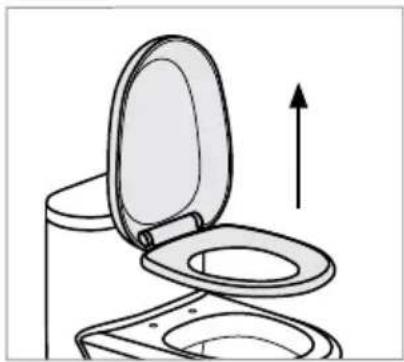

1. Existing Toilet Seat Removal

a. Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen mounting bolts underneath the seat.
b. Remove the toilet seat and set the seat, mounting bolts and hardware aside.

1. Turn Off Water Supply Valve and Flush Toilet

a. Turn water supply valve off to stop the flow of water.
b. Flush toilet and hold down handle to completely empty tank.
c. Disconnect water supply hose from toilet tank. Do not disconnect from the water supply valve.
d. If you have a hand-held bidet sprayer already connected to your toilet tank, remove the existing T-valve and hand-held bidet sprayer connection hose.

1. Connect Cold Water T-Valve to the Toilet Tank Fill Valve

a. Install the included 78 " cold water T-valve with the large rubber washer provided to the incoming water connection on the bottom of your toilet tank.
b. Connect the cold water supply line coming from the wall to the bottom of the T-valve.

1. Connect Cold Water Hose to T-Valve

Connect one end of the Cold Water Braided Metal Hose to the remaining open side of the installed T-valve.

Line drawing of a toilet with an open lid and upward arrow indicating motion (no text or symbols)

Step 1b

Simple line drawing of a pipe fitting with a valve and rotating arrow (no text or symbols)

Step 2c

Diagram of a mechanical valve assembly with a curved line and directional arrow (no text or symbols)

Step 3a

Diagram showing a mechanical component with a threaded end and a rotating shaft, labeled 'Step 3b' (no text or symbols on the diagram itself)

Pure diagram of a pipe connection with a curved pipe and valve (no text or symbols)

Step 4

Installation

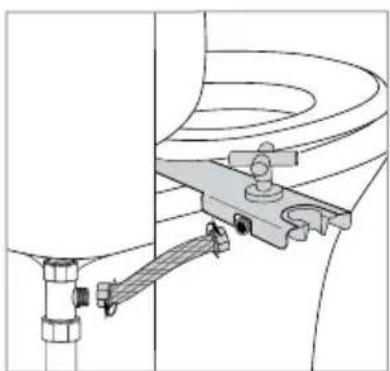

Installing the Hand-Held Bidet Holster

1. Install Hand-Held Bidet Holster on Toilet

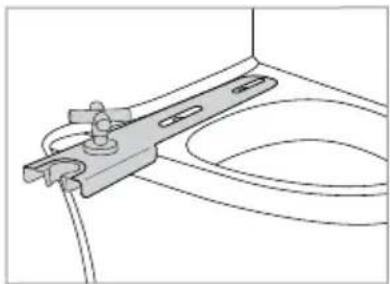

a. Place Hand-Held Bidet Holster on the toilet so the mounting slots line up with the holes in the toilet fixture.

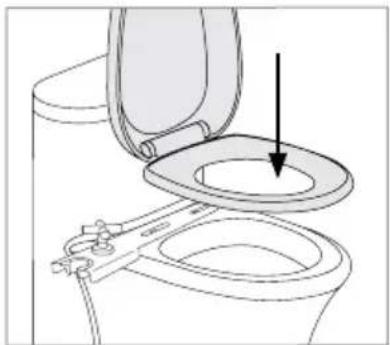

b. Replace the toilet seat on top of Hand-Held Bidet Holster and secure using original toilet seat hardware. Make sure to tighten so that the holster and seat do not move.

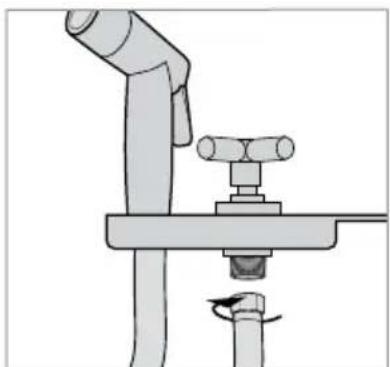

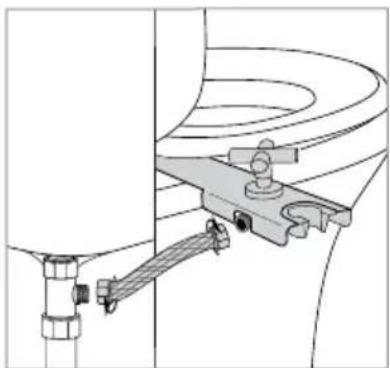

1. Connect Cold Water Hose to Hand-Held Bidet Holster Attach the open end of the Cold Water Braided Metal Bidet Hose to the incoming water connection on the side of the holster.
2. Connect Hand-Held Bidet Sprayer to Holster

a. Connect your hand-held bidet sprayer to the sprayer hose.

b. Connect the open end of the sprayer hose to the 12 " connection at the bottom of the holster.

c. Place the hand-held bidet sprayer in the holster slot.

1. Turn on Water Supply & Check for Leaks

a. Open the main water supply valve slowly and check for leaks.
b. Wait 5-10 minutes, check again, and if there are no leaks, continue.

NOTE: If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use plumbers tape for any leaking connections.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Step 1a

Line drawing of a toilet with an open lid and outlet, showing a downward arrow indicating a component (no text or symbols present)

Step 1b

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 2

Mechanical assembly diagram showing a pipe joint with a valve and rotating component (no text or symbols)

Step 3b

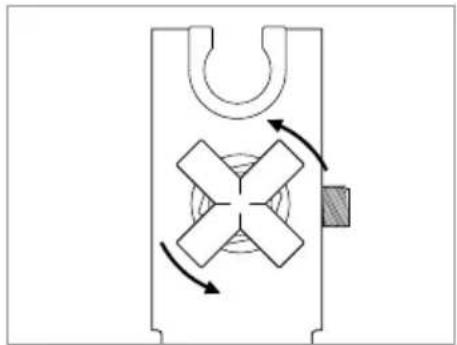

Using the Hand-Held Bidet Holster with Integrated Shut Off

WARNING: The faucet handle must be turned off after each use. Failure to turn off after each use may cause flooding and water damage.

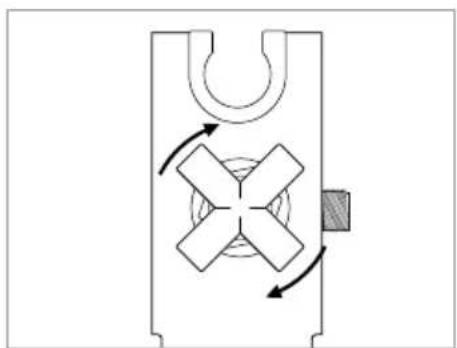

To engage your hand-held bidet, turn on the integrated shut off faucet handle located on the metal holster.

Remove the sprayer from the holster and use in normal fashion.

When finished, replace the sprayer in the holster and turn off the integrated shut off faucet handle.

Pure mechanical diagram showing a U-shaped component with four cross-shaped components and rotational arrows, no text or symbols present.

On

Pure mechanical diagram showing a U-shaped component with four cross-shaped components and rotational arrows, no text or symbols present.

Off

TECHNICAL INFORMATION

Maintenance

To clean the Hand-Held Bidet Holster with Integrated Shut Off, use a mild cleaner such as Simple Green or Windex spray. Do not scrub or use harsh, abrasive products to clean the Hand-Held Bidet Holster with Integrated Shut Off, which may scratch the product.

Short Term Non-Use

If the product will not be used for more than a few weeks, you may consider shutting the water supply off at the wall as an additional precaution.

HAND-HELD BIDET HOLSTER WITH INTEGRATED SHUT OFF

Models	MBH-10, MBH-37, MBH-40
Supply Water Pressure	20 psi–100 psi / 0.14 MPa–0.69 MPa
Incoming Water Temperature Range	32 °F–158 °F / 0 °C–70 °C
Product Dimension	15.75 in x 2.24 in / 40 cm x 6 cm
Product Thickness	0.08 in / 0.2 cm
Product Weight	MBH-10: 1.14 lb / 0.7 kgMBH-37: 2.23 lb / 1.02 kgMBH-40: 2.29 lb / 1.04 kg

NOTE: The specifications listed above are subject to change without prior notice for reasons of improving the product performance.

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

MBH-10/MBH-37/MBH-40 RESIDENTIAL ONE-YEAR LIMITED WARRANTY

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase.

Warranty period 1 year from original purchase date for all Brondell products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

EXCLUSIONS AND LIMITATIONS

1. Brondell warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. Brondell's obligations under this warranty are limited to repairs or replacement, at Brondell's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. Brondell reserves the right to make such inspections as may be necessary in order to determine the cause of the defect.
3. Brondell is not responsible for the cost of removal, return (shipping) and/or re-installation of products.

This warranty does NOT apply to:

• Damage or loss which occurs during shipment.
• Damage or loss sustained through any natural or man-made causes beyond the control of Brondell, including but not limited to fire, earthquake, floods, etc.
• Damage or loss resulting from sediments or foreign matter contained in a water system.
• Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.

• Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products.

• This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

HOW TO OBTAIN SERVICE

To obtain repair service under this warranty, you must contact an authorized Brondell Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit prepaid to the closest Brondell authorized service center along with the RMA number and proof of purchase. To obtain the RMA number and locate the Brondell Service Center location nearest you, please call 1-888-542-3355, Mon–Fri, 9am–5pm PST.

brondell®

a healthy home experience

CONTACT:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Email: [e-mail]

Web: www.brondell.com

For questions, contact

Brondell Customer Service:

1-888-542-3355

Monday – Friday

9am – 5pm PST

MANUFACTURED BY:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Made in China

Please retain receipt records for any warranty claims.

Indices

Technical line drawing of a mechanical clamp or bracket with a handle and mounting base (no text or symbols)

Diagram of a U-shaped pipe with mesh pattern and two end caps, no text or symbols present

Technical line drawing of a mechanical valve or fitting with threaded end and flange (no text or symbols)

Simple line drawing of a handheld hairdryer (no text or symbols)

Simple line drawing of a U-shaped pipe with two flanged ends (no text or symbols)

Line drawing of a toilet with an open lid and upward arrow indicating motion (no text or symbols)

Paso 1b

Diagram of a pipe fitting with a valve and rotating arrow (no text or symbols)

Paso 2c

Paso 3a

Diagram showing a pipe fitting with a valve and a rotating component, labeled 'Paso 3b' (no text or symbols on the diagram itself)

Pure diagram of a pipe connection with a curved pipe and valve (no text or symbols)

Paso 4

Instalación

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Paso 1a

Line drawing of a toilet with an open lid and outlet, showing a downward arrow indicating a component (no text or symbols present)

Paso 1b

Technical line drawing of a mechanical assembly with no visible text or symbols

Paso 2

Mechanical assembly diagram showing a lever and pivot mechanism (no text or symbols)

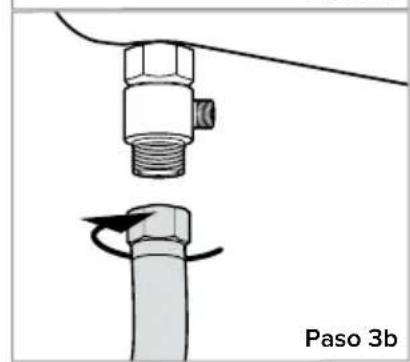

Paso 3b

Uso de Hand-Held Bidet Holster with Integrated Shut Off

Pure mechanical diagram showing a U-shaped component with four cross-shaped components and rotational arrows, no text or symbols present.

Abierto

Pure mechanical diagram showing a U-shaped component with four cross-shaped components and directional arrows, no text or symbols present.

Cerrado

INFORMACIÓN TÉCNICA

Mantenimiento

HAND-HELD BIDET HOLSTER WITH INTEGRATED SHUT OFF

a healthy home experience

CONTACTAR:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Email: [e-mail]

Web: www.brondell.com

INSTALLATION DU PRODUIT

28 INSTALLATION DU PRODUIT
28 Avant l'installation
29 Installation

TRADUCTIONS

01 ANGLAIS
12 ESPAGNOL

UTILISATION DU PRODUIT

31 UTILISATION DU PRODUIT
31 Utilisation du Hand-Held Bidet Holster with Integrated Shut Off

INFORMATIONS SUR LE PRODUIT

Technical line drawing of a mechanical clamp or bracket with no visible text or symbols

Diagram of a U-shaped pipe with two connectors and a circular label marked '2' (no text or symbols on the pipe itself)

Technical line drawing of a mechanical valve or fitting with threaded end and flange (no text or symbols)

MBH-37/MBH-40 uniquement

1. Douchette-bidet portative
2. Tuyau de douchette métallique ( 12 po x 12 po)

Simple line drawing of a handheld hairdryer (no text or symbols)

Simple line drawing of a U-shaped pipe with two flanged ends (no text or symbols)

INSTALLATION DU PRODUIT

Line drawing of a toilet with an open lid and upward arrow indicating motion (no text or symbols)

Étape 1b

Simple line drawing of a pipe fitting with a valve and rotating arrow (no text or symbols)

Étape 2c

Diagram of a mechanical valve assembly with a curved line and directional arrow (no text or symbols)

Étape 3a

Étape 3b

Pure diagram of a pipe connection with a curved pipe and valve (no text or symbols)

Étape 4

Installation

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Étape 1a

Line drawing of a toilet with an open lid and outlet, showing a downward arrow indicating a component (no text or symbols present)

Étape 1b

Technical line drawing of a mechanical assembly with no visible text or symbols

Étape 2

Mechanical assembly diagram showing a pipe joint with a valve and rotating component (no text or symbols)

Étape 3b

UTILISATION DU PRODUIT

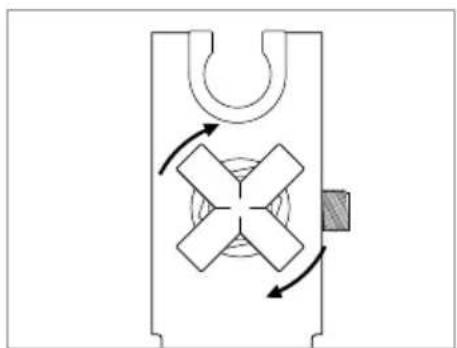

Utilisation du Hand-Held Bidet Holster with Integrated Shut Off
