USER MANUAL Pure ONE A90S TINECO

Stick Vacuum Cleaner

Instruction Manual

Manual De Uso

Mode D'emploi

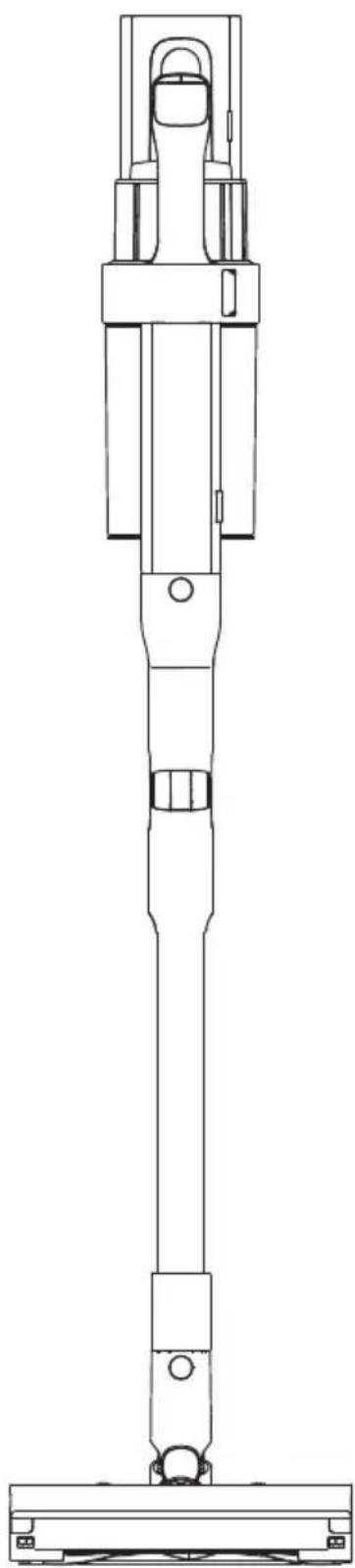

Technical line drawing of a vertical mechanical device with mounting base (no text or symbols)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications 5

Overview....6

Accessories....8

Assembly 9

Operation 10

Maintenance 14

Troubleshooting....17

Warranty 18

HOUSEHOLD USE ONLY

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. For INDOOR use ONLY. Do not use the appliance in outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not block openings. Stop use if openings become blocked. Clean and remove any blocked objects according to the manual instructions.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without dust container and filter.
14. Prevent unintentional activation. Ensure the switch is in the off position before charging, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents.

15. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

16. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

17. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
18. Do not use the appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
19. Do not expose the appliance to fire or excessive heat. Exposure to fire or temperatures above 266^ F ( 130^ C) may cause an explosion.
20. Follow all charging instructions and do not charge the appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
21. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
22. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
23. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
24. Do not charge or store the appliance outdoors or inside a car. Only charge, store or use the appliance in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.
25. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
26. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
27. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
28. Use supply unit to charge Tineco battery ZB2481-7S1P-01B only.
29. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
30. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
31. Unplug from outlet when not in use and before servicing.

SAVE THESE INSTRUCTIONS

For Both FCC & IC application:

This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

FCC Supplier's Declaration of Conformity

Tineco PURE ONE A90S

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation.

Tineco INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Specifications

Product PURE ONE A90S
Voltage 25.2V	==
Rated Power 650W
Dustbin Capacity 0.8L
AC Input 100-240V~

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Batteries, chargers, accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil. Do not dispose of batteries and chargers into household waste! 📋
• If battery leakage contacts skin or clothing, immediately flush with water to avoid irritation and seek medical help.

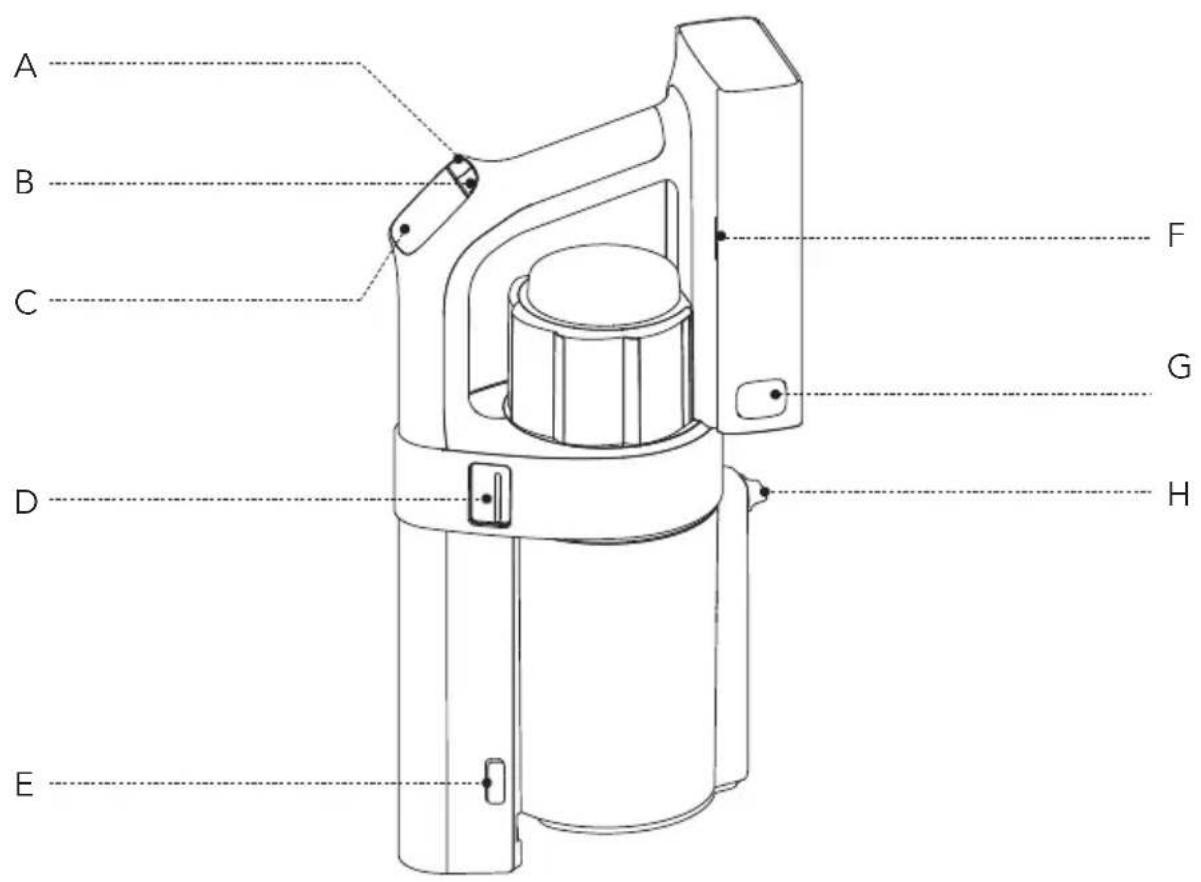

Overview

Z

A B C D E F G H

A. Mode Switch
B. Power On/Off
C. Digital Display
D. Large/Small Particle Switch

E. Dustbin Release Button
F. Battery Indicator Light
G. Battery Release Button
H. Dust Empty Release

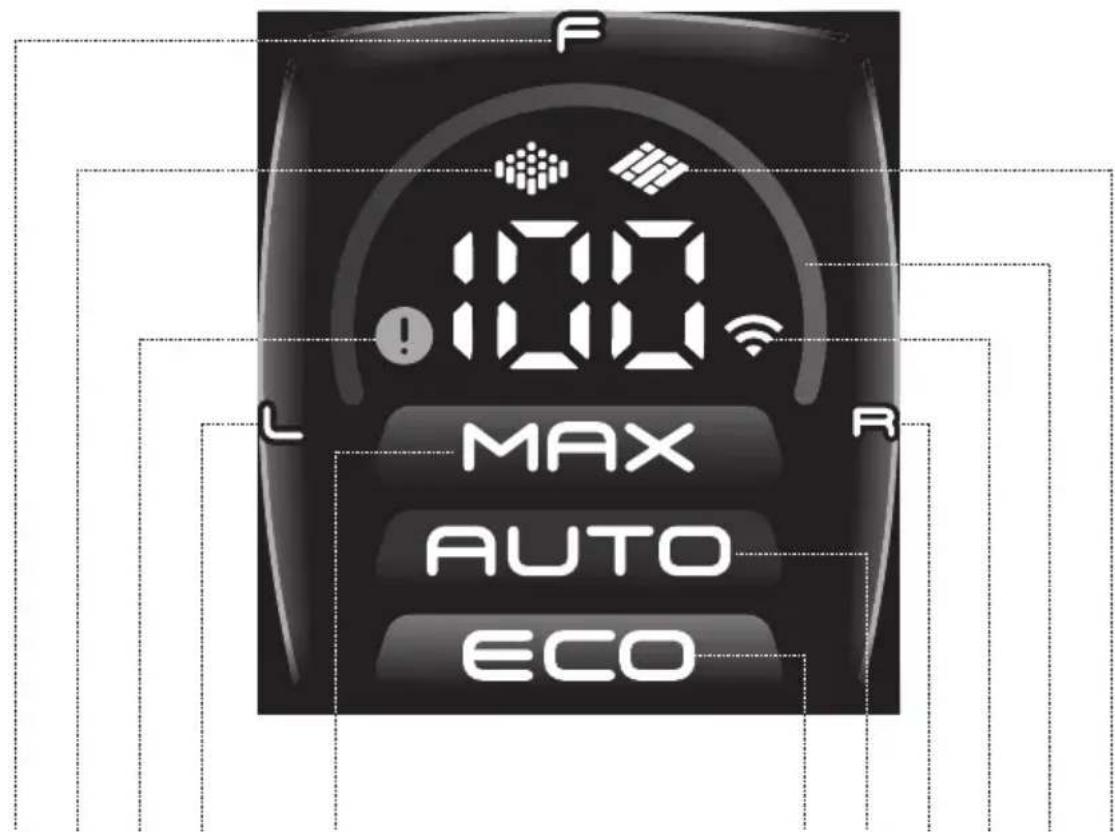

Digital Display

MAX AUTO ECO

ABCDFGHIJKE

A. Front Edge Cleaning
B. Carpet
C. Malfunction Indicator
D. Left Edge Cleaning
E. MAX Mode
F. ECO Mode

G. AUTO Mode

J. Dirt Monitoring Loop (Blue to red according to the dirt amount)

K. Hard Floor

Accessories

Note:

• Test an accessory on a small, inconspicuous area before use on sensitive surfaces.
• To identify what should be included with your purchase, please refer to the packaging box.
• As shown below, there are many components compatible with this model. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Technical line drawing of a mechanical component with no visible text or symbols

3DSense Master

Smart Floor Brush with edge detection, wide brush opening, floor-type sensing, and green light dust reveal for optimal cleaning.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Mini Power Brush

For vacuuming upholstered furniture, mattresses etc. Vacuums pet hair and removes ingrained dirt.

Line drawing of a mechanical tool or connector (no text or symbols)

FlexiSoft Nozzle

The ideal cleaning tool for screens and mirrors. Its ultra-soft microfiber gently removes dust without scratching delicate surfaces. Features 180° vertical and 360° horizontal rotation for multi-angle cleaning.

Technical line drawing of a mechanical tool with no visible text or symbols

2-in-1 Crevice Dusting Tool

The slimline crevice tool is ideal for tight spots, corners and crevices, while the brush is ideal for cleaning above the floor surfaces.

Assembly

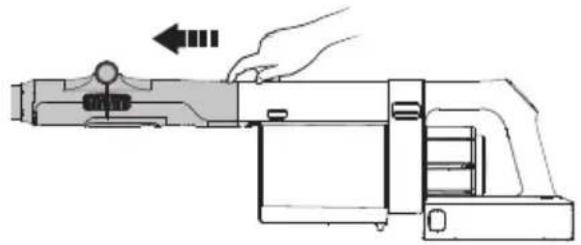

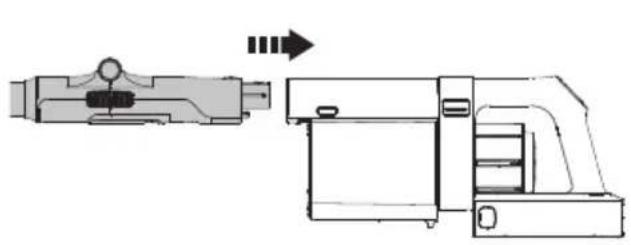

Tube Installation

Technical line drawing of a mechanical assembly with an arrow indicating motion (no text or symbols present)

Technical line drawing of a precision measuring instrument with hand and control panel (no text or symbols)

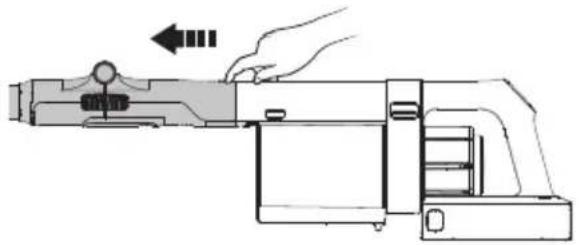

Insert to the main body. Press the release button to remove the tube.

Brush Installation

Pure mechanical assembly diagram showing a lever and shaft without any text, numbers, or symbols

Hand holding a mechanical component with a directional arrow indicating motion (no text or symbols)

Insert the power brush. Press the release button to remove the power brush.

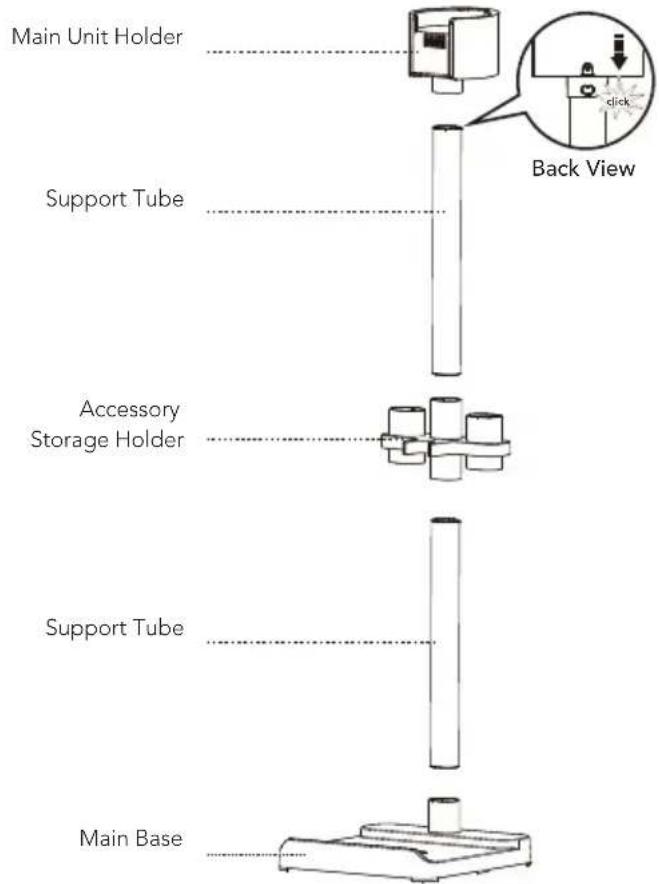

Charging Stand Installation

Main Unit Holder Support Tube Back View Accessory Storage Holder Support Tube Main Base

1. Each support tube has a securing clip on the back.
2. Ensure the Main Unit Holder and the Accessory Storage Holder are installed with openings facing forward.
3. Assemble from bottom to top: Main Base → Accessory Storage Holder → Main Unit Holder.
4. Make sure that each of the clips is secured in place before storing the vacuum cleaner.

Operation

Preparing for Use

Note:

• Before the first use, please charge the appliance (see "Charging the Battery") for 2-2.5 hours in an area where the ambient temperature is between 39.2^ (4^) and 104^ (40^) .
• Select an accessory and attach it to the appliance before use.

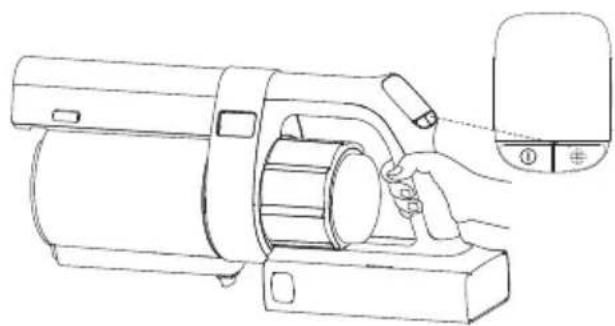

Line drawing of a hand operating a cylindrical device with a control panel (no text or symbols)

Line drawing of a hand operating a cylindrical device with a control panel (no text or symbols)

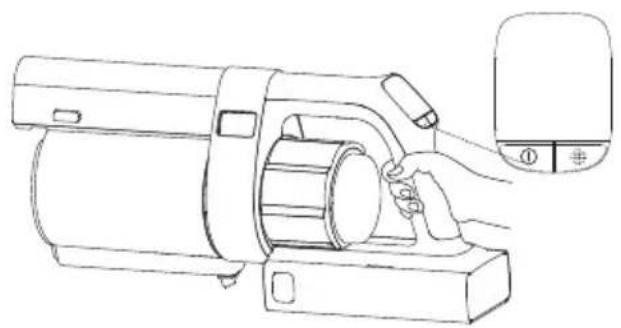

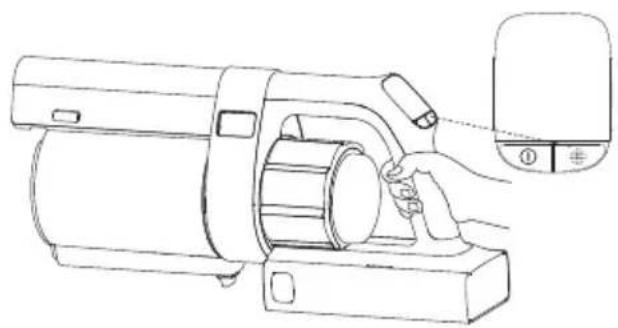

Press the Ⓐ button to activate suction. Press the button to switch cleaning mode.

Default: AUTO Mode

Press: ECO Mode

Hold: MAX Mode

Emptying the Dustbin

Diagram of a hand inserting a device into a container with arrows indicating motion (no text or symbols)

When powered off, press the dust release button to empty the dustbin and simultaneously remove dirt on the mesh filter.

Line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Close and click the dustbin flap back into place.

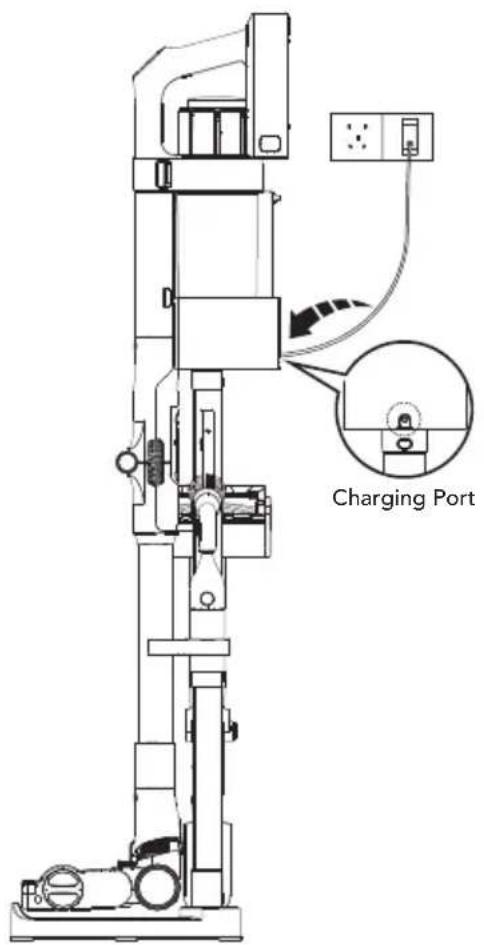

Charging the Battery

Charging Port

Plug the adaptor into the charging port at the back of the Main Unit Holder.

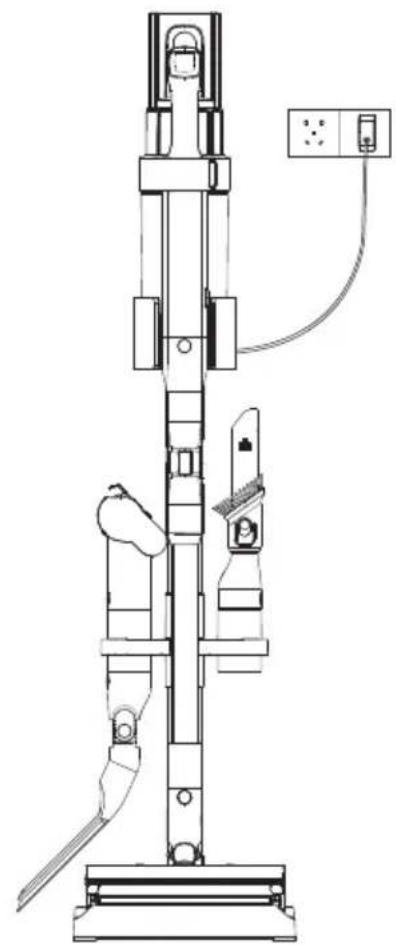

Technical line drawing of a vertical mechanical device with attached wiring and a power outlet (no text or symbols)

Place the appliance on the Charging Stand and plug the adaptor into a wall outlet.

Warning:

• Only use the Tineco-provided adaptor to charge the appliance.
• To avoid trip hazards, please place the appliance securely on the charging dock, near a wall during charging.
• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)\~104°F (40°C).

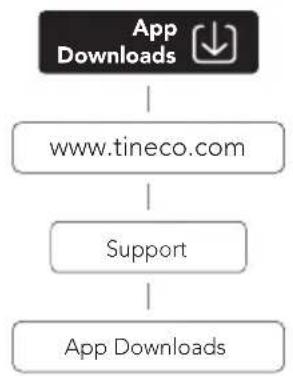

APP

• Access smart features through the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site.
• The green dust indicator light on the brush roller can be adjusted or turned off via the app.

Turn On/Off WiFi

- Turn on WiFi: During operation, hold the button for 3 seconds to enter Help Center and go to Connect to network.

- Turn off WiFi: Hold the button for 5 seconds to turn off.

Brush Indicator

When in Use

Pure electrical circuit lines without any symbols

In use: changes from blue to red as the amount of detected dust increases.

Mode switch: The mode indicator flashes for 1 second before returning to the cleanliness status display.

Pure black rectangular shape with evenly spaced white vertical lines on a dark background (no text or symbols)

ECO Mode: Cyan

AUTO Mode: Sky blue

MAX Mode: Bright fuchsia

Large/small particle switch: The mode indicator flashes for 1 second before returning to the cleanliness status display.

Pure electrical circuit lines without any symbols

Large particles

Pure graphical icons showing a crown and vertical lines, no text or symbols present

Small particles

During Charging

Abstract pattern of vertical gray bars on a dark background (no text or symbols)

Low power: red

Pure electrical circuit lines without any symbols

Medium power: green

Pure electrical circuit lines without any symbols

High power: green

Fully Charged

Pure black rectangular shape with evenly spaced white vertical lines on a dark background (no text or symbols)

Full power: green

Maintenance

Note:

• Clean the dustbin and filters after each use.
• Remove, wash, and dry the filter and HEPA every 12 months, and replace it every 24 months.

Dustbin and Mesh Filter

Line drawing of a hand using a mechanical device to lift a stack of books (no text or symbols present)

Press the dustbin release button to detach the dustbin from the main body.

Diagram of a blender with labeled parts and directional arrows indicating action or movement

Rotate counterclockwise and pull upward to detach the mesh filter.

Diagram showing water spray, spray can, sun, and container with a timer reading '24h' indicating time.

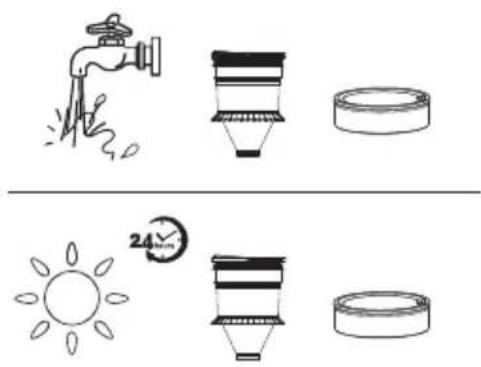

The mesh filter and sponge can be washed under cold running water and must be completely dry before reinstalling.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

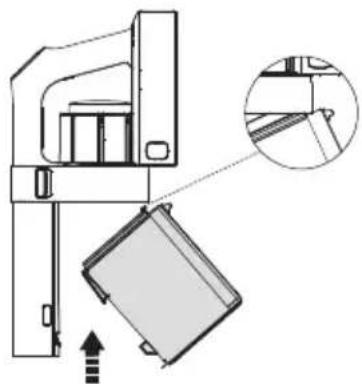

After cleaning, install the clean filter back into the dustbin, then install the dustbin back into the main body.

HEPA Filter

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Pull out the HEPA filter for cleaning. Do not use the appliance without first installing the HEPA filter.

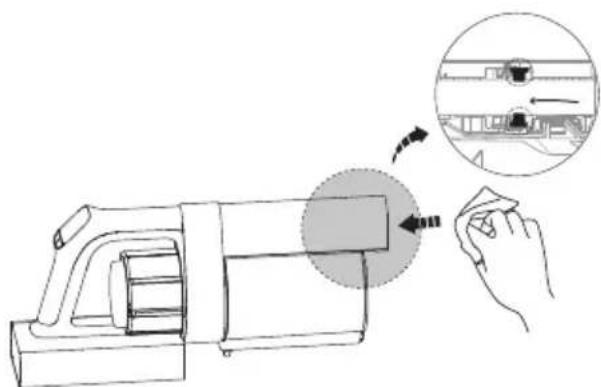

Dust Sensor

Line drawing of a hand holding a tool with an inset showing a mechanical component (no text or symbols)

To avoid dust accumulation which can affect cleaning performance, wipe the suction mouth with a damp cloth.

Brush Roller

Technical line drawing of a mechanical device with no visible text or symbols

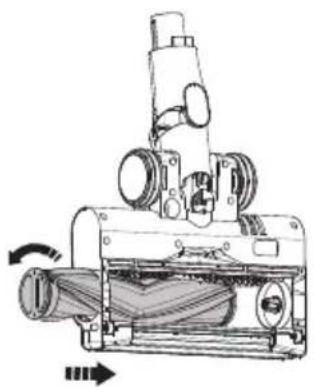

With the power off, rotate the knob on the roller end cover, then pull out the brush roller.

Illustration showing a faucet, a water pump, sun, and a clock with time and duration labels

The HEPA filter can be washed under running water and must be completely dry before reinstalling.

Line drawing of a vintage mechanical device with a hand adjusting its base (no text or symbols)

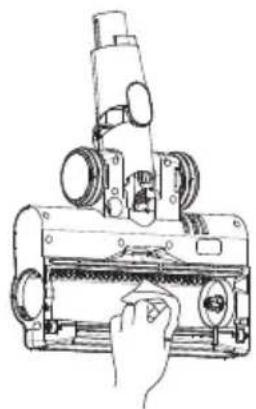

After removing the brush roller, gently clean the brush window, suction mouth and the row of plastic teeth.

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Fully reinsert the brush roller into the brush window and rotate the knob anticlockwise until it clicks securely back into place.

Warning:

• The power brush contains electrical components which must not be soaked or washed with water.
• To reduce injury, do not touch the brush roller while the appliance is in working condition.

Troubleshooting

Problem Possible cause Solution
The appliance does not turn on	No power Charge the battery
	Auto protection for overheating Restart after cooling down
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Check and remove blockages
Weak suction power	Dustbin and filters are full Clean the dustbin and filters
	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages
	The brush roller is tangled with hair or fiber	Clean the brush roller
Battery won't charge	The appliance is not properly fitted	Place the appliance on the charging stand again
	The adaptor is not correctly inserted	Reinsert the adaptor correctly
	The adaptor is not designed for this appliance	Use the original adaptor
Malfunction indicator blinking	Air channel blocked	Remove blockages, clean the filter and dustbin
	The brush roller is tangled with hair or fiber	Clean the brush roller
Abnormal motor sounds	The appliance is blocked (i.e. the tube, suction mouth or some other parts)	Remove blockages

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.

- Use of parts not in accordance with the Tineco Instruction Manual.

- Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

- Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

- Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

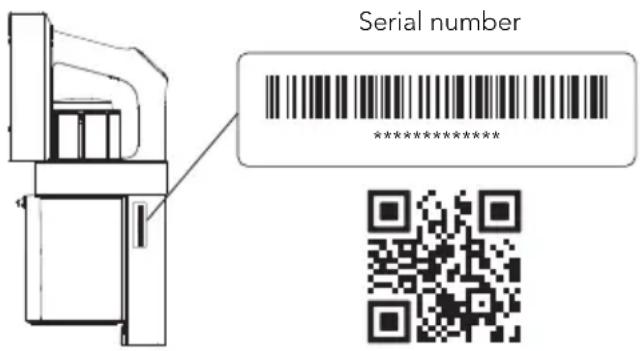

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number (on the right of the appliance). Failure to register your product won't diminish your warranty rights.

Serial number *************************

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or an authorized agent.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service Hotline:

1-855-292-8864

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

A B C D E F G H

Technical line drawing of a mechanical component with no visible text or symbols

3DSense Master

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Line drawing of a mechanical tool or device with a curved handle and cylindrical body (no text or symbols)

Boquilla FlexiSoft

Technical line drawing of a mechanical tool or lever component (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating process direction (no text or symbols)

Technical line drawing of a precision measuring instrument with hand and tool (no text or symbols)

Mechanical assembly diagram showing a shaft connected to a vertical frame with mounting holes and a directional arrow (no text or symbols)

Hand holding a mechanical component with a directional arrow indicating movement (no text or symbols present)

Line drawing of a hand operating a cylindrical device with a control panel (no text or symbols)

Line drawing of a hand operating a cylindrical device with a control panel (no text or symbols)

Diagram of a hand inserting a component into a device, showing internal structure and directional arrows (no text or symbols)

Line drawing of a mechanical device with an arrow indicating motion or force (no text or symbols)

Technical line drawing of a vertical mechanical device with attached wiring and a power outlet (no text or symbols)

Pure electrical circuit lines without any symbols

Pure pattern of vertical white lines on black background, no text or symbols

Modo ECO: cian

Modo AUTO: azul cielo

Modo MAX: fucsia brillante

Pure electrical circuit lines without any symbols

Partículas grandes

Pure electrical circuit lines without any symbols

Partículas pequeñas

Durante la carga

Abstract pattern of vertical gray bars on a dark background (no text or symbols)

Baja carga: rojo

Pure electrical circuit lines without any symbols

Carga media: verde

Pure electrical circuit lines without any symbols

Carga alta: verde

Completamente cargado

Pure black rectangular shape with evenly spaced white vertical lines on a dark background (no text or symbols)

Carga completa: verde

Mantenimiento

Nota:

Line drawing of a hand using a mechanical device to lift a stack of books (no text or symbols present)

Diagram of a blender with labeled parts and directional arrows indicating action or movement

Illustration showing different types of household appliances: faucet, spray canister, sun, timer, and container.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Illustration showing a faucet, a water pump, sun, and a clock with time and duration labels

Line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a hand operating a mounted surveying instrument (no text or symbols visible)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

A B C D E F G H

Technical line drawing of a mechanical component with no visible text or symbols

3DSense Master

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Mini brosse turbo

Line drawing of a mechanical tool or device with a handle and lever (no text or symbols)

Buse FlexiSoft

Line drawing of a mechanical tool with textured ends and a handle (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

Technical line drawing of a precision tool with hand operating it, showing no text or symbols

Pure mechanical assembly diagram showing a lever and shaft without any text, numbers, or symbols

Hand holding a mechanical component with a directional arrow indicating motion (no text or symbols)

Line drawing of a hand operating a cylindrical device with a control panel (no text or symbols)

Line drawing of a hand operating a cylindrical device with a control panel inset (no text or symbols)

Diagram of a hand inserting a component into a device, showing internal structure and directional arrows (no text or symbols)

Line drawing of a hand holding a device with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with attached wiring and control panel (no text or symbols)

Pure black rectangular shape with evenly spaced vertical gray lines inside, no text or symbols present.

Pure black rectangular shape with evenly spaced white vertical lines on a dark background (no text or symbols)

Mode ECO : cyan

Pure electrical circuit lines without any symbols

Grosses particules

Pure electrical circuit lines without any symbols

Fines particules

Durant la recharge

Abstract pattern of vertical gray bars on a dark background (no text or symbols)

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Pure black rectangular shape with evenly spaced vertical white lines on a dark background (no text or symbols)

Line drawing of a hand holding a device with a scroll wheel, showing mechanical components and motion (no text or symbols)

Diagram of a blender with labeled parts and directional arrows indicating motion or movement

Diagram showing water sources, spray can, and containers with a timer reading 24h

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Illustration showing a faucet, a water pump, sun, and a clock with time and duration labels

Line drawing of a hand cleaning a small electronic device with a magnified inset showing the process (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand operating a mounted surveying instrument (no text or symbols visible)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

tinecoglobal

Contact us - We'll get back to you within 24 hours.
