USER MANUAL MO25WT SABA

Exterior view of a modern microwave oven with digital display and control panel (no visible text or symbols)

FR

GB

CONFORAMA France SA

80 Boulevard du Mandinet LOGNES

77432 Marne la Vallée Cedex 2

FRANCE

3. ARRÊT / ANNULATION

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you for choosing SABA quality. This product has been developed by our professional team and according to the European regulation. For a better use of your new appliance, we recommend you to read this user manual carefully and keep it for future reference.

TABLE OF CONTENTS

GB

IMPORTANT SAFETY INSTRUCTIONS 23

INSTALLATION....26

CLEANING....27

PRODUCT INSTRUCTION....29

OPERATION OF CONTROL PANEL....30

COOKING TIPS....35

UTENSILS GUIDELINE....36

MAINTENANCE....37

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy. WARNING: Liquids or other food must not be heated in sealed containers since they are liable to explode.

1. Only use utensils that are suitable for use in microwave ovens.
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
6. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
7. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode, even

after microwave heating has ended.

1. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
2. The appliance must not be placed in a cabinet.
3. Care should be taken not to displace the turntable when removing containers from the appliance.
4. The appliance shall not be cleaned with a steam cleaner.
5. The appliance must not be installed equal or higher than 900 mm above the floor. Minimum height of free space necessary above the top surface of the oven: 100mm.

Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION: HOT SURFACE

1. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to prevent any danger.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

5. Group 2 Class B appliance Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.

Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

1. This product internal light source LED light on < 60lm.

2. The oven should be cleaned regularly and any food deposits removed.

3. This appliance is intended to be used in household and similar applications such as:

4. staff kitchen areas in shops, offices and other working environments;

5. farm houses;
6. by clients in hotels, motels and other residential environments;
   • bed and breakfast type environments.

Regarding the instructions for the details for cleaning door seals, cavities and adjacent parts, refer to the section "CLEANING"

The appliance is intended to be used freestanding.

The oven should be cleaned regularly and any food deposits removed.

- It forbidden the practice of planned obsolescence on all E&E products proposed to Conforama and on all private label products under the FAR, GRANDIN and SABA brands. Planned obsolescence is defined as the use of techniques by which the manufacturer of a product aims to deliberately reduce its lifetime in order to increase its replacement rate. Planned obsolescence includes the fragility of the product, the fragility of parts and sub-assemblies, the lack of parts for repair, and programmed software, encouraging consumers to buy new models.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

- Regarding the instructions for installation and electric connection of the appliance, thanks to refer to the below paragraph of the manual.

- Warning: If the light is damaged, contact an authorized service representative for repairing.

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.

2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.

3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.

4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur. The distance should be more than 5m.

5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.

6. The microwave oven must be operated with the door closed.
7. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

WARNING

a. Remove the power cord from the wall outlet before cleaning. After cooling products. Don't immerse the appliance in water or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:

1) Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.

2) Place a cup of red tea in oven, then heat with high micro power.
3) Put some orange peel into oven, and then heat them with

high Micro Power for 1 minute.

f. When the product is not used, it should be placed in try and ventilated areas as well as possible.

WARNING

Details how to clean surfaces in contact with food:

After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window

Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

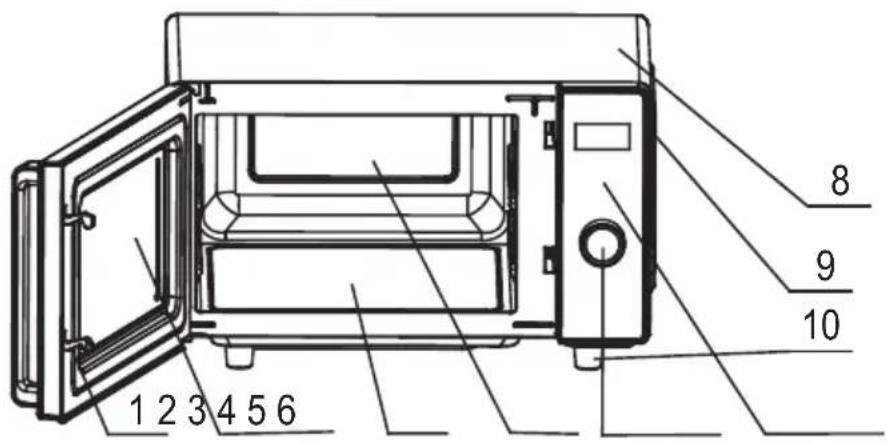

PRODUCT INSTRUCTION

1 2 3 4 5 6 8 9 10

GB

1) Door lock
Microwave oven door must be properly closed in order for it to operate.
2) Plastic door
3) Glass plate
4) Cavity
5) Electronic knob
6) Control panel

See below in details (the control panel is subject to change without prior notice)

WARNING

Never remove the waveguide cover.

8) Outer cover

Used for wrapping and protecting the internal structural parts and electrical components of the whole machine.

9) Housing

10) Oven foot

Used for wrapping and protecting the internal structural parts and electrical components of the whole machine.

After the power is turned on, the display will flash 3 times, then enter the standby state and the display shows the clock.

2. "TIME/WEIGHT" KNOB

When setting the cooking program, you can increase or decrease the cooking time and food weight by turning the “Time/Weight” knob.

3. "STOP" FUNCTION

Press the “STOP” button to cancel the set fire, cooking or defrosting procedure. When cooking, press the “STOP” button once to pause, and press twice to cancel the procedure. When setting the cooking procedure, press this button to cancel the current setting.

4. AUTO REMINDER

When the cooking or defrost process is completed, you will hear 3 beeps. If the door is not opened or “STOP” button is not pressed, the microwave will beep once every 3 minutes.

5. CLOCK

You can set the clock by pressing the "CLOCK" button. In standby mode, press and hold the "CLOCK" button for 3 seconds to enter the clock setting state, rotate the knob to set the hour. After setting the hour, press the "CLOCK" button once to enter the minute setting, rotate the knob to set the minute. After setting, press the "CLOCK" button to complete the clock setting.

6. TIMER FUNCTION SETTING

The timer function is mainly used for the countdown timer reminder function, in the standby state. Press the "TIMER" button to enter the timer setting state, rotate the knob, and input the time to be timed. The input time range is from 0:10 to 60:00, after entering the time, press the "START/+30s" button to start the countdown function. When the countdown decline to 0:00, after the countdown, a long "beep" sound from the microwave oven reminds users that the microwave does not work when the timer function is running.

Press the "Microw." button, the display is cycles to show 100P、

80P、60P、40P and 20P.

High power	100% microwave power. Applicable for fast cooking
Medium High power	80% microwave power. Applicable for faster cooking
Medium power	60% microwave power. Applicable for steaming food
Medium Low power	40% microwave power. Applicable for defrosting food
Low power	20% microwave power. Applicable for keeping warm

CAUTION

1) The max time which can be set is 60 minutes.
2) Never operate the oven empty. Do not use metal utensils to avoid damage to the microwave oven or danger.
3) During the operation, if you take out the food, close the oven door and press the "Start/+30s" button again, the preset procedure will continue.
4) If you intend to remove the food before preset time, you must press "Stop" button once to clear the preset procedure to avoid unintended operation of next time use.
5) In order to avoid the long-term high-power work affecting the life of the microwave oven, after a certain period of high-power work. It will automatically reduce the power.

Example: To cook at 80P for 10 minutes.
	Steps Display
1 Power on
2	Press the "microwave" button twice to select the required microwave power	80P
3.	Turn the "Time/Weight" knob and set the time to 10:00	10:00
4	Press the "START/+30s" button to start cooking

8. DEFROST

Press the "Defrost" button, and the display will cycle to show dEF1、dEF2.

dEF1	For defrosting, the weight range is from 100 to 2000g.
dEF2	For defrosting, the time range is from 0:10 to 60:00

CAUTION

1) If you are defrosting a thicker and larger piece of food, flip it from time to time and remove the defrosted portion for better defrosting. Otherwise, the surface may be heated and the thicker part of the center has not been defrosted.
2) Usually defrosting will need longer time than that of cooking the food.
3) If the food can be cut by knife, the defrosting process can be considered completed.
4) During the defrosting process of dEF1, a voice will prompt the user to turn over the food.

REHEAT

The reheat function is suitable for reheating food. Press the "REHEAT" button. The display will cycle to show 200g, 400g and 600g. After selecting the weight, press the "START/+30s" button to start working.

10. AUTOMATIC MENU PROCEDURE

The microwave oven has a default cooking menu for some foods, a total of 6 automatic menus, separately are Potato, Vegetable, Pizza, Meat, Popcorn and Fish. When the power is turned on, press a certain automatic menu button to select the appropriate weight, press the “Start/+30s” button to start cooking. The description of the automatic menu is as follows:

GB

Select the appropriate menu according to the type and weight of the food, please strictly refer to the automatic cooking procedure menu operation (see the table below), otherwise it will seriously affect the cooking effect.

AUTOMATIC COOKING PROCEDURE MENU

Menu	Description
	There are 2 cooking weight options (450g and 650g)
Potato
	There are 5 cooking weight options (100g, 200g, 300g, 400g and 500g)
Vegetable
	There are 2 cooking weight options (200g and 400g)
Pizza
	There are 5 cooking weight options (100g, 200g, 300g, 400g and 500g)
Meat
	Cooking weight (100g)
Popcorn
	There are 5 cooking weight options (100g, 200g, 300g, 400g and 500g)
Fish

CAUTION

1) The above procedure is designed according to the temperature of food at 20-25 °C. If the food is at different temperatures, the cooking effect will be different. Please adjust it according to the actual situation.
2) When cooking potatoes, etc., it is recommended to cover the food with a layer of wrap to prevent evaporation of water during cooking.
3) The shape, weight and temperature of the food will affect the cooking effect. When using the automatic cooking menu program, please follow the conditions mentioned. If the cooking effect is not satisfactory, please adjust it by yourself.

11. CHILD LOCK FUNCTION

This feature is primarily intended to prevent children from using the microwave oven without adult guidance or to protect the control panel when cleaning. When in child safety lock mode, all buttons will be locked.

Set child lock: In standby mode, press the "STOP" button for about 3 seconds.

Cancel child lock: In standby mode, press the "STOP" button for about 3 seconds.

COOKING TIPS

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

GB

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

UTENSILS GUIDELINE

Depending on the cooking method, it is necessary to choose a safe and suitable vessel. If it is not properly selected, it will not only affect the cooking effect, but also cause damage to the vessel or microwave oven. Please refer to the table below for use:

Material of container	Microwave	Notes
Heat-resistant ceramic	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	Cannot be used for long time microwave cooking
Heat-resistant glass	Yes
Grill rack No
Plastic film Yes		It should not be used when cooking meat or chops as the over-temperature may do damage to the film

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

1. Is the water inside the oven hot after 1 minute?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

Specifications

Model	MO25WT
Rated Voltage	230V~ 50Hz
Rated Input Power(Microwave)	1280W
Rated Output Power(Microwave)	800W
Oven capacity	25L
External Dimensions	W503 x D412 x H316 mm
Net Weight	13.75kg

This instruction book is also available on our website: www.conforama.fr

Correct Disposal of this product

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

LE TRI + FACILE BAC DE TRI

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE S.A..

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE S.A. – further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.
