USER MANUAL MOM25LSCANG SABA

GUIDE DES USTENSILES. 22

ENTRETIEN. 23

Thank you for choosing SABA quality. This product has been developed by our professional team and according to the European regulation. For a better use of your new appliance, we recommend you to read this user manual carefully and keep it for future reference.

TABLE OF CONTENTS

GB

IMPORTANT SAFETY INSTRUCTIONS 28

INSTALLATION 31

CLEANING 32

PRODUCTINSTRUCTION 34

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy. WARNING: Liquids or other food must not be heated in sealed containers since they are liable to explode.

GB

1. Only use utensils that are suitable for use in microwave ovens.
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
6. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
7. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode,

even after microwave heating has ended.

1. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
2. The appliance must not be placed in a cabinet.
3. Care should be taken not to displace the turntable when removing containers from the appliance.
4. The appliance shall not be cleaned with a steam cleaner.
5. The appliance must not be installed equal or higher than 900mm above the floor. Minimum height of free space necessary above the top surface of the oven: 100mm .

Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION: HOT SURFACE

1. If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service or a similarly qualified person to prevent any danger.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.

1. This appliance is intended to be used in household and similar applications such as:

2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

3. Group 2 Class B appliance
   Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.
   Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
4. This product internal light source LED light on < 60lm .

5. The oven should be cleaned regularly and any food deposits removed.

6. staff kitchen areas in shops, offices and other working environments;

7. farm houses;
8. by clients in hotels, motels and other residential environments;
9. bed and breakfast type environments.

Regarding the instructions for the details for cleaning door seals, cavities and adjacent parts, refer to the section "CLEANING"

The appliance is intended to be used freestanding.

The oven should be cleaned regularly and any food deposits removed.

• It forbidden the practice of planned obsolescence on all E&E products proposed to Conforama and on all private label products under the FAR, GRANDIN and SABA brands. Planned obsolescence is defined as the use of techniques by

which the manufacturer of a product aims to deliberately reduce its lifetime in order to increase its replacement rate. Planned obsolescence includes the fragility of the product, the fragility of parts and sub-assemblies, the lack of parts for repair, and programmed software, encouraging consumers to buy new models.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.
• Regarding the instructions for installation and electric connection of the appliance, thanks to refer to the below paragraph of the manual.
• Warning: If the light is damaged, contact an authorized service representative for repairing.

21.21. The Instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
22. The power consumption of equipment in standby mode is lower than 0,8 W
23. The period after which the equipment reaches automatically standby mode, off mode is 15minute.

Deactivating the power management function will increase the energy consumption.

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10cm , the side to the wall should be at least 5cm , the free distance above the top surface at least 20cm . The distance of the microwave to the ground should be at least 85cm .

4.. The position of the oven shall be such that it is far from the T Radio or antenna as picture disturbance, or noise may occur.

The distance should be more than 5m

1. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
2. The microwave oven must be operated with the door closed.
3. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
4. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

WARNING

a. Remove the power cord from the wall outlet before cleaning. After cooling products. Don't immerse the appliance in water or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:

1) Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.

2) Place a cup of red tea in oven, then heat with high micro power.
3)Put some orange peel into oven, and then heat them with

high Micro Power for 1 minute.

f. When the product is not used, it should be placed in dry and ventilated areas as well as possible.

WARNING

Details how to clean surfaces in contact with food:

After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.

GB

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window

Wipe the door seals and adjacent parts to remove any spill on spatter

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

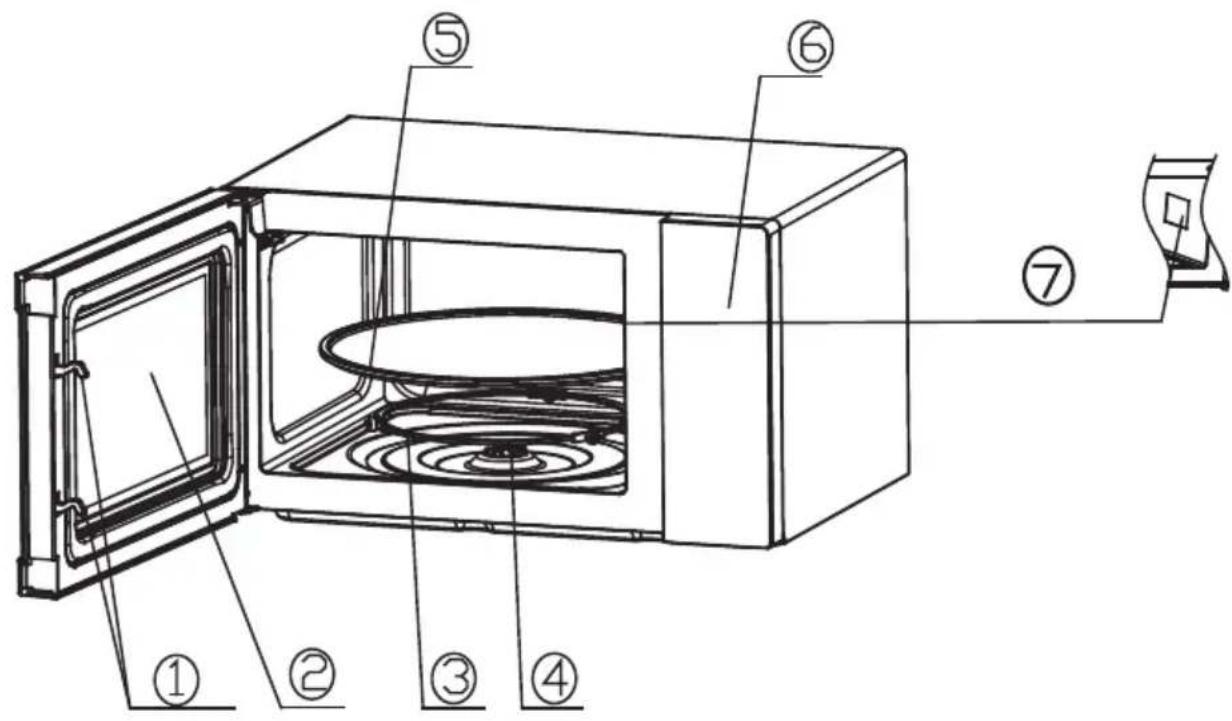

PRODUCT INSTRUCTION

1) Door lock

Microwave oven door must be properly closed in order for it to operate.

2) Viewing window

Allow user to see the cooking status

3) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

4) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

• Place the rotating ring first
• Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Waveguide cover

It is inside the air fryer oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover.

The LED flashes 3 times when plugged in power supply.

Then it shows "1:00", prompting you to input the cooking menu and time.

2. TIME/WEIGHT KNOB

You can increase or decrease cooking time and weight during operation by turning Temps/Poids knob.

Note: “is for “Temps”, “” is for “Poids”.

3. PAUSE/CANCEL

At the initial or input stage: press once to cancel input programs and resume initial stage.

During cooking: press once to stop oven operation, press twice to cancel cooking programs.

4. AUTO REMINDER

When your preset cooking procedure have finished, the LED display will show END and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Annuler button once or open the door, the beep will be sounded at an interval of 3 minutes.

5. INSTANT COOKING

On the standby status, press Départ/Immédia button, the oven will start express cook with high power for one minute. You can increase or decrease cooking time by turning Temps/Poids knob.

6. CLOCK SETTING

Clock button make it available for you to input current or preset time when ".” flashes onto LED display after plugged in, or try to skip it over to continue if unnecessary.

Example: to set 12:30
	Steps	Display
1	After power-up, the colon flashes	1:00
2	Hold Horloge/Décongellation button for 3 seconds	1:00
3	Turn Temps/Poids knob to set exact hours. 12:00
4	Press Horloge/Décongellation button once again.	12:00
5	Turn Temps/Poids knob to set exact minutes. 12:30
6	Press Horloge/Décongellation button once again or wait for 5 seconds, and the numbers will go steadily.

This button is with two functions: set clock and set defrost menu. If you want to set clock, you need to press and hold this button for 3 seconds, and just press this button once to enter defrost state

GB

This function is for cooking and heating food. Pressing Puissance button, LED cycles to show 100P — 80P — 60P — 40P — 20P.

High power	100% microwave power. Applicable for quick and thorough cooking
Medium 80% microwave power. Applicable for medium express cooking High power
Medium power 60% microwave power. Applicable for steaming food
Medium 40% microwave power. Applicable for defrosting food Low power
Low power	20% microwave power. Applicable for keeping warm

CAUTION

a. The max time which can be set is 60 minutes
b. Never operate the oven empty.
c. Never use the grill rack during microwave cooking.

d. If you turn the food during operation, press the Départ/Immédia button once and the preset cooking procedure will continue.

e. If you intend to remove the food before the preset time, you must press Pause/Annuler button once to clear the preset procedure to avoid unintended operation of next time use.

f. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

Example: To cook at P80 for 10 minutes.
	Steps Display
1 After power-up, the colon flashes		1:00
2	Select the desired microwave power by pressing Puisance button consecutively	80P
3	Set cooking time by turning Temps/Poids knob.	10:00
4	Press Départ/Immédia button to start and LED will count down to show running time.

8. EXPRESS COOKING

Press Express button LED display will cycle to show 0:30, 1:00, 1:30.

This function will allow you to heat a cup of water or beverage conveniently, omitting the steps of setting time. Choose the proper time depending on the beverage capacity.

Example: To cook with express for 1 minute
	Steps Display
1 After power-up, the colon flashes		1:00
2	Press Rapide button consecutively to select desired menu	1:00
3	Start cooking by pressing Départ/Immédia butt on

9. DEFROST

This function use for defrosting food, Press the Defrost/Clock button and

the LED display will cycle to show d.1-d.2-d.3.

d.1 For defrosting meat, the weight range from 0.1 to 2.0 kg.

d.2 For defrosting poultry, the weight range from 0.2 to 3.0kg.

d.3 For defrosting seafood, the weight range from 0.1 to 0.9kg.

CAUTION

a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can be considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

Example: To defrost 0.4kg poultry
	Steps Display
1 After power-up, the colon flashes		1:00
2	Press Horloge/Décongellationonce button to set the food kind.	d.2
3	Turn Temps/Poids knob to set the defrost weight 0.4
4	Start cooking by pressing Départ/Immédia
5	During defrosting 3 beep sound will be heard to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press Départ/Immédiabutton again to continue defrosting

10. AUTO COOKING

The oven has default cooking menu for simple operation. When the LED flash colon, press the Cuisson Auto button and LED will cycle to show A.1, A.2 ... A.8

Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced.

Display Kind	Method
A.1 Popcorn		Suitable for popping a bag of corn, which is available in the market, weighted 0.1 kg. Popcorn prior to completing, if the popping speed has been decreased to 1 time per 1-2 seconds you should press Pause/Annuler button to stop the popping process
A.2 Reheat		This setting suitable for reheating 0.2~1.0 kg, which lets you reheat a dinner plate of chilled leftovers with good results.
A.3 Beverage		Heating a cup of 250 or 500 ml liquid. The liquid temperature is about 5-10°C. Use a big mouth cup and do not seal
A.4 Pizza		Warm 1 or 2 shares pizza
A.5 Potato		Cooking the potato strips, cut into 5mm width and height, length. Total weight is about 0.45 or 0.65 kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss
A.6 Fish		Suitable for cooking 0.2~0.7 kg fish.
A.7 Rice		Suitable for cooking 0.1~0.5kg rice.
A.8	Vegetable	Suitable for cooking 0.1~0.5kg vegetable.

CAUTION

a. The temperature of food before cooking would be 20 - 25^ . Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.

b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

Example: Cook 0.5 kg rice
	Steps Display
1 After power-up, the colon flashes		1:00
2	Press Cuisson Auto button to set the cooking menu	A.7
3	Set cooking weight by turning Temps/Poids knob	0.5
4	Start cooking by pressing Départ/Immédia button and LED will count down to show running time.

11. AUTOMATIC STARTING (DELAYED FUNCTION)

If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2 steps:

1. Setting the current clock;
2. Setting the cooking menu and time.

Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20
	Steps Display
1 After	power-up, the colon flashes	1:00
1.1	Hold Horloge/Déconglage button for 3 seconds	1:00
1.2	Set hours by turning Temps/Poids knob	12:00
1.3	Press Horloge/Déconglage button again to confirm hours	12:00
1.4	Set minutes by turning Temps/Poids knob	12:30
1.5	Press Horloge/Déconglationbutton once or waiting for 5 seconds, and the numbers will go steady.	12:30
2 Set the cooking menu and time
2.1	Select cooking power by pressing Puisance button	100P
2.2	TurnTemps/Poids button to set cooking time	9:30
2.3	Hold Horloge/Déconglage button for 3 seconds to return to current clock.
3	Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4
4	Press Horloge/Déconglage buttto nto confirm m the delayed menu. Now the program has been activated. And the menu will be started at 14:20.
5	You may check the preset starting time by pressing Horloge/Déconglation button.

12. MULTI-SEQUENCE COOKING

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow:

Example: You want cook food with 100P microwave for 3 minutes then 20P for 9 minutes. This is 2 sequence setting.
	Steps Display
1 100P microwave for 3min
1.1	Press Puisance button to select power level.	100P
1.2	Turn Temps/Poids knob to set cooking time.	3:00
2 20P for 9min
2.1	Press Puisance button to select desired menu	20P
2.2	Turn Temps/Poids knob to set cooking time.	9:00
3	Start cooking by pressing Départ/Immédia

GB

CAUTION

a. When microwave 100 power cooking is finished, microwave oven will begin next operation automatically.
b. Max 4 sequences can be set per time, repeat the steps.

13. CHILD LOCK FUNCTION

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1) Set lock---Hold Pause/Annuler button about 3 seconds.
2) Cancel lock---Hold Pause/Annuler button about 3 seconds.

UTENSILS GUIDELINE

Depending on the cooking method, it is necessary to choose a safe and suitable vessel. If it is not properly selected, it will not only affect the cooking effect, but also cause damage to the vessel or microwave oven. Please refer to the table below for use:

Material of container	Microwave	Notes
Heat-resistant ceramic	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	Cannot be used for long time microwave cooking
Heat-resistant glass	Yes
Grill rack No
Plastic film Yes		It should not be used when cooking meat or chops as the over-temperature may do damage to the film

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml ) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

1. Is the water inside the oven hot after 1 minute?

If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

Specifications

Model	MOM25LSCANG
Rated Voltage	230V~ 50Hz
Rated Input Power(Microwave)	1400W
Rated Output Power(Microwave)	900W
Oven capacity	25L
External Dimensions	W498 x D331 x H290 mm
Net Weight	12.5kg

GB

This instruction book is also available on our website: www.conforama.fr

Correct Disposal of this product

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE.

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE - further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer

Code, your product benefits from a legal guarantee of conformity of 2 years.

This instruction book is also available on our website:

www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances: http://sav-client.conforama.fr/

or call: 0969320505

from Monday to Saturday, 8:30 to 19:00 price of a local call .
