USER MANUAL MOG25LFBK25 SABA

Black microwave oven with control panel and digital display (no visible text or symbols)

CONFORAMA France

Simple line drawing of a circular object with four small spherical holes, no text or symbols present.

Plateau en verre

Technical line drawing of a mechanical lever with a spring and base, showing no text or symbols

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

Technical diagram of a double door with labeled components A, B, C, D, E and internal structure

Technical diagram of a kitchen appliance with labeled parts, showing a central handle and two numbered components.

1) Plateau en Verre
2) Ensemble Bague de Plateau Tournant

Line drawing of a microwave oven with lid and door, showing open door and interior (no text or symbols)

Remarques :

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

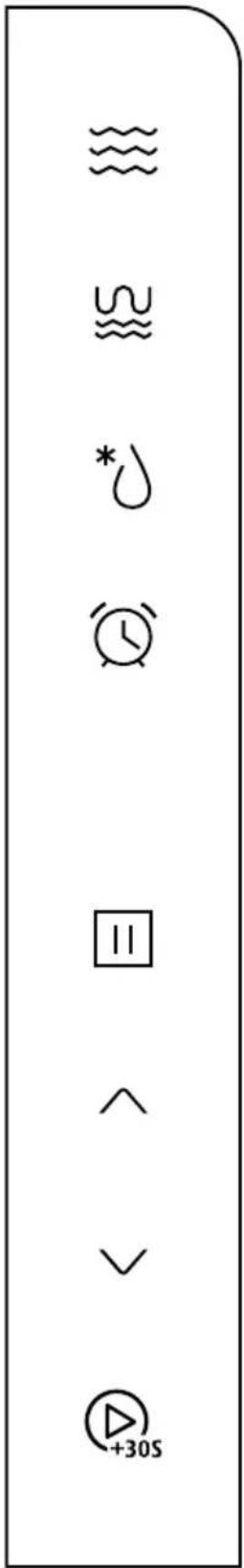

Panneau de contrôle

FR

Vertical toolbar with icons and labels including water, alarm, play button, and speed indicator

Instructions
	Micro Ondes
	Micro ondes + grill
	Décongélation
	Ein uhr/timer
	Abbruch/abbruch
	Start in/plus 30 sekunden

Fonctionnement

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

CE

SAV-Garantie

https://sav-client.conforama.fr

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

GB

Safety instructions ....31

Specifications ....36

36Energy consumption

To reduce the risk of injury to persons grounding installation....37

Warning ....37

Cleaning ....39

Utensils ....40

Names of oven parts and accessories 43

Installation ....46

Control panel ....47

Operation ....48

Trouble shooting ....55

Correct disposal of this product ....56

Safety instructions

PRECAUTIONS TO AVOID POSSIBLE EXPOSURETO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children unless they are older than 8 and supervised.

1. Keep the appliance and its cord out of reach of children less than 8 years.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

4. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

5. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

6. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
7. Only use utensils that are suitable for use in microwave ovens.
8. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
9. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
10. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
12. The oven should be cleaned regularly and any food deposits removed.
13. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

14. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

15. Only use the temperature probe recommended for this oven. (For ovens provided with a facility to use a temperature-sensing probe.)

16. The appliance must not be placed in a cabinet.
17. The microwave oven must be operated with the decorative door open. (For ovens with a decorative door.)

18. This appliance is intended to be used in household and similar applications such as:

19. staff kitchen areas in shops, offices and other working environments;

20. by clients in hotels, motels and other residential type environments;
21. farm houses;

22. bed and breakfast type environments.

23. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

24. Metallic containers for food and beverages are not allowed during microwave cooking.
25. The appliance shall not be cleaned with a steam cleaner.
26. The appliance is intended to be used freestanding.
27. The rear surface of appliances shall be placed against a wall.

28. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

29. The temperature of accessible surfaces may be high when the appliance is operating.

30. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
31. For detailed information on how to clean food contact surfaces, and details on cleaning door seals, cavities and adjacent parts, refer to the following paragraph of the leaflet.
32. This appliance is Group 2 Class B equipment. Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9kHz to 400 GHz is intentionally generated and used or only used locally, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material, for inspection/analysis purposes, or for transfer of electromagnetic energy. Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
33. Leave a minimum clearance of 30cm above the oven.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

(NOT FOR COMMERCIAL USE)

Specifications

Model:	MOG25LFBK25
Rated Voltage: 230V~50Hz
Rated Input Power(Microwave): 1450W
Rated Output Power(Microwave):	900W
Rated Input Power(Grill): 1000W
Oven Capacity: 25L
External Dimensions:	472x344x280mm
Net Weight:	Approx. 12.7 kg

GB

Energy consumption

Product information for power consumption and maximum time to reach applicable low power mode.

Standby mode	0,8 W
The maximum time needed for the microwave oven to automatically reach the applicable low power modeor condition.	20 minutes

To reduce the risk of injury to persons grounding installation

DANGER

Electric Shock HazardTouching some of the internal components can cause seriouspersonal injury or death. Do not disassemble this appliance.

Warning

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Cleaning

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

Utensils

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Browning dish Follow	manufacturer's instructions. The bottom ofbrowning dish must be at least 3/16 inch (5mm) abovethe turntable. Incorrect usage may cause the turntableto break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions.Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm.Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is nometallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close withmetal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leaveovenunattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat.Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap forsteaming.
Plastic	Microwave-safe only. Follow the manufacturer'sinstructions. Should be labeled "Microwave Safe".Some plastic containers soften, as the food insidegets hot. "Boiling bags" and tightly closed plasticbags should be slit, pierced or vented as directedby package.
Plastic wrap Microwave	-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy.Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

Names of oven parts and accessories

(In case of any differences between the appliance and the pictures in this manual, the product shall prevail.)

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Simple line drawing of a circular object with four small spherical holes, no text or symbols present.

Glass Tray

Technical line drawing of a mechanical lever with a spring and base, showing no text or symbols

Turntable Ring Assembly

Instruction Manual

Simple line drawing of a circular table with vertical bars and two legs (no text or symbols)

Grill Rack (Can not be used in microwave function and must be placed on the glass tray.)

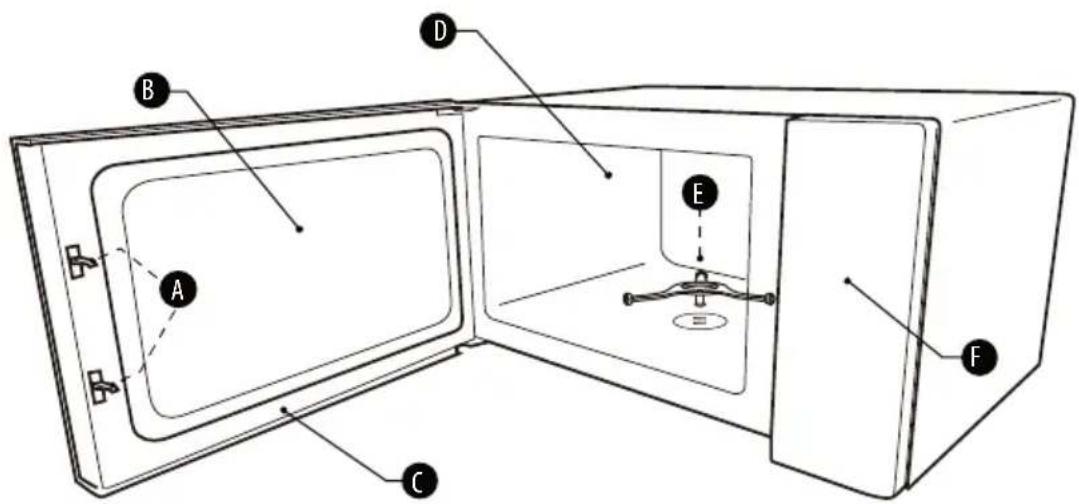

A B C D E F

A) Safety interlock system
B) Observation window
C) Door assembly

Names of oven parts and accessories

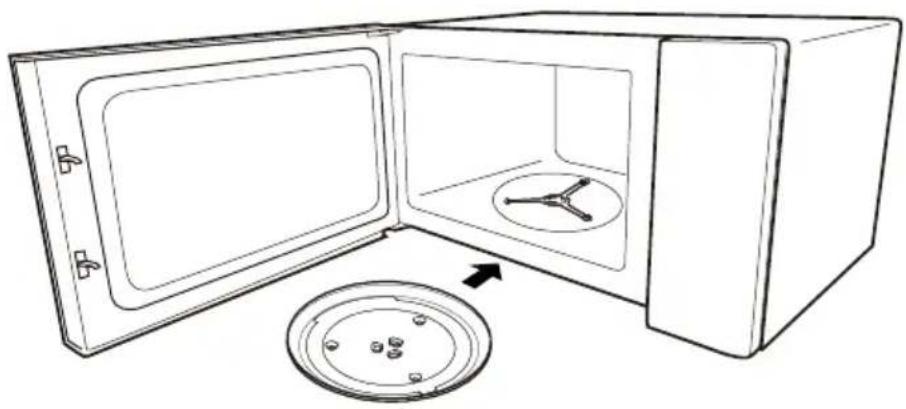

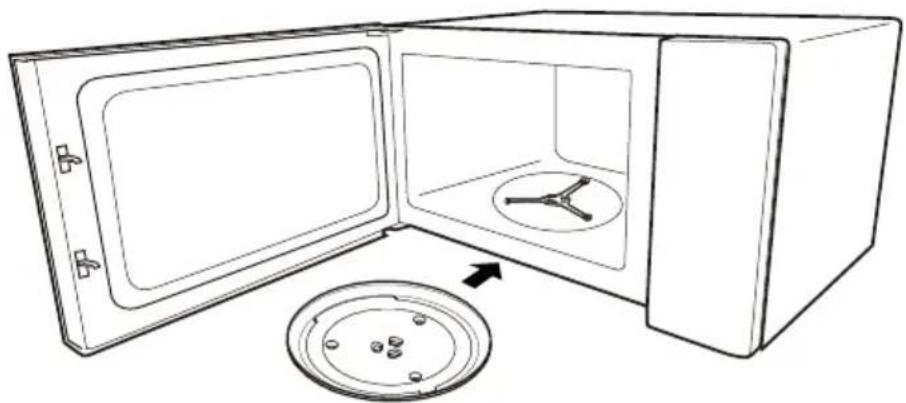

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

Technical diagram of a kitchen sink with labeled parts, showing water level and component layout

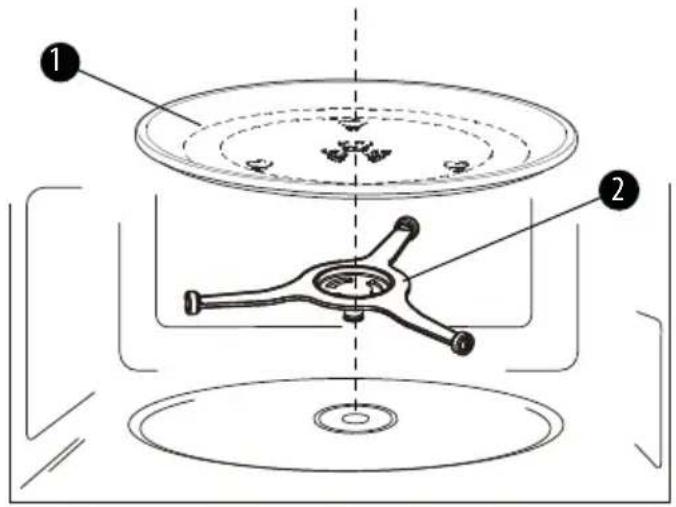

1) Glass Tray
2) Turntable Ring Assembly

Line drawing of a microwave oven with lid and door, showing internal components (no text or symbols)

Notes :

1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
2. Never place the glass tray upside down. The glass tray should never be restricted.
3. Both glass tray and turntable ring assembly must always be used during cooking.
4. All food and containers of food are always placed on the glass tray for cooking.
5. Never restrict the movement of the turntable.
6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such asdents or broken door. Do not install if oven isdamaged.

Cabinet: Remove any protective film foundon the microwave oven cabinet surface. Do not remove the waveguide coverthat is attached to the oven cavity toprotect the magnetron.

Installation

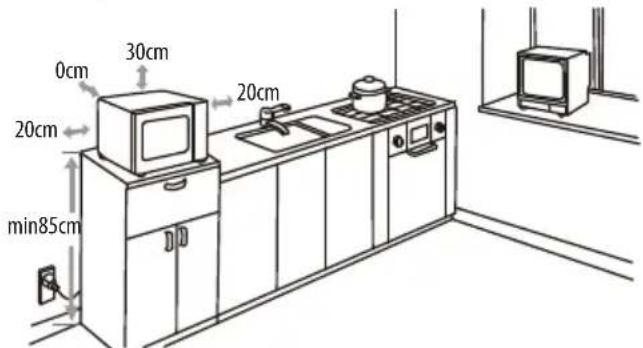

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm min85cm 20cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed nearor over a heatsource, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

e S S

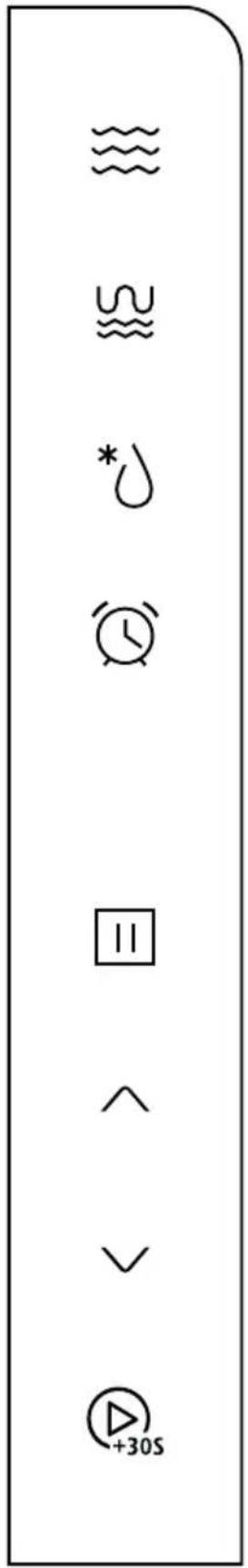

Control panel

Diagram showing a vertical scale with symbols including water, alarm clock, minus sign, and play button labeled '+30S'

Instructions
	Microwave
	Grill/Combi.
	Weight Defrost/Time Defrost
	Clock/Timer
	Stop/Cancel
	Start/+30Sec

Operation

1. Setting the Clock

(1) Touch " ℏ" once and then "00:00" will display.
(2) Touch “^”, “∨” to set the hour figures.
(3) Touch " ℏ" to confirm.
(4) Touch “^”, “∨” to set the minute figures.
(5) Touch " 🔊" to confirm. The clock is set.

Notes:

(1) To reset the clock, please repeat step 1 to step 5.
(2) The clock is a 24-hour display. If the clock is not set, it will not work when powered.

2. Setting the Kitchen Timer

(1) Touch "①" twice and then "00:00" will display.
(2) Touch “^”, “^” to set the desired time.
The maximum time value is "95:00".
(3) Touch “+30s” to confirm. The timer starts counting down.
Note: The kitchen timer is a timer.

3. Microwave Cooking

The 5 power levels are available.

Microwave Power	900 Watts	90 Watts720	Watts 450 W	Watts 270 Watts
Display	P100 P80	P50 P30 P10

(1) Touch "≈" once and then "P100" will display.
(2) Touch “ ≈ ” repeatedly or touch “ ∧ ”, “ ∨ ” to set the power level. The 5 power levels are available.
(3) Touch " +30S " to confirm the power level.
(4) Touch "^", "∨" to set the cooking time. The maximum time value is "95:00".
(5) Touch " ▶+30S" to start cooking.

4. Grill Cooking and Combination Cooking

(1) Touch "∪" once and then "G" will display.
(2) Touch “ ≌” repeatedly or touch “^”, “∨” to choose the cooking mode and then “G”, “C-1”, or “C-2” will display in order.
(3) Touch " +30s " to confirm.
(4) Touch “^”, “∨” to set the cooking time. The maximum time value is “95:00”.
(5) Touch " +30s " to start cooking.

Grill and Combination Chart

Function Display		Microwave Power	Grill Power
Grill	G	/	1000 Watts
Combi.1	C-1	497 Watts 448	Watts
Combi.2	C-2		655 Watts310 Watts

Note: The buzzer will sound to remind you to turn the food over during cooking. If no operation, the oven will continue working.

5. Defrost By Weight

(1) Touch “*” once and then the screen will display “dEF1”.
(2) Touch " _+30S " to confirm.
(3) Touch “^”, “∨” to set the weight of the food.

The range of weight is 100 to 2000g.

(4) Touch " _+30S " to start cooking.

Note: The buzzer will sound to remind you to turn the food over during defrosting. If no operation, the oven will continue working.

6. Defrost By Time

(1) Touch “*” twice and then the screen will display “dEF2”.
(2) Touch " _+30S " to confirm.
(3) Touch “^”, “∨” to set the desired defrosting time.

The maximum time value is "95:00".

(4) Touch " _+30S " to start cooking.

Notes:

(1) The buzzer will sound to remind you to turn the food over during defrosting. If no operation, the oven will continue working.
(2) The default power level is P30 and it cannot be changed.

7. Speedy Cooking

(1) In standby mode, touch “√” once to set a cooking time at 100% power level, continue to touch “^”, “√” to adjust the cooking time. And then touch “+30S” to start cooking. The maximum time value is “95:00”.

(2) In standby mode, touch “+30s” once to cook food at 100% power level for 30 seconds. Each touch on the same key can increase 30 seconds and the maximum time value is “95:00”.

Note: In the microwave, defrost by time, grill, and combination cooking state, each more touch on “^”, “∨”, or “+30s” can change the cooking time (except the defrost by weight and auto menu).

8. Multi-Stage Cooking

Notes:

(1) Two cooking stages can be set in multi-stage cooking.
(2) If you set the defrost function, it will work automatically in the first stage.
(3) The kitchen timer and auto menu cannot be set as one of the multi-stage.

Example: Defrost food for 500g and then cook with 80% microwave power for 7 minutes.

(1) Touch “*” once and then the screen will display “dEF1”.
(2) Touch " ▷+30S" to confirm.
(3) Touch “^”, “∨” to set the weight of the food to 500g.
(4) Touch “\~\~\~\~” once and then “P100” will display.
(5) Touch “≈” repeatedly or touch “^”, “∨” to set the power level to P80.
(6) Press " +30s " to confirm the microwave power.
(7) Touch “^”, “∨” to set the cooking time to 7 minutes.
(8) Press " _+30S " to start cooking.

9. Lock Function for Children

You can use this function to disable the screen buttons and prevent your child from accidentally turning the oven on.

To activate the lock:

In standby mode, touch and hold “☐” for three seconds.

A beep sounds, and the locked icon will display.

To deactivate the lock:

In the locked state, touch and hold “☐” for three seconds.

A beep sounds.

10. Auto Menu

(1) Touch “^” once and then “A-01” will display.
(2) Touch “^”, “∨” to choose the menu you need. The 8 auto menus are available.
(3) Press " _+30S " to confirm.
(4) Touch “^”, “∨” to set the weight of the food.
(5) Press " +30s " to start cooking.

Auto Menu Chart

Menu	Weight	Display	Power
A-01 Pizza	200g	200g	P100
	400g	400g
A-02 Meat	250g	250g	P100
	350g	350g
	450g	450g
A-03 Vegetable	200g	200g	P100
	300g	300g
	400g	400g
A-04 Pasta	50g (with 450g cold water)	50g	P80
	100g (with 800g cold water)	100g
A-05 Potato	1 (230g)	1	P100
	2 (460g)	2
	3 (690g)	3
A-06 Fish	250g	250g	P80
	350g	350g
	450g	450g
A-07 Beverage	1 cup (120ml)	1	P100
	2 cups (240ml)	2
	3 cups (360ml)	3
A-08 Popcorn	50g	50g	P100
		100g100g

11. Inquiring Function

(1) If the clock has been set, the current time will display for three seconds by touching “ Hour” in the cooking state.
(2) In the microwave, grill, and combination cooking state, touch “ ≈”, or “ ≈” to inquire about the power level or cooking mode. It will display for three seconds.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven cannotbe started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuitbreaker (repaired byprofessional personnel of our company)
	(3) Trouble with outlet. Test outlet with other electrical appliances.
	(4) Door is not closed well.Over closed	Close down well.

This instruction book is also available on our website:

www.conforama.fr

Correct disposal of this product

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated

collection.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or recycling (no text present)

CE

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not inconformity with the instructions contained in this manual.

In accordance with Article . 271 of the onsumer ode, your product benefits from a legal guarantee of conformity of 2 years.

This instruction book is also available on our website:

www.conforama.fr

If you have a problem with your product, before going to your

Conforama store, please get in touch with our aftersales services

for electrical household appliances:

https://sav-client.conforama.fr

09 69 32 05 05 from Monday to at yda , :30to 9:00price of a local ca

SABA since 1923

SABA is a German brand born in 1923 in the heart of the black forest.

Pioneers in electrical equipment, it continues its search for quality by offering smart products that will accompany you on a daily life.

This product has been manufactured and sold under the responsibility of CONFORAMA FRANCE.

SABA, and the SABA logo are trademarks used under license by CONFORAMA FRANCE – further information at www.saba-brand.com.

All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.
