USER MANUAL MOM20LVINNR FAR

Black microwave oven with open lid and control knobs (no visible text or symbols)

MANUEL D'UTILISATION

MOM20LVINNR

• Attention, surface chaude!

A F R G E D C B

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

SPECIFICATIONS......GB-2

SAFETY INSTRUCTIONS......GB-2

APPLIANCE DESCRIPTION ....GB-9

UTENSILS GB-10

INSTALLATION......GB-12

USE......GB-14

IN CASE OF BREAKDOWN ....GB-15

CLEANING......GB-15

DISPOSAL OF OLD ELECTRICAL APPLIANCES......GB-17

SPECIFICATIONS

• Reference: MOM20LVINNR (Colour: Black)
• Voltage: 230V \~ 50Hz
• Power consumption: 1050W
• Power output: 700W
• Microwave frequency: 2450MHz

SAFETY INSTRUCTIONS

• IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential environments;

- bed and breakfast type environments.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Keep the appliance and its cable out of reach of children under 8 years of age.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

– Children must be supervised to ensure they do not place with the appliance.

- Do not use outdoors.

- For safety reasons, never leave the appliance unsupervised while being operated.

- Do not operate using a programmer, timer, remote control system at a distance, or any other device that switches the appliance on automatically.

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

- WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

- WARNING: If the appliance does not work in combined mode, it is recommended that children only use the oven under adult supervision due to the high temperatures generated.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Heating drinks in microwaves can cause sudden eruptions of boiling liquid. Caution must also be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

- The oven should be cleaned regularly and any food deposits removed.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

• The microwave must not be placed on movable furniture.

• The appliance must be placed on an even table or surface

• Group 2, Class B equipment

- This appliance is in Group 2 as it intentionally generates radio-frequency energy for treating materials and is designed for domestic use and use in establishments directly connected to a low-voltage power supply network supplying buildings used for domestic purposes.

• (Class B).

• The temperature of accessible surfaces may be high when the appliance is on.

- Warning, hot surface!

• This appliance is not designed to be used in conjunction with a separate timer or with a control system used at a distance.

- Do not use containers other than those designed for microwave use.

- Never use metal containers or utensils (particularly aluminium) inside microwave ovens as this may damage the appliance and risks causing sparks or even fires.

• Paper or cardboard containers are liable to catch fire; remain near to the oven to watch closely.

- In case of smoke, switch off the appliance and unplug it, and then leave the door closed in order to extinguish any flames.

- In the case of ovens that allow for the use of thermal probes, only use the type of thermal probe recommended for the oven.

- Do not attempt to operate the oven while the door is open. This can cause dangerous exposure to microwave energy. It is essential that the locking system not be tampered with.

• No objects must be stuck in the door. Be careful not to let dirt or cleaning products accumulate on sealed surfaces.
  • The oven must not be used if it is damaged. It is very important that the door be able to close correctly and that all the following parts be in good condition:

a) Door (must not be twisted),
b) Hinges and latches (must not be broken or loose),
c) Door seals and air-tight surfaces.

• The minimum height of free space necessary above the top surface of the oven is 30 cm.
• Regularly clean the window and door seals to remove any traces of splattering or other residue. For full details, please refer to the “Cleaning” section.
• For installation and cleaning details, please refer to the “Installation” and “Cleaning” sections.
• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- WARNING:

- MICROWAVE RADIATION - DO NOT EXPOSE YOURSELF TO RADIATION FROM THE MICROWAVE GENERATOR OR OTHER PARTS CONDUCTING ENERGY.

- BE CAREFUL OF HEAT RADIATION AND THE RISK OF BURNS WHEN THE CONVECTION, COMBINATION AND ALTERNATING COOKING FUNCTIONS ARE OPERATING.

• The appliance shall not be cleaned with a steam cleaner.

- Regarding the instructions for cleaning surfaces in contact with food thanks to refer to the below paragraph of the manual.

• Metallic containers for food and beverages are not allowed during microwave cooking.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- The microwave oven is intended to be used freestanding.

• The microwave oven must not be placed in a cabinet.

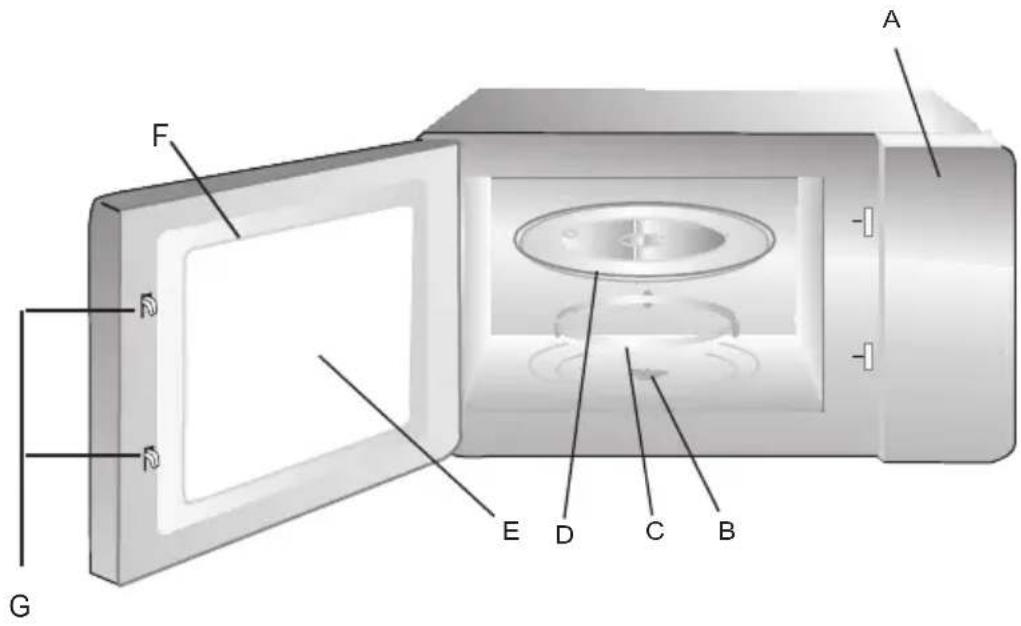

APPLIANCE DESCRIPTION

A F R G E D C B

A. Control panel
B. Rotary axis
C. Roller
D. Turntable
E. Window
F. Door
G. Door mechanism

UTENSILS

• Before use, it is recommended that you check that utensils are appropriate for microwave use.
• Containers that are most suited in every case are heat-resistant glass or ceramic containers. All metal containers and utensils must not be used. In effect, microwaves cannot penetrate metals. In the event of using such utensils, sparks or flashes may appear that could be hazardous for the user and may seriously damage the appliance. Equally, do not put food or liquids into aluminium boxes or under aluminium foil.

- In general, never put hermetically sealed containers into a microwave as they may explode due to the heat. Ensure that you remove the cover or leave openings to allow steam to escape.

- The user is strongly recommended to regularly and carefully monitor cooking. Use glass or ceramic containers.

- Plastic or cardboard containers may be used, as wells as frozen food under plastic film, on the condition that films have been pierced with a fork beforehand to allow steam to escape.

- Before use, check that utensils are appropriate for use in a microwave oven. Metallic utensils must not be used. In effect, metallic objects cause sparks or flashes that may cause serious damage to your appliance. Equally, do not put food or liquids into aluminium boxes or aluminium foil.

- Do not use wooden containers as they may burn.

- Do not use any metal or cast iron crockery earthenware with even small metal parts (including silver or gold); your appliance might break down.

- In general, never put closed containers that might explode due to the heat into a microwave without removing the lid or if there is no opening.

- It is recommended that you monitor the microwave from time to time while food is being heated or cooked in plastic, paper or other combustible disposable containers.

- When food is heated in plastic or paper containers, check the microwave frequently due to the risk of fire.

- Do not store cooking or paper utensils in the microwave oven.

- The list below is an indicative guide to help you choose appropriate utensils and containers to cooking in safety.

CONTAINER MATERIAL	MICROWAVE
Heat-resistant glass Yes
Non heat-resistant glass No
Heat-resistant ceramic Yes
Plastic and cellophane film Yes
Metal No
Aluminium and aluminium foil	No
Wood No
Recycled materials	No

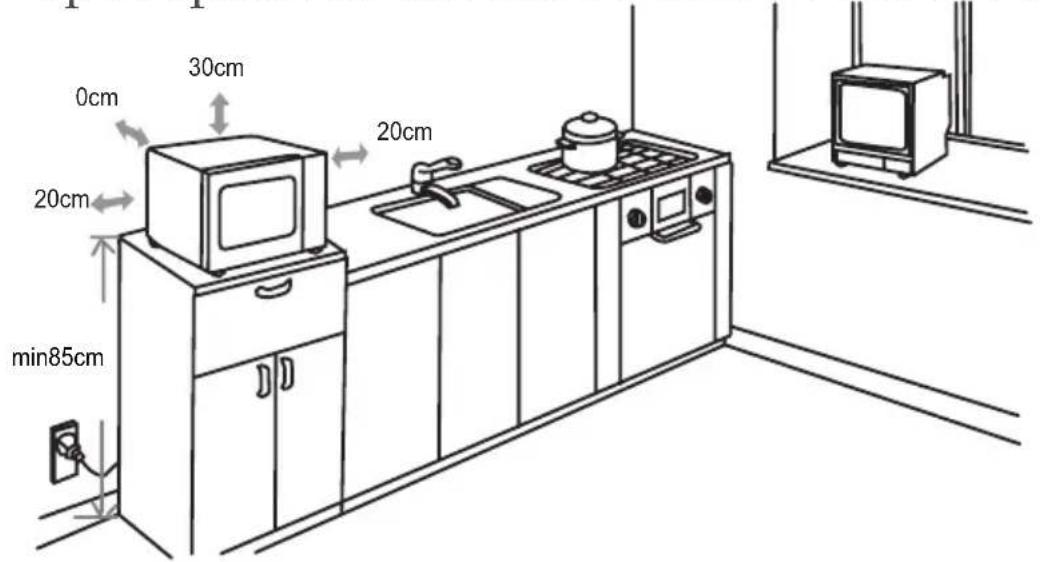

INSTALLATION

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm min85cm 20cm

1). The minimum installation height is 85cm.
2). The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

3). Do not remove the legs from the bottom of the oven.

4). Blocking the intake and/or outlet openings can damage the oven.

5). Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

• At the end of cooking the alarm beep once and the oven will stop.
• If the microwave is functioning well, the water should be hot.
• If the microwave is not working, do not try to repair it yourself, but return it to the After-Sales Service of the store in which you bought it.

USE

By turning the control dial you can set the power level:

High 100% Bas

M. High 77% Moy. Bas.

Medium 55%

M. Low 33% ^Moy. Haute

Low 17% Haute

SETTING THE TIMER

Then set the cooking time by turning the timer dial in a clockwise direction until you reach the time required.

The microwave will start.

At the end of cooking the alarm beep once and the oven will stop.

IN CASE OF BREAKDOWN

In case the case of a problem, ensure that:

1. The electric plug is correctly inserted and powered by the electric current (with the fuse intact), which can be checked by plugging another appliance in and switching on.

2. The oven door is closed correctly.

3. The oven is not too hot. In this case, wait for it to cool down.

4. Nothing is stopping the turntable from rotating.

CLEANING

• Always ensure that your oven is has stopped fully before cleaning by unplugging from the mains power.

- It is recommended that you clean the microwave regularly and remove any food deposits. Failure to keep the appliance clean may lead to permanent deterioration of the surface, reducing the useful life of the appliance and potentially leading to hazardous situations.

- Splashes on the inside of the door, as well as on the door seals and adjacent parts must be cleaned daily with warm soapy water.

- In the event that the seals or adjacent parts have deteriorated, the oven must not be used until these have been restored by a qualified After-Sales service.

- Do not put water into the air vents on the top, sides of back of the appliance.

• Always ensure that your oven is has stopped fully before cleaning by unplugging from the mains power.

- Keep the oven's internal cavity clean and dry by cleaning it regularly with a soft cloth. Do not use abrasive materials as you risk scratching or damaging the paint.

- Rinse and dry with care. It is best to clean the metal parts of the door using a damp cloth. Do not use a brush, sponge scourer or abrasive cloth, or any other liquid that may damage the turntables drive motor.

- The exterior of the oven is metal. Clean it using a cloth dampened with warm soapy water. Rinse and dry with a soft cloth.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

This instruction book is also available on our website:

www.conforama.fr

CONFORAMA France SA 80 Boulevard du Mandinet LOGNES 77432 Marne la Vallée Cedex 2 FRANCE
