USER MANUAL MOM30LBK FAR

Black FRAM microwave oven with control knobs and a visible grille (no text or symbols on main body)

MANUEL D'UTILISATION

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

IMPORTANT SAFEGUARDS GB-29

INSTALLATION GB-36

CLEANING GB-37

PRODUCT INSTRUCTION GB-39

DISPOSAL OF YOUR OLD APPLIANCE GB-48

IMPORTANT SAFEGUARDS

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the oven cavity.

a.Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
c.Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
d. After use wipe the wave guide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.
e. If materials inside the oven should smoke or ignite keep oven door closed, turn oven off and disconnect the power supply.
f. When heating food in plastic or paper containers. Keep an eye on the oven due to the possibility of ignition.

1. To reduce the risk of explosion and sudden boiling

a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
b. Use the wide-mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.
c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
d. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
5. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
8. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

1. To prevent the turntable from breaking:

a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable
c. Do not place frozen foods or utensils on the hot turntable.

1. Make sure the utensils do not touch the interior walls during cooking.
2. Only use utensils that are suitable for use in microwave ovens.
3. Do not store food or any other things inside the oven.
4. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
5. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

1. Any accessories not by recommended the manufacturer may cause injuries to persons.
2. Do not use device outdoors.
3. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
4. This appliance is not intended to be operated by means of an external timer or a separate remote control system.
5. The microwave oven light is not suitable for other uses.
6. CAUTION: Accessible parts may become hot during use. Young children should be kept away.
7. The appliance become hot during use. Use caution to avoid touching the heating elements inside the oven.
8. Surfaces are liable to become hot during use.
9. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
10. Unplug the appliance before cleaning it.
    26 In order to ensure sufficient ventilation, the distance between the back of the microwave and the wall should beat least 10 cm, the distance between the sides and the wall should beat least 5 cm, and the free space above the top surface should beat least 20 cm.

11. Metallic containers for food and beverages are not allowed during microwave cooking.

12. Do not use abrasive cleaners or hard metal scrapers to clean the oven glass door, as they are likely to scratch the surface and cause the glass to shatter.

13. The waveguide cover must not be lifted.
14. The appliance shall not be cleaned with a steam cleaner.
15. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

16. This appliance is intended to be used in household and similar applications such as:

17. staff kitchen areas in shops, offices and working environments;

18. farm houses;

19. by clients in hotels, motels and other residential environments;
    • bed and breakfast type environments

20. Group 2 Class B appliance

Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.

Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

1. Be careful, hot surface.

2. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

3. The oven should be cleaned regularly and any food deposits removed.
4. The microwave oven is only used in freestanding, the microwave oven shall not be placed in a cabinet.
5. The appliance must not be installed equal or higher than 900 mm above the floor.
6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
7. The Power consumption of equipment in any off-mode condition is lower than 0,3 W.
8. Regarding the instructions for cleaning and maintenance, thanks to refer to the below paragraph of the manual.
   42 arding the instruction. Reg s for cleaning surfaces in contact with food thanks to refer to the below paragraph of the manual.
9. his product internal lightT source LED light on <60lm.
   44 To be in compliance EN. 61000-3-11, the product shall be connected only to a supply of the system impedance:Zsys = 0.40089 ohms or less. Before connect the product to public power network, please consult your local power supply authority to ensure the power network meet above requirement."

CAUTION:HOT SURFACE

Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional. Regarding the instructions for installation and electric connection of the appliance, thanks to refer to the below paragraph of the manual. Warning: If the light is damaged, contact an authorized service representative for repairing.

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top

surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.

1. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance. The distance should be more than 5m.

2. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.

3. The microwave oven must be operated with the door closed. 7. The microwave oven must not be placed in cabinet, The microwave oven is intended to be used freestanding.

4. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

1. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
2. Never use hard detergent, gasoline, abrasive powde o meta brush to clean any part of the appliance.
3. Do not remove the waveguide cover.
4. When the microwave oven has been used for a long time, there may be some strange odors exist in oven. Following 3 methods can get rid of them:

a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
b. Place a cup of red tea in oven, then heat with high micro power.
c. Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

1. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window.

Wipe the door seals and adjacent parts to remove any spill or spatter.

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the cavity with a dampened soft cloth.

Wipe clean the wave guide cover to remove any food splashed.

Turntable/ Rotation ring/ Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

PRODUCT INSTRUCTION

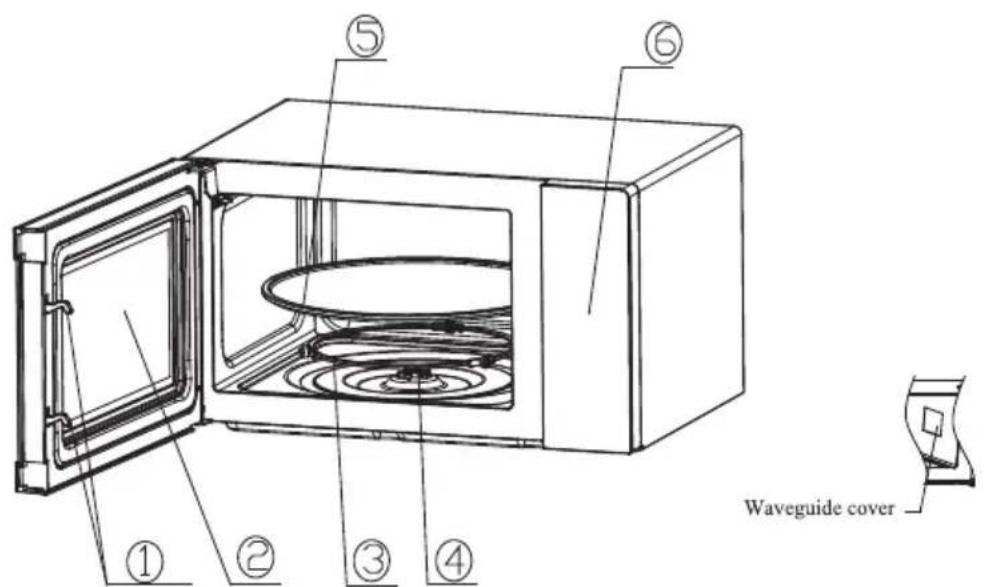

Waveguide cover ① ② ③ ④ ⑤ ⑥

1) Door lock

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

4) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

- Place the rotating ring first

- Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover

The maximum setting is 35 minutes, there is a ringtone at the end, and the knob returns to the "0" position.

2. MICROWAVE FUNCTION

No.	MICROWAVE POWER MICROWAVE OUTPUT RATIO
1	Low About 17% power output
2	Defrost/M.Low About 30% power output
3	Med About 55% power output
4	M.High About 80% power output
5	High 100% power output

Below is some food defrosting time advice:

No. Weight (g) Defrost time
1 200g About 4 minutes
2 400g About 8 minutes
3 600g About 12 minutes

OPERATION

1) Connect the cord

-Before connecting the cord, make sure the timer is set to "0" position.

- Do not block the ventilation.

2) Place the food on the glass turntable tray and close the door

- Food must be contained in a utensil.

- Do not operate the microwave oven without load, otherwise it will cause damage to the microwave oven.

3) Select the desired microwave power level.

4) The microwave oven starts running. If pausing in midway is needed, just open the door at any time, and close it to resume operation.

5) When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off.

If food is removed before time out, make sure to set back the timer to “0” position, this avoids the microwave oven from operating in empty load.

6) It is recommended to wear gloves when removing the cooked food from oven and be careful do not touch the inner wall of cavity.

CAUTION

Heating food fast, generally only 2 to 3 minutes, please control in 5 minutes. Please pay attention to the cooking condition of the food at any time and adjust it according to your taste preference. Avoid overheating. When heating porridge, congee, should first stir evenly, and then covered with plastic film (leave corners for ventilation) or with a perforated lid heating.

At mid-point to defrosting time, please open the door to turn the food, so that the defrosting effect is more uniform.

UTENSILS GUIDELINE

Depending on the cooking method, it is necessary to choose a safe and suitable vessel. If it is not properly selected, it will not only affect the cooking effect, but also cause damage to the vessel or microwave oven. Please refer to the table below for use:

Material of container Microwave Notes
Heat-resistant ceramic Yes		Never use the ceramics which are decorated with metal rim or glazed. Recommend using ceramics, high-temperature resistant glass, and plastic containers that can withstand temperatures above 120°C.
Heat-resistant plastic Yes		Cannot be used for long time microwave cooking
Heat-resistant glass Yes
Grill rack No
Plastic film	Yes	It should not be used when cooking meat or chops as the over-temperature may do damage to the film

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.

2. Does the oven lamp light?

3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

5.Is the water inside the oven hot?

If “NO” is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   • High voltage transformer
   • High voltage capacitor
   • High voltage diode

4. High voltage fuse

The actual configuration in order to prevail in kind.

1. The following conditions may cause undue microwave exposure during servicing.

2. Improper fitting of magnetron;

3. Improper matching of door interlock, door hinge and door;
4. Improper fitting of switch support;
5. Door, door seal or enclosure has been damaged.

SPECIFICATIONS

Model	MOM30LBK
Rated Voltage	230V~ ,50Hz
Rated Input Power(Microwave) 1520W
Rated Output Power(Microwave) 950W
Oven capacity 30L
Turntable Diameter 31,5CM
External Dimensions	W51xH30.19xD38.14CM
Net Weight 13.87KG

Customer service

We decline liability for any damage or accident derived from any use of this appliance which is not in conformity with the instructions contained in this manual.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

This instruction book is also available on our website: www.conforama.fr

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

http://sav-client.conforama.fr/

or call : 09 69 32 05 05

from Monday to Saturday, 8:30 to 19:00 price of a local call.

Disposal of your old appliance

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

CE

CONFORAMA FRANCE
