USER MANUAL S510AD Getac

Getac Technology Corporation

English....1

Deutsch 9

Español....16

Français 23

Italiano....30

Русский....37

简体中文 44

繁體中文 51

NOTE: The information in this manual is subject to change without notice. Depending on the specific model you purchased, the look of your model may not exactly match the graphics shown in this document.

AC adapter
Screw for the SSD

module

Stylus and tether**

Document(s)
Driver disc**

* The total number of this item is one or two.

** Optional

Installing the Battery Pack(s)

1. With the battery pack correctly oriented, attach its connector side to the battery bay at an angle (①) and then press down the other side (②).

Two views of a black electronic device showing internal components and a circular arrow indicating a specific area (no text or symbols present)

1. Slide the security lock toward the locked position ( ).

CAUTION: Make sure the lock is correctly locked, not revealing the underneath red part.

1. If you have a second battery pack, install it in the other battery bay in the same way.

Connecting to AC Power and Starting Up

The first time you use your computer, connect the AC adapter.

1. Plug the DC cord of the AC adapter to the power connector of the computer (①).
2. Plug the female end of the AC power cord to the AC adapter and the male end to an electrical outlet (②).

Diagram showing cable connections with labeled components, including plug, connector, and socket connection

NOTE: The power cord type varies with countries.

1. Open the top cover by pulling the cover latch (①) and lifting up the cover (②).

Laptop with open lid and black case, showing a curved arrow indicating motion (no text or symbols)

1. Press the power button (⏻) to start up.

Close-up of a keyboard with a power button icon (no text or symbols visible)

1. The Windows operating system should start. When turning on your computer for the very first time, you will be guided through a setup process. Follow the onscreen instructions to complete.

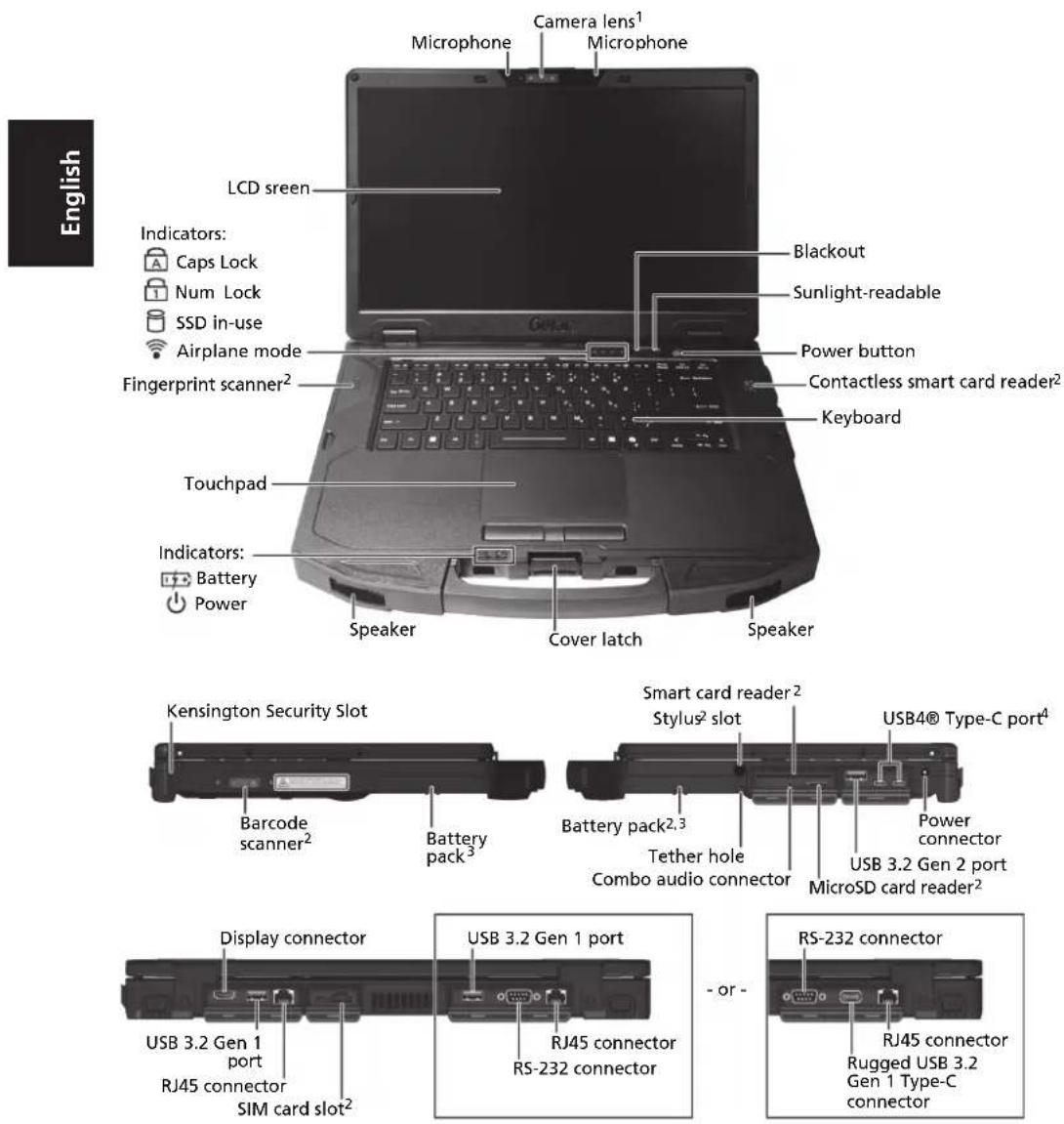

Taking a Look at the Computer

English LCD screen Microphone Camera lens¹ Microphone Indicators: Caps Lock Num Lock SSD in-use Airplane mode Fingerprint scanner² Blackout Sunlight-readable Power button Contactless smart card reader² Keyboard Touchpad Indicators: Battery Power Speaker Cover latch Speaker Kensington Security Slot Barcode scanner² Battery pack³ Smart card reader² Stylus² slot USB4® Type-C port⁴ Battery pack²,³ Tether hole Combo audio connector Power connector USB 3.2 Gen 2 port MicroSD card reader² Display connector USB 3.2 Gen 1 port RS-232 connector - or - USB 3.2 Gen 1 port RJ45 connector SIM card slot² RS-232 connector RJ45 connector Rugged USB 3.2 Gen 1 Type-C connector

System Recovery

Using Windows RE

Windows has a recovery environment (Windows RE) that provides recovery, repair, and troubleshooting tools. The tools are referred to as Advanced Startup Options. You can access these options by selecting Start → Settings → System → Recovery. (See Microsoft website for more information.)

NOTE: If you are in a situation where your computer won't boot into Windows, you can access the Advanced Startup Options by running the BIOS Setup Utility and selecting Advanced → Windows RE.

Using Recovery Partition

When necessary, you can restore your Windows system to the factory default state by using the "recovery partition" feature. (Refer to the User Manual for detailed information.)

More Information

For complete information of the product, refer to the User Manual (in PDF format) on your Windows desktop. You can download the latest manual and drivers by accessing the Getac website at https://support.getac.com/Portal/Page/809

Taking Care of the Computer

Location Guidelines

• For optimal performance, use the computer where the recommended temperature is within 0 °C (32 °F) \~ 40 °C (104 °F).
• Avoid placing the computer in a location subject to high humidity, extreme temperatures, mechanical vibration, or heavy dust. Using in extreme environments for long periods can result in product deterioration and a shortened product life.
• Operating in an environment with metallic dust is not allowed.
• Place the computer on a flat and steady surface. Do not stand the computer on its side or store it in an upside-down position. A strong impact by dropping or hitting may damage the computer.

• Do not cover or block any ventilation openings on the computer. For example, do not place the computer on a bed, sofa, rug, or other similar surface. Otherwise, overheating may occur that results in damage to the computer.

• As the computer can become very hot during operation, keep it away from objects that are vulnerable to heat.

• Keep the computer at least 13 cm (5 inches) away from electrical appliances that can generate a strong magnetic field such as a TV, refrigerator, motor, or a large audio speaker.
• Avoid moving the computer abruptly from a cold to a warm place. A temperature difference of more than 10 °C (18 °F) may cause condensation inside the unit, which may damage the storage media.

General Guidelines

• Do not place heavy objects on top of the computer as this may damage the display.
• Do not move the computer simply by grasping the display screen.
• To avoid damaging the screen, do not touch it with any sharp object.
• LCD image sticking occurs when a fixed pattern is displayed on the screen for a prolonged period of time. You can avoid the problem by limiting the amount of static content on the display. It is recommended that you use a screen saver or turn off the display when it is not in use.
• To maximize the life of the backlight in the display, allow the backlight to automatically turn off as a result of power management.

Cleaning Guidelines

• Never clean the computer with its power on.
• Use a soft, lint-free cloth to wipe the exterior surfaces of the computer.
• Dust or grease on the touchpad can affect its sensitivity. Clean the pad by using adhesive tape to remove the dust and grease on its surface.
• If water or liquid is split onto the computer, wipe it dry and clean when possible. Do not leave the computer wet when you can dry it.
• In case water or liquid is spilt into the keyboard, immediately turn off the computer and unplug the AC adapter. Then turn the keyboard upside down to drain the liquid out of the keyboard. Make sure to clean up any part of the spill you can get to. Though the keyboard of your computer is spill-proof, liquid will remain in the keyboard enclosure if you don't remove it.
• If the computer gets wet where the temperature is 0 °C (32 °F) or below, freeze damage may occur. Make sure to dry the wet computer.

Battery Pack Guidelines

• To charge the battery, connect the AC adapter to the computer and an electrical outlet. The Battery Indicator on the computer glows amber to indicate charging is in progress. When the battery is fully charged, the Battery Indicator glows green.
• Recharge the battery pack when it is nearly discharged. When recharging, make sure that the battery pack is fully charged. Doing so may avoid harm to the battery pack.
• The battery pack is a consumable product and the following conditions will shorten its life:
• when frequently charging the battery
• when using, charging, or storing the battery in high temperature condition
• To avoid hastening the deterioration of the battery pack thereby prolonging its useful life, minimize the number of times you charge it so as not to frequently increase its internal temperature.
• Charge the battery pack between 10°C \~ 30°C (50°F \~ 86°F) temperature range. A higher environment temperature will cause the battery pack's temperature to rise. Avoid charging the battery pack inside a closed vehicle and in hot weather condition. Also, charging will not start if the battery pack is not within the allowed temperature range.
• It is recommended that you do not charge the battery pack more than once a day.
• It is recommended that you charge the battery pack with the computer's power off.
• To maintain the battery pack's operating efficiency when removed from the computer, store it in a cool dark place and with 30% \~ 40% charge remaining.
• Important guidelines When installing or removing the battery pack take note of the following:
• avoid installing or removing the battery pack when the computer is in Sleep mode. Abruptly removing the battery pack may cause loss of data or the computer may become unstable.
• avoid touching the battery pack terminals or damage may occur, causing improper operation to it or the computer.
  The computer's input voltage and surrounding temperature will directly affect the charge and discharge time:
• charging time will be prolonged when the computer is turned on. To shorten the charging time, it is recommended that you place the computer in Sleep or hibernation mode.

- a low temperature will prolong the charging time as well as hasten the discharge time.

• When using battery power in an extremely low temperature environment, you may experience shortened operating time and incorrect battery level reading. This phenomenon comes from the chemical characteristics of batteries. The appropriate operating temperature for the battery is -10 °C \~ 50 °C (14 °F \~ 122 °F).
• Do not leave the battery pack in storage for more than six months without recharging it.

Touchscreen Guidelines (Select Models Only)

• Use the finger or the included stylus on the display. Using a sharp or metallic object may cause scratches and damage the display, thereby causing errors.
• Use a soft cloth to remove dirt on the display. The touchscreen surface has a special protective coating that prevents dirt from sticking to it. Not using a soft cloth may cause damage to the special protective coating on the touchscreen surface.
• Turn off the computer power when cleaning the display. Cleaning with the power on may cause improper operation.
• Do not use excessive force on the display. Avoid placing objects on top of the display as this may cause the glass to break thereby damaging the display.
• In low and high temperatures (below 5 °C / 41 °F and above 60 °C / 140 °F), the touchscreen may have a slower response time or register the touch in the wrong location. It will go back to normal after returning to room temperature.
• When there is a noticeable discrepancy in the placement of the stylus on the screen and the indicated position of the onscreen pointer, use the calibration utility to recalibrate the touchscreen display.

Safety Notices

About the Battery

If the battery is mishandled, it may cause fire, smoke or an explosion and the battery's functionality will be seriously damaged. The safety instructions listed below must be followed.

Danger

- Do not immerse the battery with liquid such as water, sea water or soda.

• Do not charge/discharge or place the battery in high-temperature (more than 80 °C/176 °F) locations, such as near a fire, heater, in a car in direct sunlight, etc.
• Do not use unauthorized chargers.
• Do not force a reverse-charge or a reverse-connection.
• Do not connect the battery with AC plug (outlet) or car plugs.
• Do not adapt the battery to unspecified applications.
• Do not short circuit the battery.
• Do not drop or subject the battery to impacts.
• Do not penetrate with a nail or strike with a hammer.
• Do not directly solder the battery.
• Do not disassemble the battery.
• Keep the battery away from an extremely low air pressure environment as it may result in an explosion or the leakage of flammable liquid or gas.

Warning

• Keep the battery away from infants.
• Stop using the battery if there are noticeable abnormalities such as abnormal smell, heat, deformities, or discoloration.
• Stop charging if the charging process cannot be finished.
• In case of a leaking battery, keep the battery away from flames and do not touch it.
• Pack the battery tightly during transport.

Caution

• Do not use the battery where static electricity (more than 100V) exists that might damage the protection circuit of the battery.
• When children are using the system, parents or adults must ensure that they are using the system and battery correctly.
• Keep the battery away from flammable materials during charging and discharging.
• In case lead wires or metal objects come out from the battery, you must seal and insulate them completely.

Caution Texts Concerning Lithium Batteries

ATTENTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.

Caution Texts Concerning Coin Batteries

WARNING

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN.

• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

• The coin battery is not user replaceable. It must be replaced by Getac authorized service centers.

• Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.
• Even used batteries may cause severe injury or death.
• Call a local poison control center for treatment information.
• Battery type: CR2016
  • Nominal battery voltage: 3 V
• Non-rechargeable batteries are not to be recharged.
• Do not force discharge, recharge, disassemble, heat above 60 °C (140 °F), or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.
• Ensure the batteries are installed correctly according to polarity (+ and -).
• Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries.
• Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations.
• Always completely secure the battery compartment. If the battery compartment does

not close securely, stop using the product, remove the batteries, and keep them away from children.

About the AC Adapter

• Use only the AC adapter supplied with your computer. Use of another type of AC adapter will result in malfunction and/or danger.
• If a ground/earth pin attachment plug on the AC power cord is provided, always plug the cord into a grounded/earthed outlet. Do not disable ground/earth pin of the plug/cord.
• Do not use the adapter in a high moisture environment. Never touch the adapter when your hands or feet are wet.
• Allow adequate ventilation around the adapter when using it to operate the device or charge the battery. Do not cover the AC adapter with paper or other objects that will reduce cooling. Do not use the AC adapter while it is inside a carrying case.
• Connect the adapter to a proper power source. The voltage requirements are found on the product case and/or packaging.
• Do not use the adapter if the cord becomes damaged.
• Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture.

Heat Related Concerns

Your device may become very warm during normal use. It complies with the user-accessible surface temperature limits defined by the International Standards for Safety. Still, sustained contact with warm surfaces for long periods of time may cause discomfort or injury. To reduce potential heat-related concerns, follow these guidelines:

• Keep your device and its AC adapter in a well-ventilated area when in use or charging. Allow for adequate air circulation under and around the device.

• Use common sense to avoid situations where your skin is in contact with your device or its AC adapter when it's operating or connected to a power source. For example, don't sleep with your device or its AC adapter, or place it under a blanket or pillow, and avoid contact between your body and your device when the AC adapter is connected to a power source. Take special care if you have a physical condition that affects your ability to detect heat against the body.

• If your device is used for long periods, its surface can become very warm. While the temperature may not feel hot to the touch, if you maintain physical contact with the device for a long time, for example if you rest the device on your lap, your skin might suffer a low-heat injury.

• If your device is on your lap and gets uncomfortably warm, remove it from your lap and place it on a stable work surface.
• Never place your device or AC adapter on furniture or any other surface that might be marred by exposure to heat since the base of your device and the surface of the AC adapter may increase in temperature during normal use.

Regulatory Information

USA

Federal Communications Commission Radio Frequency Interference Statement

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Please note:

The use of a non-shielded interface cable with this equipment is prohibited.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

FCC RF Exposure Information

This device has been tested and meets applicable limits for Radio Frequency (RF) exposure.

For general notebook computers in normal use, you (or any other person in the vicinity) should keep a minimum separation distance of 20 cm away from the front panel of the device to ensure that the RF exposure levels comply with the RF exposure requirement.

For devices designed to be operated at closer proximities, their antennas cannot satisfy the separation distance. Such devices are evaluated with the Specific Absorption Rate (SAR). You (or any other person in the vicinity) should keep a minimum separation distance of 25 mm away from the front panel of the device to ensure that the RF exposure levels comply with the RF exposure requirement.

Company name	Getac Inc.
Address	15495 Sand Canyon Rd., Suite 350 Irvine, CA 92618 USA
Phone +1-949-68	81-2900

California Perchlorate Material Notice

Perchlorate material - special handling may apply. See:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

This product's real-time clock battery or coin cell battery may contain perchlorate and may require special handling when recycled or disposed of in California.

Canada

Canadian ICES-003

CAN ICES-3(B)/NMB-3(B)

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology.

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

CE Getac hereby declares that this product complies with the EU Directive 2014/53/EU. The full text of the EU declaration of confor-

mity is available at:

https://support.getac.com/Portal/Page/809

The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

Company name	Getac Technology GmbH.
Address	Kanzlerstrasse 440472 Dusseldorf, Germany
Phone +49 (0) 21	11-984819-0

EU RoHS

Getac products meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment. For more information about RoHS, go to:

https://www.getac.com/us/environment/

Waste Electrical and Electronic Equipment (WEEE) This symbol means that according to local laws and regulations your product shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Proper recycling of your product will protect human health and the environment.

Battery Directive — Information for Users In the European Union, this label indicates that the batteries in this product should be collected separately and not be disposed of with household waste. Substances in batteries can have a potential impact on health and environment and you have a role in recycling waste batteries thus contributing to the protection, preservation, and improvement of the quality of the environment.

UK

Hereby, Getac Technology Corporation declares that this device is in compliance with Radio Equipment Regulations 2017.

Restriction or Requirement in the UK: 5150 to 5350 MHz indoor-use only.

Company name	Getac UK Ltd.
Address	Getac House, Stafford Park 12,Telford, Shropshire, TF3 3BJ, UK
Phone [phone]

About USB Power Delivery

Wattage for charging: Minimum 65 W Maximum 100 W

ENERGY STAR

ENERGY STAR® is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations.

Please reference ENERGY STAR® related information from http://www.energystar.gov.

As an ENERGY STAR® Partner, Getac Technology Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

All Getac products with ENERGY STAR® logo comply with the ENERGY STAR® standard, and the power management feature is enabled by default. Getac's ENERGY STAR® qualified products are listed on the EPA website. https://www.energystar.gov/products

Erste Schritte

Close-up of a black electronic device with a circular annotation labeled '1' pointing to a feature, no readable text or symbols present.

Close-up of a black printer's front panel with a numbered arrow pointing to the cover (no visible text or symbols)

Diagram showing cable connections with labeled components, including a plug, connector, and socket connection.

Black laptop case with open lid and two arrows pointing to the side (no text or symbols)

Close-up of a keyboard with a power button icon (no text or symbols visible)

https://www.energystar.gov/products

Comenzar

Desembalaje

Close-up of a black electronic device with a circular annotation highlighting a numbered feature (1), no visible text or symbols beyond the label.

Close-up of a black electronic device with a numbered annotation (②) pointing to a component, no visible text or symbols on the device itself.

Diagram showing cable connection with plug, connector, and cable outlet labeled ① and ②

Laptop with open lid and labeled parts (1 and 2), no visible text or symbols on the device itself

Close-up of a keyboard with a power button icon (no text or symbols visible)

https://www.energystar.gov/products

Mise en route

Déballage

Two views of a black electronic device showing internal components with numbered callouts (1 and 2), no visible text or symbols.

Diagram showing cable connections with labeled components, including a plug, connector, and power outlet

Laptop with open lid and visible foldable edges, labeled ① and ② (no text or symbols on the device itself)

Close-up of a keyboard with an arrow pointing to the key button (no text or symbols visible)

Close-up of a printer's front panel showing a circular badge labeled '1' (no text or symbols on the device itself)

Close-up of a black electronic device casing with a numbered component (②) and arrow indicator (no readable text or symbols)

Diagram showing cable connections with labeled components, including a plug, connector, and socket with pinout.

Laptop with open lid and labeled parts (1, 2), no visible text or symbols on the device itself

Close-up of a black keyboard with a power button icon (no text or symbols visible)

https://www.energystar.gov/products

Close-up of a black electronic device with a circular annotation highlighting a numbered feature (no readable text or symbols)

Close-up of a black electronic device with a numbered annotation pointing to a component (no visible text or symbols)

Diagram showing cable connection with plug, connector, and cable outlet labeled ① and ②

Laptop case with open lid and two arrows indicating motion (no text or symbols)

Close-up of a black keyboard with a power button icon (no text or symbols visible)

https://www.energystar.gov/products

准备开始

装箱清单

Close-up of a black electronic device with a circular annotation labeled '1' pointing to a component (no readable text or symbols beyond the label)

Close-up of a black printer's front panel with a numbered callout (no visible text or symbols)

简体中文

1. 将安全锁推到锁定位置(☐).

Diagram showing cable connections with labeled components, including a plug, connector, and cable outlet

注：电源线的类型因国别而异。

1. 拉开上盖门闩（①）即可掀起上盖（②）。

Laptop with open lid and two arrows pointing to the front panel (no text or symbols)

1. 按电源钮（⏻）开机。

Close-up of a keyboard with a power button icon (no text or symbols visible)

https://support.getac.com → 驱动及文件下载

平时维护

地点准则

https://www.energystar.gov/products

产品中有害物质的名称及含量

Pure geometric lines forming a right angle with no text, numbers, or symbols

S510AD

筆記型電腦

操作指南

繁體中文

51

開始使用

裝箱清單

Close-up of a laptop's front panel showing the lid and keyhole (no text or symbols visible)

Close-up of a black electronic device with a numbered annotation pointing to a component (no visible text or symbols)

繁體中文

1. 將安全鎖推到鎖定位置(☐).

Diagram showing cable connections with labeled components, including a plug, connector, and cable outlet

註：電源線的類型因國別而異。

Laptop with open lid and labeled parts (1 and 2), no visible text or symbols on the device itself

1. 按下電源鈕 (⏻) 開機。

Close-up of a keyboard with an arrow pointing to the top-right button (no visible text or symbols)

Simple horizontal bar with two shades of gray, no text or symbols present

Two solid color blocks side by side: dark gray on the left and light gray on the right, with no text or symbols.

-

1
