USER MANUAL JS120 Professional BOSCH

Icon of a person reading a book inside a circle (no text or symbols)

Operating/Safety Instructions Consignes d'utilisation/de sécurité Instrucciones de funcionamiento y seguridad

JS120

3D rendering of a Bosch electric shaver with visible mounting base and internal components (no text or symbols)

BOSCH

Call Toll Free for Consumer Information and Service Locations Pour obtenir des informations et les adresses de nos centres de service après-vente, appelez ce numéro gratuit Llame gratis para obtener información para el consumidor y ubicaciones de servicio

1-877-BOSCH99 (1-877-267-2499) www.boschtools.com

For English Version See page 2

Safety SymbolsThe definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
	WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed

below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or

General Power Tool Safety Warnings

medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

General Power Tool Safety Warnings

d. Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F may cause explosion.

g. Follow all charging instructions and do not charge the battery pack or tool

outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety Rules for Jig Saws

a. Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

b. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.

c. Do not drill, fasten or break into existing walls or other blind areas where electrical wiring may exist. If this situation is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.

d. Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

e. Never leave the trigger locked "ON". Before inserting the battery pack, check that the trigger lock is "OFF". Accidental start-ups could cause injury.

f. Keep hands away from cutting area. Do not reach under the material being cut. The proximity of the blade to your hand is hidden from your sight.

g. Keep hands from between the gear housing and saw blade holder. The reciprocating blade holder can pinch your fingers.

h. Do not use dull or damaged blades. Bent blade can break easily or cause kickback.

i. Before starting to cut, turn tool "ON" and allow the blade to come to full speed. Tool can chatter or vibrate if blade speed is too slow at beginning of cut and possibly kickback.

j. Secure material before cutting. Never hold it in your hand or across legs. Small or thin material may flex or vibrate with the blade, causing loss of control.

k. Make certain all adjusting screws and the blade holder are tight before making a cut. Loose adjusting screws and holders can cause the tool or blade to slip and loss of control may result.

I. When removing the blade from the tool avoid contact with skin and use proper protective gloves when grasping the blade or accessory. Accessories may be hot after prolonged use.

Additional Safety Warnings

GFCI and personal protection devices like electrician's rubber gloves and footwear will further enhance your personal safety.

Do not use AC only rated tools with a DC power supply. While the tool may appear to work, the electrical components of the AC rated tool are likely to fail and create a hazard to the operator.

Keep handles dry, clean and free from oil and grease. Slippery hands cannot safely control the power tool.

Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation/Explanation
V Volts (voltage)
A Amperes (current)
Ah Amp-hour (measurement of battery capacity)
Hz Hertz (frequency, cycles per second)
W Watt (power)
kg Kilograms (weight)
min Minutes (time)
s Seconds (time)
	Diameter (size of drill bits, grinding wheels, etc.)
n_0	No load speed (rotational speed at no load)
n Rated	speed (maximum attainable speed)
../min	Revolutions or reciprocation per minute (revolutions, strokes, surface speed, orbits etc. per minute)
0 Off position (zero speed, zero torque...)
1, 2, 3, ...I, II, III,	Selector settings (speed, torque or position settings. Higher number means greater speed)
[AVHO]	Infinitely variable selector with off (speed is increasing from 0 setting)
[5CSX]	Arrow (action in the direction of arrow)
[TWBX]	Alternating current (type or a characteristic of current)
	Direct current (type or a characteristic of current)
[ASTY]	Alternating or direct current (type or a characteristic of current)
[AVBT]	Class II construction (designates double insulated construction tools)
[KZ3A]	Earthing terminal (grounding terminal)

Symbols (continued)

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation / Explanation
	Designates Li-ion battery recycling program
	Designates Ni-Cad battery recycling program
	Alerts user to read manual
	Alerts user to wear eye protection
	This symbol designates that this tool is listed by Underwriters Laboratories.
	This symbol designates that this component is recognized by Underwriters Laboratories.
	This symbol designates that this tool is listed by Underwriters Laboratories, to United States and Canadian Standards.
	This symbol designates that this tool is listed by the Canadian Standards Association.
	This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.
	This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards.
	This symbol designates that this tool complies to NOM Mexican Standards.

Functional Description and Specifications

WARNING

Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing

accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

JS120 Cordless Jig Saw

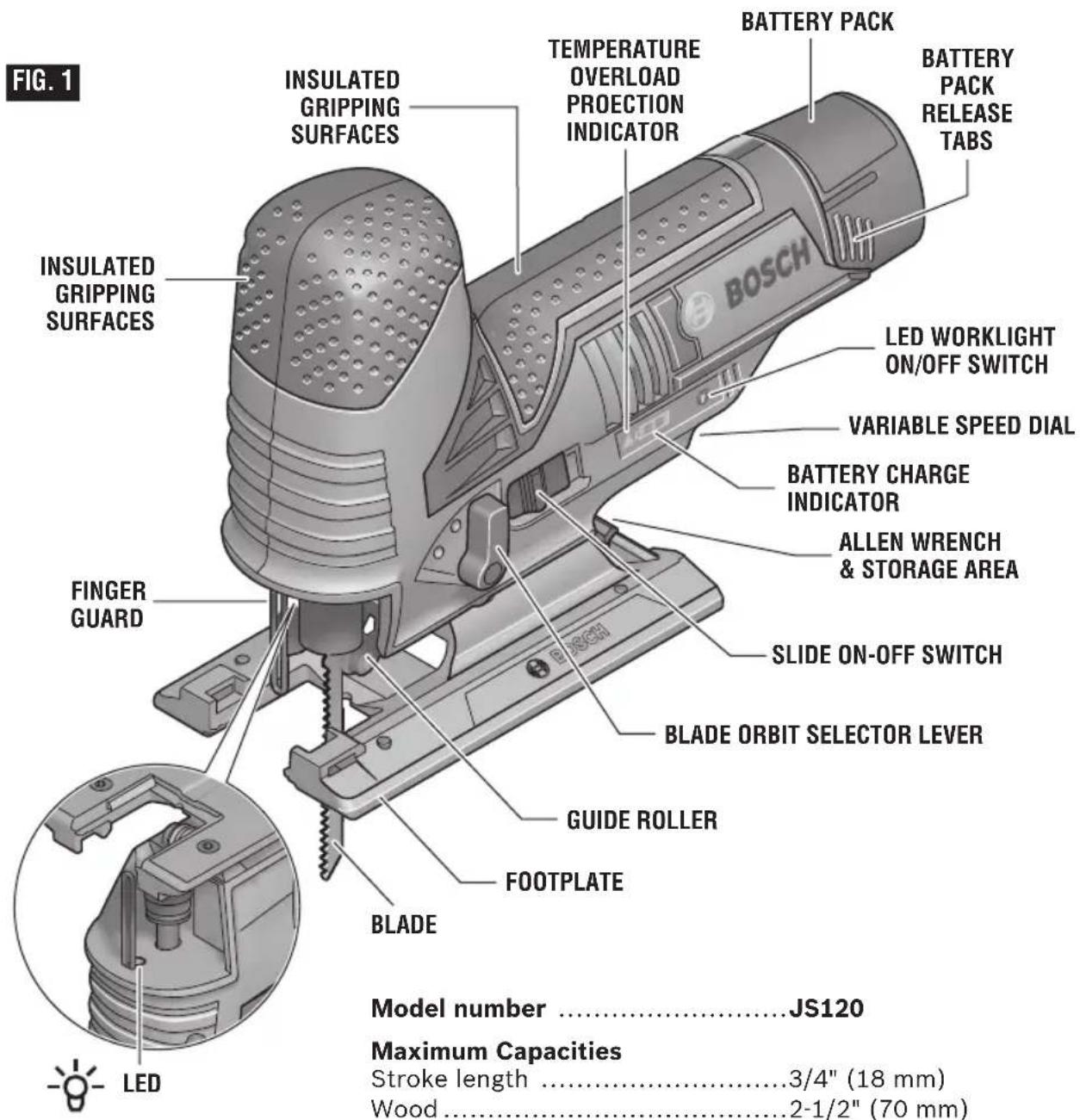

FIG. 1 INSULATED GRIPPING SURFACES TEMPERATURE OVERLOAD PROECTION INDICATOR BATTERY PACK BATTERY PACK RELEASE TABS LED WORKLIGHT ON/OFF SWITCH VARIABLE SPEED DIAL BATTERY CHARGE INDICATOR ALLEN WRENCH & STORAGE AREA SLIDE ON-OFF SWITCH BLADE ORBIT SELECTOR LEVER GUIDE ROLLER FOOTPLATE BLADE FINGER GUARD LED Model number ......JS120 Maximum Capacities Stroke length ......3/4" (18 mm) Wood ......2-1/2" (70 mm)

Battery Packs/Chargers

Allowed ambient temperature

he battery/charger list, included with your tool.

pecifications refer to the nameplate on your tool.

Assembly

WARNING

Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing

accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

Blade Installation and Removal

CAUTION

To prevent damage, do not turn blade ejector lever when there is no blade in the blade clamp or when inserting the blade.

BLADE INSTALLATION

Insert the saw blade (teeth in cutting direction) into the slot in the blade clamp until the blade ejector lever rotates to the LEFT, indicating that the clamp has engaged. (When inserting the saw blade, the back of the blade must rest in the groove of the guide roller Fig. 2.)

BLADE EJECTION

The tool should be held so that the blade is safely ejected. To remove the saw blade, rotate the blade ejector lever to the RIGHT to the center stop; this releases and ejects the saw blade (Fig. 3).

Blade Clamp Reset

There are two situations in which it is necessary to reset the blade clamp:

RESET Type A: If the blade ejection lever is rotated improperly, the "fingers" within the clamp may slip into the blade insert slot. To reset the clamp:

Step 1 - Using a a screwdriver, push down on blade clamp fingers (as viewed from the bottom of the jig saw), until clamp can be rotated.

Step 2 - Rotate blade ejector lever to the RIGHT until it locks into place. The clamp is now ready for use.

RESET Type B: If the two fingers inside the blade clamp accidentally get pushed too far into the plunger, they will prevent insertion of a blade. To bring the fingers back to their correction positions:

Step 1 – Turn the blade ejector lever to the RIGHT (as viewed from the bottom of the jig saw)

Step 2 - Continue the rotation unto fingers will snap into the correct open position.

The clamp is now ready for use.

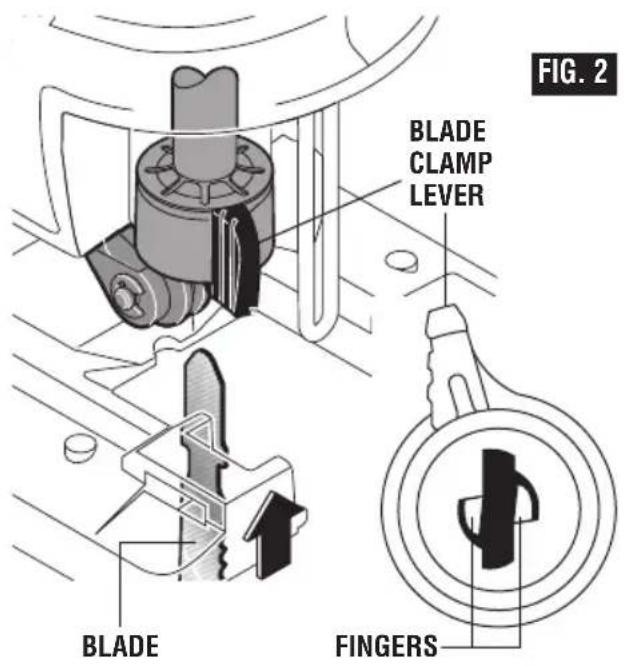

FIG. 2 BLADE CLAMP LEVER BLADE FINGERS

BLADE CLAMP IN OPEN POSITION (As viewed from the bottom)

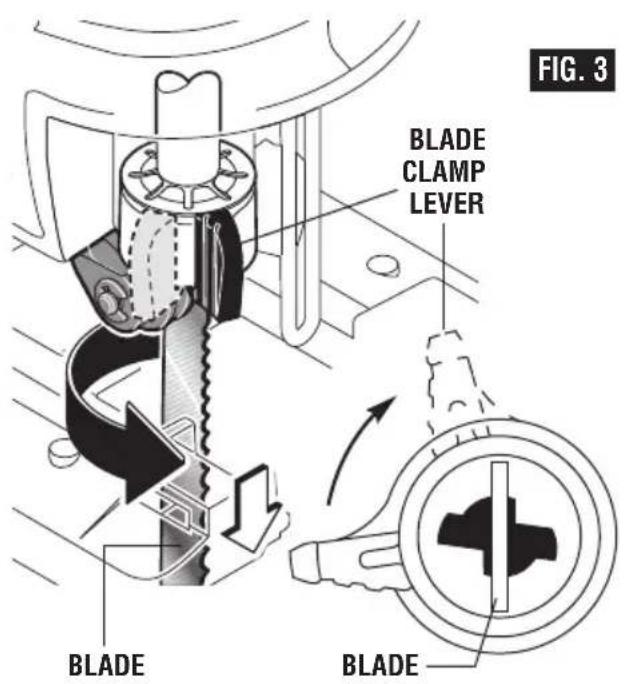

FIG. 3 BLADE CLAMP LEVER BLADE BLADE

BLADE CLAMP IN LOCKED POSITION (As viewed from the bottom)

Assembly

Attaching Non-marring Overshoe

Your tool is equipped with a protective plastic overshoe that protects finer surfaces.

To attach, hook overshoe over front of metal footplate and snap into place at rear of footplate (Fig. 4).

Anti-splinter Insert

To minimize splintering of the top surface of the material being cut, place the JA1013 anti-splinter insert in the blade opening of the footplate, or the non-marring overshoe (Fig. 5).

Note: This insert will only work with blades that have ground sides such as T301CD, TB1B, T101D, and T101DP.

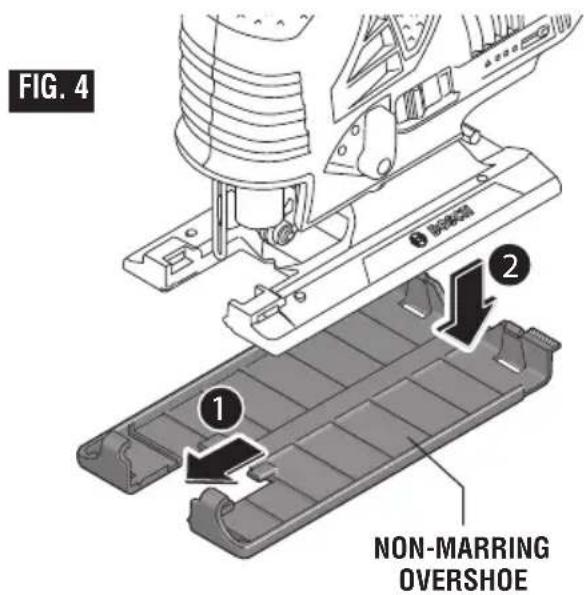

FIG. 4 ① ② NON-MARRING OVERSHOE

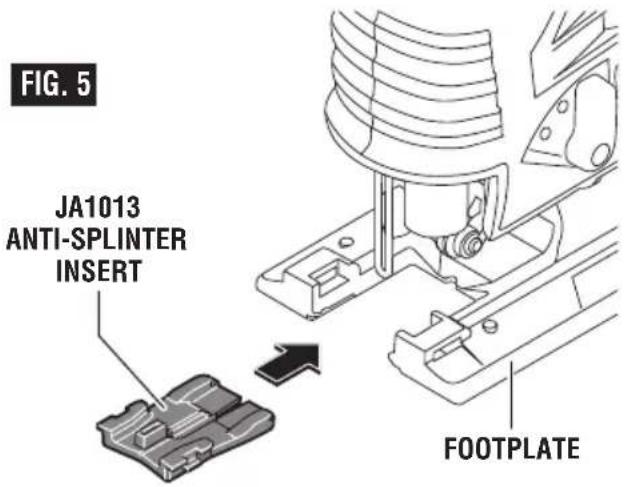

FIG. 5 JA1013 ANTI-SPLINTER INSERT FOOTPLATE

Inserting and Releasing Battery Pack

Release battery pack from tool by pressing on both sides of the battery release tabs and pull downward (Fig. 6). To insert battery, align battery and slide battery pack into tool until it locks into position. Do not force.

WARNING

Ensure the switch is in the off position before

inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.

WARNING

If battery release tabs are cracked or otherwise

damaged, do not insert into tool. Battery can fall out during operation.

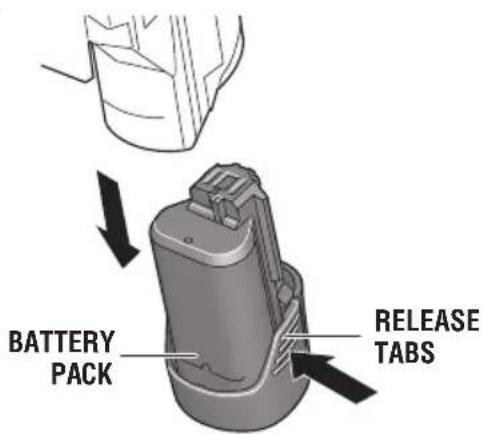

FIG. 6

BATTERY PACK RELEASE TABS

Operating Instructions

WARNING

Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing

accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

Plunger Speed

The jig saw cutting speed or stroke rate required depends on the material being cut, the type of blade being used, and the feed rate preferred by the operator. The best speed for a particular application is largely determined by experience though as a general rule, slower speeds are for denser materials and faster speeds for softer materials.

Note: that when the jig saw is used at low speed settings for an extended length of time, the motor temperature will rise due to slower speeds of the internal cooling fan. In such cases, it is necessary to occasionally run the tool at full speed for a few minutes to keep the motor running at high efficiency.

Variable Speed Dial

Your jig saw is equipped with a variable speed dial. The blade stroke rate may be adjusted during cutting operation by presetting the dial on or between any one of the six numbers.

Setting	SPM rating(strokes per minute)
1	1500
2	1800
3	2050
4	2300
5	2550
6	2800

Slide On-Off Switch

The tool is switched “ON” by the switch button located at the side of the motor housing. The switch locks in the “ON” position, a convenience for continuous operation (Fig. 1).

TO TURN THE TOOL "ON" slide the switch button forward.

TO UNLOCK THE SWITCH, slide the switch button backward.

Brake

When the trigger is released it activates the electrical brake to stop the blade quickly. This feature is especially useful when making repetitive cuts.

Blade Orbit Selector Lever

Maximum cutting efficiency can be obtained by adjusting the blade orbit selector lever to suit the material being cut.

The following chart will help you determine which setting to use for your application. This chart is intended as a guideline only, and test cuts in scrap material should be performed first to determine the best setting.

Setting O

Hard materials such as metals or thin sheet metals. This setting can be used with knife blades, grit edge blades, rasp work. and down cutting blades.

Setting 1

Soft materials where cleaner cutting or delicate scrolling work is performed.

Setting 2

Medium density materials such as harder woods or particle board. Soft materials such as wood, plastics, etc. and when fast cutting is more important than a clean cut.

Work Light

Your tool is equipped with a work light for better visibility during operation. Once the tool has been turned on, the light can be turned on by pressing the LED switch. When the tool is switched off, the light turns off. (Fig 1)

Operating Instructions

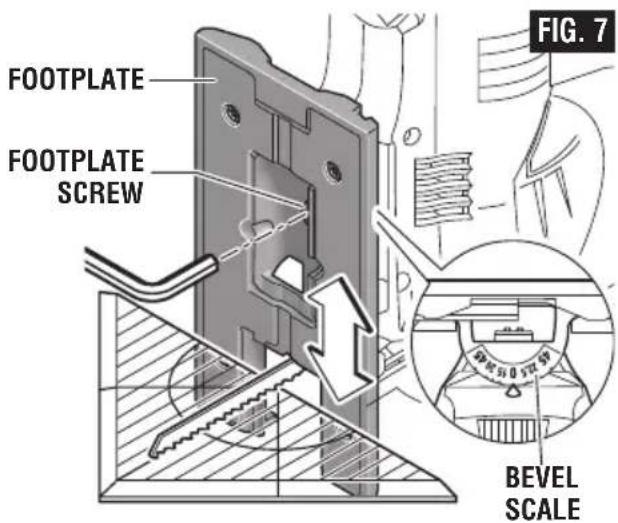

Footplate angle adjustment

The footplate may be tilted to allow angle cuts up to 45^ in either direction (Fig. 7).

Note: before adjusting the footplate, remove anti-splinter insert if used.

To adjust footplate, loosen the footplate screw with 5mm hex key and slide the footplate towards the back of tool, then rotate to desired angle (Fig. 7).

FOOTPLATE FOOTPLATE SCREW FIG. 7 BEVEL SCALE

The detent slots will hold the footplate firmly at 0^ or 45^ , and there are additional position marks for 15^ , 22.5^ and 30^ angles. Intermediate angles may be set with a protractor (Fig. 7).

After positioning the footplate, securely tighten the footplate screw (Fig. 7).

Tool Tips

WARNING

Always hold the saw by the insulated

gripping surfaces on the front of the tool and the switch handle. Failure to hold the tool by the insulated gripping surface may result in electric shock or electrocution if sawing into a blind area where live wiring exits.

Always be certain that smaller workpieces are securely fastened to a bench or other support. Larger panels may be held in place by clamps on a bench or sawhorses.

To begin a cut, clearly mark the cutting line, and rest the front of the footplate on the work. Engage the switch, and move the blade into the work using only

enough forward pressure to keep the blade cutting steadily. Do not force, as this will not make the saw cut faster; let the blade do the work.

When sawing metal or similar materials, apply coolant/lubricant alongside the cutting line.

Use of reverse-tooth blade such as the Bosch T101BR requires the orbital setting to be "0" and that downward pressure be applied to the top of the saw.

Blade Selection

- Choose blades carefully, as the ability of the jig saw to make the fastest cuts, to follow tight curves, to achieve the smoothest finish and/or to maximize the life of the blade are directly related to the type of blade used.

• Always use a blade that is appropriate for the cutting task.

• Always make a test cut in a piece of scrap material.

- For tight curves it is best to use a narrow (front to back) or scroll blade.

- Most jig saw blades have upward-pointing teeth, which helps to pull the jig saw against the workpiece and minimizes vibration. Blades with upward-pointing teeth produce a clean cut on the bottom of the workpiece.

- Blades with downward-pointing teeth (reverse-tooth blade) can be used to produce a clean cut on the top of the workpiece (that side that faces the jig saw's footplate), such as when cutting an already-installed countertop from the top. When using reverse-tooth blades, downward force must be applied to the jig saw.

- Blades with teeth that point straight out (rather than up or down) allow splinter-free cutting on both sides of the workpiece. When using such blades, downward force must be applied to the jig saw.

• The following types of blades should only be used with orbital Setting O:

1. Blades with teeth that point downward (reverse-tooth blades).
2. Blades with teeth that point straight out rather than up or down.
3. Carbide-tipped blades.
4. Grit-edge blades.

Plunge Cutting

Plunge cutting is useful and time-saving in making rough openings in softer materials. It is not necessary to drill a hole for an inside or pocket cut. The longest blade to be used for plunge cutting is 3-1/8" (80 mm). Footplate must be set 0° setting.

Draw lines for the opening, hold the saw firmly, tilt it forward so that the toe of the saw foot rests on the work, but with the blade well clear of the work. Turn the tool on and run at top speed, and then very gradually lower the blade (Fig. 8).

When it touches, continue pressing down on the toe of the saw foot slowly pivoting the saw like a hinge until the blade cuts through and the foot rests flat on the work. Then saw ahead on the cutting line. We do not recommend plunge cutting with a scroll blade. Do not try to plunge cut into hard materials

Two illustrations of a moving tool on a surface, showing the motion of movement (no text or symbols present)

such as steel.

To make sharp corners, cut up to the corner, then back up slightly before rounding the corner. After the opening is complete, go back to each corner and cut it from the opposite direction to square it off.

Temperature-dependent Overload Protection

In normal conditions of use, the tool cannot be overloaded. However, if the power tool is overloaded or not kept within the permitted battery temperature range, the speed is reduced or the power tool switches off. If the tool speed is automatically reduced in such situations, the tool will run again at full speed once the permitted battery temperature is reached or the load is reduced. During automatic shut-down, switch off the power tool, allow the battery to cool

down, and then switch the power tool back on. (Fig. 1)

Temperature-dependent Overload Protection Indicator

The red LED indicator will help you in protecting the battery against overheating and the motor against overloading. (Fig. 1)

When the LED indicator continuously lights up red, it means that the temperature of the battery is too high and the tool switches off automatically.

• Switch the power tool off.
• Allow the battery to cool down before continuing to work.

When the LED indicator flashes red, it means the tool's plunger mechanism has been stopped by the workpiece and the tool switches off automatically.

• Remove the tool from the workpiece.
• As soon as the plunger mechanism has been freed, the tool will continue to work at the set stroke rate.

Restart Protection

The restart protection feature prevents uncontrolled starting of the machine after a power failure. Once the restart protection feature is active, the temperature overload protection indicator blinks continuously. (Fig. 1)

To restart the operation, switch the On/Off switch to the Off position and start the tool again.

Note: When switching off and on again very quickly, it is possible that the restarting protection will be triggered; this will prevent the power tool from starting, even though the On/Off switch is actuated. Set the On/Off switch to the off position, and then switch the tool on again.

Operating Instructions

Protection Against Deep Discharging

The lithium ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

Battery Charge-control Indication

The three green LEDs of the battery charge-control indicator show the charging status of the battery. (Fig. 1)

The battery charge control indicator only illuminates for 5 seconds after start-up.

LED Capacity

Continuous lighting 3 x green	2/3
Continuous lighting 2 x green	1/3
Continuous lighting 1 x green <1/3
Flashing light 1 x green Reserve
Flashing light 3 x green Empty

When no LED lights up after switching on, then the battery is defective and must be replaced.

Operating Instructions

JA1010 Circle and Parallel Cutting Guide

(Sold separately)

The JA1010 is used for fast and accurate straight and circle cutting. It includes the guide, two clamps (A) for attaching it to the jig saw, and a center pin (B) for guiding circle cuts. The clamps and the centering pin can be stored on the guide (Fig. 9).

One end of the clamp is used to attach the guide's bar to jig saws that have narrow tops on their footplate mounting slots (C) and the other end is used to attach the guide's bar to jig saws that have wide tops on their footplate mounting slots (D) (Fig. 10).

When possible, attach the bar to the jig saw using both clamps for enhanced grip and precision.

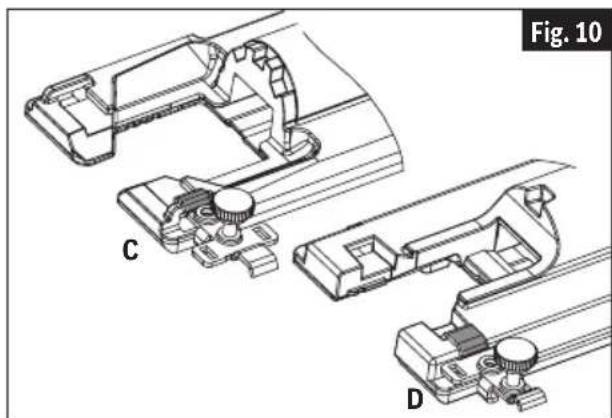

ATTACHING GUIDE TO JIG SAW

1. Orient the blade clamp so that the proper end is placed on the jig saw foot from either side of the tool.
2. Insert guide's bar through a clamp, then through the slots provided in foot, with the guide's fence orientated correctly for the intended application, parallel cutting or circle cutting. (If possible, place second clamp on bar from opposite side of jig saw.)

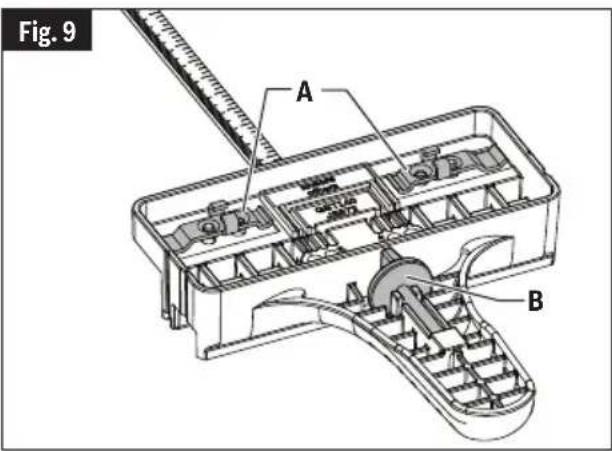

Fig. 9 A B

Technical line drawing of mechanical components labeled C and D, showing assembly or assembly steps without any readable text or symbols.

1. Place lock knob(s) on proper side of clamp(s) and securely tighten lock knob(s) on the clamp(s) (Fig. 11).

Operating Instructions

PARALLEL CUTTING

Parallel cuts can be made from 5/8" to 6" in from the edge of the workpiece.

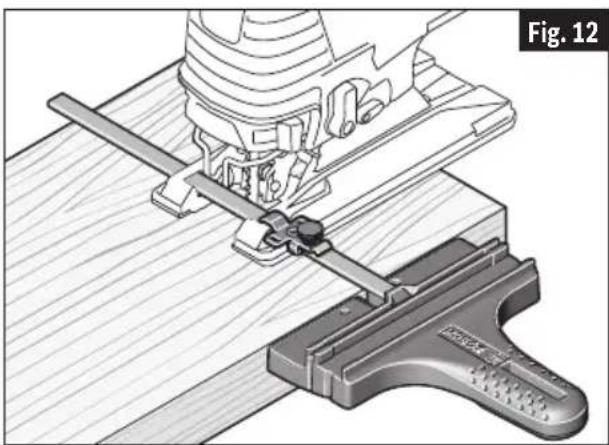

1. The guide fence surface needs to be positioned ALONGSIDE the workpiece (Fig. 12).
2. Hook clamp(s) onto footplate, adjust fence to desired width and place lock knob(s) on proper side of clamp(s)
3. Securely tighten lock knob(s) on the clamp(s) (Fig. 11).
4. Insert jig saw's plug into power source, hold the saw firmly, squeeze trigger and slowly push the saw forward (Fig. 12).

CIRCLE CUTTING

Circle cuts can be made from 5" to 16-1/2" in diameter

1. Determine the center point of the desired circle.
2. Drill a 3/16" (5 mm) center hole 7/8" (23 mm) deep in workpiece. (For enhanced precision, drill the hole using a drill press, if possible).
3. Drill or plunge cut near the circle's edge, turn saw off, and disconnect the plug from power source.

4. Insert guide bar through a clamp, then through the slots provided in foot, from either side of foot (Fig. 13). (If possible, place second clamp on bar from opposite side of jig saw).

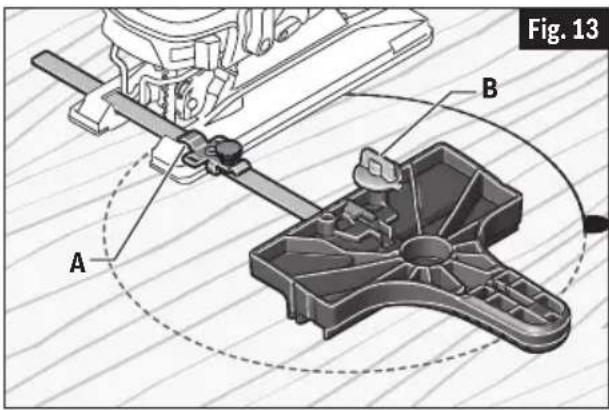

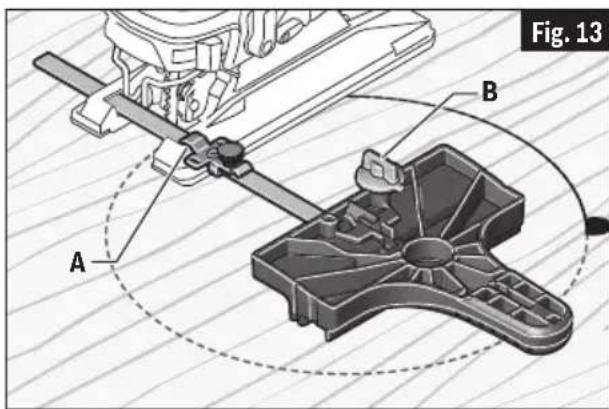

5. Remove guide pin (B) from end of guide, push pin through proper hole provided in guide, then into center hole of workpiece. (When used with a Bosch JS572 jig saw – or the JSH180 cordless jig saw – the holes labeled for the JS572 should be used.) For other jig saws, one of the other holes should be used.

6. Measure the distance from the center of the hole to the desired circle radius. Adjust that measurement as necessary to account for the width of the blade:

7. When cutting a hole, cut from inside the intended radius.

8. When cutting wheels or discs, cut from the outside the intended radius.

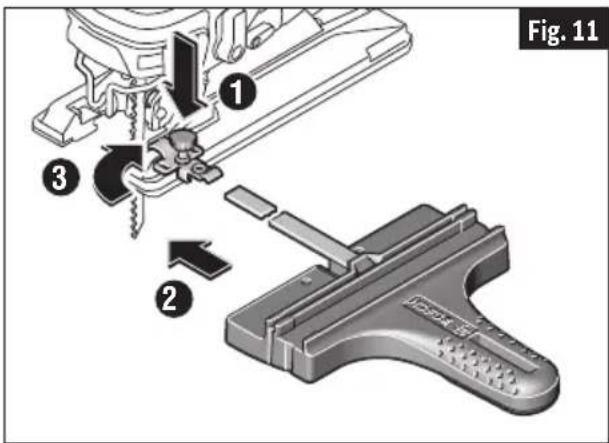

Fig. 11 ① ③ ②

Technical illustration of a mechanical clamp tool operating on a wooden workbench, labeled Fig. 12 (no text or symbols on the diagram itself)

Fig. 13 A B

1. Hook clamp(s) onto footplate, and position the guide to that adjusted radius measurement.

2. Place lock knob(s) on proper side of clamp(s) and securely tighten lock knob(s) on the clamp(s) (Fig. 11).

3. Insert jig saw's plug into power source, hold the saw firmly, squeeze trigger and slowly push the saw forward.

Operating Instructions

CIRCLE-CUTTING TIPS:

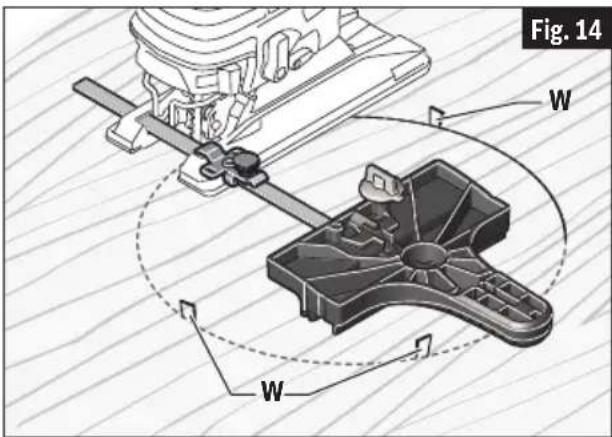

• Place small wedges (W) in the cut as shown in Fig. 14, to keep the inner circle from spreading when near the end of the cut.
• Use a thick jig saw blade, such as the Bosh T101TP or T144DP whenever possible.
• Make sure that the jig saw's orbital setting is at 0 (zero)
• Cut slowly so the blade will stay straight in the cut.

Fig. 14 W W

Maintenance

WARNING

To avoid accidents, always disconnect the battery pack from tool before servicing or cleaning.

Service

WARNING

NO USER SERVICEABLE PARTS

INSIDE. Preventive maintenance performed by un authorized personnel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station. SERVICE MEN: Disconnect tool and/or charger from power source before servicing.

Batteries

Be alert for battery packs that are nearing their end of life. If you notice decreased tool performance or significantly shorter running time between charges then it is time to replace the battery pack. Failure to do so can cause the tool to operate improperly or damage the charger.

Tool Lubrication

Your Bosch tool has been properly lubricated and is ready for use.

D.C. Motors

The motor in your tool has been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend it be examined every six months. Only a genuine Bosch replacement motor specially designed for your tool should be used.

Bearings

Bearings which become noisy (due to heavy load or very abrasive material cutting) should be replaced at once to avoid overheating and motor failure.

Maintenance

Cleaning

Certain cleaning agents and solvents

damage plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through opening.

CLEANING BLADE HOLDER

Clean the saw blade holder regularly. For this, remove the saw blade from the tool and lightly tap footplate on a level surface.

Regularly spray penetrating oil onto the saw blade holder.

Check the guide roller regularly. If worn, it must be replaced through an authorized Bosch Factory Service Center

Lubricate the guide roller occasionally with a drop of oil.

Accessories and Attachments

The use of any other attachments or acces so ries not specified in this manual may create a hazard.

Store accessories in a dry and temperate environment to avoid corrosion and deterioration.

Two-step diagram showing a mechanical device with a lever and base, labeled 'FIG. 8' (no text or symbols on the devices themselves)

Technical line drawing of mechanical components labeled C and D, showing assembly or assembly steps without any readable text or symbols.

Technical illustration of a mechanical clamp tool operating on a wooden workbench, labeled Fig. 12 (no text or symbols on the diagram itself)

Fig. 13 A B

Fig. 14 W W

Entretien

AVERTISSEMENT

Two-step diagram showing a folding tool on a surface, with no text or symbols present.

Technical line drawing of mechanical components labeled C and D, showing exploded view (no text or symbols beyond labels)

Fig. 11 ① ② ③

Corte paralelo

Technical illustration of a mechanical clamp tool operating on a wooden workbench, labeled Fig. 12 (no text or symbols on the diagram itself)

Fig. 13 A B

Fig. 14 W W

Mantenimiento

ADVERTENCIA

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all BOSCH portable and benchtop power tools will be free from defects in material or workmanship for a period of one year from date of purchase. SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete portable or benchtop power tool product, transportation prepaid, to any BOSCH Factory Service Center or Authorized Service Station. For Authorized BOSCH Power Tool Service Stations, please refer to your phone directory.

THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE AND BENCHTOP ELECTRIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL BOSCH DEALER OR IMPORTER.

GARANTIE LIMITÉE DES OUTILS ÉLECTRIQUES PORTATIFS ET D'ÉTABLI BOSCH

© Robert Bosch Tool Corporation 1800 W. Central Road Mt. Prospect, IL 60056-2230

Exportado por: Robert Bosch Tool Corporation Mt. Prospect, IL 60056-2230, E.U.A.
