USER MANUAL MW2-MG20PF TOSHIBA

Line drawing of a microwave oven with front panel and side control knob (no text or symbols)

Solid red square with no text, symbols, or patterns

INHALTSVERZEICHNIS

PRODUKTSICHERHEIT

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open microwave oven with a jar and lid (no text or symbols)

Line drawing of a microwave oven with a bowl inside and open door (no text or symbols)

HALTEN SIE DAS INNERE SAUBER

Line drawing of a microwave oven with a hand cleaning the interior (no text or symbols)

MATERIALIEN, DIE SIE IN DER MIKROWELLEN BENUTZEN KÖNNEN

ZUBEHÖR ANMERKUNGEN

Bräunungsgeschirr

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Grillrost

Glasteller

A B C D E F G N N

Diagram showing three stages of a mechanical or electrical component with labeled parts 1, 2, and 3.

Line drawing of a microwave oven with a circular dish inside and an open door, showing no text or symbols.

Line drawing of a kitchen setup with a microwave, stove, and cabinet (no text or symbols)

Warning symbol depicting steam rising inside a triangle, indicating heat or smoke hazard.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

REINIGUNG

FRONTPLATTE DES GERÄTS

Heiße Seifenlauge:

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

INNENRAUM DES GERÄTS

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

Line drawing of a hand pressing a circular component on a rectangular device (no text or symbols)

DREHTELLER UND ROLLRING

Heiße Seifenlauge:

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

TÜRVERKLEIDUNG

Glasreiniger:

Ludwig-Erhard- Straße 14, 65760 Eschborn, Germany

TOSHIBA

Please read this instruction manual carefully before using the microwave oven.

Line drawing of a microwave oven with front panel and side control knob (no text or symbols)

Solid red square with no text, symbols, or patterns

CONTENTS

PRODUCT SAFETY

Precautions to avoid possible exposure to excessive microwave energy ...... EN-01

Important safety instructions....EN-03

To reduce the risk of injury to persons grounding installation ....EN-07

Cleaning......EN-09

Utensils....EN-10

Materials you can use in microwave oven ....EN-11

Materials can not be used in microwave oven ....EN-13

PRODUCT SETTING

Setting up your oven ....EN-14

INSTRUCTION FOR USE

Before using for the first time....EN-18

Operation......EN-19

Cleaning......EN-21

MAINTENANCE

Trouble shooting....EN-23

Warranty / Customer Service...... EN-24

BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a). Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b). Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

(c). WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

MODEL	MW2-MG20PF(SL)
RATED VOLTAGE	230V~ 50Hz
RATED INPUT POWER(MICROWAVE)	1270W
RATED OUTPUT POWER(MICROWAVE)	800W
RATED INPUT POWER(GRILL)	1000W
OVEN CAPACITY	20L
TURNTABLE DIAMETER	255mm
EXTERNAL DIMENSIONS	440mmx334mmx259mm
NET WEIGHT	Approx. 11.43 kg

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, please read and follow the specific precautions:

Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Keep the appliance and its cord out of reach of children less than 8 years.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.(For appliance with type Y attachment)

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair

IMPORTANT SAFETY INSTRUCTIONS

operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

Only use utensils that are suitable for use in microwave ovens.

If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

The oven should be cleaned regularly and any food deposits removed.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly

IMPORTANT SAFETY INSTRUCTIONS

result in a hazardous situation.

Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

This appliance is intended to be used in household and similar applications such as:

1. staff kitchen areas in shops, offices and other working environments;
2. by clients in hotels, motels and other residential type environments;

3. farm houses;

4. bed and breakfast type environments.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

The appliance is intended to be used freestanding.

The rear surface of appliances shall be placed against a wall.

The temperature of accessible surfaces may be high when the appliance is operating.

WARNING: When the appliance is operated in the combination mode,

IMPORTANT SAFETY INSTRUCTIONS

children should only use the oven under adult supervision due to the temperatures generated.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

Line drawing of a microwave oven with a jar and lid on the side (no text or symbols)

The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

Metallic containers for food and beverages are not allowed during microwave cooking.

The appliance shall not be cleaned with a steam cleaner.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

Electric Shock Hazard:

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

Electric Shock Hazard:

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

Electric Shock Hazard:

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord or extension cord is used:

(1). The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
(2). The extension cord must be a grounding-type 3-wire cord.
(3). The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard:It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.See the instructions on "Materials you can use in microwave oven" or "Materials can not be used in microwave oven"There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 min.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4. Do not exceed 1 min cooking time.

Line drawing of a microwave oven with a cup on the lid (no text or symbols)

KEEP THE CAVITY CLEAN

MATERIALS YOU CAN USE IN MICROWAVE OVEN

UTENSILS REMARKS

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

UTENSILS REMARKS

Plastic

Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.

Plastic wrap

Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

Thermometers

Microwave-safe only (meat and candy thermometers).

Wax paper

Use as a cover to prevent splattering and retain moisture.

MATERIALS CAN NOT BE USED IN MICROWAVE OVEN

UTENSILS REMARKS

Aluminum tray

May cause arcing. Transfer food into microwave-safe dish.

Food carton with metal handle

May cause arcing. Transfer food into microwave-safe dish.

Metal or metal trimmed utensils

Metal shields the food from microwave energy. Metal trim may cause arcing.

Metal twist ties

May cause arcing and could cause a fire in the oven.

Paper bags

May cause a fire in the oven.

Plastic foam

Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood

Wood will dry out when used in the microwave oven and may split or crack.

PRODUCT SETTING

SETTING UP YOUR OVEN

NAMES OF MICROWAVE OVEN PARTS AND ACCESSORIES—

Remove the oven and all materials from the carton and oven cavity.

Instruction Manual

Simple line drawing of a round table with two legs and a central handle (no text or symbols)

Grill Rack

(Can only be used without microwave function and must be placed on the glass tray.)

Glass Tray

(Can be used under all functions)

A B C D E F G

A. Control panel

B. Glass tray

C. Turntable shaft

D. Turntable ring assembly

E. Door assembly

F. Observation window

G. Safety interlock system

SETTING UP YOUR OVEN

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place.

For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft.

Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

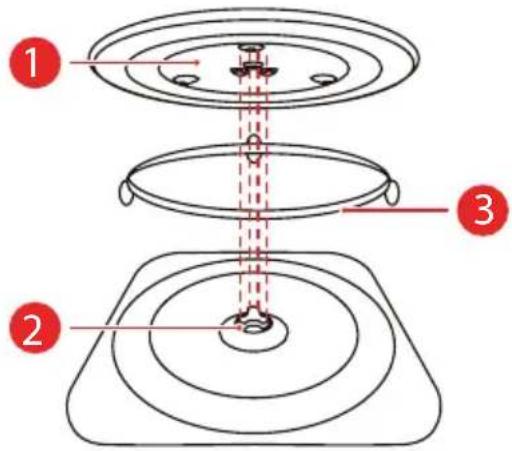

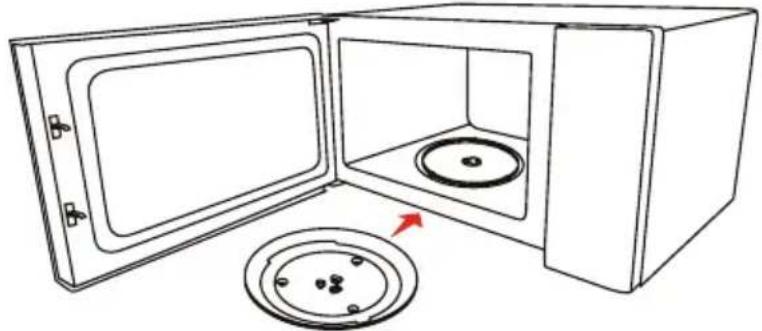

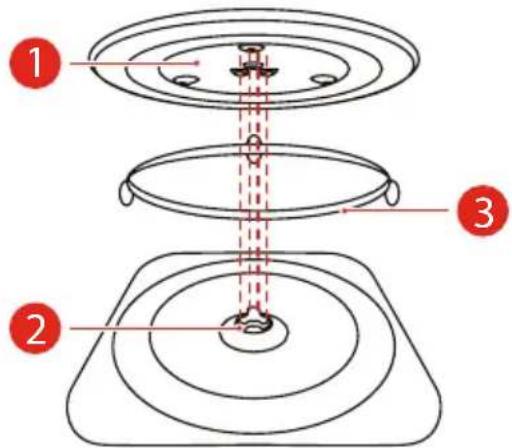

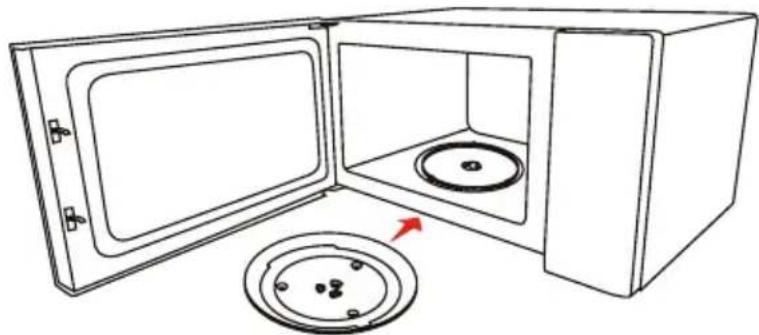

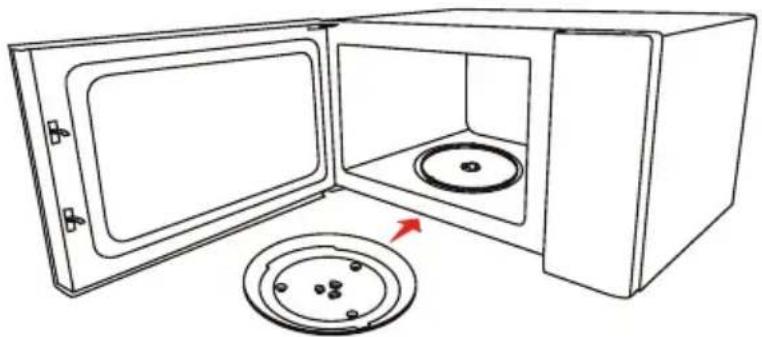

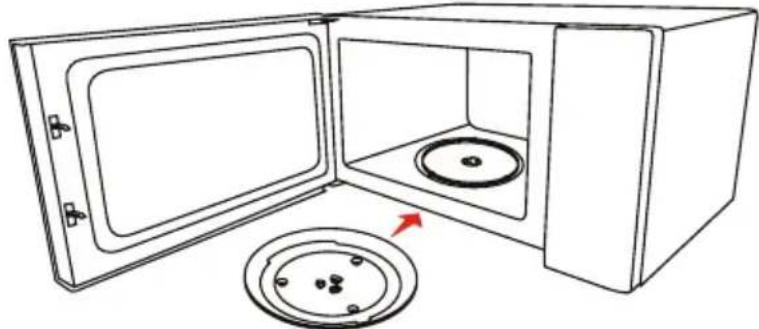

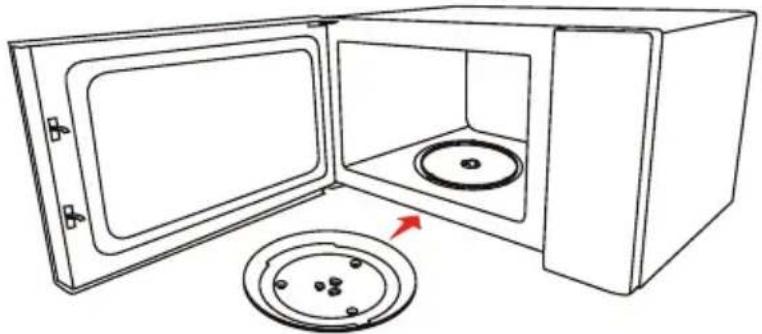

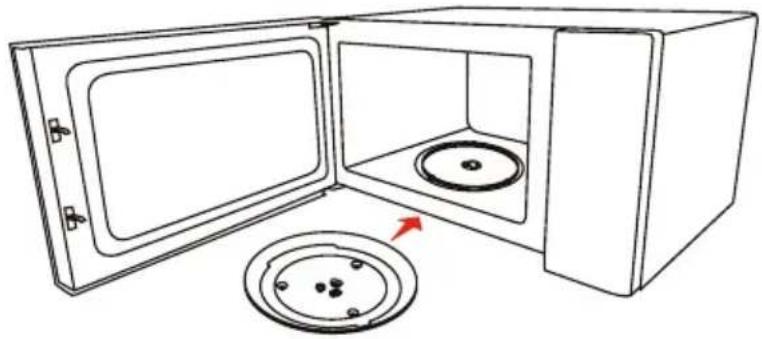

How to put the turntable in place:

1. Place the turntable ring assembly ③ into the recess in the cooking compartment.

2. Place the glass tray ① on the turntable ring assemblies ③.

Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the center of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

Diagram showing three labeled steps of a mechanical or electrical component assembly with concentric rings and a central shaft.

Line drawing of a microwave oven with an open door and a circular base, showing internal components (no text or symbols)

- Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.

- Never place the glass tray upside down. The glass tray should never be restricted.

- Both glass tray and turntable ring assembly must always be used during cooking.

- All food and containers of food are always placed on the glass tray for cooking.

- Never restrict the movement of the turntable.

- If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

SETTING UP YOUR OVEN

COUNTERTOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

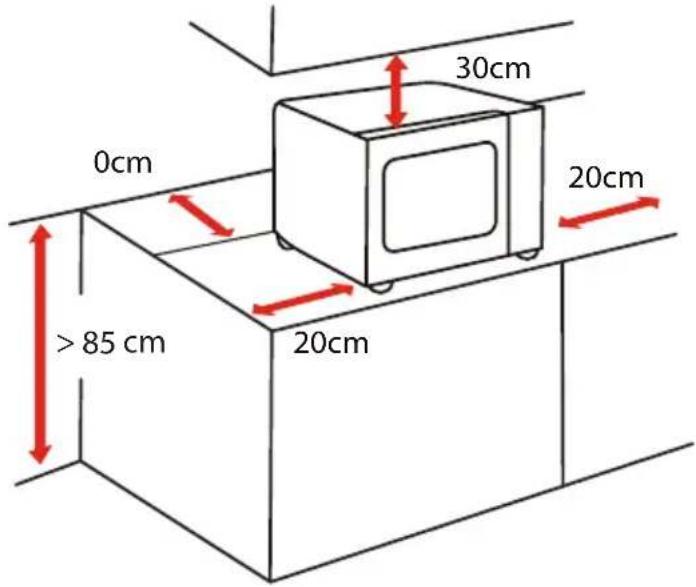

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

a. The minimum installation height is 85cm.
b. The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
c. Do not remove the legs from the bottom of the oven.
d. Blocking the intake and/or outlet openings can damage the oven.
e. Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV reception..

30cm 0cm 20cm >85 cm 20cm

SIDE	DISTANCE (INCHES/CM)
Top 30cm
Left 20cm
Right 20cm
Behind 0cm
Front Open

SETTING UP YOUR OVEN

1. Plug microwave oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

- Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be avoid.

NOTE

The accessible surface may be hot during operation

INSTRUCTION FOR USE

BEFORE USING FOR THE FIRST TIME

The appliance may produce unpleasant odors when it is used for the first time.

This section tells you what you need to do before using your microwave to prepare food for the first time. Read the section entitled "IMPORTANT SAFETY INSTRUCTIONS" beforehand on page 3.

Before you can use your new appliance, you will need to put the turntable in place correctly. You must also clean the cooking compartment and accessories.

- Never use the appliance without the turntable.

- Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.

OPERATION

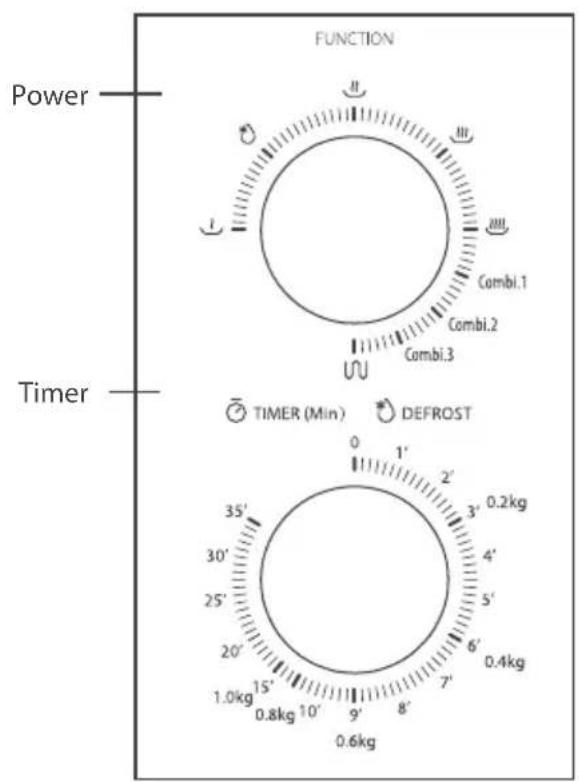

CONTROL PANEL AND FEATURES

Operation Instructions

FUNCTION Power Timer TIMER (Min) DEFROST 1' 2' 3' 0.2kg 35' 30' 25' 20' 1.0kg 15' 0.8kg 10' 9' 8' 0.6kg

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

FUNCTION/POWER OUTPUT APPLICATION

Low 17% micro. Soften ice cream

Med. Low (Defrost) 33% micro. Soup stew, soften butter or defrost

Med. 55% micro. Stew, fish

Med. High 77% micro. Rice, fish, chicken, ground meat

High 100% micro. Reheat, milk, boil water, vegetables, beverage

Grill 100% grill Sausage, Lamb, Kabobs, Seafood, Steak

Combi. 1 80% grill 20% micro. Chicken pieces, Chicken breasts, Pork chops

Combi. 2 70% grill 30% micro. Whole chicken

Combi. 3 60% grill 40% micro. Baken bread, Slice food

- When removing food from the oven, please ensure that the oven power is switched o by turning the timer switch to 0 (zero).

- Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

CLEANING

With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance.

• Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
• The surface of the appliance may become damaged if it is not cleaned properly. Microwave energy may escape.

Clean the appliance on a regular basis, and remove any food remnants immediately.

- Do not immerse the appliance in water or clean under a jet of water.

Cleaning agent

To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information below. Wash new sponge cloths thoroughly before use.

Do not use:

Harsh or abrasive cleaning agents

Metal or glass scrapers to clean the door panels

Metal or glass scrapers to clean the door seal

Hard scouring pads or sponges

Cleaning agents with a high alcohol content

APPLIANCE FRONT

Hot soapy water:

Clean using a dish cloth and then dry with a soft cloth. Do not use metal or glass scrapers for cleaning.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

CLEANING

APPLIANCE FRONT PLATE

Hot soapy water:

Clean using a dish cloth and then dry with a soft cloth. Remove splashes and patches of limescale, grease, starch and albumin immediately. Corrosion can form under these patches or splashes. Do not use glass cleaners or metal or glass scrapers for cleaning.

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

APPLIANCE CAVITY

Hot soapy water or vinegar solution:

Clean using a dish cloth and then dry with a soft cloth. Do not use oven spray or any other aggressive oven cleaners or abrasive materials. Scouring pads, rough sponges and pan cleaners are also unsuitable. These items scratch the surface. Allow the interior surfaces to dry completely.

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

RECESS IN THE COOKING COMPARTMENT

Damp cloth:

Water must not be allowed to run into the appliance through the turntable drive. Dry the turntable drive with a cloth.

Line drawing of a hand pressing down on a circular object (no text or symbols)

TURNTABLE AND ROLLER RING

Hot soapy water:

When placing the turntable back into its recess, it must engage properly.

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

DOOR PANEL

Glass cleaner:

Clean with a dish cloth. Do not use glass scrapers.

TROUBLE SHOOTING

NORMAL

Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

TROUBLE POSSIBLE CAUSE REMEDY

	a. Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
Oven can not be started.	b. Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	c. Trouble with outlet.	Test outlet with other electrical appliances.

Oven does not heat. d. Door not closed well. Close door well.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Warranty / Customer Service

Congratulations on your new device; we hope you enjoy it.

Should you nevertheless identify a reason for complaint, please contact our customer service:

Midea Europe GmbH

Tel: [phone]

In case of service:

In the event of a fault, please state your exact address, telephone number, purchase contract number and device type (from the device nameplate).

A precise description of the fault will save you and us time and money. If you have any special questions, please speak to the customer service center.

Before Requesting Customer Service:

Please check whether it is not an operating error or a cause that has nothing to do with the function of your device.

Please observe the note in the operating instructions and check whether:

• The mains plug is connected;
• The mains plug may be damaged;
• The door(s) of the appliance is/are firmly closed.

Warranty Conditions For Large Electrical Appliances

This appliance has been manufactured and tested according to the most modern methods. The manufacturer provides a guarantee for flawless material and faultless manufacture for a period of 24 months, valid from the date of purchase, 12 months in the case of commercial use, irrespective of legal warranty obligations of the seller/dealer.

The warranty claim expires in case of intervention by the buyer or third parties. Damage caused by improper handling or operation, by incorrect setup or storage, by improper installation or connection, as well as by force majeure or other external factors are not covered by the warranty.

We reserve the right to repair or replace the defective parts or to exchange the device in case of a complaint. Replaced parts and devices become our property.

Only if the use intended by the manufacturer should finally not be achieved by repair(s) or exchange of the device, the buyer can demand a reduction of the purchase price or the cancellation of the purchase contract under warranty within 6 months, valid from the day of purchase.

Claims for damages, including consequential damages, are excluded, unless they are based on intent or gross negligence.

In case of unnecessary or unjustified use of our customer service, we charge the usual time and travel fee for our services. Complaints are to be reported immediately after detection.

The warranty claim is to be proven by the buyer by presenting the purchase receipt. This warranty is valid within the Federal Republic of Germany.

#DetailsMatter

Midea Europe GmbH

Ludwig-Erhard- Straße 14, 65760 Eschborn, Germany

TOSHIBA

FOUR À MICROONDES GUIDE D'UTILISATION

MW2-MG20PF(SL)

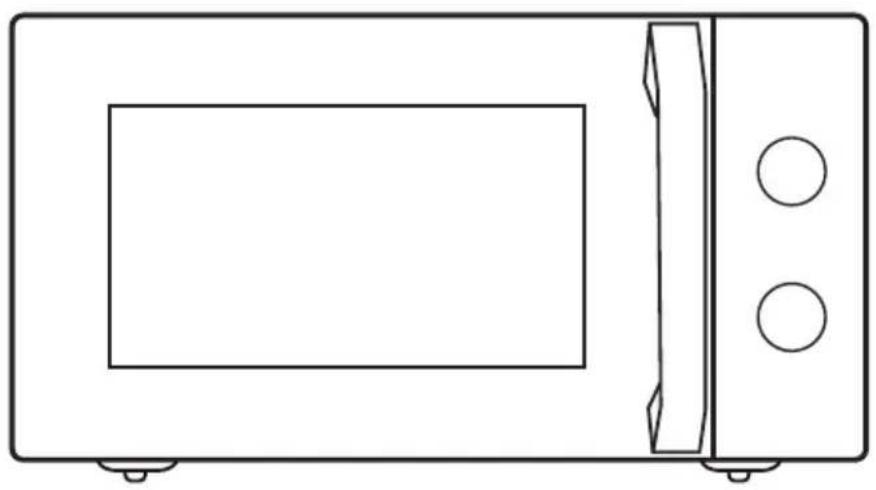

Line drawing of a microwave oven with front panel and side control knob (no text or symbols)

Solid red square with no text, symbols, or patterns

SOMMAIRE

SÉCURITÉ DU PRODUIT

Simple line drawing of a microwave oven with a red prohibition symbol on the lid (no text or labels)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open microwave oven with a jar and lid (no text or symbols)

Line drawing of a microwave oven with a cup on the lid (no text or symbols)

! REMARQUE

LA CAVITÉ DOIT ÊTRE MAINTENUE PROPRE

MATÉRIAUX QUE VOUS POUVEZ UTILISER DANS UN FOUR À MICROONDES

USTENSILES REMARQUES

Use as a cover to prevent splattering or a wrap for steaming.

Plastique

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Grille

Plateau en verre

A B C D E F G R R

Diagram showing three stages of a mechanical or electrical component with labeled parts 1, 2, and 3.

Line drawing of a microwave oven with a circular base and lid, showing open door opening and outlet (no text or symbols)

Line drawing of a kitchen setup with a microwave, stove, and cabinet (no text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a hand cleaning a microwave oven (no text or symbols)

NETTOYAGE

PLAQUE AVANT DE L'APPAREIL

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

CAVITÉ DE L'APPAREIL

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

LOGEMENT DANS LE COMPARTIMENT DE CUISSON

Chiffon humide :

Line drawing of a hand using a circular tool to clean or restore a surface (no text or symbols)

PLATEAU TOURNANT ET ROULEAU

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

PANNEAU DE PORTE

PROBLÈME CAUSES POSSIBLES REMÈDE

Ludwig-Erhard- Straße 14, 65760 Eschborn, Germany

TOSHIBA

FORNO A MICROONDE MANUALE DI ISTRUZIONI

MW2-MG20PF(SL)

Line drawing of a microwave oven with front panel and side control knob (no text or symbols)

Solid red square with no text, symbols, or patterns

INDICE

AVVERTENZE PER LA SICUREZZA

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of a microwave oven with a jar and lid (no text or symbols)

Line drawing of a microwave oven with a cup on the lid (no text or symbols)

MANTENERE PULITA LA CAVITÀ

Line drawing of a hand cleaning a microwave oven with a circular button (no text or symbols)

MATERIALI UTILIZZABILI NEL FORNO A MICROONDE

UTENSILI NOTE

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Cestello Griglia

Vassoio di vetro

A B C D E F G H I

Diagram showing three stages of a mechanical or electrical assembly with labeled components and dashed red lines indicating alignment or positioning.

Line drawing of a microwave oven with an open lid and a circular dish inside (no text or symbols)

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

PULIZIA

PIASTRA ANTERIORE DELL'APPARECCHIO

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

CAVITÀ DELL'APPARECCHIO

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

NICCHIA NEL VANO COTTURA

Panno bagnato:

Line drawing of a hand using a circular tool to clean or restore a surface (no text or symbols)

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

Ludwig-Erhard- Straße 14, 65760 Eschborn, Germany

TOSHIBA

HORNO MICROONDAS MANUAL DE INSTRUCCIONES

MW2-MG20PF(SL)

Line drawing of a microwave oven with front panel and side control knob (no text or symbols)

Solid red square with no text, symbols, or patterns

CONTENIDOS

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open microwave oven with a jar and lid (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

Line drawing of a hand opening a microwave oven (no text or symbols)

MATERIALES QUE PUEDE USAR EN UN HORNO MICROONDAS

UTENSILIOS COMENTARIOS

Plato para dorar

Simple line drawing of a round object with three legs and a shaded interior (no text or symbols)

Rejilla del grill

Bandeja de cristal

E B G F D C A

Diagram showing three stages of a mechanical or electrical component with labeled parts 1, 2, and 3.

Line drawing of a microwave oven with a circular base and lid, showing open door opening and interior sink (no text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a hand cleaning a microwave oven (no text or symbols)

LIMPIEZA

CHAPA DE LA PARTE DELANTERA DEL APARATO

Agua caliente jabonosa:

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

CAVIDAD DEL APARATO

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

Line drawing of a hand using a power tool to clean or restore a circular object on a rectangular base (no text or symbols)

PLATO GIRATORIO Y ANILLO DE RODAMIENTO

Agua caliente jabonosa:

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

PANEL DE PUERTA

Ludwig-Erhard- Straße 14, 65760 Eschborn, Germany

TOSHIBA

MAGNETRONOVEN GEBRUIKSHANDLEIDING

MW2-MG20PF(SL)

Line drawing of a microwave oven with front panel and side control knob (no text or symbols)

Solid red square with no text, symbols, or patterns

INHOUDSOPGAVE

VEILIGHEIDSVOORSCHRIFTEN

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

WAARSCHUWING

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of a microwave oven with a jar and lid inside (no text or symbols)

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

WAARSCHUWING

Line drawing of a microwave oven with a cup inside, showing open lid and side panels (no text or symbols)

OPMERKING

HOUD DE HOLTE SCHOOL

MATERIALLEN DIE U IN DE MAGNETRON KUNT GEBRUIKEN

KEUKENGEREI OPMERKINGEN

Simple line drawing of a round table with diagonal hatching and two legs (no text or symbols)

Grillrek

Glazen plateau

E B G F D C A

Diagram showing three steps of a mechanical assembly with labeled components and dashed red lines indicating alignment or positioning.

Line drawing of a microwave oven with a circular dish inside and an open lid, no text or symbols present

Line drawing of a kitchen setup with a microwave, stove, and oven (no text or symbols)

Warning symbol depicting steam rising inside a triangle, indicating heat or smoke hazard.

Line drawing of a hand cleaning a microwave oven with a cloth (no text or symbols)

REINIGING

APPARAAT VOORPLAAT

Heet zeepsop:

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

HOLTE VAN HET APPARAAT

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

UITSPRAAK IN HET KOOKRUIMTE

Vochtige doek:

Line drawing of a hand pressing down on a circular object (no text or symbols)

DRAAITAFEL EN ROLLERRING

Heet zeepsop:

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

DEURPANEEL

Glasreiniger:

Ludwig-Erhard- Straße 14, 65760 Eschborn, Germany

TOSHIBA

MIKROVALOVNA PEČICA NAVODILA ZA UPORABO

MW2-MG20PF(SL)

Line drawing of a microwave oven with front panel and side control knob (no text or symbols)

Solid red square with no text, symbols, or patterns

VSEBINA

VARNOSTNA OPOZORILA

Varnostni ukrepi, da se izognete morebitni izpostavljenosti pretirani mikrovalovni energiji....SL-01

Pomembne varnostne informacije....SL-03

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of a microwave oven with a jar and lid on the lid (no text or symbols)

Line drawing of a microwave oven with a cup inside, showing open lid and side door (no text or symbols)

VODNICO ČISTO

Line drawing of a hand cleaning a microwave oven (no text or symbols)

MATERIALI, KI JIH LAHKO UPORABLJATE V MIKROVALOVNI PEČICI

VRSTE KUHINJSKIH PRIPOMOČKOV

OPOMBE

Simple line drawing of a three-legged electronic component with no text or symbols

Rešetka za žar

Stekleni podstavek

A B C D E F G

A. Nadzorna plošča

B. Stekleni podstavek

Diagram showing three stages of a mechanical or electrical component with labeled parts 1, 2, and 3.

Line drawing of a microwave oven with a lid and vent, showing open door and interior (no text or symbols)

Line drawing of a kitchen appliance setup with monitor, microwave, and oven (no text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

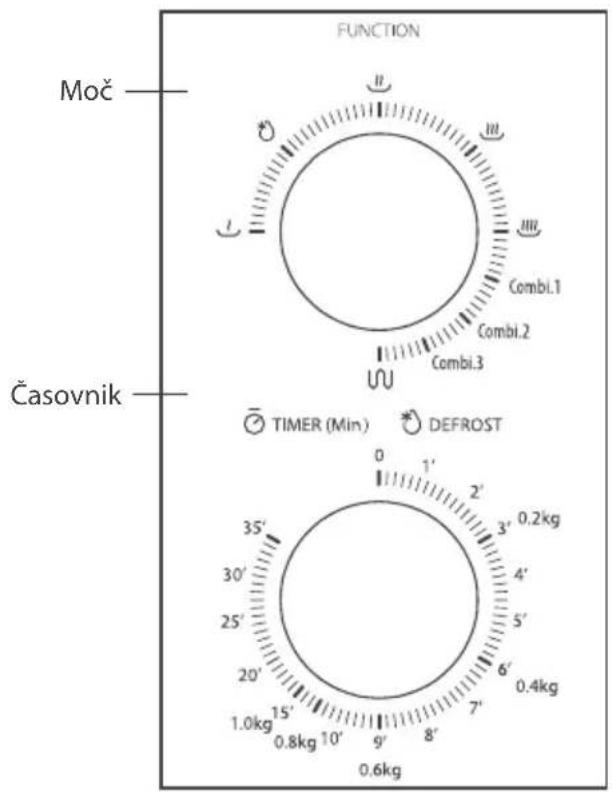

NADZORNA PLOŠČA IN FUNKCIJE

Navodila za uporabo

MOČ Časovnik FUNCTION NN III III Combi.1 Combi.2 Combi.3 0 1' 2' 35' 30' 25' 20' 1.0kg 15' 0.8kg 10' 9' 8' 7' 0.6kg TIMER (Min) DEFROST 0.2kg 4' 5' 6' 0.4kg

Line drawing of a hand cleaning a microwave oven (no text or symbols)

ČIŠČENJE

PREDNJA PLOŠČA NAPRAVE

Vroča milnata voda:

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

NOTRANJOST NAPRAVE

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

PLADENJ NA KUHALNI POVRŠINI

Vlažna krpa:

Line drawing of a hand cleaning a circular object on a rectangular base (no text or symbols)

VRTILNI KROŽNIK IN VALJČNI OBROČ

Vroča milnata voda:

Ko postavljate vrtilni krožnik nazaj na položaj, ga morate postaviti pravilno.

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

PLOŠČA VRAT

Čistilec stekla:

Očistite s kuhinjsko krpo. Ne uporabljajte steklenih strgal.

ODPRAVLJANJE NAPAK

NORMALNO

Ludwig-Erhard- Straße 14, 65760 Eschborn, Germany

TOSHIBA

MIKROVLNNÁ TROUBA NÁVOD K POUŽITÍ

MW2-MG20PF(SL)

Line drawing of a microwave oven with front panel and side buttons (no text or symbols)

Solid red square with no text, symbols, or patterns

OBSAH

BEZPEČNOST VÝROBKU

Simple line drawing of a microwave oven with a prohibition symbol on the lid (no text or labels)

Line drawing of a hand cleaning a microwave oven (no text or symbols)

Line drawing of an open oven containing a jar and a small object inside (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

POZNÁMKA

UCHOVÁVEJTE VNITŘEKTROUBY ČISTÉ

MATERIÁLY, KTERÉ MŮŽETE POUŽÍVAT V MIKROVLNNÉ TROUBĚ

KUCHYŃSKÉ NÁŘADÍ POZNÁMKY

Remove the oven and all materials from the carton and oven cavity.

Návod k obsluze

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Grilovací rošt

Skleněný talíř

E B G F D C A

Diagram showing three stages of a mechanical or electrical component with labeled parts 1, 2, and 3.

Line drawing of a microwave oven with lid and vent, showing open door and interior (no text or symbols)

INSTALACE NA PRACOVNÍ DESKU

Line drawing of a kitchen setup with a microwave, oven, and cabinet (no text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

Line drawing of a hand cleaning a microwave oven (no text or symbols)

ČIŠTĚNÍ

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

SPOTŘEBIČSKÁ CAVITY

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

VLOŽTE DO VARNÉHO PROSTORU

Vlhká tkanina:

Line drawing of a hand pressing a circular button on a rectangular device (no text or symbols)

OTOČNÝ A ROLETOVÝ KROUŽEK

Horká mýdlová voda:

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

DVEŘNÍ PANEL

Čistič skla:

Line drawing of a microwave oven with front panel and side door (no text or symbols)

Solid red square with no text, symbols, or patterns

OBSAH

BEZPEČNOST VÝROBKU

Diagram showing a microwave oven with a prohibition symbol on its side, indicating no protection or prohibition.

DODATOK

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

UPOZORN ENIE

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Line drawing of a hand cleaning a microwave oven (no text or symbols)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Line drawing of a microwave oven with a jar and lid inside (no text or symbols)

Line drawing of a microwave oven with a cup inside (no text or symbols)

POZNÁMKA

UCHOVÁVAJTE VNÚTRO RÚRY ČISTÉ

POUŽÍVAŤ V MIKROVLNNEJ RÚRE

Simple line drawing of a circular object with diagonal hatching and two legs (no text or symbols)

Rošt na grilovanie

E B G F AD C

A. Ovládací panel

B. Skleneny podnos

Line drawing of a microwave oven with lid and vent, showing interior and exterior views (no text or symbols)

Diagram showing three stages of a mechanical assembly with labeled parts 1, 2, and 3.

POZNÁMKA

Line drawing of a kitchen setup with a microwave and a tray (no text or symbols)

Warning symbol depicting steam rising inside a triangle, indicating heat or smoke hazard.

Line drawing of a hand cleaning a microwave oven (no text or symbols)

ČISTENIE

SPOTREBIČ PREDNÁ DOSKA

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

DOMÁCNOSŤ SPOTREBIČA

Line drawing of a hand cleaning a microwave oven with a circular vent (no text or symbols)

VLOŽTE DO VARNÉHO PRIESTORU

Vlhká tkanina:

Line drawing of a hand pressing down on a circular object on a tray (no text or symbols)

OTOČNÝ A ROLETOVÝ KRÚŽOK

Two line drawings showing hands cleaning a circular object with a handle (no text or symbols)

DVERNÝ PANEL

Čistič skla:
