Product Type	Showerhead with Arm
Brand	TOTO
Model	Upton TS630AR
Minimum Water Pressure	20 psi (0.14 MPa) dynamic
Maximum Water Pressure	80 psi (0.55 MPa) static
Maximum Water Temperature	185°F (85°C)
Water Supply	Cold and hot water (do not use steam)
Care and Cleaning	Clean with mild soap, rinse with hot water, wipe with a soft cloth. Do not use abrasive cleaners, steel wool, or corrosive chemicals.
Safety	Do not use at ambient temperature below 32°F (0°C). Do not use steam. Observe pressure limits.
Warranty	Lifetime warranty for residential use in North, Central, and South America (original purchaser).
Included Parts	Adapter, O-rings, escutcheon, adjustment screws, shower arm, filter and gasket, showerhead
Repairability	Replaceable parts: gaskets, filter, adapter. See spare parts list.
Installation	Requires Teflon tape, adjustable wrench, strap wrench, hex wrench. Follow instructions for model TS630A(R).
Required Tools	Teflon tape, adjustable wrench, strap wrench, hex wrench
Intended Use	Residential shower

Frequently Asked Questions - Upton TS630AR TOTO

How to install the TOTO Upton TS630AR showerhead?

To install model TS630AR, loosen the two adjustment screws in the shower arm and remove the adapter. Slide the escutcheon onto the shower arm, wrap Teflon tape on the arm threads and attach it to the supply elbow. Slide the arm onto the adapter and tighten the screws. Then screw the showerhead onto the arm until hand tight. Finally, slide the escutcheon against the wall.

What water pressure is required for this showerhead?

The minimum dynamic water pressure is 20 psi (0.14 MPa) and the maximum static pressure is 80 psi (0.55 MPa).

How to care for and clean the showerhead?

Clean regularly with mild soap, rinse with hot water and wipe with a soft, clean cloth. Do not use abrasive cleaners, steel wool or corrosive chemicals.

What is the maximum acceptable water temperature?

Hot water temperature must not exceed 185°F (85°C).

What to do if water pressure is insufficient?

Make sure the dynamic pressure is at least 20 psi (0.14 MPa). Check that the filter is not clogged and the supply line is clean. Clean any debris before installation to avoid clogging.

Does the warranty cover damage from improper cleaning?

No, the warranty does not cover damage resulting from use of abrasive cleaners or improper maintenance. Follow cleaning instructions to preserve warranty.

Can I use this showerhead with a steam hot water system?

No, do not use steam for hot water supply. It could damage the product.

Where can I find spare parts for this model?

Spare parts are listed in the manual: adapter, O-rings, escutcheon, adjustment screws, shower arm, filter and gasket, showerhead. Contact a TOTO distributor or visit the TOTO website to order.

What to do in case of a leak at the connection?

Check that the Teflon tape is properly applied on the threads. Ensure all connections are tight. If the leak persists, inspect the O-rings and replace if necessary.

Is this showerhead suitable for commercial use?

Warranty for commercial use is limited to 1 year from installation date. For residential use, warranty is lifetime for original purchaser in North, Central and South America.

USER MANUAL Upton TS630AR TOTO

Line drawing of a showerhead with faucet and circular base (no text or symbols)

TS416A(R)

Legato®

Line drawing of a showerhead with a pipe and circular head (no text or symbols)

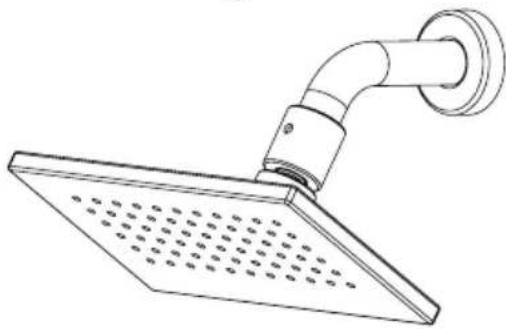

TS624A

Aimes®

Line drawing of a showerhead with adjustable arm and base (no text or symbols)

TS626A

Upton™

Line drawing of a mechanical lever with a triangular base and lever arm (no text or symbols)

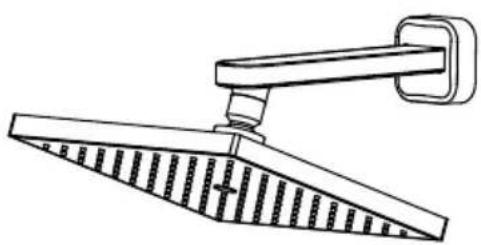

TS630A(R)

TABLE OF CONTENTS

Thanks for Choosing TOTO ^® ......3

Care And Cleaning 3

Warnings....3

Tools You Will Need 4

Before Installation....4

Installation Procedure....5-6

Warranty....7

Rough-In Dimensions 19-20

Spare Parts....21-22

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new showerhead is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARNINGS

For safe operation of the showerhead, please observe the following:

■ Recommended operating pressure:
■ Minimum Pressure.....20 psi (0.14 MPa), dynamic
■ Maximum Pressure.....80 psi (0.55 MPa), static
■ Hot water supply temperature must not exceed 185^ F ( 85^ C).
■ Do not use steam for the hot water supply.
■ Do not use the product at an ambient temperature below 32^ F ( 0^ C).

TOOLS YOU WILL NEED

Pipe Tape

Strap Wrench Adjustable More Wrench

BEFORE YOU START INSTALLATION

■ Observe all local plumbing codes.
■ Make sure water supply is shut off.
- Read these instructions carefully to ensure proper installation.
■ TOT® Deserves the right to update product design without notice.

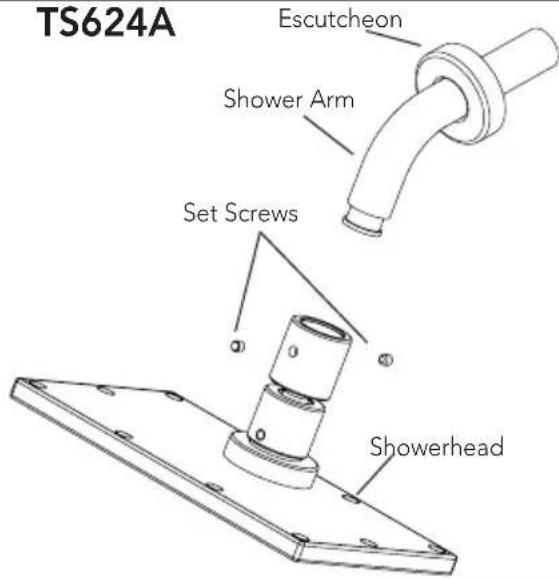

■ Check to make sure you have the following parts indicated below:

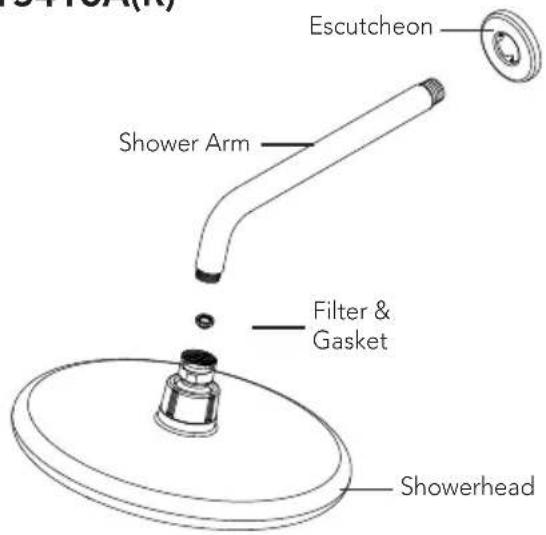

TS416A(R)

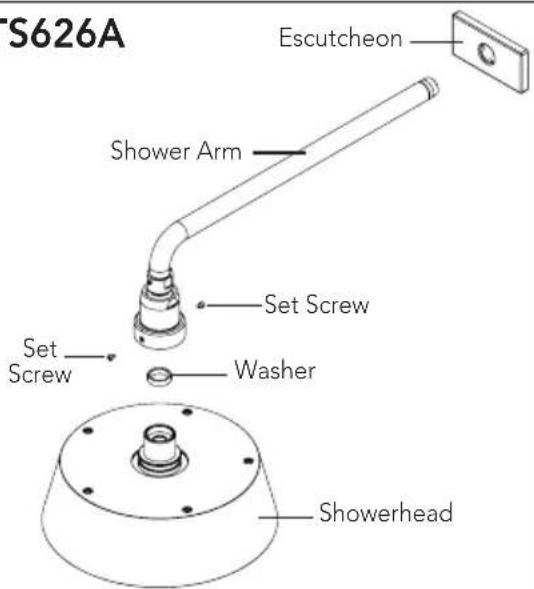

TS626A

TS624A

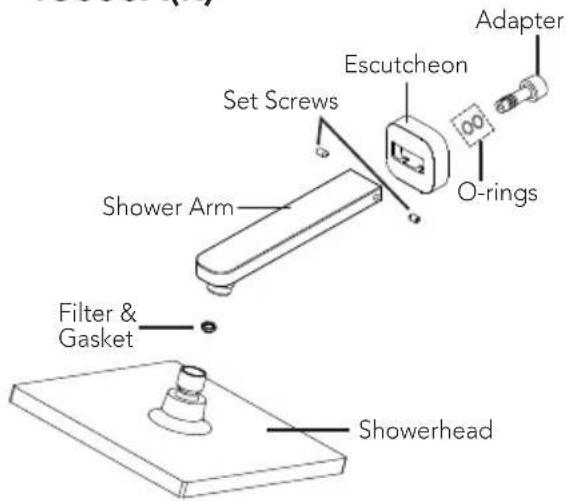

TS630A(R)

INSTALLATION PROCEDURE

NOTE: Be sure to thoroughly clean and remove all debris from the water supply pipe before it is installed. This will prevent clogging in the spray outlet.

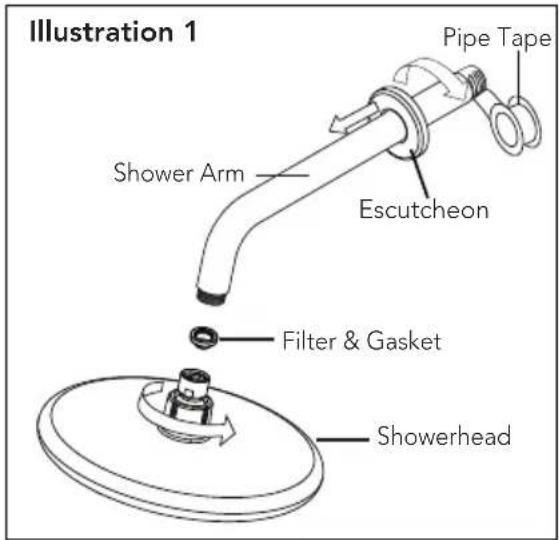

INSTALLING MODEL TS416A(R):

1) Slide the escutcheon onto the shower arm (see Illustration 1).
2) Wrap pipe tape around the threads of the shower arm and fasten it to the supply elbow (see Illustration 1).
3) Thread the showerhead onto the shower arm until it is tight (see Illustration 1).

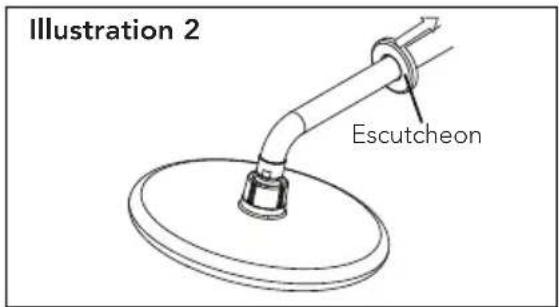

4) Slide the escutcheon until it is flush against the wall (see Illustration 2).

NO TE: Do not use the showerhead as leverage to tighten the shower arm. This can damage the showerhead.

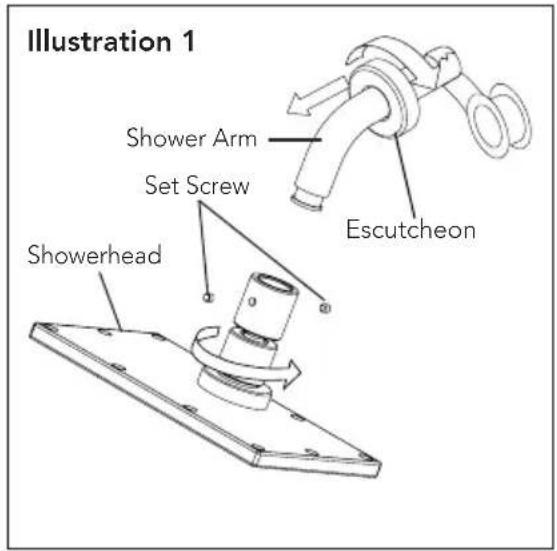

INSTALLING MODEL TS624A:

1) Slide the escutcheon onto the shower arm (see Illustration 1).
2) Wrap pipe tape around the threads of the shower arm and fasten it to the supply elbow (see Illustration 1).
3) Loosen the two set screws at the top of the ball joint. Ensure that the gasket is in place in the ball joint, then thread the shower arm onto the showerhead until it is tight and secure it by tightening the set screws (see Illustration 1).

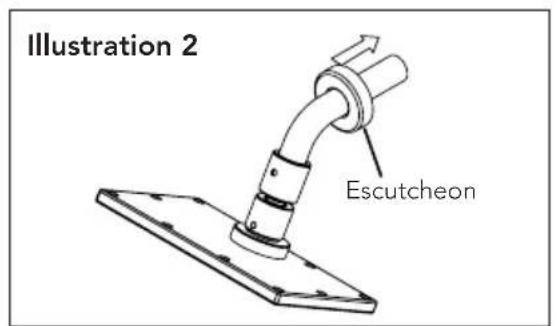

4) Slide the escutcheon until it is flush against the wall (see Illustration 2).

NO TE: Do not use the showerhead as leverage to tighten the shower arm. This can damage the showerhead.

Installation Procedure (continued)

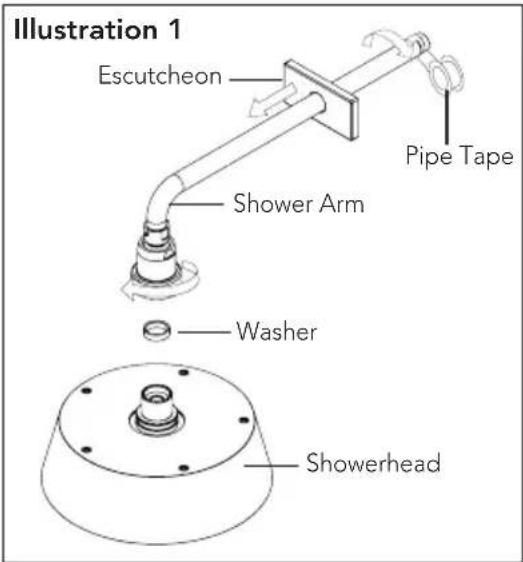

INSTALLING MODEL TS626A:

1) Slide the escutcheon onto the shower arm (see Illustration 1).
2) Wrap pipe tape around the threads of the shower arm and fasten it to the supply elbow (see Illustration 1).
3) Loosen the two set screws at the bottom of the ball joint. Ensure that the gasket is in place in the showerhead, then thread the shower arm onto the showerhead until it is tight and secure it by tightening the set screws (see Illustration 2).

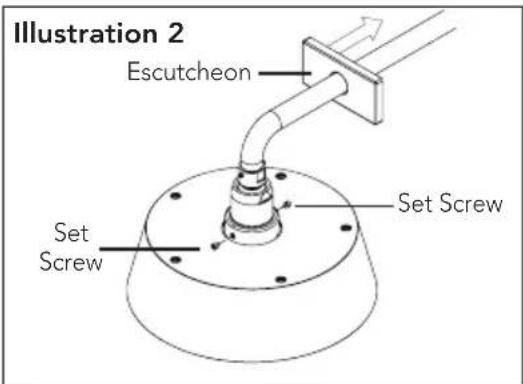

4) Slide the escutcheon until it is flush against the wall (see Illustration 3).

NO TE: Do not use the showerhead as leverage to tighten the shower arm. This can damage the showerhead.

INSTALLING MODEL TS630A(R):

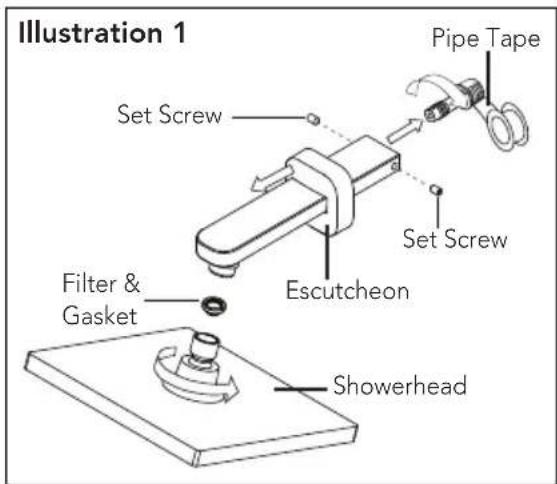

1) Loosen the two (2) set screws in the shower arm and remove the adapter (see Illustration 1).
2) Slide escutcheon onto the shower arm (see Illustration 1).
3) Wrap pipe tape around the threads of the adapter and fasten it to the supply elbow. Slide the shower arm onto the adapter and secure it with the set screws (see Illustration 1).
4) Thread the showerhead onto the shower arm until it is tight (see Illustration 1).

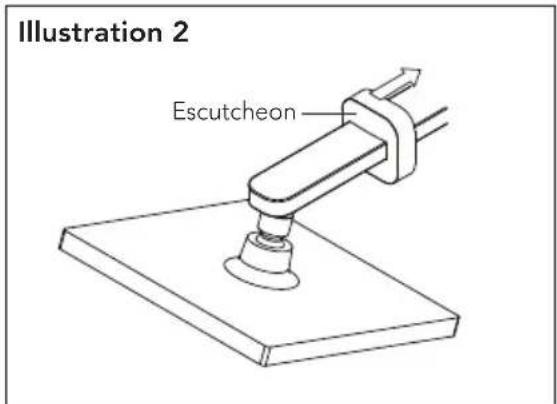

5) Slide the escutcheon until it is flush against the wall (see Illustration 2).

NO TE: Do not use the showerhead as leverage to tighten the shower arm. This can damage the showerhead.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Close-up of a black and gray tool with a curved handle and handle (no text or symbols visible)

Llave De CintaLlave Ajustalave Hexagonal

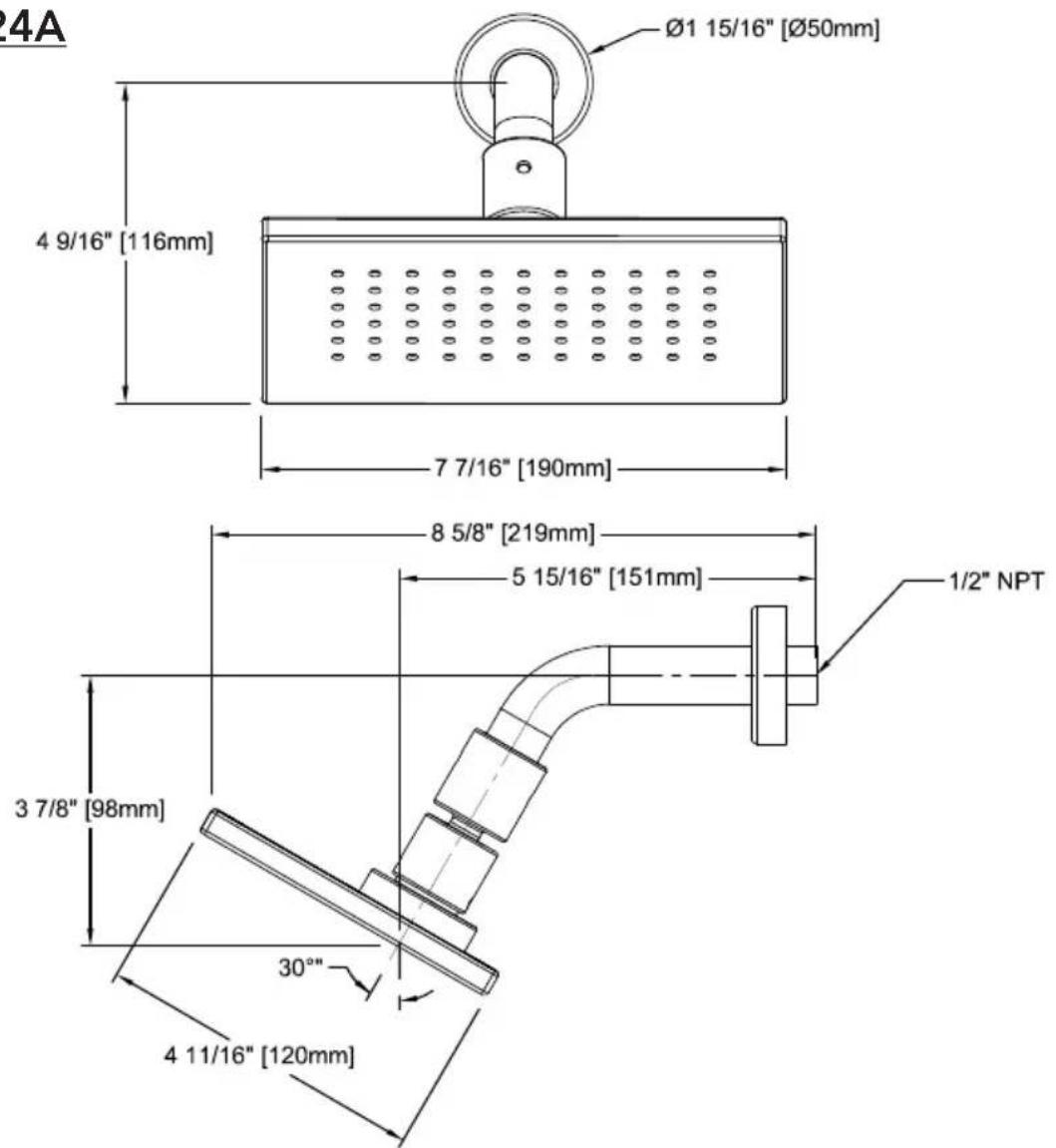

TS624A

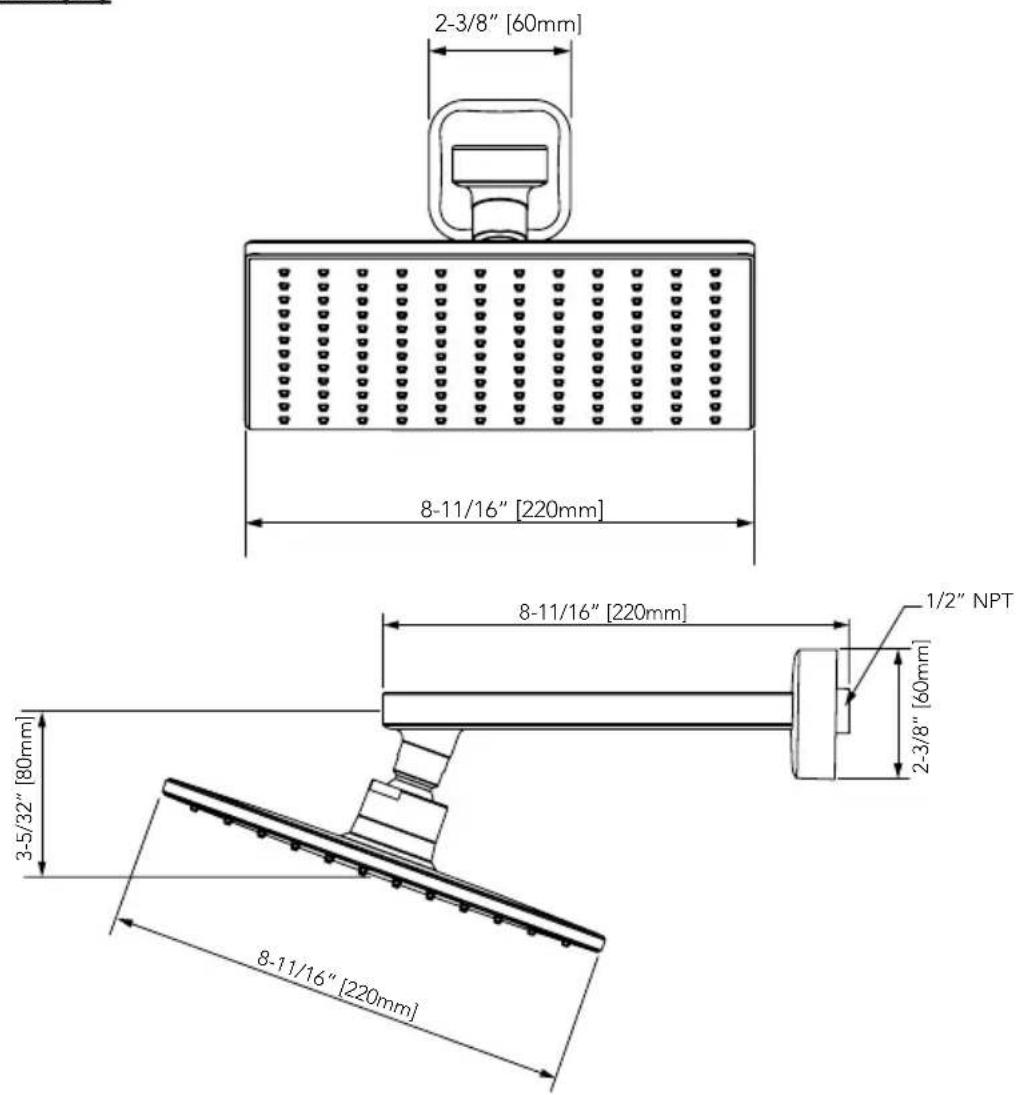

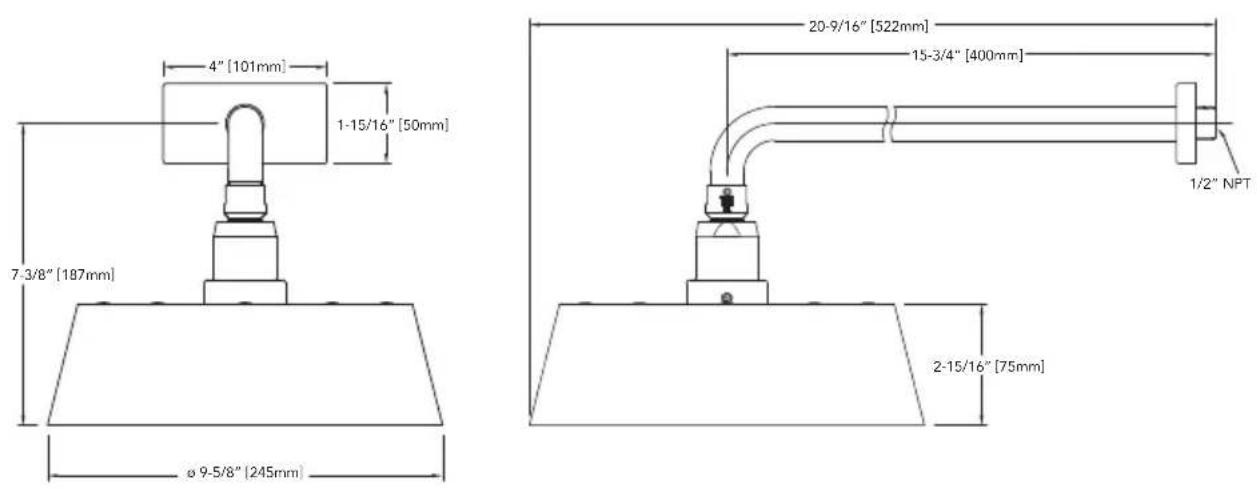

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

TS626A

TS630A(R)

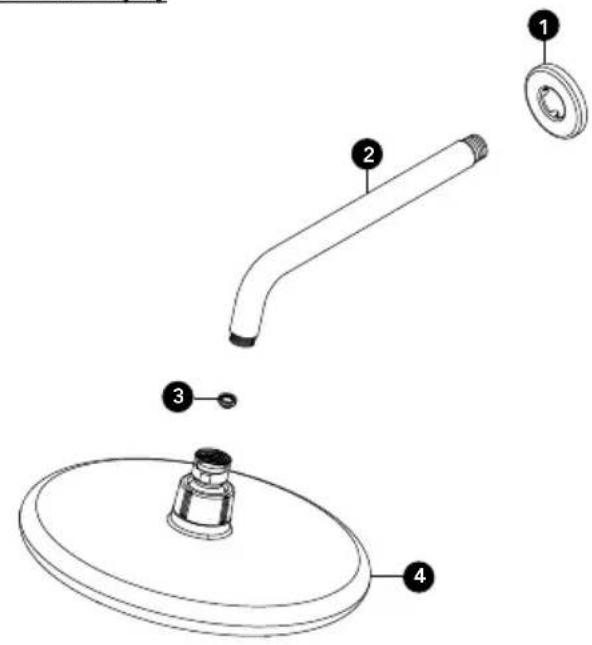

SPARE PARTS / PIEZAS DE REPUESTO / PIÈCES DE RECHANGE

TS416A(R)

No.	DescriptionDescripciónDescription
1	Escutcheon *Escudo *Écusson *
2	Shower Arm *Brazo de la Ducha *Bras de Douche *
3	Filter & GasketFiltro y JuntaFiltre et Joint
4	Showerhead *La Cabeza de Ducha *Le Pomme de Douche *

* Specify the finish when ordering replacement parts.
* Especifique el acabado la superfice cuando haga un pedido.
* Préciser l'état de surface lors de la commande.

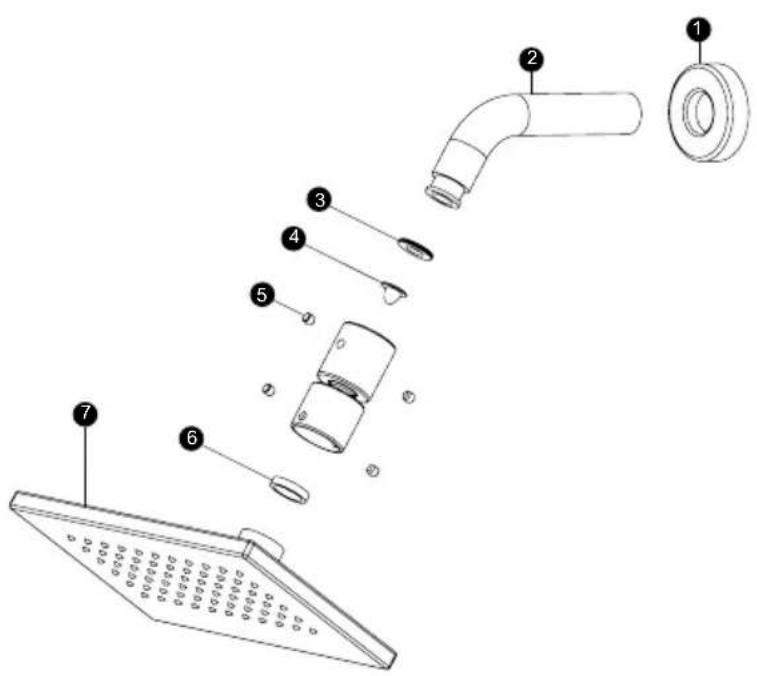

TS624A

No.	DescriptionDescripciónDescription
1	Escutcheon *Escudo *Écusson *
2	Shower Arm *Brazo de la Ducha *Bras de Douche *
3	GasketJuntaJoint
4	FilterFiltroFiltre
5	Set ScrewTornillo de FijaciónVis de Réglage
6	GasketJuntaJoint
7	Showerhead *La Cabeza de Ducha *Le Pomme de Douche *

Simple line drawing of a mechanical component with circular features and a base, no text or symbols present.

* Specify the finish when ordering replacement parts.

TOTO ^® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4116R

Rev Date: 01/14
