TS300A61 - Shower head TOTO - Free user manual and instructions

Brand	TOTO
Model	TS300A61
Product Type	Shower Head
Collection	Transitional Series A
Recommended Water Pressure (Dynamic)	20 psi (0.14 MPa) minimum
Maximum Static Water Pressure	80 psi (0.55 MPa)
Maximum Hot Water Temperature	160°F (71°C)
Minimum Ambient Temperature	32°F (0°C)
Material	Chrome Finish
Main Function	Adjustable Shower Head with Swivel
Gasket / Strainer Integrated	Yes, in the swivel
Installation Type	On shower arm (threaded)
Required Tools	Plumber's tape, adjustable wrench
Recommended Maintenance	Regular cleaning with mild soap, rinse with hot water, wipe with soft cloth
Prohibited Cleaners	Abrasives, steel wool, corrosive chemicals
Residential Warranty	Lifetime of the product
Commercial Warranty	1 year
Spare Parts	Available (contact TOTO)
Repairability	Repair possible by a professional
Safety Instructions	Do not use steam, respect indicated pressures and temperatures

Frequently Asked Questions - TS300A61 TOTO

How to install the TOTO TS300A61 shower head?

Start by shutting off the water supply. Slide the escutcheon onto the shower arm, wrap the threads of the arm with plumber's tape, then screw the arm into the supply elbow. Ensure the gasket/strainer is in place in the swivel, then screw the shower head onto the arm by hand. Tighten with an adjustable wrench to prevent leaks.

What water pressure is required for this shower head?

The minimum dynamic pressure is 20 psi (0.14 MPa) and the maximum static pressure is 80 psi (0.55 MPa).

How to clean the shower head without damaging it?

Clean regularly with mild soap, rinse thoroughly with hot water and wipe with a soft, clean cloth. Never use abrasive cleaners, steel wool, or corrosive chemicals.

Is the shower head warranted?

Yes, the residential warranty covers defects in material and workmanship for the lifetime of the product. For commercial use, the warranty is one year. Keep your proof of purchase.

What to do if the shower head leaks?

Check that the gasket/strainer is properly positioned in the swivel and that the shower head is tightly secured on the arm. If the leak persists, replace the gasket or contact a professional.

Can I use a steam cleaner on this shower head?

No, it is strictly forbidden to use steam for hot water supply or cleaning. This could damage the product and void the warranty.

What tools are needed for installation?

You will need plumber's tape and an adjustable wrench. No other specialized tools are required.

Can the shower head be used with a storage water heater?

Yes, as long as the hot water temperature does not exceed 160°F (71°C) and the pressure stays within the recommended limits. Follow local plumbing codes.

How to maintain the chrome finish?

Clean with a soft cloth and soapy water. Avoid any abrasive products. Rinse and dry thoroughly to prevent water spots.

Where can I find replacement parts?

Contact TOTO or an authorized distributor. Parts such as the gasket/strainer or swivel are usually available. Visit the TOTO website for more information.

USER MANUAL TS300A61 TOTO

Line drawing of a pipe fitting with threaded end and flange (no text or symbols)

TS200N6

TRADITIONAL COLLECTION SERIES A

Line drawing of a pipe fitting with threaded end and flange (no text or symbols)

TS300N6

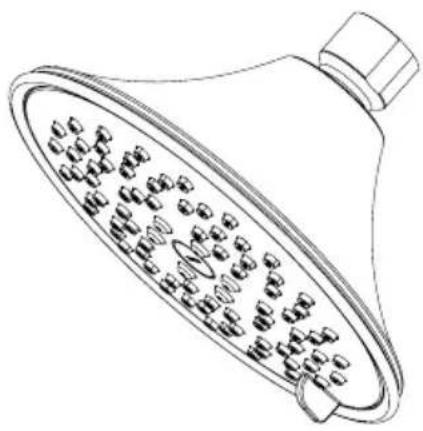

Line drawing of a showerhead with multiple teeth and a bulb (no text or symbols)

Line drawing of a showerhead with multiple teeth and a handle (no text or symbols)

TS300A(L)51
TS300A(L)55
TS300A(L)61
TS300A(L)65

TABLE OF CONTENTS

Thanks for Choosing TOTO! 3

Care & Cleaning....3

Warnings....3

Common Tools Needed 3

Before Installation 4

Installation Procedure 4

Warranty....5

Rough-In Dimensions 12-13

Replacement Parts 15

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new showerhead is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty. If any nozzles become clogged with mineral build up, rub gently with finger tips to clean.

WARNINGS

For safe operation, please observe the following:

■ Recommended operating pressure:
■ Minimum pressure......20 psi (0.14 MPa), dynamic
■ Maximum pressure......80 psi (0.55 MPa), static
■ Hot water supply temperature must not exceed 160^ F ( 71^ C).
■ Do not use steam for hot water supply.
■ Do not use the product at an ambient temperature below 32^ F ( 0^ C)

COMMON TOOLS NEEDED

Pipe Tape

Line drawing of an adjustable wrench tool (no text or symbols)

Adjustable Wrench

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Make sure the water supply is shut off.
- Read these instructions carefully to ensure proper installation.
■ TOTO reserves the right to update product design without notice.

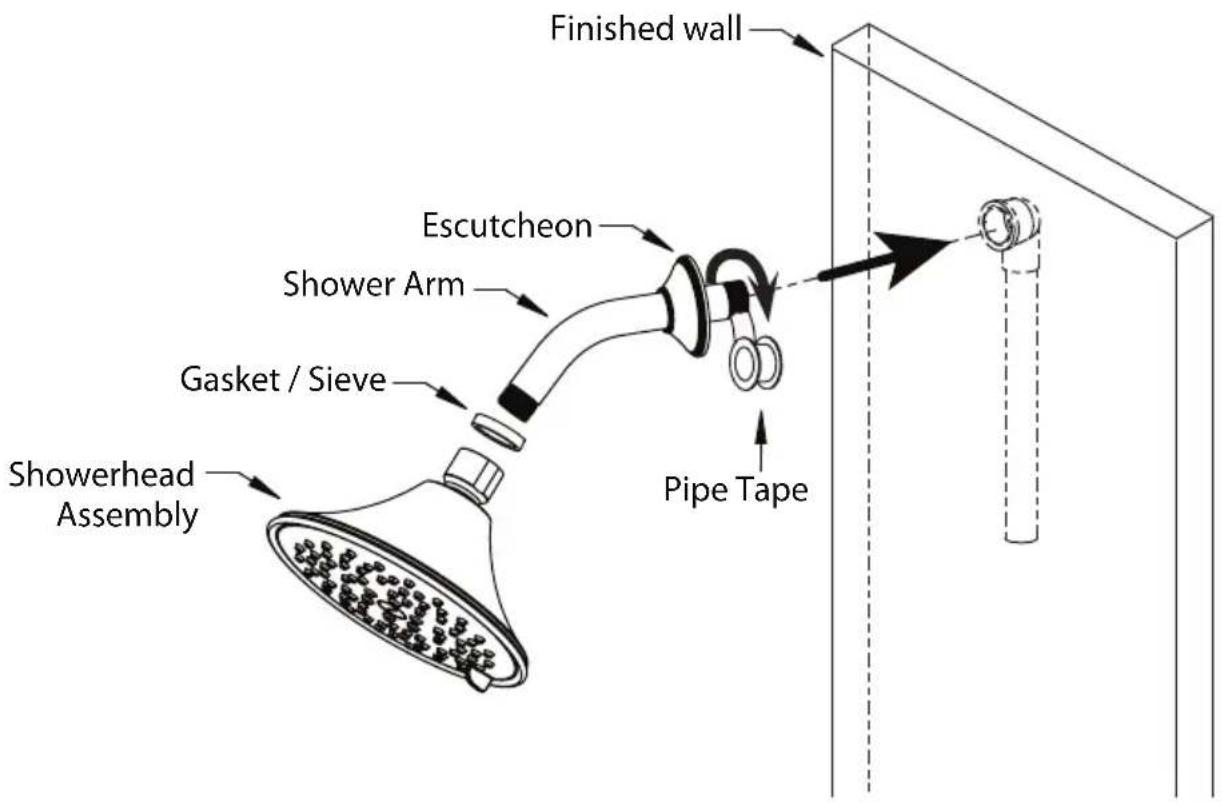

INSTALLATION PROCEDURE

NO TE: Thoroughly clean and remove debris from the water supply pipe before installation to prevent clogging the spray outlet.

NOTE: Do NOT twist showerhead to install shower arm.

• Slide escutcheon onto the shower arm.
• Wrap the shower arm threads with pipe tape. Screw the shower arm into the supply elbow.
• Ensure the gasket/sieve is in the pivot ball before installation.
• Thread the showerhead onto the shower arm by hand.
• Use an adjustable wrench to tighten the showerhead to the shower arm firmly enough to seat the gasket and prevent leaking.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of an adjustable wrench (no text or symbols)

Llave Ajustable

AVANT DE COMMENCER

Traditional TS300N6

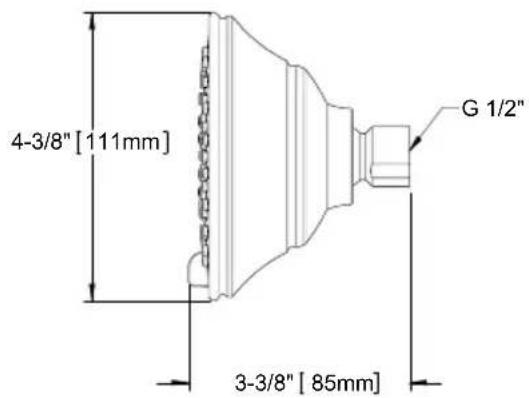

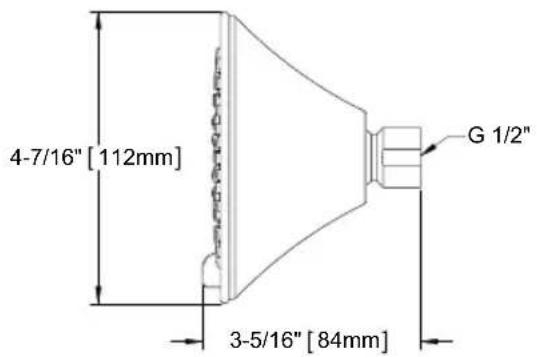

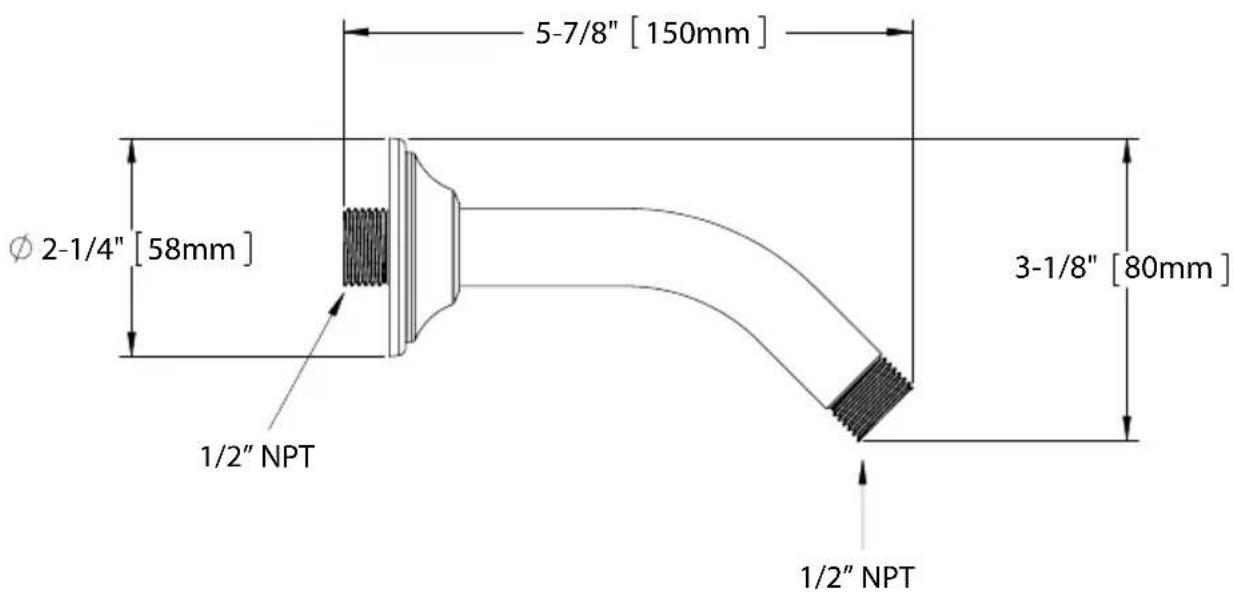

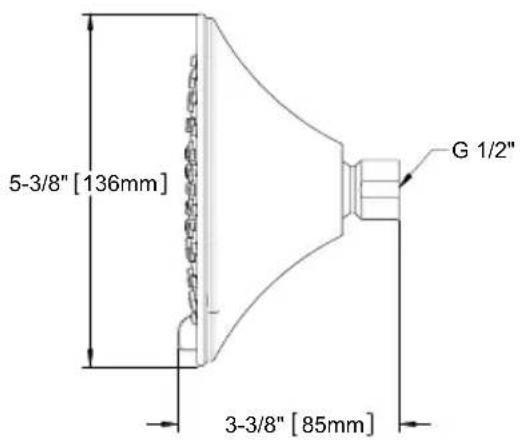

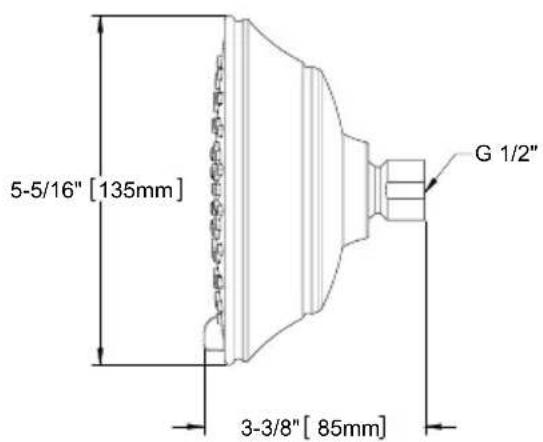

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTE

Transitional 4.5" TS200A(L)51 TS200A(L)55

Transitional 5.5" TS200A(L)61 TS200A(L)65

Traditional 4.5" TS300A(L)51 TS300A(L)55

Traditional 5.5" TS300A(L)61 TS300A(L)65

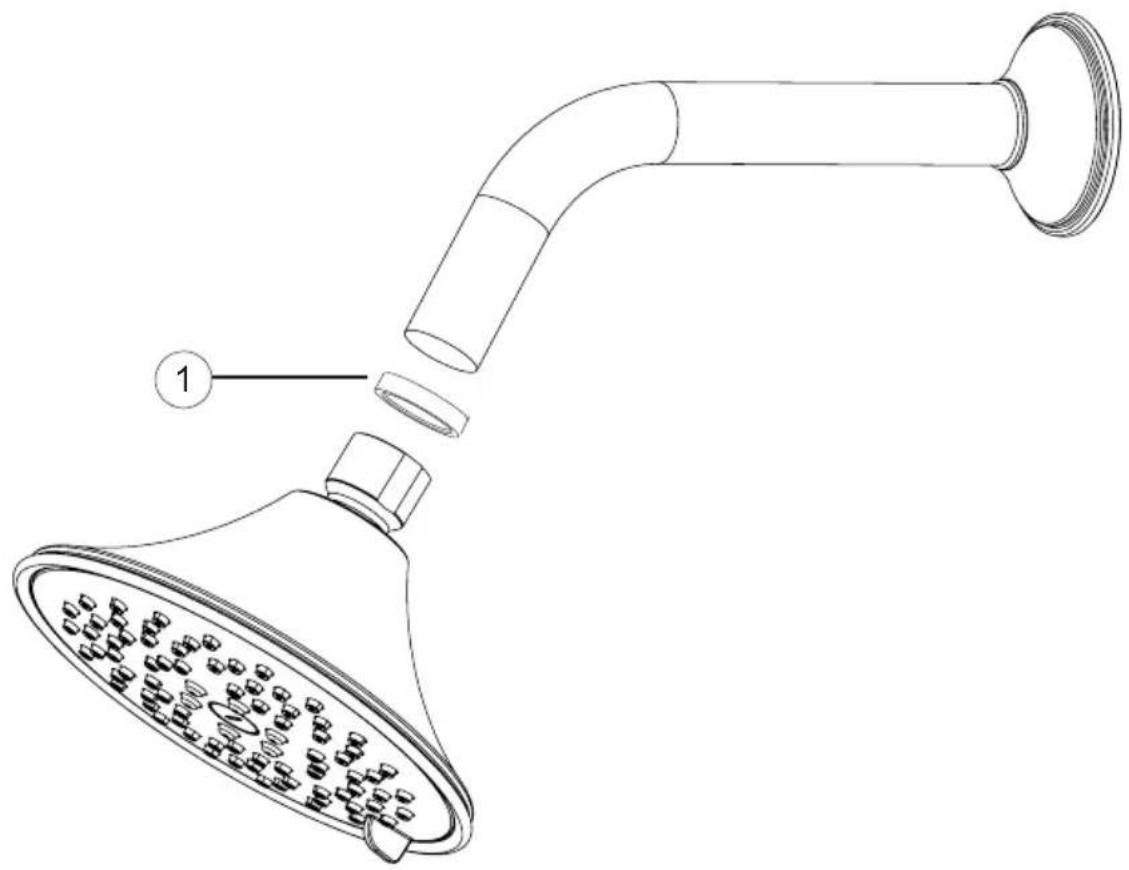

REPLACEMENT PARTS / PIEZAS DE REPUESTO / PIÈCES DE RECHANGE

No.	Description Descripción	Description
1	Gasket / Sieve Junta / Colador Joint / Passoire

TOTO®

TOTO® U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4212

Rev Date: 09/11
