Product type	Showerhead
Brand	TOTO
Model	TS300A65
Series	Transitional Collection
Recommended operating pressure	20-80 psi (0.14-0.55 MPa)
Maximum hot water temperature	71°C (160°F)
Minimum ambient temperature	0°C (32°F)
Finish	Chrome (estimated)
Material	Chrome-plated brass (estimated)
Spray type	Single
Mounting	Threaded arm
Gasket included	Yes (gasket/strainer)
Residential warranty	Lifetime (product lifetime)
Commercial warranty	1 year
Recommended maintenance	Mild soap, warm water, soft cloth
Clog prevention	Clean water line before installation
Required tools	Plumber's tape, adjustable wrench
Compliance	Local plumbing codes
Installation	Manual, then tighten with wrench

Frequently Asked Questions - TS300A65 TOTO

How to install the TOTO TS300A65 showerhead?

Ensure the water supply is turned off. Slide the escutcheon onto the arm, wrap the arm threads with plumber's tape, then screw the arm into the supply elbow. Make sure the gasket/strainer is in place in the ball joint, then hand-tighten the showerhead onto the arm. Tighten with an adjustable wrench to prevent leaks.

What water pressure is recommended for the TS300A65?

The recommended operating pressure is 20 to 80 psi (0.14 to 0.55 MPa). Minimum dynamic pressure is 20 psi and maximum static pressure is 80 psi.

How to clean the TOTO TS300A65 showerhead?

Clean it regularly with mild soap, rinse thoroughly with warm water, and wipe with a clean soft cloth. Do not use abrasive cleaners, steel wool, or corrosive chemicals.

What to do if the showerhead leaks?

First check that the gasket/strainer is properly seated and the showerhead is tight on the arm. If the leak persists, retighten the showerhead with an adjustable wrench. If the problem continues, the gasket may be damaged and needs to be replaced.

Does the warranty cover damage from hard water or sediment?

No, the warranty does not cover damage or loss caused by sediment or foreign matter in the water supply system. It is recommended to clean the line before installation to prevent clogging.

Can I use the showerhead with a steam heater?

No, do not use steam as the hot water supply. Hot water temperature must not exceed 71°C (160°F).

What tools are needed for installation?

The required tools are plumber's tape and an adjustable wrench. No specialized tools are required.

How to prevent clogging of the showerhead nozzles?

Before installation, thoroughly clean the water supply line to remove debris. Regular maintenance with mild soap and warm water rinse can also prevent deposit buildup.

Is the TOTO TS300A65 showerhead compatible with all shower arms?

It is designed for a standard threaded arm. Ensure the arm is compatible with the showerhead threading. If in doubt, consult the dimensions in the manual.

Where can I find replacement parts for the TS300A65?

Replacement parts are listed in the manual (page 15). You can contact TOTO or an authorized distributor to order parts such as the gasket/strainer or escutcheon.

USER MANUAL TS300A65 TOTO

Line drawing of a pipe fitting with threaded end and flange (no text or symbols)

TS200N6

TRADITIONAL COLLECTION SERIES A

Line drawing of a pipe fitting with threaded end and flange (no text or symbols)

TS300N6

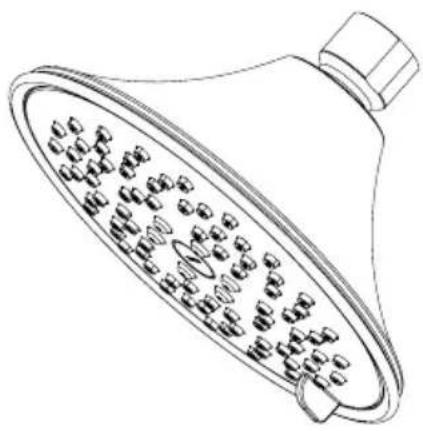

Line drawing of a showerhead with multiple teeth and a bulb (no text or symbols)

Line drawing of a showerhead with multiple teeth and a handle (no text or symbols)

TS300A(L)51
TS300A(L)55
TS300A(L)61
TS300A(L)65

TABLE OF CONTENTS

Thanks for Choosing TOTO! 3

Care & Cleaning....3

Warnings....3

Common Tools Needed 3

Before Installation 4

Installation Procedure 4

Warranty....5

Rough-In Dimensions 12-13

Replacement Parts 15

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new showerhead is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty. If any nozzles become clogged with mineral build up, rub gently with finger tips to clean.

WARNINGS

For safe operation, please observe the following:

■ Recommended operating pressure:
■ Minimum pressure.....20 psi (0.14 MPa), dynamic
■ Maximum pressure......80 psi (0.55 MPa), static
■ Hot water supply temperature must not exceed 160^ F ( 71^ C).
■ Do not use steam for hot water supply.
■ Do not use the product at an ambient temperature below 32^ F ( 0^ C)

COMMON TOOLS NEEDED

Pipe Tape

Line drawing of an adjustable wrench (no text or symbols)

Adjustable Wrench

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Make sure the water supply is shut off.
- Read these instructions carefully to ensure proper installation.
■ TOTO reserves the right to update product design without notice.

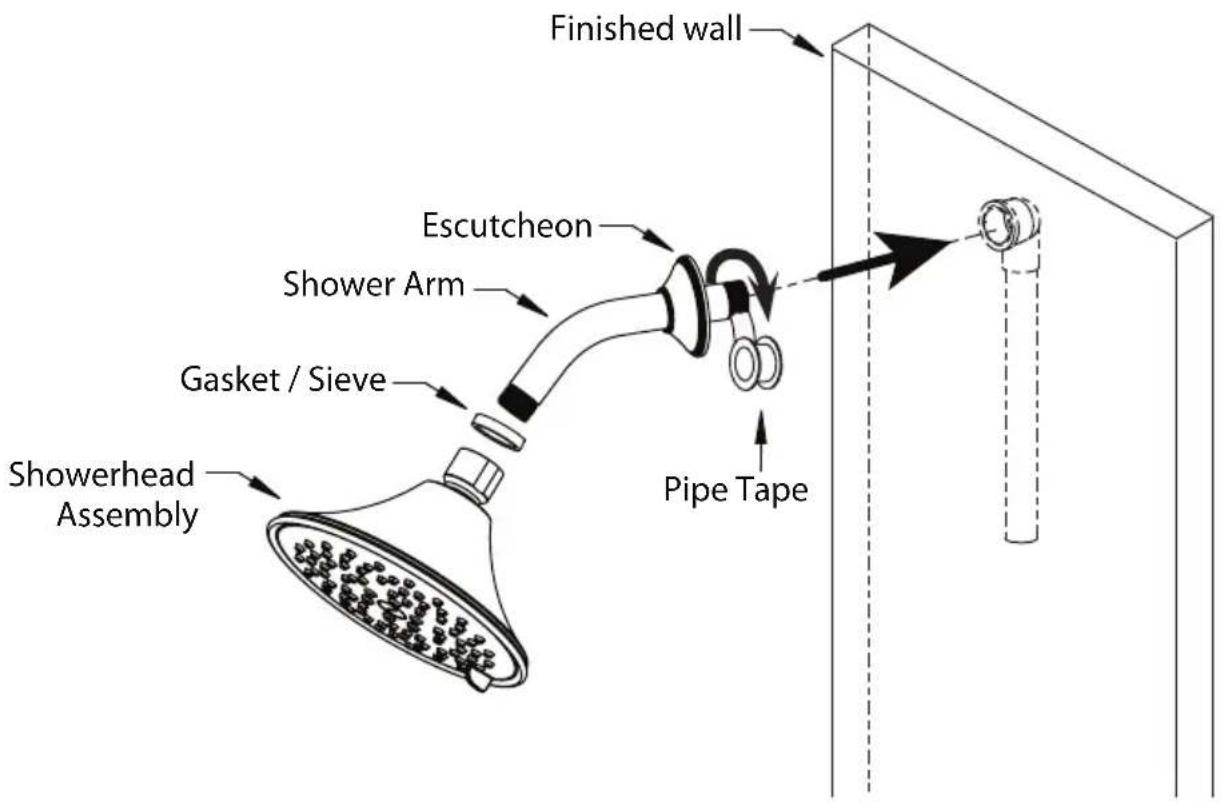

INSTALLATION PROCEDURE

Finished wall Escutcheon Shower Arm Gasket / Sieve Pipe Tape Showerhead Assembly

NO TE: Thoroughly clean and remove debris from the water supply pipe before installation to prevent clogging the spray outlet.

NOTE: Do NOT twist showerhead to install shower arm.

• Slide escutcheon onto the shower arm.
• Wrap the shower arm threads with pipe tape. Screw the shower arm into the supply elbow.
• Ensure the gasket/sieve is in the pivot ball before installation.
• Thread the showerhead onto the shower arm by hand.
• Use an adjustable wrench to tighten the showerhead to the shower arm firmly enough to seat the gasket and prevent leaking.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of an adjustable wrench (no text or symbols)

Llave Ajustable

AVANT DE COMMENCER

5-7/8" [150mm] Ø 2-1/4" [58mm] 3-1/8" [80mm] 1/2" NPT 1/2" NPT

Traditional TS300N6

5-7/8" [150mm] Ø 2-1/4" [58mm] 3-1/8" [80mm] 1/2" NPT 1/2" NPT

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTE

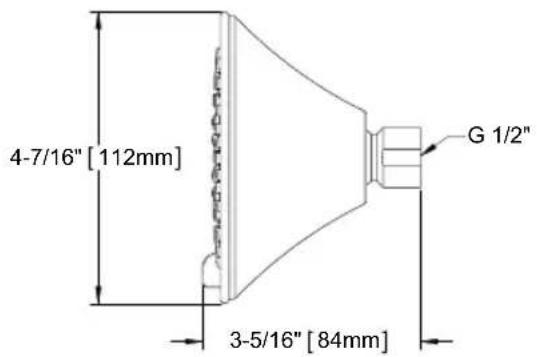

Transitional 4.5" TS200A(L)51 TS200A(L)55

4-7/16" [112mm] 3-5/16" [84mm] G 1/2"

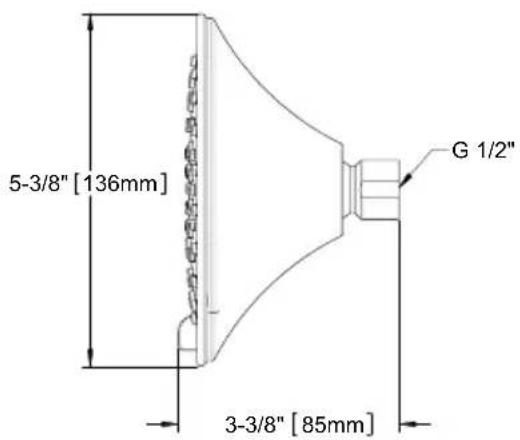

Transitional 5.5" TS200A(L)61 TS200A(L)65

5-3/8" [136mm] G 1/2" 3-3/8" [85mm]

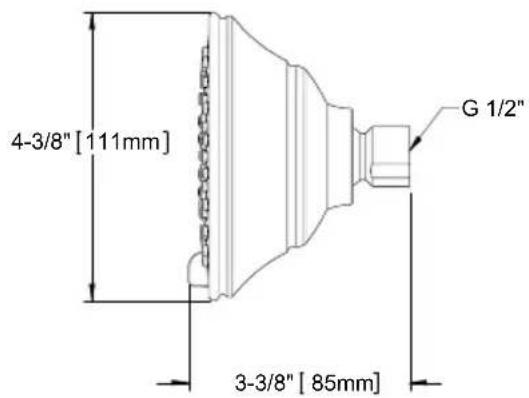

Traditional 4.5" TS300A(L)51 TS300A(L)55

4-3/8" [111mm] G 1/2" 3-3/8" [85mm]

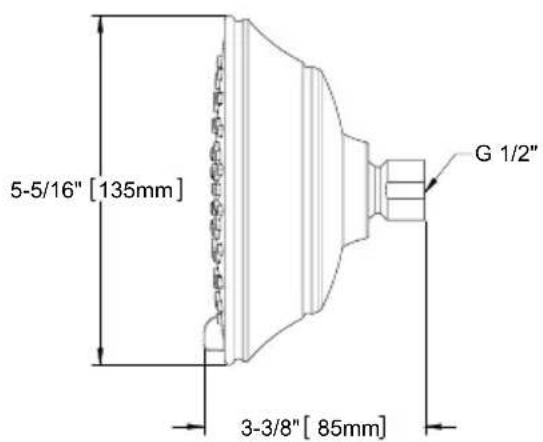

Traditional 5.5" TS300A(L)61 TS300A(L)65

5-5/16" [135mm] 3-3/8" [85mm] G 1/2"

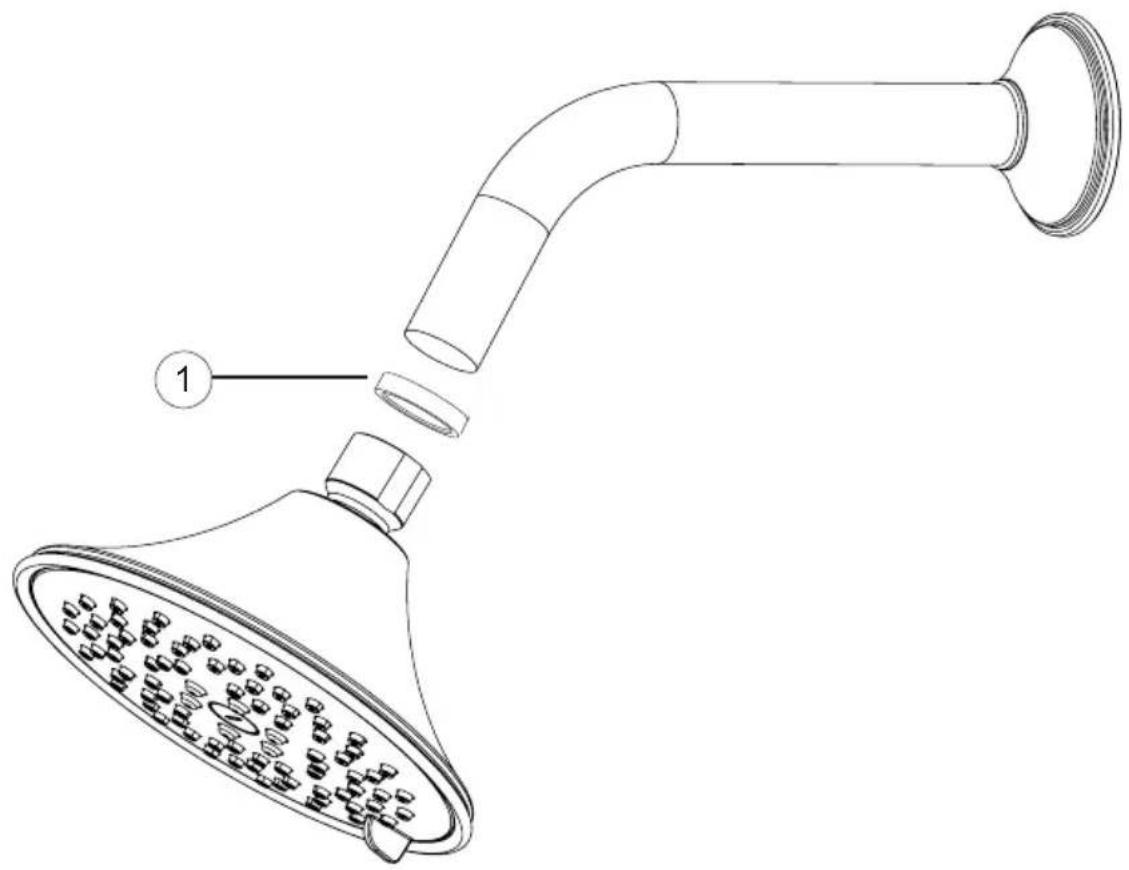

REPLACEMENT PARTS / PIEZAS DE REPUESTO / PIÈCES DE RECHANGE

Technical diagram of a showerhead with labeled parts and component details

No.	Description Descripción	Description
1	Gasket / Sieve Junta / Colador Joint / Passoire

TOTO®

TOTO® U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4212

Rev Date: 09/11
