USER MANUAL appLS24WS Aqprox

Black and white barcode image with vertical lines and a small number '1' at the bottom

Black and white barcode image with vertical lines and a central dot

Version de firmware

1. Batería restante

Black and white barcode image with vertical lines and a central dot

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Bluetooth HID

Pairing setting

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

5.2. Bluetooth BLE

Black and white barcode image with vertical lines and a small number '1' at the bottom

Bluetooth BLE

5.3. Bluetooth SPP protocol

Black and white barcode image with vertical lines and patterns

Bluetooth SPP

1. 2.4G (dongle)
   6.1. Modo receptor 2.4G

Black and white barcode image with vertical lines and patterns

2.4G receiver mode

Pairing setting

6.2. Virtual serial port mode

Black and white barcode image with vertical lines and a central dot

USB virtual com

1. Modo de escaneo

QR code image containing encoded data, no visible human-readable text

Modo manual

QR code image containing encoded data, no visible human-readable text

Modo automático

1. Ajustes de sonido

Black and white barcode image with vertical lines and a central pattern

*Volumen alto

Volumen medio

Barcode image with black and white vertical bars on both sides, no visible text or symbols beyond the pattern

Volumen

bajo

Mute

Please carefully read all the contents of the manual before using the products described in this manual to ensure that the product is safely and effectively preserved for future use. Do not disassemble the terminal or tear off the seal on the terminal. Otherwise, we will not be responsible for the warranty or replacement of the terminal.

appLS24WS is a high performance wireless barcode reader. It can quickly decode any 1D and 2D barcode symbology, including QR codes, from paper or directly from the screen of any device, perfect for customer-facing applications.

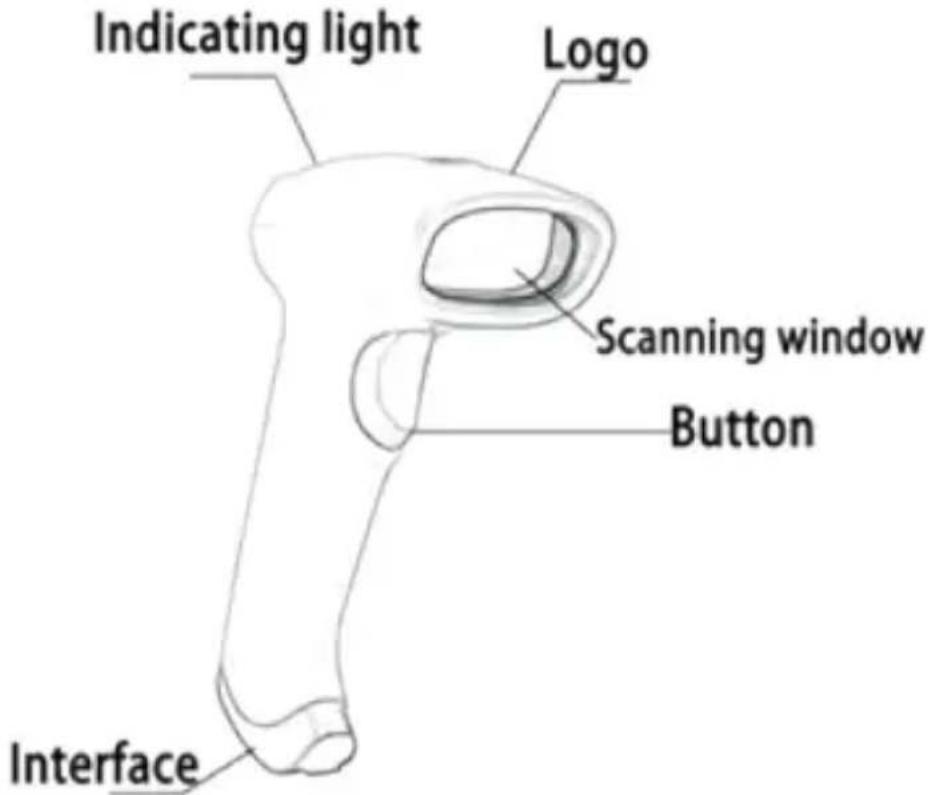

1.1. Product display

Indicating light Logo Scanning window Button Interface

1.2. Maintenance

- The window must be kept clean, the supplier do not bear the guarantee responsibility due to the improper maintenance.

- Avoid the window being wear and tear or scratched by hard object

- Use the hairbrush to remove the stain on the window

- Clean the window with a soft cloth, such as lens cleaning cloth

- Spraying liquid onto the window is prohibited.

• Prohibit any cleaning solvents, except for the cleaning water.

2. Restore factory defaults

Black and white barcode image with vertical lines and a small number '1' at the bottom

Factory default

3. Version info

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Version info

4. Battery capacity

Black and white barcode image with vertical lines and a central dot

Battery capacity

5. Bluetooth

5.1. Bluetooth HID protocol

1. First scan "Bluetooth HID", then scan "Pairing Setting" to enter Bluetooth searching (Blue&green light will flash once the searching is begun);
2. Turn on Bluetooth in your device, search, select and pair "Barcode Scanner HID", if the pairing is successful, you will hear a "beep" sound and green&flash light is always on. (The whole pairing process takes about 1min, if timeout and the pairing failed, it will automatically exit the pairing mode).

Black and white barcode image with vertical lines and a central bar pattern

Bluetooth HID

Pairing setting

5.2. Bluetooth BLE protocol

1. Scan "Bluetooth BLE" to enter Bluetooth searching (Blue&green light will flash alternately once the searching has begun).
2. Turn on Bluetooth in your device, search, select and pair "Barcode Scanner BLE", if the pairing is successful, you will hear a "beep" sound and green&flash light is always on.

Black and white barcode image with vertical lines and a central black square

Bluetooth BLE

5.3. Bluetooth SPP protocol

1. Scan "Bluetooth SPP" to enter Bluetooth searching (blue light will flash once the searching has begun).
2. Turn on the Bluetooth in the customized software, search and select "Barcode Scanner SPP", you will hear a "beep" sound if the pairing is successful, and the blue light is always on.

Black and white barcode image with vertical lines and a central bar

Bluetooth SPP

6. 2.4G (dongle)

6.1. 2.4G receiver mode

1. To enter the pairing status, first scan "2.4G Receiver Mode", then scan "Pairing Setting" (the green light will flash).
2. Plug the USB dongle into the device, when hearing a "beep" sound, it means the pairing is successful and the blue&green light is always on. (The whole pairing process takes about 1min, if timeout and the pairing failed, it will automatically exit the pairing mode);

Black and white barcode image with vertical lines and a central vertical bar

2.4G receiver mode
Pairing setting

6.2. Virtual serial port mode

Under the circumstances when application software requires ports, scan "USB Virtual COM" and recognize as USB Virtual COM. (Be advised: An installed driver is require. The default settings of port is: 9600 baud rate, 8 data bits; no check bit; 1 stop bit).

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

USB virtual com

1. Scan mode


QR code image containing encoded data, no visible human-readable text

Manual

QR code image containing encoded data, no visible human-readable text

Automatic

8. Immediate mode

In immediate mode, data scanned will be directly transmitted to the receiver, there will be one short sound if the transmission is successful, meanwhile the green indicator light will flash once. If the transmission failed, there will be three short sounds and the green light will flash for three times. The data will be lost under immediate mode if the transmission failed.

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Immediate mode

9. Inventory mode Offline inventory mode

In offline inventory mode, scanning the barcode then its data will be automatically saved in the memory chip inside the scanner, later there will be one short sound. If the memory is full, there will be three short sounds as warning sign and the green light will flash three times.

Black and white barcode image with vertical lines and a central dot

Offline inventory

Mixed mode (just for 2.4G)

Mixed mode is the combination of immediate mode and data inventory. When the scanner is within the range of transmission, the data scanned will be immediately sent to the receiver; when the scanner is out of the range of real time transmission, the data scanned will be automatically saved in the memory chip inside the scanner.

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

Mixed mode

Inventory setting

Show total amount of barcode scanned in storage:

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Upload statistics

Upload all data in memory chip:

Black and white barcode image with vertical lines and a small number '1' at the bottom

Upload data

Delete all data in memory chip (Warning: All data deleted cannot be restored, make sure you have uploaded all data and made a backup).

Black and white barcode image with vertical lines and a small number 'n' in the center.

Delete all data

1. Sleep time setting


30s 1 min 2 mins 5 mins 10 mins 30 mins

Turn off sleep mode
Initiate sleep mode immediately

1. Keyboard language settings


12. Case conversion

Black and white barcode image with vertical lines and a small number 'n' in the center.

Upper case

Black and white barcode image with vertical lines and a central dot

Lowe case

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

Upper&lower case conversion

Black and white barcode image with vertical lines and a central dot

Upper&lower case conversion OFF

13. Voice settings

Barcode image containing machine-readable data, no human-readable text visible

*High volume

Barcode image containing encoded digital information

Medium volume

Barcode image with vertical black and white bars, no visible text or symbols beyond the pattern

LOW
volume

Black and white barcode image with vertical lines and a central dot

Mute

14. Terminator settings

Barcode image containing machine-readable data, with vertical black and white lines representing the number 10

Enter

Black and white barcode image with vertical lines and a central dot

Line
feed

Barcode image containing encoded digital information

Enter+LF

Barcode image containing encoded digital information

TAB

Barcode image containing encoded digital information

No terminator

15. Data edit

15.1. Add prefix/suffix

How to add prefix/suffix: First scan "Set prefix" or "Set suffix", then scan

the corresponding barcode (see character table below), you may add up to 32 bytes.

Set prefix

Set

15.2. GS character settings

How to set GS character: First scan "Set GS character convert", then scan the corresponding setting barcode. (see character table below)

Barcode image containing encoded digital information

Black and white barcode image with vertical lines and a central vertical bar

Set GS character convert
Turn off GS character convert

16. Control character table

Dec	ASCII	Character Set 0	Character Set 1	Character Set 2	Char. Set 3	Charact. Set 4	Programming Barcode
1	SOH	NULL	Home	Ctrl+A	Alt+001	Enter numeric keypad
2	STX	Ctrl+B	End	Ctrl+B	Alt+002	Cap Lock
3	ETX	Ctrl+C	Up Arrow	Ctrl+C	Alt+003	Right Arrow
4	EOT	NULL	Down Arrow	Ctrl+D	Alt+004	Up Arrow
5	ENQ	NULL	Left Arrow	Ctrl+E	Alt+005	NULL
6	ACK	NULL	Right Arrow	Ctrl+F	Alt+006	NULL
7	BEL	NULL	Shift+Tab	Ctrl+G	Alt+007	Enter
8	BS	Back Space	Back Space	Back Space	Alt+008	Left Arrow
9	HT	Tab	Tab	Tab	Alt+009	Tab
10	LF	Enter	Enter	Ctrl+P	Alt+010	Down Arrow
11	VT	NULL	NULL	Ctrl+Q	Alt+011	Tab
12	FF	NULL	NULL	Ctrl+R	Alt+012	delete
13	CR	Enter	Enter	Enter	Alt+013	Enter
14	S0	F1	Page Up	Ctrl+N	Alt+014	Insert
15	S1	F2	Page Down	Ctrl+O	Alt+015	Esc
16	DLE	F3	F11	Ctrl+P	Alt+016	F11
17	DC1	F4	NULL	Ctrl+Q	Alt+017	Home
18	DC2	F5	NULL	Ctrl+R	Alt+018	Print Screen
19	DC3	F6	NULL	Ctrl+S	Alt+019	Back Space
20	DC4	F7	NULL	Ctrl+T	Alt+020	Shift tab
21	NAK	F8	F12	Ctrl+U	Alt+021	F12
22	SYN	F9	F1	Ctrl+V	Alt+022	F1
23	TB	F10	F2	Ctrl+W	Alt+023	F2
24	CAN	F11	F3	Ctrl+X	Alt+024	F3
25	EM	F12	F4	Ctrl+Y	Alt+025	F4
26	SUB	NULL	F5	Ctrl+Z	Alt+026	F5
27	Esc	Esc	F6	Ctrl+[	Alt+027	F6
28	FS	ALT+028	F7	Ctrl+\	Alt+028	F7
29	GS	ALT+029	F8	Ctrl+]	Alt+029	F8
30	RS	NULL	F9	Ctrl+^	Alt+030	F9
31	US	NULL	F10	Ctrl+_	Alt+031	F10

1. Displayable character table

Decimal Data	ASCII	Programming Barcode
32	Space
33	!
34	“
35	#
36	$
37	%
38	&
39	‘
40	(
41	)
42	*
43	+
44	,
45	-
46	.

Decimal Data	ASCII	Programming Barcode
47	/
48	0
49	1
50	2
51	3
52	4
53	5
54	6
55	7
56	8
57	9
58	:
59	;
60	<
61	=
62	>
63	?
64	@
65	A
66	B
67	C
68	D
69	E
70	F
71	G
72	H
73	I
74	J
75	K
76	L

Decimal Data	ASCII	Programming Barcode
77	M
78	N
79	O
80	P
81	Q
82	R
83	S
84	T
85	U
86	V
87	W
88	X
89	Y
90	Z
91	[
92	\
93	]
94	^
95	-
96	`
97	a
98	b
99	c
100	d
101	e
102	f
103	g
104	h
105	i
106	j

Decimal Data	ASCII	Programming Barcode
107	k
108	l
109	m
110	n
111	o
112	p
113	q
114	r
115	s
116	t
117	u
118	v
119	w
120	x
121	y
122	z
123	{
124	|
125	}
126	~
127	DEL
164
199
231

18. Safety, maintenance and recycling instructions

- Caution: Never open the device, the internal parts are danger, electrical shock.

- Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation or in any area classified as a wet.

- Do not insert objects of any kind into this unit through openings as they may touch voltage points and short out parts that could result in fire or electric shock.

- Do not spill any liquid on the unit. Danger of explosion!

- Do not crush power cables, danger of short circuit!

- Always connect to the manufacturer's recommended tension.

- Clean the product with a soft and dry cloth.

- Follow local regulations for disposing of the product.

19. Recycled

AEEREI-RAE 558 - In this manual, the container (bien) symbol indicates that the product is subject to the European directive 2002/96/EC, electrical and electronic products, batteries, and other accessories must necessarily be subject to a selective collection.

At the end of the life of the devise, make use of the recycling bins.

This gesture will help reduce the health risks and preserve the environment. Municipalities and distributor, will provide essential details on recycling your old device. If this device carries an internal battery, it must be removed and deposited separately for proper management.

1. Introdução

Black and white barcode image with vertical lines and a small number '1' at the bottom

Black and white barcode image with vertical lines and a central dot

Versão do firmware

1. Batería restante

Black and white barcode image with vertical lines and a central dot

Black and white barcode image with vertical lines and a small number 'n' in the center.

Bluetooth HID

Pairing setting

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

5.2. Bluetooth BLE

Black and white barcode image with vertical lines and a small number '1' at the bottom

Bluetooth BLE

5.3. Bluetooth SPP protocol

Black and white barcode image with vertical lines and patterns

Bluetooth SPP

1. 2.4G (dongle)
   6.1. Modo receptor 2.4G

Black and white barcode image with vertical lines and a central dot, likely for digital scanning or information retrieval.

2.4G receiver mode

Pairing setting

6.2. Modo de porta serial virtual

Black and white barcode image with vertical lines and a small number '1' at the bottom

USB virtual com

QR code image containing encoded data, no visible human-readable text

Modo manual

QR code image containing encoded data, no visible human-readable text

Modo automático

1. Beeper

Black and white barcode image with vertical lines and a central dot

*Volume alto

Volume médio

Barcode image with black and white vertical bars on both sides, no additional text or symbols

Volume

baixo

Mute

Black and white barcode image with vertical lines and a central dot

Black and white barcode image with vertical lines and a central bar

Version du firmware

Black and white barcode image with vertical lines and a central bar

Black and white barcode image with vertical lines and a central bar

Bluetooth HID

Pairing setting

Black and white barcode image with vertical lines and a central dot

5.2. Bluetooth BLE

Black and white barcode image with vertical lines and a central bar

Bluetooth BLE

5.3. Bluetooth SPP protocol

Black and white barcode image with vertical lines and a central bar

Bluetooth SPP

6. 2.4G (dongle)

Barcode image with black and white vertical bars on both sides, no additional text or symbols

2.4G receiver mode
Pairing setting

Black and white barcode image with vertical lines and a small number 'n' in the center.

USB virtual com

7. Mode de balayage

QR code image containing encoded data, no visible human-readable text

Mode manuel

QR code image containing encoded data, no visible human-readable text

Mode automatique

8. Son

Barcode image with black and white vertical bars on both sides, no visible text or symbols beyond the pattern

Barcode image with black and white vertical bars on both sides, no visible text or symbols beyond the pattern

Volume
bas
Mute

The power supplied by the charger must be 2.5 watts required by the radio equipment in order to achieve maximum charging speed.

Importador por / Imported by:

The content of this guide is subject to typographical errors

www.approxtpv.es
