USER MANUAL appLS24 Aqprox

2D Barcode Sca ■ app

User Guide

1. Introducción

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Enter setup Exit setup

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

*Modo manual

QR code image containing encoded data, no visible human-readable text

Modo continuo

QR code image containing encoded data, no visible human-readable text

Modo automático

2.4. Sonido

QR code image containing encoded data, no visible human-readable text

*Con sonido

QR code image containing encoded data, no visible human-readable text

Sin sonido

QR code image containing encoded data, no visible human-readable text

Volumen bajo

QR code image containing encoded data, no visible human-readable text

Volumen medio

QR code image containing encoded data, no visible human-readable text

Volumen alto

Please carefully read all the contents of the manual before using the products described in this manual to ensure that the product is safely and effectively preserved for future use. Do not disassemble the terminal or tear off the seal on the terminal. Otherwise, we will not be responsible for the warranty or replacement of the terminal.

appLS24 is a high performance barcode reader. It can quickly decode any 1D and 2D barcode symbology, including QR codes, from paper or directly from the screen of any device, perfect for customer-facing applications.

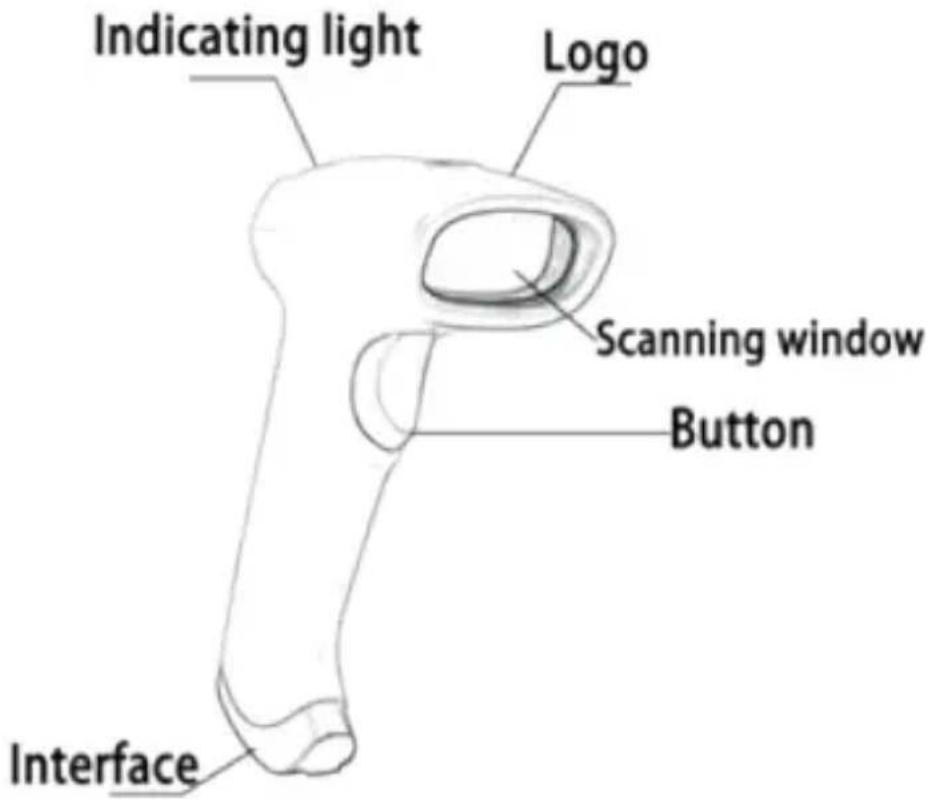

1.1. Product display

Indicating light Logo Scanning window Button Interface

1.2. Start-up, shutdown, standby and restart

Start-up: Connect host computer with scanner, which will automatically start-up and in working state.

Shutdown: Remove the USB which is connected with host computer. Standby: Scanner with automatic sleep standby function, it will automatically start-up when barcode approach.

Restart: If the scanner crashes or doesn't respond, please switch it off and restart.

1.3. Maintenance

• The window must be kept clean, the supplier do not bear the guarantee responsibility due to the improper maintenance.
• Avoid the window being wear and tear or scratched by hard object
• Use the hairbrush to remove the stain on the window
• Clean the window with a soft cloth, such as lens cleaning cloth
• Spraying liquid onto the window is prohibited.
• Prohibit any cleaning solvents, except for the cleaning water.

2. Factory defaults

QR code image containing encoded data, no visible human-readable text

Restore all factory defaults

3. Output settings

3.1. Interface

QR code image containing encoded data, no visible human-readable text

USB-KBW

QR code image containing encoded data, no visible human-readable text

USB Virtual Com

QR code image containing encoded data, no visible human-readable text

RS-232

3.2. Baud Rate

QR code image containing encoded data, no visible human-readable text

1200
2400

QR code image containing encoded data, no visible human-readable text

4800

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

*9600

QR code image containing encoded data, no visible human-readable text

19200

QR code image containing encoded data, no visible human-readable text

38400

QR code image containing encoded data, no visible human-readable text

57600

QR code image containing encoded data, no visible human-readable text

115200

3.3. Keyboard language

QR code image containing encoded data, no visible human-readable text

USA

QR code image containing encoded data, no visible human-readable text

Russia

QR code image containing encoded data, no visible human-readable text

France

QR code image containing encoded data, no visible human-readable text

Germany

QR code image containing encoded data, no visible human-readable text

*Spain

QR code image containing encoded data, no visible human-readable text

Sweden

QR code image containing encoded data, no visible human-readable text

Italy

QR code image containing encoded data, no visible human-readable text

Japan

QR code image containing encoded data, no visible human-readable text

Turkey Q

QR code image containing encoded data, no visible human-readable text

Turkey F

3.4. Case conversion

QR code image containing encoded data, no visible human-readable text

Convert all to lower case

QR code image containing encoded data, no visible human-readable text

No case conversion

QR code image containing encoded data, no visible human-readable text

Convert all to upper case

4. System settings

4.1. Enter setup and exit setup

Scanning the "Enter Setup" barcode can enable the scanner to enter the setup mode. Then you can scan a number of programming barcodes to configure your scanner.

To exit the setup mode, scan the Exit Setup barcode or a nonprogramming barcode, or reboot the scanner.

QR code image containing encoded data, no visible human-readable text

Enter setup Exit setup

QR code image containing encoded data, no visible human-readable text

4.2. Scan mode

QR code image containing encoded data, no visible human-readable text

*Manual mode

QR code image containing encoded data, no visible human-readable text

Continuous mode

QR code image containing encoded data, no visible human-readable text

Automatic mode

4.3. Sensitivity

QR code image containing encoded data, no visible human-readable text

*High

QR code image containing encoded data, no visible human-readable text

Middle

4.4. Sound

QR code image containing encoded data, no visible human-readable text

*On

QR code image containing encoded data, no visible human-readable text

Off

QR code image containing encoded data, no visible human-readable text

Low

QR code image containing encoded data, no visible human-readable text

Medium

QR code image containing encoded data, no visible human-readable text

*High

5. Data editing

5.1. Prefix / Suffix setting

QR code image containing encoded data, no visible human-readable text

*Enable all prefixes and suffixes

QR code image containing encoded data, no visible human-readable text

Disable all prefixes and suffixes

5.2. Customized prefix

Customized Prefix: The customized prefix adds a user-defined string before the decoded information. For example, it is allowed to add a customized prefix and set the prefix to the character string "AB". After reading the barcode with the data "123", the scanner adds the character string "AB" before the character string "123", and the host receives "AB123".

5.2.1. Enable / Disable adding customized prefix

QR code image containing encoded data, no visible human-readable text

Enable add custom prefixes

QR code image containing encoded data, no visible human-readable text

*Disable add custom prefixes

5.2.2. Set customized prefix

QR code image containing encoded data, no visible human-readable text

Set custom prefix

Example: Set customized prefix to "CODE" (The hexadecimal value is 0x43/0x4F/0x44/0x45)

1) Scan code "Enter setup"
2) Scan code "Set Custom Prefix"
3) Scan Data Code: "4""3""4""F""4""4""4""5" (in Appendix)
4) Scan code "Save" (in Appendix)
5) Scan code "Enable add custom prefixes"
6) Scan code "Exit setup"

5.3. Customized suffix

Custom Suffix: The customized suffix is to add a user-defined string after decoding the information. For example, it is allowed to add a custom suffix and set the suffix to the character string "AB". After reading the barcode with the data as "123", the scanner adds the character string "AB" after the character string "123", and the host receives "123AB" ".

Note: The total length of the custom suffix string cannot exceed 5 characters.

5.3.1. Allow / prohibit adding custom suffix

QR code image containing encoded data, no visible human-readable text

Allow custom suffix

QR code image containing encoded data, no visible human-readable text

*Prohibit custom suffix

5.3.2. Setting custom suffix

QR code image containing encoded data, no visible human-readable text

Setting custom suffix

Example: Setting custom prefix is "CODE" (Hexadecimal value is 0x43/0x4F/0x44/0x45)

1) Scan code "Enter setup"
2) Scan code "Setting Custom Suffix"
3) Scan Data code: "4""3""4""F""4""4""4""5" (in Appendix)
4) Scan code "Save" (in Appendix)
5) Scan code "Allow Custom Cuffix"
6) Scan code "Exit setup"

5.4. Add terminal key stroke

QR code image containing encoded data, no visible human-readable text

*Add terminal CR

QR code image containing encoded data, no visible human-readable text

Add terminal CR+LF

QR code image containing encoded data, no visible human-readable text

Add terminal TAB

QR code image containing encoded data, no visible human-readable text

Deactivate terminal addition

5.5. Control character GS

QR code image containing encoded data, no visible human-readable text

Enable

5.6. GS character conversion

QR code image containing encoded data, no visible human-readable text

Enable GS characters conversion

QR code image containing encoded data, no visible human-readable text

*Disable GS characters conversion

5.6.1. Quick setting code for special GS conversion

QR code image containing encoded data, no visible human-readable text

GS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

(GS)

QR code image containing encoded data, no visible human-readable text

[GS]

QR code image containing encoded data, no visible human-readable text

'GS'

QR code image containing encoded data, no visible human-readable text

'GS'

QR code image containing encoded data, no visible human-readable text

|

QR code image containing encoded data, no visible human-readable text

?

QR code image containing encoded data, no visible human-readable text

*

QR code image containing encoded data, no visible human-readable text

<0x1D>

1. Barcode parameter settings
   6.1. Enable / Disable reading all barcodes

QR code image containing encoded data, no visible human-readable text

Deactivate 1d barcode scanning

QR code image containing encoded data, no visible human-readable text

*Activate scanning of all barcodes types

QR code image containing encoded data, no visible human-readable text

Deactivate 2D barcode scanning

6.2. Enable / Disable reading all 1D/2D reverse barcodes

QR code image containing encoded data, no visible human-readable text

Enable all 1D reverse barcode

QR code image containing encoded data, no visible human-readable text

*Disable all 1D reverse barcode

QR code image containing encoded data, no visible human-readable text

Enable all 2D reverse barcode

QR code image containing encoded data, no visible human-readable text

*Disable all 2D reverse barcode

1. Appendix: ASCII code

HEX	Decimal base	Character
00	0	NUL (Null char.)
01	1	SOH (Start of Header)
02	2	STX (Start of Text)
03	3	ETX (End of Text)
04	4	EOT (End of Transmission)
05	5	ENQ (Enquiry)
06	6	ACK (Acknowledgment)
07	7	BEL (Bell)
08	8	BS (Backspace)
09	9	HT (Horizontal Tab)
0a	10	LF (Line Feed)
0b	11	VT (Vertical Tab)
0c	12	FF (Form Feed)
0d	13	CR (Carriage Return)
0e	14	SO (Shift Out)
0f	15	SI (Shift In)
10	16	DLE (Data Link Escape)
11	17	DC1 (XON) (Device Control 1)
12	18	DC2 (Device Control 2)
13	19	DC3 (XOFF) (Device Control 3)
14	20	DC4 (Device Control 4)
15	21	NAK (Negative Acknowledgment)
16	22	SYN (Synchronous Idle)
17	23	ETB (End of Trans. Block)
18	24	CAN (Cancel)
19	25	EM (End of Medium)
1a	26	SUB (Substitute)
1b	27	ESC (Escape)
1c	28	FS (File Separator)
1d	29	GS (Group Separator)
1e	30	RS (Request to Send)
1f	31	US (Unit Separator)
20	32	SP (Space)
21	33	! (Exclamation Mark)
22	34	“ (Double Quote)
23	35	# (Number Sign)
24	36	$ (Dollar Sign)
25	37	% (Percent)
26	38	& (Ampersand)
27	39	` (Single Quote)
28	40	( (Right / Closing Parenthesis)
29	41	) (Right / Closing Parenthesis)
2a	42	* (Asterisk)
2b	43	+ (Plus)
2c	44	, (Comma)
2d	45	- (Minus / Dash)
2e	46	. (Dot)
2f	47	/ (Forward Slash)
30	48	0
31	49	1
32	50	2
33	51	3
34	52	4
35	53	5
36	54	6
37	55	7
38	56	8
39	57	9
3a	58	; (Colon)
3b	59	; (Semi-colon)
3c	60	< (Less Than)
3d	61	= (Equal Sign)
3e	62	> (Greater Than)
3f	63	? (Question Mark)
40	64	@ (AT Symbol)
41	65	A
42	66	B
43	67	C
44	68	D
45	69	E
46	70	F
47	71	G
48	72	H
49	73	I
4a	74	J
4b	75	K
4c	76	L
4d	77	M
4e	78	N
4f	79	O
50	80	P
51	81	Q
52	82	R
53	83	S
54	84	T
55	85	U
56	86	V
57	87	W
58	88	X
59	89	Y
5a	90	Z
5b	91	[ (Left / Opening Bracket)
5c	92	\ (Back Slash)
5d	93	] (Right / Closing Bracket)
5e	94	^ (Caret / Circumflex)
5f	95	_ (Underscore)
60	96	' (Grave Accent)
61	97	a
62	98	b
63	99	c
64	100	d
65	101	e
66	102	f
67	103	g
68	104	h
69	105	i
6a	106	j
6b	107	k
6c	108	l
6d	109	m
6e	110	n
6f	111	o
70	112	p
71	113	q
72	114	r
73	115	s
74	116	t
75	117	u
76	118	v
77	119	w
78	120	x
79	121	y
7a	122	z
7b	123	{ (Left/ Opening Brace)
7c	124	| (Vertical Bar)
7d	125	} (Right/Closing Brace)
7e	126	~ (Tilde)
7f	127	DEL (Delete)

7.1. Data code

QR code image containing encoded data, no visible human-readable text

O

QR code image containing encoded data, no visible human-readable text

1

QR code image containing encoded data, no visible human-readable text

2

QR code image containing encoded data, no visible human-readable text

3

QR code image containing encoded data, no visible human-readable text

4

QR code image containing encoded data, no visible human-readable text

5

6

7

8

9

A

B

QR code image with a copyright symbol (C) below it

D

QR code image with a small letter 'E' below it, likely linking to a digital resource or webpage.

F

Save

cel 1 digit of one d data

ancel previous all data

8. Safety, maintenance and recycling instructions

• Caution: Never open the device, the internal parts are danger, electrical shock.
• Do not install this unit near water, for example, in a wet basement, in an unprotected outdoor installation or in any area classified as a wet.
• Do not insert objects of any kind into this unit through openings as they may touch voltage points and short out parts that could result in fire or electric shock.
• Do not spill any liquid on the unit. Danger of explosion!

• Do not crush power cables, danger of short circuit!

• Always connect to the manufacturer's recommended tension.

• Clean the product with a soft and dry cloth.
• Follow local regulations for disposing of the product.

9. Recycled

AEEREI-RAE 558 - In this manual, the container (bien) symbol indicates that the product is subject to the European directive 2002/96/EC, electrical and electronic products, batteries, and other accessories must necessarily be subject to a selective collection.

At the end of the life of the devise, make use of the recycling bins.

This gesture will help reduce the health risks and preserve the environment. Municipalities and distributor, will provide essential details on recycling your old device. If this device carries an internal battery, it must be removed and deposited separately for proper management.

1. Introdução

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Enter setup Exit setup

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

*Modo manual

QR code image containing encoded data, no visible human-readable text

Modo contínuo

QR code image containing encoded data, no visible human-readable text

Modo automático

2.4. Som

QR code image containing encoded data, no visible human-readable text

*Com som

QR code image containing encoded data, no visible human-readable text

Sem som

QR code image containing encoded data, no visible human-readable text

Volume baixo

QR code image containing encoded data, no visible human-readable text

Volume médio

QR code image containing encoded data, no visible human-readable text

Volume alto*

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Enter setup Exit setup

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

*Mode manuel

QR code image containing encoded data, no visible human-readable text

Mode continu

QR code image containing encoded data, no visible human-readable text

Mode automatique

2.4. Son

QR code image containing encoded data, no visible human-readable text

*Avec son

QR code image containing encoded data, no visible human-readable text

Sans son

QR code image containing encoded data, no visible human-readable text

Volume bas

QR code image containing encoded data, no visible human-readable text

Volume moyen

QR code image containing encoded data, no visible human-readable text

Volume élevé

The content of this guide is subject to typographical errors

www.approxtpv.es
