Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  ▶ Never operate a damaged appliance.
  ▶ Never operate an appliance with a cracked or fractured surface.

en Safety

▶ Call customer services.→Page 27
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the charging cable ^1 , and the quick charger ^1 only in accordance with the specifications on the rating plate.
- Connect the charging cable ^1 , and the quick charger ^1 to a power supply with alternating current only via a properly installed socket with earthing.
- Do not apply flammable substances or substances containing alcohol to the filter.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
Before attempting any maintenance or cleaning of the appliance, remove the battery and disconnect the appliance from the power supply.
▶ Only store the appliance lying on the floor or in the base station.
- Ensure that children do not play with the appliance, even when it is in the base station ^1 .
▶ Never use the free-standing function of the floor nozzle with the appliance attached.
▶ Persons with electronic implants must stand at least 10 cm away from the appliance.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.
▶ Protect the battery against fire, heat and constant sunlight.

• Protect the battery against water and penetrating moisture.
  ▶ Never open the battery.
• When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
  ▶ If fumes are escaping from a damaged battery, supply fresh air.
  ▶ If there are any problems, seek medical advice from a doctor.
  ▶ If liquids are escaping from a damaged battery and they come into contact with the skin, rinse immediately with water.
  ▶ If these come into contact with the eyes, seek medical help.

Preventing material damage

▶ Check and clean any wet objects.
- Replace damaged objects.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
- Never use the nozzle without the brush roller in place.
▶ Never operate the appliance without the filter unit.
▶ Never lean the appliance against walls or the edges of tables.
- Retain the packaging material for transport purposes.

Included with the appliance

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features.

→Fig. 1

A	Hand-held cordless vacuum cleaner
B	Base station ^1
C	Accessory holder ^1 , with rail ^1 for base station
D	Universal floor nozzle ^1
E	Hard floor nozzle ^1
F	Flexible suction pipe

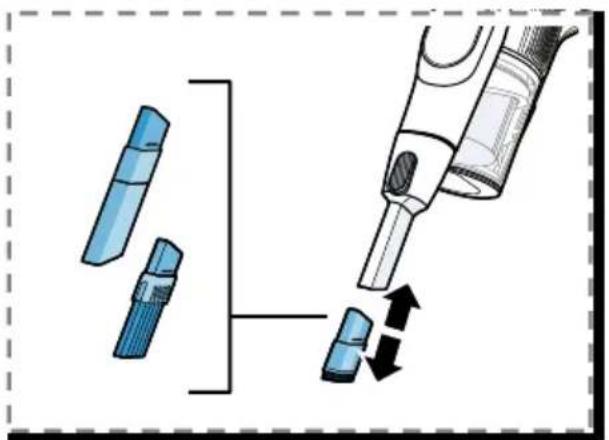

G	Crevice nozzle and adapter for other accessories
H	Extension for long, flexible crevice nozzle ^1

I	Extension for keyboard and drawer nozzle ^1
J	Extension for narrow furniture brush ^1
K	Rotatable furniture brush ^1
L	Battery ^1
M	Charging cableD□K Power supply model identifier■ S018BUz2350065 for 650 mA charging cable■ S023BUz2350100 for 1 mA charging cable
N	Rotating XXL upholstery nozzle ^1
O	Mini electro-nozzle ^1
P	Quick charger ^1

Overview

You can find an overview of the parts of your appliance here.

→Fig. 2

1	Universal floor nozzle with free-standing function
2	Floor nozzle release button
3	Flexible suction pipe
4	Suction pipe release button
5	Display with control panel
6	Operating buttons
7	Battery
8	MicroClean and status display
9	Dust container
10	RotationClean
11	Cartridge filter

en Installing the base station

12	Fluff filter
13	Sliding switch
14	Dust container release
15	Release button for dust container lid
16	Dust container lid
17	Foot release

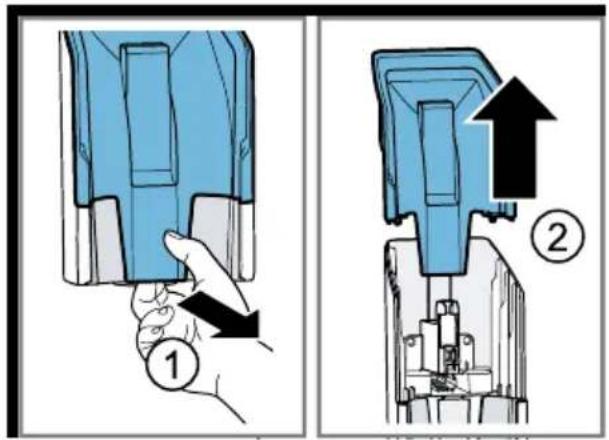

Installing the base station

• Check whether any household wiring could be damaged in the installation area.
• Do not install the base station horizontally or vertically above, below or next to a socket.

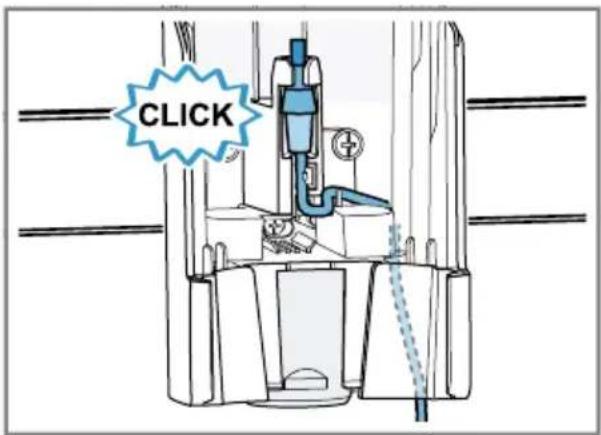

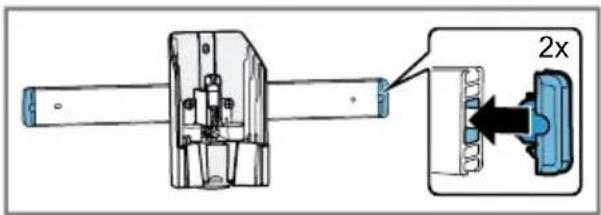

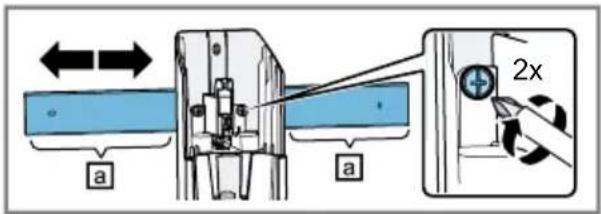

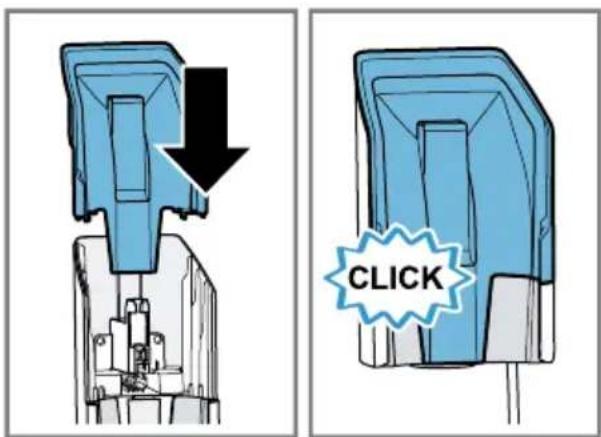

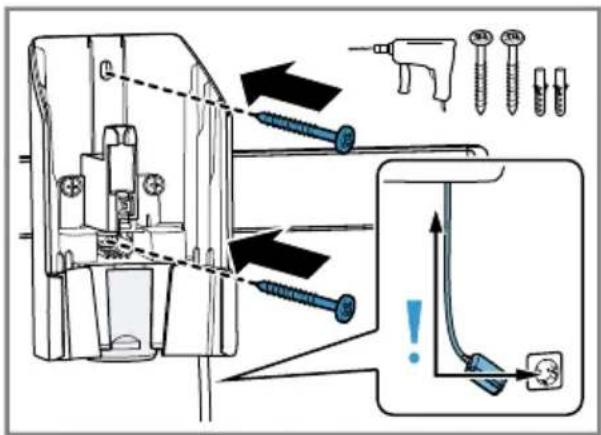

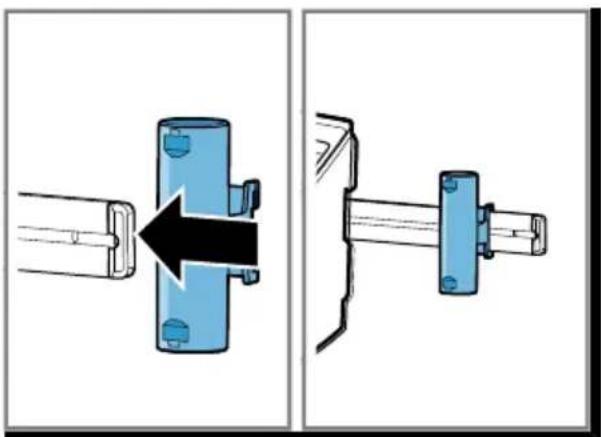

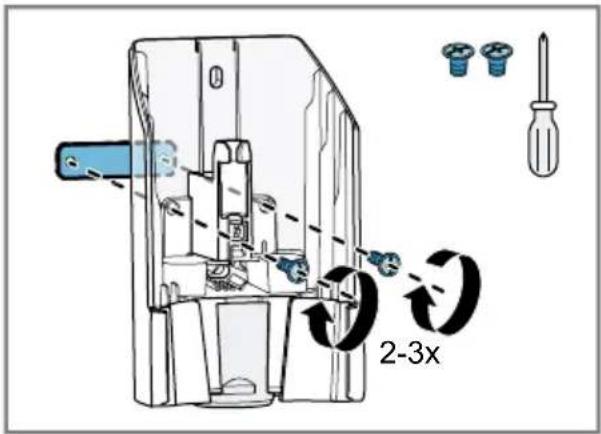

→Fig. 3 - 10

Operation

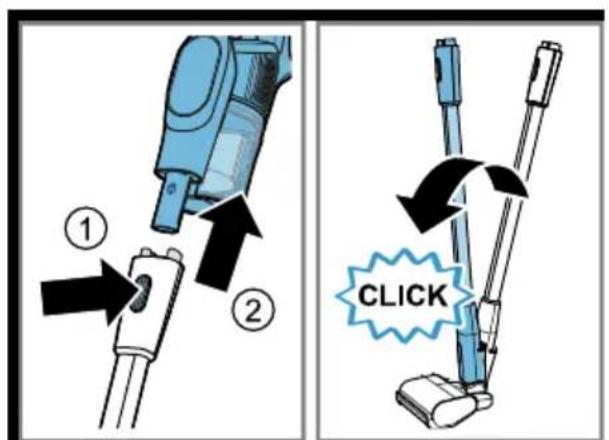

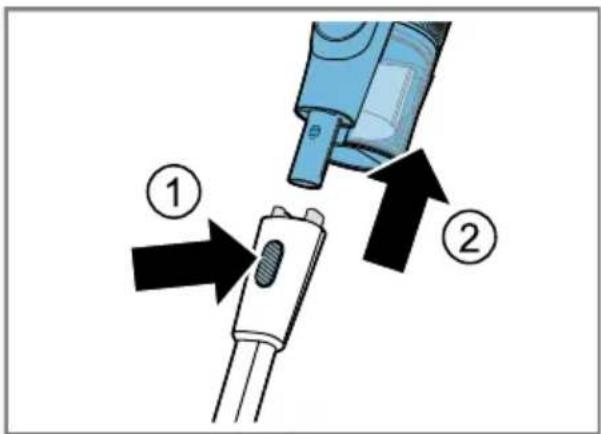

Installing the appliance

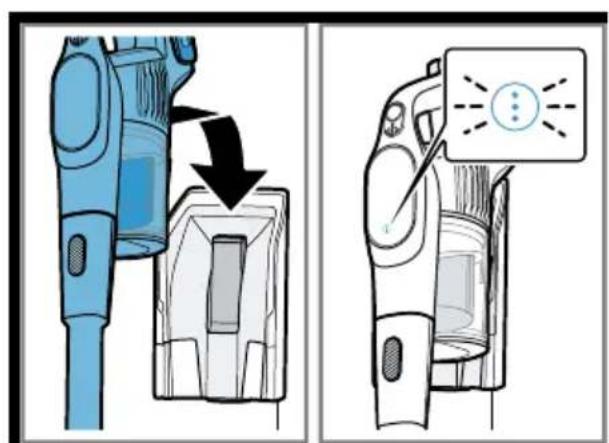

→Fig. 11 - 12

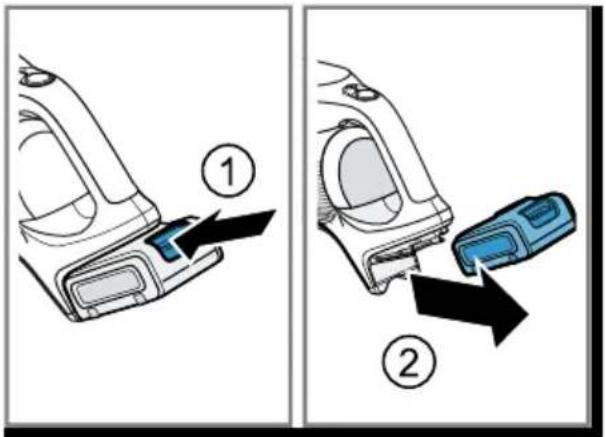

Charging the appliance

Notes

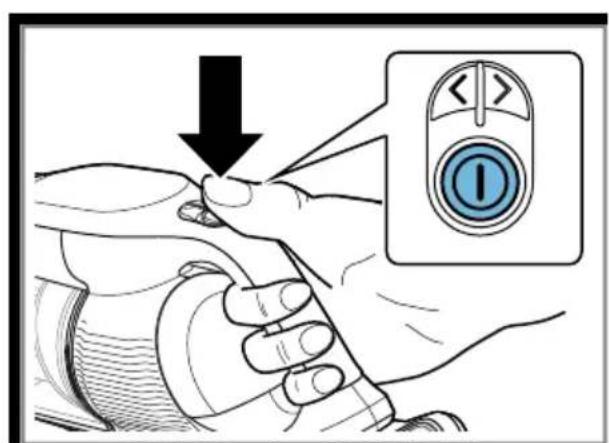

■ During charging, the display shows the battery charge status as a percentage.

■ The symbol ⚙slowly flashes white while the battery is charging.
To check the current battery charge status, briefly tap the ⏻symbol on the control panel.
■ To save energy, the appliance switches off once the battery is fully charged.
▶ Only use the battery in connection with the Bosch appliance.
▶ Always charge the battery using the original charging cable or the original quick charger ^1 .
▶ Only use batteries from the Power for ALL 18 V series.
- Follow the instructions for the batteries and the quick charger ^1 .
- Ensure that children do not play with the appliance, even when it is in the base station.

Note: For a rapid charge, use the quick charger.

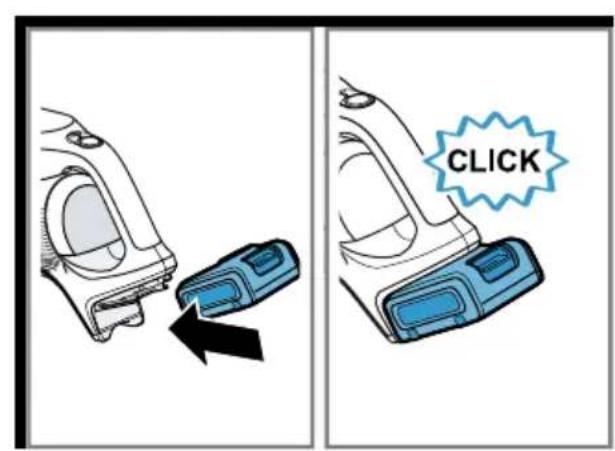

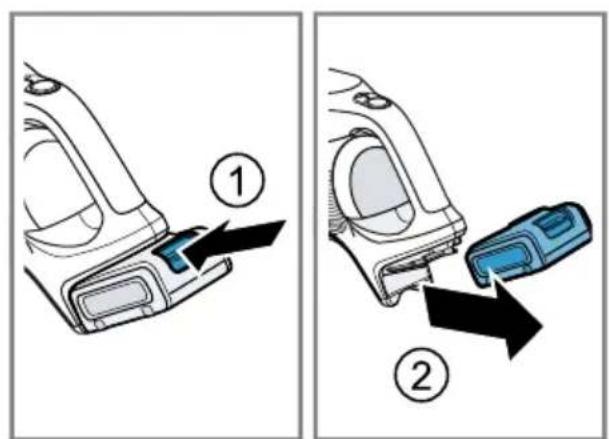

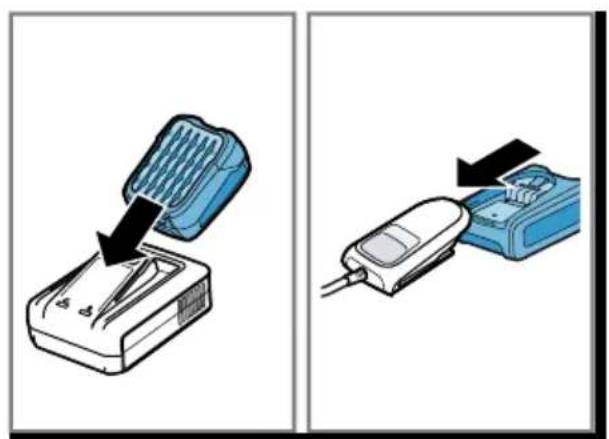

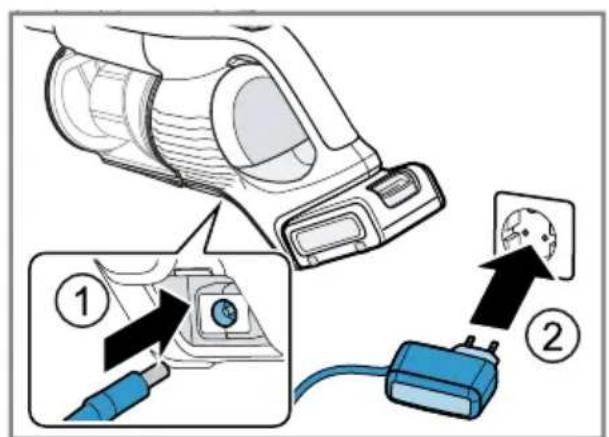

→Fig. 13 - 16

Battery runtimes

Here you can find information about battery runtimes depending on the battery that is in use.

Notes

• The battery runtime depends on the suction mode selected, the accessories used and the floor covering.
  The battery runtime may vary when vacuuming on carpets in particular.

- The display shows the estimated remaining runtime of the appliance in minutes. Actual values may vary.

Runtime (up to) 3,0 Ah 4,0 Ah Power+ 5,0 Ah
Eco mode with non-electrical accessories	60 80 100
Eco mode with electrical floor nozzle	50 65 80
Auto mode with electrical floor nozzle	17 25 30
Turbo mode with electrical floor nozzle	10 11 13

Notes

■ Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the result of a material error, manufacturing error or material defect.
■ You can delay natural wear by taking the following measures:

- Activate the battery protection function on your appliance. This function prevents the battery from fully charging and discharging and thus extends its service life.

- Do not store the battery for an extended period of time if it is fully charged or fully discharged.

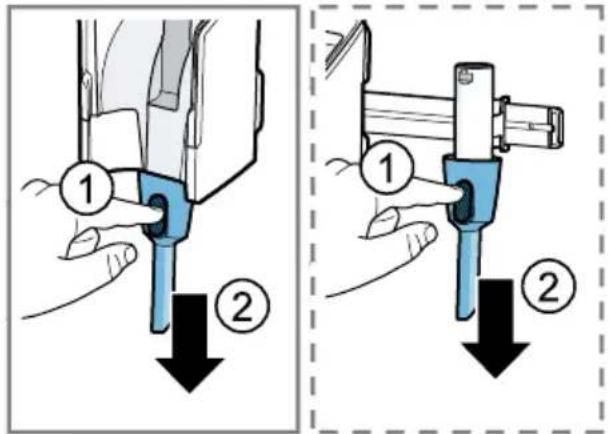

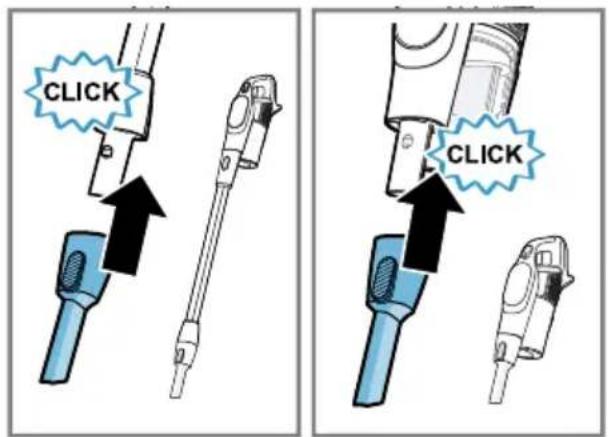

Operating the appliance

Note: Use Turbo mode (normal mode) for best results when cleaning hard floors and deep cleaning rugs and carpets. Switch to Auto mode or Eco mode when it is too difficult to push the nozzle on rugs or carpets.

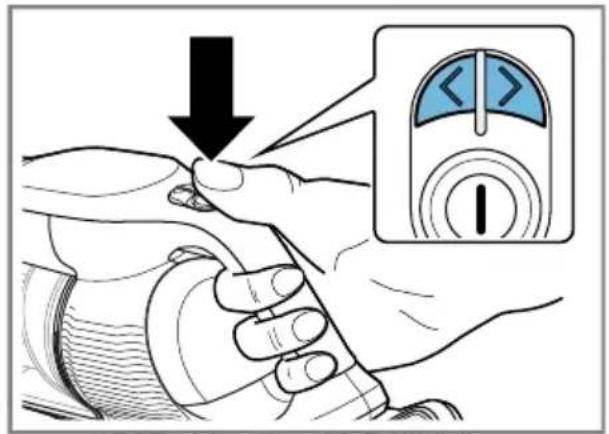

→Fig. 17 - 22

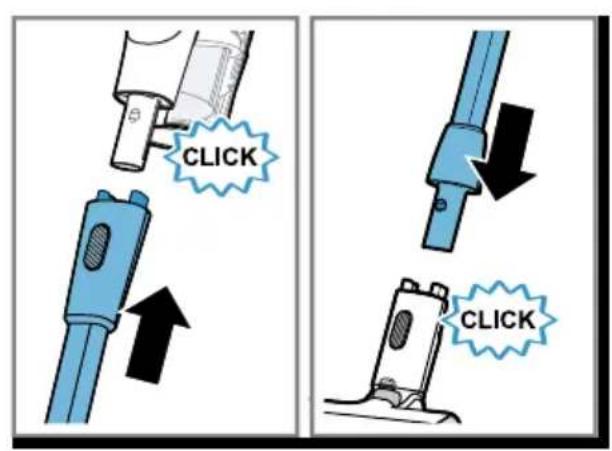

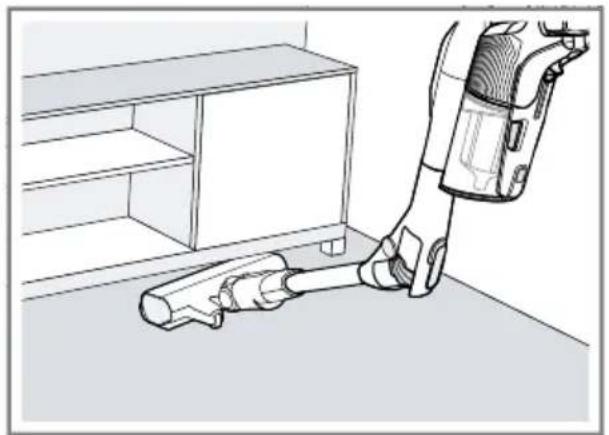

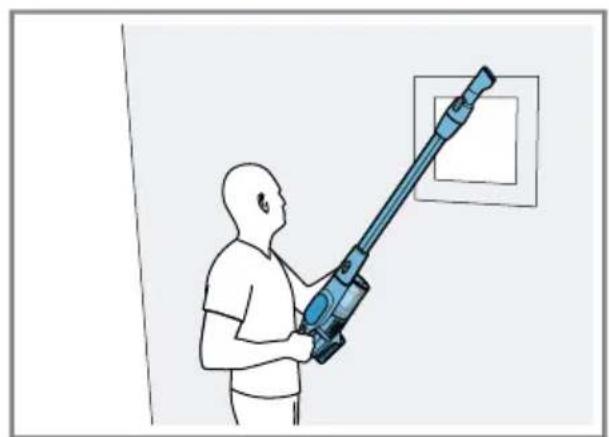

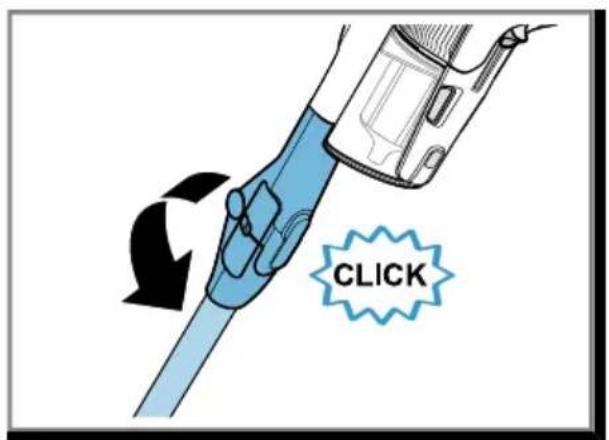

Using a flexible suction pipe ^1

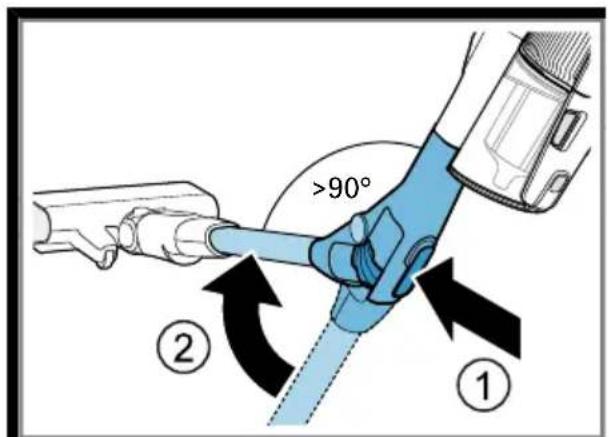

→Fig. 23 - 25

Using the free-standing function

Note: Never use the free-standing function of the floor nozzle with the appliance attached.

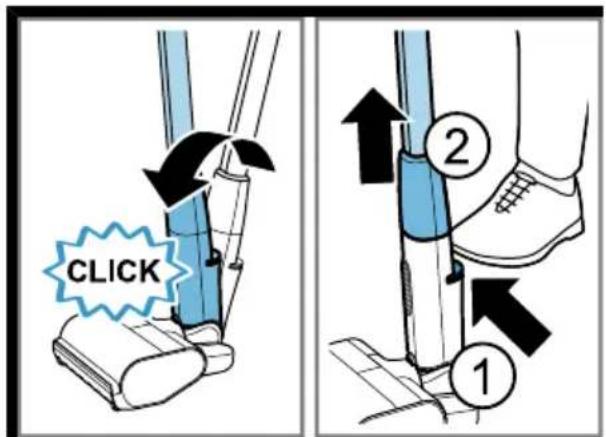

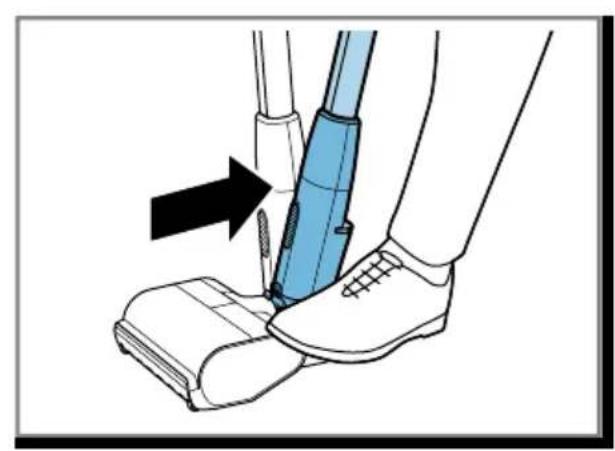

→Fig. 26 - 27

Vacuuming with the mini electro-nozzle ^1

The mini electro-nozzle cleans upholstered furniture and difficult-to-reach areas particularly thoroughly.

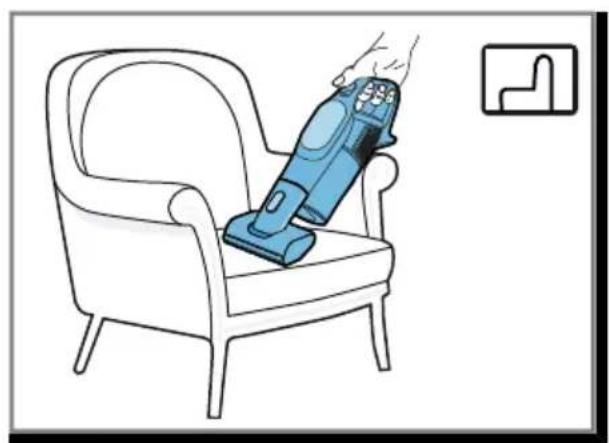

→Fig. 28 - 29

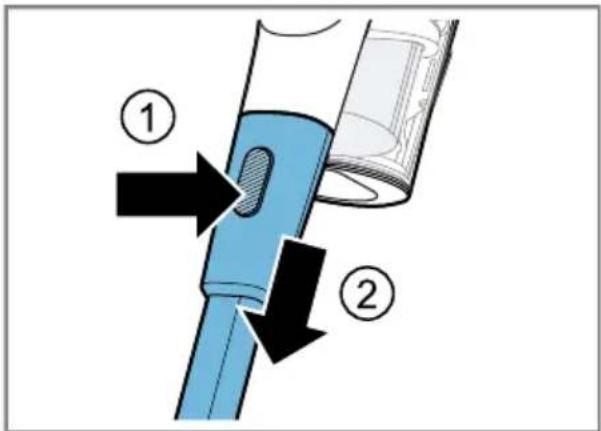

Using the foot release

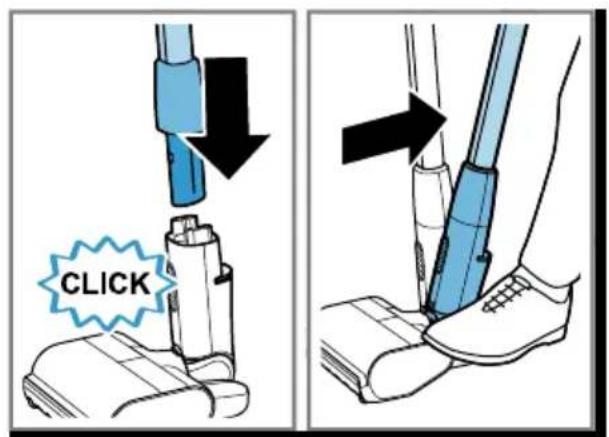

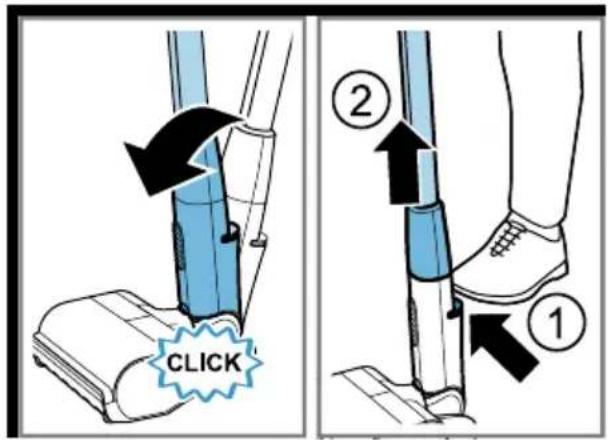

→Fig. 30 - 32

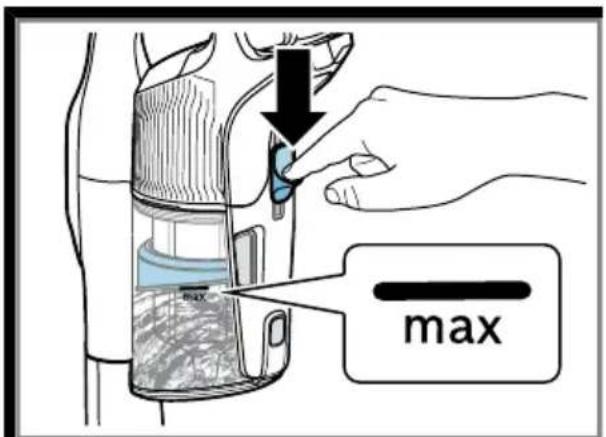

Compressing the dust

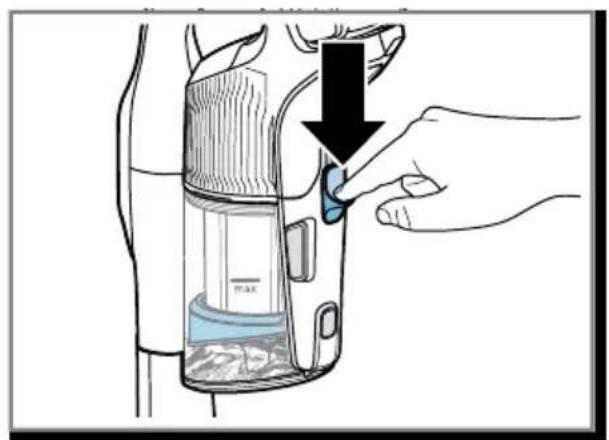

→Fig. 33 - 34

Removing the appliance

→Fig. 35 - 37

Basic settings

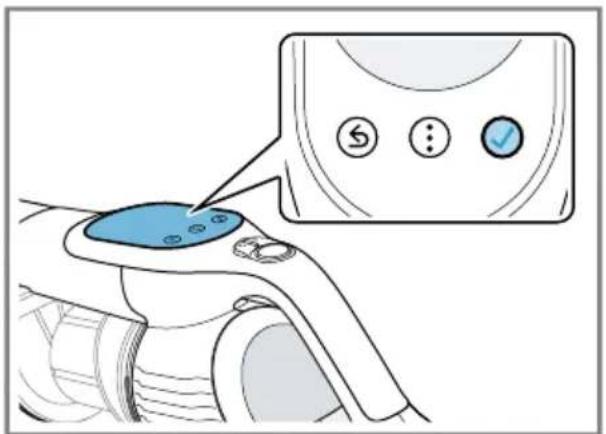

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

Changing the setting

Note: If no display language is available in your national language, select a display language that is available, e.g. English.

Requirement: The appliance is switched on.

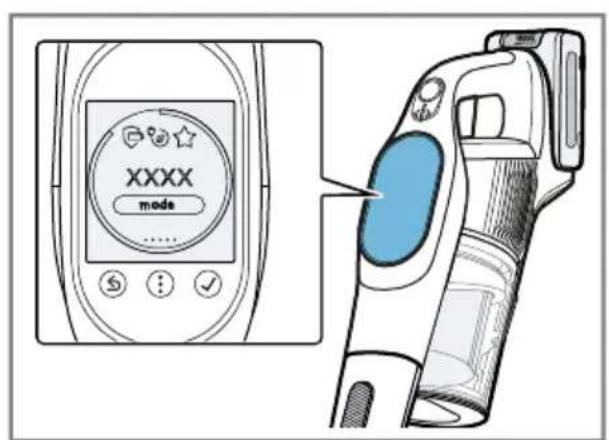

1. Touch ⓘ

√ Vacuuming stops.
√ The display shows the menu with basic settings and additional functions.

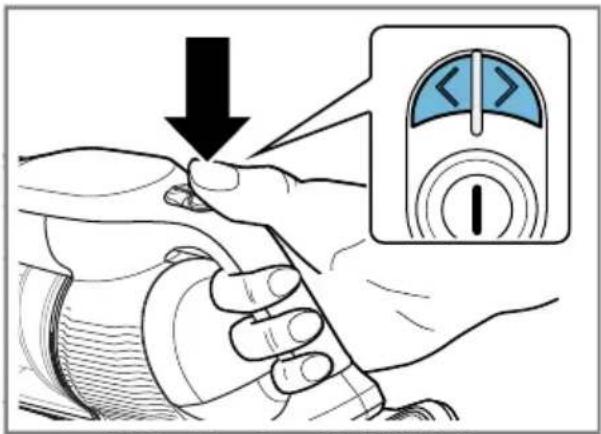

1. Press to navigate through the menu.

→Fig. 38

1. Touch ☑ to confirm the selection.

→Fig. 39

1. Change and confirm the setting or call up additional functions.

2. Touch Ⓢ to return to the menu or to continue vacuuming.

Cleaning and servicing

Cleaning the appliance

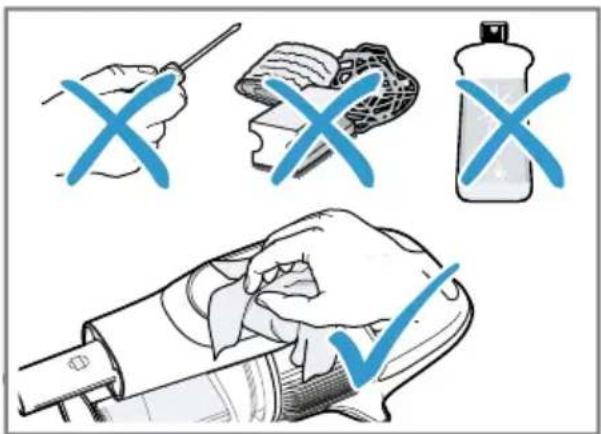

- Clean the appliance with a soft, dry cloth only.

→Fig. 40

Emptying the dust container

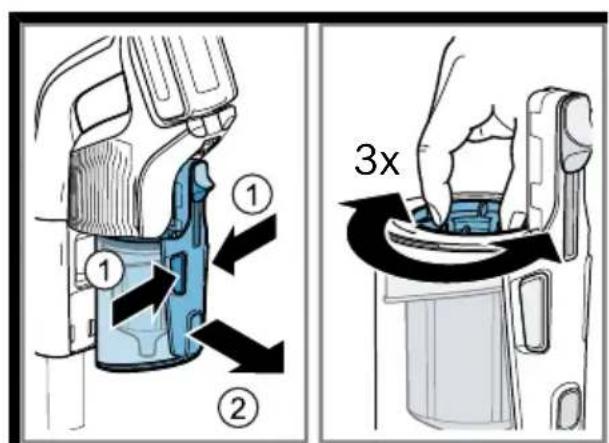

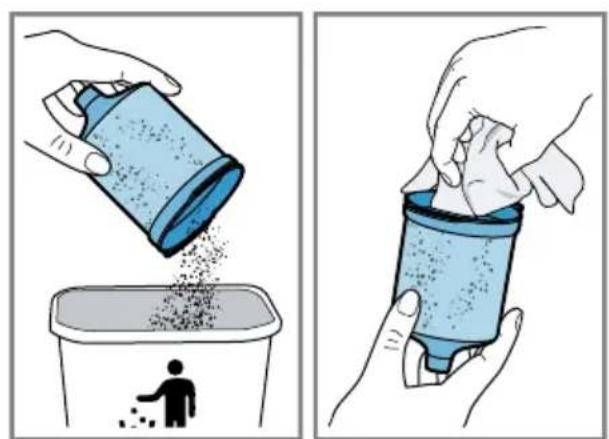

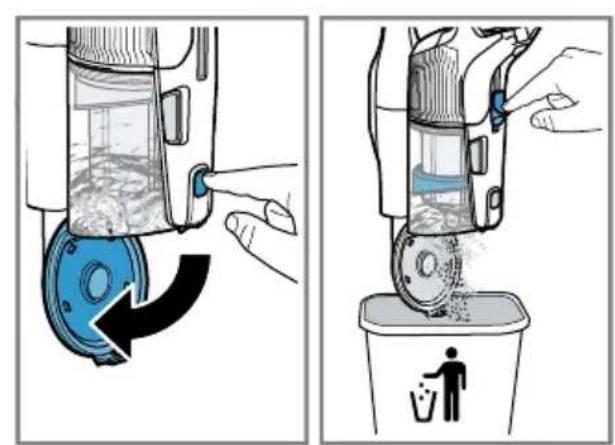

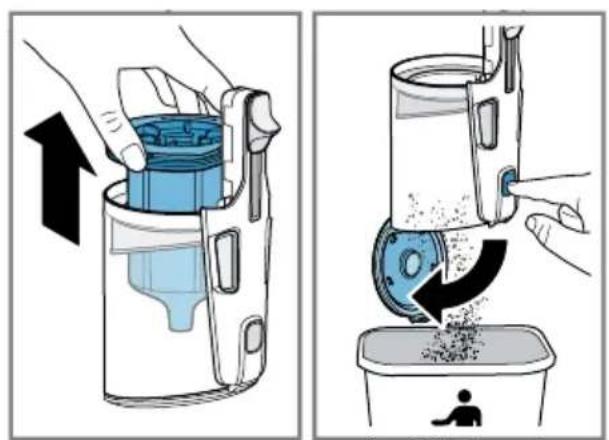

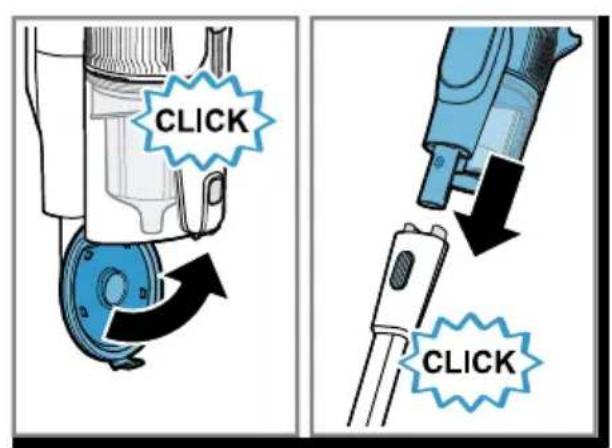

→Fig. 41 - 44

Cleaning the filter unit

▶ Never allow the filters to come into contact with liquids.

Note: It is recommended that you clean the dust container filter when it is heavily soiled and the suction power decreases.

Tip: Wipe off any dust particles on the fluff filter with a slightly damp cloth.

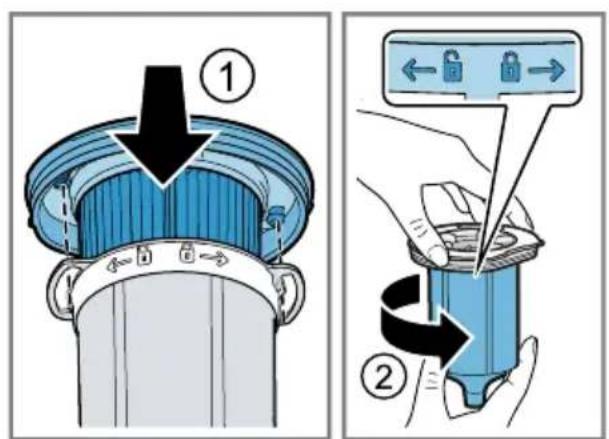

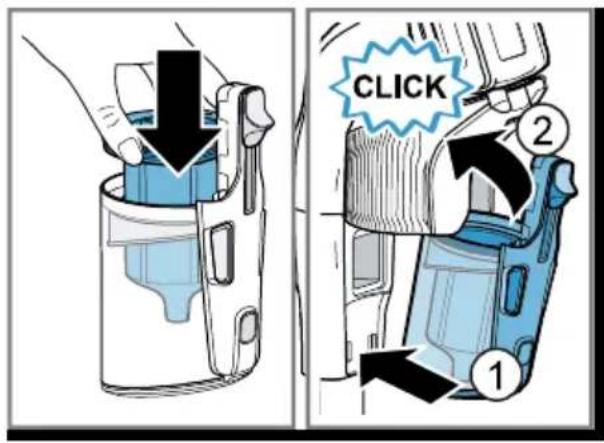

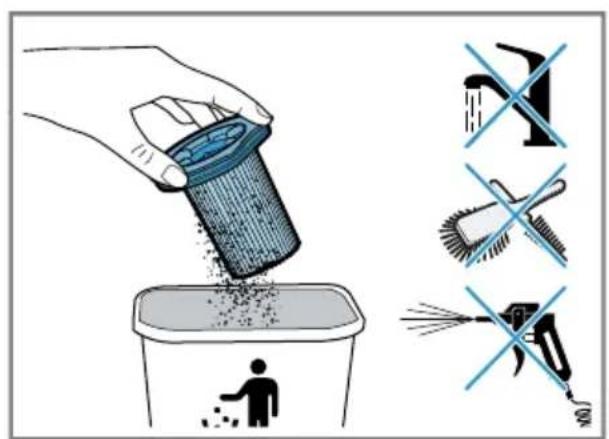

→Fig. 45 - 51

Cleaning the sensor

Note: The sensor surface must be clean for the MicroClean display to work properly.

Clean the sensor if the LED ring for the Mi-

en Troubleshooting

croClean display no longer works or does not work correctly.

▶ Wipe the sensor thoroughly with a soft, clean and lint-free cloth.

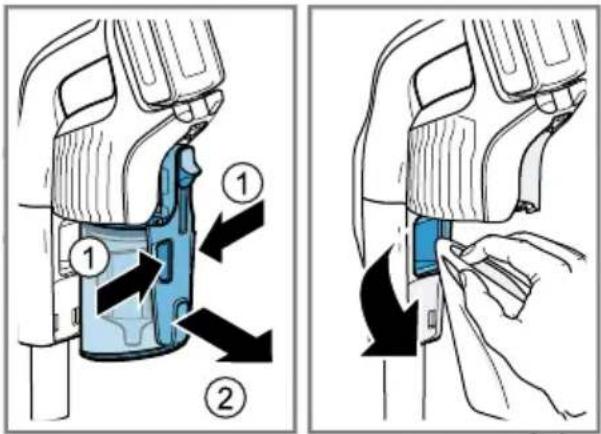

→Fig. 52

Cleaning the universal floor nozzle

Requirement: The appliance is switched off.

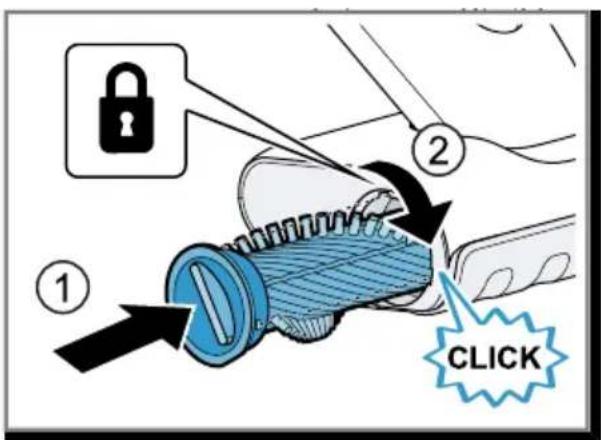

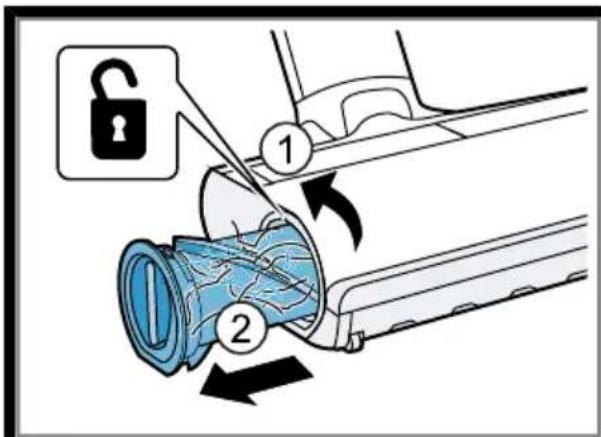

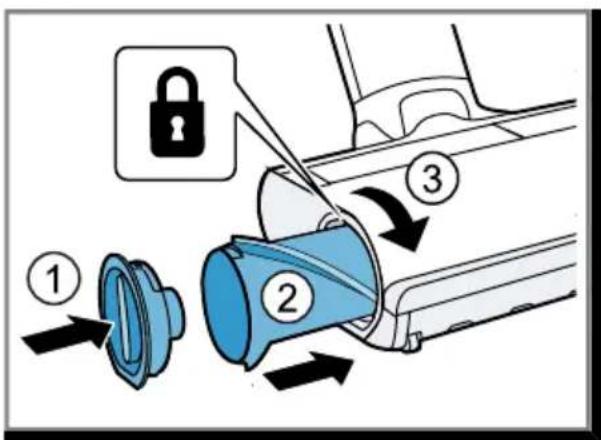

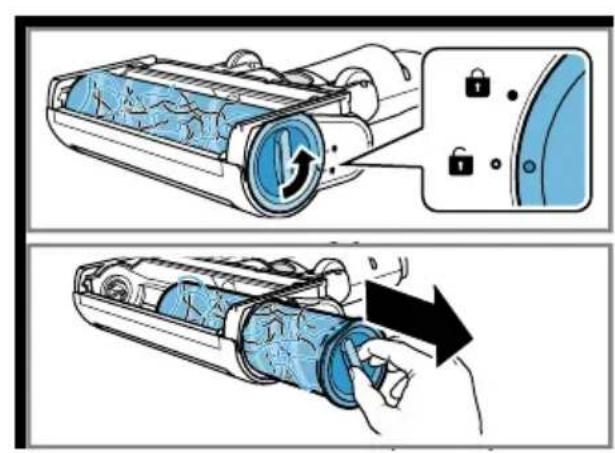

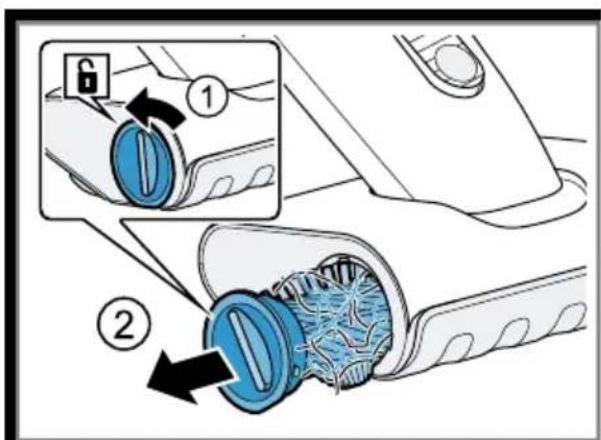

→Fig. 53 - 55

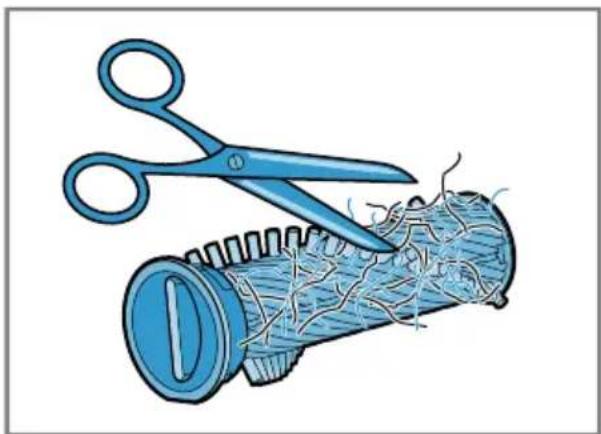

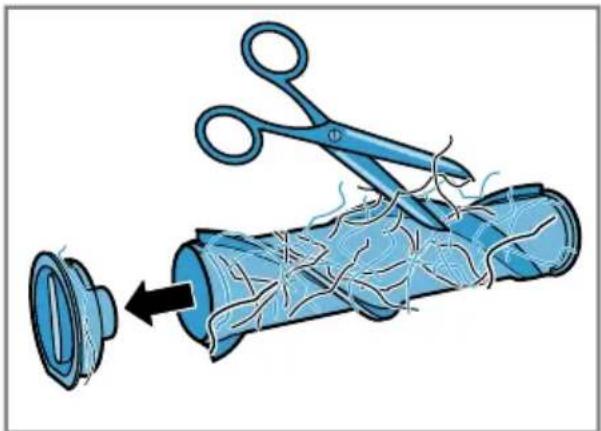

Note: The brush roller features a cleaning function. When operating the brush roller on carpet, your appliance automatically vacuums the cut threads and hairs after more than 30 seconds.

Cleaning the mini electro-nozzle

Requirement: The appliance is switched off.

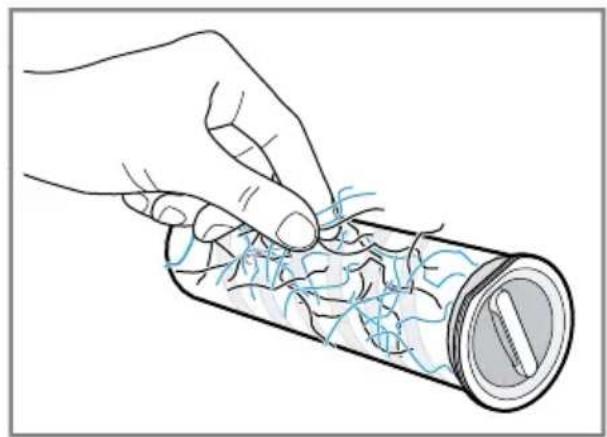

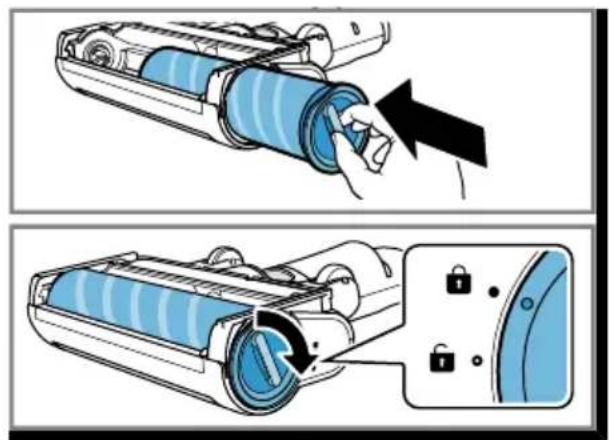

→Fig. 56 - 58

Cleaning the hard floor nozzle ^1

Requirement: The appliance is switched off.

→Fig. 59 - 61

Troubleshooting

Tip: You can find further information and explanations on troubleshooting online by scanning the QR code on the cover page and on our website www.bosch-home.com.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.

The appliance is not working.

The battery has not been inserted correctly.

▶ Insert the battery correctly.

The battery has not been charged.

▶ Charge the battery.

The nozzle cannot be moved.

The nozzle is stuck.

Too much suction power.

▶ Change the cleaning mode.

No charging function.

Incorrect charger was used.

▶ Only use the charger that is included.

Information in the display

Message E2 - "Take a look at the instruction manual" appears in the display

The safety shut-off has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Wait until battery has reached room temperature or use a spare battery.

3. Switch the appliance back on again.

4. If this fault occurs repeatedly, please call.

→ "Customer Service", Page 27

Message E3 - "Cool down device" appears on the display

The thermal safety switch-off function has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.
2. Check whether the air channel from the nozzle to the appliance is blocked.
3. Empty the dust container.
4. Clean the filter unit.
5. Once the appliance has cooled down, switch the appliance back on.

Message "Air channel blocked" appears on the display

The thermal safety shut-off on the fan has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.
2. Check whether the air channel from the nozzle to the appliance is blocked.
3. Empty the dust container.
4. Once the appliance has cooled down, switch the appliance back on.

Message E5 - "Take a look at the instruction manual" appears in the display

A motor fault has been detected.

1. Switch the appliance off and then on again.
2. If this fault occurs repeatedly, please call.

→ "Customer Service", Page 27

⚠️ and a notification appear on the display. A fault has been detected and vacuuming is continued.

1. To rectify the fault, call up the tutorial in the menu.

→ "Changing the setting", Page 25

1. Follow the instructions on the display.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

- Dispose of batteries in an environmentally friendly manner.

Customer Service

You can obtain function-relevant and storable genuine spare parts from our Customer Service for up to 10 years from the date on which your appliance was placed on the market.

For more information, please contact our Customer Service team.

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free software or open source software. You can download the licence information on the brand product website. (Please search for your appliance model and additional documents on the product website.)

4Sécurité

QR code image containing encoded data, no visible human-readable text

e-mail: [e-mail]

rectangular agitated

34 - 33 alشكل

فلك الجهاز

37 - 35 alشكل

Many thanks for choosing a Bosch home appliance!

Register your new appliance now on MyBosch and benefit directly from:

• Expert advice and tips to make the most of your appliance
• Options for warranty extension
  • Discounts on spare parts and accessories
  • Digital information for use and all appliance data to hand
• Easy access to Bosch Home Appliance Service

Simple to register, free of charge – including on mobile devices:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Need some help? You can find it here.

Expert advice on your Bosch home appliances, help with problems or repairs by professionals from Bosch.

Discover all the different ways Bosch can assist you:

www.bosch-home.com/service

The contact details of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001346295 (051219)

de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, hu, ru, ro, cs, uk, ar
