USER MANUAL RHC5218B BEKO

Simple line icon depicting a thermometer and a temperature document (no text or symbols)

RHC 5218 B

This product is only suitable for well insulated spaces occasional use.

EN - FR - IT - DE - RU

CONTENTS

ENGLISH 03-14

FRANÇAIS 15-27

ITALIANO 28-41

DEUTSCH 42-55

РУССКИЙ 56-76

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning for electric shock.

Warning for danger of fire.

Do not cover it.

1 Important safety and environmental instructions

This section includes safety instructions that will help ensure the protection from risks of personal injuries or materialistic damages. Failure to follow these instructions shall void the warranty.

1.1 General safety

•This appliance complies with international safety standards.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

•This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses
- By clients in hotels, and other residential type environments;
- Bed and Breakfast type environments.
•Children of less than 3 years should be kept away unless continuously supervised.
•Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

1 Important safety and environmental instructions

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- Never use the unit in places where are not even or unstable.

- Do not insert and pull out the plug with wet hand, as this may cause electrical shock, power supply capacity should be enough.

- The heater must only be used in the upright position. Never use when the unit is fallen over.

- The unit should be far away from the object flammable or easy deform during uses.

- Do not allow smashing the surface with rod or sharp hard tools, as this may cause deform and get rusty because of damage of paint coat.

- Unit surface temperature of the flanges is high, thus do not touch it except handle, knobs.

- Don't heat wet clothing etc. on the surface of the control chamber, as this may cause undue move of the EN thermostat.

- WARNING: in order to avoid overheating, do not cover the heater.

- Only used as portable appliance. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

•The surface temperature of the flanges is high, during use, thus closely supervise any children in the area of this appliance.

1 Important safety and environmental instructions

- Do not use on a wet place to prevent electrical shock.

- Do not use out of the house.

- If malfunctions happen during operation please put it to nearby appointed service center with the maintenance card. Never disassemble it by yourself.

- Be sure to pull out the plug from an outlet when not in use and before cleaning.

- Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

•To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.

- Indoor use only.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes.

Take them to the packaging material collection points designated by the local authorities.

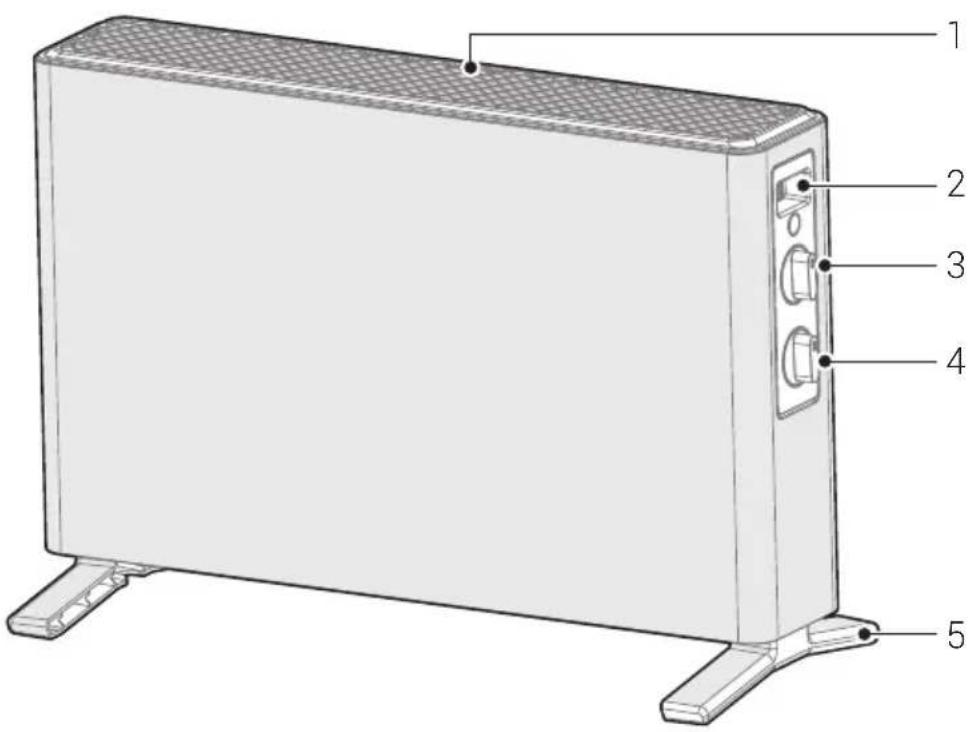

Labeled diagram of a rectangular electronic device with numbered parts for identification.

2.1 Control and parts

1. Air outlet
2. Handle
3. Power selection knob
4. Temperature control knob
5. Support

2.2 Technical data

Electrical insulation class: |

Selectable power
Low Medium	High
700W 1100W	1800W

Technical and design modifications reserved.

Values stated on the markings on the product or in the printed materials supplied with the product are the values obtained in laboratory in accordance with relevant standards. Such values may vary depending on the usage of the product and the ambient conditions.

2.3 Information requirements for electric local space heaters

Item Symbol	Value Unit	Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.8 kW		Manual heat charge control with integrated thermostat	[No]
Minimum heat output (indicative)	P_min	0.7 kW		Manual heat charge control with room and/or outdoor temperature feedback	[No]
Maximum continuous heat output	P_max,c	1.8 kW		Electronic heat charge control with room and/or outdoor temperature feedback	[No]
Auxiliary electricity consumption Fan assisted hear output [No]
At nominal heat output	el_max	N/A kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A kW		Single stage heat output and no room temperature control	[No]
In standby mode	el_SB	0	kW	Two or moremanual stage, no room temperature control	[No]
				With mechanic thermostat room temperature control	[Yes]
				With electronic room temperature control	[No]
				Electronic room temperature control plus day timer	[No]
				Electronic room temperature control plus week timer	[No]
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	[No]
				Room temperature control, with open window detection	[No]
				With distance control option [No]
				With adaptive start control [No]
				With working time limitation [No]
				With black bulb sensor [No]
Contact details	Arçelik A.Ş. Karaağaç Caddesi No: 2-6, 34445, Sütlüce, İstanbul, Turkiye

3 Assembly instructions

3.1 Support installation

1. According to Figure.1, turn the body down with the bottom upward, and the screw out onboard screws.

Diagram of a rectangular device with ventilation grilles and two upward arrows indicating top-down positions (no text or symbols)

Figure 1

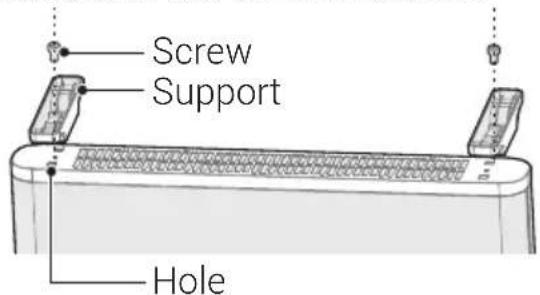

1. According to Figure.2, remove the supports. Aim the buckle on the support at the hole, push the supporting foot until the holes on support coincides with the screw hole on the machine.

Screw Support Hole

Figure 2

1. Penetrate the removed screws through the support holes and tighten in the machine table.
2. After the installation is completed, turn the body upward for use.

3 Assembly instructions

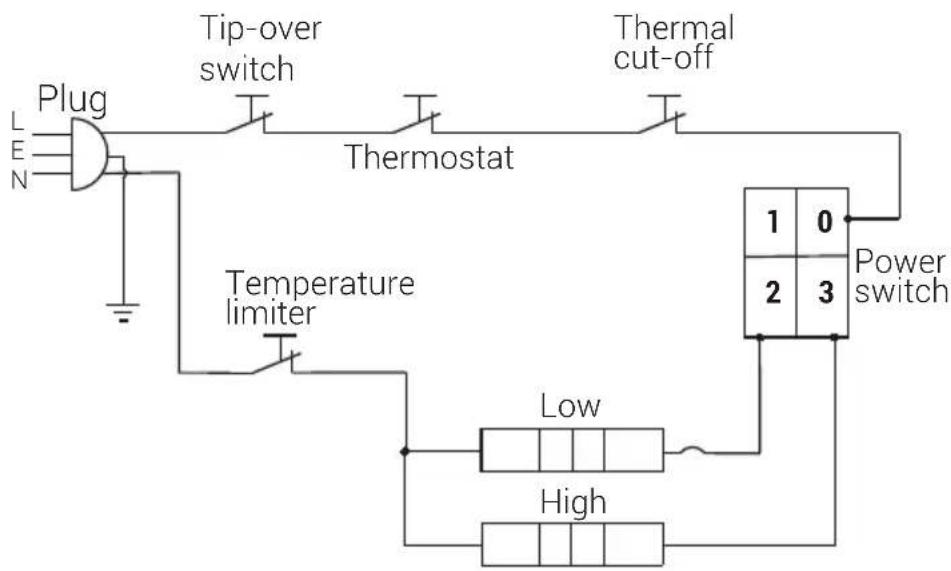

3.2 Electrical schematic diagram

4 Operation

4.1 Check before turning on the machine

• Check if the power wire is under good condition.
• The product adopts 220-240V\~50Hz AC power supply, before use, please confirm if the rated current of the power socket meets the local requirements, otherwise, please replace it with the qualified socket.

4.2 Put the machine on the flat place

Please put the heater on the flat place, at least the surface below the base of the heater must be flat.

4.3 Temperature control knobt

Insert the plug into the power socket, then turn the Temperature Control knob clockwise, when hearing the "poop" sound (it means the temperature controller is on), adjust the Temperature Control knob to the desired temperature level.

4.4 Power selection knob

Turn the Power selection knob to select between 4 functions: 0 (Off), I 700W (Low), II 1100W (Medium), III 1800W (High).

4.5 Turn off the heater

• Turn the Power selection knob to OFF position.
• Turn the Temperature Control knob anticlockwise to the initial position.
• Remove the power plug, store the heater after the entire machine has become cool.

4.6 Safety protection

Overheat protection: This heater includes an Overheat Protection System that shuts the unit off if it overheats due to abnormal conditions. If this occurs turn the heater "OFF", unplug it, and inspect and remove any objects on or adjacent to the heater. Allow it to cool for a few minutes, plug it back in, and resume normal operation.

4.7 Safety control

Your heater is fitted with a safety device that switches off the heater by thermal cut-off in the event of overheating or malfunction, It will reset when the appliance cool down. If overheating or malfunctions continue, return the heater to an Approved Service Agent for examination.

4.8 Additional features

This heater has additional features:

- Convenient Carry Handle – allows for easy transport from room to room.

5.1 Cleaning

Before cleaning and assembling, fan must be unplugged.

WARNING: Do not use any abrasive detergent or solvents to avoid scratching the surface. Do not use any of the following as a cleaner: gasoline, thinner.

It is recommended that the heater be cleaned at least one time during the operating season in order to provide the optimum level of performance. ALWAYS TURN THE POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE CLEANING. Be sure to save the box for off-season storage.

• Turn the heater "OFF", unplug it and wait for the heater to cool down.
• Use a dry cloth to clean only external surfaces of the heater.
• Do not use any cleaning agents or detergents.
• Never immerse the heater in water.
• Pack the heater in the original carton and store it in a cool and dry place.
• Avoid bruising or scratching products to avoid surface coating damage and rust.

5.2 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non operational or cause permanent damage.

6 Troubleshooting

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the table below carefully in order to save your time and money that may cost for calling to the service center.

Problem Cause Solution
After the power is engaged, the power indicator light does not illuminate and the machine does not work.	The machine suddenly stops during heating.	Check whether the plug is properly inserted into the receptacle.
	The temperature control knob is not turned in place.	Check whether the temperature control knob is turned to the on position.
The machine suddenly stops during heating.	The temperature exceeds the threshold of the thermal cut-off.	Cool the machine before use.

If your heater fails to operate, please follow these instructions:

• Ensure that your circuit breaker or fuse is working properly.
• Be sure the heater is plugged in and that the electrical outlet is working properly.
• Check for any obstruction. If you find any obstruction, turn the heater turn off. Unplug the heater and wait a few minutes for it to cool down. Carefully remove the obstruction. Plug the heater in and turn it on again by referring to the operating instructions.
