RHO8122T - Heating BEKO - Free user manual and instructions

Brand	Beko
Model	RHO8122T
Product type	Oil-filled radiator
Power supply	220-240 V ~ 50 Hz
Nominal power (max)	2000 W
Adjustable power	800 W (low), 1200 W (medium), 2000 W (high)
Operating modes	Normal, Energy saving, Frost protection
Thermostat range	5 to 35 °C
Programmable timer	Yes, 0-24 h (on/off)
Remote control	Yes (batteries 2× AAA not included)
Display	Digital screen with indicator light ring
Heating elements	Oil-filled fins
Castors	Yes, multidirectional
Carrying handle	Yes, integrated
Safety functions	Overheat protection, tip-over switch
Maintenance and cleaning	Wipe with a damp cloth; do not use abrasive detergents
Recommended use	Well-insulated rooms, occasional use
Repairability	Internal repairs must be carried out by the manufacturer
Cut-off device	Power switch on the appliance
Accessories supplied	Castors, wing nuts, remote control

Frequently Asked Questions - RHO8122T BEKO

How to set the timer?

To set the delayed start, press the Timer button when the appliance is off. Turn the dial to set the time (0-24). For delayed stop, do the same when the appliance is on. The screen confirms the setting.

How to clean the radiator?

Unplug the appliance and let it cool down. Wipe the surface with a damp cloth. Do not use abrasive detergents or hard tools to avoid scratching the paint.

What minimum distance should be kept from furniture and curtains?

Keep a distance of at least 90 cm (3 feet) between the radiator and any combustible material (furniture, curtains, clothes, papers, etc.).

What to do in case of overheating?

The radiator turns off automatically. Turn it off, unplug it and remove any object placed on or near it. Let it cool down for a few minutes, then plug it back in. If the problem persists, contact after-sales service.

Can this radiator be used in a bathroom?

No, this radiator is not suitable for damp rooms like bathrooms, laundry rooms or near a bathtub, shower or swimming pool.

How to replace the remote control battery?

Slide the battery compartment cover outward. Insert two AAA batteries respecting polarity. Close the cover. Remove the batteries if you do not use the remote control for a long time.

What do the Normal, Energy saving and Frost protection modes mean?

Normal: adjustable heating. Energy saving (ECO): temperature set to 22 °C, not adjustable. Frost protection: maintains 5 °C to prevent freezing, temperature not adjustable.

Why does the radiator turn off suddenly?

This may be due to overheating (thermal protection) or tipping (tip-over switch). Check the environment and respect safety distances. Straighten the appliance if necessary.

How to mount the castors?

Place the fixing plates between the fins as shown. Attach the castors to the vertical axles and tighten the wing nuts. The radiator must only be used upright, wheels at the bottom.

Is this radiator economical?

It is suitable for occasional use in well-insulated rooms. The Energy saving mode optimizes consumption. The seasonal efficiency is 36.8%, according to the data sheet.

USER MANUAL RHO8122T BEKO

Line drawing of a multi-tiered electric heater with wheels and control panel (no text or symbols)

RH08122T | RH08123T

EN

This product is only suitable for well insulated spaces or occasional use.

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning to actions that must never perform.

Warning for electric shock.

Warning for danger of fire.

Warning for hot surfaces.

Do not cover it.

This product has been produced in environmentally friendly, modern facilities

CONTENTS

1 Important safeguards 4

2 Part figure 8

3 Assembly instructions 9

4 Operation 10

5 Others 13

5.1 Saftey features.... 13

5.2 Cleaning and maintenance instruction 13

5.3 Main technology specifications....13

1 Important safeguards

When using any electrical appliance, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

Read all instructions before using heater.

This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9m) from the heater. Allow heater to cool before moving and then use the built-in handle for easy movement.

Extreme caution is necessary when heater is used by or near children and whenever heater is left unattended.

Always unplug the heater when it is not in use.

Do not operate any heater with a damaged cord or plug, or after the heater malfunctions, or has been dropped or damaged in any manner. Return heater to the manufacturer for examination, electrical or mechanical adjustment, or repair.

Do not use heater outdoors. This product is intended for normal household indoor use only.

This heater is not intended for use in bathrooms, laundry areas or similar moist indoor locations. Never locate heater where it may fall into a bathtub or other water container.

Do not run power cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic areas and where it will not be tripped over.

To disconnect heater, set controls to Off, then remove plug from outlet.

1 Important safeguards

Keep this heater clean. Do not allow foreign objects to enter any ventilation or exhaust opening as this may cause electric shock, or fire, or damage the heater.

To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.

A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

Warning: In order to avoid overheating, do not cover the heater.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
  The heater must not be located immediately below a socket-outlet.
  the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in

1 Important safeguards

a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Correct disposal of this product

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This heater is filled with a precise quantity of special oil. Repairs requiring opening of oil-container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak. When scrapping the heater, follow the regulations concerning the disposal of oil.

Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning

1 Important safeguards

use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

Warning: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

Warning: In order to avoid overheating, do not cover the heater.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not use this heater if it has been dropped; Do not use if there are visible signs of damage to the heater; Use this heater on a horizontal and stable surface. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Do not use the heater in green house and building sites. If you are not using the heater, switch off and plug out.

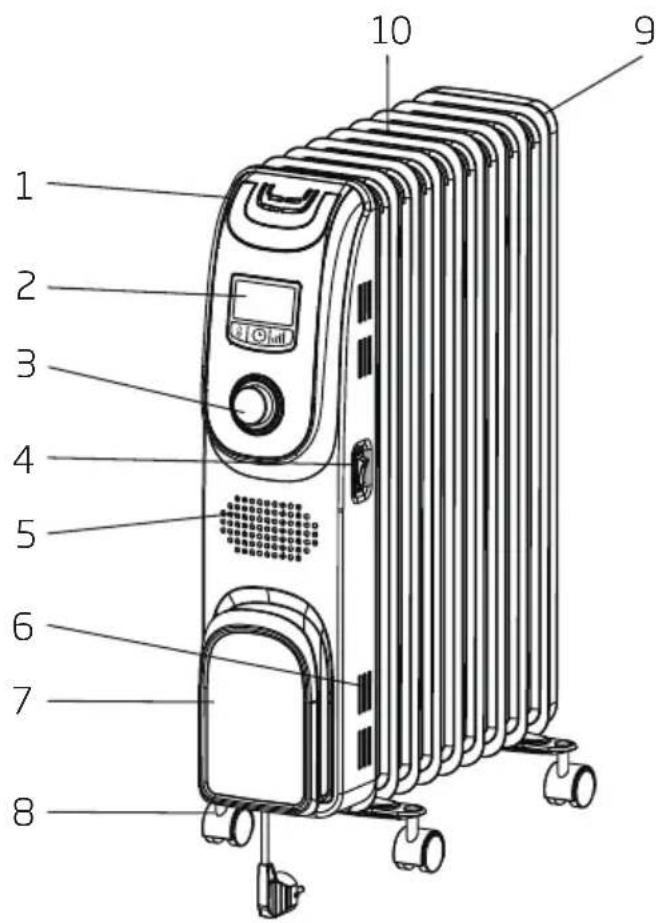

2 Part figure

1. Control panel
2. Display screen
3. Control knob
4. Power switch

5. Air inlet

6. Thermovent

7. Cordwrap
8. Wheel assembly
9. Rear cover
10. Radiators

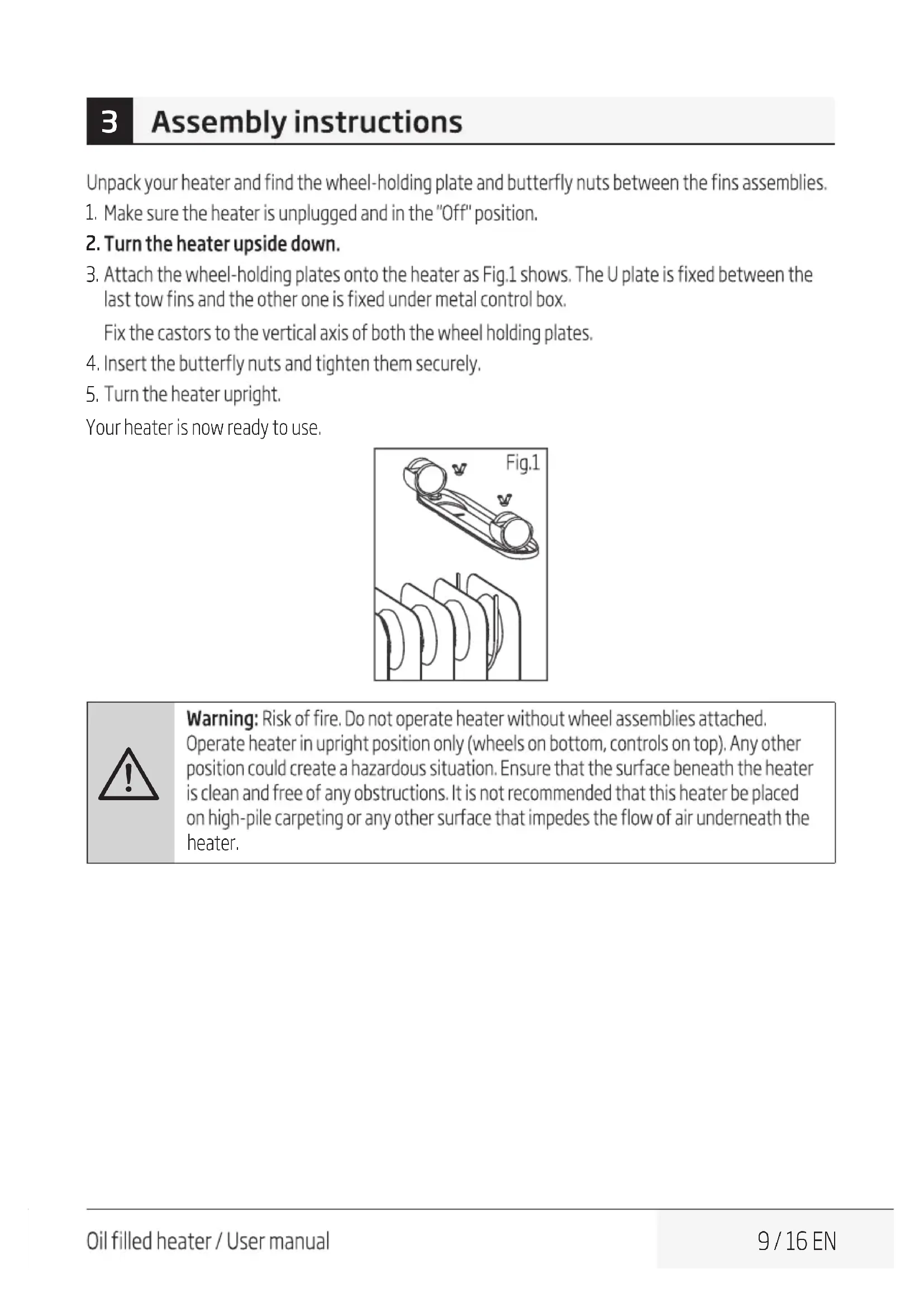

3 Assembly instructions

Unpack your heater and find the wheel-holding plate and butterfly nuts between the fins assemblies.

1. Make sure the heater is unplugged and in the "Off" position.
2. Turn the heater upside down.

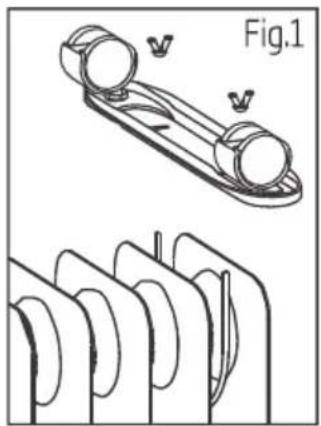

3. Attach the wheel-holding plates onto the heater as Fig.1 shows. The U plate is fixed between the last tow fins and the other one is fixed under metal control box.

Fix the castors to the vertical axis of both the wheel holding plates.

1. Insert the butterfly nuts and tighten them securely.
2. Turn the heater upright.

Your heater is now ready to use.

Technical illustration of a mechanical component with curved grooves and a labeled section (Fig.1), no readable text or symbols present.

Warning: Risk of fire. Do not operate heater without wheel assemblies attached. Operate heater in upright position only (wheels on bottom, controls on top). Any other position could create a hazardous situation. Ensure that the surface beneath the heater is clean and free of any obstructions. It is not recommended that this heater be placed on high-pile carpeting or any other surface that impedes the flow of air underneath the heater.

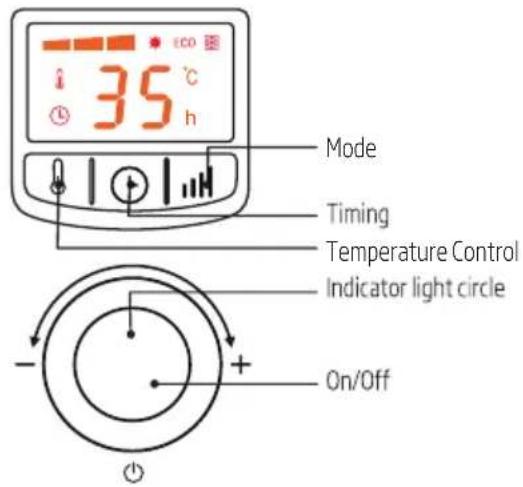

4 Operation

Power on the heater, press the Power switch at the lower side to On position, the power indicator lights on and buzzer makes sound to enter into the standby mode.

[On/Off]

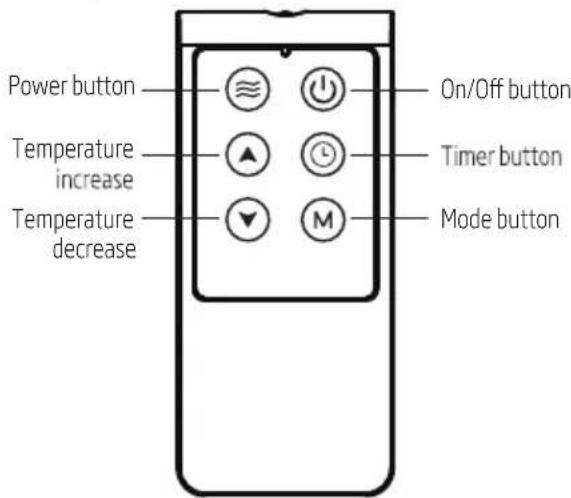

Under Standby mode, press the ⏻ knob (or remote controller ⏻ button), the heater enters into the Normal mode, works with highest power, and automatically set the temperature at 35°C, or recover to the state of the last standby state (Note: when the power is not cut off). Repeatedly press the knob until the heater recovers to the Standby state.

[Mode Switch]

Under Working State, press the button M, the heater switches between Low -- Middle-- High--Fast-Heating Mode -- Energy Saving Mode -- Anti-Freezing Mode -- Low. Or repeatedly press the remote controller button Ⓜ to switch between Normal Mode -- Fast-Heating Mode -- Energy Saving Mode -- Anti-Freezing Mode -- Normal Mode.

[Level Switch]

Under Working State, press the button M, the heater switches between Low - Middle-- High - Fast-Heating Mode -- Energy Saving Mode -- Anti-Freezing Mode -- Low. Or under normal mode, repeatedly press the remote controller button Ⓜ to switch between High (orange) -- Middle (red) -- Low (green) -- High (orange).

[Temperature setting]

Under Normal mode, press the ⚙ button to check the current setting temperature, and the temperature icon flashes. Turn the knob to adjust the setting temperature, it will automatically exit the enquiry setting interface if it is not operated within 3s, and display the setting temperature.

4 Operation

[Timing On]

Under Off state, press the ⏻ button (or remote controller ⏻ button) to enter into the timing enquiry interface, the setting time and timing icon ⏻ flashed, turn the knob to adjust the setting time, it will automatically exit the enquiry setting interface if it is not operated within 3s. When the setting is 0, it cancels Timing On.

After reaching the Timing On time, the heater automatically turns on and works at the last standby state. The time setting range is 0-24H, the adjustment unit in hour.

[Timing Off]

Under On state, press the ⏻ button (or remote controller ⏻ button) to enter into the timing enquiry interface, turn the knob to adjust the setting time, it will automatically exit the enquiry setting interface if it is not operated within 3s. When the setting is 0, it cancels Timing Off. After reaching the Timing Off time, the heater automatically enters into the standby state and stops work. The time setting range is 0-24H, the adjustment unit in hour.

[Remote and]

When working mode is on, press the 🔒 button on control panel, press "▲" or "▼" to adjust temperature within 5°C to 35°C. Press the ⏻ button on remote controller, press "▲" or "▼" to adjust time within 024 hours.

[Introduction on mode]

Normal mode ⚙: under this mode, the heater works at the setting level, after reaching the setting temperature, it stops heating and the setting temperature flashes.

Energy saving mode ECO: under this mode, the heater works normally, the level and setting temperature are not adjustable, the heater works at default setting temperature (22°C). (In Energy saving mode, if the setting temperature flashes, it means the heater is under energy saving heat preservation work state). The indicator light circle indicates green.

Anti-Freezing mode ☒: under this mode, press the knob to adjust the level, but the setting temperature is not adjustable, the heater works at default anti-freezing temperature (5°C). (In Anti-Freezing mode, if the setting temperature flashes, it means the heater is under anti-freezing heat preservation work state). The indicator light circle indicates red.

[Memory Function]

When the power of the heater is not cut off or the heater keeps under Standby mode, it can memorize the last working mode and setting temperature and works at the setting temperature after turning on, the memory data will be reset if the power supply of the heater is cut off, and the setting temperature of the heater recovers to the default setting (Normal mode, high, setting temperature is 35^ C) when turning on.

4 Operation

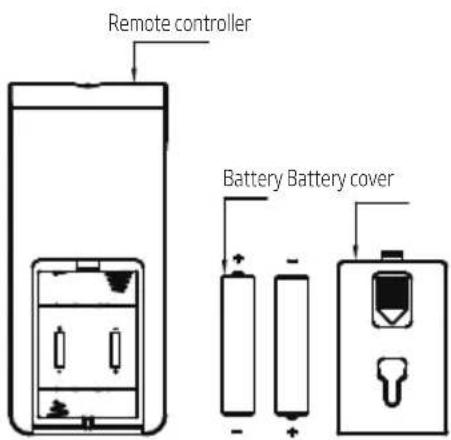

Inserting batteries

1. Press down on the battery compartment cover and slide it out.
2. Insert the batteries, making sure that the positive terminals are facing the proper direction marked inside the battery compartment.
3. Close the cover by sliding it in.

Note:

1. Use 2 "AAA" batteries (not included).
2. Do not mix old and new batteries.
3. Do not mix alkaline, standard (carbon-line) or rechargeable (nickel-cadmium) batteries.
4. Remove the batteries from remote if is to be left unused for a long period of time.

Warning: This heater includes a thermal cut-off that shuts the heater off if it overheats due to abnormal conditions. If this occurs, turn the heater "off", unplug it, and inspect and remove any objects on or adjacent to the heater. Allow it to cool for a few minutes, and then plug it back in and resume normal operation.

5 Others

5.1 Saftey features

Thermal cut-off: This heater includes a thermal cut-off that shuts the heater off if it overheats due to abnormal conditions. If this occurs, turn the heater off, unplug it, and inspect and remove any objects on or adjacent to the heater. Allow it to cool for a few minutes, and then plug it back in and resume normal operation.

Tip-over switch: This heater includes a safety tip-over protection feature that will shut the heater off in case it is tipped over. If, at any time, the heater tips over, please put the heater back in the upright position. The heater will resume its normal operation.

5.2 Cleaning and maintenance instruction

1. The electric heater should be cleaned regularly to wipe out the dust on the surface of flanges. As this may influence the radiating efficiency.
2. Disconnect electricity supply and allow radiator to cool, wipe out dust with a soft damp cloth. Do not use detergent or abrasives.
3. Do not scrap the surfaces of flanges with sharp hard tools, to avoid surfaces getting rusty, because of damage of the paint coat.

5.3 Main technology specifications

Power supply: AC220-240V \~ 50Hz

Model	Power regulation range (w)
	Lo Med		Hi
RH08122T 800 1200	2000
RH08123T 1000 1300	2300
Manufactured by Arcelik A.S. Karaagac Cd. No:2-6 34445 Sutluce, Beyoglu, Istanbul, Turkey

* All performance parameters in the table above were measured before delivery and are for reference only.

Table 2
Information requirements for electric local space heaters

Model identifier(s): RHO8122T
Item	Symbol	Value	Unit		Item	Unit
Heat output					Tpye of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.4	kW		manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	0.8	kW		manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	1.4	kW		electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					fan assisted heat output	[no]
At nominal heat output	el_max	1.391	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0.771	kW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0.001	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[no]
					with electronic room temperature control	[yes]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details		Arçelik A.S.Karaagaç Caddesi No:2-6,34445,Sütlüce, Istanbul, Turkey
*Electricity consumption in standby mode is 0.632W
The seasonal space heating energy efficiency of all local space heaters except commercial local space heaters, η_S(%)						36.8%

Table 2
Information requirements for electric local space heaters

Model identifier(s): RHO8123T
Item	Symbol	Value	Unit		Item	Unit
Heat output					Tpye of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1.7	kW		manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	1.0	kW		manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	1.7	kW		electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					fan assisted heat output	[no]
At nominal heat output	el_max	1.674	kW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0.971	kW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0.001	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[no]
					with electronic room temperature control	[yes]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details		Arçelik A.S.Karaagaç Caddesi No:2-6,34445,Sütlüce, Istanbul, Turkey
*Electricity consumption in standby mode is 0.624W.

The seasonal space heating energy efficiency of all local space heaters except commercial local space heaters, _S(%)

36.8%

Abstract geometric design with blue triangular shapes on white background (no text or symbols)

Line drawing of a multi-tiered electric heater with wheels and control panel (no text or symbols)

RH08122T RH08123T

FR

Attention ! Surfaces chaudes!

Ne pas couvrir.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical illustration of a mechanical component with curved grooves and a labeled section 'Fig. 1' (no text or symbols on the diagram itself)

Abstract geometric design with blue triangular shapes on white background (no text or symbols)
