USER MANUAL Coolstar Portable Eurom

White EUROM air conditioner unit with black ventilation grille and 'EUROM' branding (no additional text or symbols visible)

Model: Product code:

Coolstar Portable 386172

Varta powerbank and speed charger

Model: Product code:

Varta powerbank 20,000 mAh 346961

Varta speed charger 5V/3A 346978

Order links

Varta powerbank 20,000 mAh Varta speed charger 5 V/3 A

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Technical diagram of a dual-chamber HVAC unit with numbered components labeled 1 through 6.

Figuur 2.

Diagram of a device with labeled parts, showing airflow or movement from a container to a rack unit.

Figuur 4.

Werking

LET OP

Diagram of a server rack with labeled components and directional arrows indicating movement or flow.

Figuur 5.

Probleemoplossing

Please read and understand these safety instructions. Incorrect use can cause injury and will void EUROM's warranty.

• Children of less than 3 years should be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  •Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children without supervision.
• If the supply cord (Type USB-A / USB-C) is damaged, it must be replaced by an original replacement cable.

Safety warnings powerbank (powerbank not included)

• The device will only work without interruption when the powerbank has an output of 5 Volt and minimum 2 Ampere.
• Never connect the device on a voltage higher than 5 Volt.
• Do not use or store the powerbank near heat sources such as fire or heaters.
• Do not leave the powerbank in an enclosed vehicle.
• The powerbank gets hot during charging, so make sure the powerbank can safely release this heat to the surrounding air during charging.
• Do not charge the powerbank when the device is used with the power bank at the same time.
• Charge the powerbank only with the supplied charging cable.
• Keep the powerbank away from water or humid environments.
• Do not disassemble, damage, jolt or pierce the powerbank.
• Do not use the powerbank below 0^ Celsius or above 50^ Celsius, otherwise the charge and discharge function of the powerbank will be disabled due to an internal safety mechanism.
• Keep the powerbank away from children.
• Recommended operating and storage temperature for the powerbank: 10^ - 30^ Celsius.
• The powerbank's optimal state of charge is between 30% and 70% .
• If the powerbank is not used for a long time, store it with a charge status of about 70% and charge and discharge it every 3-6 months and place it in a cool, dry place. Otherwise, the performance of the powerbank will decrease or the powerbank's lifespan will be shorter.
• Never try to open the powerbank. In case of misuse, the battery might emit a liquid. If you come in contact with this unintentionally, rinse the affected area with water. If the liquid comes in contact with eyes, then rinse with water and seek medical assistance. Liquid from a battery can cause irritation or burns.
• This product must be removed in a correct manner, taking environmental considerations into account. Return this product to your local dealer or to the local recycling station where the powerbank is recycled or disposed of in a correct manner.
• Never burn the powerbank, even if it is damaged and can no longer be charged. Batteries explode when they are burned.

General safety instructions

- The device is delivered without adapters. The USB-A mains adapter or the USB-A car adapter must comply with the nationally applicable regulations as well as with international and regional safety norms. The USB-A mains adapter and USB-A car adapter must have an output of 5 Volt and minimum 2 Ampere.

- Before using the device, assemble it completely (water tank closed, cooling pad and back shutter in position). Always keep the Type USB-A / USB-C cord out of the USB-C socket on the device when assembling/disassembling. Never use the device when the cooling pad or back shutter is removed or damaged or when water tank is open.

- Operating the device with the Honeycomb Cooling pad removed will damage the motor.

- Check device, powerbank (not included), Type USB-A / USB-C cord, the USB-A mains adapter (not provided) or the USB-A car adapter (not provided) for damage before use. Check the Type USB-A / USB-C cord for the correct insulation, cuts, scrapes and the condition of the connectors. Do not turn on the device if you have discovered damage to the device, powerbank, Type USB-A / USB-C cord, USB-A mains adapter or the USB-A car adapter, if the device is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts. The device (incl. Type USB-A / USB-C cord) may only be opened and/or repaired by properly authorised and qualified persons.

- Never use the device with a programmer, timer, separate remote-control system, or any other device that switches the device on automatically.

- Never connect the device to a dimmer.

- Do not use this device with any solid state speed control device.

- Do not put anything on top of this device.

- Do not place the powerbank on top of this device. When opening the watertank, the powerbank may accidentally fall into the watertank!

- Avoid the use of extension cables. If unavoidable, use an approved cable with sufficient power. Completely unroll the cable.

- Before every use, check that the voltage on the socket to be used matches the input voltage indicated on the identification plate of the USB-A mains adapter or the USB-A car adapter.

- Always remove all the packaging before installing or using the device.

- Never let children play with the packaging material. Keep the packaging material out of the reach of children.

- Place and use the device on a dry, stable, and horizontal surface in an upright position. Minimum of 30~cm of free space is left around the device (intake and exhaust opening). Keep a close eye on the operation.

- This device (including the powerbank, Type USB-A / USB-C cord, USB-A mains adapter or a USB-A car adapter) is not suitable for use in wet or damp spaces such as bathrooms and laundry rooms. Do not place the device in the vicinity of taps, bathtub, shower, pool, fountains or other sources of moisture. Make sure it cannot fall into water and prevent water from getting into the device itself. If, at any time, the device does fall into water, unplug it immediately! Do not use a device that has a damp interior but have it repaired.

•This device is only to be used indoors.

- Do not use the device near gas appliances, fireplaces.

- Keep device away from fire and do not expose them to direct sunlight.

- Do not use the device (including Type USB-A / USB-C cord, USB-A mains adapter or a USB-A car adapter) at temperatures above 40^ , not in the vicinity of heating appliances and not in dusty areas.

- Never use the device near flammable or explosive substances or fuels. Flammable or explosive substances or fuels may cause an explosion. Only use the device in a clean and well-ventilated area.

- Never let the Type USB-A / USB-C cord hang over the edge of a table or counter. Someone could trip over the cord or accidentally pull the cord.

- The Type USB-A / USB-C cord may never come into contact with sharp, hot or moving objects, must not be wound around the device and must not be bent or rolled up too tightly.

- Do not place the device in an open window to avoid rain or on wet surfaces and avoid moisture spillage.

- Never hang things over the device. Ensure that curtains, clothing and other materials do not come into the vicinity of the device.

- Keep the intake and exhaust openings clean and free from dust and make sure that a minimum of 30~cm of free space is left around the device.

- Do not cover the device.

- Do not let any liquid or flammable detergent enter the device (including the powerbank, Type USB-A / USB-C cord, USB-A mains adapter or a USB-A car adapter), to avoid electric shock and/or a fire hazard.

- Never insert a finger, pen or any other object through the protective grille when the device is in use!

- Never use any paint, cleaning sprays, anti-insect sprays, or similar near the device when the device is switched on.

- This device should only be used in the way as set out in the booklet. Any other usage may be dangerous (could cause fire, injury, damage, electric shock etc.), will invalidate the guarantee.

- Keep long hair away from working device, to avoid hair getting tangled in device.

- Never immerse the device (including the powerbank, Type USB-A / USB-C cord, USB-A mains adapter or a USB-A car adapter) in water or other liquids and never touch the device, cord or plug with wet hands or feet.

- Never pull the cable to disconnect it from the socket. Always grasp the plug and pull.

- Disconnect the device from the power source and immediately switch off the device when you hear strange noises, smell or see smoke.

- Do not leave a device operating unsupervised in a room.

- Always disconnect the device from the power source after use.

- Prevent the device from constantly blowing on small children, patients or people who have difficulty moving.

- The USB-A mains adapter (not provided) is a high-voltage part and therefore must never be opened, even if the device is switched off.

- Never let the product or Type USB-A / USB-C cord become dusty. Regularly clean the device and Type USB-A / USB-C cord from dust.

- First turn off the device and then disconnect the device from the power source before moving, cleaning or carrying out maintenance. Do that when the device is not in use as well. Pull on the plug to remove from the socket, never pull on the cable!

- Be sure that the device is disconnected from the power source before removing the back shutter and cooling pad from the device for cleaning and maintenance work.

- Never use cleaning solvents or abrasives to clean the device. Using the wrong cleaning products may damage the housing of the device. Always use the correct cleaning method specified in this user manual.

- Do not store or use the device:

• in locations where it could become wet or fall into water; • near flammable, explosive or gaseous substances; • near acids, alkalis, oil or other corrosive substances.

- Do not carry out any structural changes or construction work on the device yourself.

Warnings related to water and moisture

- Always disconnect the device from the power source before (re)filling the water tank or cleaning, servicing or relocating the unit.

- Be careful with water spilling out while moving the device.

- Do not touch the unit, move/reposition it or hold it at an angle once you have filled it with water; to prevent moisture in the electrical part.

- Never get any water on the powerbank, Type USB-A / USB-C cord, connectors and adapters.

- Do not exceed the ‘MAX’ level when refilling the water reservoir. Ensure that the powerbank, Type USB-A / USB-C cord, connectors and adapters do not get wet or fall into the water tank. Always ensure the water tank is filled with water above the ‘MIN’ level mark, when operating the air cooler in evaporative COOL mode.

- Never use the COOL mode with an empty tank as this may result in damage to the water pump.

- Only use cold water, no lukewarm or hot water. Fill the water tank only with fresh drinking water.

- Make sure that the water in the water tank is changed every 3 days, otherwise there is a risk that micro-organisms will develop in the water tank, which will get into the air or water and pose a health risk.

- Replace the water regularly, especially in case of warm weather, to prevent contamination. Remove the remaining water from the unit during frosty conditions.

- Do not drink the water. There is a health hazard.

- Remove the water and dry the tank if the unit is not to be used for some time, for winter storage or before you transport it. This will prevent moisture vapours and bad odours.

- Keep the Type USB-A / USB-C cord away from the exhaust opening, especially when using the evaporative COOL mode.

- Do not place the device directly beneath a wall socket, especially when using the evaporative COOL mode.

- Do not use the COOL mode in a small, enclosed space to prevent excessive humidity.

- Do not expose the device to a directed jet of water.

- Ensure that objects in the vicinity of the device do not become damp or wet. If dampness occurs, the emission must be reduced. Switch the device to a lower setting. If emissions cannot be reduced, the appliance may only be used intermittently.

- Make sure that absorbent materials such as carpets, curtains and net curtains, tablecloths do not become damp.

- Note that high humidity can promote the growth of biological organisms in the environment.

Warranty

EUROM offers a 36-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.

Introduction

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

It is important to read and understand this instruction manual before assembling, installing and using the device.

This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ.

The following symbols and terms are used in this manual to alert the reader to safety issues and important information:

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Identification

POWERFUL PRODUCTS SINCE 1974	Coolstar PortableArt.nr. 386172Batch B*****
5VDC - 6,5 Watt - 2,0 A
EUROM - KOKOSSTRAAT 20 - 8281 JCGENEMUIDEN - NETHERLANDS - [e-mail]

Figure 6.

Specifications

Type Coolstar Portable
Voltage: 5 V DC 2 A
Rating power: 6.5 W (Max)
Connection: USB-C
Cable: Type USB-A / USB-C Cord
Airflow: 145 m	^3 /h
Fan speed: 2 settings
Water tank capacity: 0.9 liter
Water evaporation: 0.3 - 0.5 liter/h
Horizontal adjustment: Manual
Protection class: Class III
Water level sensor: Yes
Weight: 1.2 kg
Dimensions: 17x15x32 cm

Description

The Coolstar Portable is a powerbank-operated air-cooler. 'Warm' air is drawn into the cooler and enters the Honeycomb Cooling Pad. Water pumped from the water tank pours over the Honeycomb Cooling Pad. As the warm air passes through the Honeycomb Cooling Pad, the water absorbs the heat, naturally cooling and humidifying the air. A fan propels the cooled air

out into the room. This no-compressor system cools naturally, efficiently and inexpensively. The air cooler can cool the air up to 3 degrees.

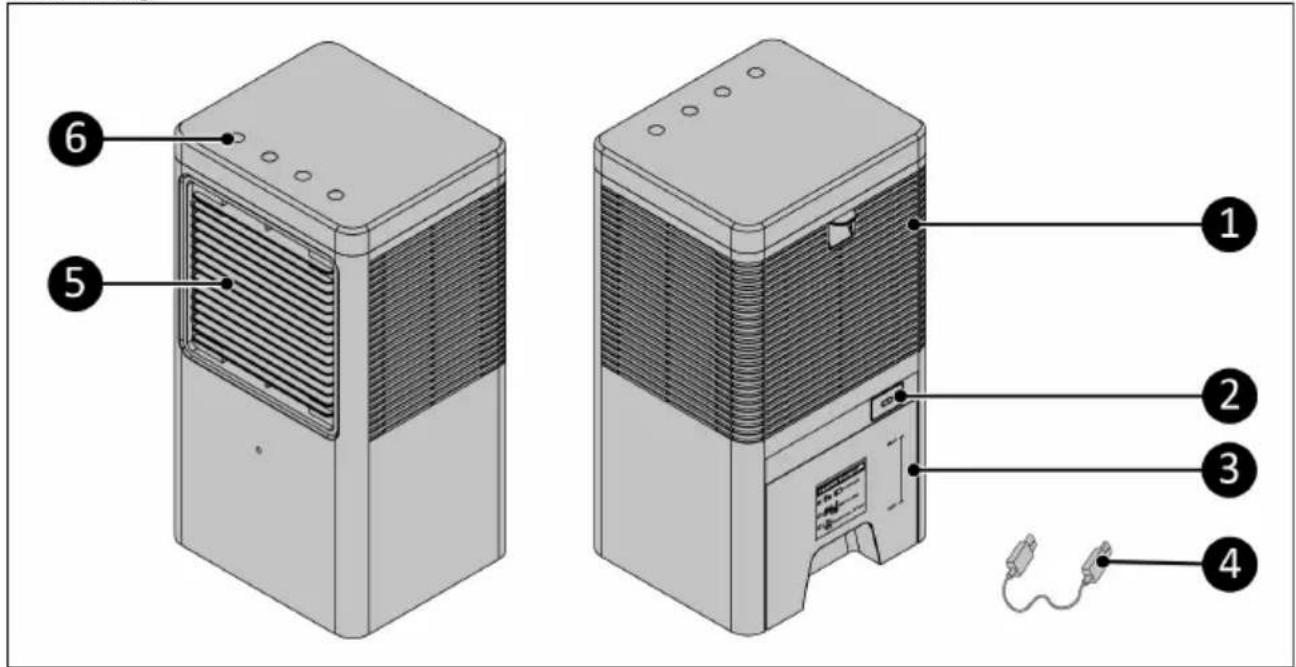

Unboxing

Technical diagram of a dual-chamber HVAC unit with numbered components and labeled parts

Figure 7.

No.	Description No. Description
1 Back shutter 4 USB-A / USB-C cord
2 USB-C port 5 Front grille
3 Water tank 6 Control panel

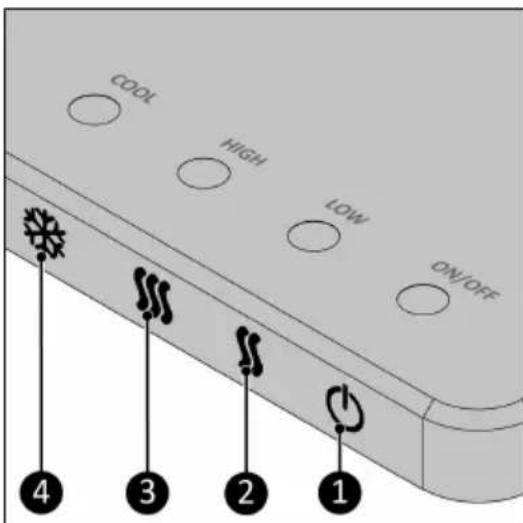

Control panel

1. ON/OFF button
2. LOW wind speed button
3. HIGH wind speed button
4. COOL button

COOL HIGH LOW ON/OFF ④ ③ ② ①

Figure 8.

Transport and storage

• Empty and clean the water tank before storage and transport.
• Let the air cooler work in fan mode to dry the Honeycomb Cooling Pad.
• Disconnect the device from the power source.
• Clean the device before storing it.
• Store this product in a ventilated, dry and cool place.
• Avoid heat and prolonged exposure to direct light.

Installation

WARNING

•The product should only be used with the suitable powerbank with an USB-A output from 5 Volt and minimum 2 Ampere. Never use powerbanks with other specifications!
•We strongly recommend use of the Varta powerbank (see the 2nd page of this manual).
•To charge the powerbank, use only the power cable supplied with the powerbank. Using any other power cable may cause irreparable damage to the product and the environment and may be dangerous.
- Read the separate manual from the powerbank before charging and using it.

Filling water tank for COOL mode

CAUTION

Never get any water on the powerbank, Type USB-A / USB-C cord, connectors, and adapters.

CAUTION

Make sure that the water in the water tank is changed every 3 days, otherwise there is a risk that micro-organisms will develop in the water tank, which will get into the air or water and pose a health risk.

1. Switch off the device and disconnect it from the power source.

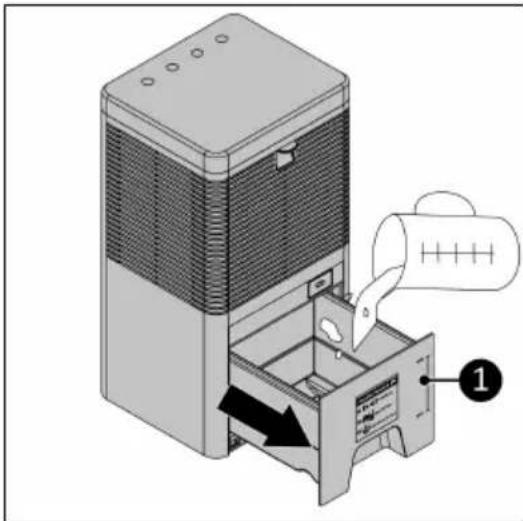

2. Pull back the water tank (Figure 9, pos. 1).
3. Use a can or bottle to fill the watertank with fresh drinking water (max. 0.9 liter).
4. Never exceed the MAX level mark on the water tank.
5. Close the water tank.

Diagram of a device with a paper feeding into a container, showing internal components and an arrow indicating flow (no text or symbols present)

Figure 9.

Operation

CAUTION

Make sure that the USB-A / USB-C cord does not protrude through the fan grille.

There are 4 ways to power the Coolstar Portable:

1. By powerbank

1. Connect the USB-A connector of the USB-A / USB-C cord to the USB-A output port of the powerbank.

2. Connect the USB-C connector of the USB-A / USB-C cord to the USB-C port on the device.

3. Place the powerbank on the backside of the device. Never place the powerbank on the frontside because in COOL mode moist air comes out of the front grille.

2. Via 220/240 Volt 50 Hz socket

Use a USB-A mains adapter (not provided), which is intended for use with a household socket of 220-240 Volt / 50 Hz, output voltage of 5 Volt and an output capacity of minimum 2 Ampere. Never try to use a USB-A mains adapter with other voltages. The connection voltage and the frequency stated on the USB-A mains adapter must correspond with those of the socket that you use. The electrical installation must be equipped with a residual-current circuit breaker of 30mA.

1. Connect the USB-A connector of the USB-A / USB-C cord to the USB-A output port of the adapter.

2. Connect the USB-C connector of the USB-A / USB-C cord to the USB-C port of the device.

3. Connect the USB-A mains adapter to a suitable household socket.

3. Via a USB car adapter (the cigarette lighter)

Use a USB-A car adapter with an output voltage of 5 Volt and a output capacity of minimum 2 Ampere. Never try to use a USB-A car adapter with other voltages. The connection voltage

stated on the USB-A car adapter must correspond with those of the socket that you use and the electrical installation must be equipped with a circuit breaker.

1. Connect the USB-A connector of the USB-A / USB-C cord to the USB-A output port of the adapter.
2. Connect the USB-C connector of the USB-A / USB-C cord to the USB-C port of the device.
3. Connect the USB-A car adapter to a suitable cigarette lighter socket.

4. Via a 5 Volt USB-A port (e.g. a laptop or computer)

Use a USB-A port with an output voltage of 5 Volt and a output capacity of minimum 2 Ampere. Never try to use other USB-A ports.

1. Connect the USB-A connector of the USB-A / USB-C cord to the USB-A output port.
2. Connect the USB-C connector of the USB-A / USB-C cord to the USB-C port on the device.

Turning on/off

1. Turn on the powerbank.
2. Press the ON/OFF button to turn on the device.
3. Press the ON/OFF button again to turn off the device.

Wind speed

The fan has 2 wind speeds which can be selected.

1. Turn on the device.
2. Select the HIGH or LOW wind speed button.

Cooling

1. Press the COOL button to enter the COOL mode.
2. Blue light is illuminated when water tank is filled.
3. Red light is illuminated when water tank is empty.

When the COOL mode is activated, the pump inside the water tank will pump water to saturate the cooling pad. Heat that flows through the cooling pad will exchange with water and cool the air flowing through the cooling pad to lower the temperature.

Cleaning and maintenance

CAUTION

• Be sure that the device is disconnected from the power source before performing cleaning and maintenance work.
• Clean the inside from the water tank and remove sediment from the water tank.
• Never immerse the device in water or any other liquid.
• Never use abrasive, aggressive, or flammable cleaning agents such as bleach or alcohol to clean any part of the device.

• Regularly clean the outside of the fan to prevent dust from collecting.

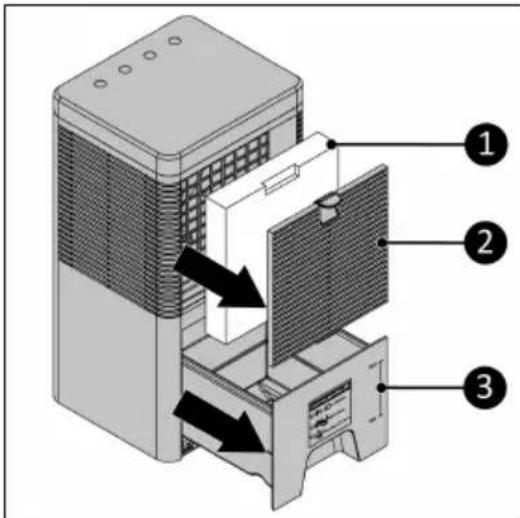

• Pull the water tank backwards (Figure 10, pos. 3) and drain the water from the water tank.

• Clean the inside of the water tank and remove sediment from the water tank.

• Close the water tank.

• Remove the back shutter (Figure 10, pos. 2).

• Clean the cooling pad (Figure 10, pos. 1) with clean water and wipe dirt of with a soft brush.

• Place the cooling pad and the back shutter back into position.

Diagram of a server rack with labeled components and directional arrows indicating internal movement or assembly.

Figure 10.

Troubleshooting

Issue Possible causes Suggested remedies
The fan is switching on and off (especially in higher wind speed settings)	The power source is not sufficient	Immediately switch off the device and provide a suitable power source from 5 Volt and minimum 2 Ampere
Water is spitting from the device	The cooling pad is out of position	Replace the cooling pad in the correct position
	The top water distribution tray is clogged	Remove the back shutter and pull the cooling pad out of the holder. Poke the holes at the bottom of the distribution tray with a sharp object
Undesirable odour Clean the water tank and the cooling pad

Disposal

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Technical diagram of a dual-chamber HVAC unit with numbered components and labeled parts

Abbildung 12.

Diagram of a device with labeled parts, showing a container being inserted into a rack and pouring liquid into a container.

Abbildung 14.

Betrieb

VORSICHT

Diagram of a server rack with labeled components and directional arrows indicating movement or flow.

Abbildung 15.

Fehlerbehebung

Symbol image showing a trash bin with crossed-out lines and a recycling symbol, indicating restricted waste or non-recyclable material.

Technical diagram of a dual-chamber HVAC unit with numbered components labeled 1 through 6.

Figure 17.

Diagram of a device with airflow or heat transfer from a top panel to a lower panel, showing internal components and directional arrows (no text or symbols)

Figure 19.

Utilisation

PRUDENCE

Diagram of a server rack with labeled components and directional arrows indicating movement or flow.

Figure 20.

Dépannage

Symbol of a recycling symbol: a trash bin with crossed-out lines and a recycling triangle (no text or numbers present)
