USER MANUAL Aliano Blumfeldt
QR code image containing encoded data, no visible human-readable textINHALTSVERZEICHNIS
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Dear Customer,
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
Mounting with Dowels 8
Mounting with Screws 9
Care Instructions 10
Manufacturer & Importer (UK) 10
MATERIAL COMPOSITION
| Hinges Stainless steel/plastic | |
| Soft Close damper set Hydraulic dampers made of plastic | |
| Damper fluid Sliding fluid | |
| Buffer Polyethylene | |
| Note: The material of the toilet seat is made of duroplast (UF A 10, urea formaldehyde resin) dyed through, which is free from environmentally harmful substances. Thermoset is produced from 69% urea formaldehyde resin, 28% cellulose, 3% minerals, pigments, lubricants and moisture. | |
MOUNTING WITH DOWELS
1  | 2  | ||
| Place the expansion dowels in the recess of the toilet. | Attach the anti-slip washer to the bottom of the black hinge and place both on the recess of the toilet.Insert the screws through the slot of the hinges into the inserted expansion anchors. Do not tighten the screws completely and then place the toilet seat on the hinges.Now you can align the toilet seat. | ||
 |  | 4 |  |
| Remove the toilet seat again. Tighten the screws and place the stainless steel cover on the hinges. | Place the toilet seat back on the hinges. | ||
 |  | Required for installation: | |
| Screwdriver Toilet seat (1x) Expansion dowels (2x) Hinges (2x) Anti-slip washers (2x) Screws (2x) Hinge covers (2x) | |||
| If you press the button 1x, you can remove the toilet seat with both hands afterwards. | |||
MOUNTING WITH SCREWS
1 |  |
| Place the anti-slip washer on the black hinge, then insert the screw through the slot of the hinge. Place the U-shaped metal bracket on the screw and attach the nut. Place everything into the recess of the toilet bowl. Hold the hinge firmly and tighten the screw so that it can still be moved tightly. | Place the toilet seat on the hinge base to fit the seat to the toilet bowl. Adjust the position of the seat until it fits properly and tighten the screw. |

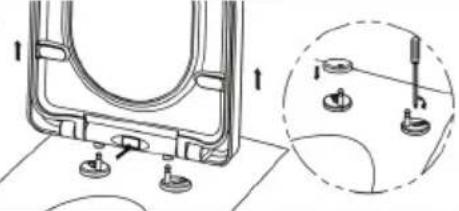

3 |  |
| Remove the toilet seat again. Tighten the screws and place the stainless steel cover on the hinges. | Place the toilet seat back on the hinges. |
5 | Required for installation: |
| Screwdriver Toilet seat (1x) Metal brackets (2x) Hinges (2x) Anti-slip washers (2x) Screws (2x) Hinge covers (2x) Nuts (2x) | |
| If you press the button 1x, you can remove the toilet seat with both hands afterwards. |
CARE INSTRUCTIONS
This toilet seat was made with care. If you follow a few simple cleaning instructions, it will delight you with its beauty, comfort and quality every day.
- The surface of the toilet seat is closed and non-porous, which helps to ensure optimal hygiene. Do not use abrasive, chlorine or acidic detergents, as they can damage the surface and cause yellowish discoloration.
- Use only a mild, PH-neutral soap solution for cleaning.
- If the toilet seat or hinges have come into contact with toilet cleaner or other aggressive cleaning agents, rinse them immediately with clean water.
- After cleaning, wipe off any remaining moisture on the seat and hinges with a soft cloth.
- When cleaning, make sure that the toilet seat and lid are open or removed until the cleaning agent in the bowl is completely flushed away.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
